Original M5Stack ATOMS3 ESP32-S3 Programmable Controller Development Board Kit Wi-Fi 6-axis Gyro Sensor MPU6886 For IoT node

SKU: 1005007250393351

Original price was: $77.70.Current price is: $22.20.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

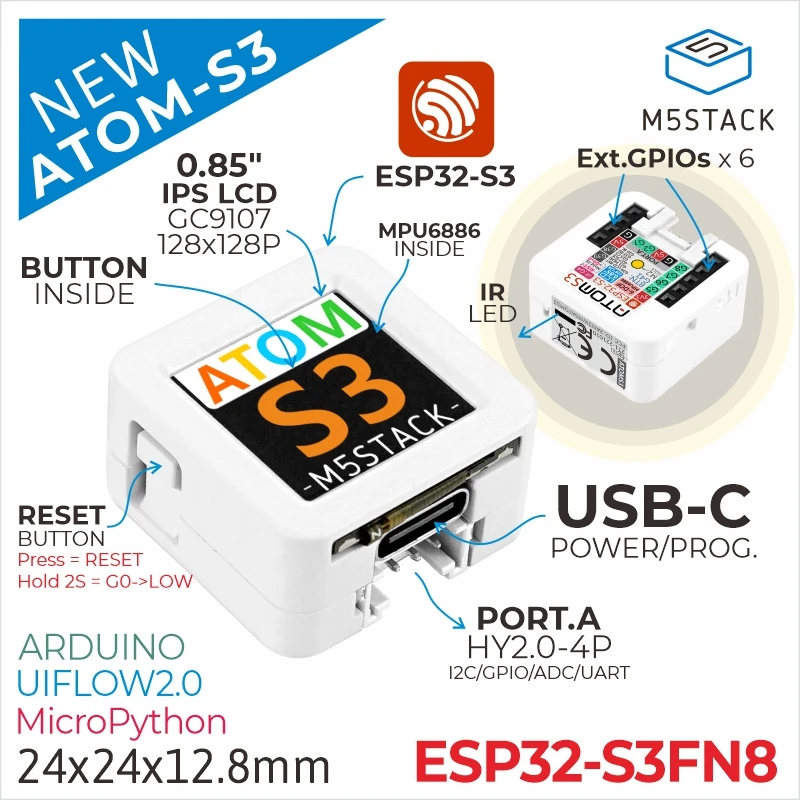

M5Stack ATOMS3 ESP32-S3 Programmable Controller

 Product Features

  • Developed based on ESP32-S3FN8

  • Comes with USB download function

  • Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)

  • Programmable keys

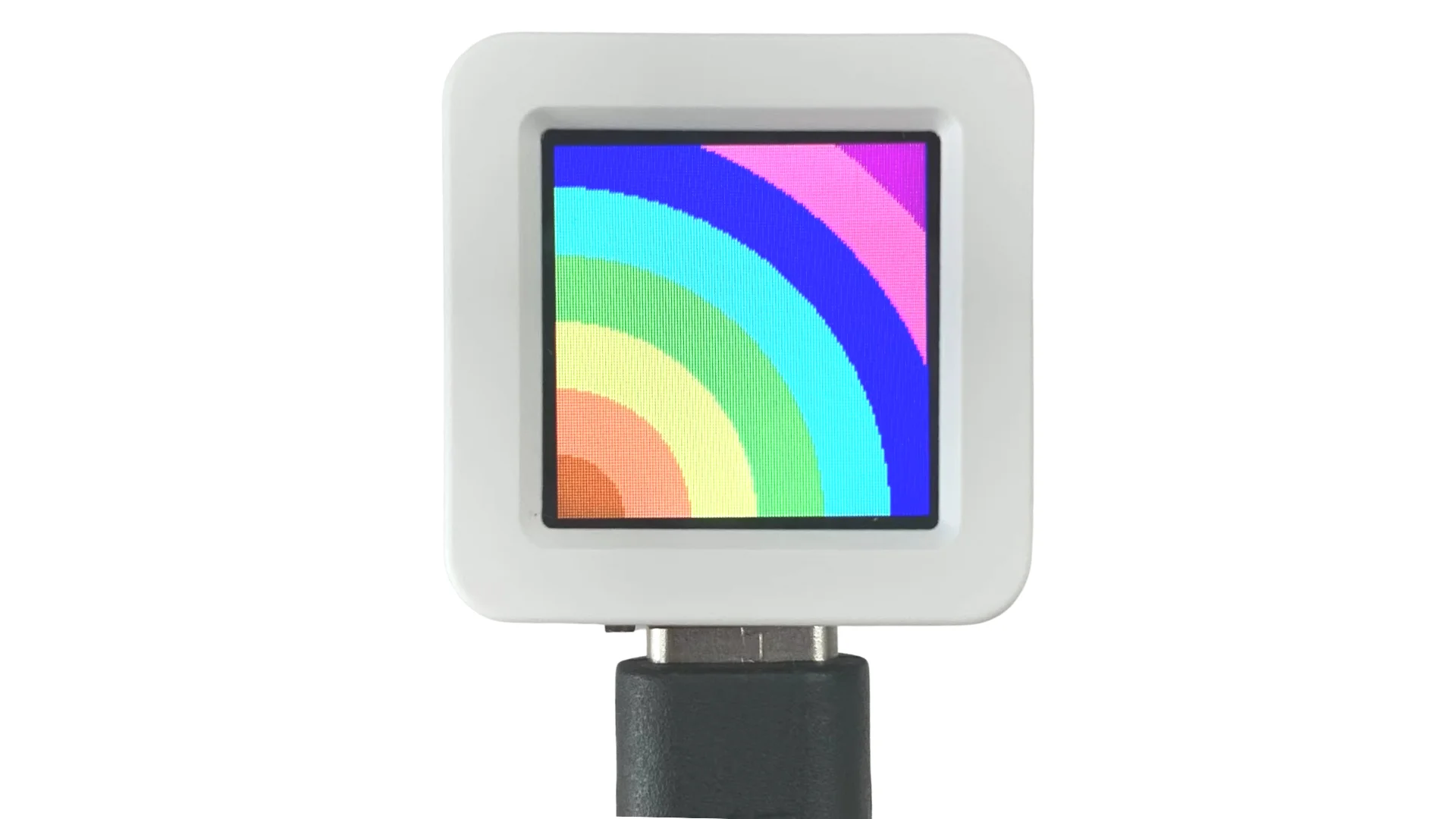

  • 0.85 inch LCD screen

  • Infrared emission function

  • Expandable pins and interfaces

  • Development platform: Arduino, UIFlow

Applications

  • IoT node

  • Microcontroller

  • Wearables

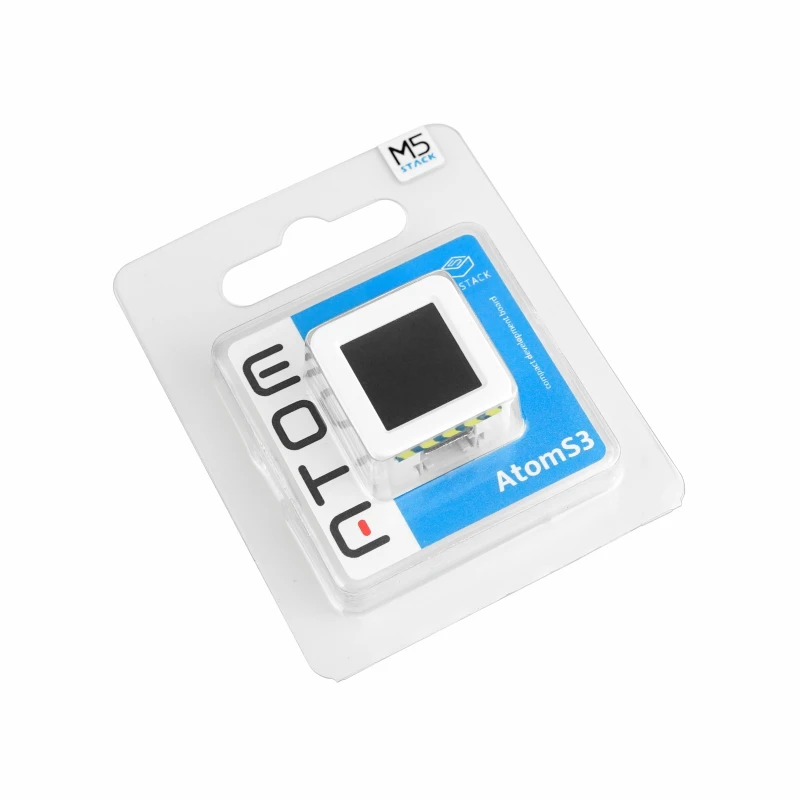

 Package Includes

1x ATOMS3
 Specification

Resources Parameters

MCU: ESP32-S3FN8

DCDC: SY8089

IMU: MPU6886

Operating temperature: 0°C ~ 40°C

Resolution: 128 x 128

support voltage: 5V

Power supply mode: TYPE C

output voltage: 3.3V

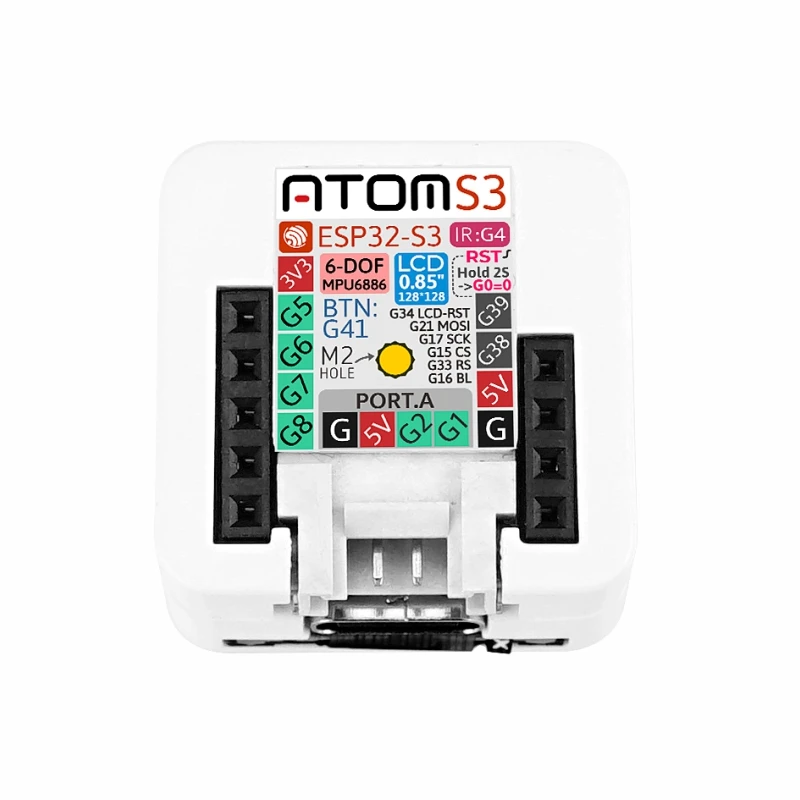

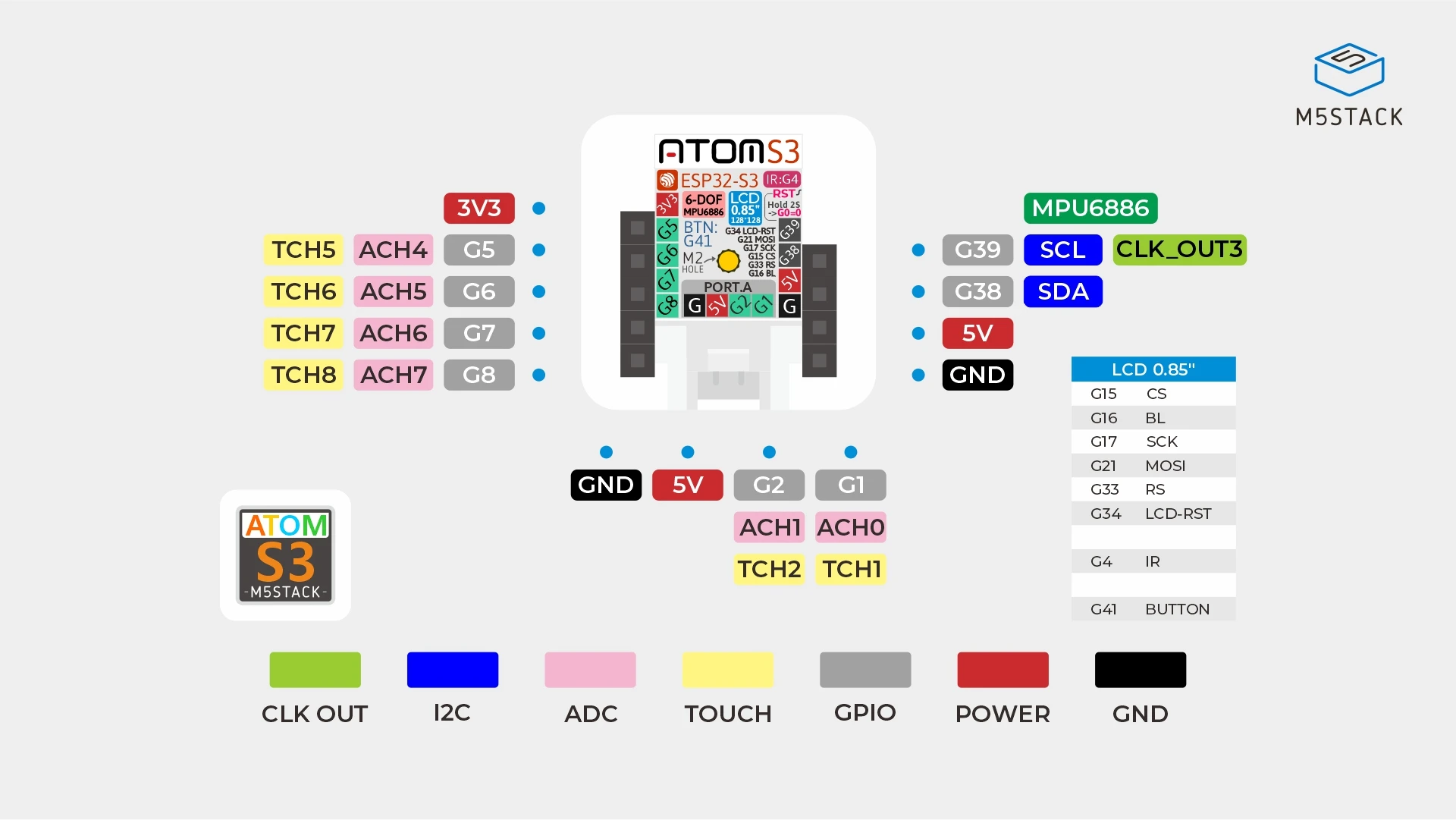

GPIO: G5/G6/G7/G8/G38/G39

Screen communication protocol: SPI

Product Size: 24*24*13mm

Package Size: 65*44.5*14mm

Product Weight: 6.8g

Package Weight: 10.9g


 Product details
Schematic
Module Size

 Product Description

AtomS3 is a highly integrated programmable controller that harnesses the power of the ESP32-S3 chip. This compact controller boasts a range of features, including integrated WiFi functionality and 8MB of on-chip FLASH memory. With the ESP32-S3 chip, AtomS3 delivers exceptional performance and versatility for a variety of applications.



AtomS3 features a sleek 0.85-inch IPS screen, providing clear visual feedback and user interaction. The bottom of the screen is equipped with programmable buttons, allowing for customizable functions and enhanced user control. It comes with a built-in 5V to 3.3V circuit, ensuring stable power supply for reliable operation. The controller incorporates a 6-axis gyro sensor MPU6886, enabling precise motion detection and orientation tracking. On-board Type-C interface facilitates both power supply and firmware download processes. Additionally, AtomS3 offers one HY2.0-4P expansion port, six GPIOs, and power pins reserved at the bottom for seamless integration and expansion of various applications.



AtomS3 is designed with compactness in mind, measuring at only 24 *24 *13mm in size. Its small form factor makes it suitable for a wide range of embedded smart device applications. Whether it's robotics, IoT devices, or other embedded systems, AtomS3 provides a powerful and flexible solution to meet the project requirements.

 Download Mode

Press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.
