Purchase Notes：
1. Our store sells the original iCar pro, we have Anti-piracy Software to test if is original, please contact us to get the Anti-piracy Software, avoid getting fake iCar pro from other stores.
2. If you use theIOS phoneto work withiCar pro Bluetooth 4.0, pleasedon't connect iCar pro in Bluetooth, just open the bluetooth, then Open the APP, find and connect the bluetooth in APP.
For IOS User:
Just Enable Bluetooth on the IOS device, Then configure Bluetooth device name in the OBD app setting.
## DO NOT Need to pair Bluetooth Name on IOS device. ##
For Android User:
The two names IOS-VLINK and ANDROID-VLINK will be displayed), it can only be connected to the ANDROID-VLINK name.

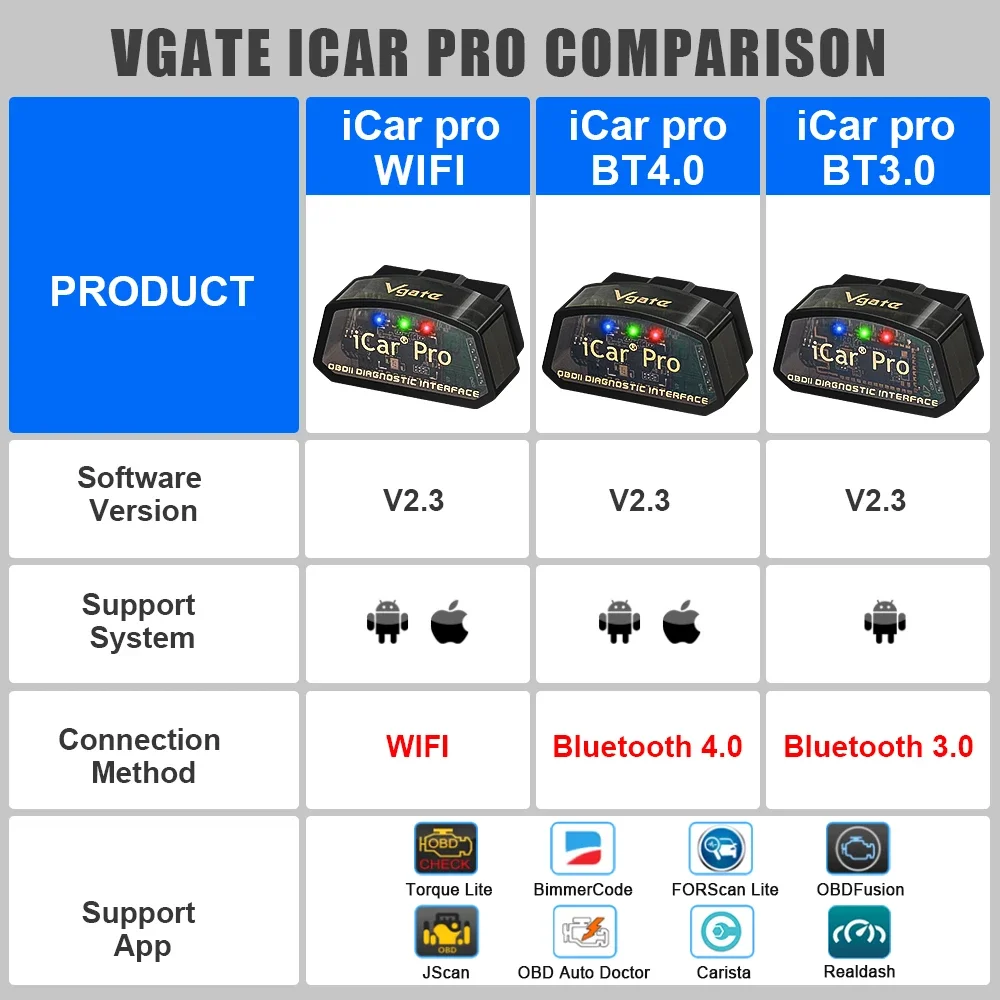

Vgate official iCar Pro Connection Method：
1.BT3.0 for Android
2.BT4.0 for Android/IOS
3.WIFI for Android/IOS
How to connect Vgate iCar Pro:
Low Energy Consumption
After the engine is stopped for 30 minutes, Vgate iCar Pro Bluetooth 3.0 goes to sleep and won't drain your automobile's battery.
Attention: For petrol vehicles
Its sophisticated triggers will wake up Vgate iCar Pro when you connect via Bluetooth, unlock doors, or crank the engine.
Features:
•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
•Clear trouble codes and turn off the MIL ("Check Engine" light)
•Engine RPM
•Calculated Load Value
•Coolant Temperature
•Fuel System Status
•Vehicle Speed
•Short Term Fuel Trim
•Long Term Fuel Trim
•Intake Manifold Pressure
•Timing Advance
•Intake Air Temperature
•Air Flow Rate
•Absolute Throttle Position
•Oxygen sensor voltages/associated short term fuel trims
•Fuel System status
•Fuel Pressure
Vgate iCar Pro OBD2 adpater is a High-quality automotive scanning tool, Supports all OBD2 protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)
Vgate iCar Pro BT3.0
•Work for Android
•Read both nonspecific and manufacturer specific trouble codes
•Read and delete fault codes, Turn off MIL
•Read real-time ECU sensor data

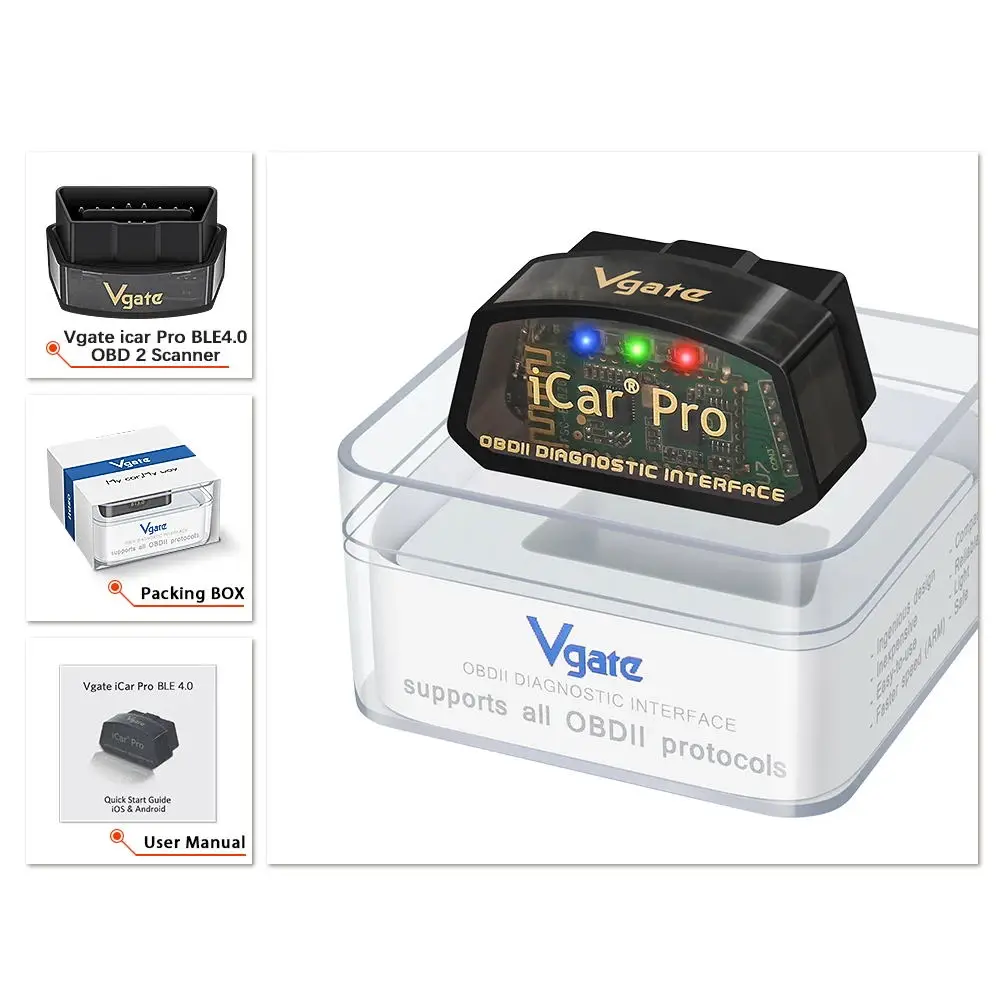

Vgate iCar Pro Ble4.0
•Work for iOS & Android
•Compatible with most apps
•Delete fault codes, Turn off MIL
•Automatic Sleep & Wake-Up
•Supports all OBD2 protocols
Vgate iCar Pro Support Automatic Start/Sleep（Electric vehicles are not supported this function）：
1.When the car is ignited, iCar Pro will automatically start
2.30 minutes after the car stalls, iCar Pro will automatically sleep
Vgate iCar Pro Wi-Fi
•Work for iOS iPhone iPad/Android
•Read both nonspecific and manufacturer specific trouble codes
•Read and delete fault codes, Turn off MIL
•Read real-time ECU sensor data
