Pair Go Kart ATV UTV Buggy Quad Rear Wheel Snow Rubber Sand Tracks Snowmobile

Pair Go Kart ATV UTV Buggy Quad Rear Wheel Snow Rubber Sand Tracks Snowmobile

Description

The ATV rear track assembly with outstanding performance and durability in the power transmission system has become a key component for improving vehicle performance and transportation capacity. They're responsible for transmitting the power output from the engine to the rear wheels, achieving vehicle drive and steering. It adopts advanced technology and materials, ensuring the stability and reliability of the vehicle in various road conditions. Whether for individual users who pursue the ultimate driving experience or enterprise users who need efficient transportation solutions, you can benefit from it.

Key Features

Durable & Sturdy: The iron rear axle with a 1.02-inch external diameter, gray cast iron brake disc, and aluminum alloy sprocket with heat treatment process offer wear prevention and a longer service life.

Stable Driving: The tracks have three gears inside that form a stabilizing triangle structure that can provide a more stable driving experience even on mud, sand, and mountain roads.

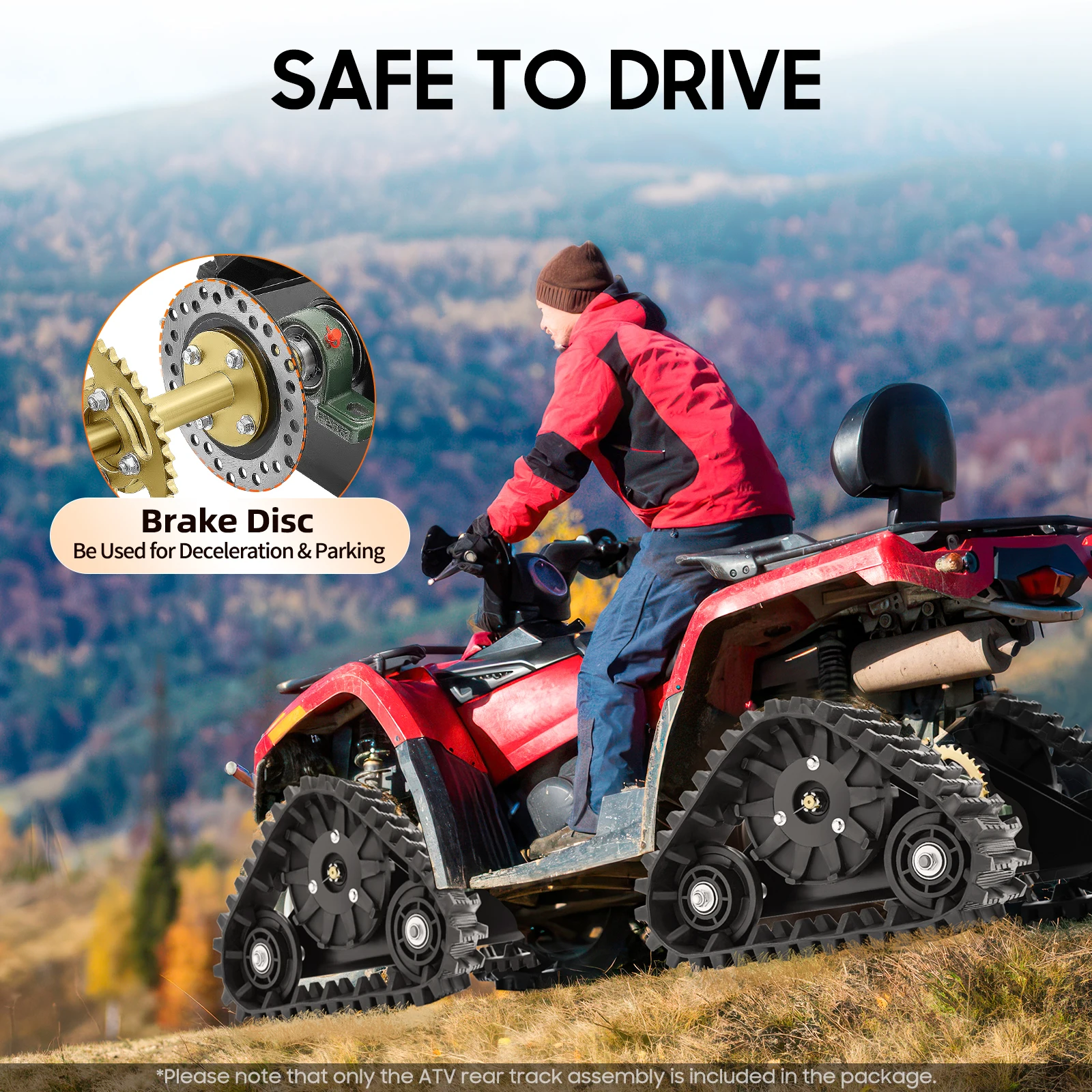

Safe to Drive: The equipped brake disc can be used for deceleration and parking, which ensures that the driver can quickly respond to various situations on the road.

Good Endurable Ability: It adopts high-performance ball bearings, which effectively reduce friction and wear, minimize noise and vibration, and extend service life.

Simple Maintain: The open design makes it easy to maintain, just drip lubricating oil into each connection point.

Power Delivery: When the sprocket is equipped with chains (excluded), it can deliver force directly to the rear axle and drive the rear wheels.

Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Modern Appearance: The classic black and gold make it easy to match and resistant to dirt.

Details

Anti-slip Texture: They are on the surface of rubber tracks and can prevent the vehicle from slipping effectively.

Rubber Track Wheels: They adopt an integrated molding process and one measures 17.71*4.72*11.41 inches, producing more friction and grabbing the ground firmly.

Support Shelf: It can prevent damage during installation, offering a fixing function.

Application

This ATV rear track assembly can be applied to go-karting, ATV, UTV, mountain off-road vehicles, snowmobiles, etc.

Specifications

Color: Black

Material: Aluminum Alloy, Gray Cast Iron, Iron, Rubber

Process: Heat Treatment Process

Loading-bearing Capacity: 300kg/661.38lbs

Rear Axle External Diameter: 2.6cm/1.02inch

Rear Axle Length: 60cm/23.62inch

Brake Disc Diameter: 16cm/6.29inch

Sprocket Diameter: 15cm/5.9inch

Single Track Wheel Size: 45*12*29cm/17.71*4.72*11.41inch

Gross Weight: 21.7kg/47.84lbs

Net Weight: 20.1kg/44.31lbs

Product Length: 68.5cm/26.96inch

Package Size: 55.5*44.5*22cm/21.85*17.51*8.66inch

Package Included

1*ATV Rear Track Assembly

All Accessories for Assembly

Notes

1. Please note that professional installation is recommended.

2. Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
