Product specifications
Product Name: P60
Cabinet color: starry black, snowy white, moon shadow gray

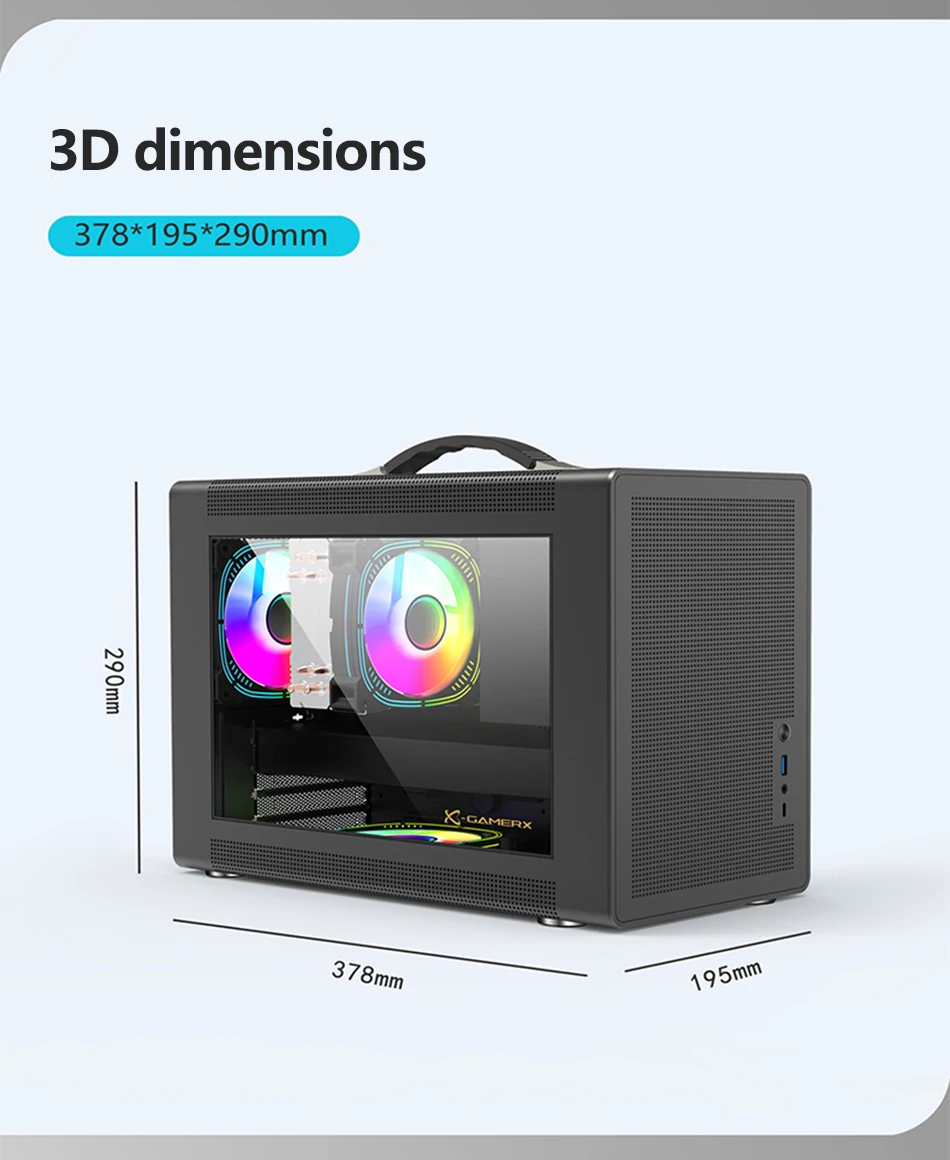

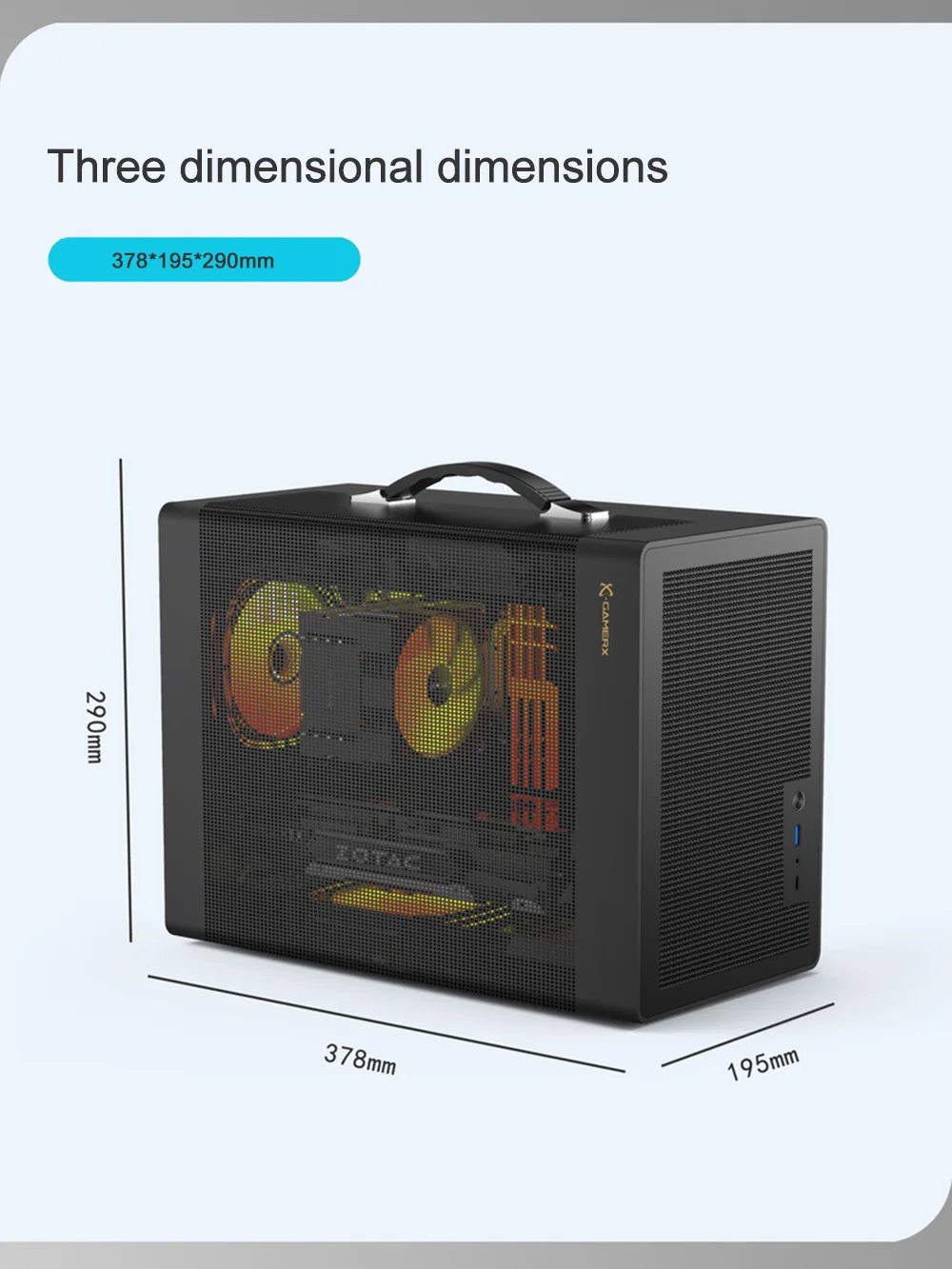

Product size: 378 * 195 * 290mm

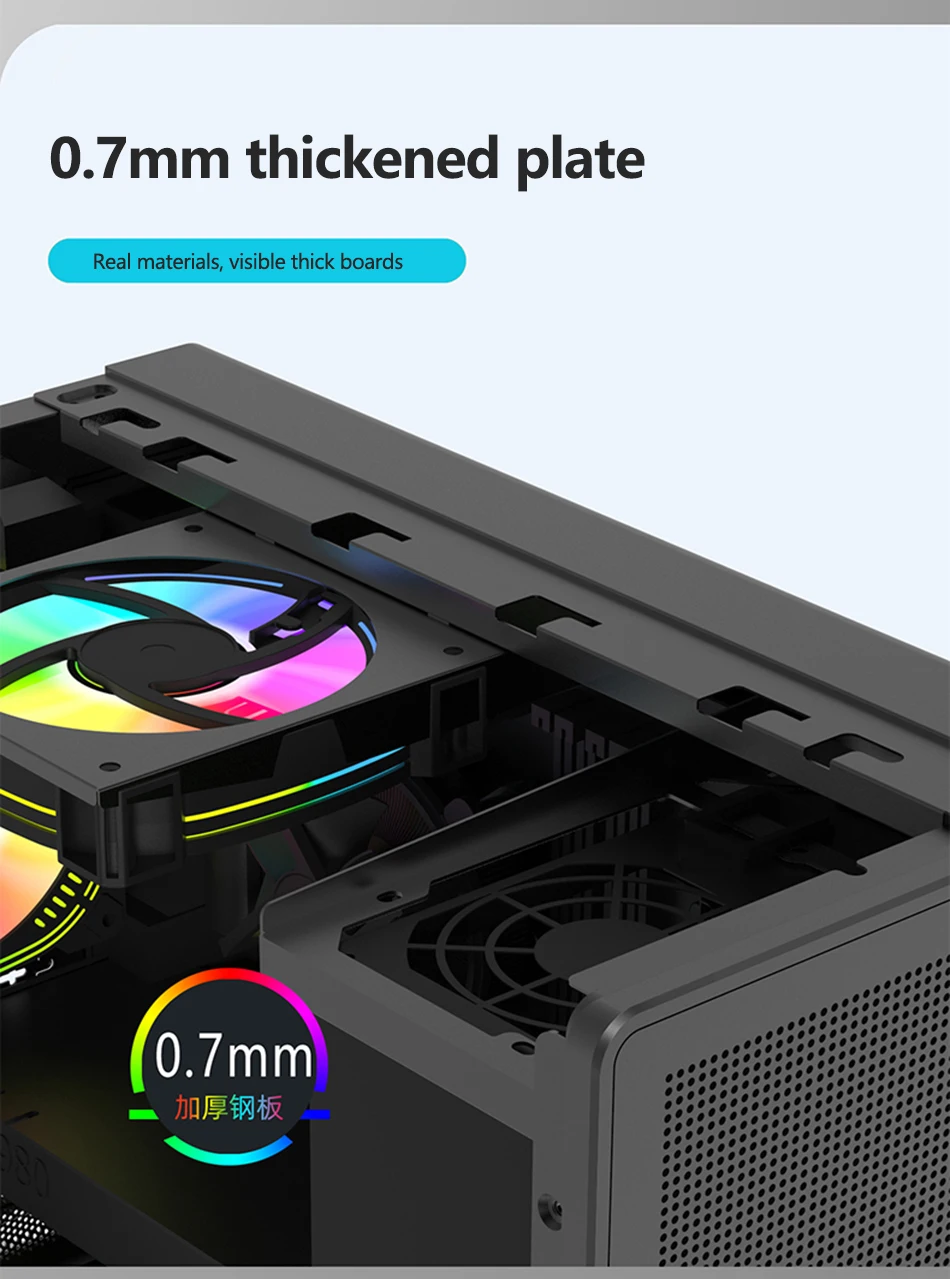

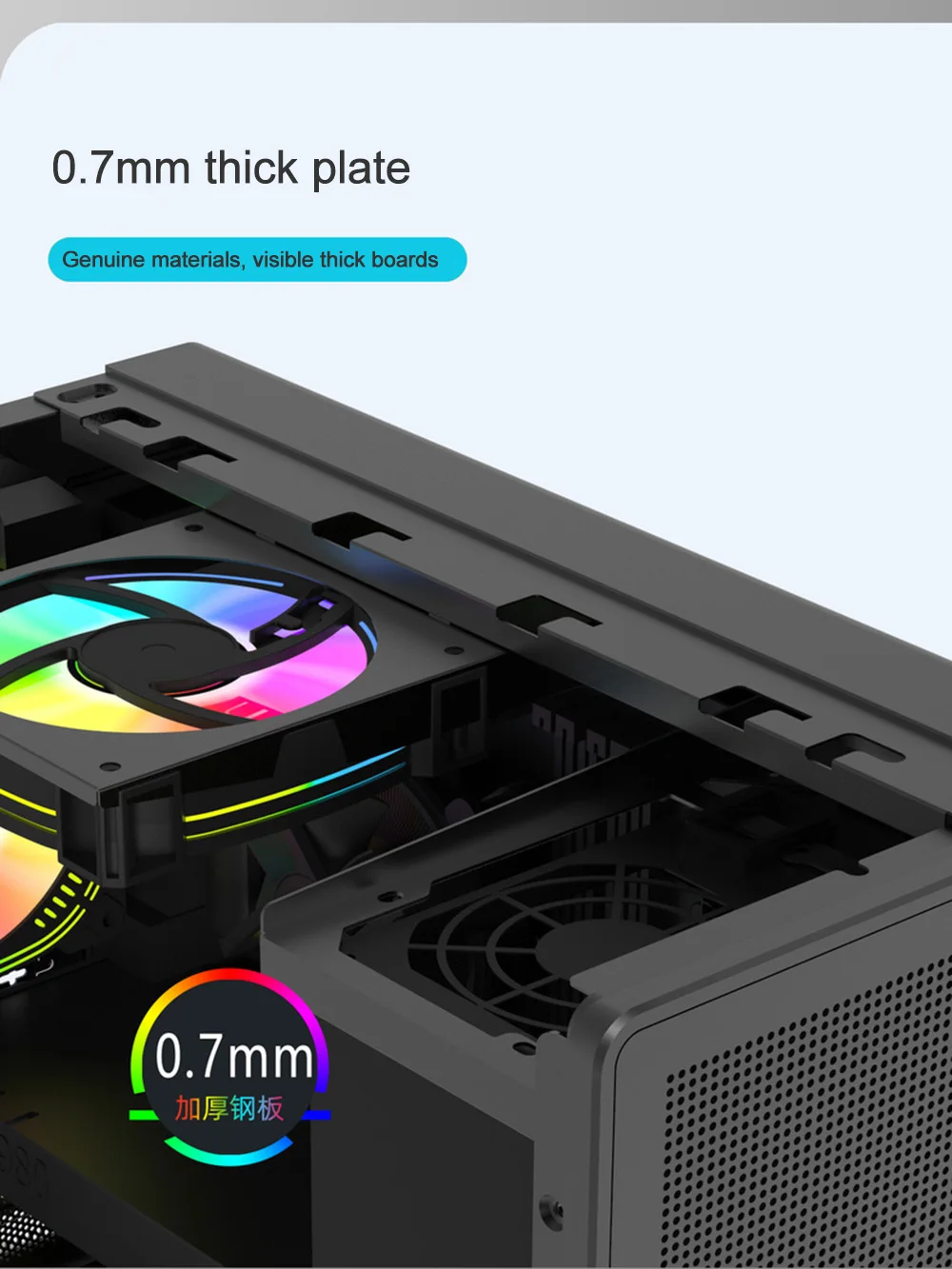

Material thickness: SPCC (baking paint) 0.7mm thickened

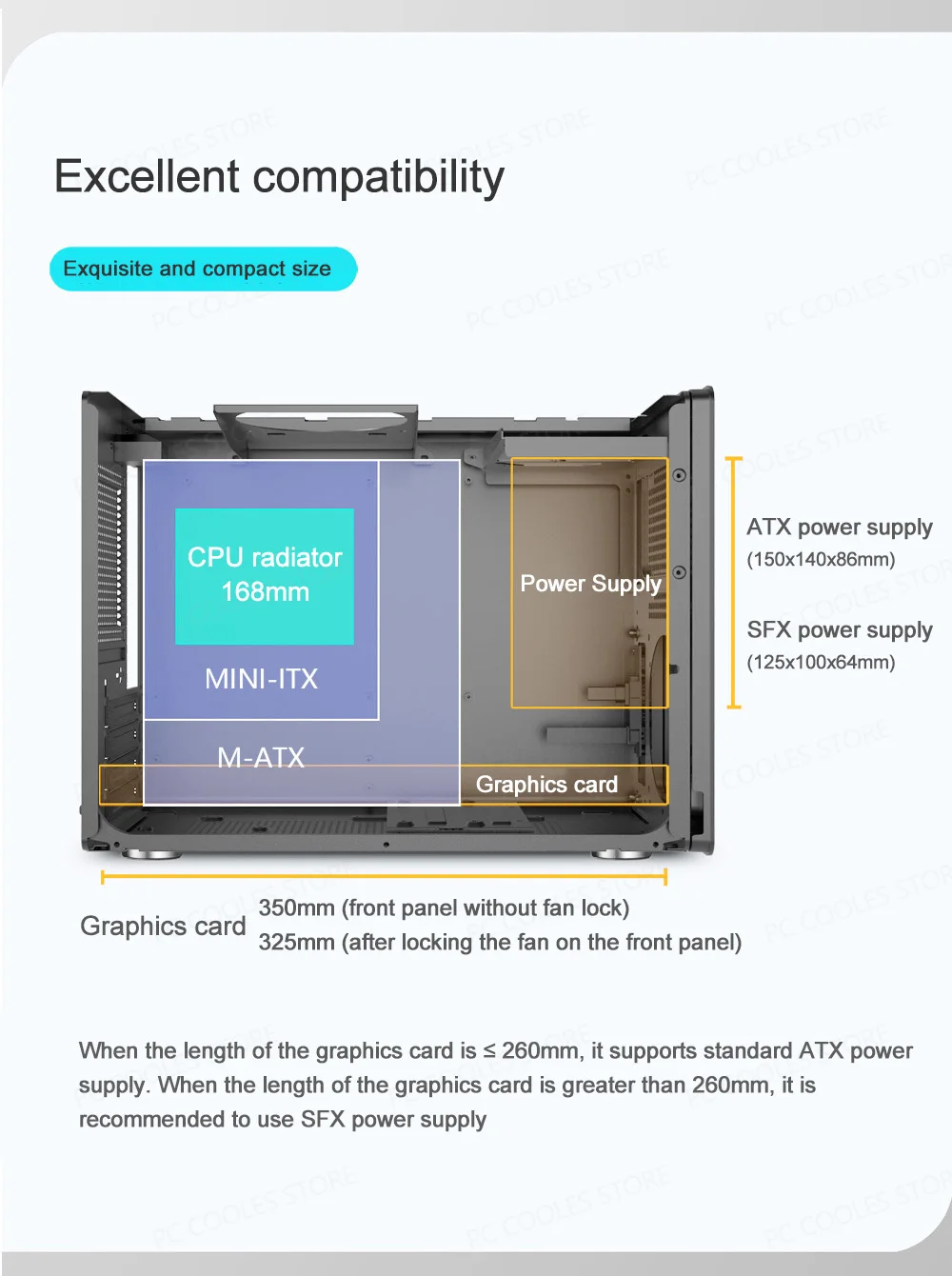

Power length: ATX power supply (150 * 140 * 86mm)
SFX power supply (125 * 100 * 64mm)
CPU heat sink: height limit 168mm

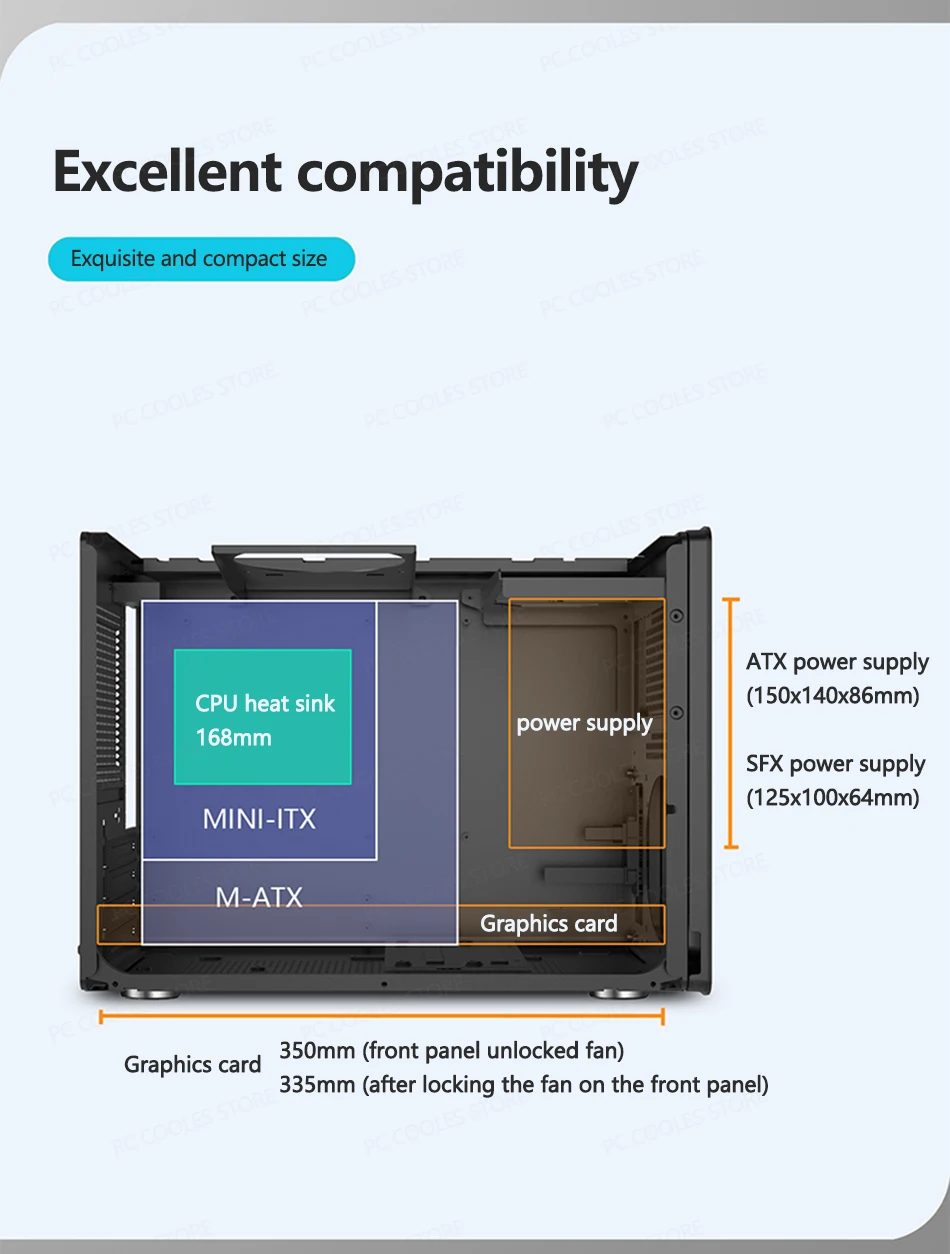

Graphics card length limit: 350mm (front panel without locking fan)
335mm (after locking the fan on the front panel)
Applicable motherboard: Micro ATX/Mini ITX

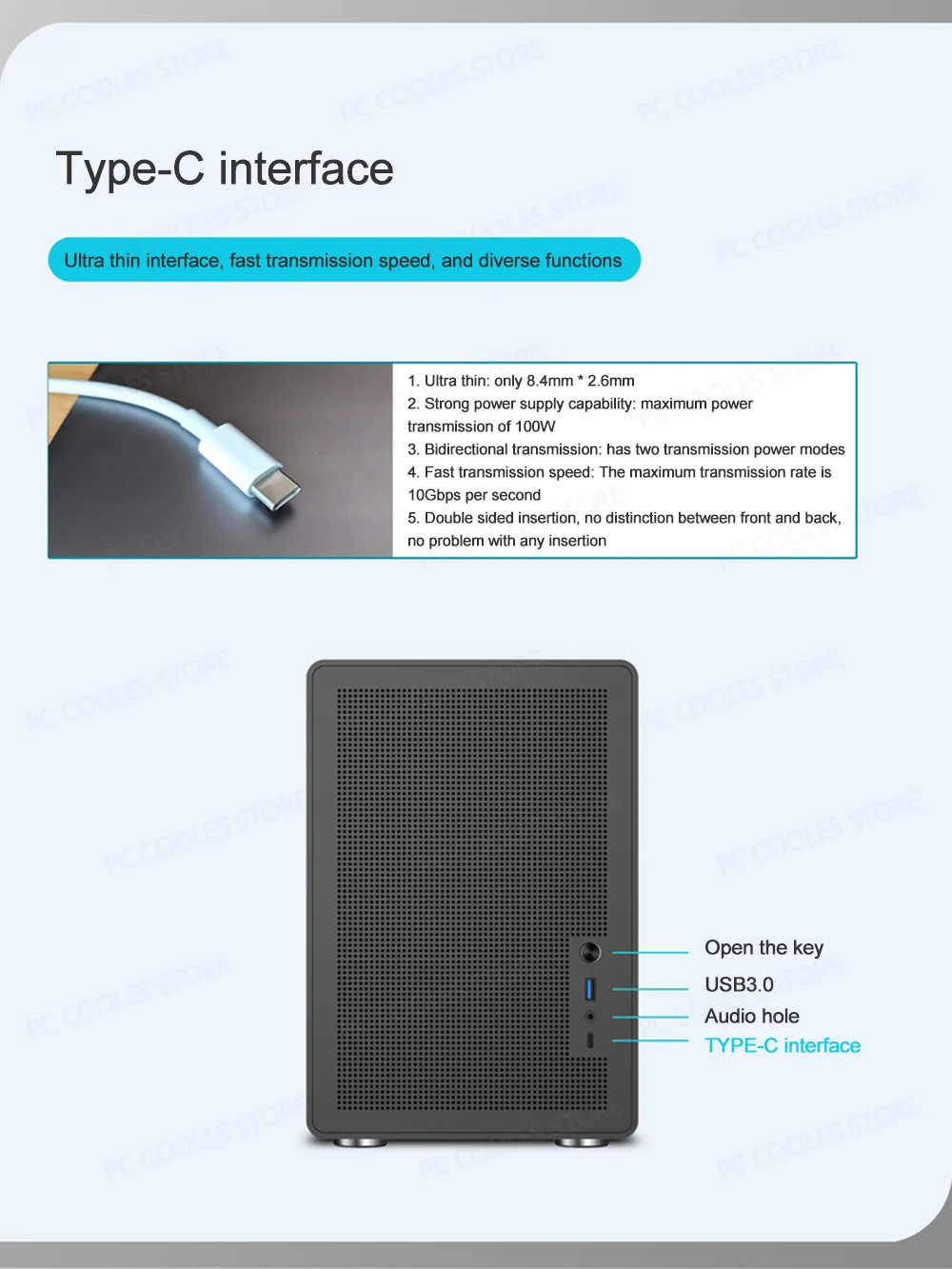

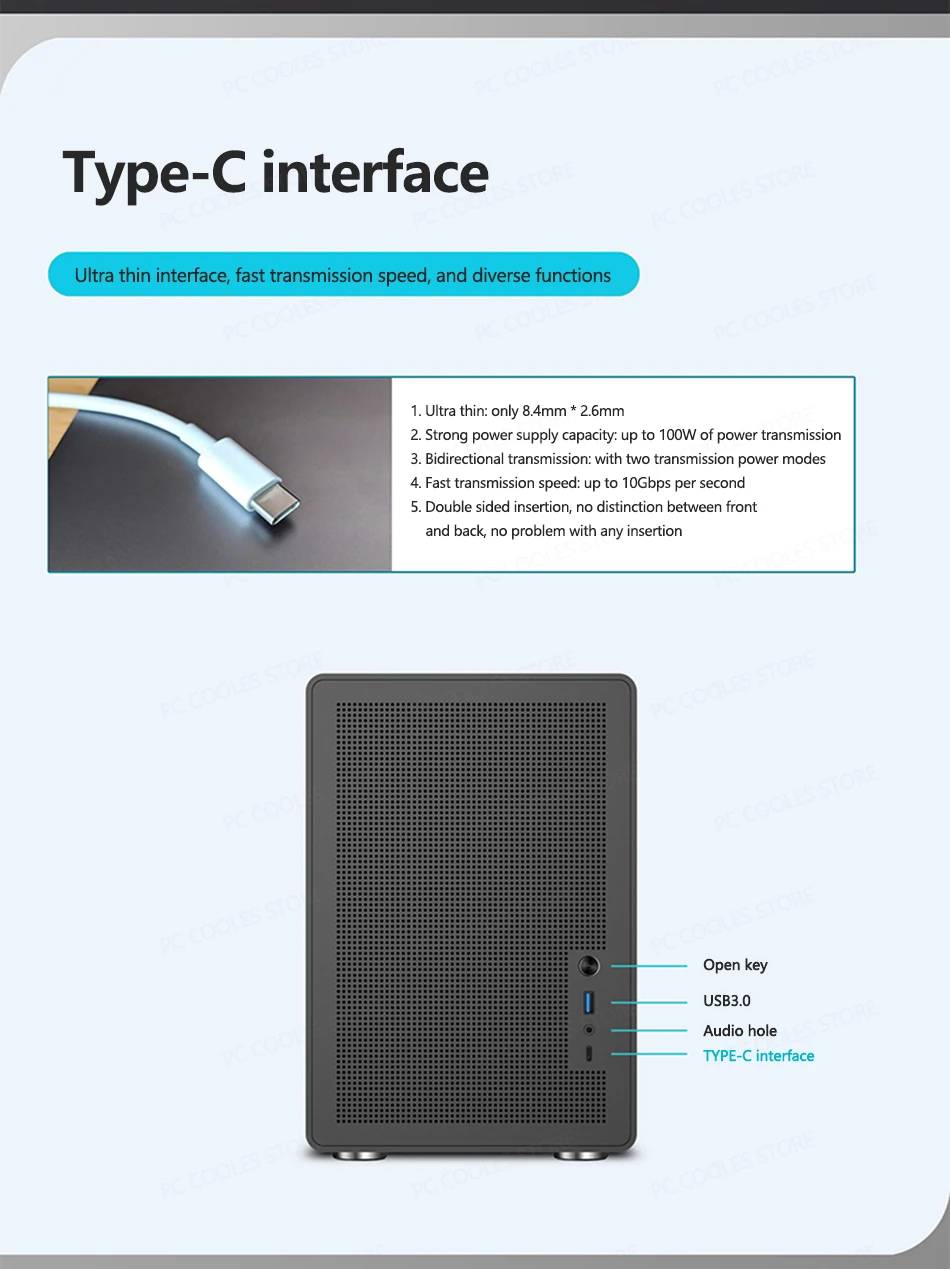

Panel interface: USB3.0, Type-C, HDAUDIO

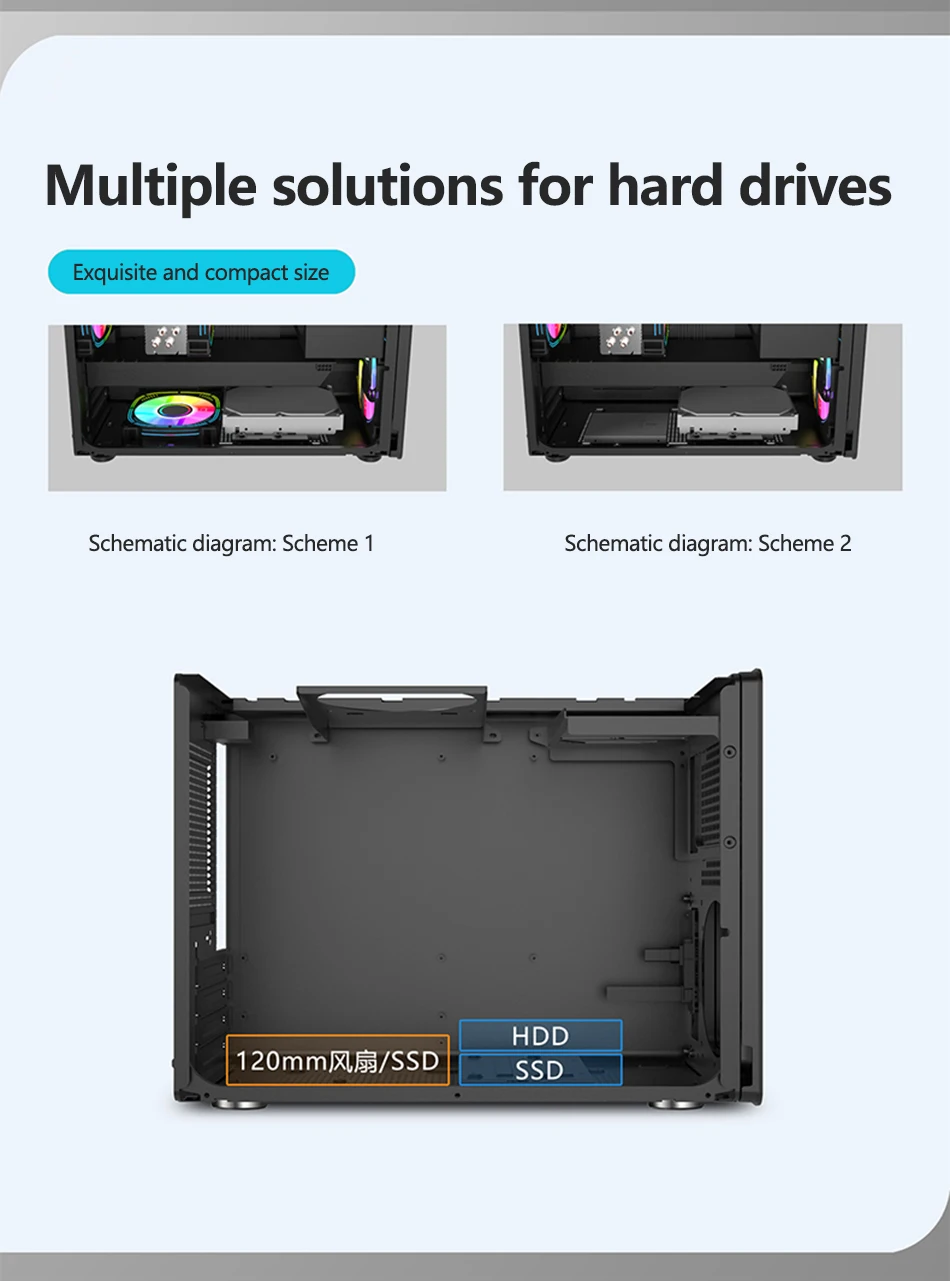

Expansion drive: 3.5 "HDD * 1, 2.5" SSD * 2 or 3.5 "HDD * 1, 2.5" SSD * 1 with bottom locked fan

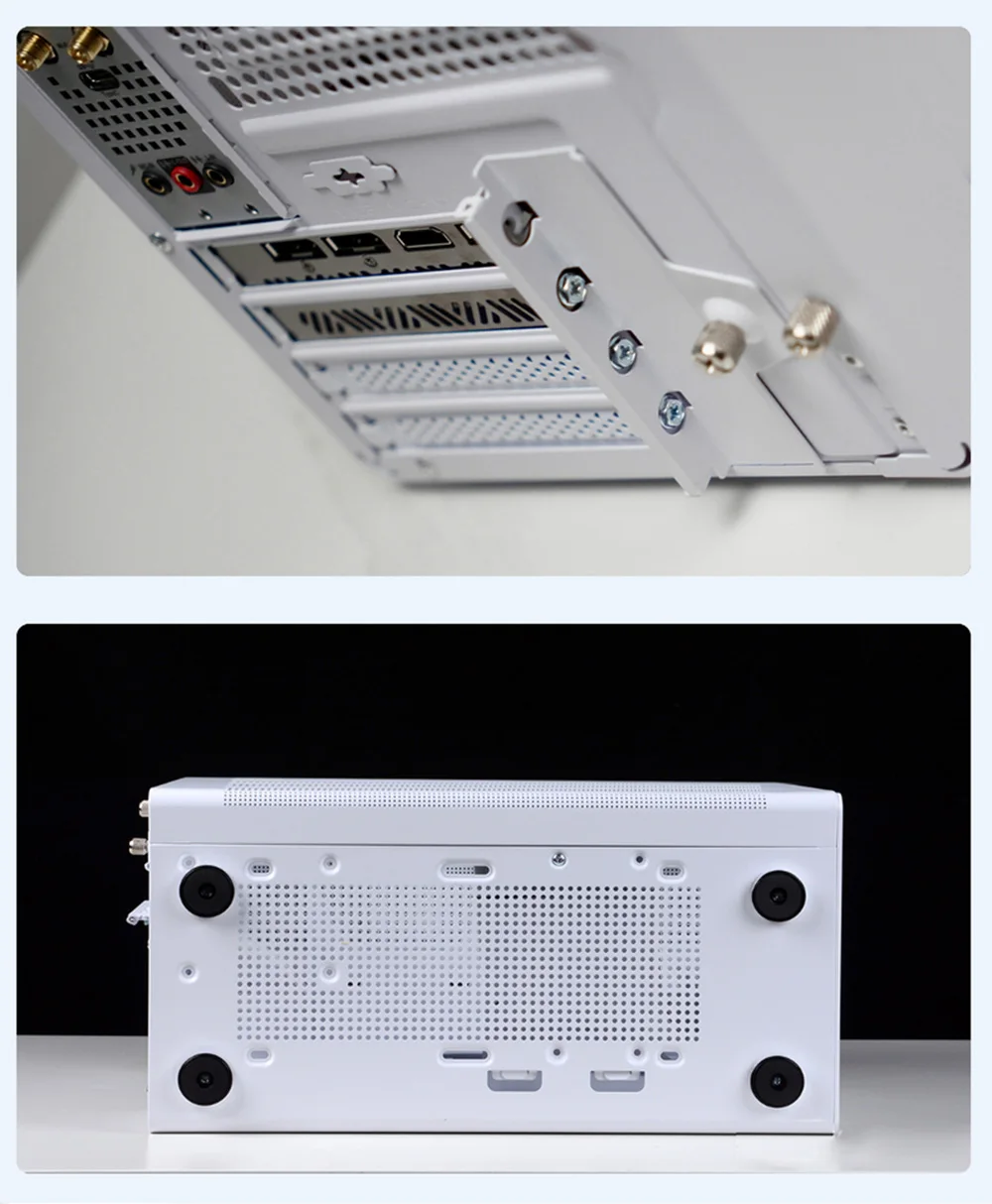

PCI slots: 4

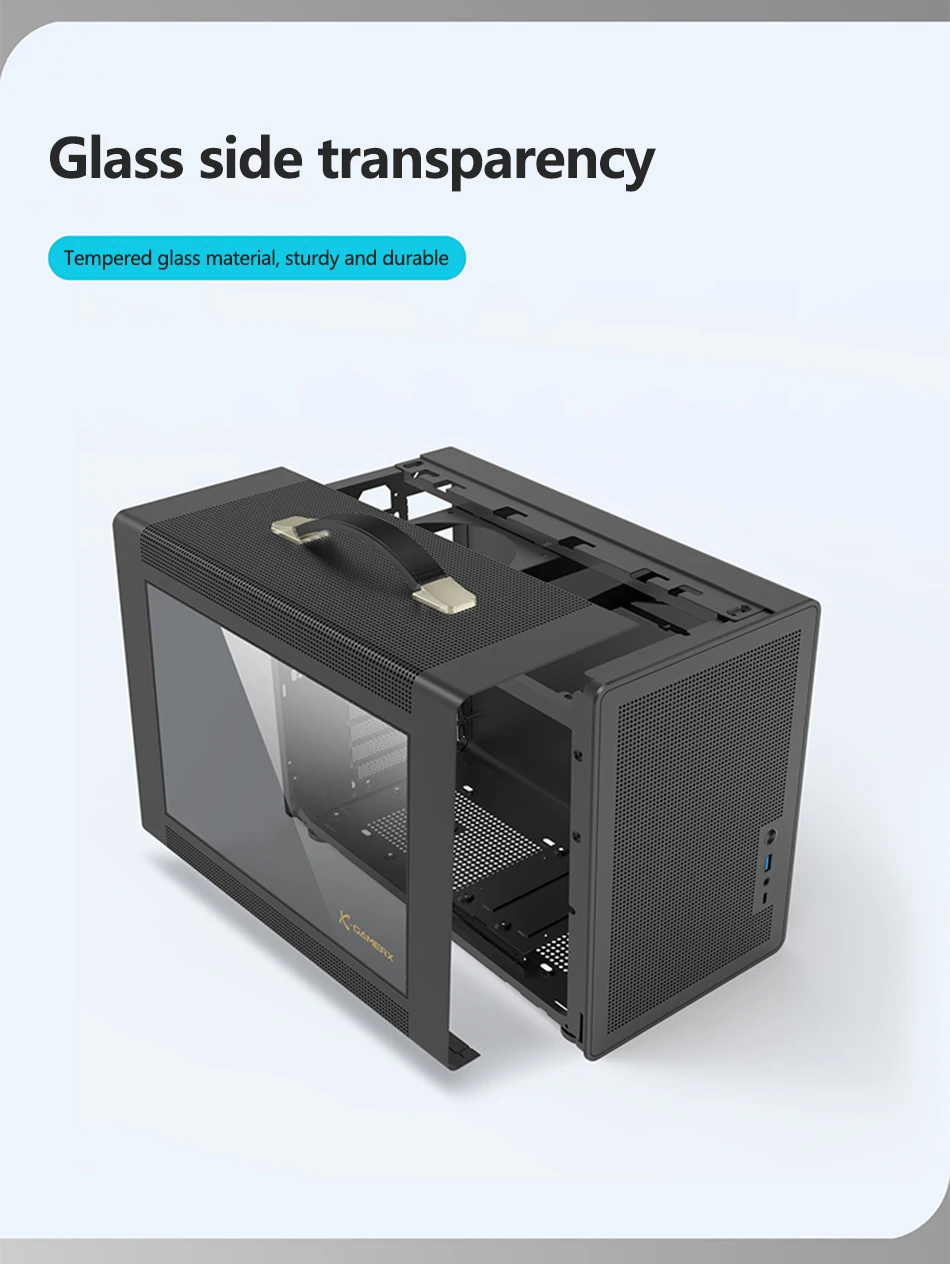

Tempered glass: Left tempered glass

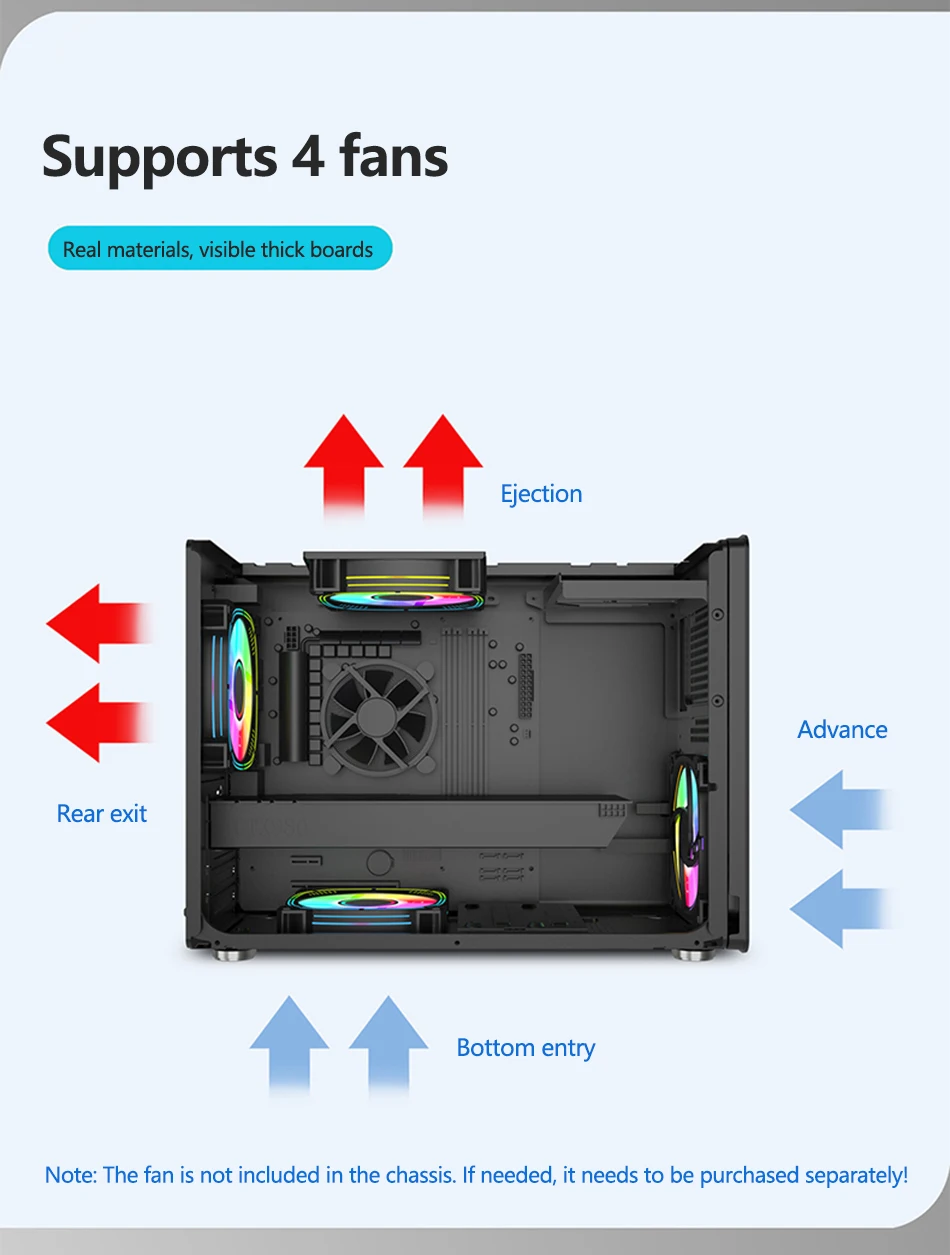

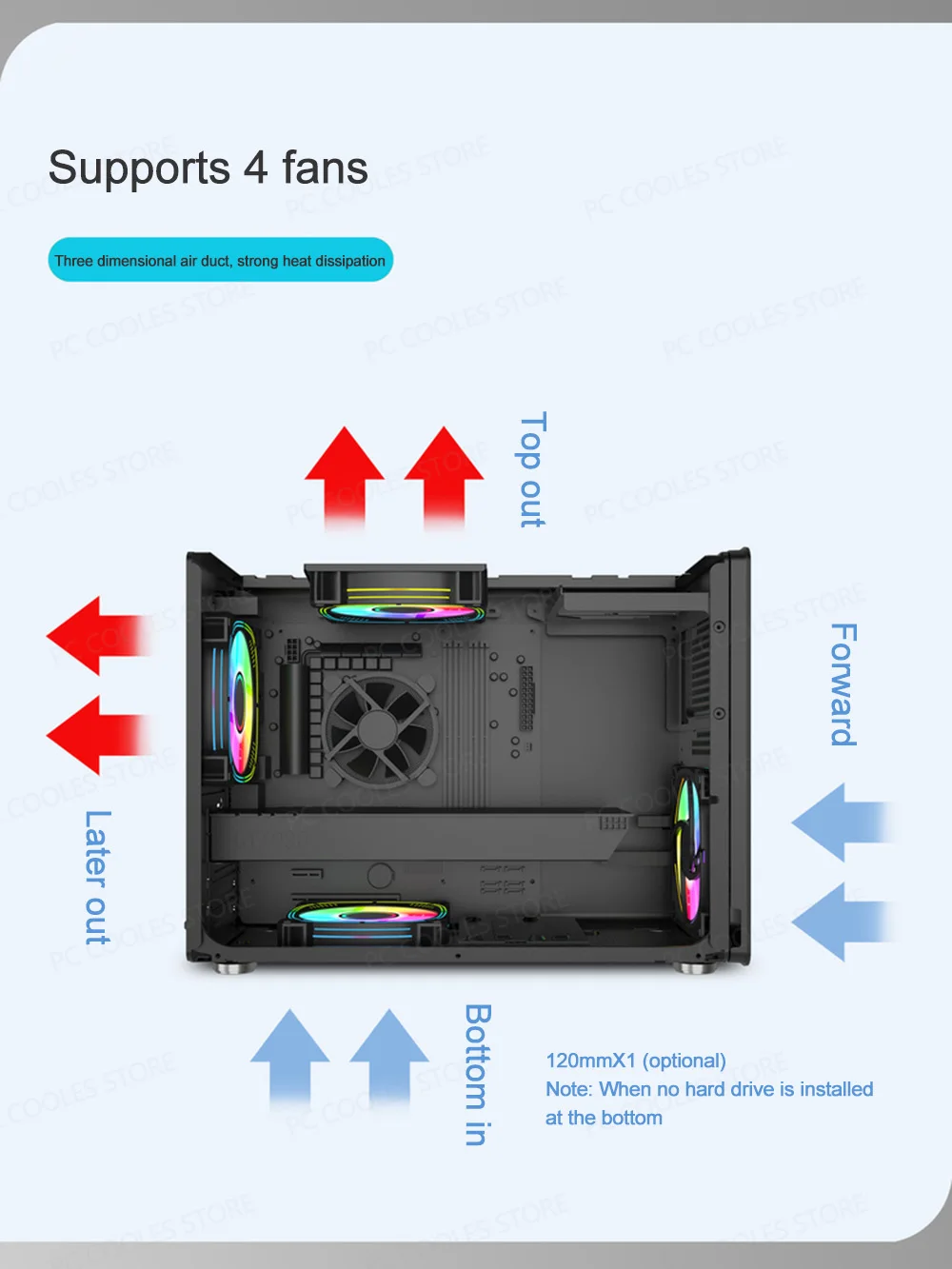

Cooling system: front: 120mm fan * 1

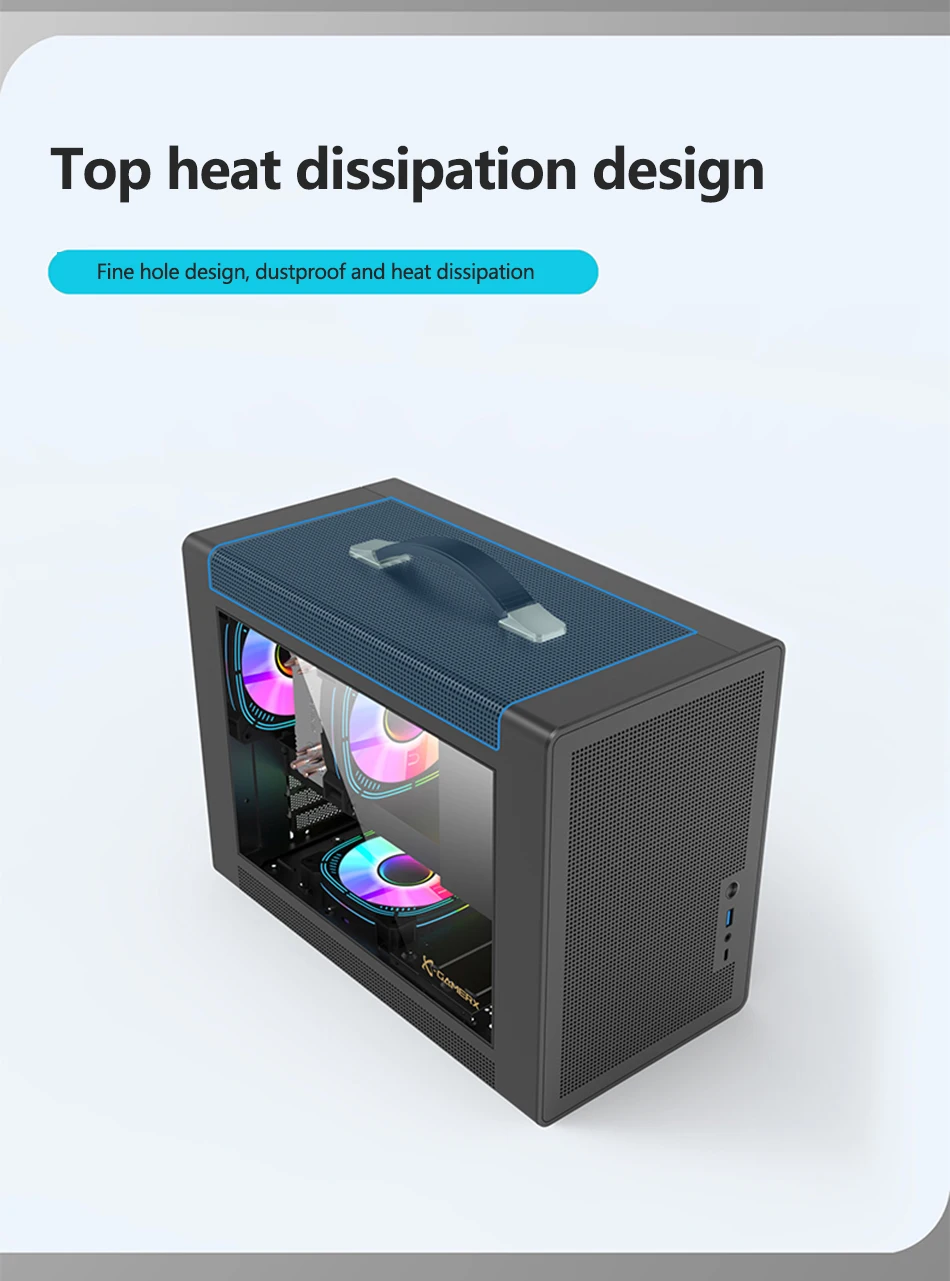

Top: 120mm fan * 1 (fan rack required)
Bottom: 120mm fan * 1 (optional)
Rear: 120mm fan * 1
P60 Mesh version
Product Name: P60 Mesh version
Cabinet color: starry black, snowy white
Product size: 378 * 195 * 290mm
Material thickness: SPCC (baking paint) 0.7mm thickened
Power length: ATX power supply (150 * 140 * 86mm)
SFX power supply (125 * 100 * 64mm)
CPU heat sink: height limit 168mm
Graphics card length limit: 350mm (front panel without locking fan)
335mm (after locking the fan on the front panel)
Applicable motherboard: Micro ATX/Mini ITX
Panel interface: USB3.0, Type-C, HDAUDIO
Expansion drive: 3.5 "HDD * 1, 2.5" SSD * 2 or 3.5 "HDD * 1, 2.5" SSD * 1 with bottom locked fan
PCI slots: 4
Cooling system: front: 120mm fan * 1
Top: 120mm fan * 1 (fan rack required)
Bottom: 120mm fan * 1 (optional)
Rear: 120mm fan * 1
NOTE: It is recommended to use SFX power supply for graphics cards with a length exceeding 260mm
