Description
Attention: For graphics cards with a length
exceeding 260mm, it is recommended to use an
SFX power supply.
Product parameter

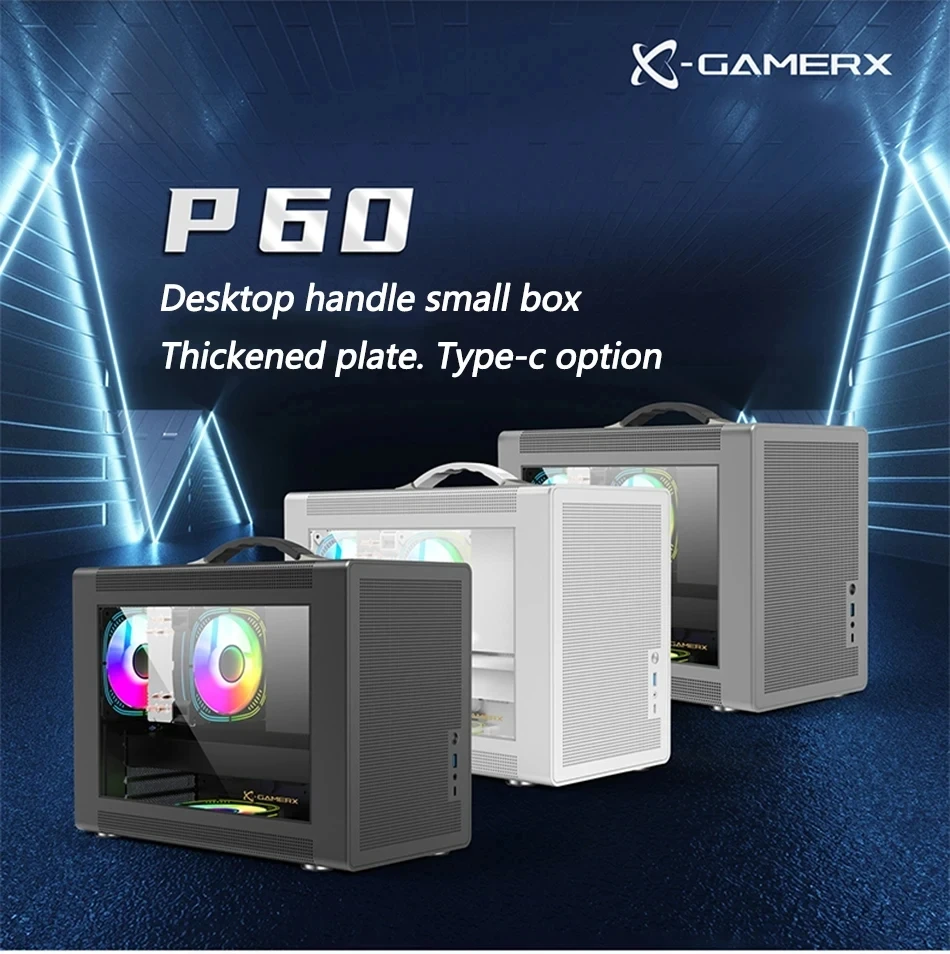

Product Name: P60
Cabinet color: black, white, gray

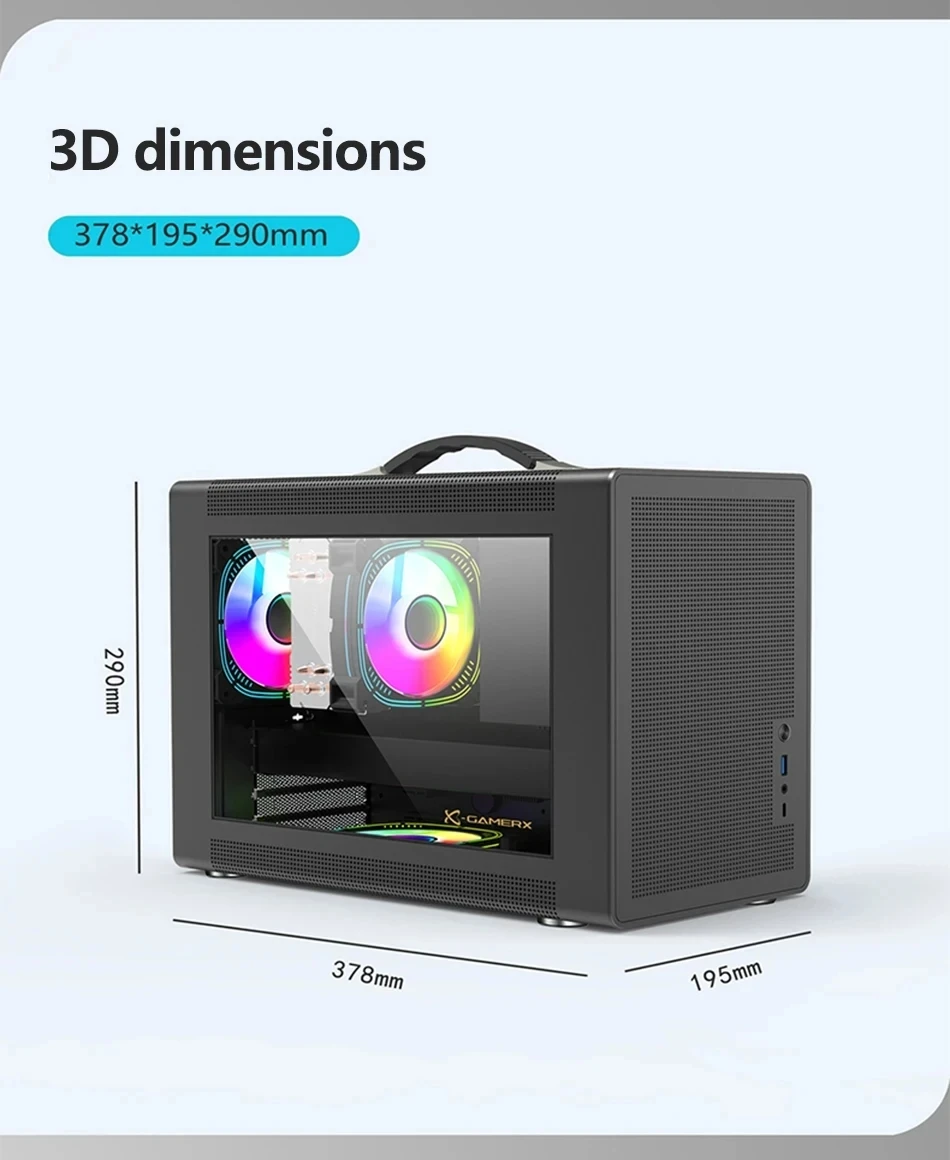

Product size: 378 * 195 * 290mm

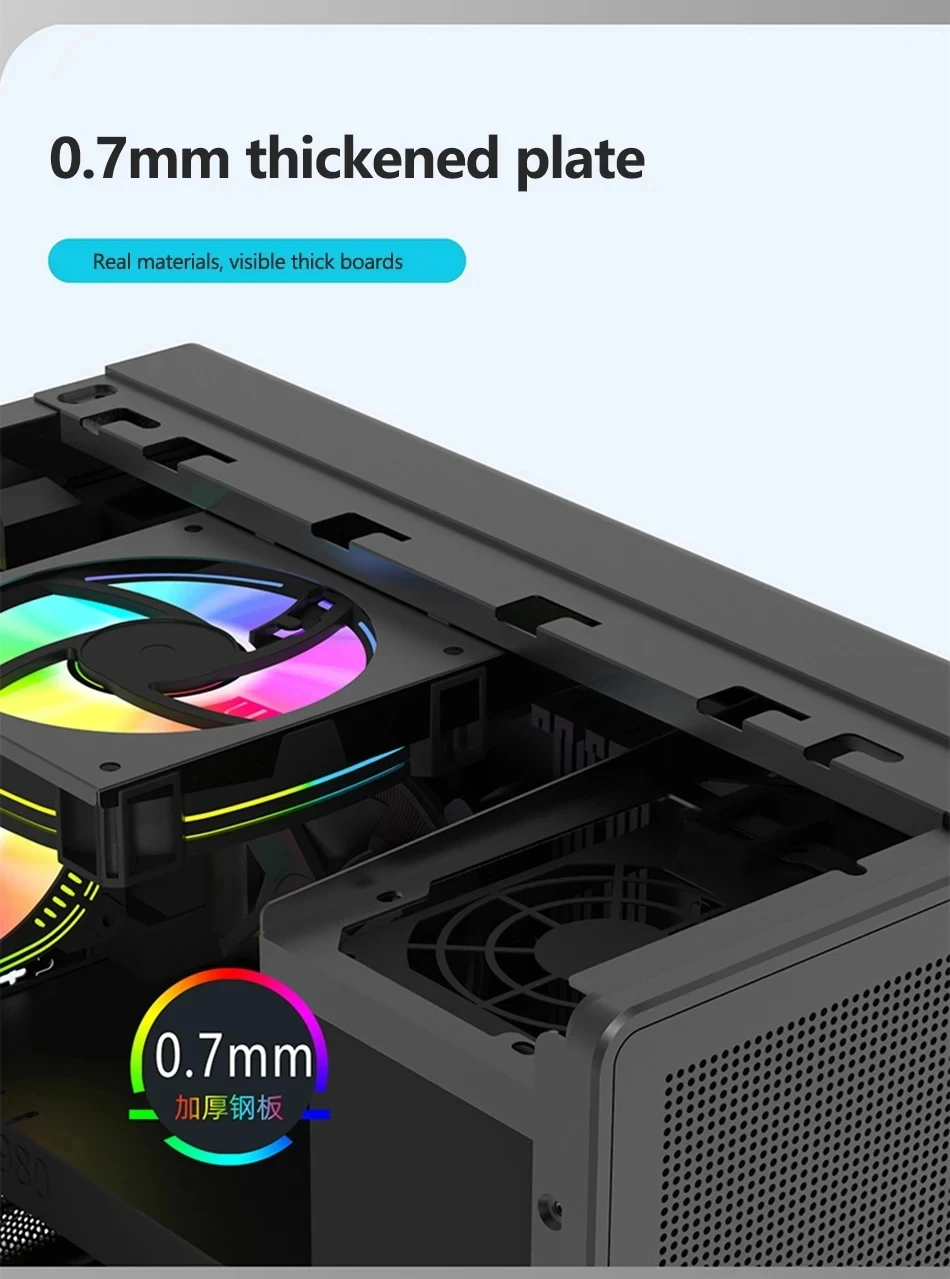

Material thickness: SPCC (baking paint) 0.7mm thickened

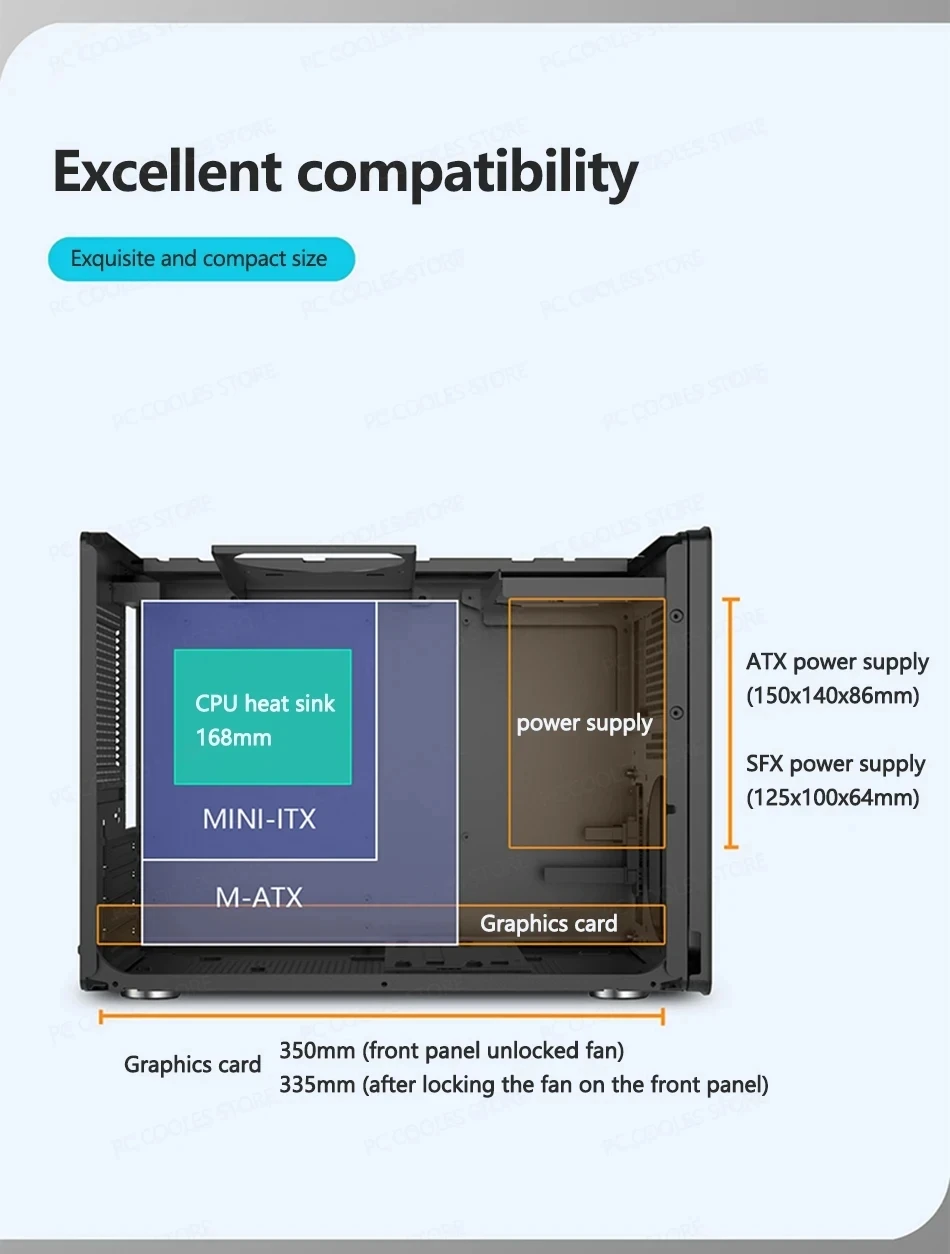

Power length:
ATX power supply (150 * 140 * 86mm)
SFX power supply (125 * 100 * 64mm)
CPU heat sink: height limit 168mm
Graphics card length limit:
350mm (front panel unlocked fan)
335mm (after locking the fan on the front panel)
Applicable motherboard: Micro ATX/Mini ITX

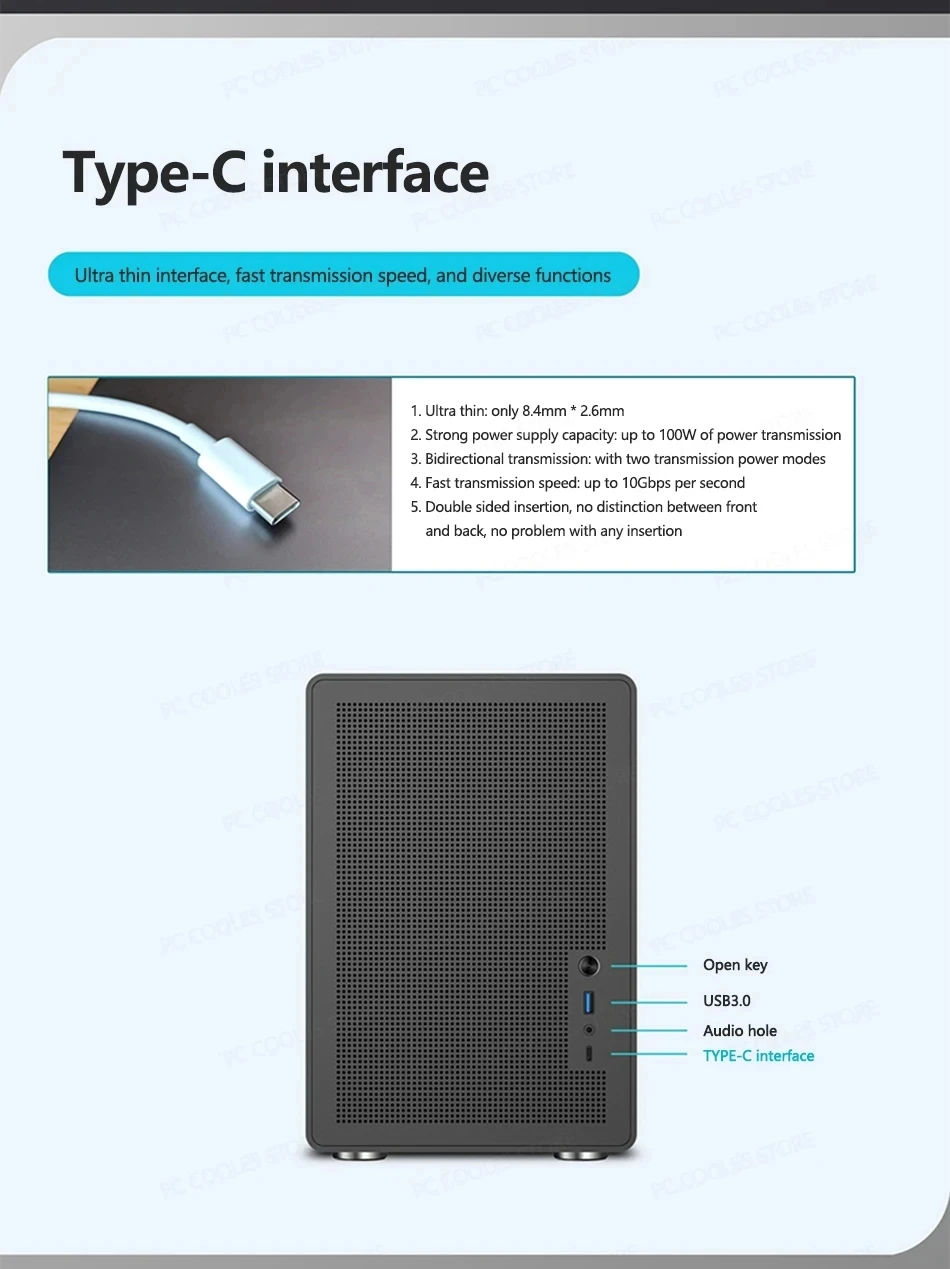

Panel interface: USB3.0, Type-C, HDAUDIO

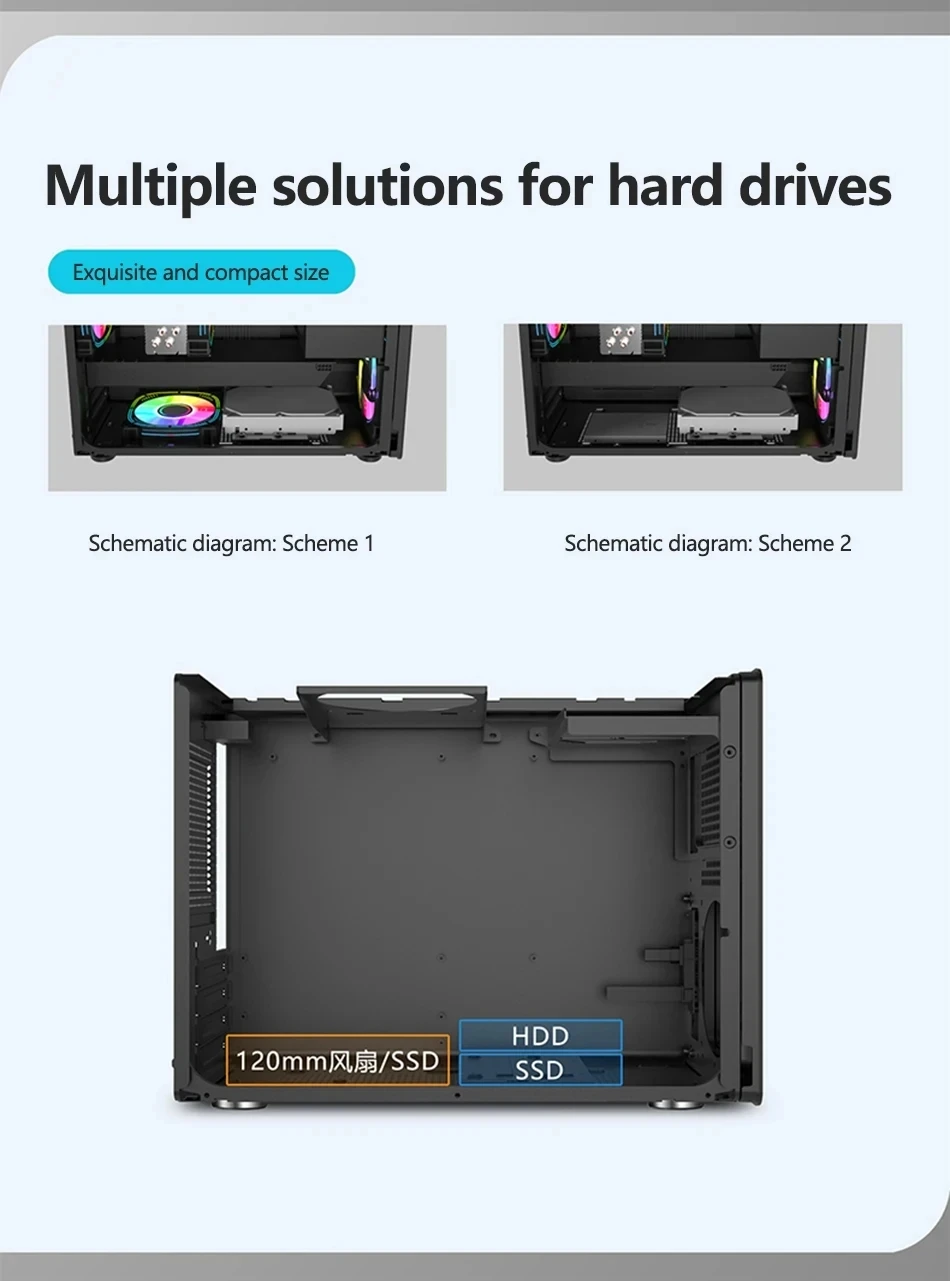

Extended drive:
3.5 "HDD * 1, 2.5" SSD * 2 or
3.5 "HDD * 1, 2.5" SSD * 1 Bottom Lock Fan Rear
PCI slots: 4

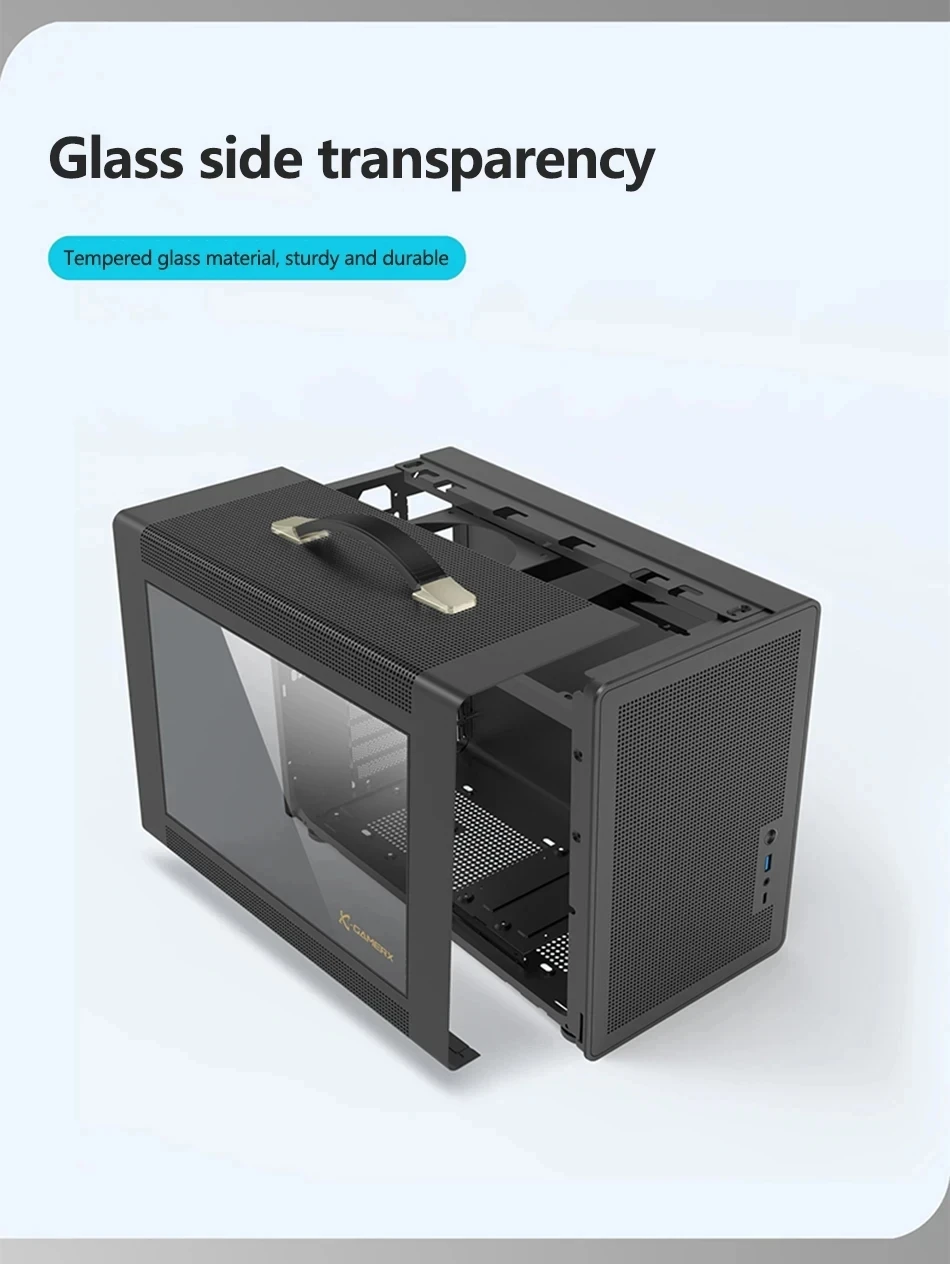

Tempered glass: Left tempered glass

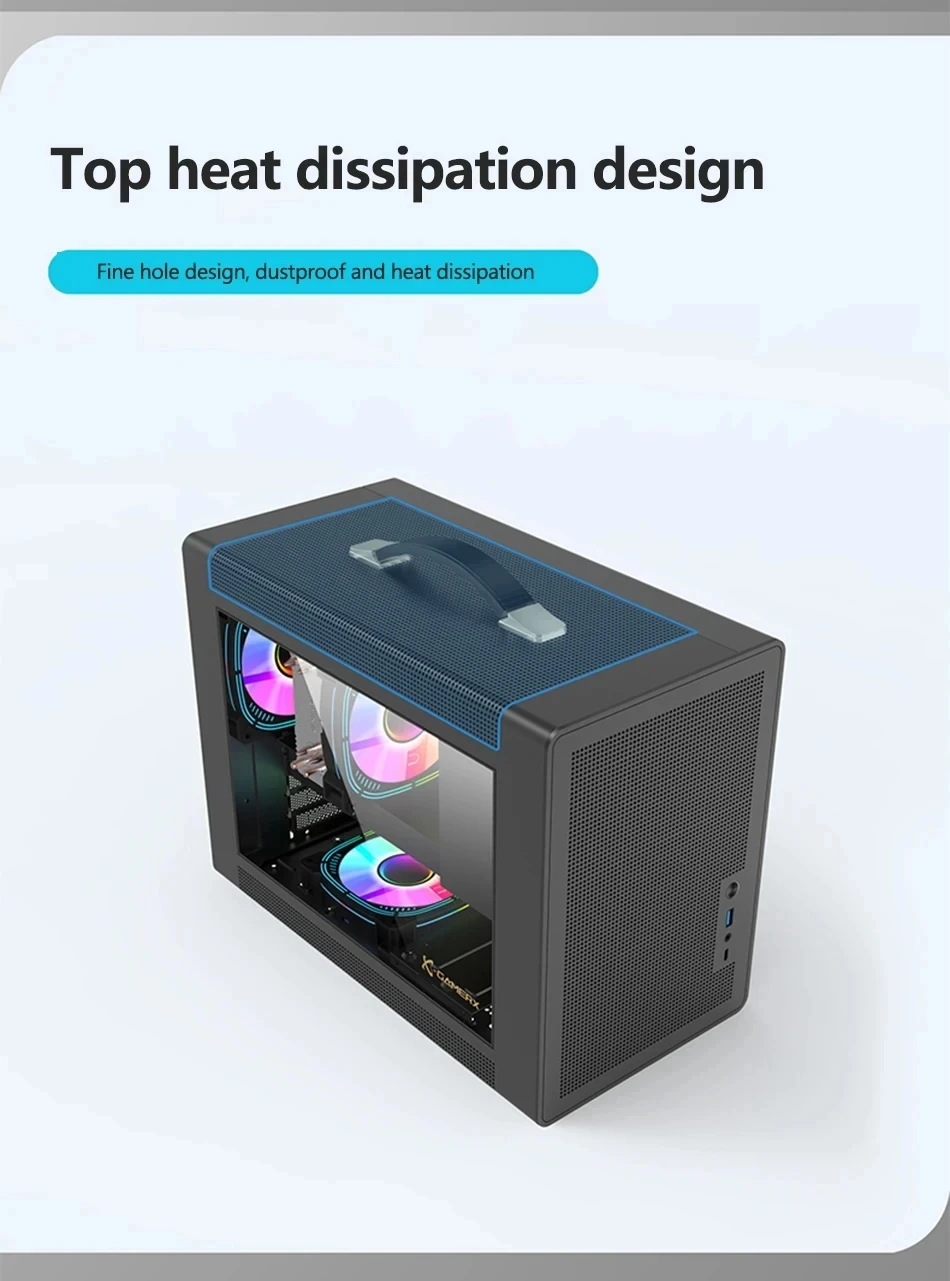

Heat dissipation system:
Front: 120mm fan * 1
Rear: 120mm fan * 1
Bottom: 120mm fan * 1
Top: 120mm fan * 1 (fan rack required)
Note: This chassis does not include the chassis cooling fan, other cooling devices, and computer hardware. If you have any questions, you can contact online customer service!
