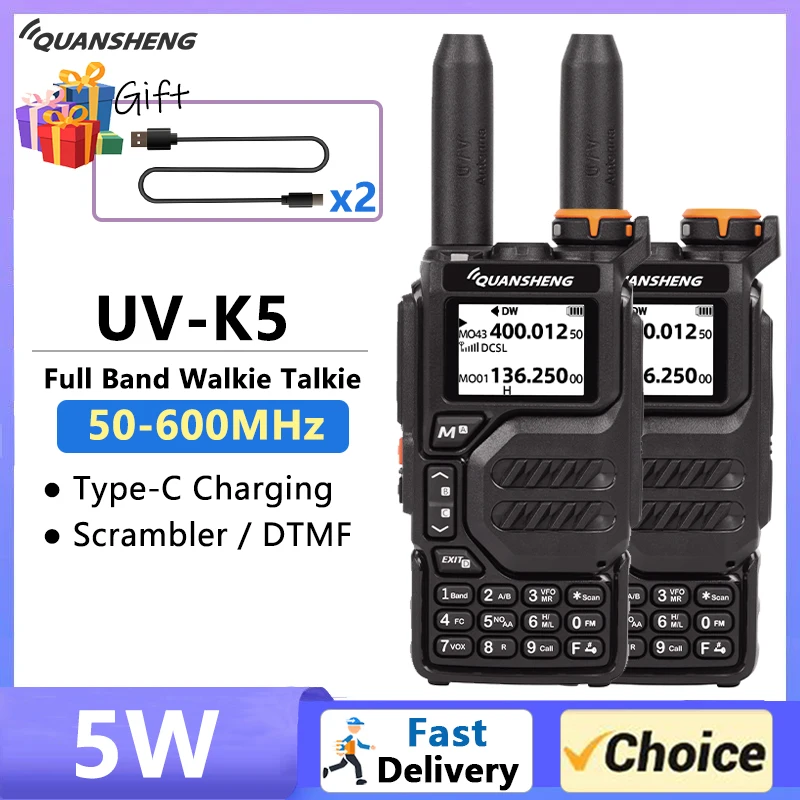

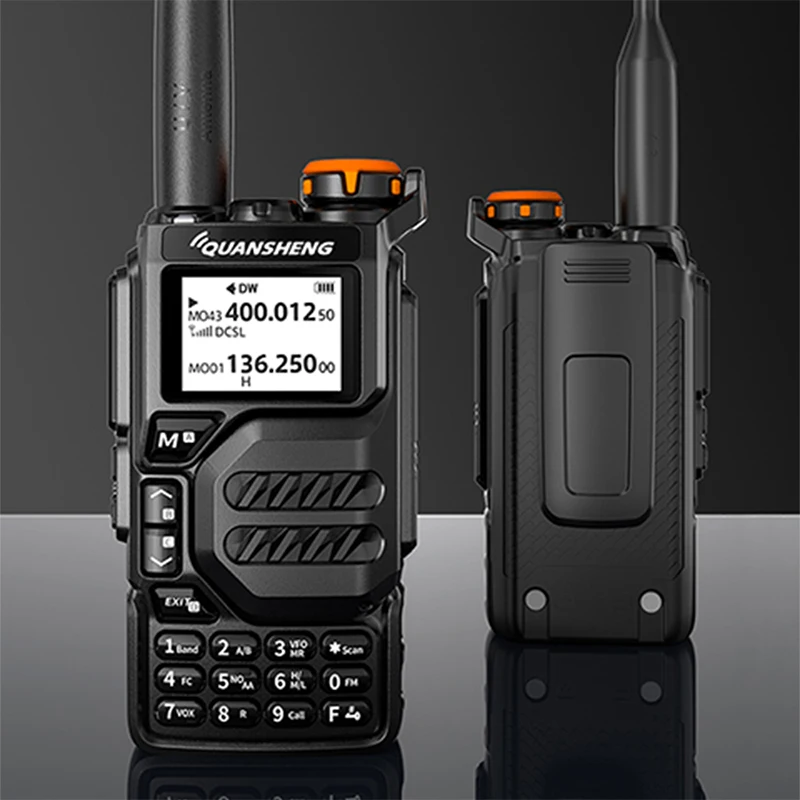

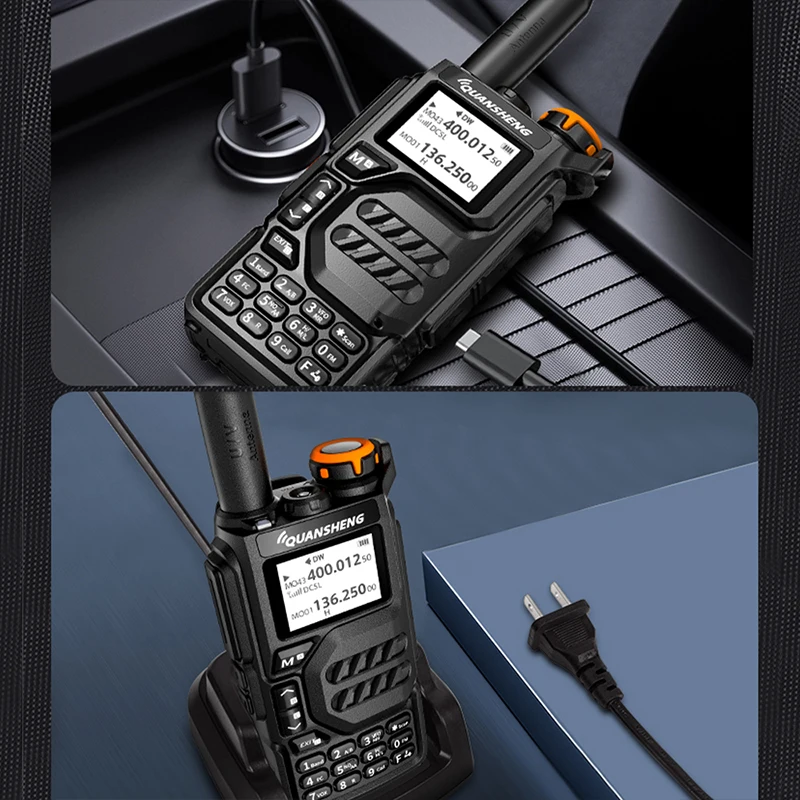

Quansheng UV-K5 Walkie Talkie

50-600MHz 200Ch 5W Two Way Radio

NOAA FM Radio Scrambler /DTMF Wireless Frequency Copy

– 100% Brand New Radio

-10 Channels America NOAA weather forecast

-VHF UHF dual band Transmit and Receiver, 50-600MHz full band Receiving

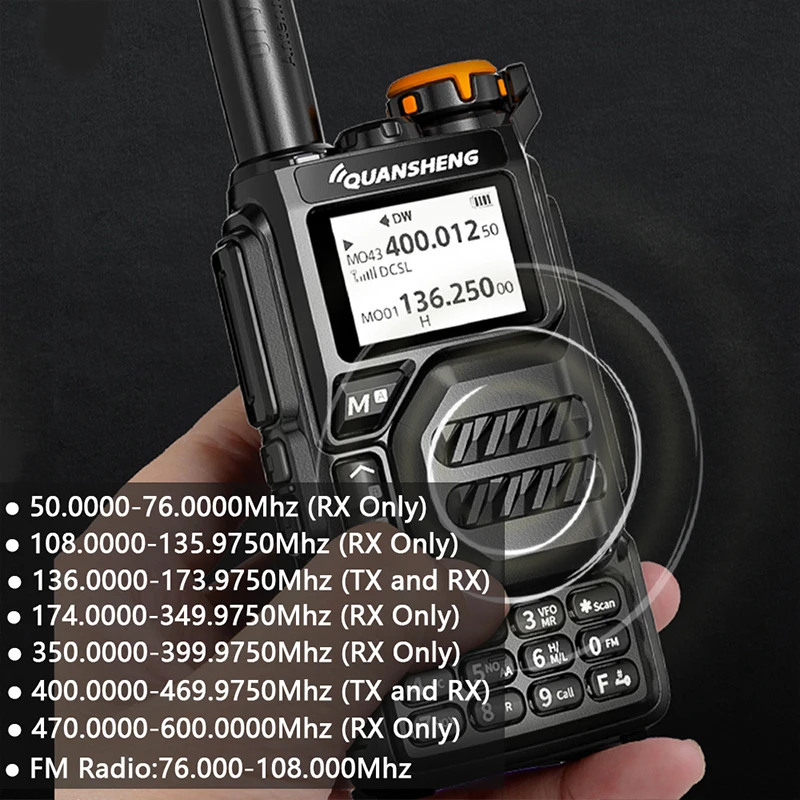

– Frequency Range:

F1:50.0000-76.0000MHz(RX only)

F2:108-.0000-135.9750MHz(RX only)

F3:136.0000-173.9750MHz(TX and RX both)

F4:174.0000-349.9750MHz(RX only)

F5:350.0000-399.9750MHz(RX only)

F6: 400.0000-469.9750MHz (TX and RX both)

F7:470.0000-600.0000MHz(RX only)

FM Radio: 76.000-108.000MHz

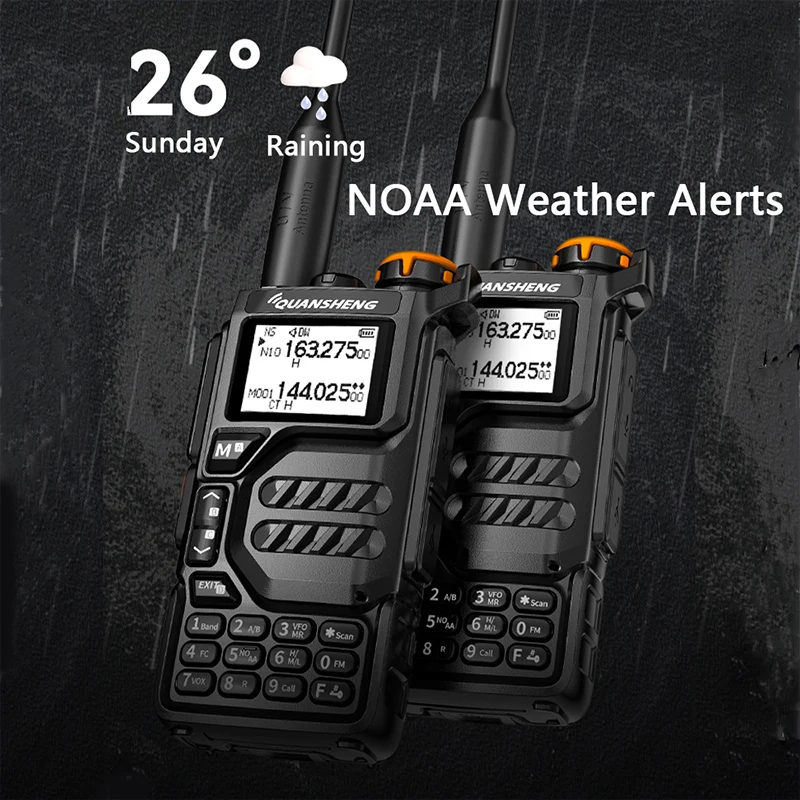

10 USA NoAA Weather Forecast Channels

-Air Band Receiving

-Cross-band Communication

-Wireless Frequency copy from other radios

-Wireless Radio Replication from othe Quansheng TG-K5 Radios

-Auto/Manual Emergency Alert

-FM radio

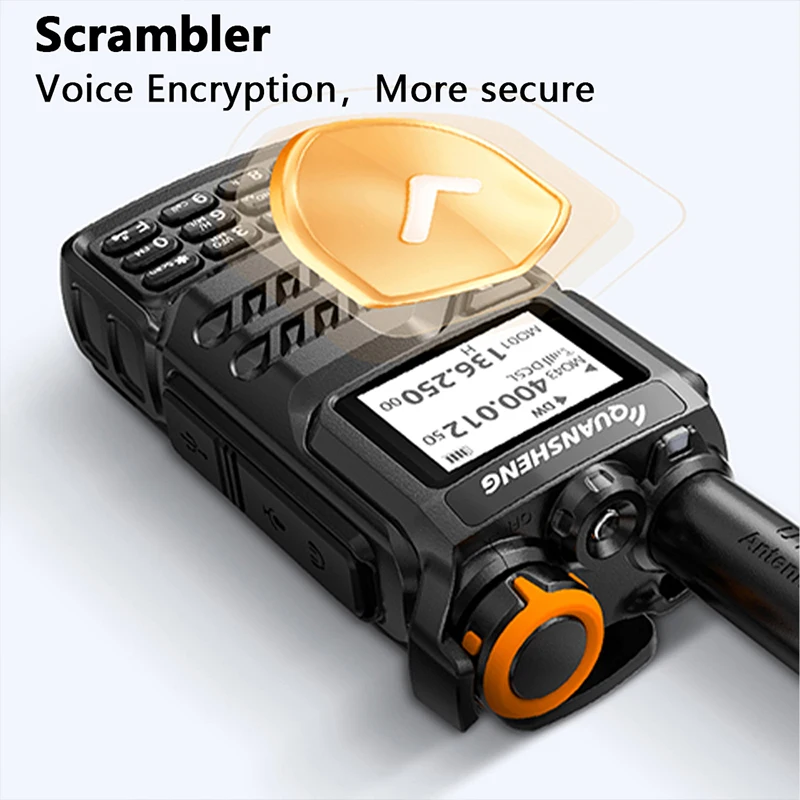

-8-Group Scrambler

-Frequency/DCS/CTCSS Scan

-Digital Signal CTCC/DCS

-1600 mAh Rechargeable Li-ion Battery Pack

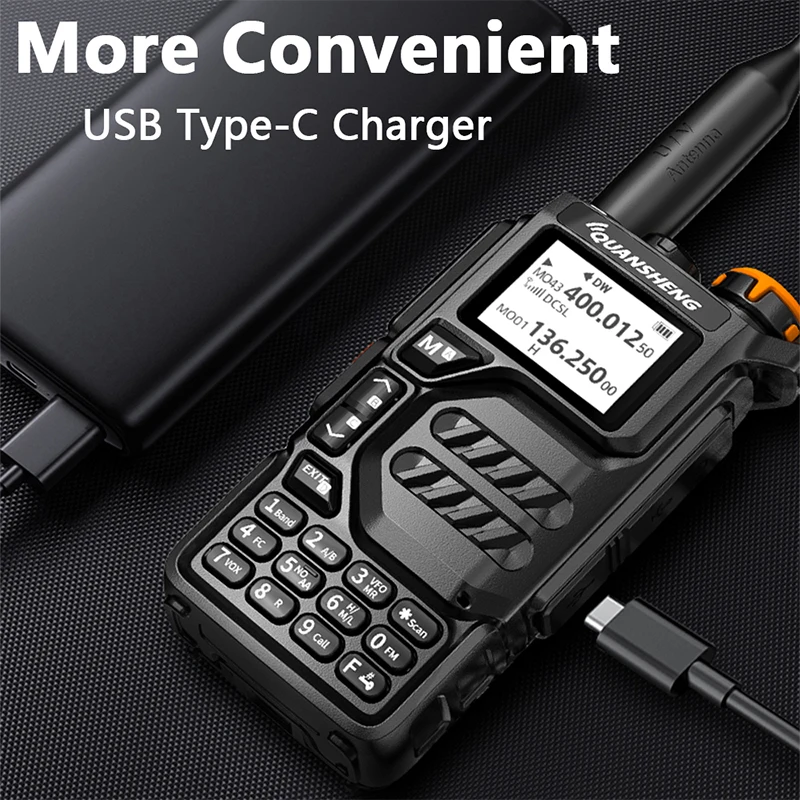

-TPYE C and Desktop Cradle Charging

-VOX (Voice operated Transmission)

-Dual BAND STANDBY

-DTMF AND 1750 Tone

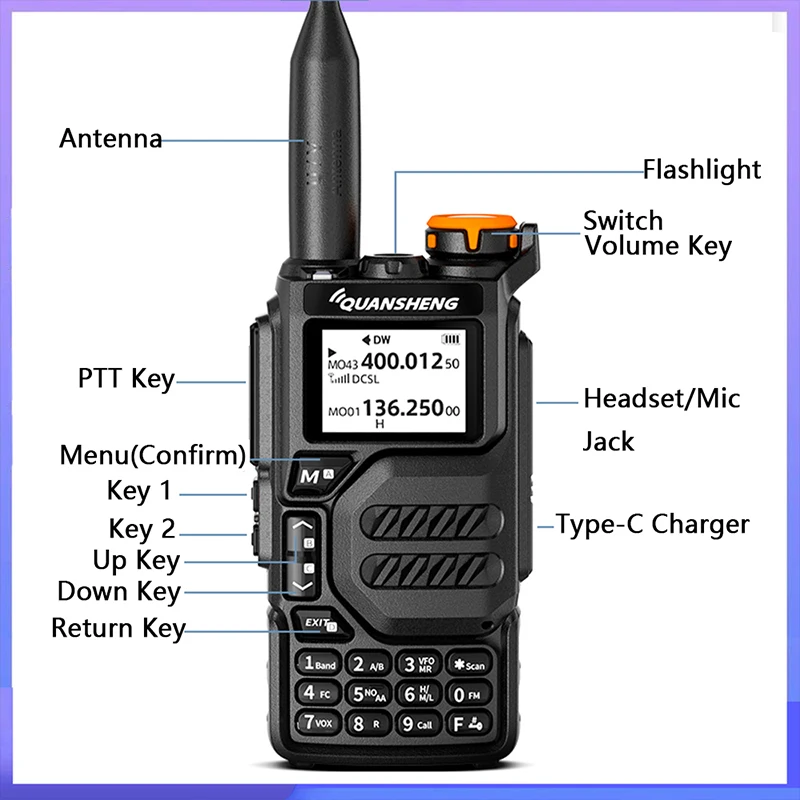

-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode

-200 Memory Channels

Memory Channel Number:200

Channel Number for FM Commercial Radio:20

NOAA Memory Channel Number:10

Frequency Stability :±1ppm

Modulation :FM:16KΦF3E@25KHz/11KΦ[email protected]

Dimension:115mm*60mm*37.5mm

Weight:243g

Working Temperature:-20°c~ +60°c

Antenna Impedance:50 ohm

Receiving

Referenced Sensitivity:

FM(12dB SINAD)

F1 (50-76MHz): -121dBm

F2(108-135.9975MHz):-121dBm

F3(136-173.997MHz):-123dBm

F4(174-349.9975MHz):-123dBm

F5(350-399.9975MHz):-123dBm

F6(400-469.9975MHz):-123dBm

F7(470-599.9975MHz):-121dBm

WFM(20dB SINAD):WFM(76-108MHz):-110dBm

AM(10dB S/N):F2(108-135.9975MHz):-113dBm

Audio Rated:≥0.5W

Audio Distortion:≤10%

Transmission

Frequency Range:136-173.9975MHz/ 400-469.9975MHz

Output Power:5W

Working Current:≤1.5A

Max.Frequency Deviation:≤5KHz(25KHz),≤2.5KHz(12.5KHz)

Modulation Distortion:≤5%

Spurious Radiation:≤7.5uW

Adjacent Ch. power:70dB(25KHz),60dB(12.5KHz)

Inter-modulation:40dB

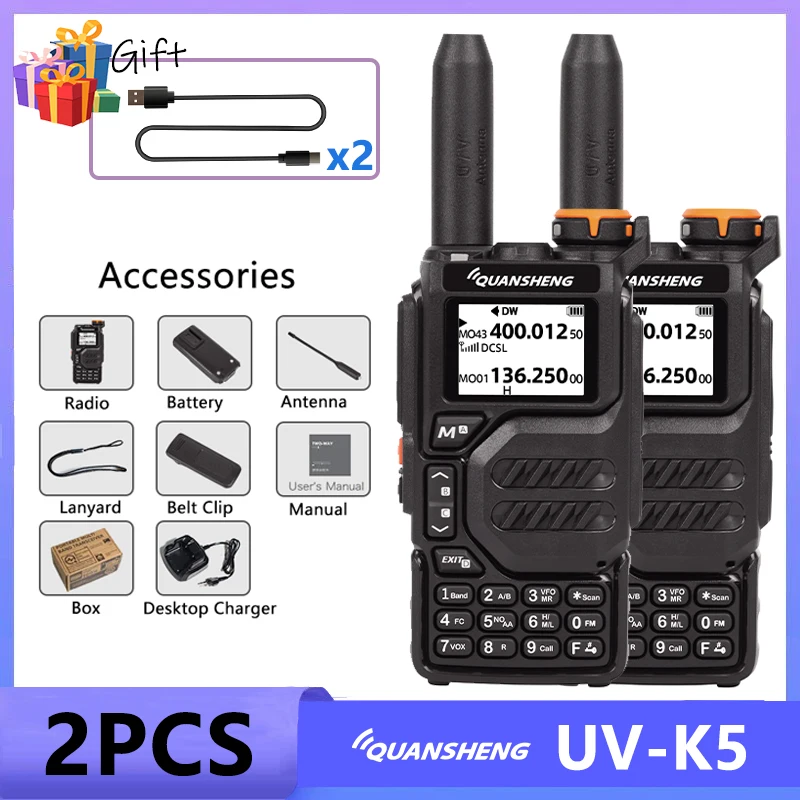

2 x Radio

2 x Battery

2 x Belt Clip

2 x Hand Strap

2 x Power Adapter

2 x Desktop Charger

2 x Product Manual

Note: All specification shown are subject to change without notice.
