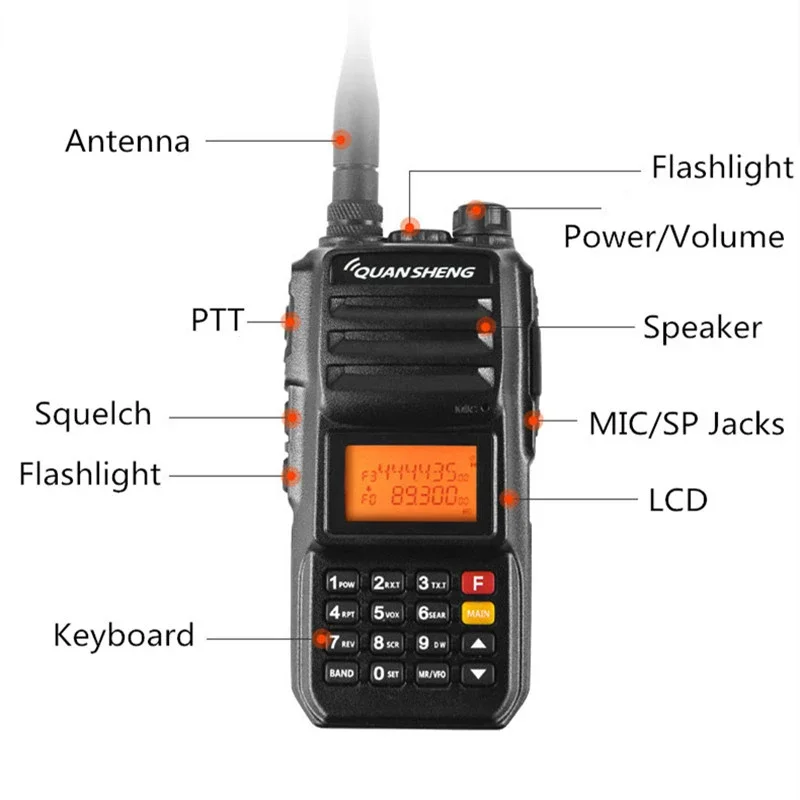

10KM QuanSheng TG-UV2 Plus Walkie Talkie

10W Long Range / 4000mah Two Way Radio

5-Band

RX: FM Radio 88-108MHz /Police350-390MHz/UHF400-470MHz; 470-520MHz / VHF136-174MHz

TX:UHF400-470MHz / VHF136-174MHz /Police350-390MHz

About Antenna SWR Value

The TG-UV2 Plus radio is designed with tri-band, UHF(470mhz to 520mhz), VHF (136mhz to 174mhz) and Police band (350mhz to 390mhz), that is why the SWR value is lower, it's reasonable, and actually it does not affect the function, maybe nothing is perfect in the world, some customers keep buying this radio even though they complaint about the antenna SWR value, overall it's a superior radio.

One more thing, if you don't need the third band of police band, actually you can get an extra antenna with only dual band, which will be much better.

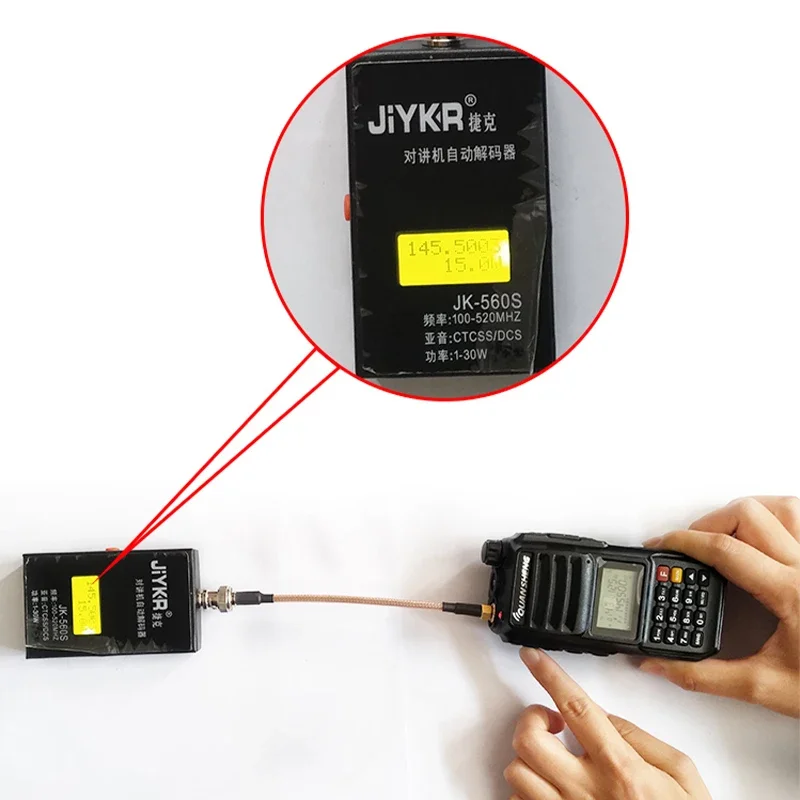

REAL 10 WATTS (10H)

Test Rsesult Feedback:

We tested and got10.1 Wwhen the trasmit frequecy is 430.000Mhz, please check the above images.

REAL 136-174MHZ/400-470MHZ

Question 2:

Answer:

Please kindly remember the real frequency range is 136-174Mhz and 400-470Mhz for this TG-UV2 Plus radio, and just ignore the 144-148Mhz/430-440Mhz on the label.

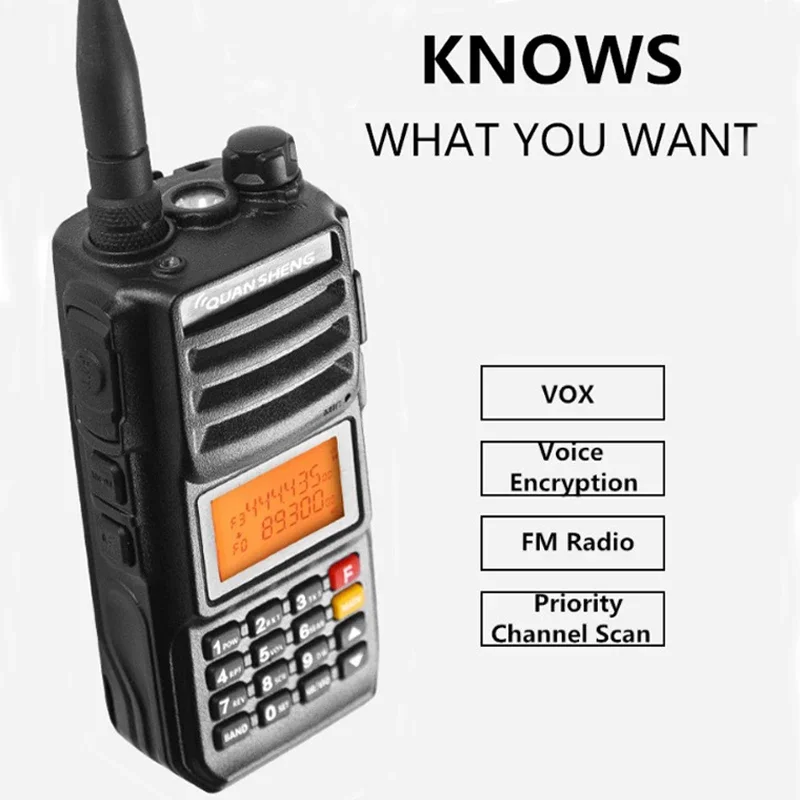

01. Squelch level
02. H(High), M(Medium), L(Low) output power selective
03. Double frequency, double channel display of the LCD
04. Built-in VOX function
05. Dual-watch operation
06. Respectively receive/transmit CTCSS/DCS code
07. Repeater shift direction set
08. Auto code search
09. Reverse frequency function
10. Multi channel steps
11. Frequency deviation setting
12. Busy channel lock
13. Time-out-timer(TOT)
14. Channel, channel-frequency, channel-name display
15. Up/down scan function / Priority scan
16. Wide/narrow bandwidth
17. 1750Hz call tone
18. Corss-band receiving/transmitting
19. 200 channels
20. Channel name edit / Channel store
21. FM Radio(88-108MHz)
22. PC programmable
23. Main/sub channel display shift
24. Channel scan list additive

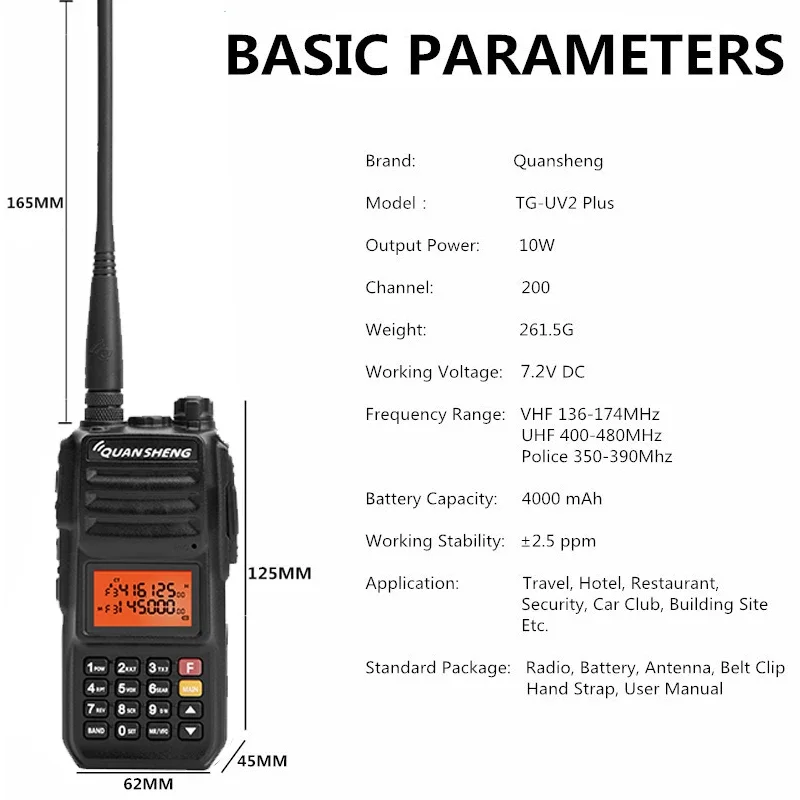

General

Frequency Range:

RX: FM Radio 88-108MHz /Police350-390MHz/UHF400-470MHz; 470-520MHz / VHF136-174MHz

TX:UHF400-470MHz / VHF136-174MHz /Police350-390MHz

Frequency:                                                  5PPm

Sensitivity:                                                  DC7.2V (Rechargeable Li-ion Battery )

Memory Channel:                                       200 Channels

Antenna Impedance:                                   50 ohm

Working Manner:                                        Same Frequency Single Operation or Different Frequency Single Operation

Antenna Dispotion:                                     Inductively Loaded Antenna

Transmitter

Output Power:                                          10W

Modulation Mode(Wide/Narrow) :16KΦF3E/11KΦF3E

Maximum Modulation Character:               6dB

Maximum Spurious Radiation:                   <7uW

Maximum Emission Current:                      <2.8A(H10)

CTCSS/DCS Deviation(Wide/Narrow):     0.75kHz ±50Hz,0.37kHz±30Hz

Modulation Sensitivity:                               12mV

Modlation Distortion:                                  <5%

Transmitter

Output Power:                                          10W

Modulation Mode(Wide/Narrow) :16KΦF3E/11KΦF3E

Maximum Modulation Character:               6dB

Maximum Spurious Radiation:                   <7uW

Maximum Emission Current:                      <2.8A(H10)

CTCSS/DCS Deviation(Wide/Narrow):     0.75kHz ±50Hz,0.37kHz±30Hz

Modulation Sensitivity:                               12mV

Modlation Distortion:                                  <5%

1× Radio
1× Battery

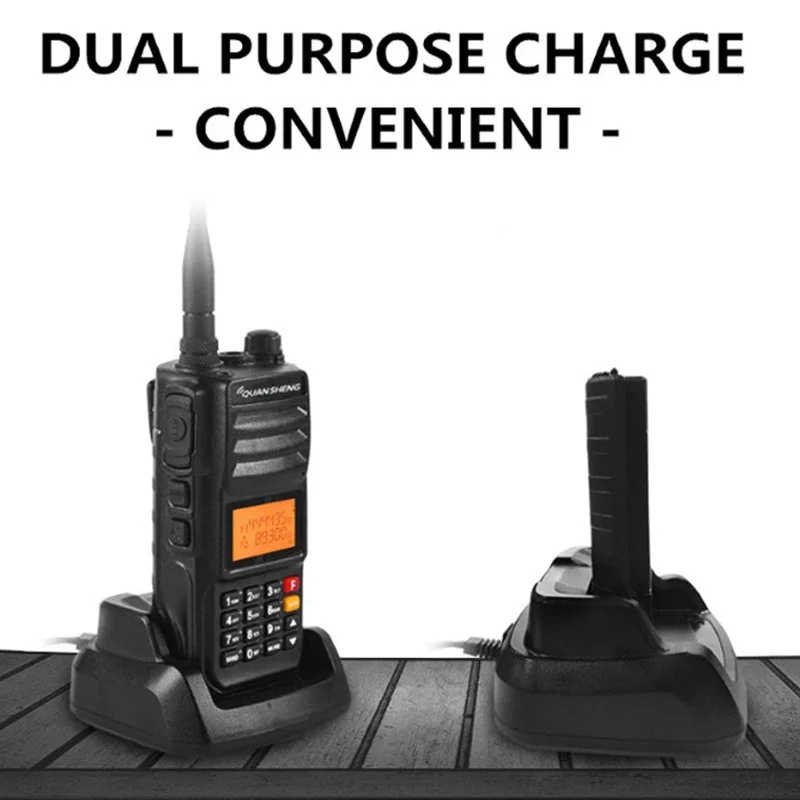

1× Charger
1× Belt Clip
1× Hand Strap
1× Antenna
1× English User's Manual
Note:
Other Accessories depend on your choice,we will send you the item of your choice.
