This is kits need to be assembled by yourself

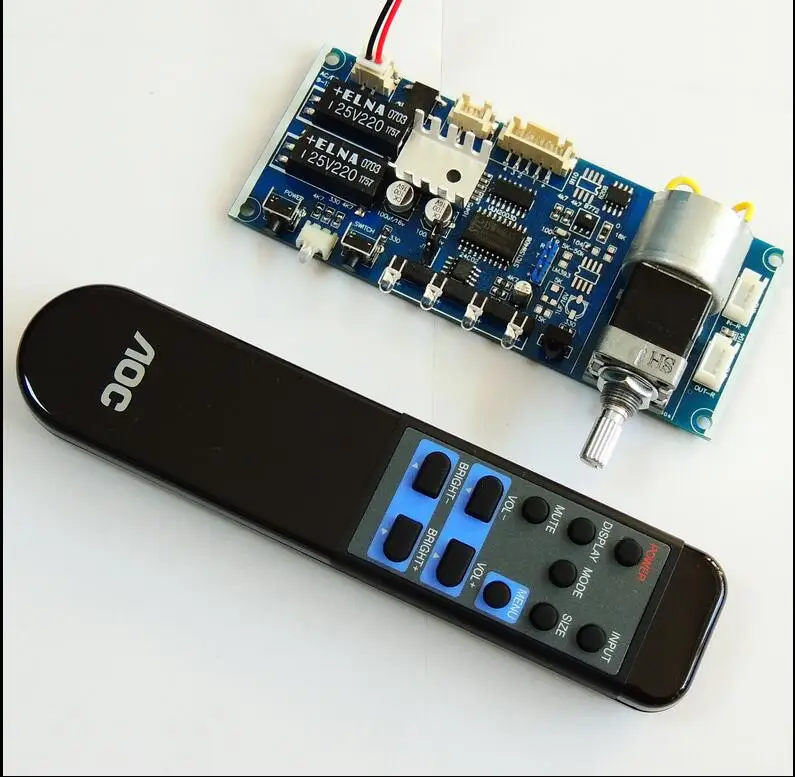

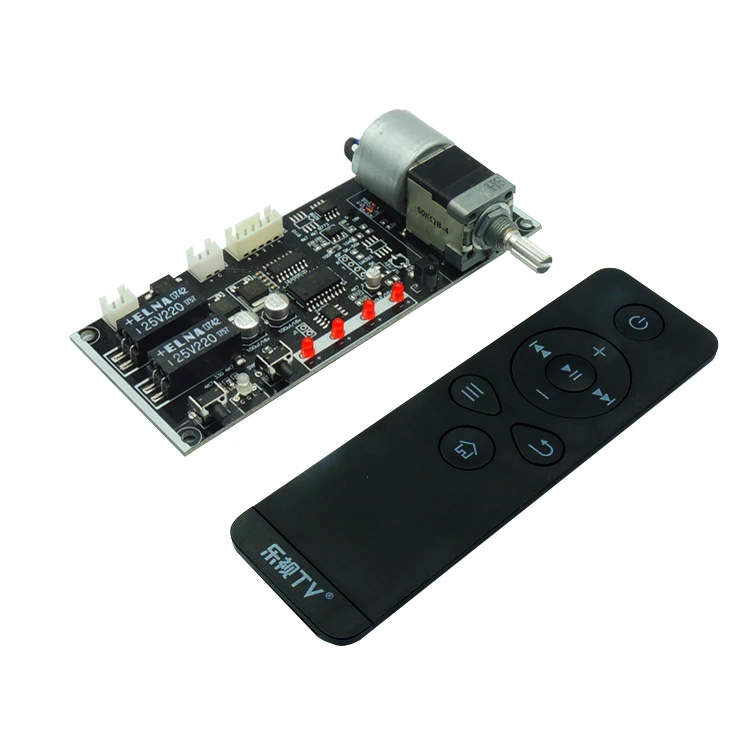

This product combine volume control, audio input selection, as well as infrared remote control function . mainly used for power amplifier DIY or upgraded without remote control function of the amplifier so that it has an infrared remote control.
Audio signal circuit and control circuit is completely isolated without interference

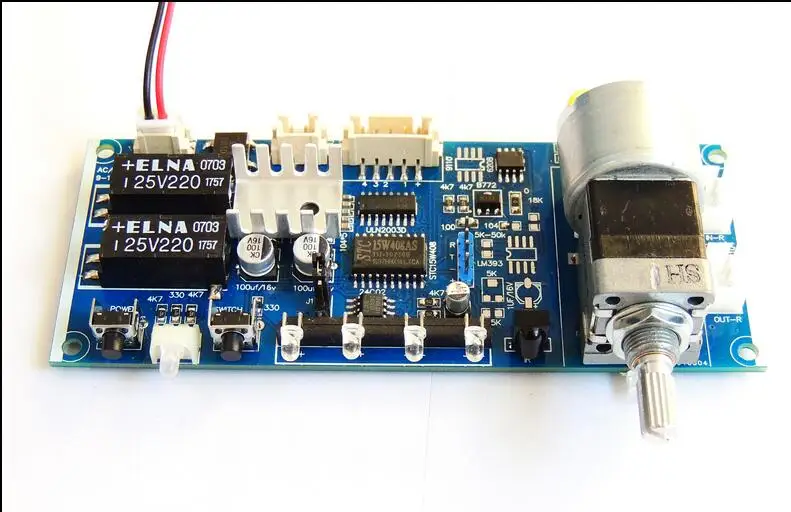

Dedicated MCU control motor potentiometer and input relays stable and reliable
Volume control panel with discrete input selection board design for easy installation
Onboard voltage regulator circuit voltage range can be AC or DC power supply
Supporting the learning remote control, leaving seven keys for buyers to freely develop
Specifications:

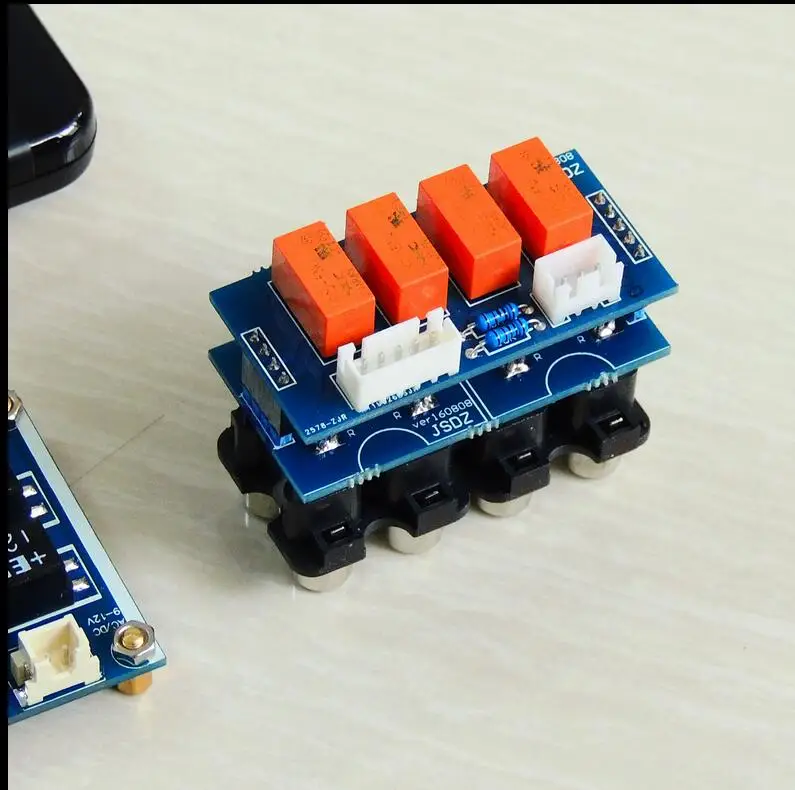

Volume board Dimensions: Length 82MM width 51MM 31MM highest point
Switch board size: 91MM * 54MM 15MM highest point
Power Dashboard Size: 50MM * 35MM 31MM highest point
Voltage Requirements: 9V-12V AC or DC 9V-12V
Pot: B50K duplex
Switching approach: 4
Instruction :
Audio signal wiring methods: Signal -> Switch board inputs -> switching panel output terminals -> Volume control panel inputs -> Volume control panel output terminals -> preamp or amp
Volume remote control: Press the remote control VOL + or – volume motor control motor forward or reverse, to achieve volume adjustment. (You can also manually direct rotary potentiometer volume control)
Audio switch remote control: Press the AV button on the remote control or manual control key each time you press a key input signal source switching a 1234 Road Cycle
Package Contents:

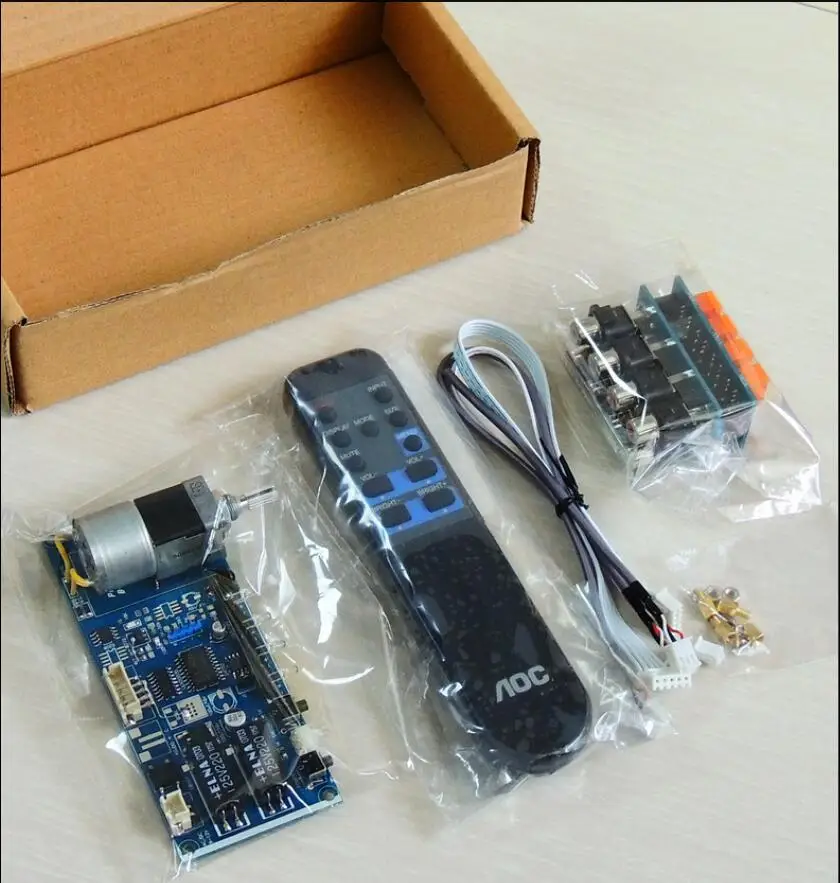

1 set DIY module kits
