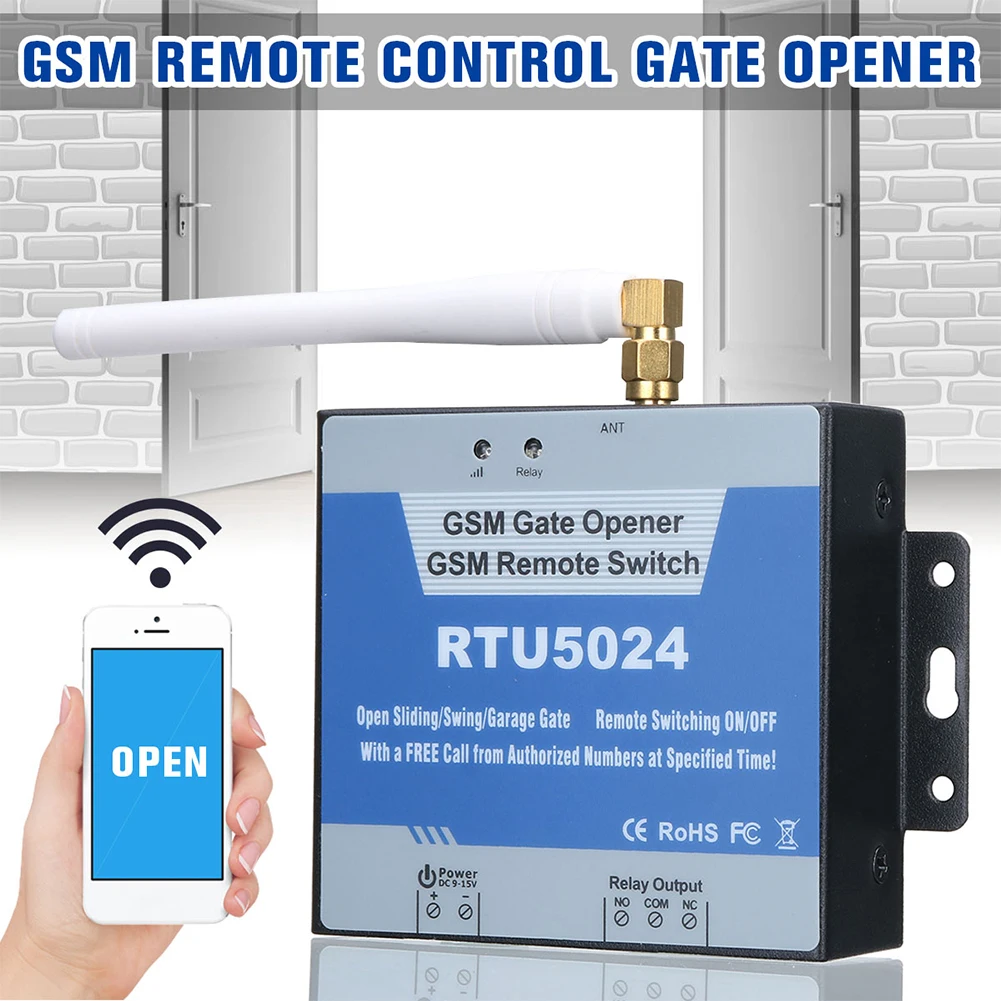

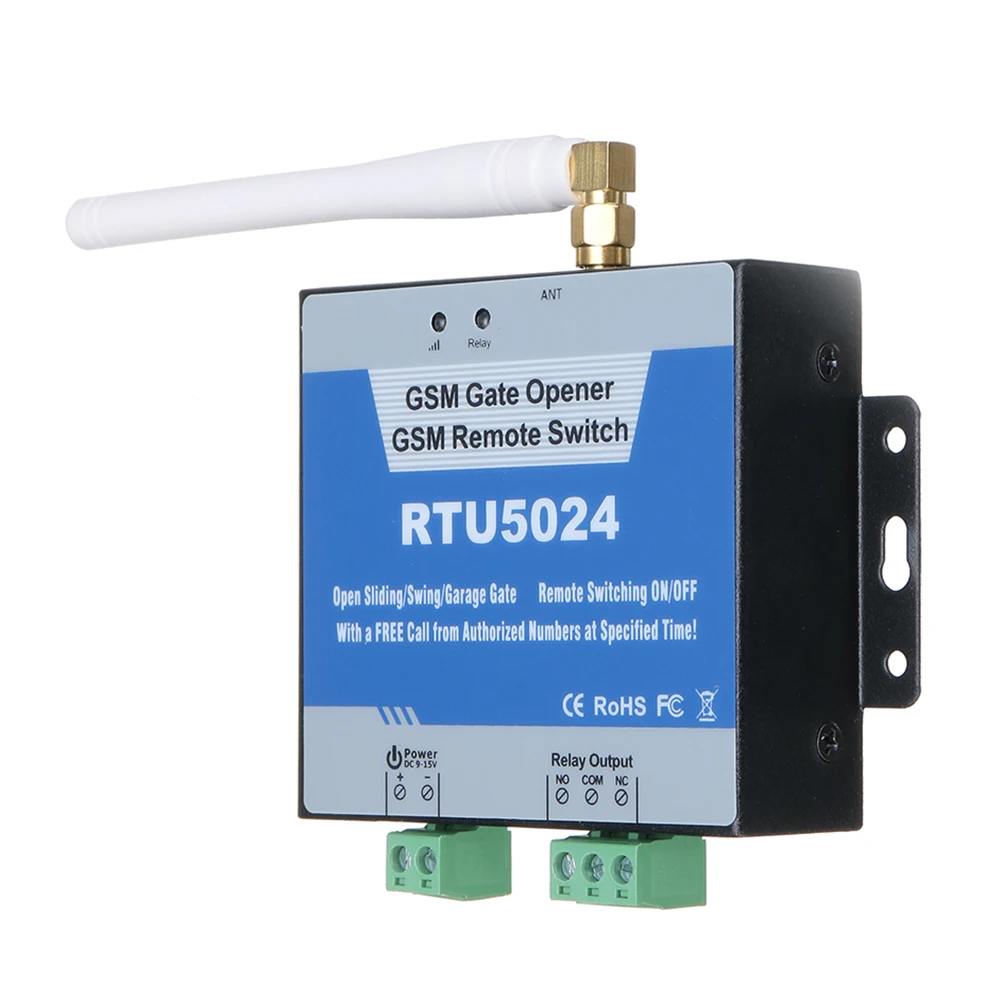

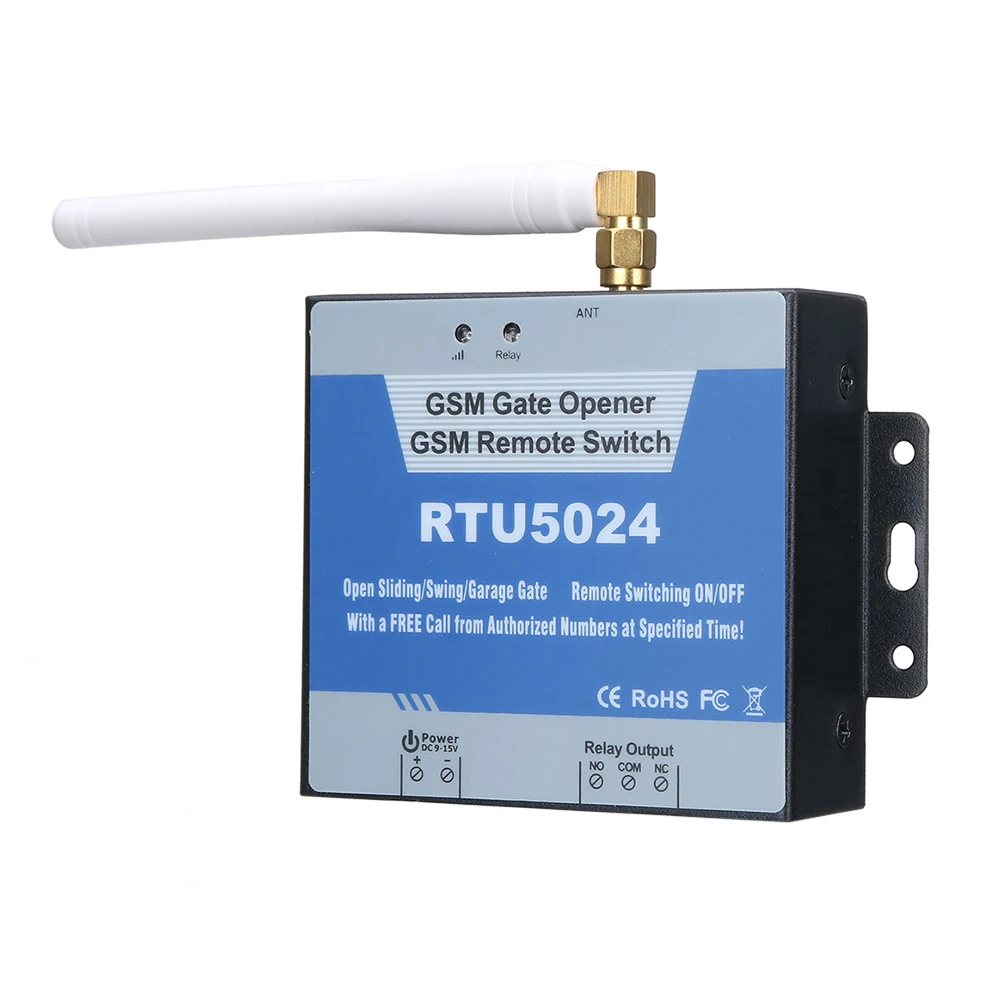

RTU5024 GSM Access Control Door Opener Relays Free Call Wireless Gate Control Relay 850/900/1800/1900MHz 4G Home Security Device

Feature:
– Add or remove users by SMS Text command.
– The relay close or open time is programmable.
– Can be operated from anywhere, no distance limit.
– Quad-band, can work in the worldwide GSM Networks.
– No need to provide a remote control or keys for different users.
– Secure – Using caller-ID for identification, unknown callers are ignored.
– Up to 200 authorized phone numbers can be configured at the specified time.

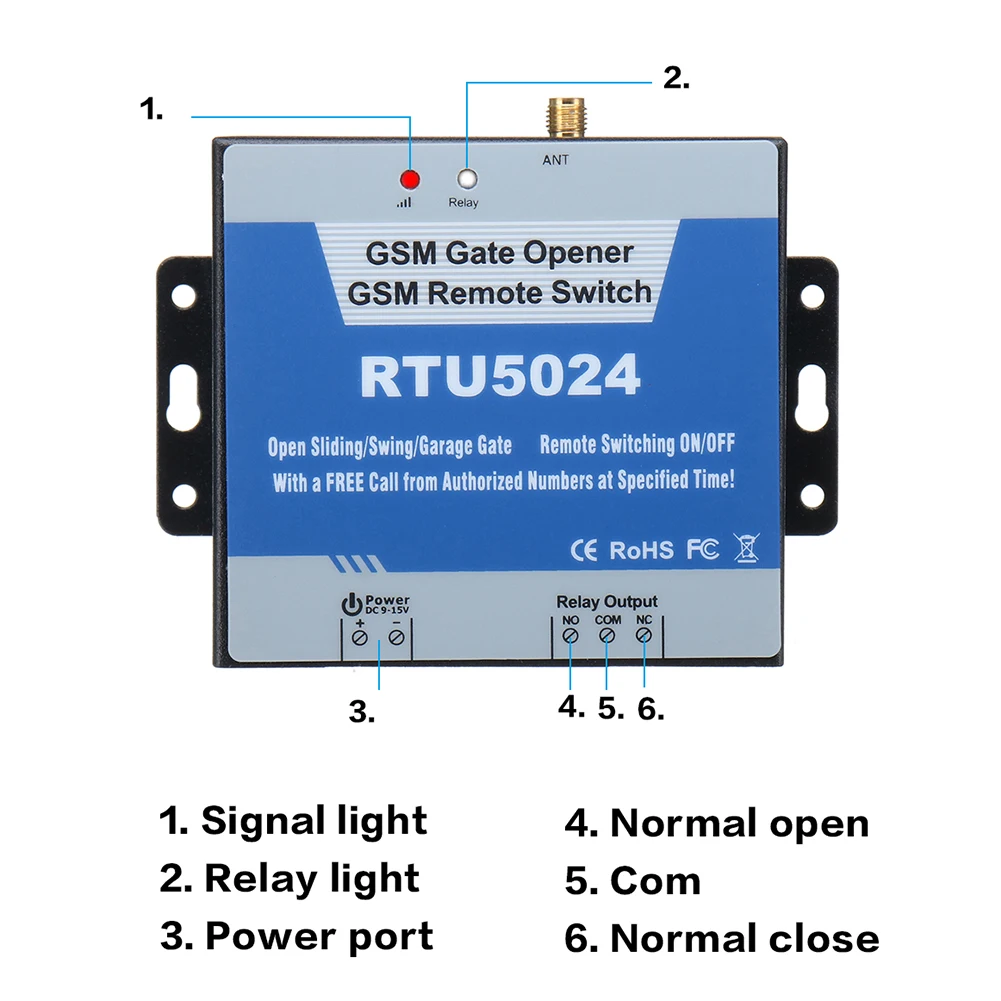

– One output with relay rating 3A/240VAC for connecting the switch of the door or machines.

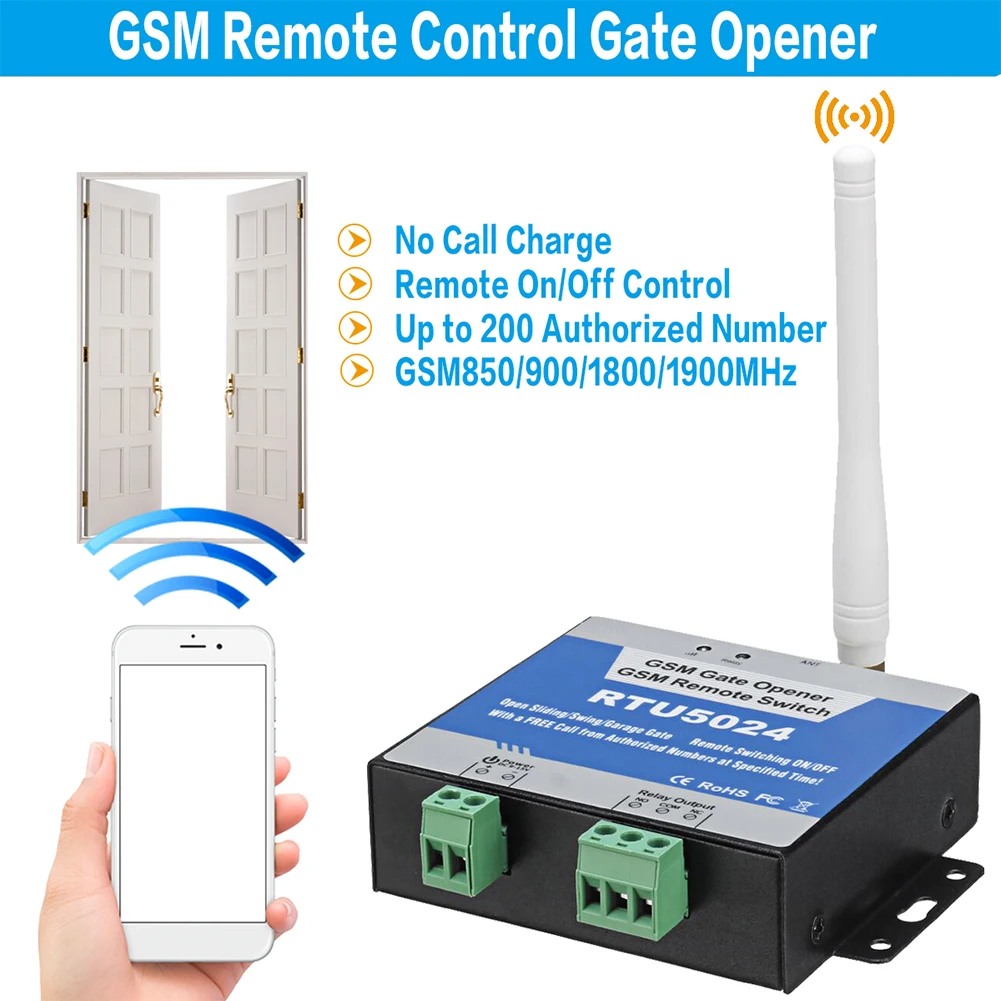

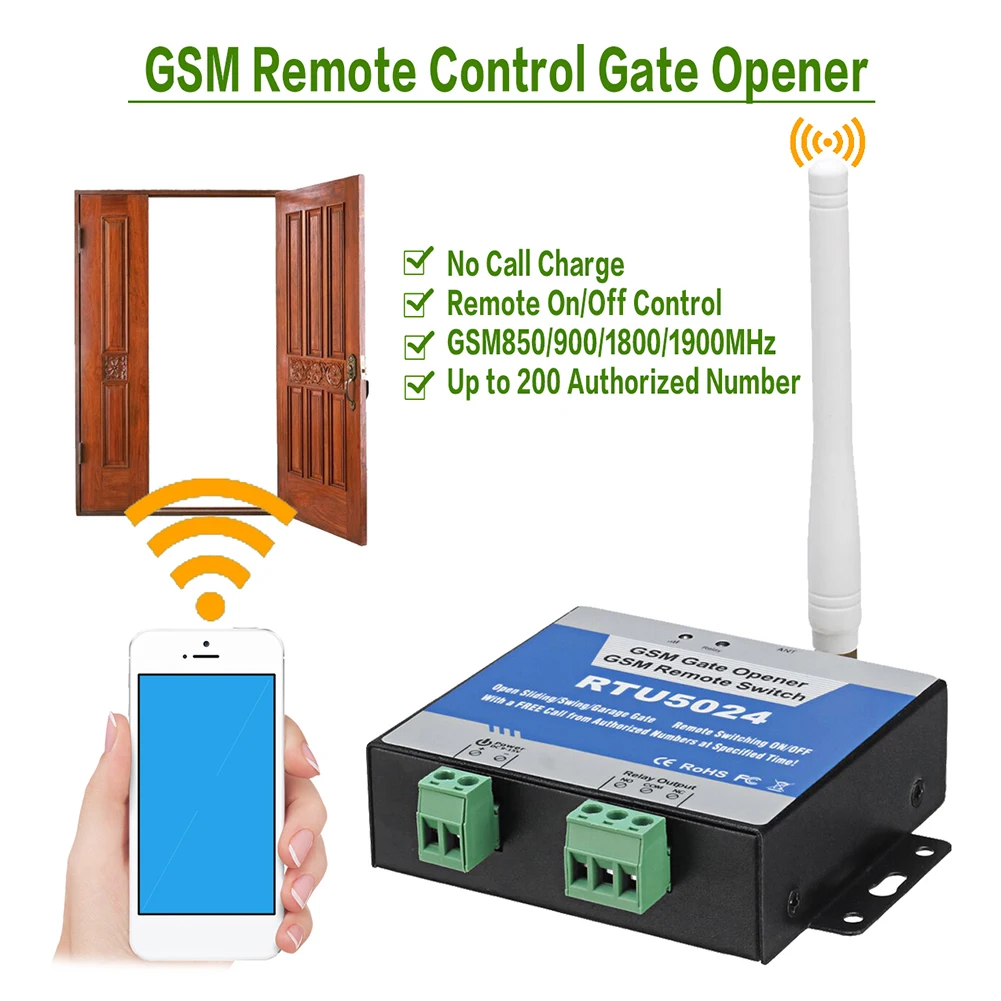

– Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
– The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
– No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first ‘ring’.

Specification:

GSM Frequency: Quad-band 850/900/1800/1900MHz

Network: 2G

Gigital Output: NC/NO dry contact, 3A/240V AC
DC Power Supply: 9-24V DC/2A
Power Consumption: 12V Input Max. 50mA/ Average 25mA

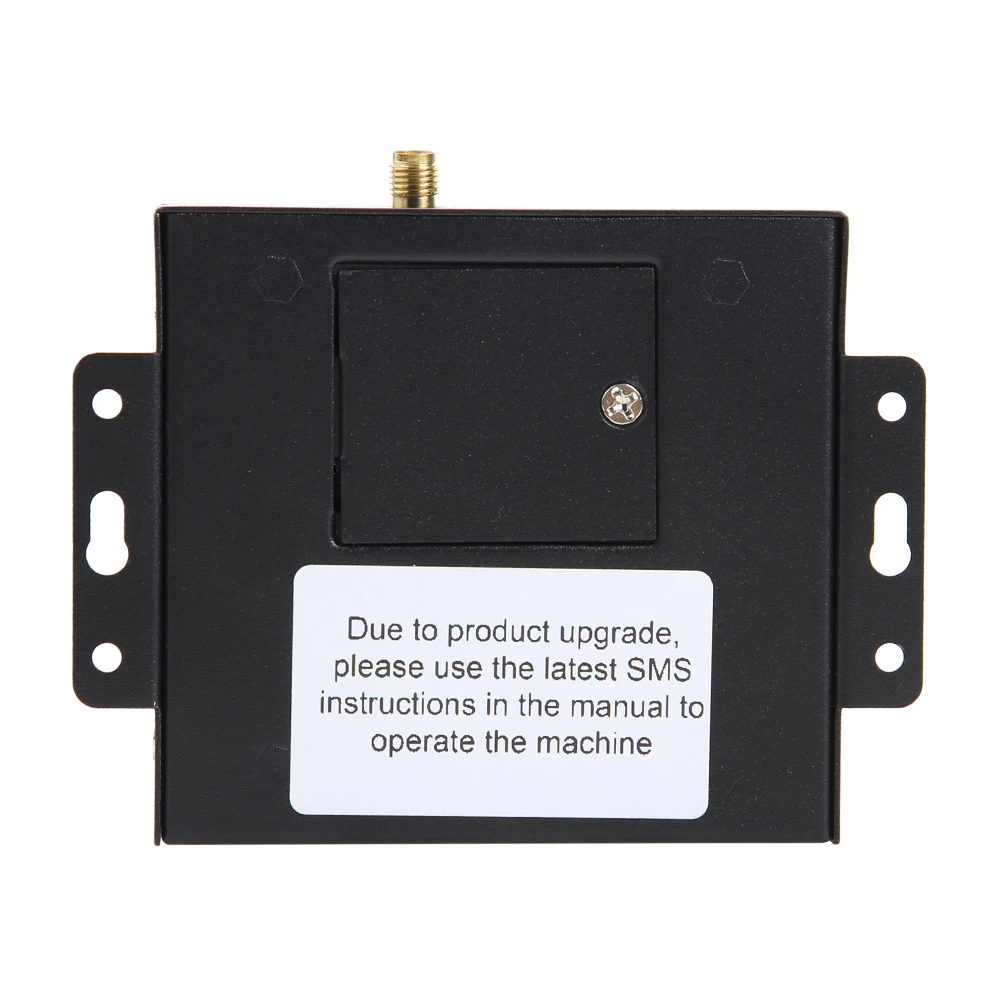

SIM Card: Support 3V SIM Card
Antenna: 50Ω SMA Antenna Interface
Temperature Range: -20~+60℃
Humidity Range: Ralative Humidity 90%
Size: 82mm*76mm*27mm/3.23*2.99*1.06″

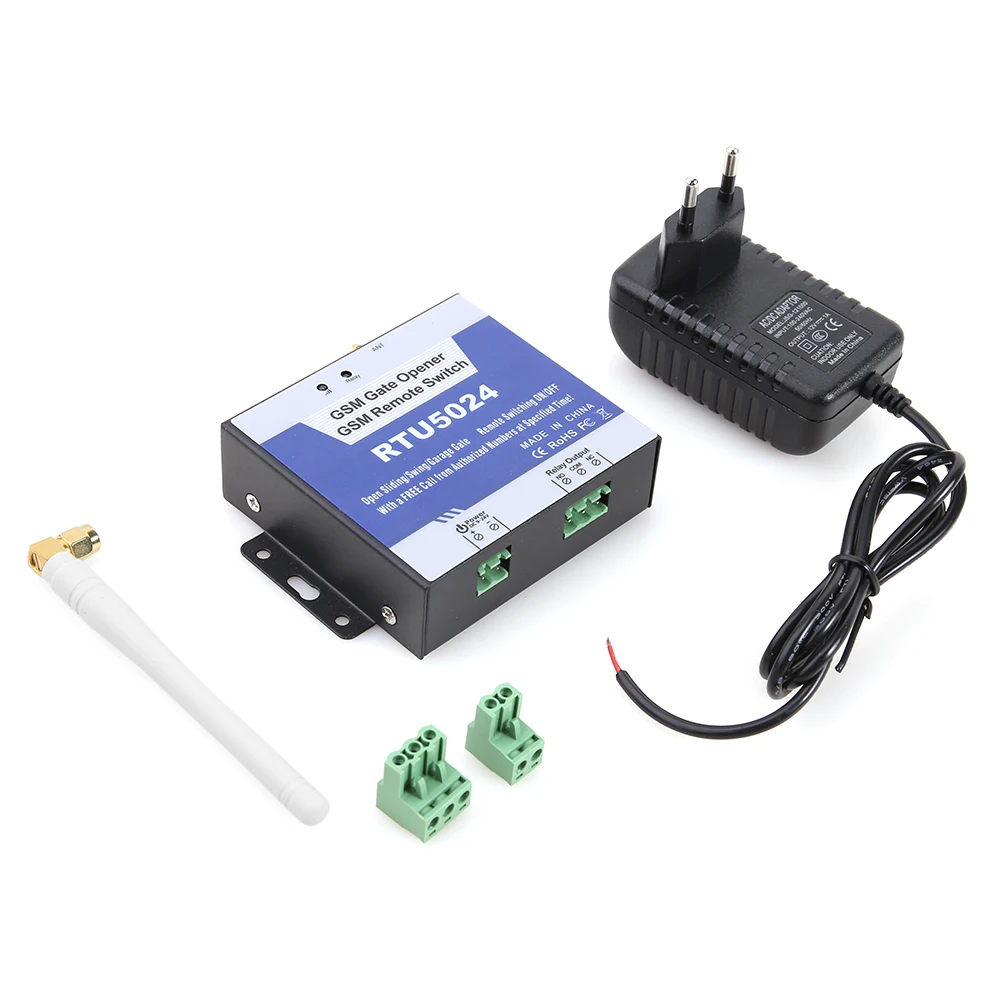

Power adapter plug Type: EU, US (Optional)

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

Specification:
GSM frequency: Quad-band 850/900/1800/1900MHz
Network: 2G
Original output: NC/NO dry contact, 3A/250VAC
DC power supply: 9-24VDC/2A
Power consumption: 12V input maximum 50mA / average 25mA
SIM card: Support 3V SIM card
Antenna: 50ΩSMA antenna interface
Temperature range: -20-60℃
Humidity range: 90% relative humidity
Material: Plastic
Dimensions: 96.5x50x31.5mm/3.8×1.97×1.24in

Describe
The GSM door opener is a powerful GSM relay that can be used for authorized access control, control doors, switching of remote devices and parking systems.
Also, it can be used where a system, machine or device needs to be turned on/off remotely with free calls from your cell phone.
