Specifications:
Laser Wavelength: 515 nm/635 nm
Spread Coverage: H110°/ V110°
Horizontal/ Vertical Accuracy: ±2.5mm/10m
Leveling/ Compensation Range: 3°±1°
Working Distance (Line): 15m indoor
IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough
Operation Temperature Range: 14℉- 122℉(-10℃–+50℃)
Storage Temperature Range: -4℉- 158℉(-20℃–+70℃)
Warning:
Avoid direct exposure of the laser beam to the eyes.

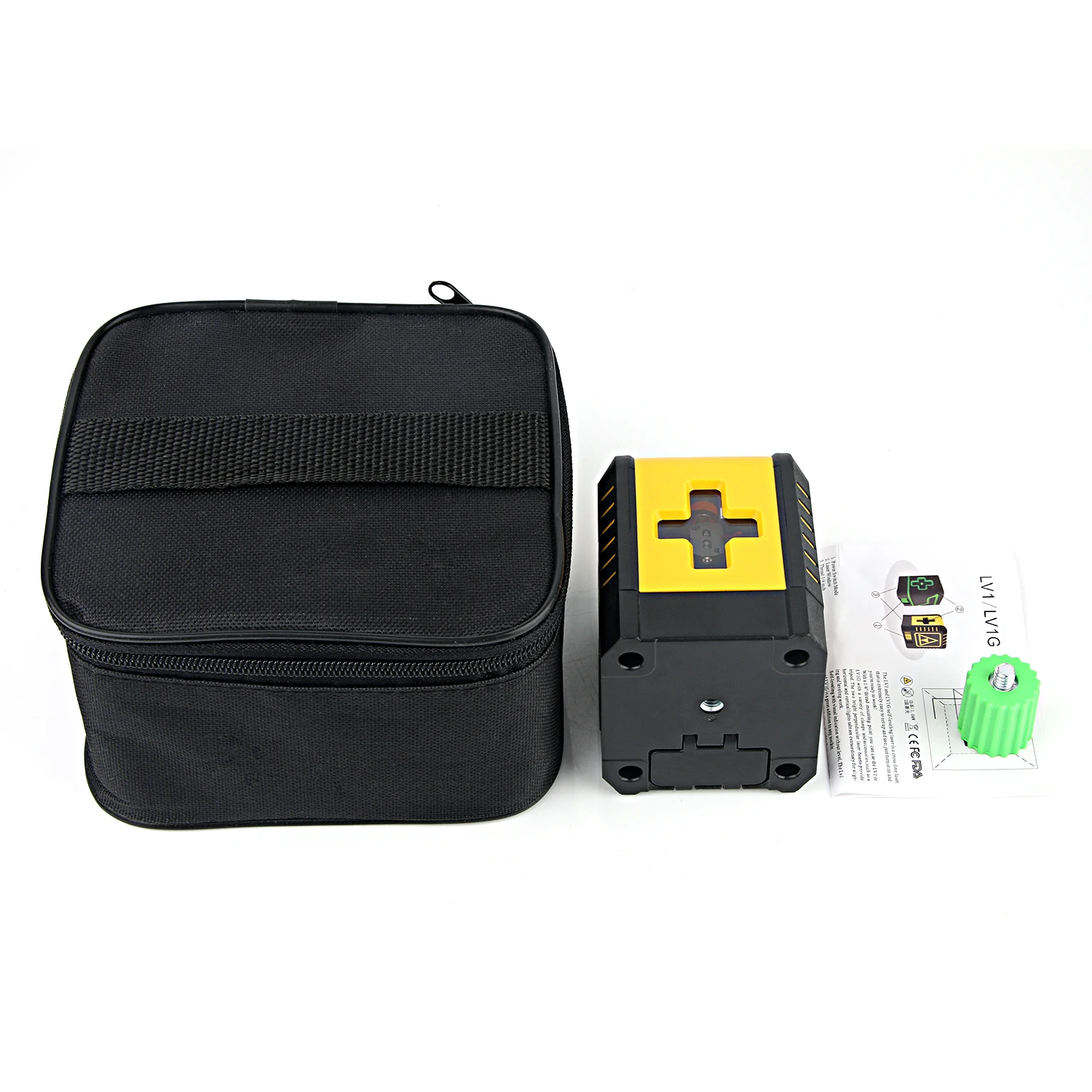

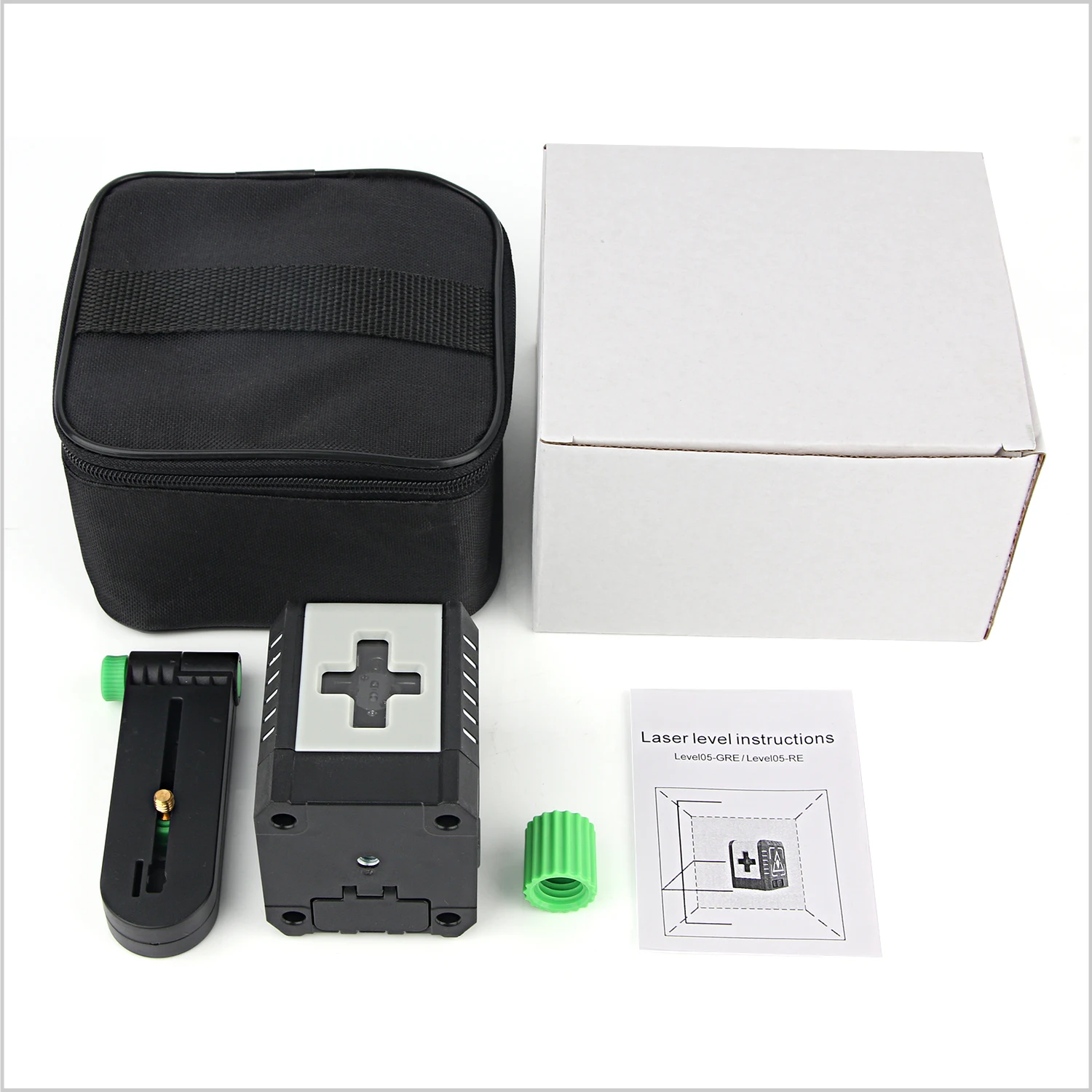

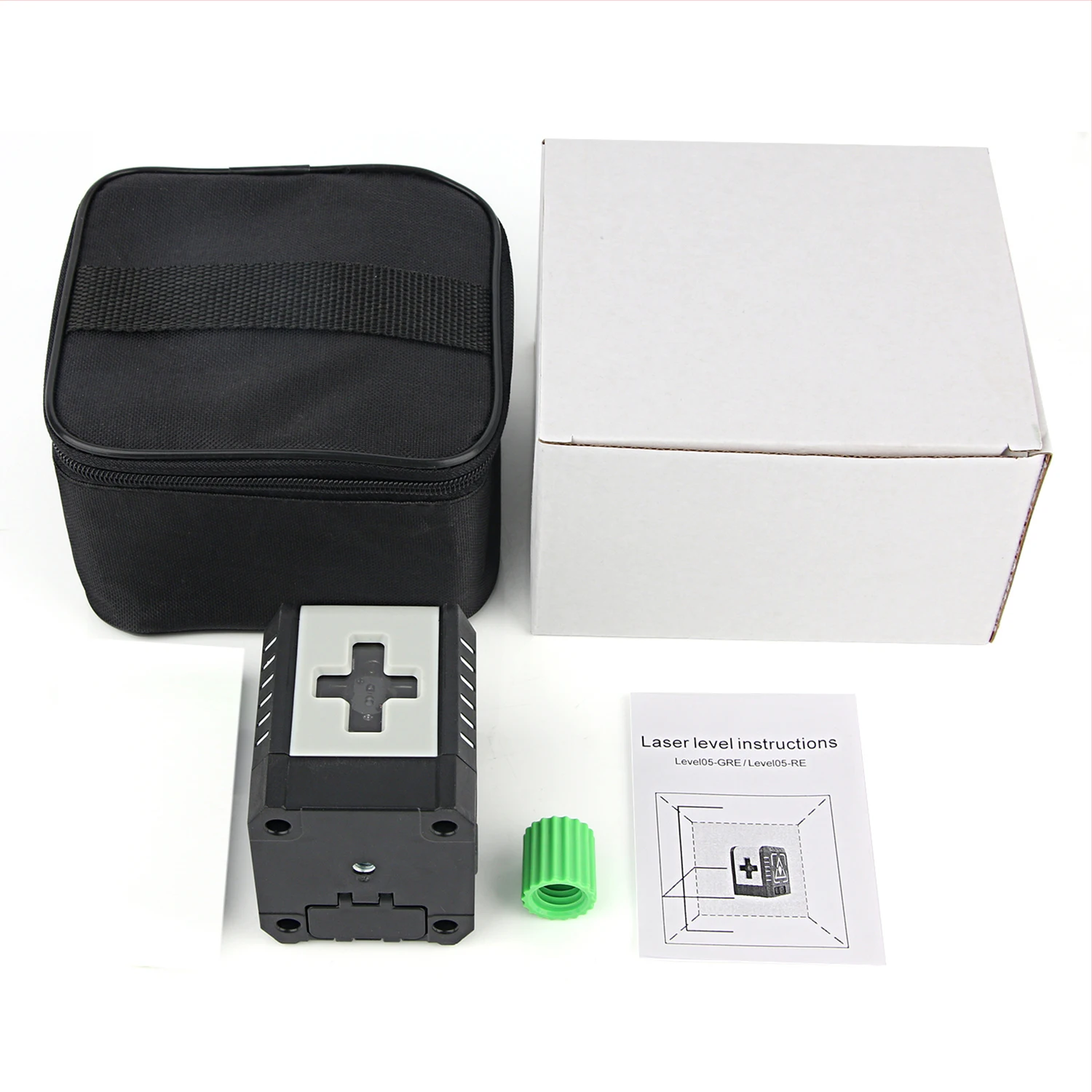

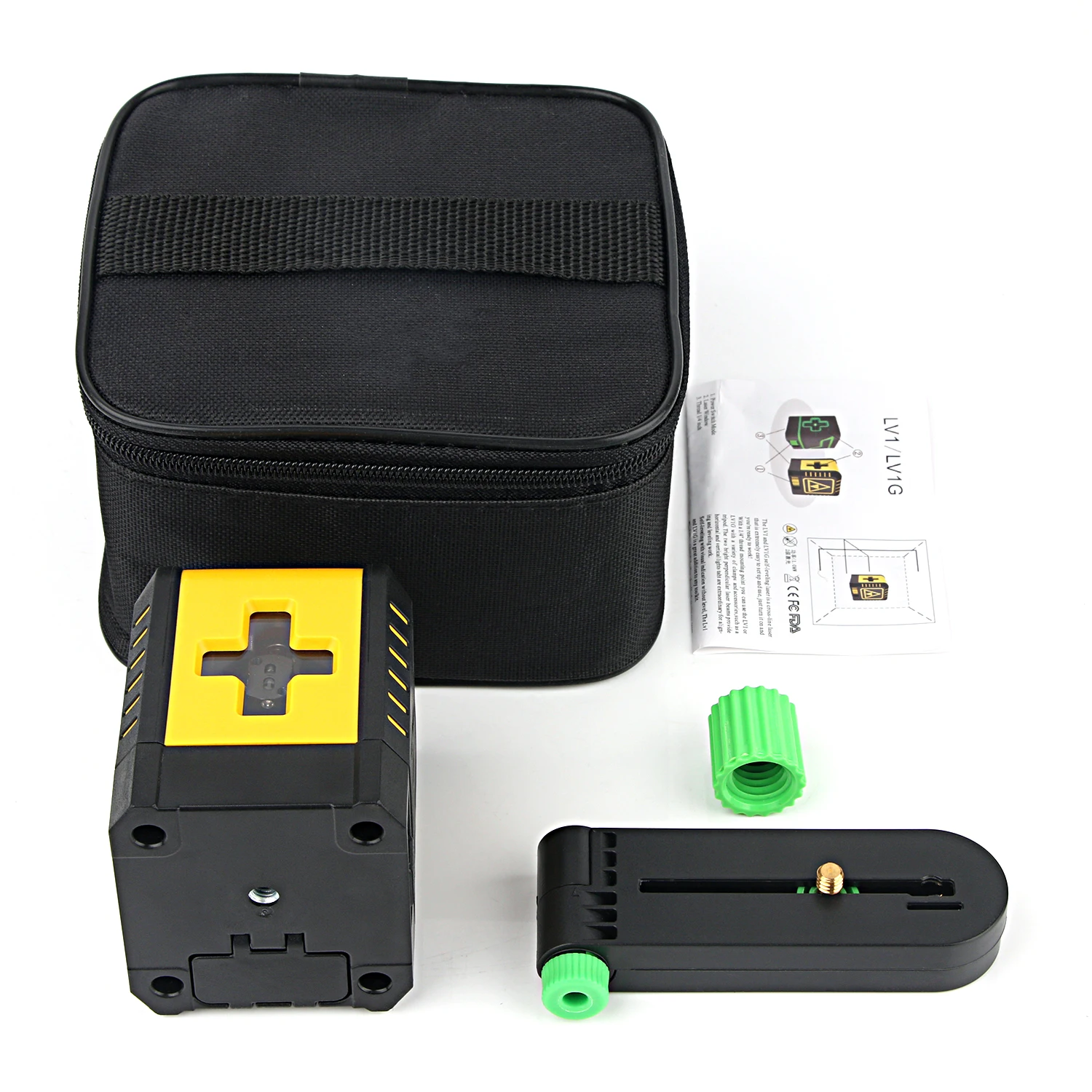

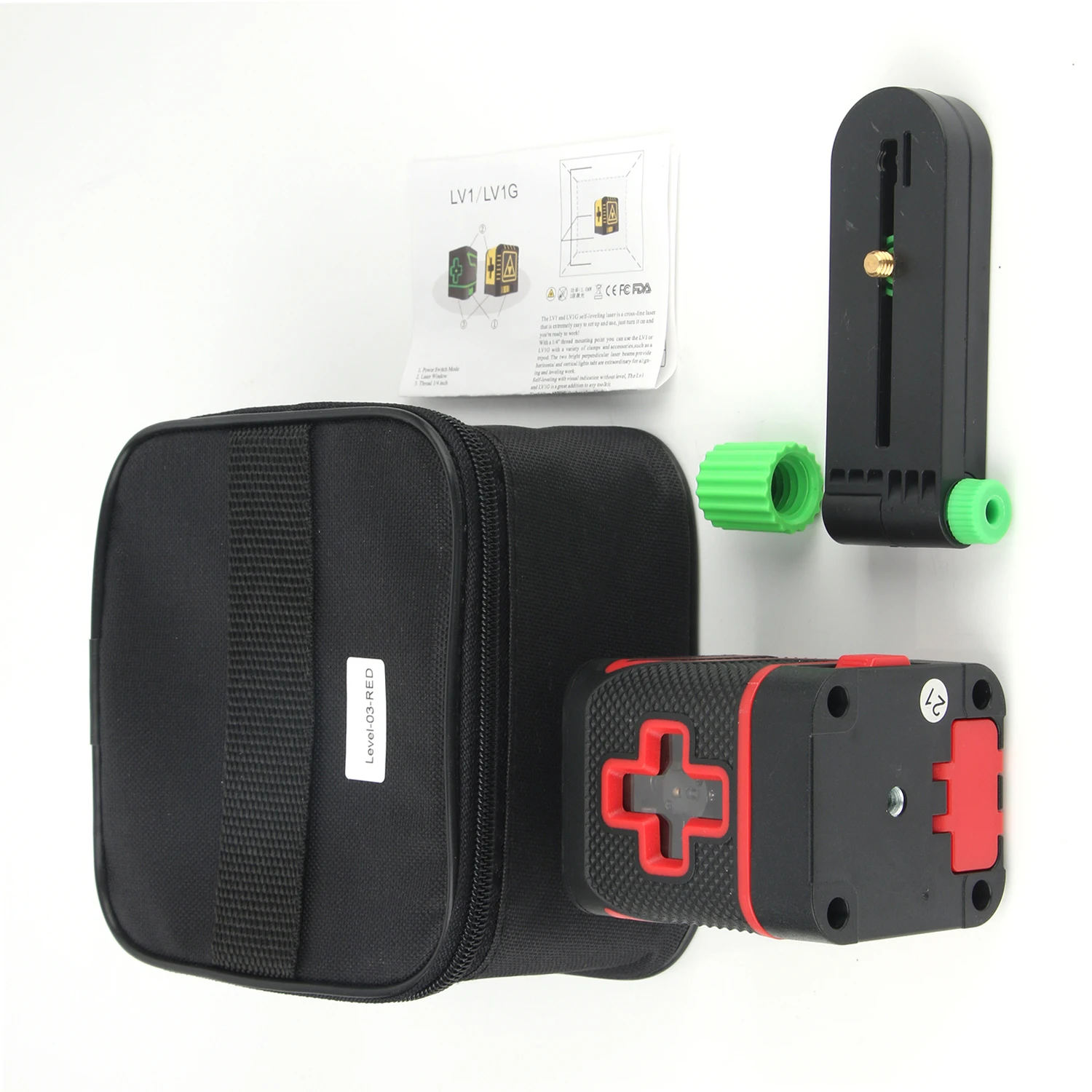

Items in the Package:
1 X laser level include battery(Ships from China warehouse without battery)
1 X English User's Manual
1 X Bracket (only Level-01-GRE-L/Level-01-RED-L/Level-03-GRE-L/Level-03-RED-L)
Features:
NEW GREEN DIODE TECHNOLOGY: We adopt Osram's laser unit which is the best green laser unit in the world at present; Green laser is 2 times (300%) brighter than red laser with the same light source.Â

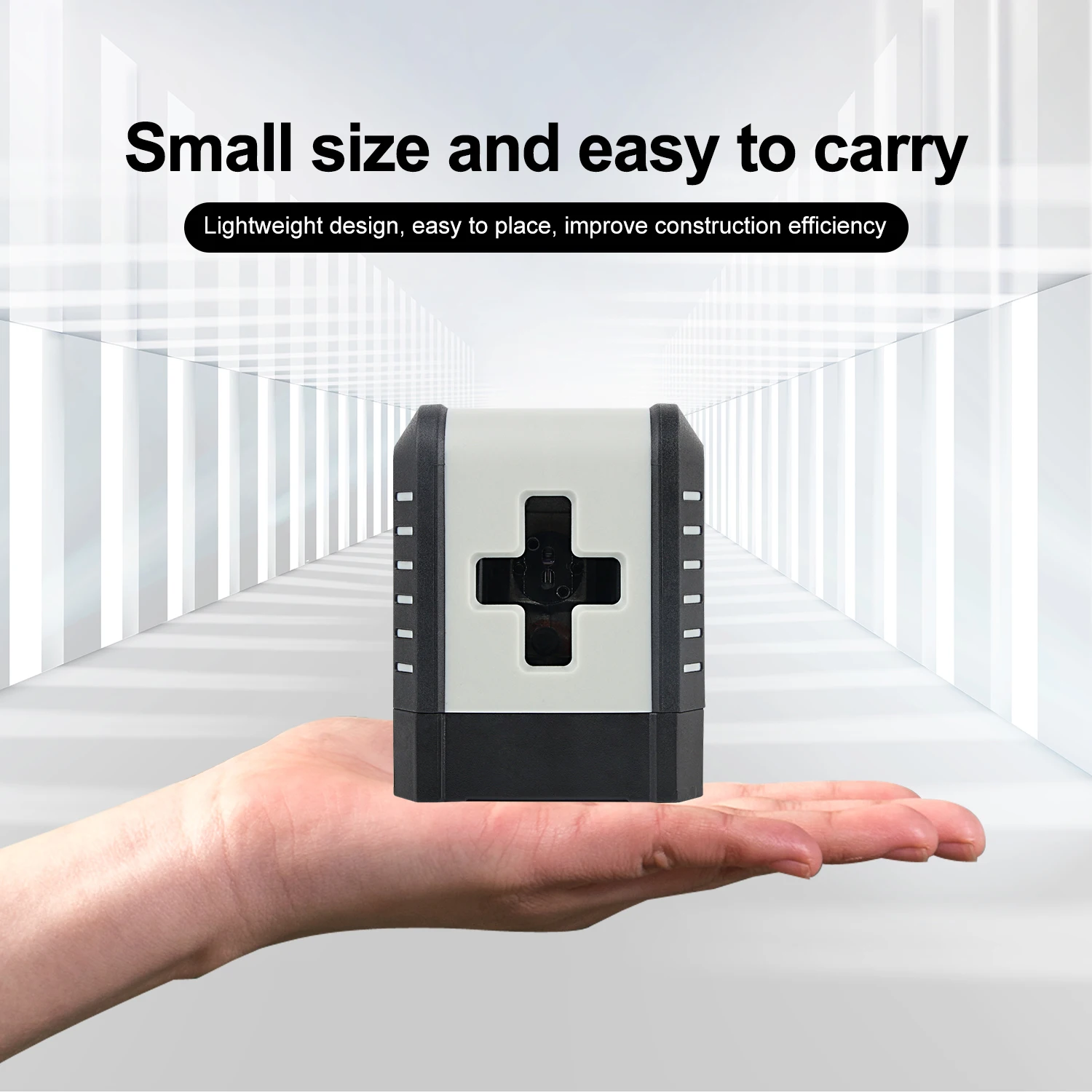

COMPACT AND HANDY: Light weight and PALM-SIZED design, the levels is the most handy and professional laser tool you can think of to carry out work for all trades from drop ceiling installation, lighting fixtures, photo frames aligning and wall tiling down to floor tiling etc.
FINE POSITIONING: Projects a laser cross with an accuracy of ±1/9and full brightness for optimal visibility; Self-leveling time less than 3 seconds; 1/4 -20 thread mounts allows you to use it with a tripod (not included) and adjust its height easily to make measuring flexible and stable.
MANUAL FUNCTION: As well as being self-leveling, they also has a manual function which means that the cross line locks into position when tilted at an angle to maintain the perfect 90 degree angles. You can turn it around on the fixed clip 360 degrees.

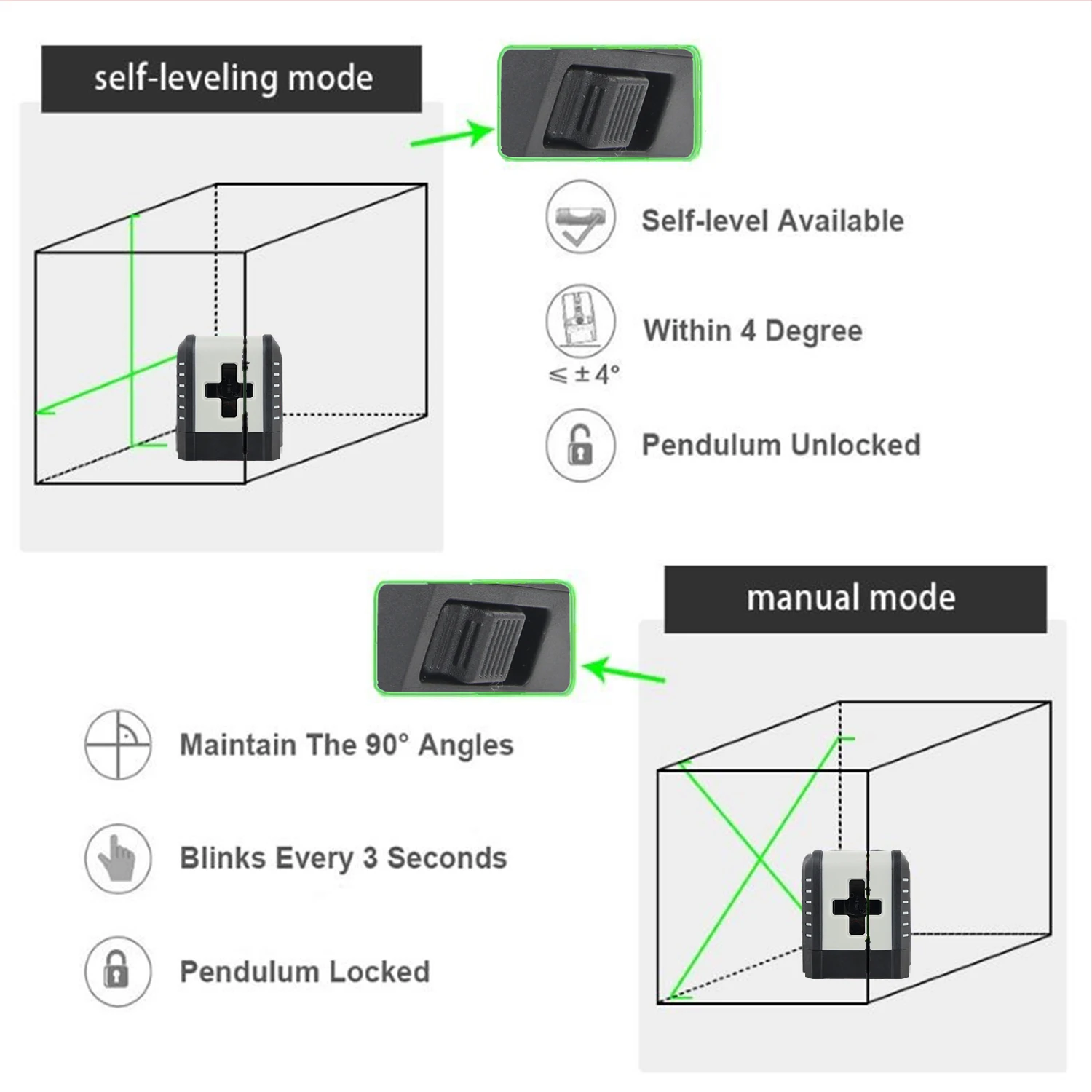

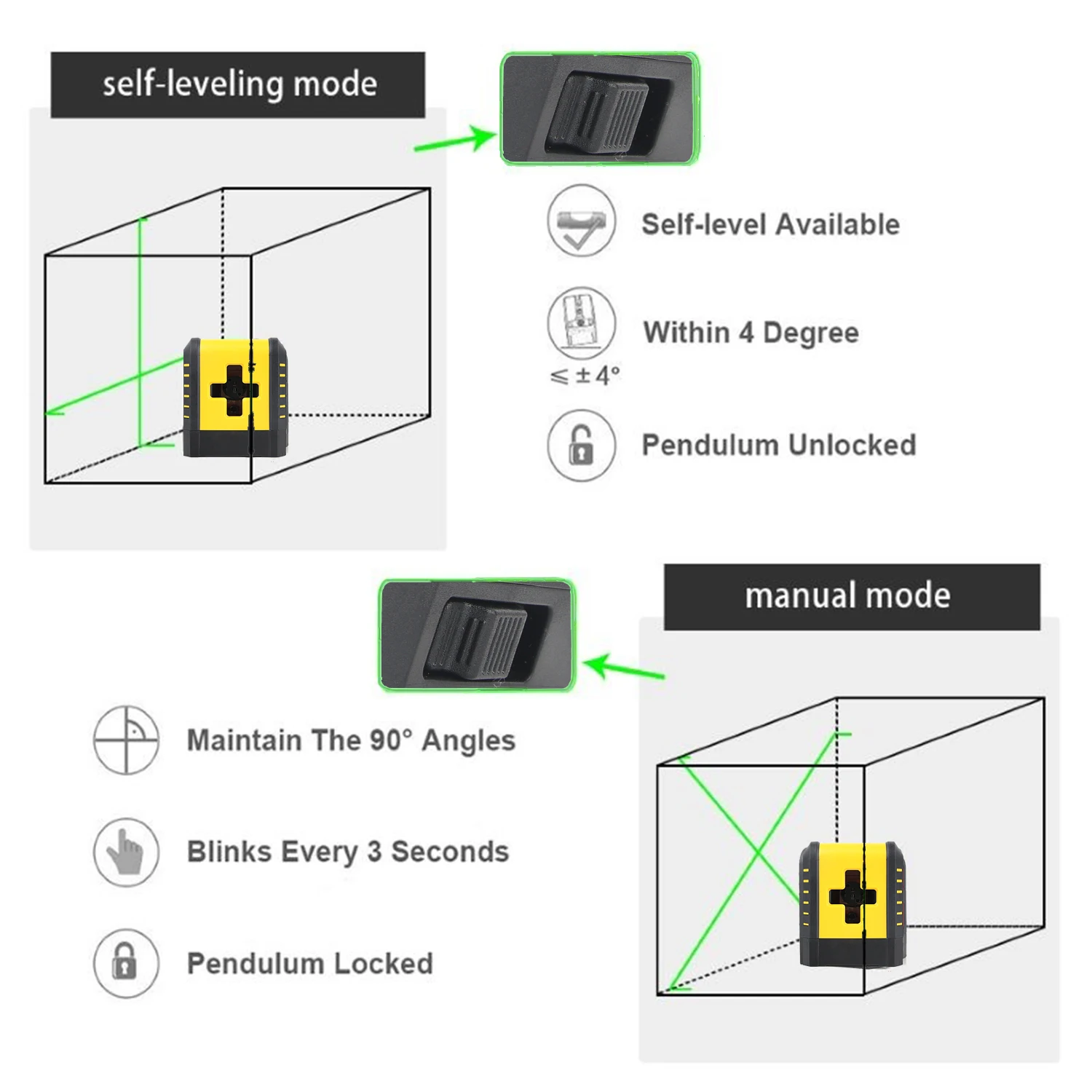

Two modes of use
➤Self-leveling mode:

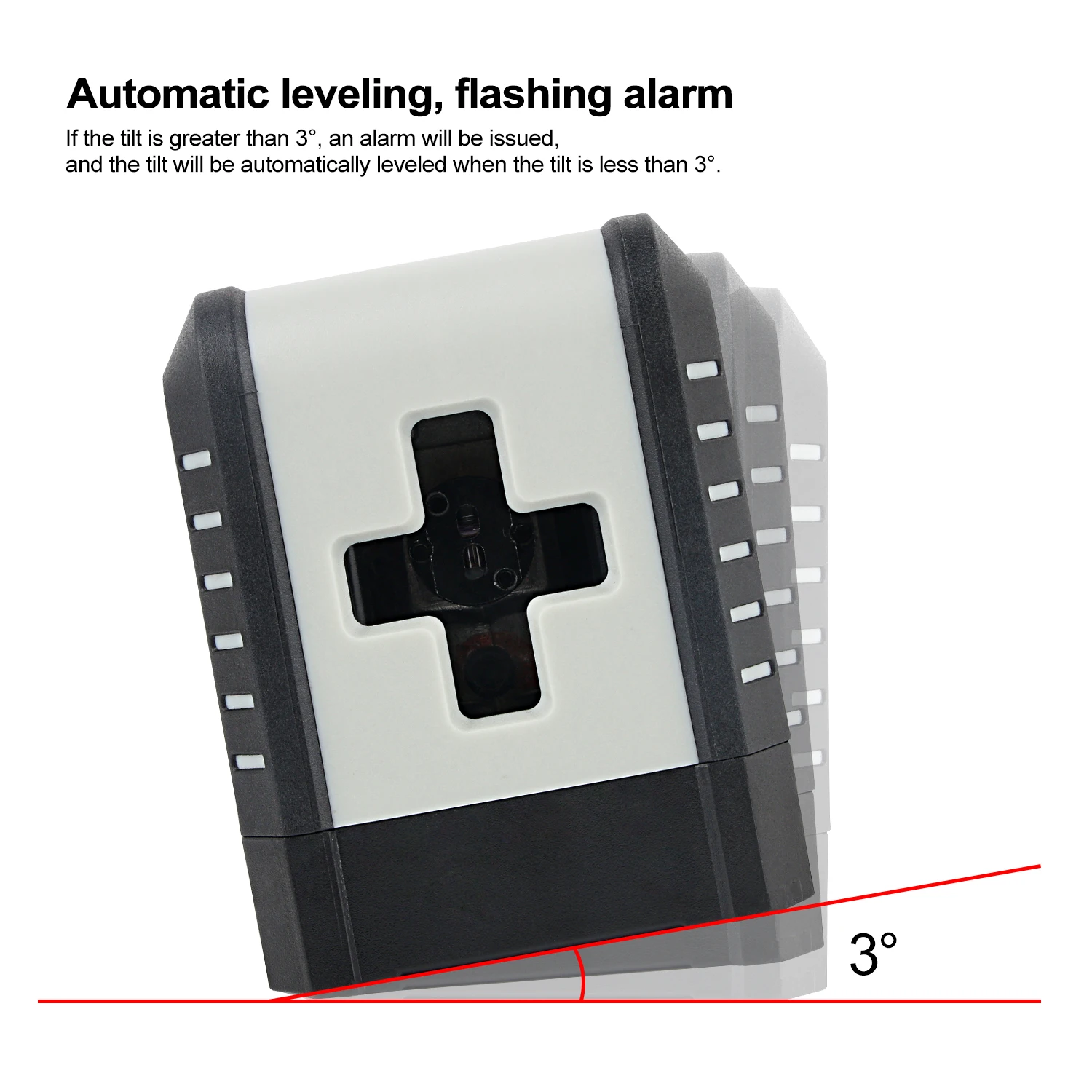

Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
➤Manual mode:
Lock the pendulum, you can (use tripod or other bracket )place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Various Kinds of Fixing Method:
➤Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 360 degrees as you like.
➤It can also accpets a standard tripod screw to do height adjustment.
How to power ON:Short press the power key or slide locking switch to turn the laser tool ON.
How to power OFF:Lock the pendulum before short pressing the power button to turn the laser tool OFF.
The laser tool can help you easier on Home Decoration,
Partition Wall Construction, Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation,
Pictures Hanging Design, Laying out Tile, Windows Construction etc.
Note :

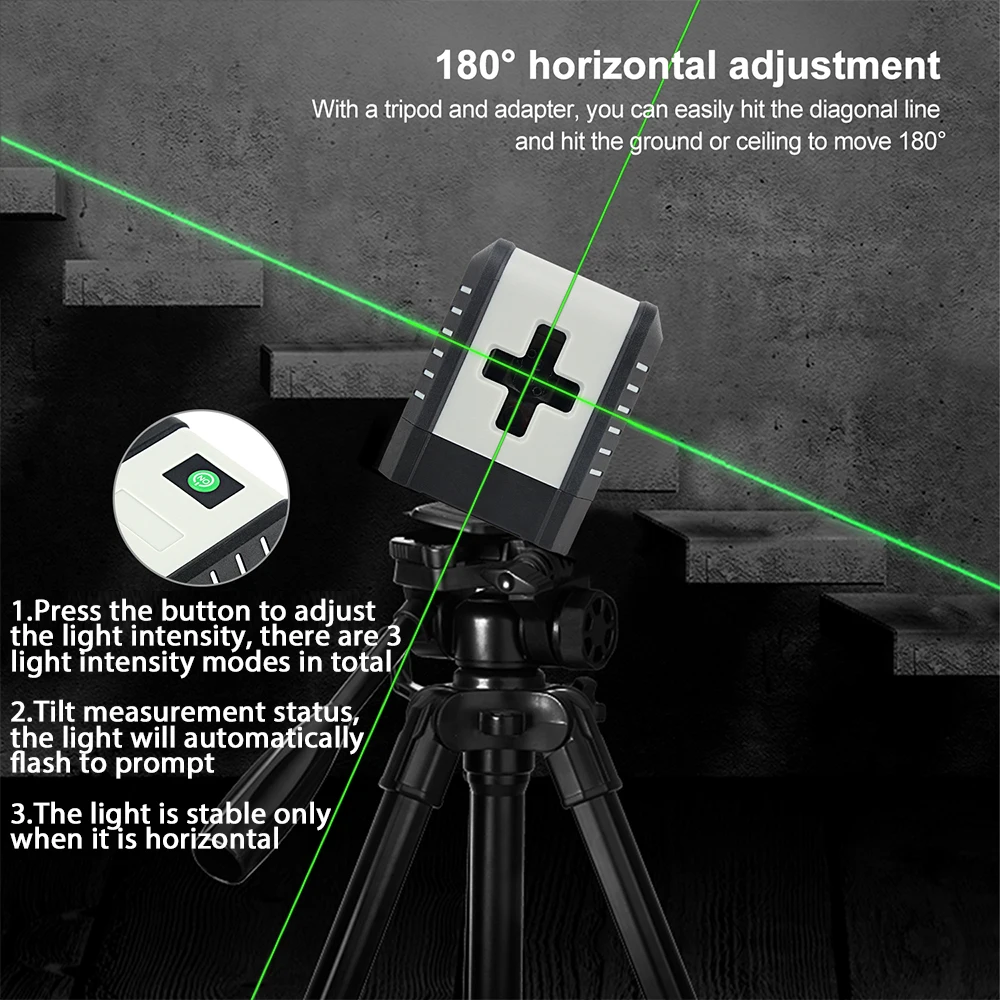

1.Press the button to adjust the light intensity, there are 3 light intensity modes in total
2.Tilt measurement status, the light will automatically flash to prompt
3.The light is stable only when it is horizontal

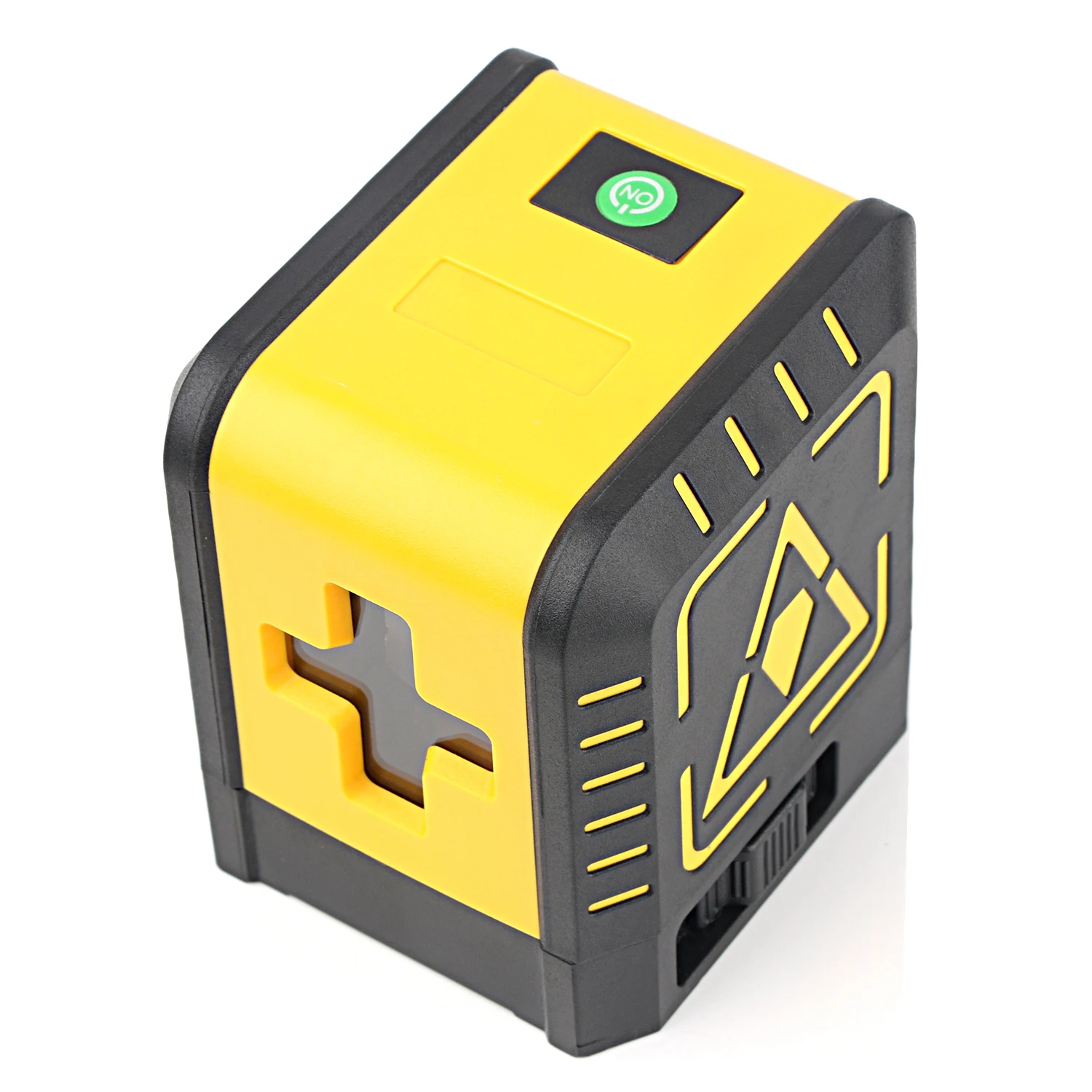

Level-01-GRE
Level-01-GRE-L

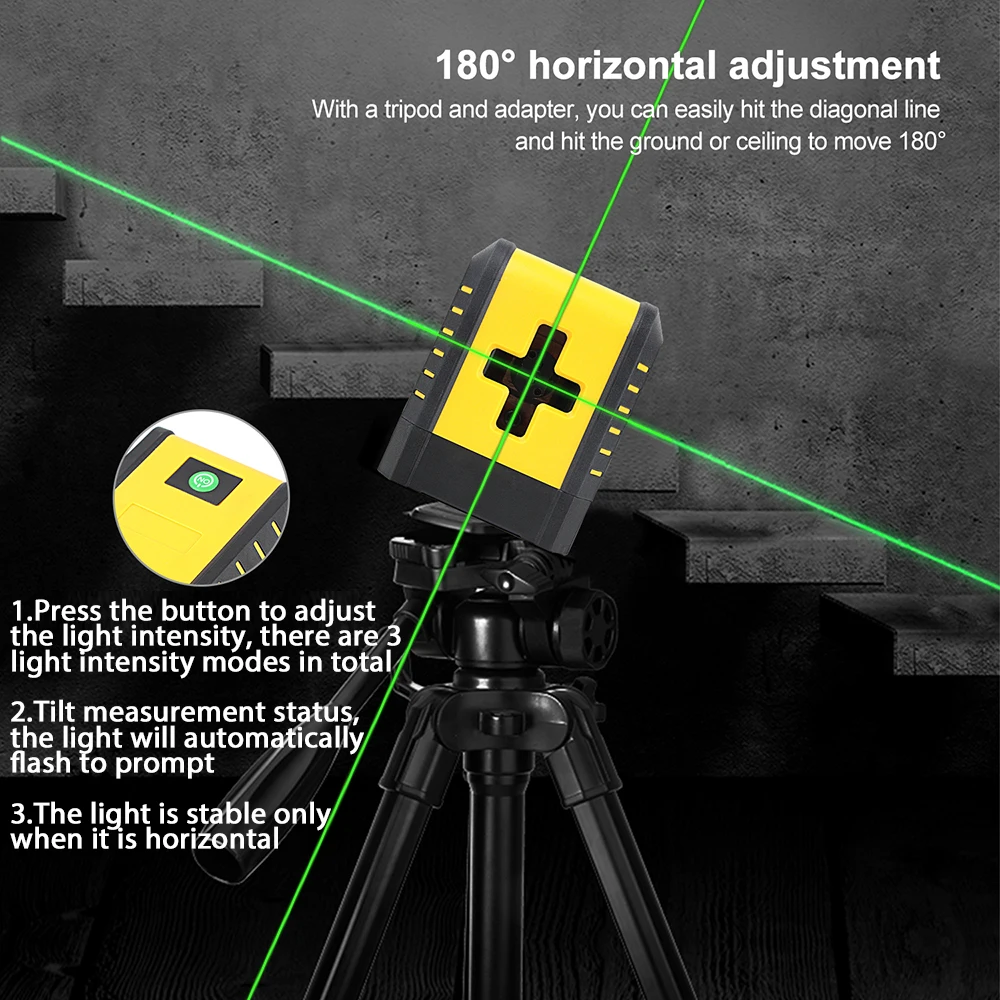

Note:1.Press the button to adjust the light intensity, there are 3 light intensity modes in total
2.Tilt measurement status, the light will automatically flash to prompt
3.The light is stable only when it is horizontal

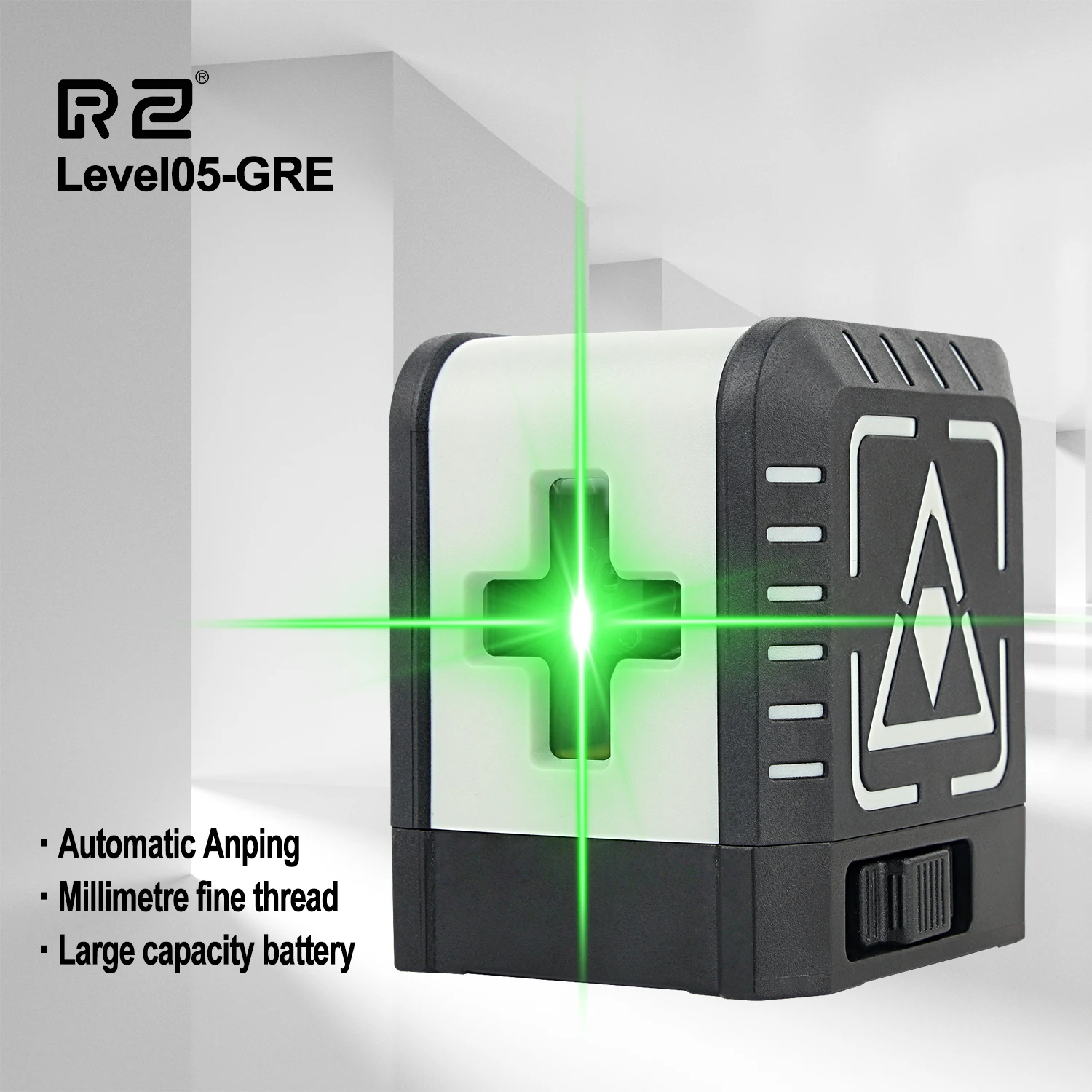

Level05-GRE
Level05-GRE-L
Level03-GRE
Level03-GRE-L
