Sboard 4G/5G WIFI Tuya Fingerprint Access Control System kit Reader Fingerprint Wiegand Output 26-44 Protocol NFC 13.56Mhz Card

Sboard 4G/5G WIFI Tuya Fingerprint Access Control System kit Reader Fingerprint Wiegand Output 26-44 Protocol NFC 13.56Mhz Card

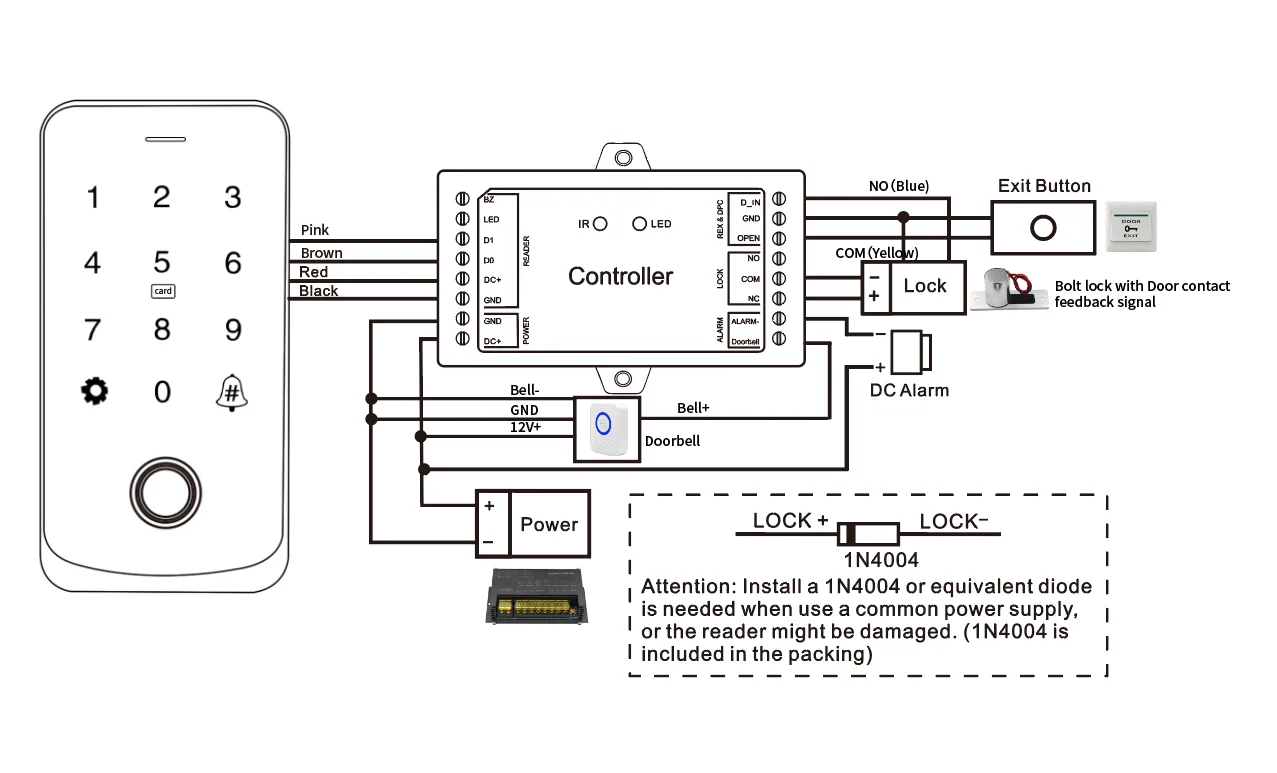

This is a Wiegand+Tuya App fingerprint controller kit with powerful functions and high safety factor，unable to open the door by disconnecting the keyboard wires，Equipped with a 13.56Mhz fingerprint Wiegand output fingerprint card reader, supporting WIFI remote control, paired with an administrator card (for adding and deleting users) and a remote control for administrator programming

Product Specifications of Tuya WiFi Mini Controller Sboard-III-WIFI

Security Mode: Fail Safe with Signal

Smart home platform: Tuya App

user capacity: 1000 user

mobile app user capacity: 500 user

voltage: DC 12V

> Wiegand 26~44, 56, 58bits input

tuya app: ios and android

remote open door: 3G/4G/5G WiFI

relay: one relay

master card: support

12V DC power input

> Can connect with external alarm and door contact

> 500 APP users

> Can set Time Restriction for users

> Temporary Password (One-time Or Period Code)

> Support checking Opening Record

> Doorbell Call Notice (Support External Door Bell)

>Supports connection to Wiegand fingerprint card reader

Product Specifications of Reader TF9:

This is a Tuya Bluetooth fingerprint access control device or a Wiegand output fingerprint card reader. When used as a Wiegand card reader (i.e. in card reader mode), the Tuya function cannot be used

User capacity: 1000 user

Material: ABS / Acrylic panel high quality material

Panel: touch screen panel

Working frequency: 13 56MHz

Card reading type: RFID MF IC card

Card reading distance: 0-5CM

Record capacity: Mobile phone APP remotely view the latest 10000 lock opening information.

Administrator: A maximum of three administrators can be configured.

Backlight: has backlight

Waterproof function: IP65 waterproof, can be installed outdoor

Volume setting: 0~4 adjustable volume

Wiegand Protocol: WG34 output

Working voltage: DC 12V

Working current:≤30mA

Door opening time: 01 seconds to 30 minutus adjustable

Working temperature: -20。C ~ +60。C

Working Humidity: 20% ~ 90%

Product size: 140*70*16mm

Product Specifications of Access Control Power Supply Control KDB08

Description:

This is a 100V–245V Access Control Power supply, Compatible with world voltage, light weight, convenient transportation, small disturbance，it is made of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-IC Reader /Intercom System.etc.

Key Functions:

It controls electric lock directly.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Set NC/NO output, can control various types of electric locks

Based delay control circuit, lock time can be in 0-15 seconds

Automatic protection function, unexpected situations such as

when the power supply short-circuit occurs, the power may be

temporarily disconnected or the fuse auto insurance line off

Operative device: E/M Lock, Access Controller, Exit Push Button

Key Specification:

AC input: Standard AC100V-245V(5A)

DC output: Stabilivolt DC12V/5A

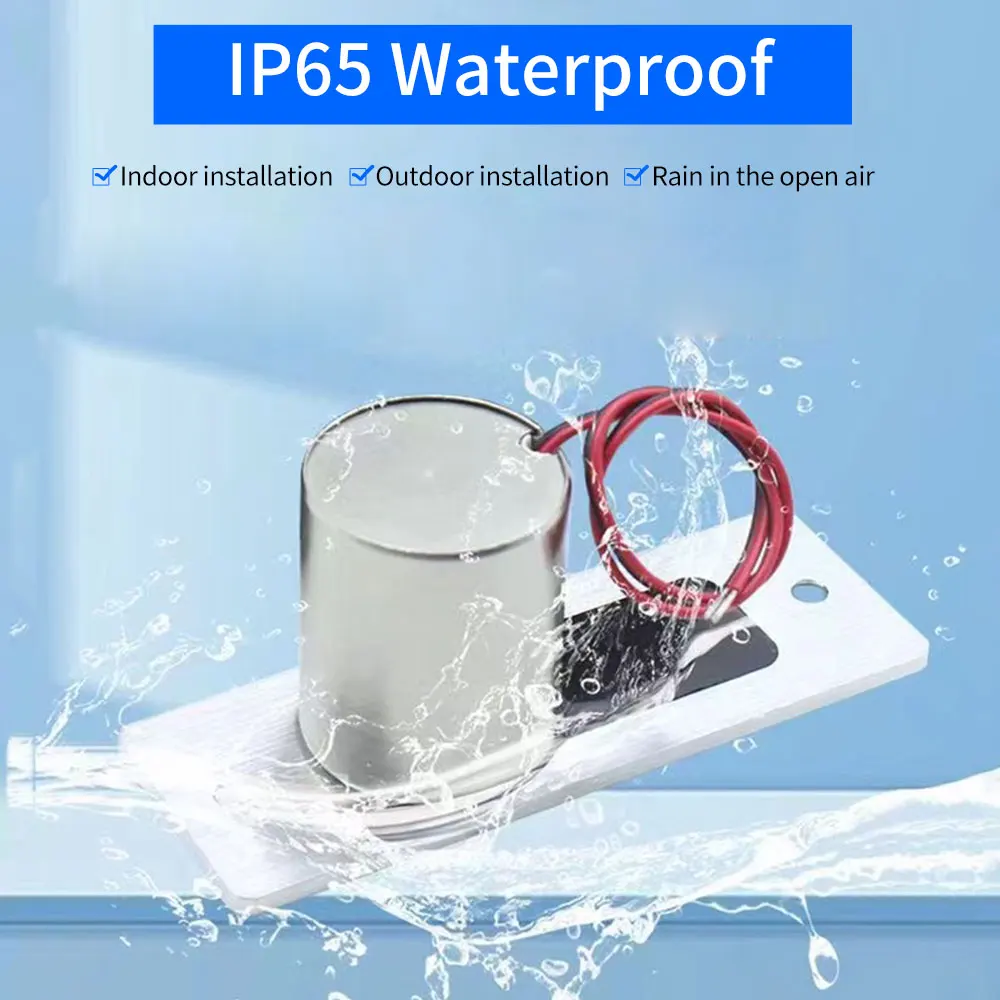

Product Specifications of Bolt Lock SM603-5

Five lines lock with feedback and delay function:

Red ：+12v,black： GND, yellow： feedback COM, blue： feedback NO,White： delay line

(connected in parallel with black， delay for 4 seconds to lock)

Working current: Start state 1.1A ,Continuous state:0.09A ,Coil type: continuous working type, Security type: power on lock,power off unlock,Lock core: diameter 12mm extension length 13mm,Locking mode: magnetic induction

Product Specifications of Doorbell B08

Material: Plastic

Color: White

Power:3W

Wired door bell 12V for security access control

Connect to DC 12V power directly

Switch is not included

Volume of doorbell: 90db

Working Voltage: DC12V

Red to 12V(+), Black to GND(-)

Features a bell sound, small size and wall-mount hole, very easy to install

Note:

Wired Doorbell for access control system. "Ding-Dong" Voice output without built-in battery, connect to DC 12V Power Directly

Please allow minor error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Product Specifications of Exit Switch PE6

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)

Performance Testing: 1000000 times aging test

Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.

Specifications:

Input voltage: DC12V

Electrical performance: 3A#12VDC

Contact output: NONCCOM contact

Durable test: five hundred thousand aging test qualified

Application: apply to all kinds of gate frame

Applicable temperature: -20 ~ +50

Applicable humidity: 95% ~ 0 (relative humidity)
