Sewer Pipe Inspection Camera 9″ IPS 1080P Screen Sewer Camera with 512hz Locator +Meter Counter+7MM Fiberglass Cable

Sewer Pipe Inspection Camera 9 Inch IPS 1080P Screen Sewer Camera with 512hz Locator +Meter Counter+7MM Fiberglass Cable

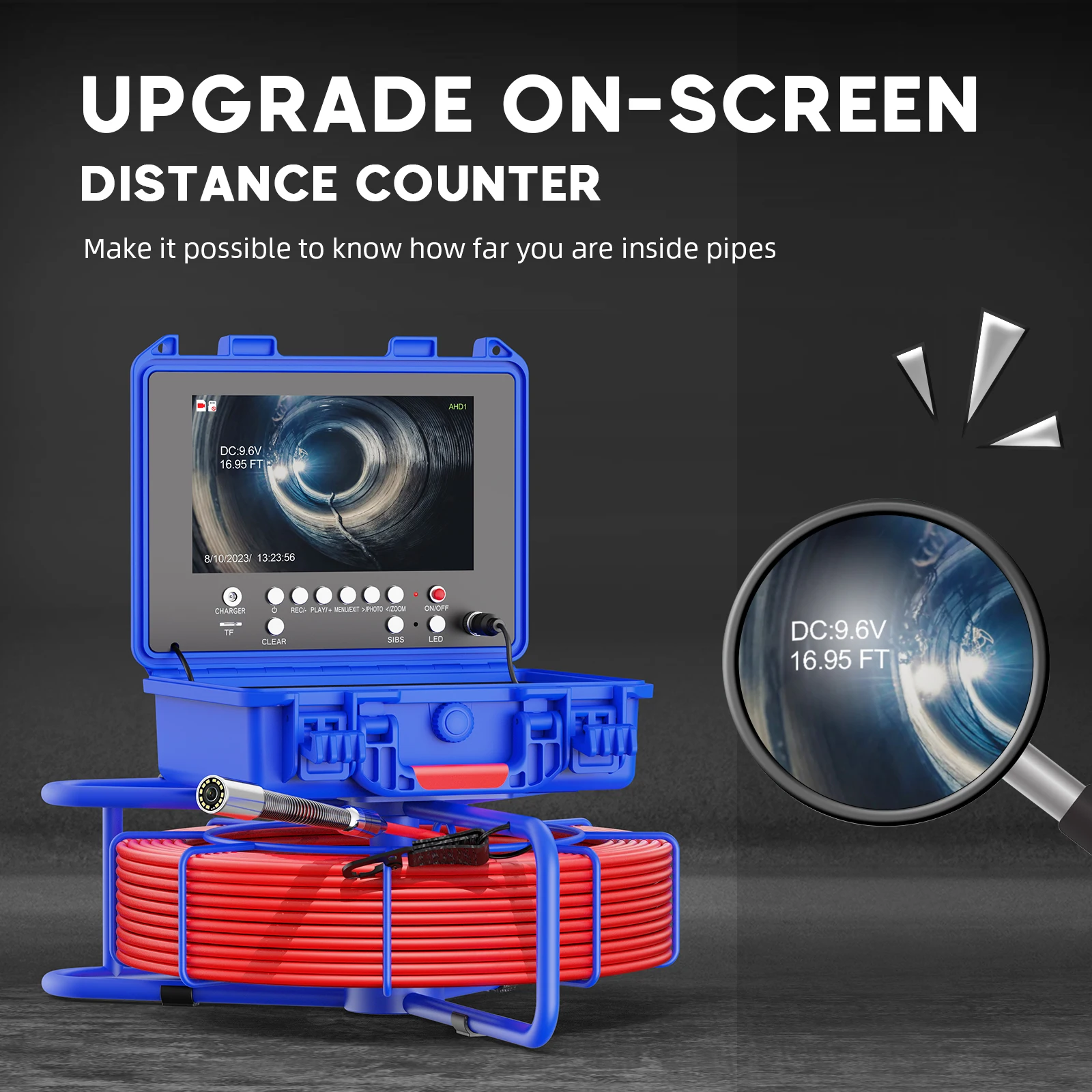

METER COUNTER:

Simultaneous display/cleared Metric and Feet.

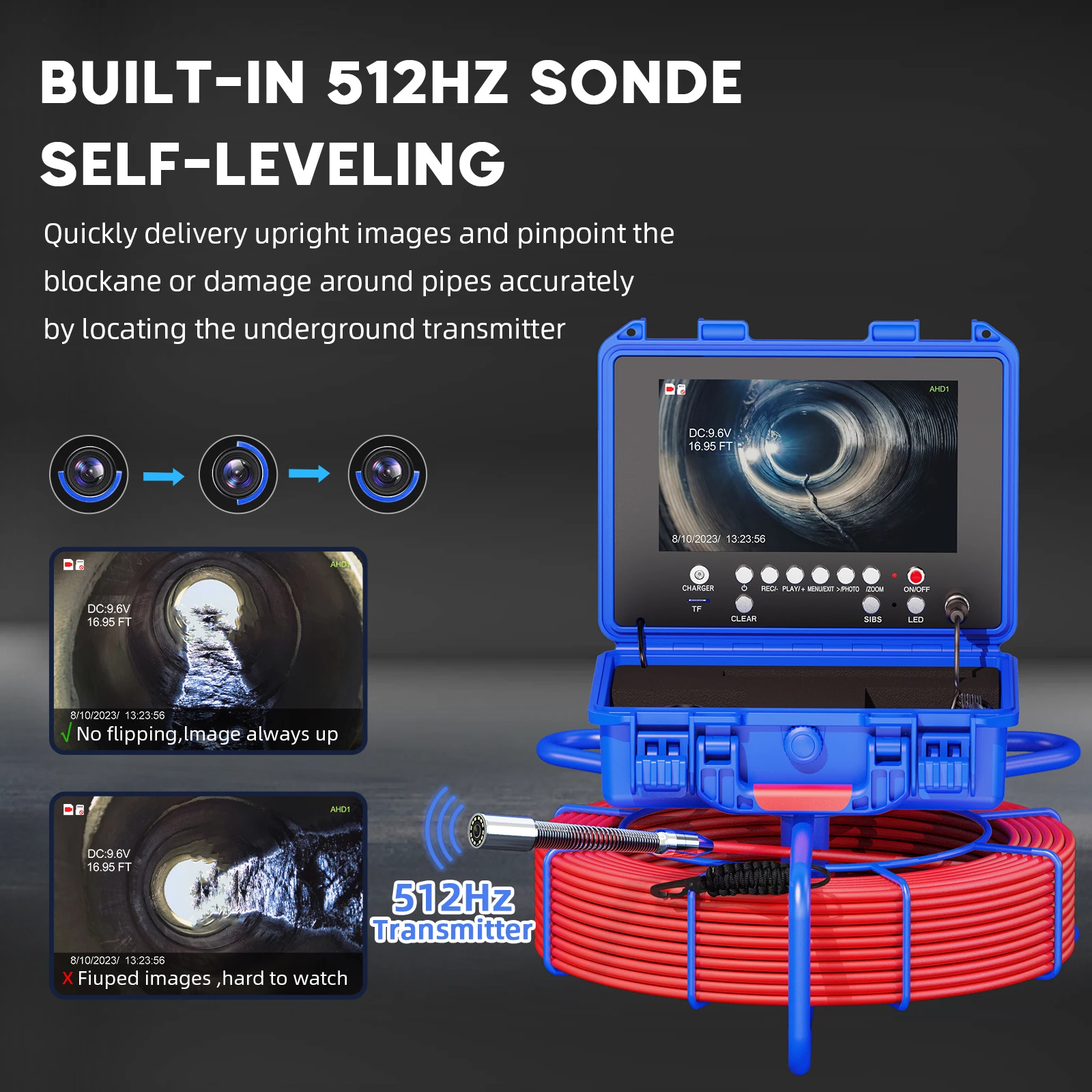

512HZ  TRANSMITTER And Self-Leveling Camera:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest.    This greatly helps save time from having to dig and locate the problem.   The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.（Locator Receiver is optional ）

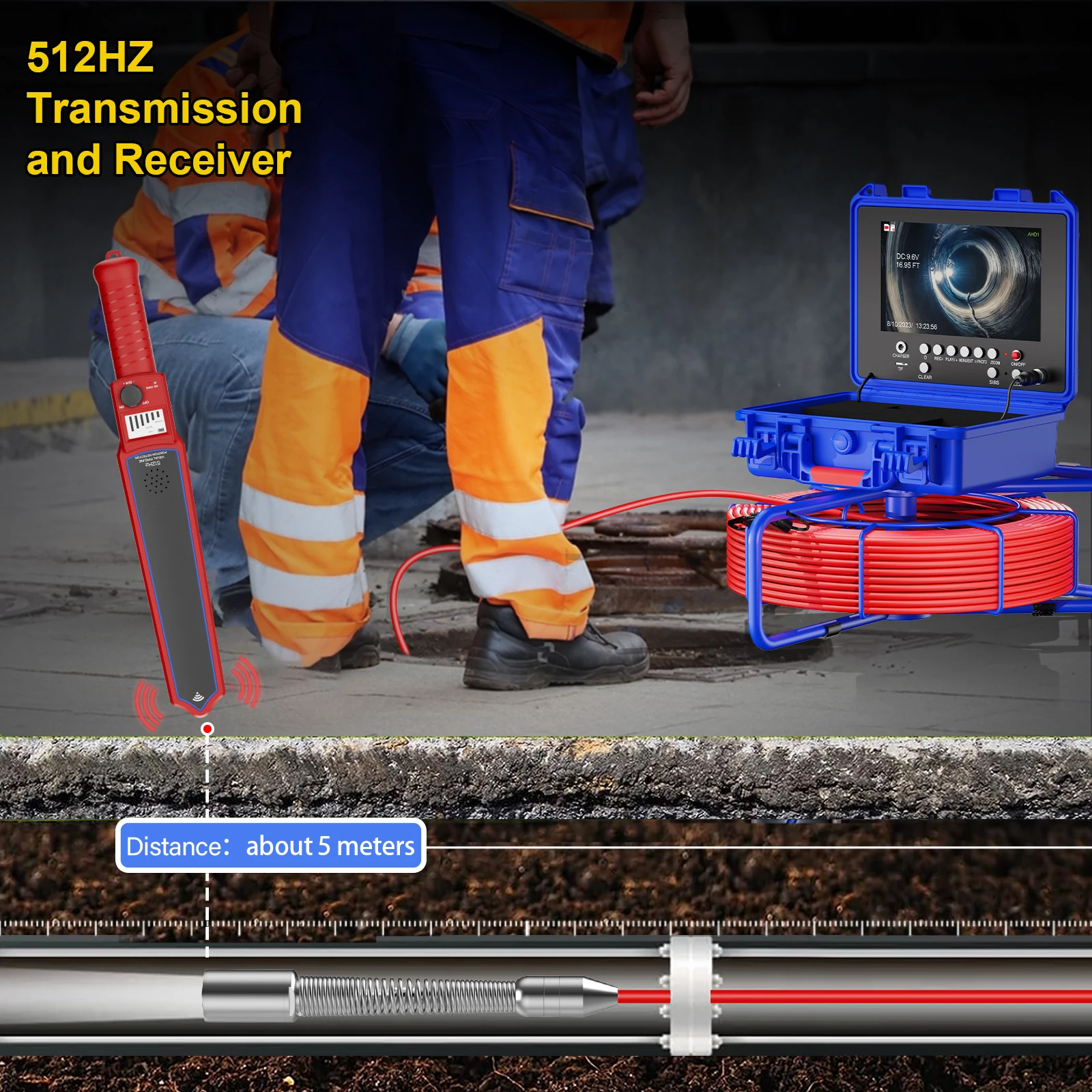

512HZ Receiver Technical Parameters：

Receiver Frequency: 512HZ

Distance: about 5m

Battery: 3.7V 3000MAH built-in lithium battery

Charger: 5V1A

Battery Indicator：4 gear,it is flashing when battery is low

Battery working time：about 10 hours

Signal strength：6 gear

Speaker：Support

Detect Mode : Far/ Near

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.  You can record the inspections and playback via the pipe system.     （DVR Edition Video Format :AVI  Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times.

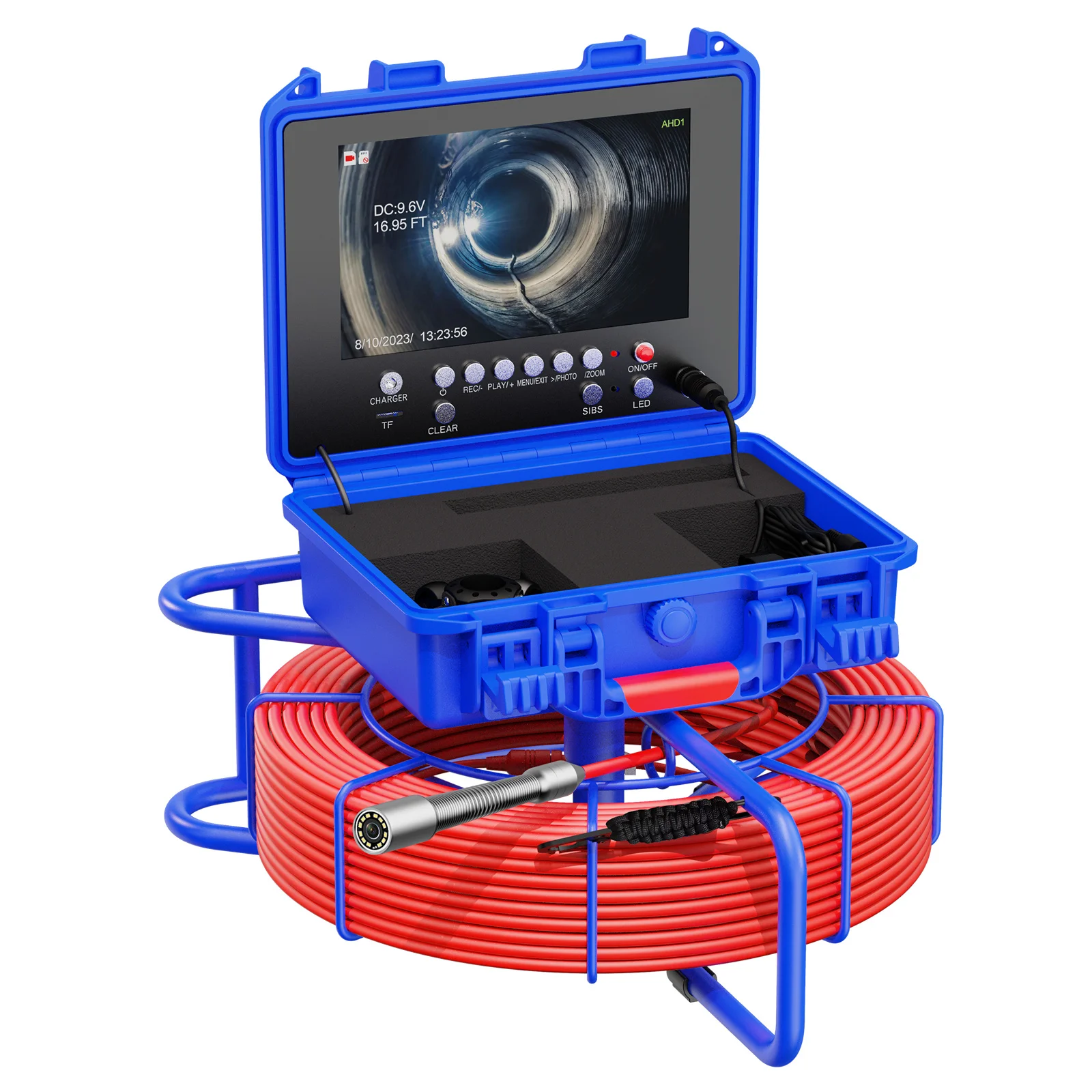

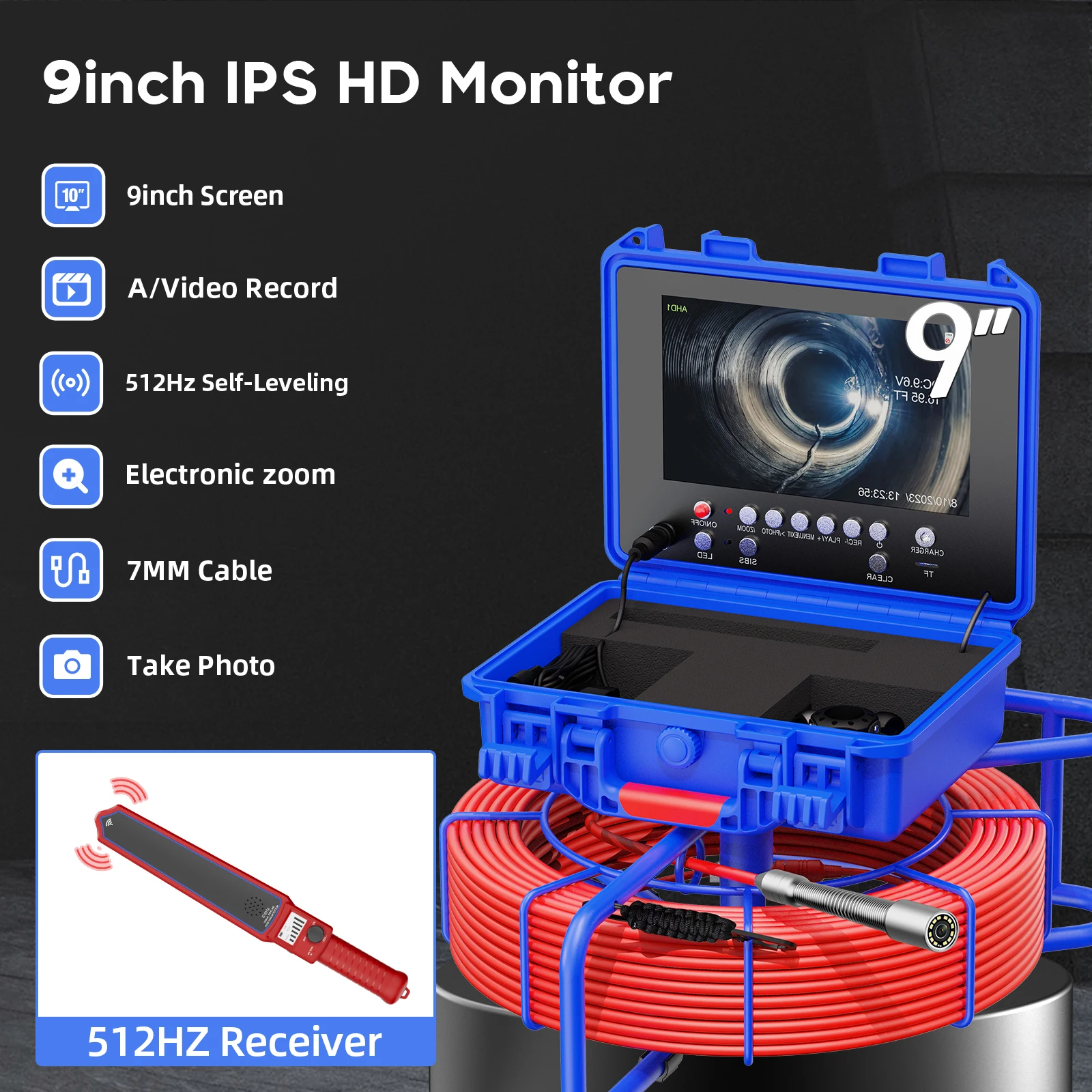

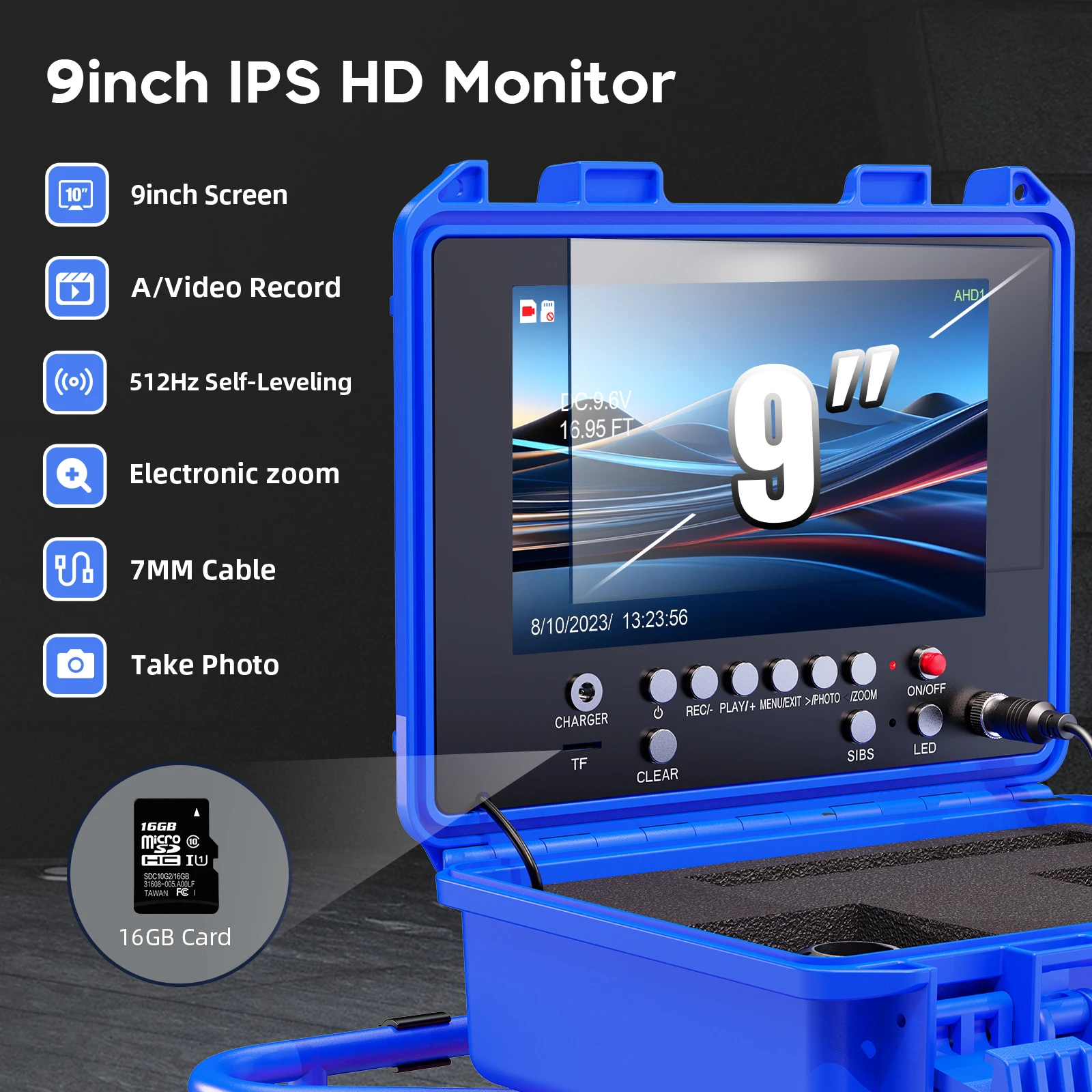

MONITOR&CABLE：

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch es color IPS LCD monitor with a sun-visor for outdoor inspections.     The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system.（DVR Edition Video Format :AVI  Photo format :JPG)

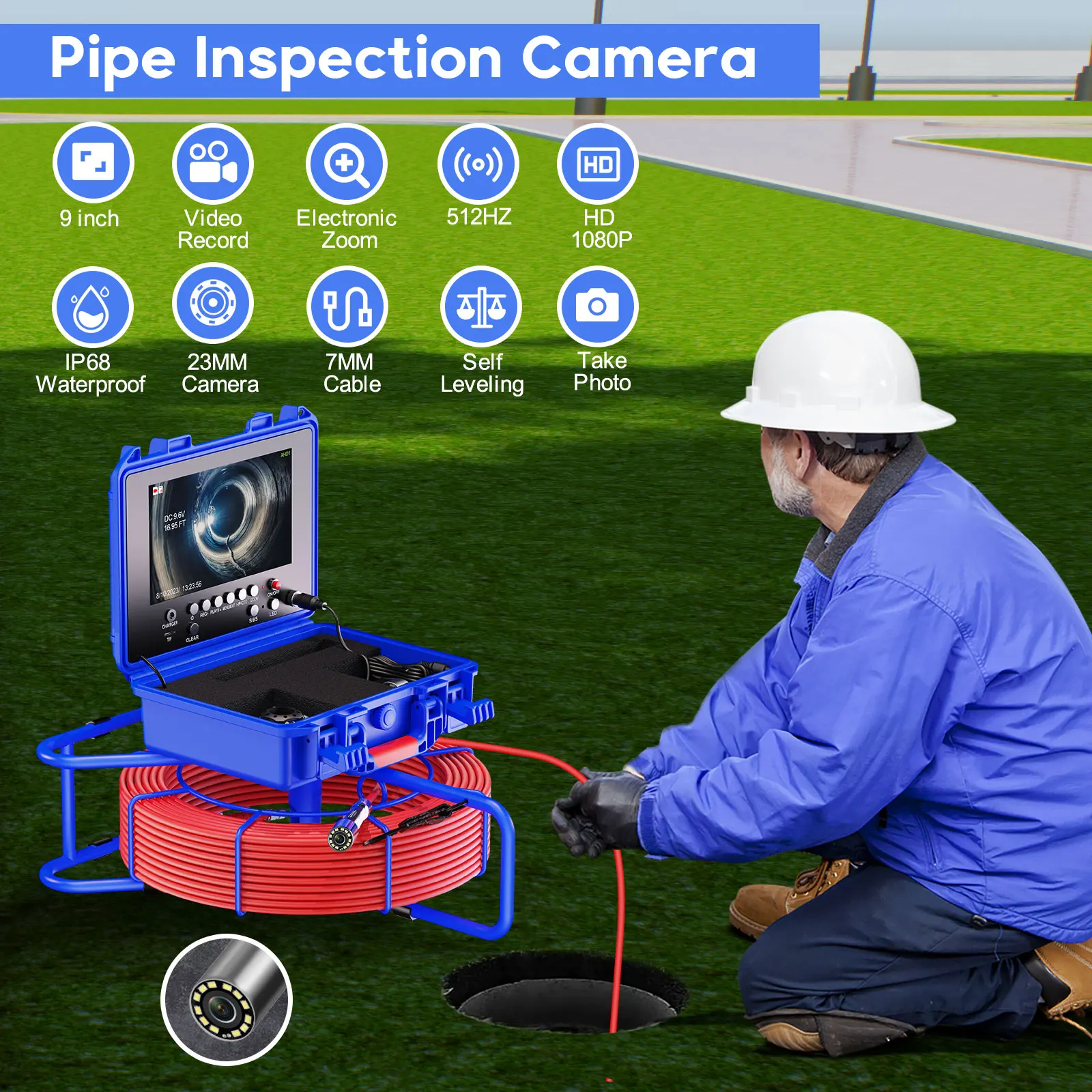

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Item: parameter

1.Monitor:9 inch IPS color record monitor

2. TF Card: Memory Support maximum 128G TF card(16G TF card included)

3.512hz:Built in 512hz transmitter

4.Camera :Auto Self Leveling AHD 1080P

5.Charger: AC100-240V   DC12.6V

6.Battery: Luminal-cell arrester 4.5AH

7.continuous use time for battery: approximate 8h

8.investigation depth:30M( selectable line length)

9.material: fiber tube with /high intensity

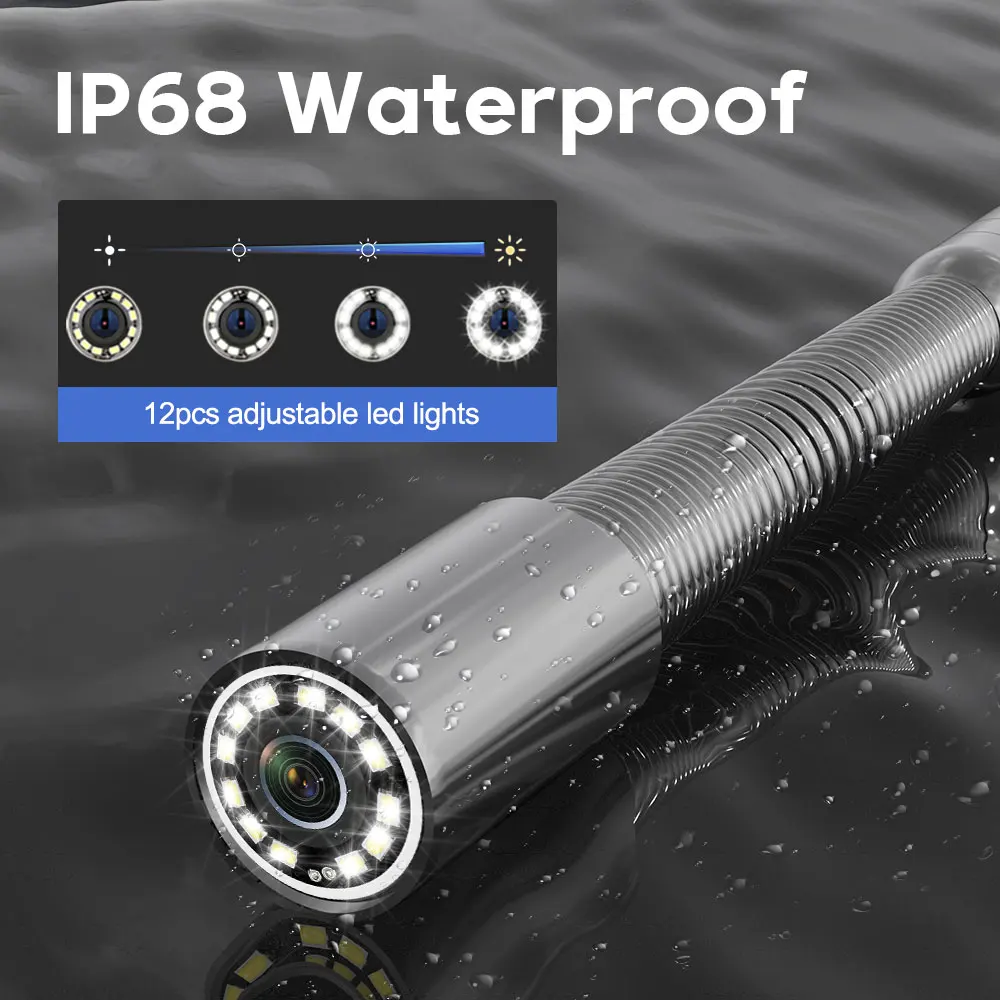

10.camera light source: 12 PCS LED with high while light(adjustable)

11.camera viewing angle: 145°

12. Lens Mirror Material : Sapphire

13. camera size/material: 23MM* 40MM /stainless steel

14. camera protective cover parts size/material:38MM* 28MM /plastic-steel

15. camera protective cover parts size/material:99MM* 45MM /plastic-steel with wheel

16. camera picture: color.

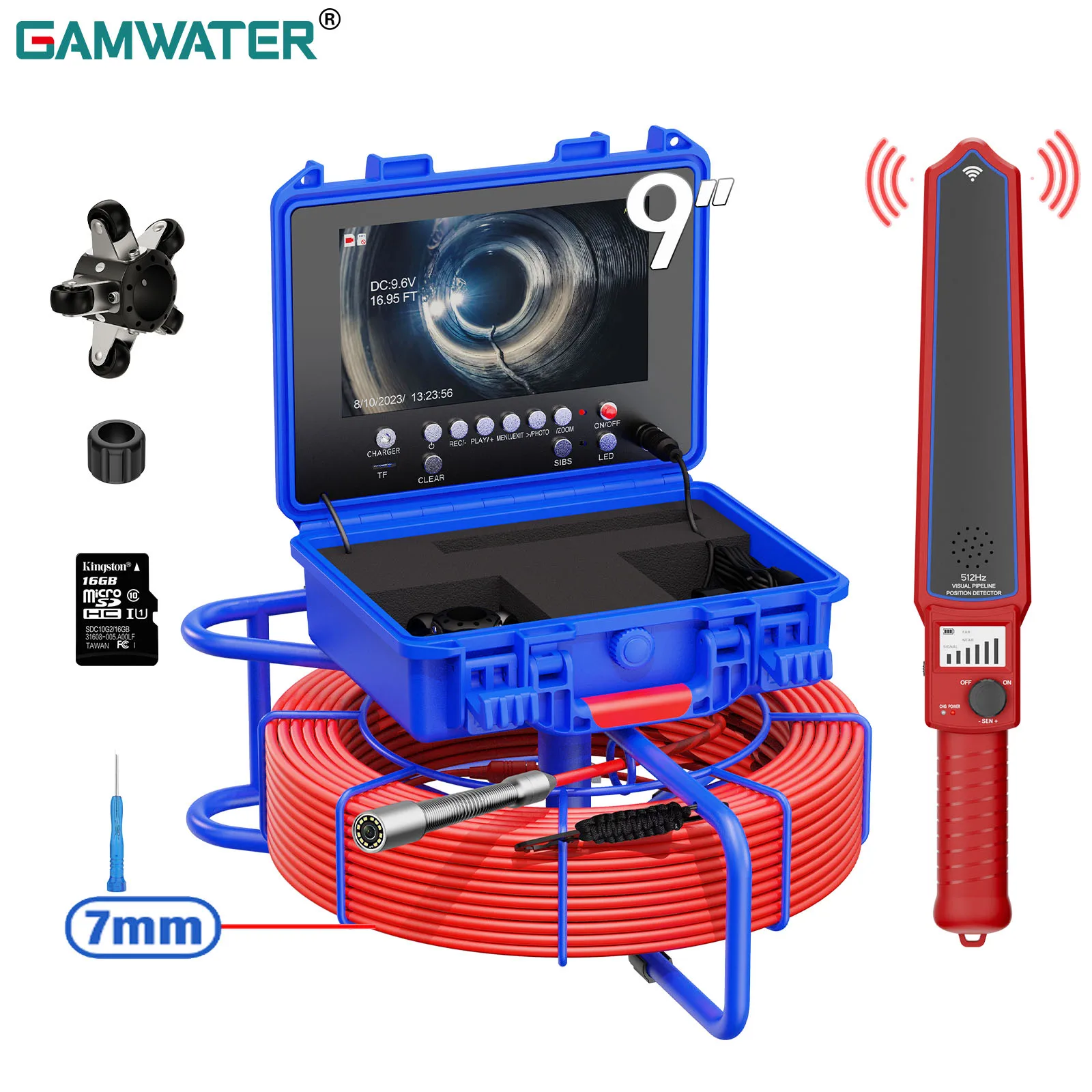

Package List:

1 * 9 inch IPS Monitor（DVR+Built in 4500mah)

1 * Camera (AHD 1080P Auto Self Leveling )

1 * 512Hz PIPE Locator （Locator Receiver is optional ）

1 * 16GB TF Card

1 * 30M Fiberglass Cable

2 * Camera Proof Cover

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
