B09 125KHz RFID Standalone Access Control
High quality and high security.
Sensitively and response quickly.
1000 standard users optianal.

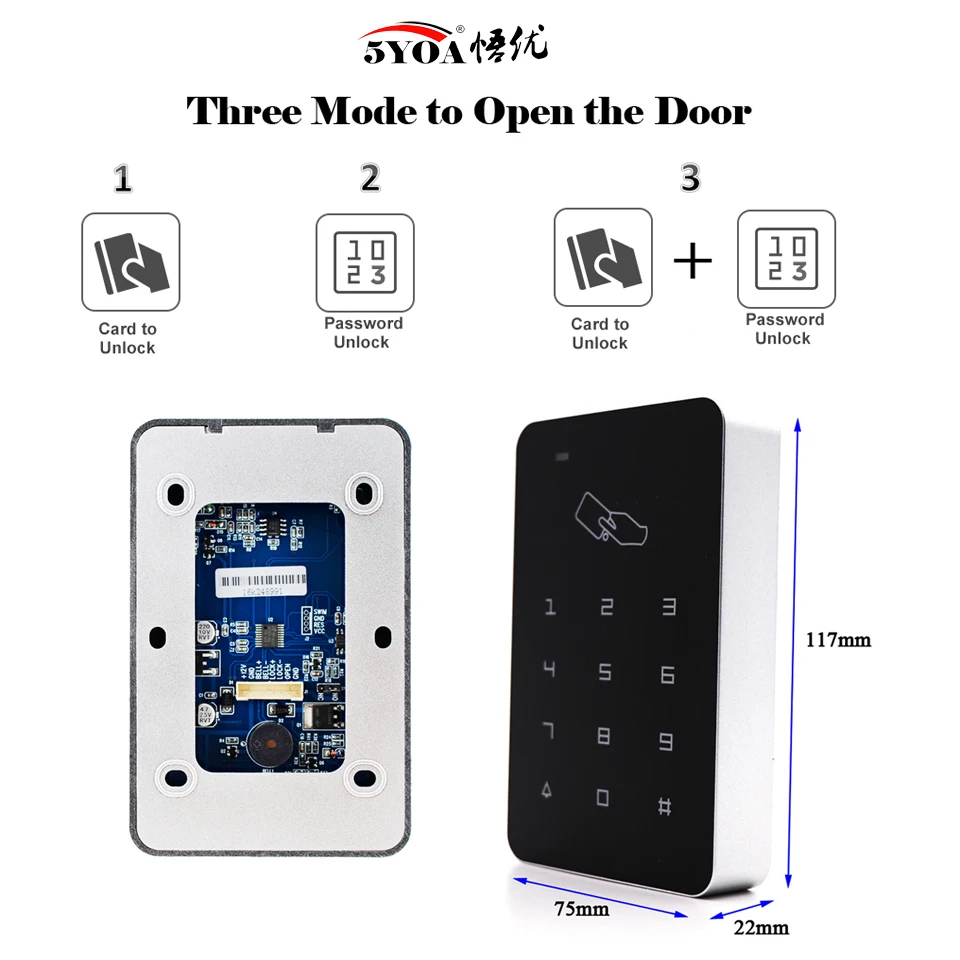

Support card, password, password plus card to open the door
With door bell button
Classical Appearance with useful function.
Professional design for Home and Office.
Support one-door
Can be used as a stand alone keypad
Doesn't need to connect on the computer, can works alone
Application: Home/ hotel/ office/ apartment/ foctory, etc
Specifications:
User Capicity: 1000 user
Dimension: 75*117*22mm(L/H/W)
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: <100mA
Working Temperature: 0 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%

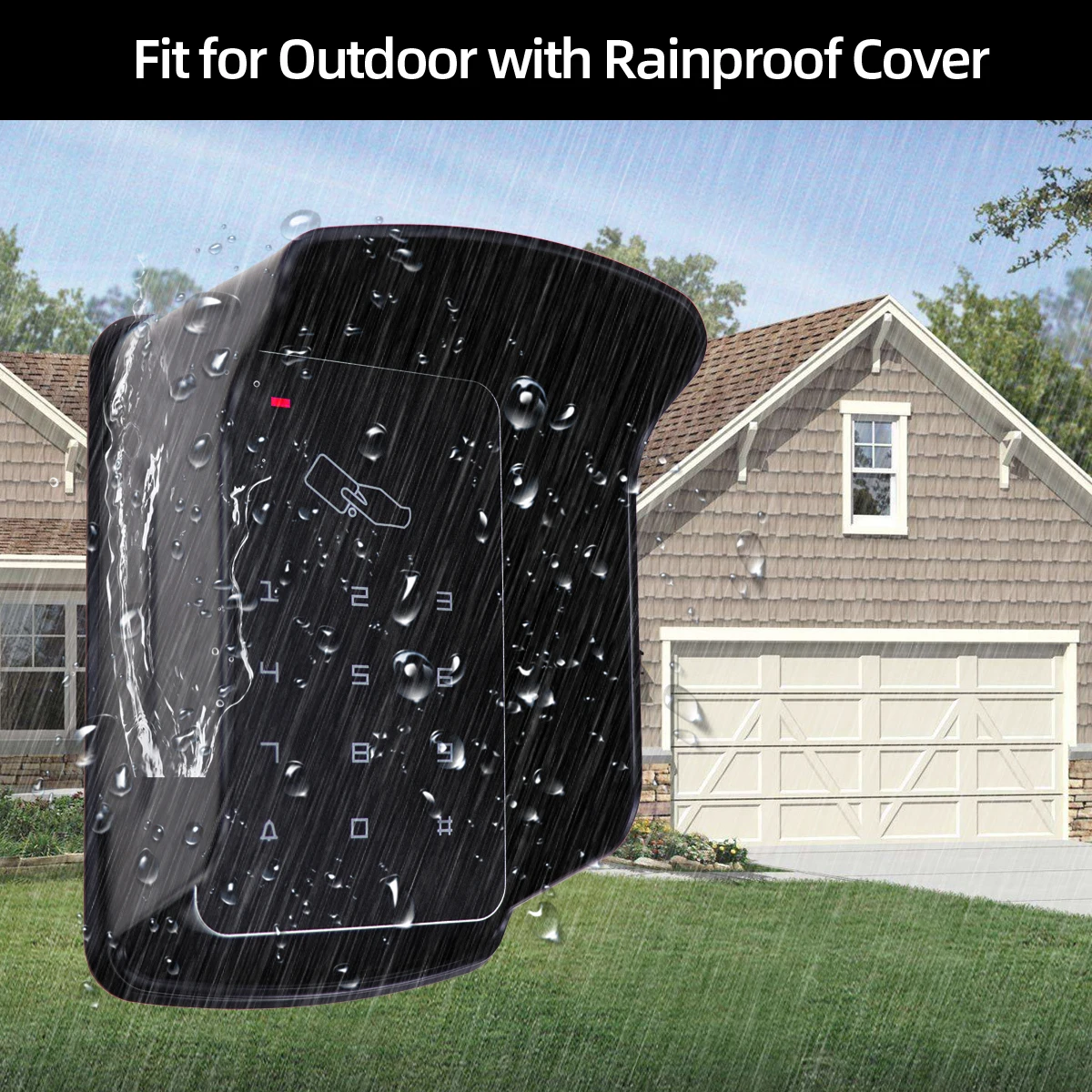

It can be installed outdoor with Rainproof cover
Support 1000 user cards. and 3-6 digits password. Has 3 different unlock method
Made of High quality material, safe and durable
ABS fireproof material, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different enviromental installation. (The surface is waterproof, but not IP65 waterproof, can't be used under the heavy rain)

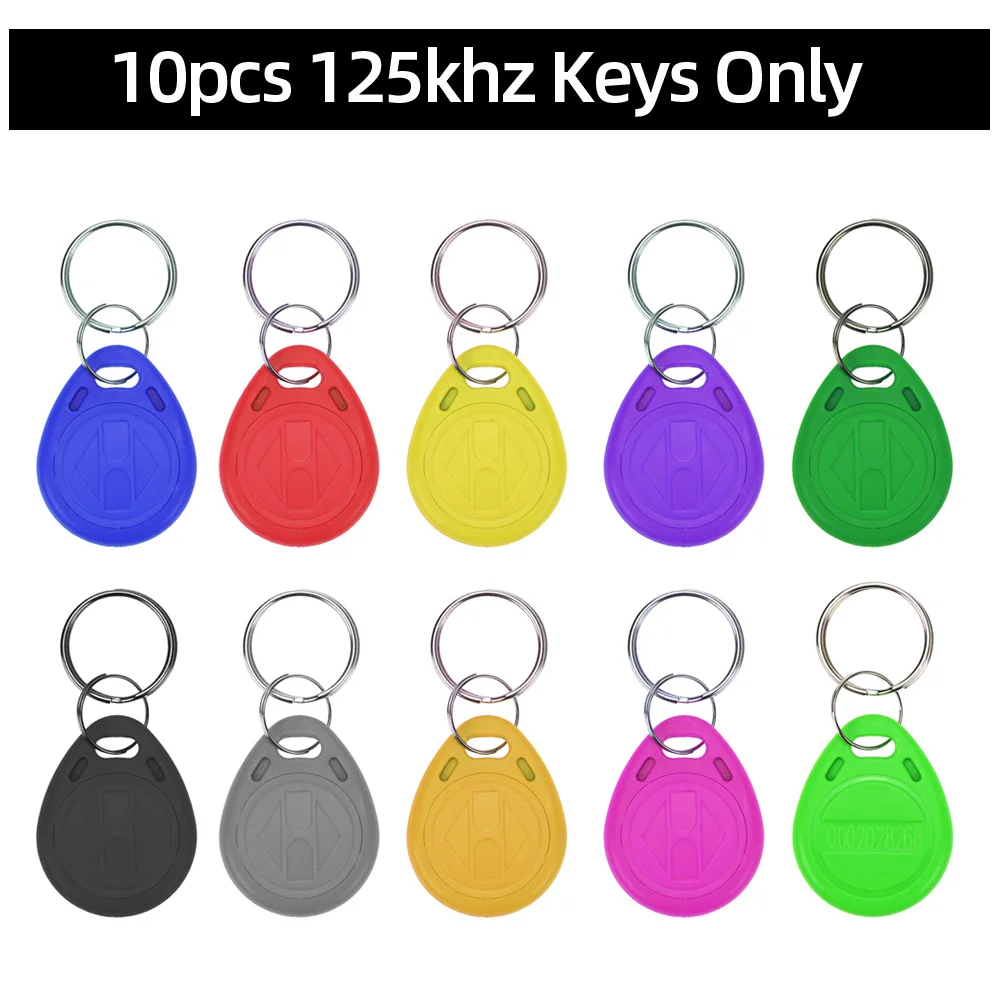

10pcs RFID Keyfobs
Material: ABS
Dimensions: Approximately 35 x 29 x 50mm
Response frequency: 125 KHz,
Chip type: EM4100, TK4100
Operation Temperature : -40 – 85°C
Waterproof
Each comes with Key ring included.
Each token pre-programmed with unique ID which is Laser printed
Colors : 10 colors are available (we will send with random colors, if need speciafy the colors, please leave message in the order note)

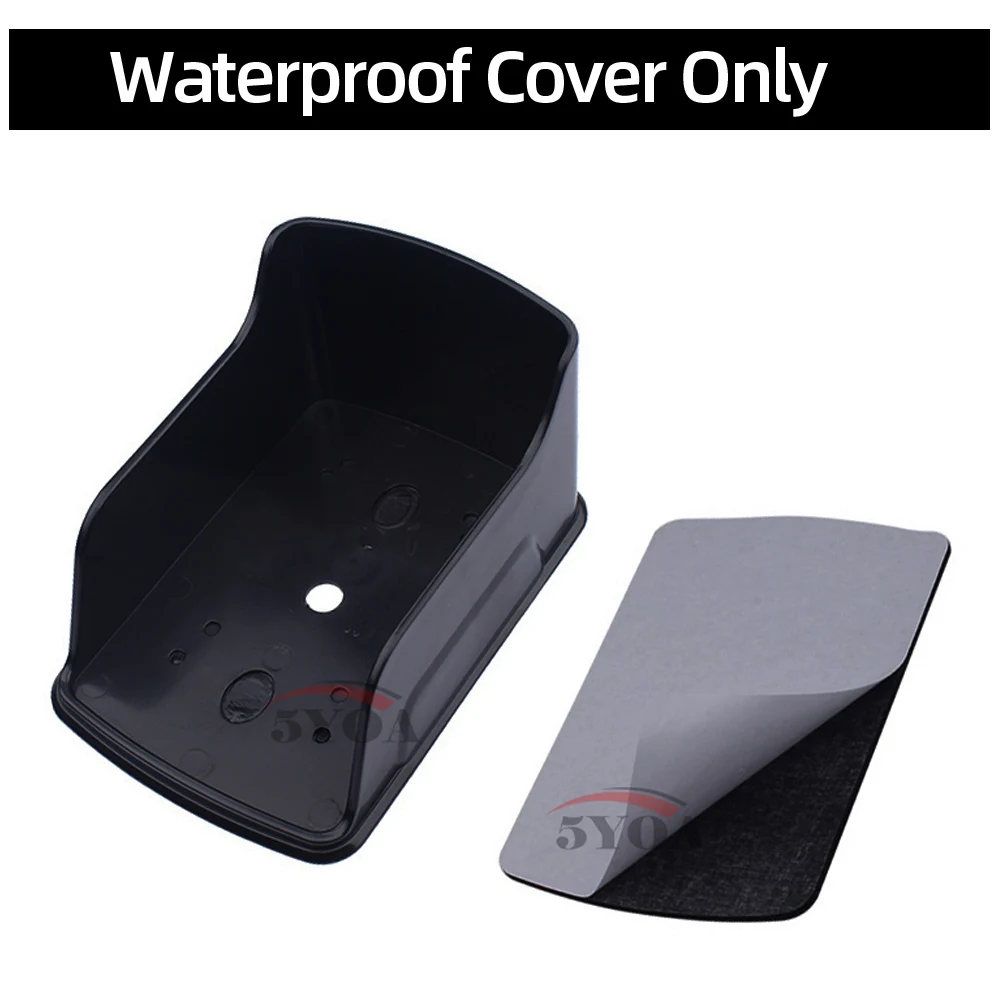

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)

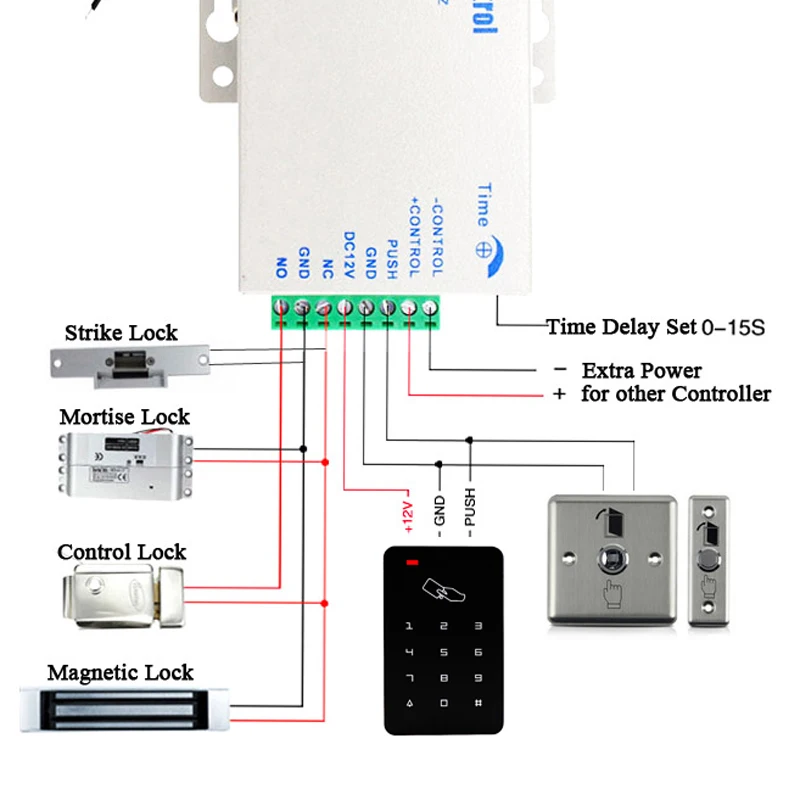

Wiring Diagram
The power supply and electric lock, exit button, door bell is not included in the package, if you need it, please contact us
