Features
1. Self design structure and new manufacturing system to give more customers good coilovers without breaking your bank.
2. Full length height adjustable—lower your car 1-3 inch (depends on vehicle models) to get performance ride

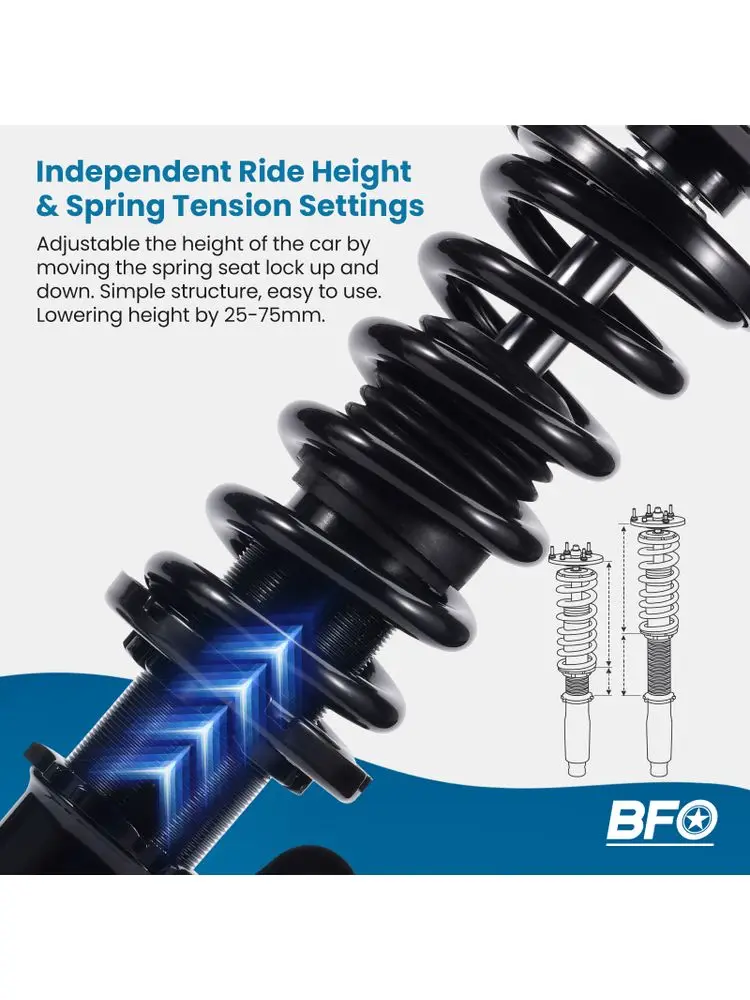

3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System for Comfortable Ride on Streets
5. Coated finish to avoid rust
6. Heavy Duty Steel Lower Mounts
7. Simple install, Easy to adjust.

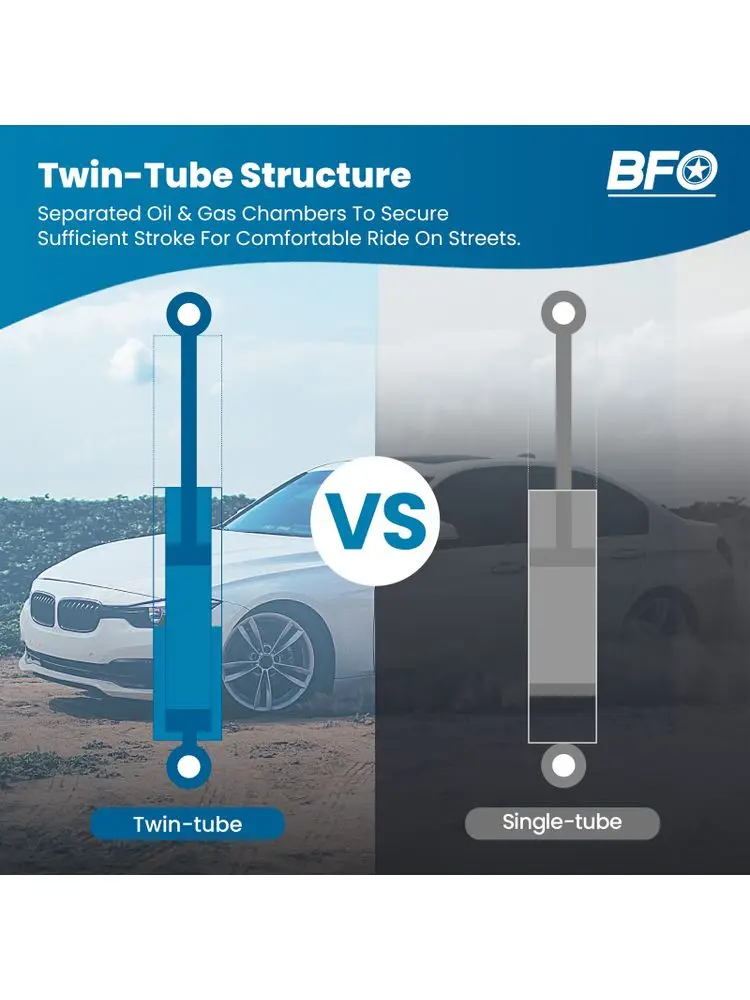

Twin-tube Coilovers
1. It is easier to secure sufficient stroke, because the oil and gas chambers are separated and not positioned serially.
2. The use of base valve enables to keep gas pressure low, allowing for a more comfortable ride.
3. Low gas pressure avoids stress on seals and keeps friction low.
4. Compared to the inverted type, friction can be suppressed.
5. Even if the shell case is slightly damaged, the function of the shock absorber remains unaffected.
6. Superior manufacturing processes allow to keep production costs low.
Application
for Mazda 3 BK 2004-2009
for Mazda 3 BL 2009-2013
(includes Mazdaspeed 3)
Specifications

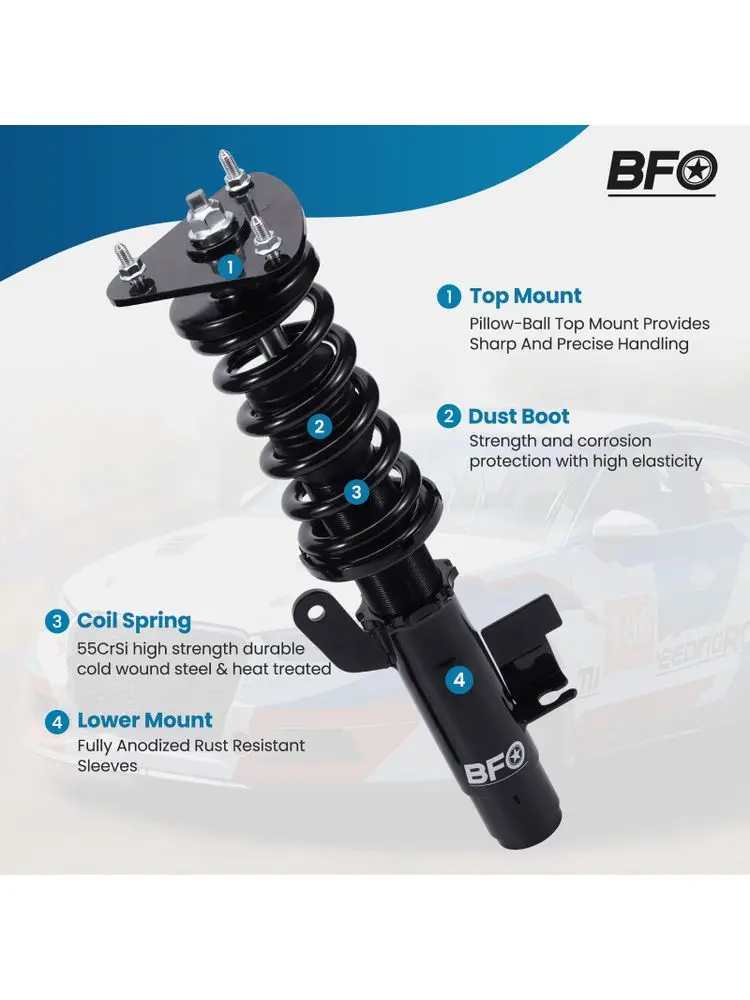

– Top mounts: Front pillow ball top mounts
– Damping: Not available
– Shock type: Twin tube
– Adjustable height: Yes lowering 1'' to 3''
– Adjustable camber plate: No
– Spring preload: 7-10 mm

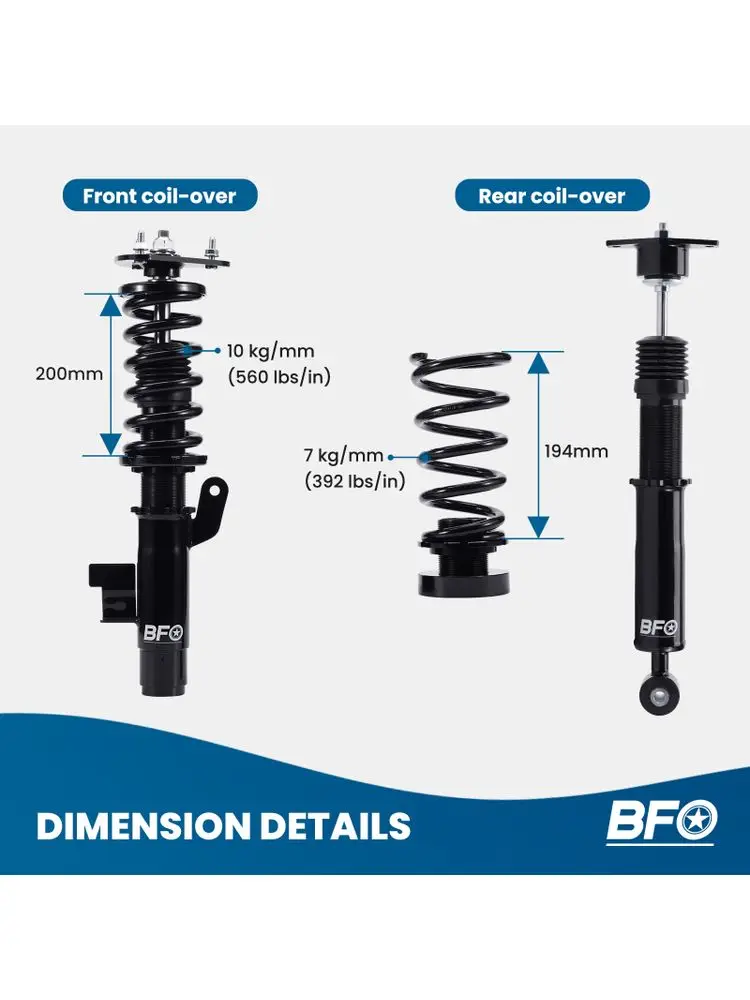

– Spring rate Front: 10kg/mm (560 lbs/in)
– Spring rate Rear: 7kg/mm (392 lbs/in)
– Color: Blue

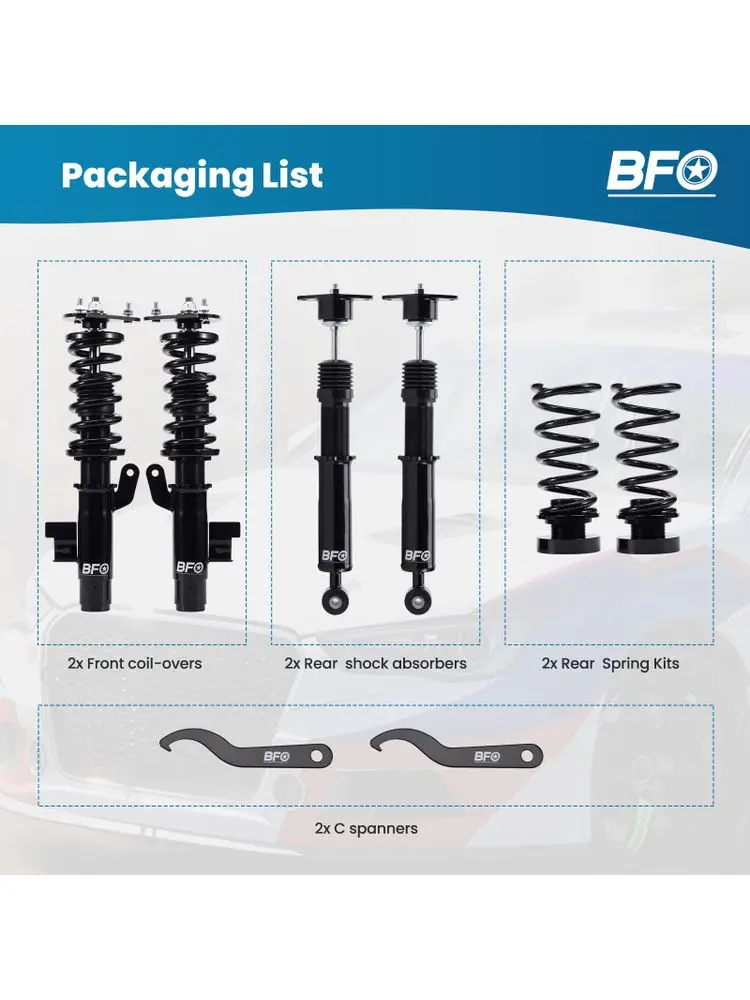

Package included

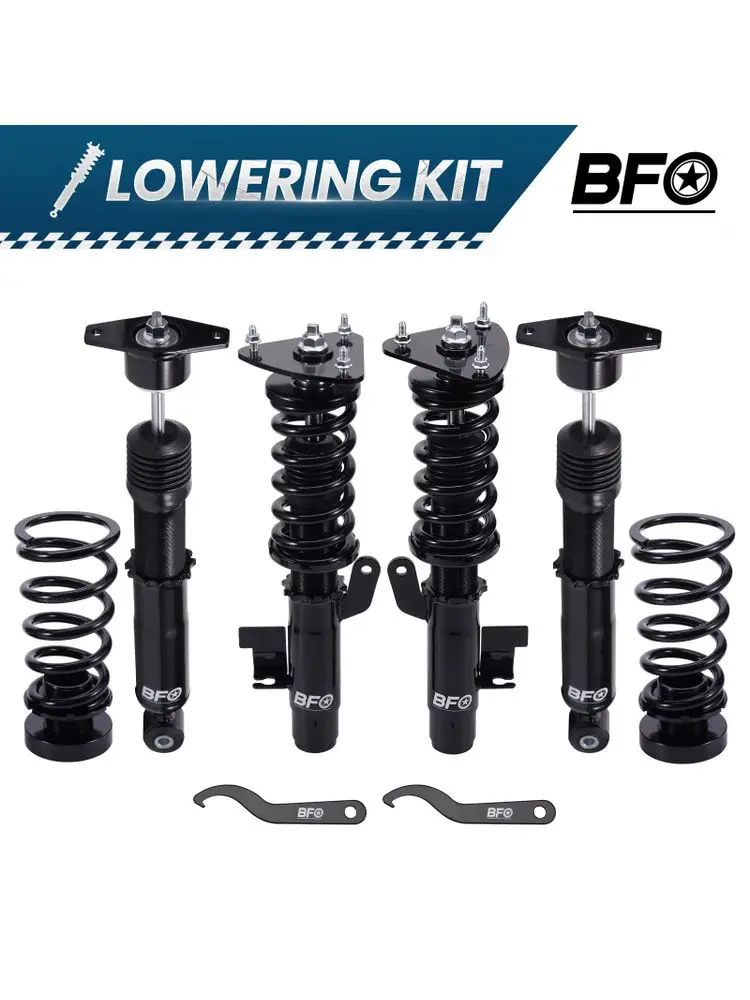

– Complete coilovers for 2 front and 2 rear
– A pair wrench for height adjustment
