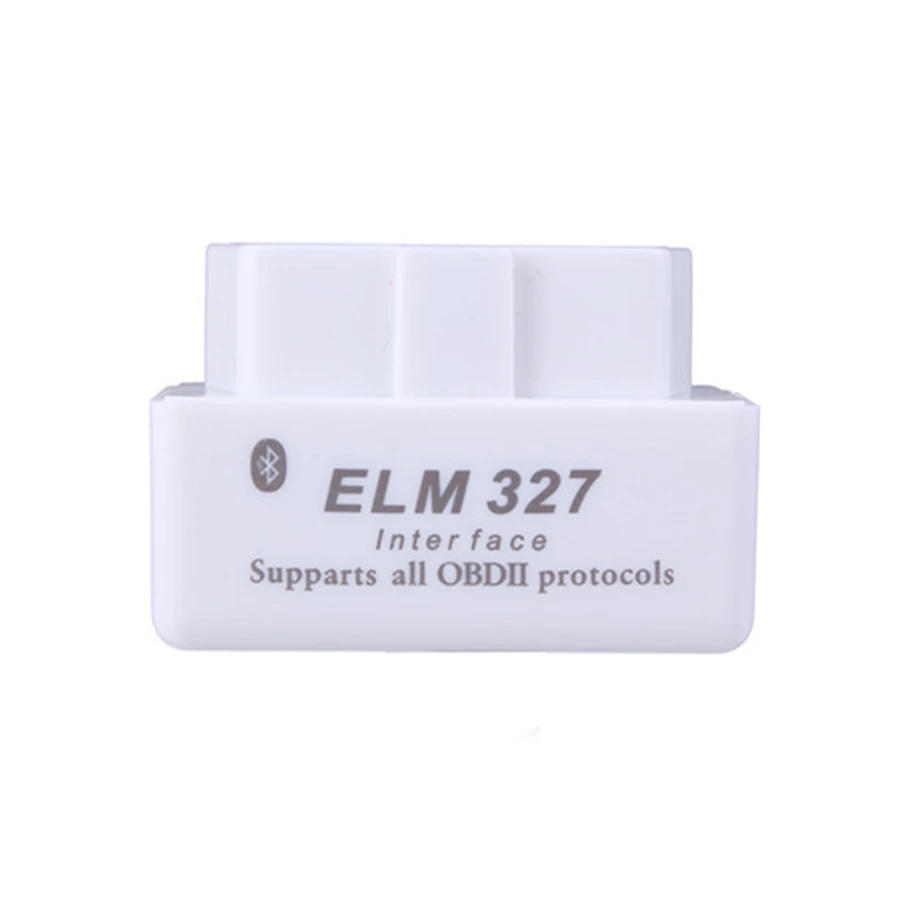

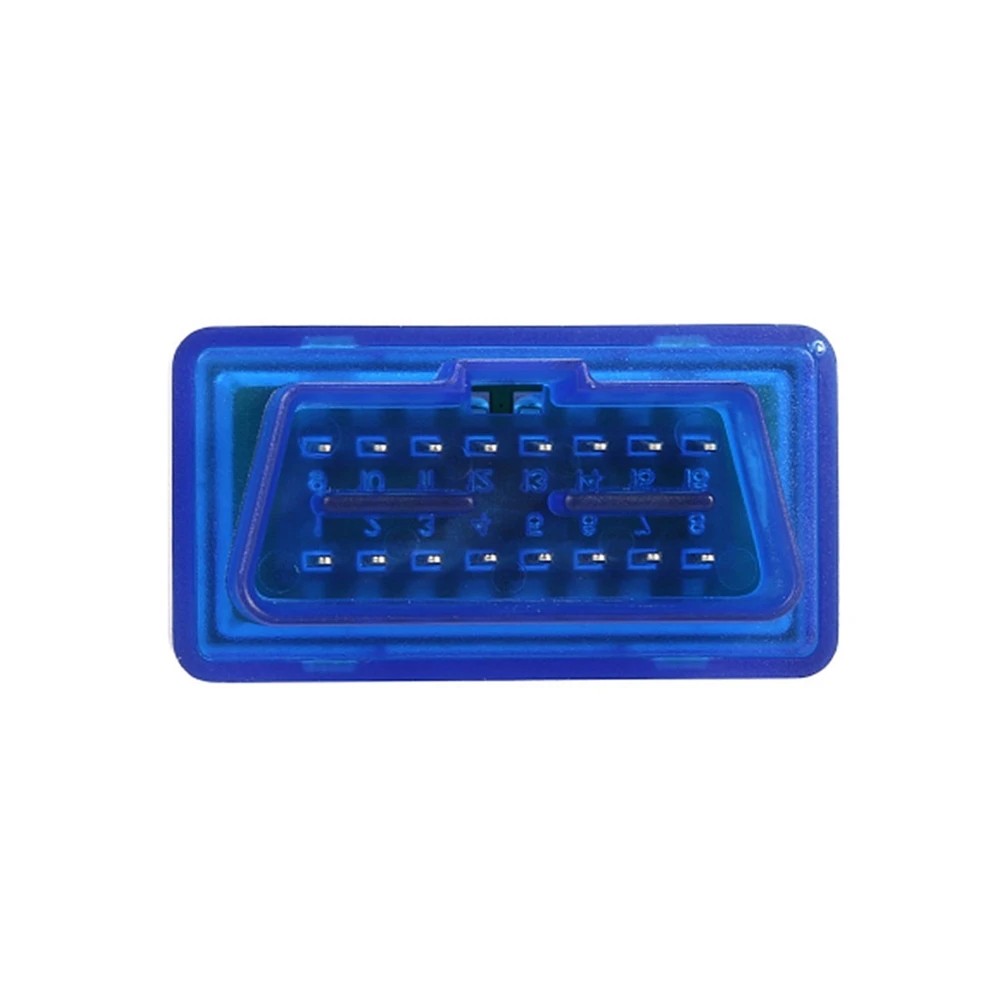

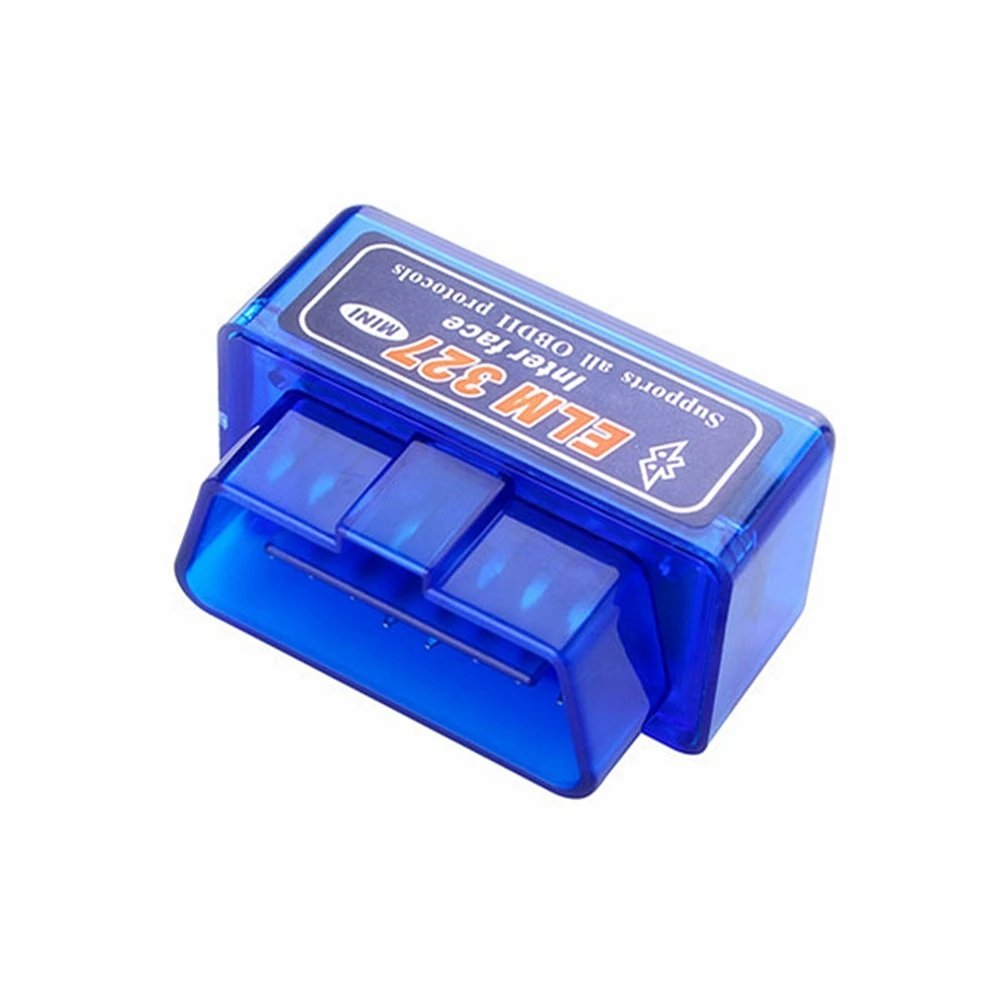

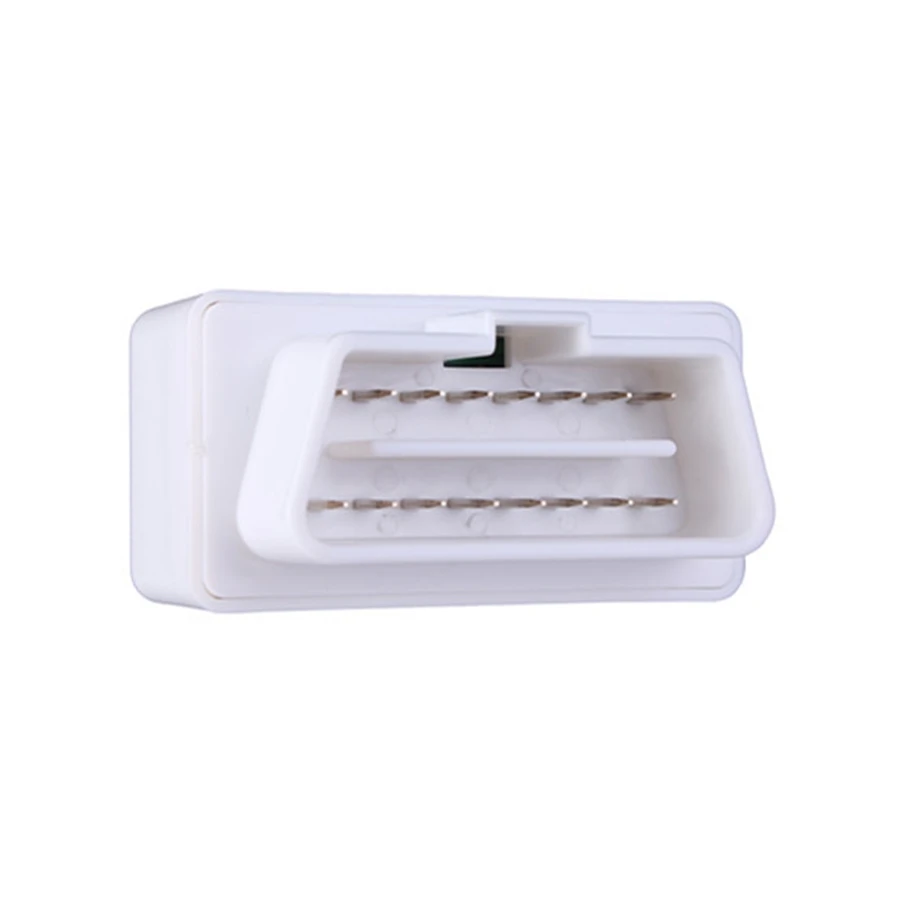

ELM327 OBD2 Code Reader Scanner Auto Diagnostic Interface V2.1
Highlights:
Hardware V2.1, Software V2.1

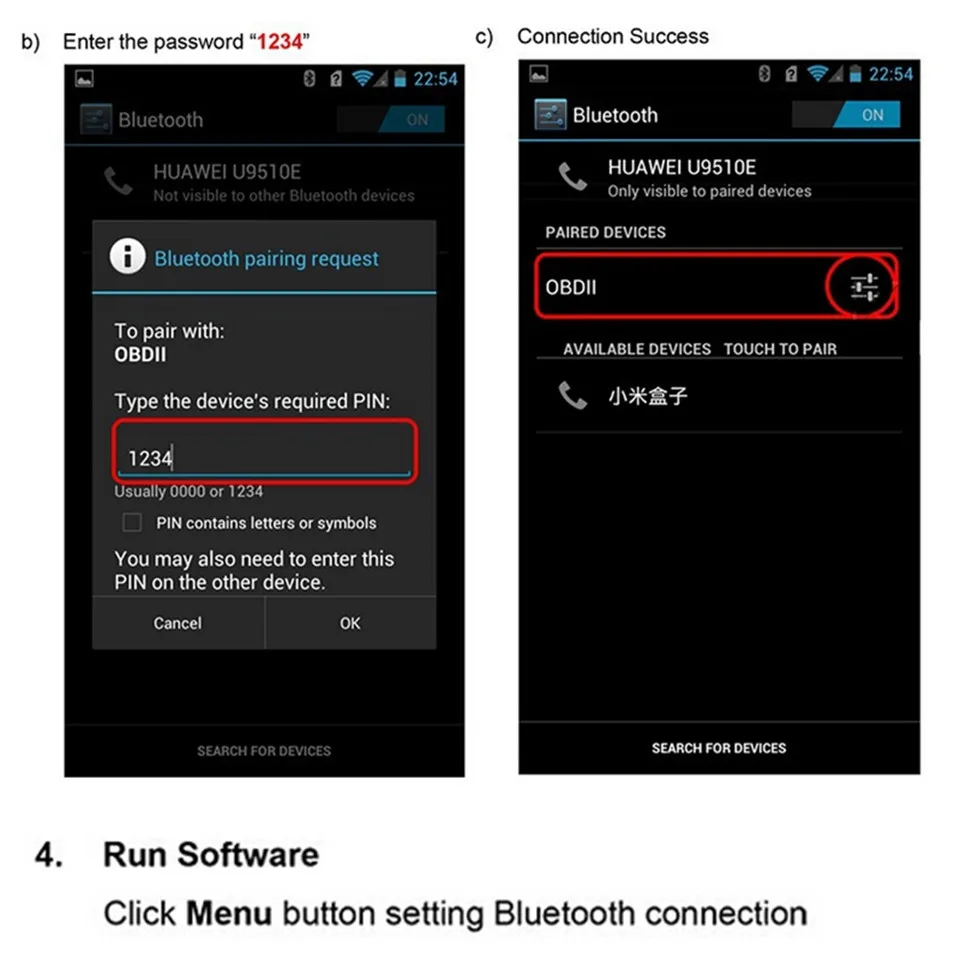

Bluetooth Password :0000 / 1234
Woks on Android Torque (Android 4.0~4.4) /PC,
BUT IT NO WORKS iOS!
It CAN’T support Diesel or Trucks.
This ELM327 V2.1 supports most of OBD-II protocols cars,but it can not do all models,please check your car with following protocols.

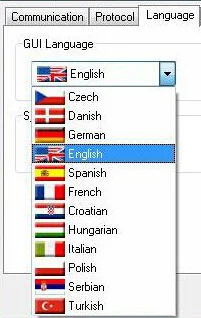

CD Soft ware Multi-Language:
NOTE :
This ELM327 works ONLY for Gasoline cars,it does not supports Diesel car and Truck.
It supports multi-brand gasoline cars,but we can’t test it on all cars ,also each car brand has many series,so we can not make sure if this device works your car or not .
We suggest you can buy one to try and test . As this is cheap elm327,but it has powerful function for your car !
But if you dont sure and do not want to buy one to try ,please consider twice.
Description:

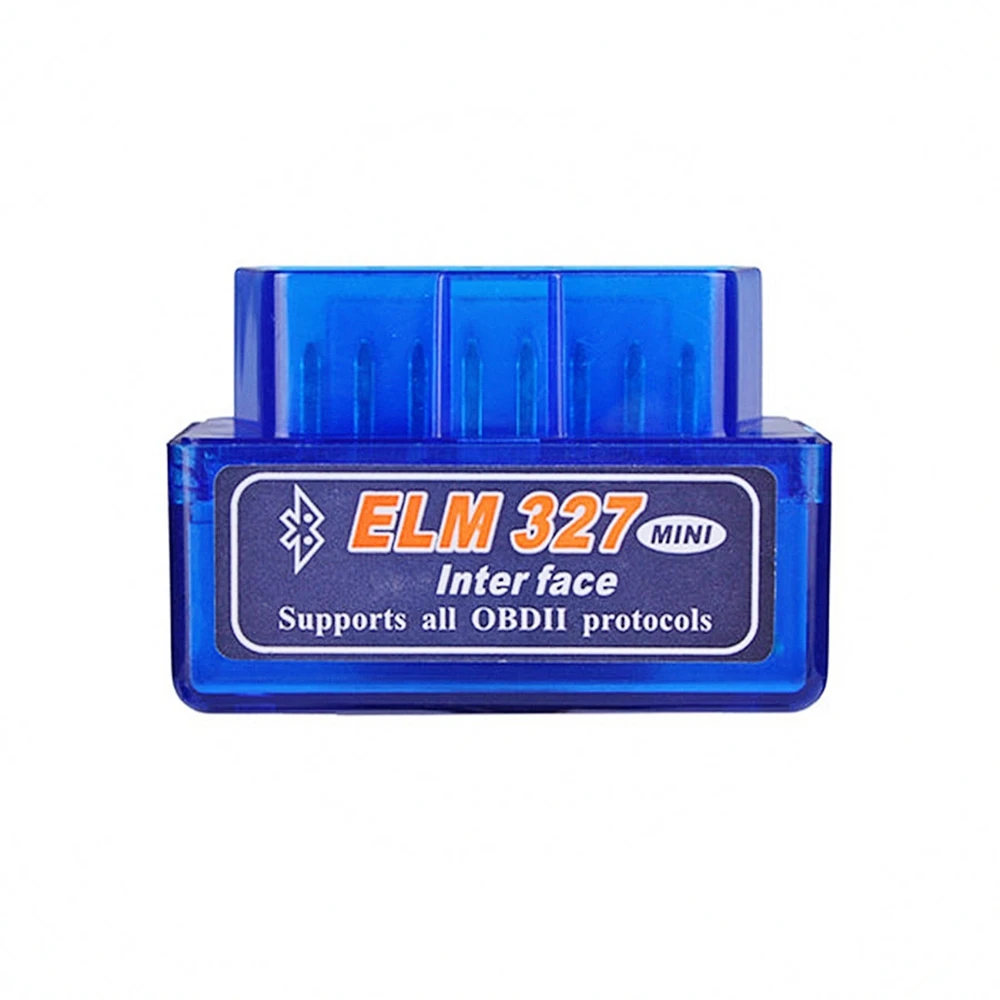

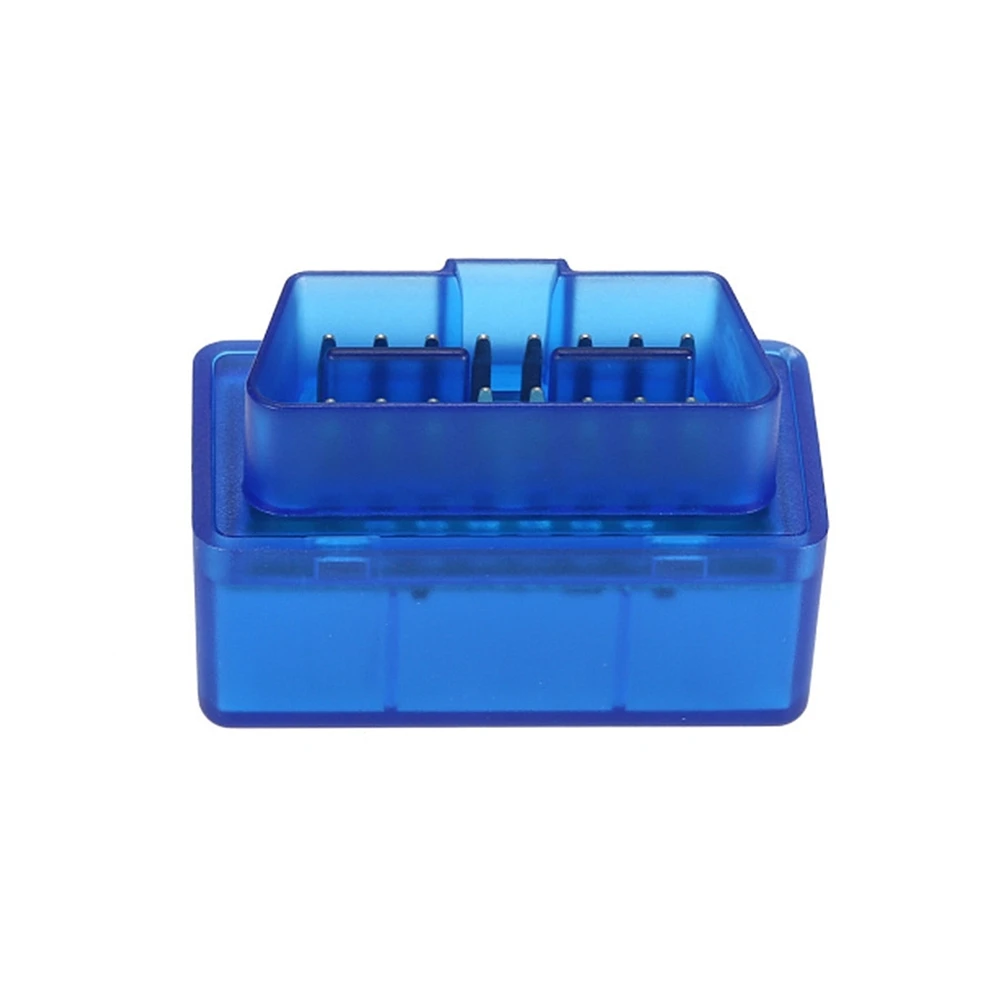

ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols.
Works For Multi-Cars diagnostic,read and delete Fault code.
Supprots 7 Protocols:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)

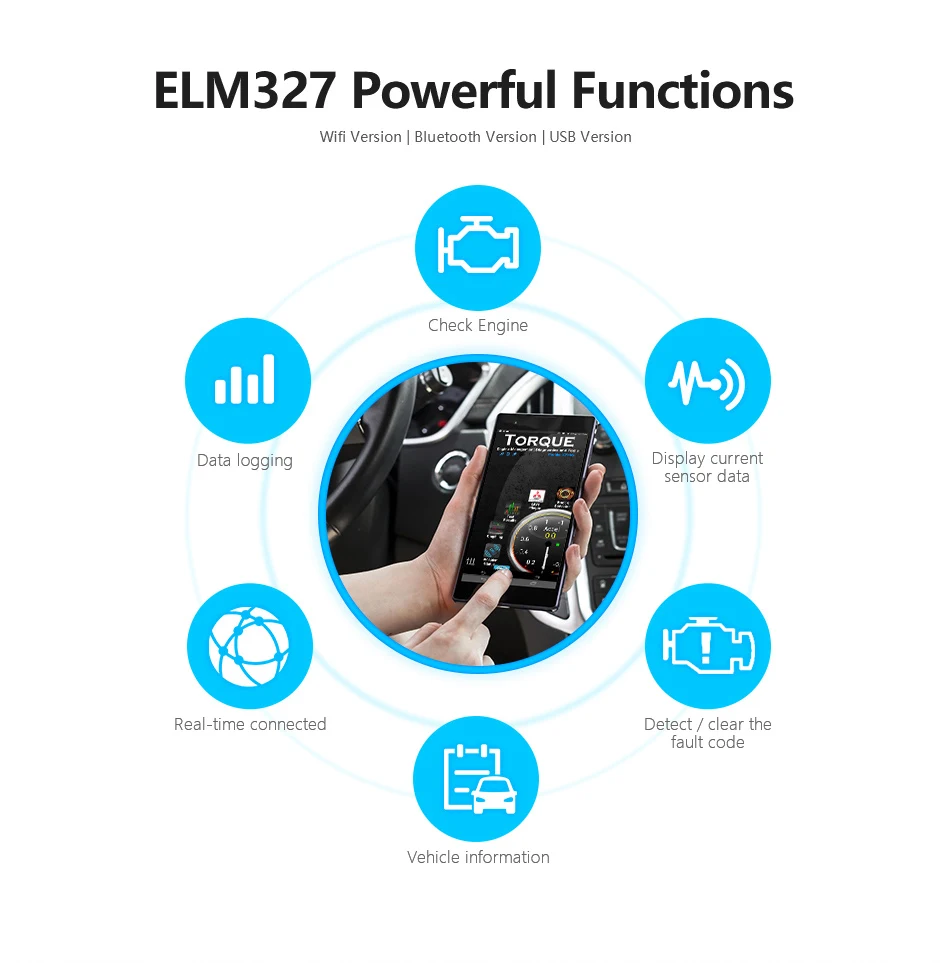

Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others.
Default Settings(user adjustable)
1.Works with OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Pa, PDA,Mobile
4.Software included for Windows PC ,Can also be used with a PC with a Bluetooth Card.
5.Software included for Windows Smartphone Android torque

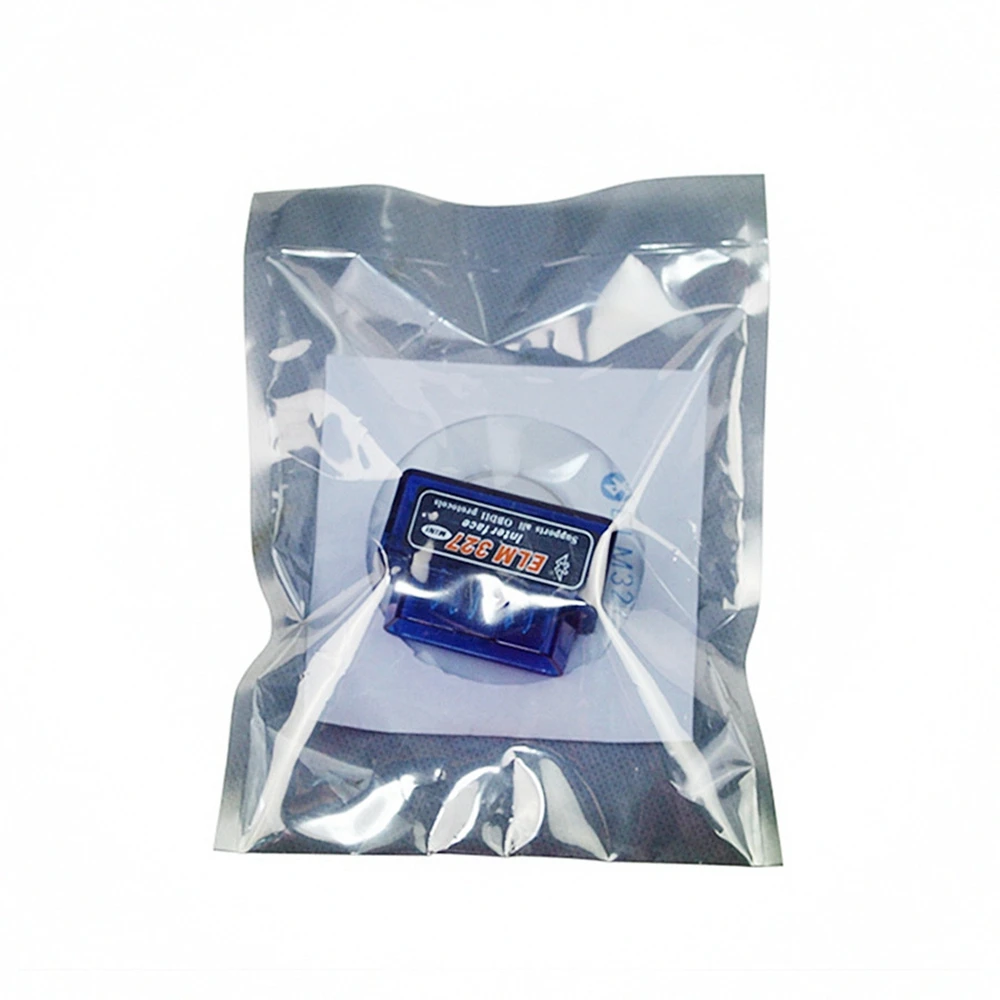

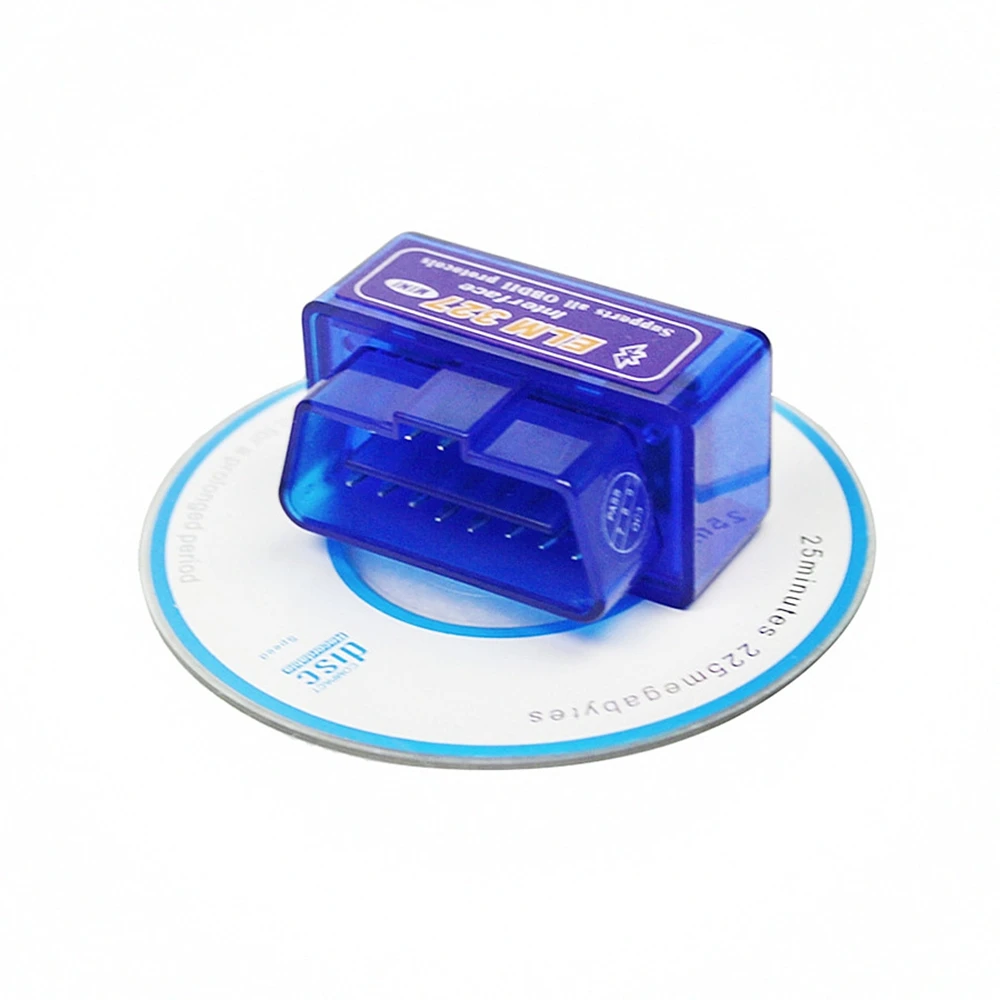

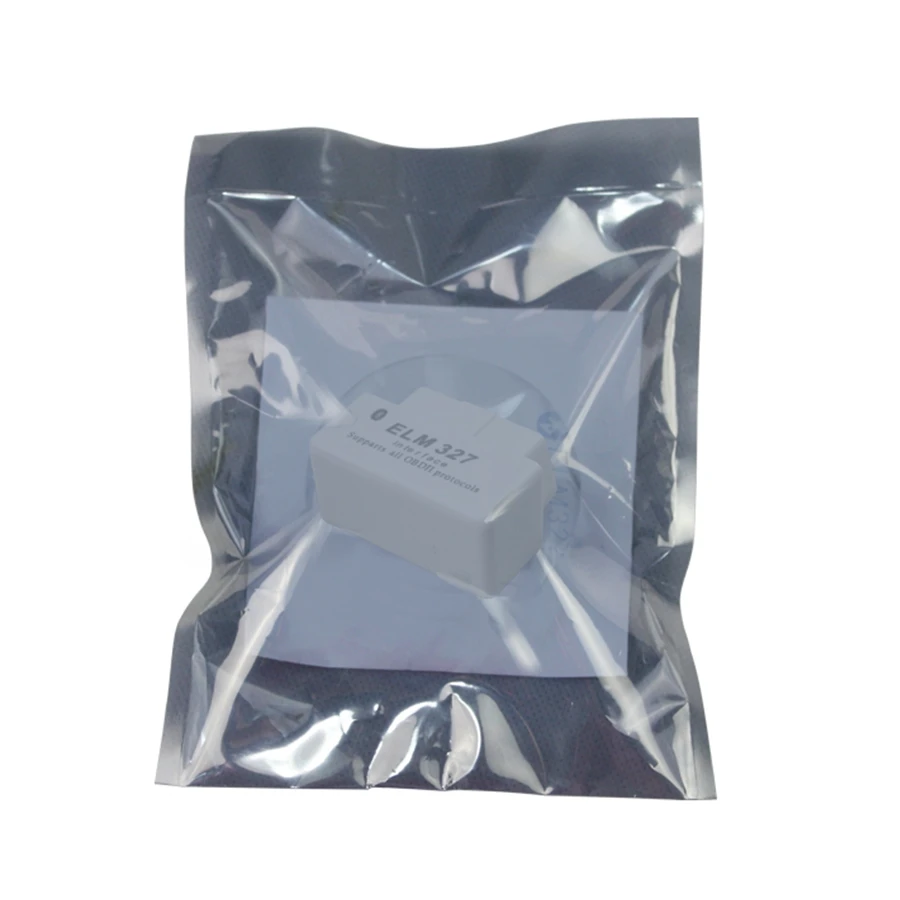

Package List:
1 x ELM327 Bluetooth
1 x CD
Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or negative feedback. Thanks .

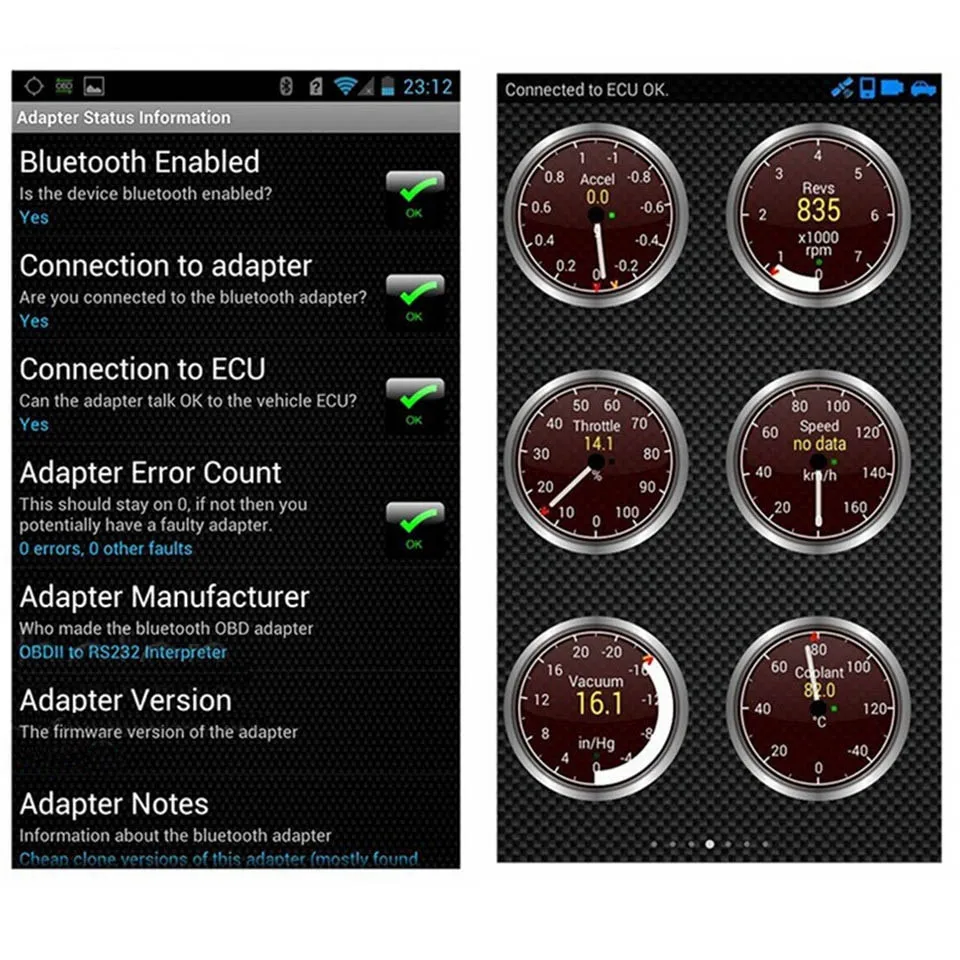

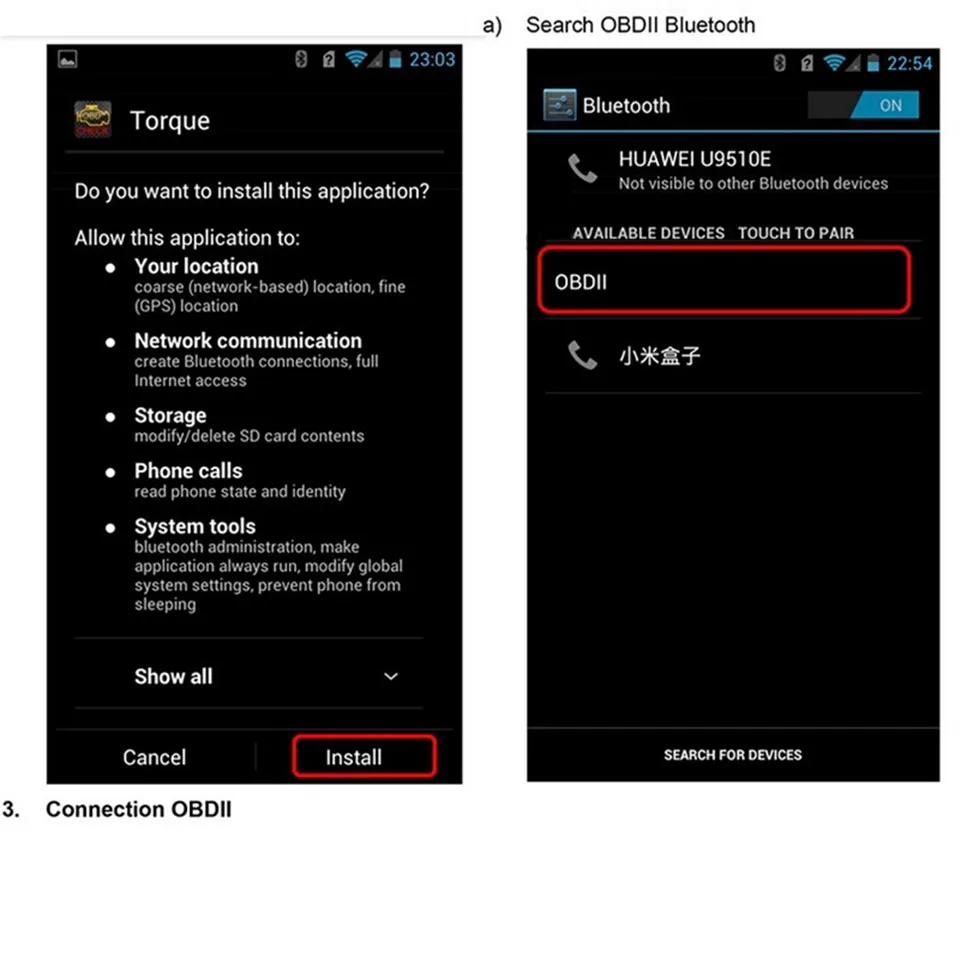

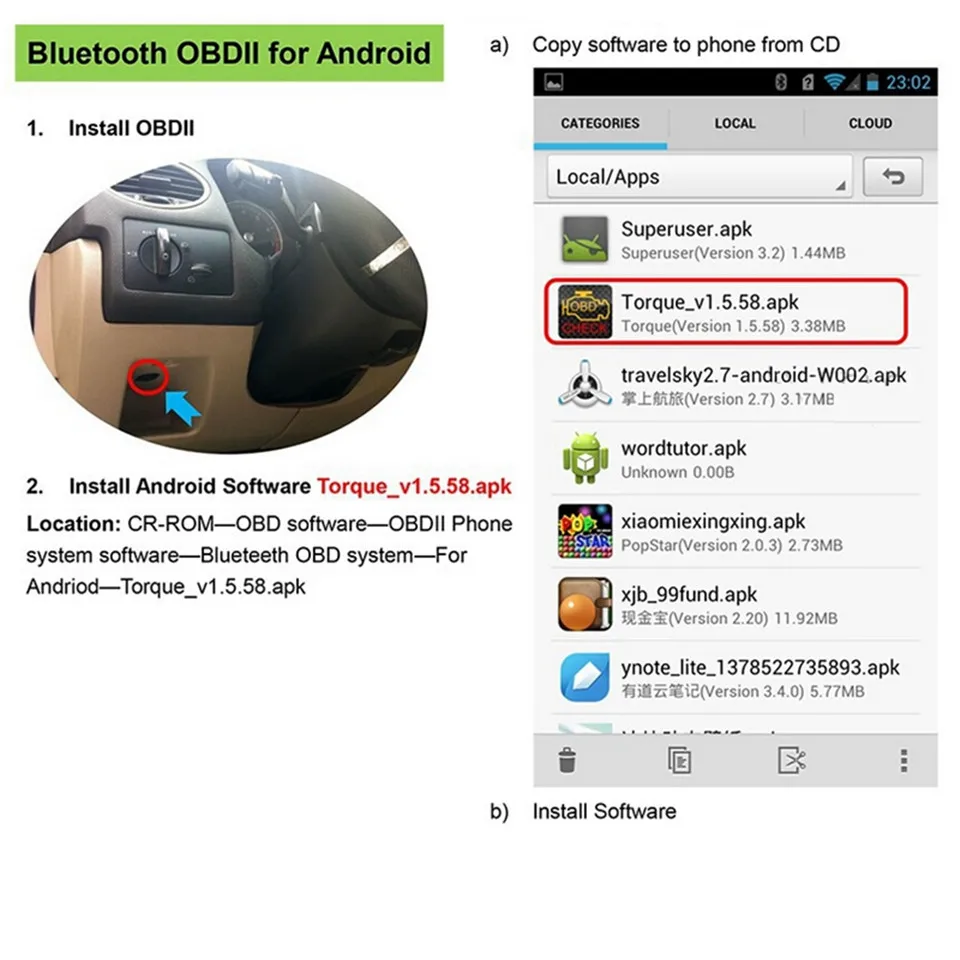

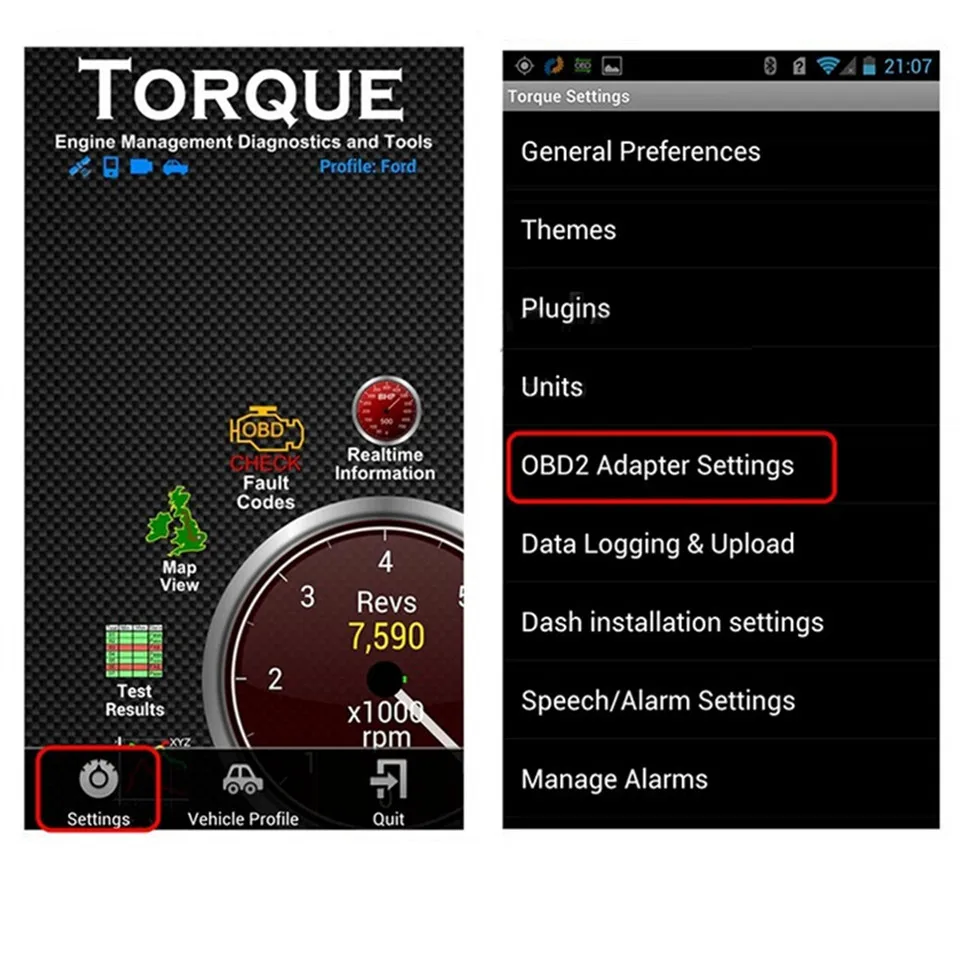

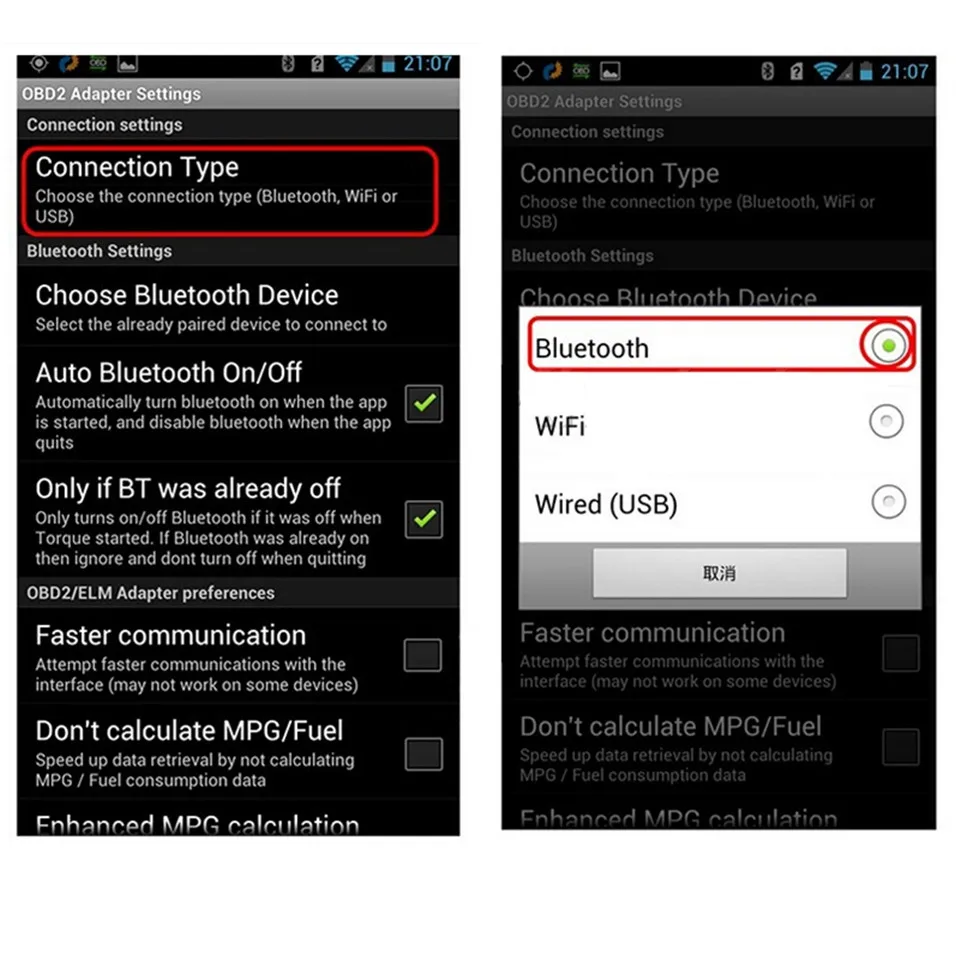

Works on Android Bluetooth Torque for Reference:

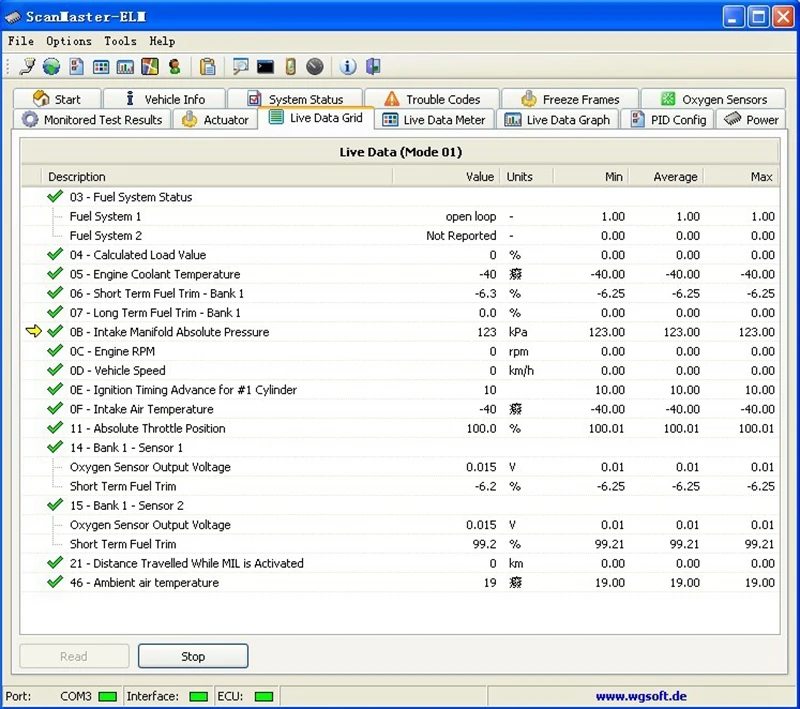

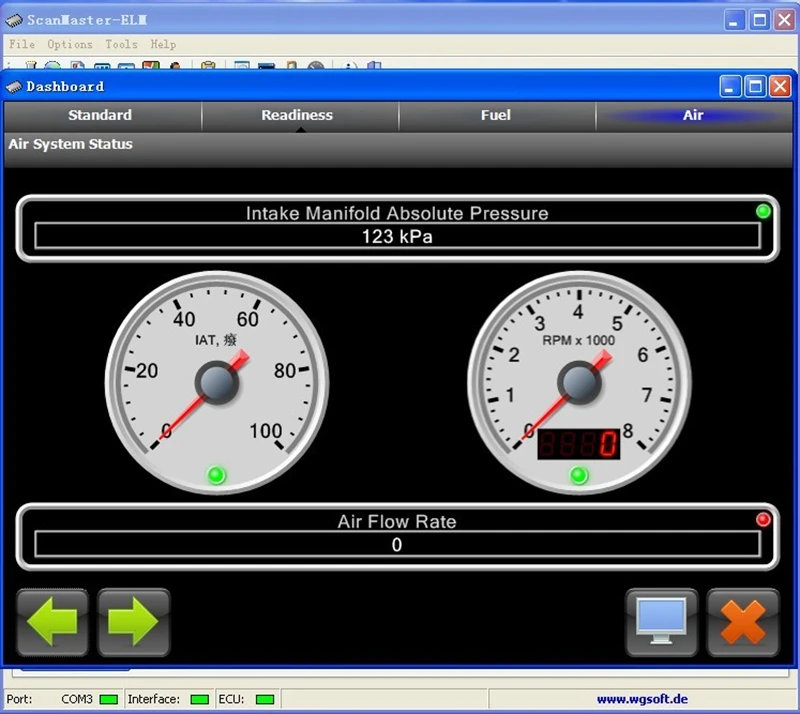

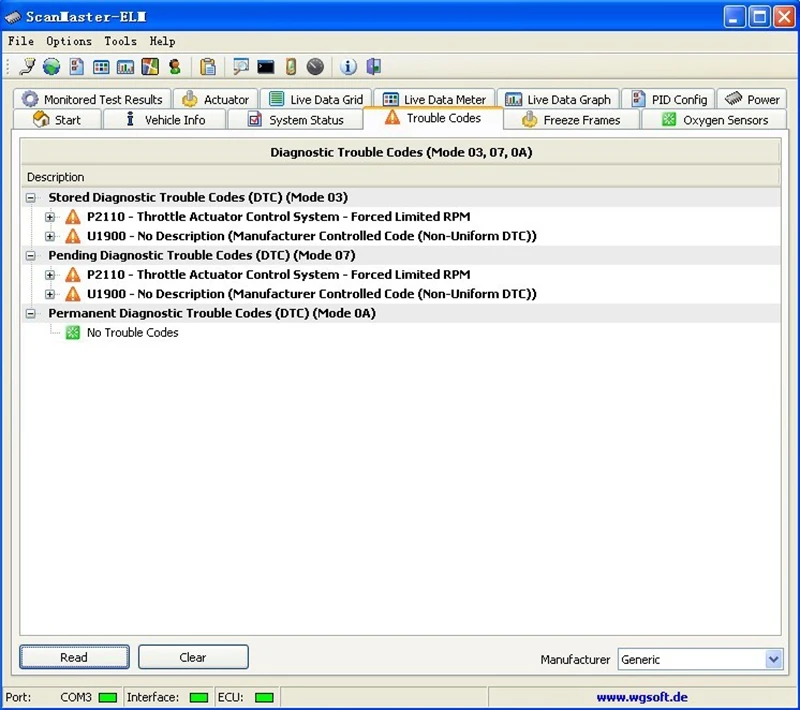

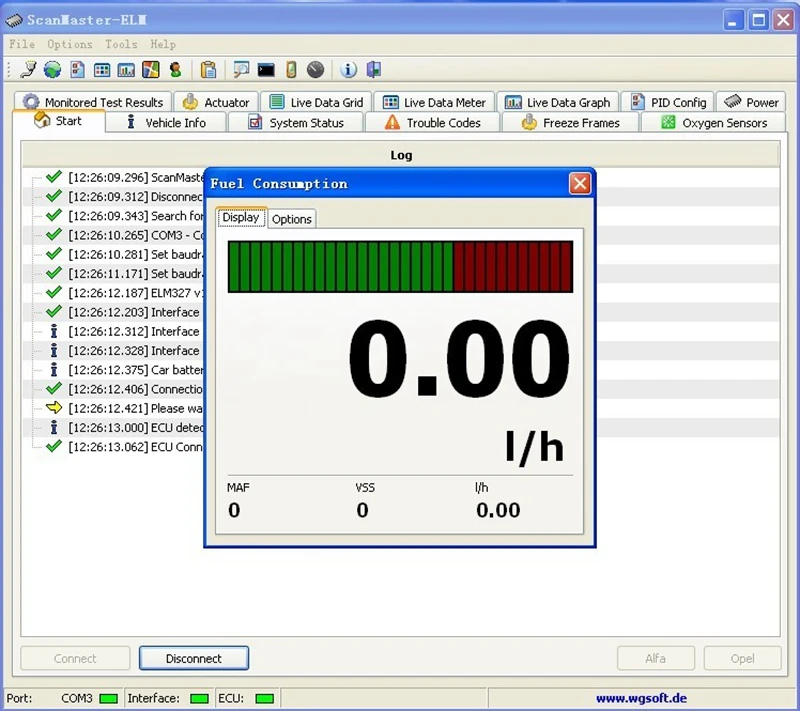

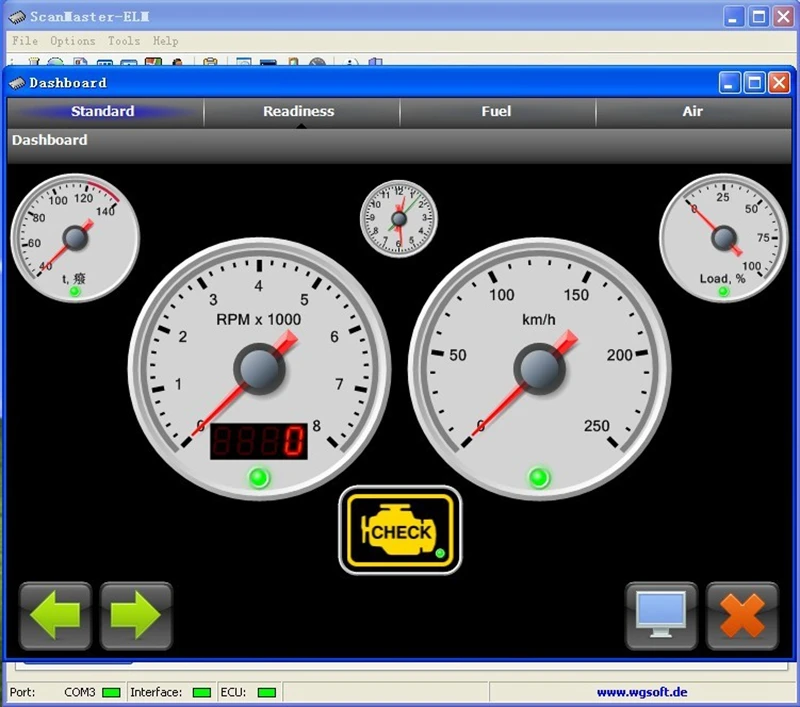

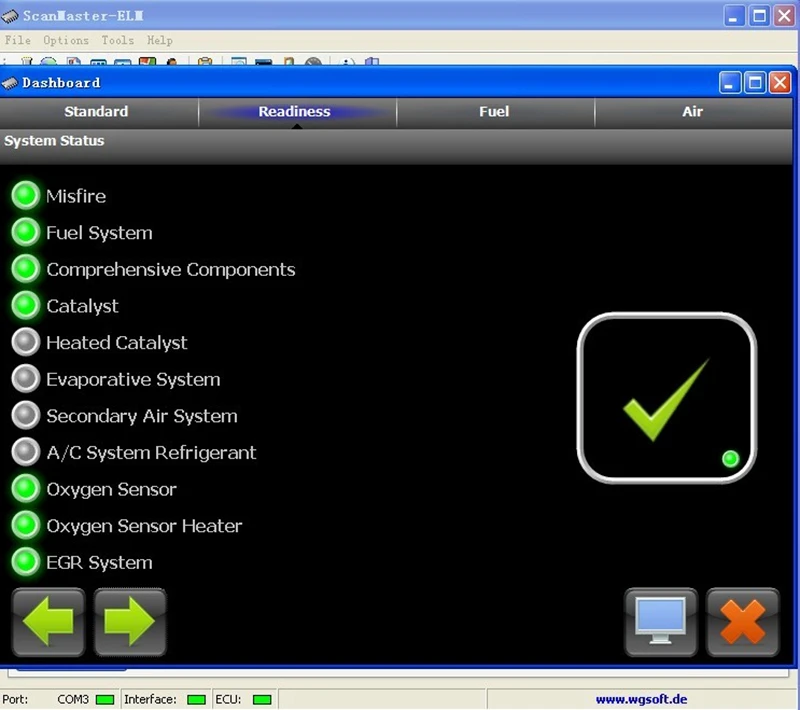

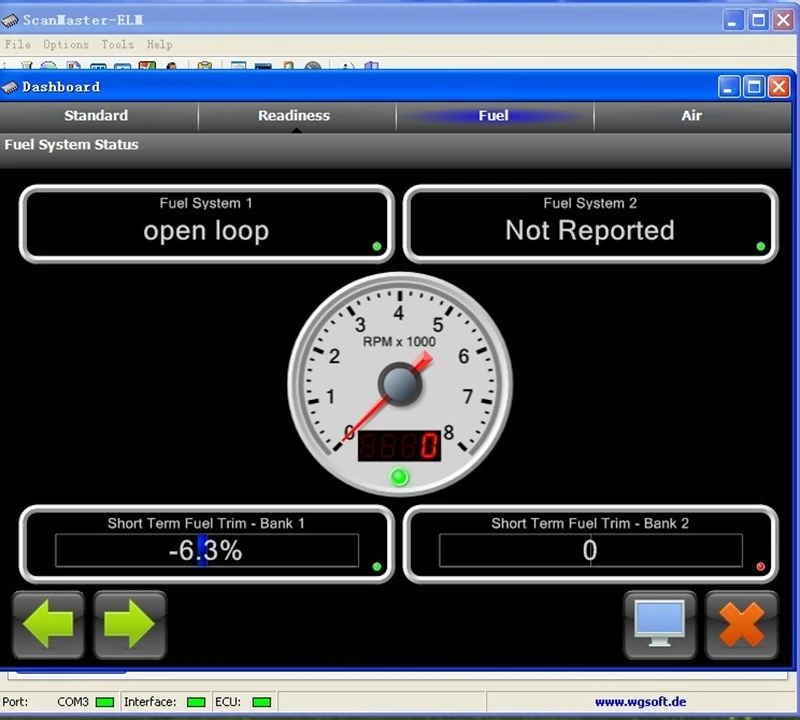

Software Install on Windows Computer For Display:
