 This L-serial access controller is adopted 32-bit ARM cpu, it have very stronger fucntion. Its main function include: Attendance / Access control / Access alarm / Fingerpint / Web function .
Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.
Access control:suport Time profile / password manage / anti-passback / inter lock / first card / task list .
Access alarm:suport door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock
Fire alarm:Fire alarm triggered , All doors are opened automatically and alarm is output at the same time
web function:suport PC,tablet ,cell phone use IE or Chrome  browser etc.
Main parameters
Model:L01
Mange door: 1
Card number:40 000
store card record :100 000
Reader Input format:wiegand 26/ wiegand 34Â
communication: TCP/IP
Database: Access or SQL 2000,SQL2005,SQL 2010, default :AccessÂ
support OS: XP, WIN7,WIN8, WIN10
power:12V
*************************************************************************************************************************************************
-

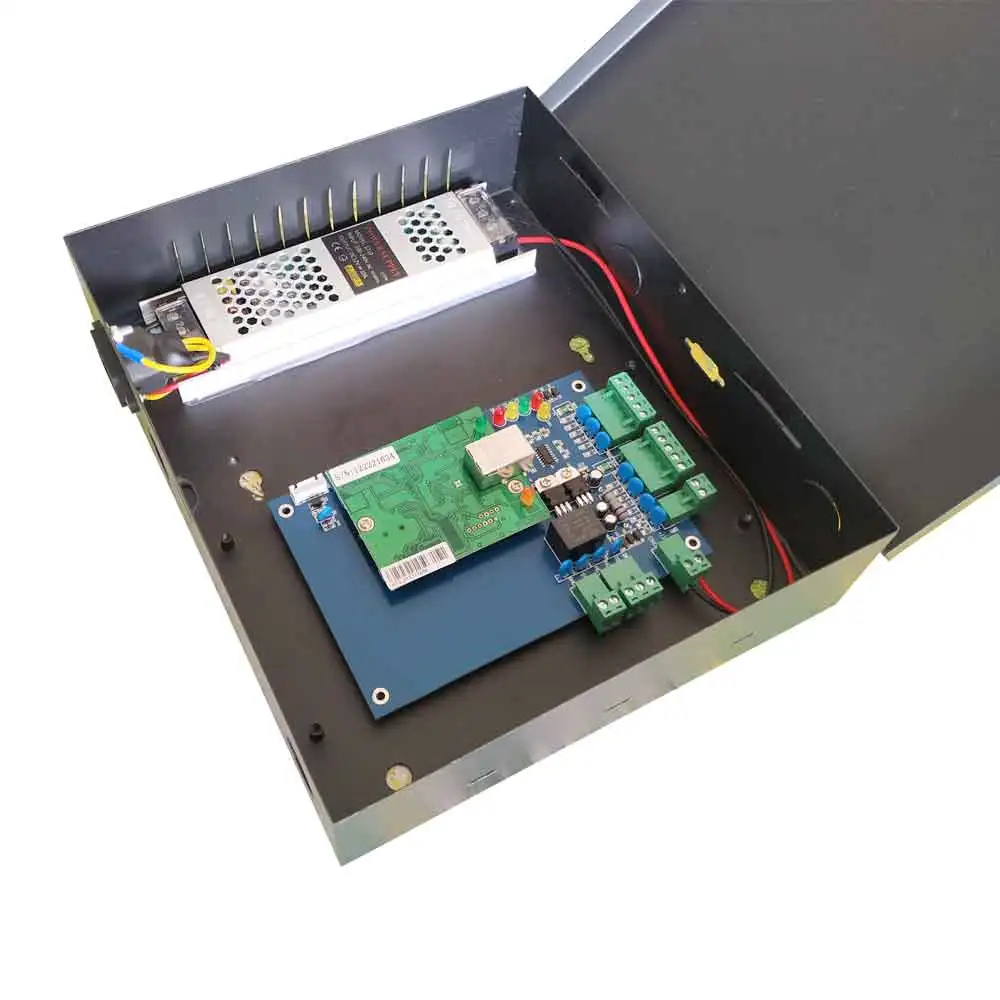

This power supply is equipped with 100V-240V switching power supply.
-
The output of switching power supply is 12V 10A.Â
-
High power 120w can operate 8pcs magnetic lock work at same time
-
Switching power supply has no standard power line, users need to connect by themselves.
*************************************************************************************************************************************************
*********************************************************************************************************************************************************
Getting started guide
This software is very eays to use, only through simple four-step ,you can use it
*********************************************************************************************************************************************************
Time attendance function
*********************************************************************************************************************************************************
Access control function
the controller suport Time profile / password manage / anti-passback / inter lock / first card / task list
*********************************************************************************************************************************************************
Access Alarm functionÂ
Enble this alarm fucntion, It can add one a expandsion borad, then can use the follow funtion. this is the link
https://www.aliexpress.com/store/product/Free-shipping-Enhanced-Alarm-Output-and-Integrated-Fire-Control-Expansion-Panel-compat-with-L01-L02-L04/612513_586727956.html?spm=2114.12010612.0.0.i4gn5I
*********************************************************************************************************************************************************
Web function
suport PC,tablet ,cell phone use IE or Chrome  browser etc
***************************************************************************************************************************************************
if need reader / exit button and ID card, can add these items they are access control option
***************************************************************************************************************************************************

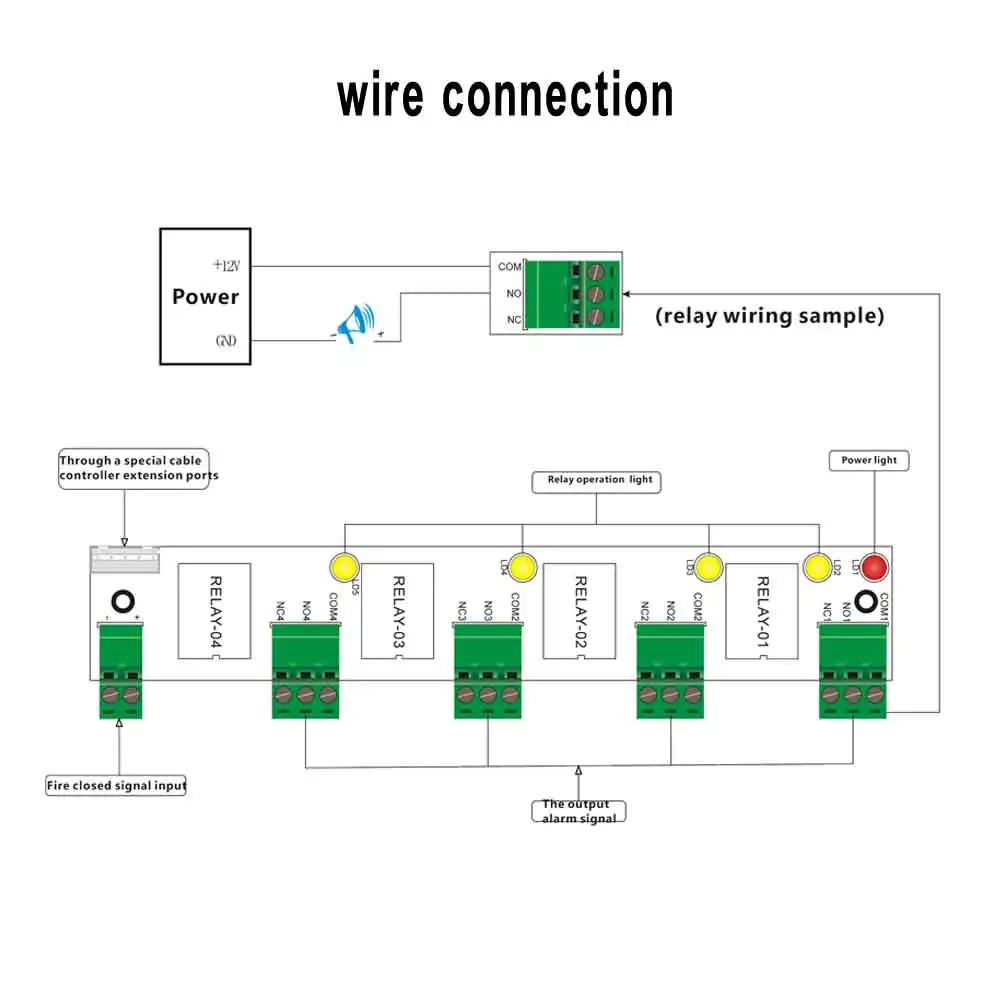

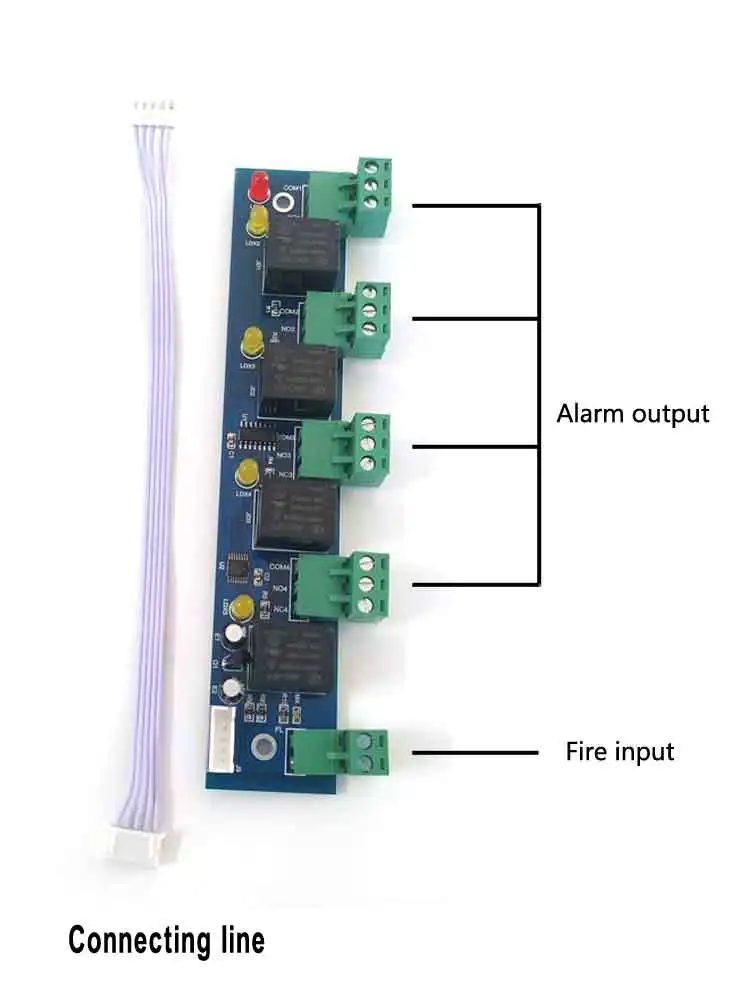

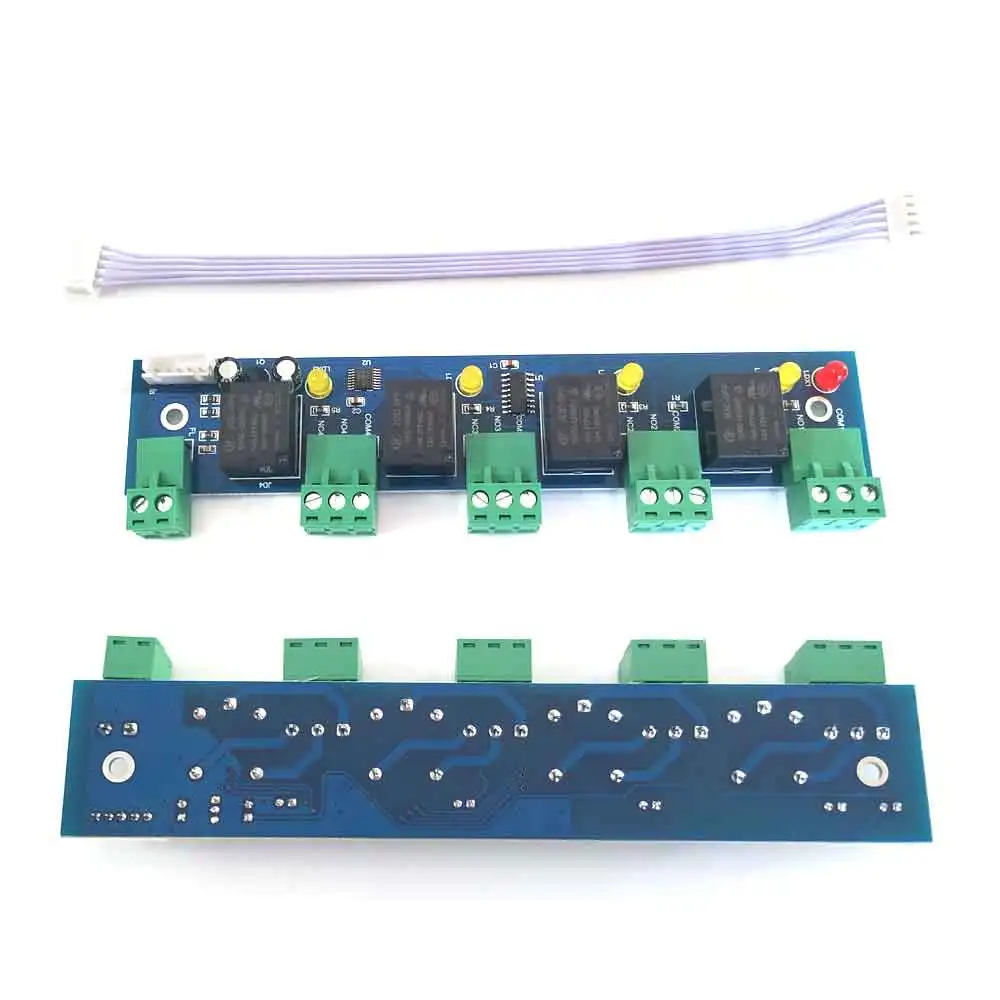

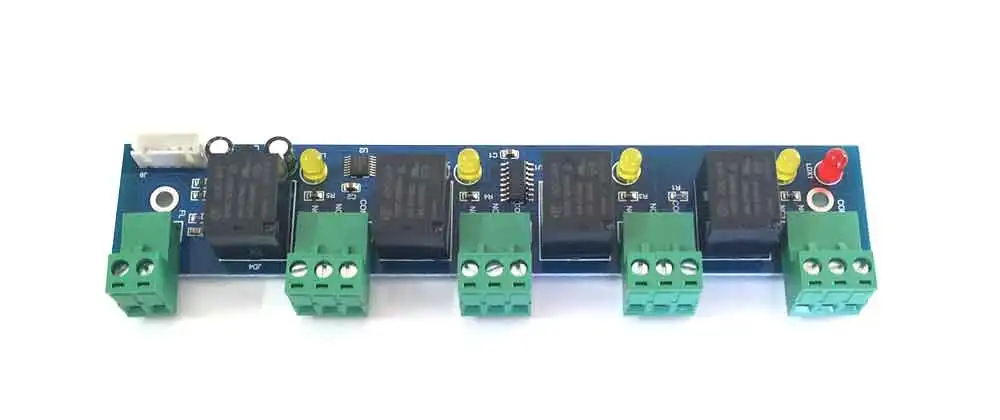

Expansion board (option)Â
invalid break in alarm, long time unlocking alarm, intimidation break in alarm, unlocking linkage ouput, invalid card swiping alarm, integrated fire control alarm;
1-way input and 4-way alarm output. You can specify which function to which door of the controled area .Can connect the fire control output, when fire signal received, doors in the controlled area will be open automatically, and fire alarm will be recorded.
