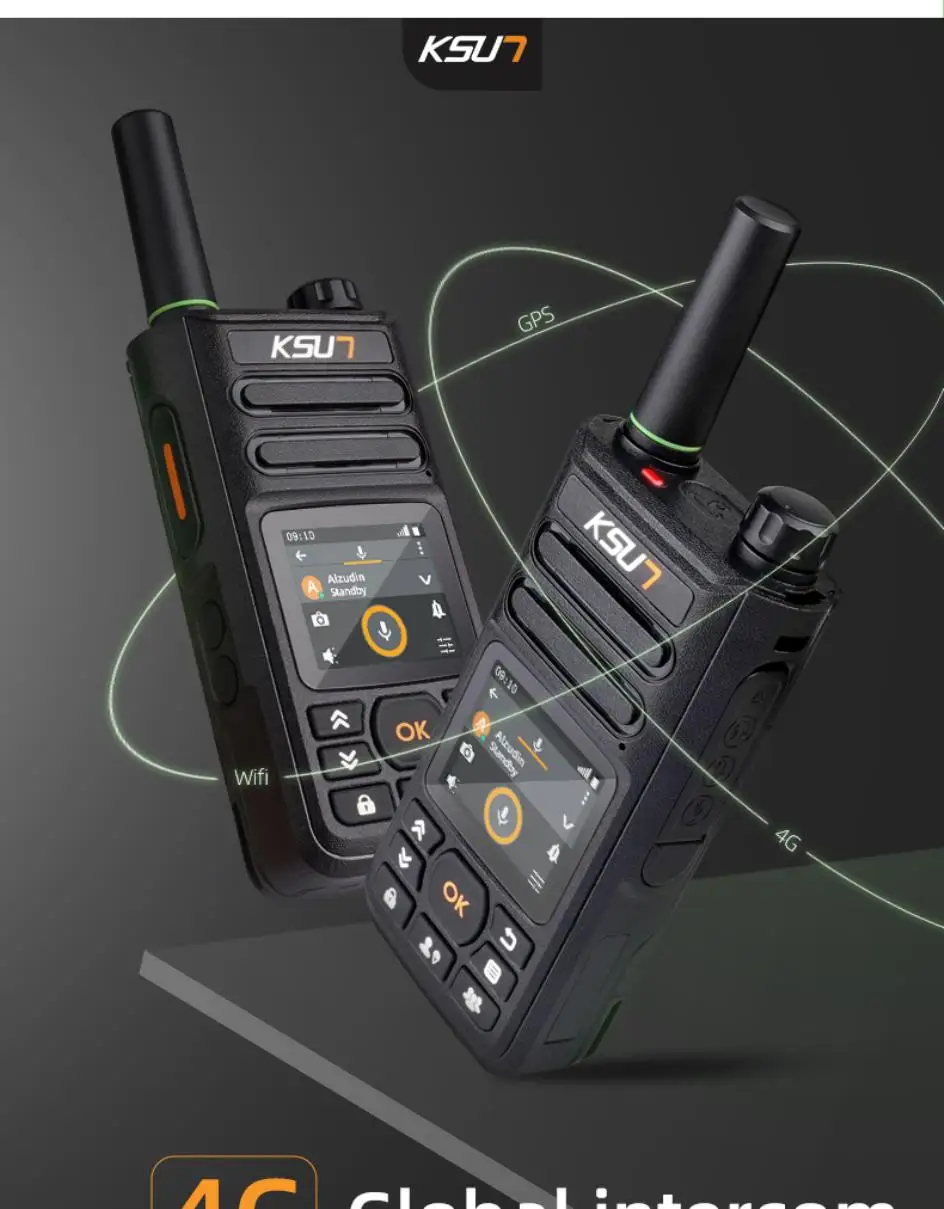

Get to know the radio walkie talkie ZL18
Main features
With Installed Zello App
Support 4G Network(WCDMA/CDMA/GSM/TDSCDMA/LTE TDD/LTE FDD)the transmiting frequency band please view the end of this page

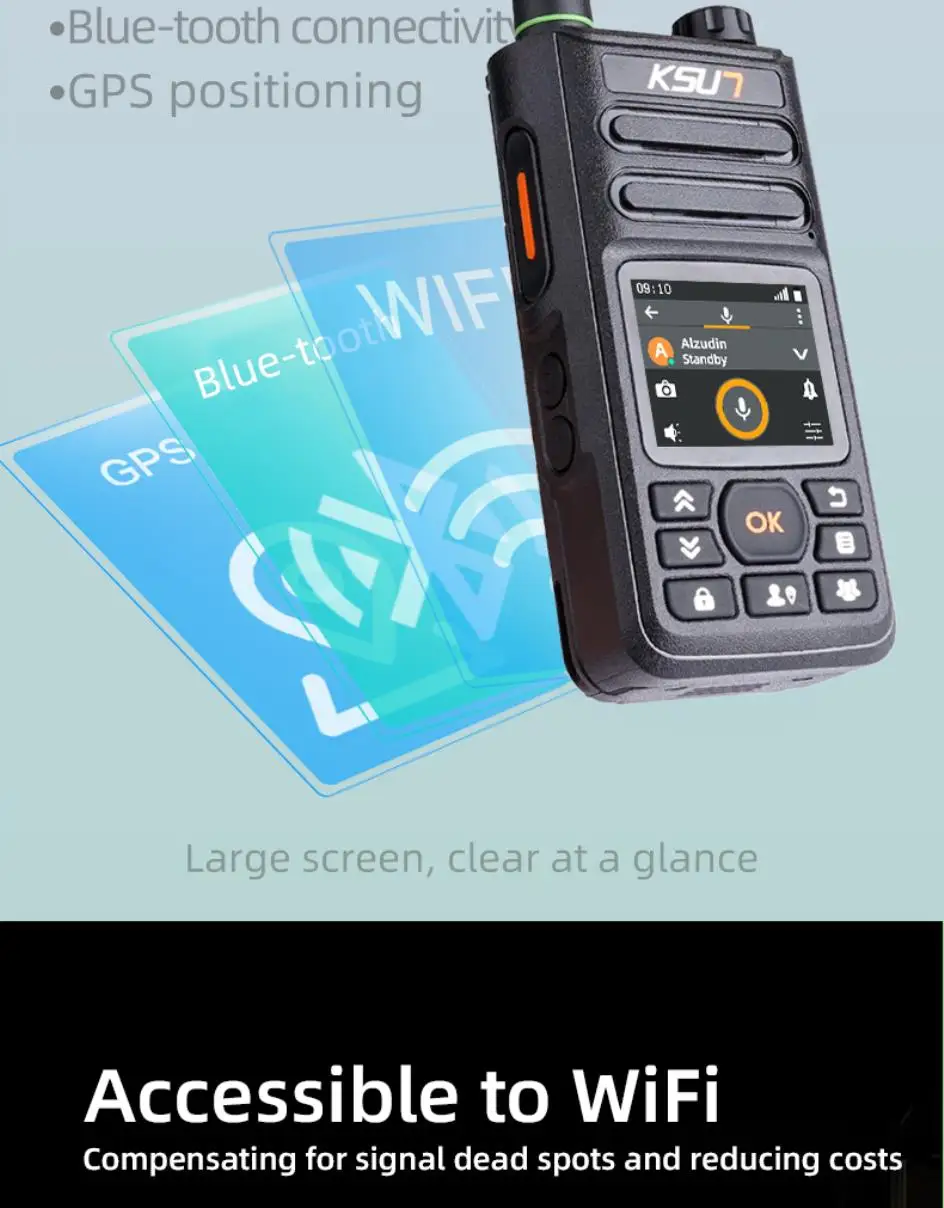

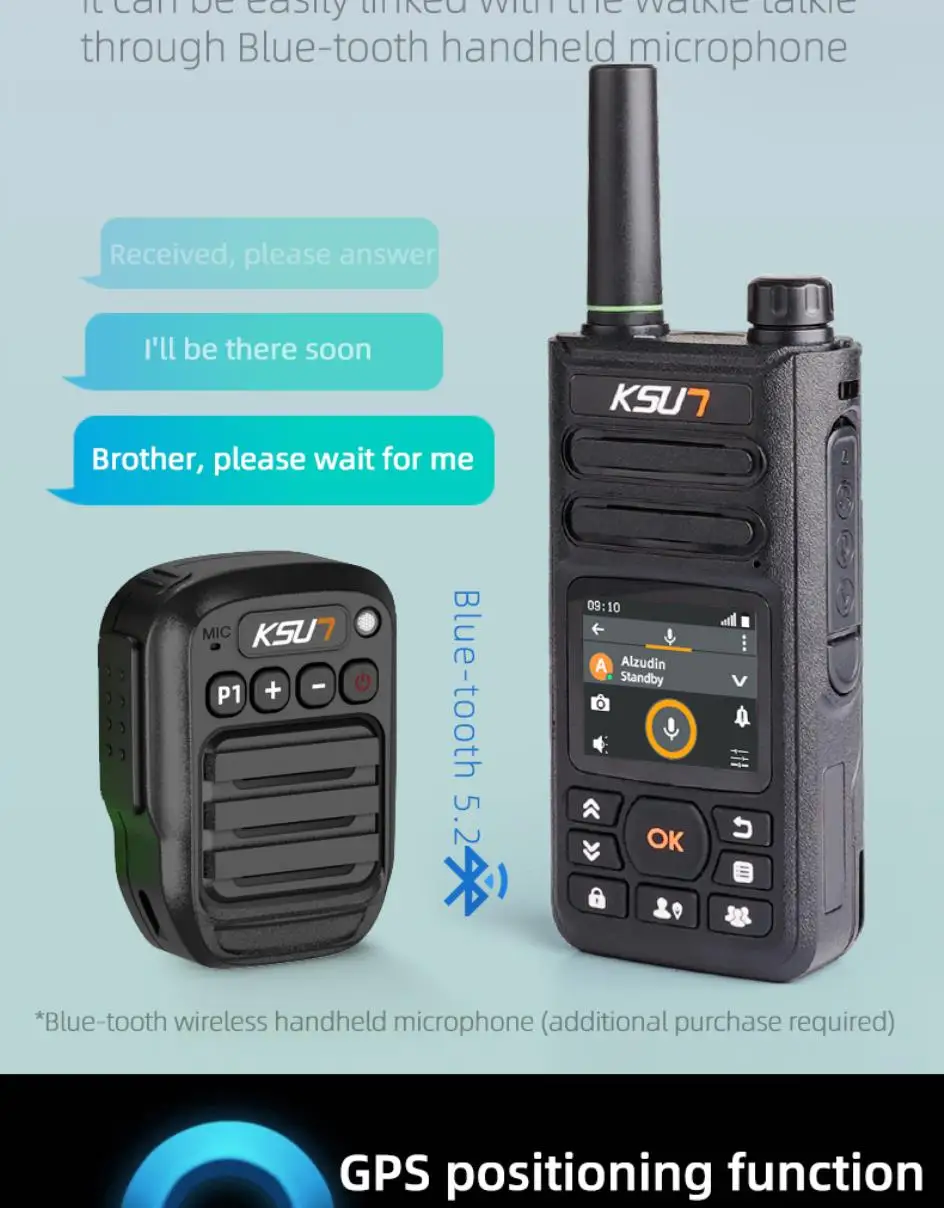

Support Connnet to WiFiand Bluetooth
Support GPS positioning system
Specifications
Support GPS positioning system
Processor:Qualcomm MSS8909
Operating voltage DC3.7V
4000mAh rechargeable battery
Dimensions 123mm×62mm×35mm (Antenna excluded)

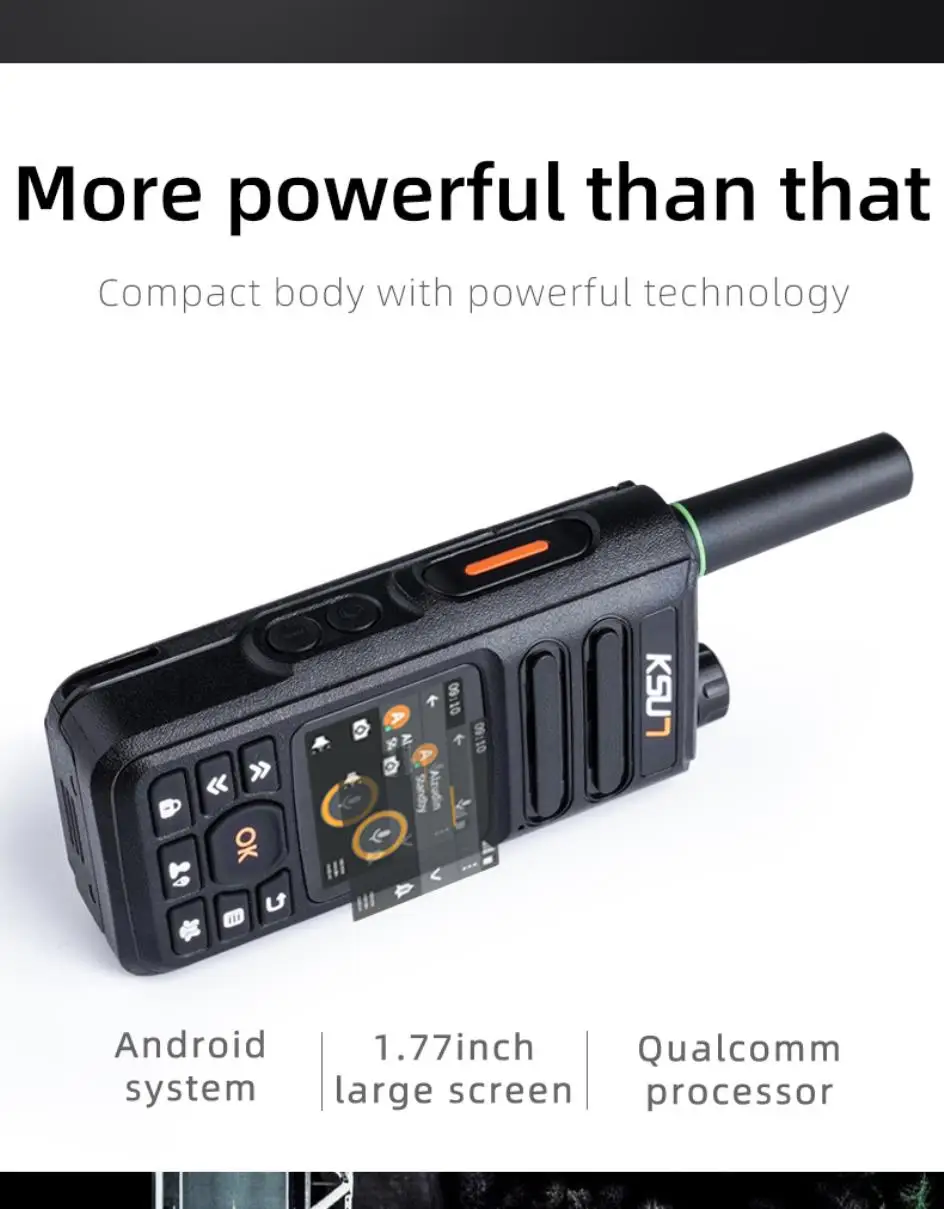

Screen size:1.77INCH
Weight:211g 7.44ounce
What’s in the box
1 ZL18Radio(not include barttery)
1 belt clip
1 antenna
1 4000mAh rechargeable battery
1 Adaptor+USB Charging cable
1 lanyard
1 user manual
Transmitting frequency Band and Receiving Frequency Band
LTE FDD Band:
Transmitting frequency band:B1:1920-1980MHz
Receiving frequency band:2110-2170MHz
Transmitting frequency band:B3:1710-1785MHz
Receiving frequency band:1805-1880MHz
LTE TDD Band:
Transmitting frequency band:B38:2570-2620MHz
Receiving frequency band:2570-2620MHz
Transmitting frequency band:B39:1880-1920MHz
Receiving frequency band:1880-1920MHz
Transmitting frequency band:B40:2300-2400MHz
Receiving frequency band:2300-2400MHz
Transmitting frequency band:B38:2555-2655MHz
Receiving frequency band:2555-2655MHz
WCDMA spectrum:
Transmitting frequency band:B1:1920-1980MHz
Receiving frequency band:2110-2170MHz
Transmitting frequency band:B5:824-849MHz
Receiving frequency band:869-894MHz
Transmitting frequency band:B8:880-915MHz
Receiving frequency band:925-960MHz
TDSCDMA spectrum:
Transmitting frequency band:B34:2010-2025MHz
Receiving frequency band:2010-2025MHz
Transmitting frequency band:B39:1880-1920MHz
Receiving frequency band:1880-1920MHz
CDMA band:EVDO Rev.A800M
GSM band:900/1800MHz
==========
Hign-concerned Chemical : none
Output Power(w) : 3w-5w
Battery Capacity(mAh) : 4000mAh
Waterproof / Water-Resistant : No
Material : Plastic
Storage Channel : Compatible Zello APP
Dimensions : 123x62x35mm
Model Number : KSW ZL18
Walkie Talkie Type : Portable
Is_Display : Yes
Maximum Range : >50km
Origin : Mainland China
Certification : CE,FCC
Item No : Walkie Talkie KSW-ZL18
Communicate Range : Long Range 100 Miles
Feature : Compatible Zello APP Walkie Talkie,Network Cell Phone Radio,GPS Professional Walkie Talkie
