TOPDIAG P100 Automotive Circuit Diagnostic Tester Power Circuit Probe Kit Car 12V 24V Voltage Detector Electrical System Tool

SKU: 1005008407719429

Original price was: $70.11.Current price is: $20.03.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

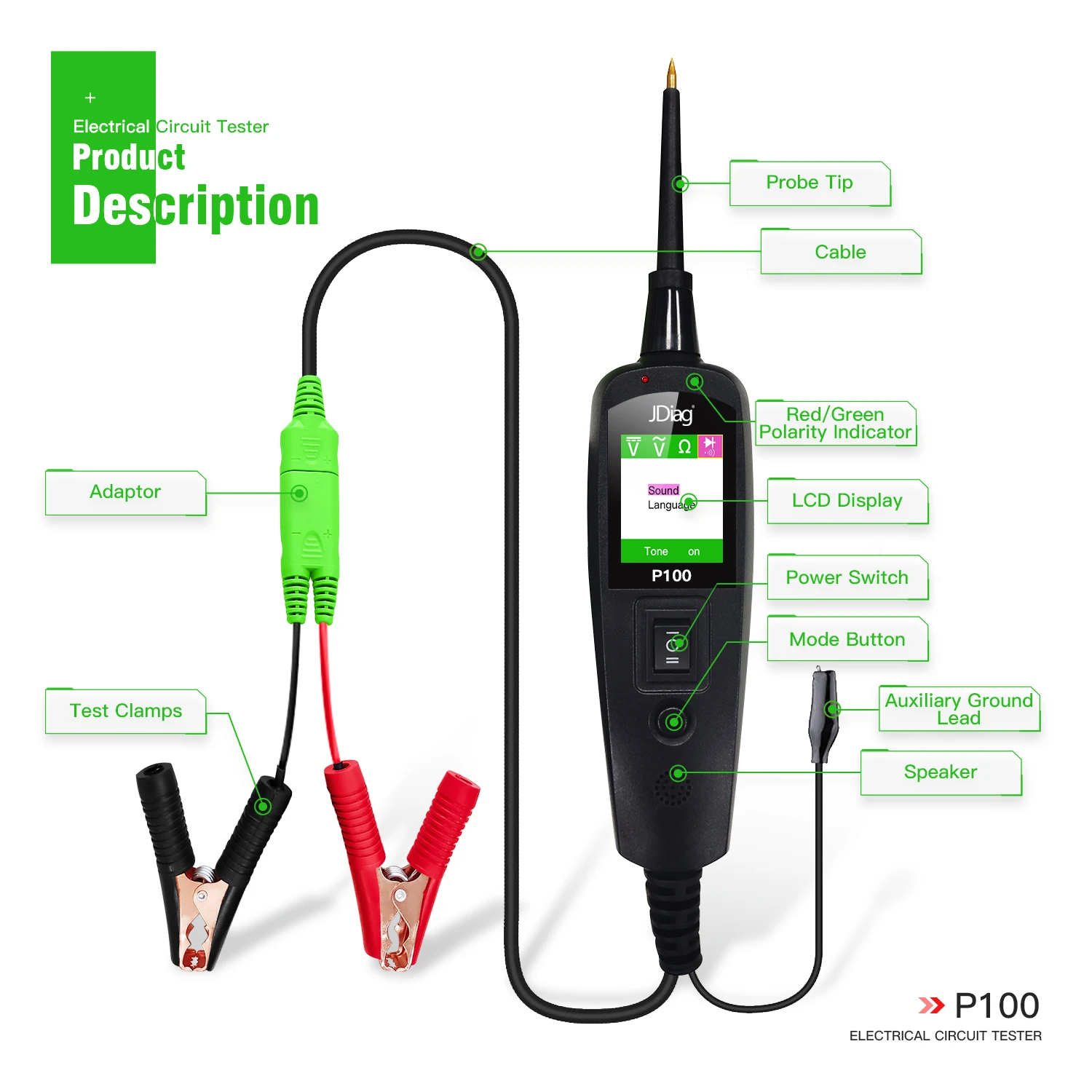

Product Description

TOPDIAG P100 is an ultra-high cost-effective, more efficient automotive circuit diagnostic testing and analysis instrument, a highly integrated automotive specialized testing instrument.

Product Function：

Intelligent identification of voltage/resistance

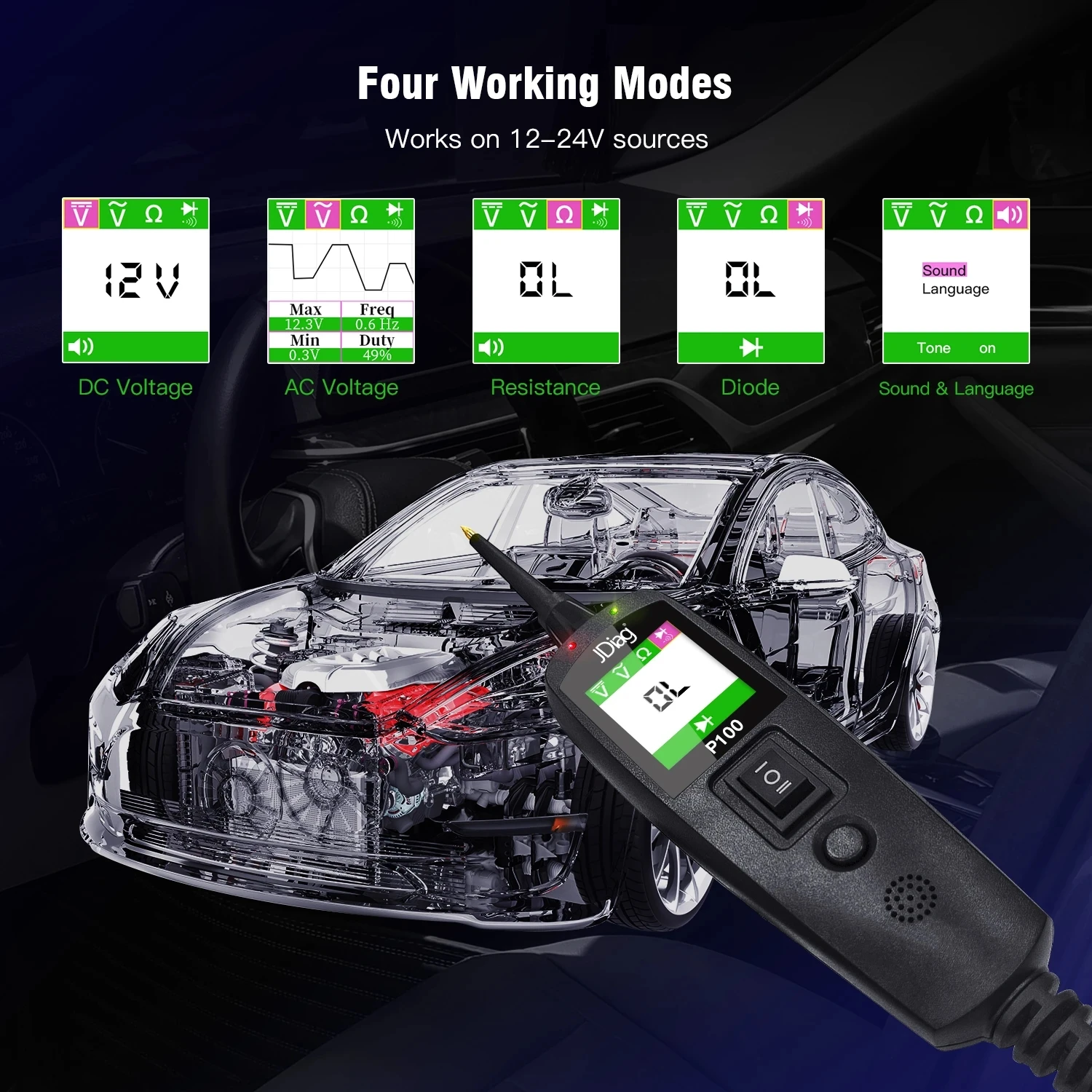

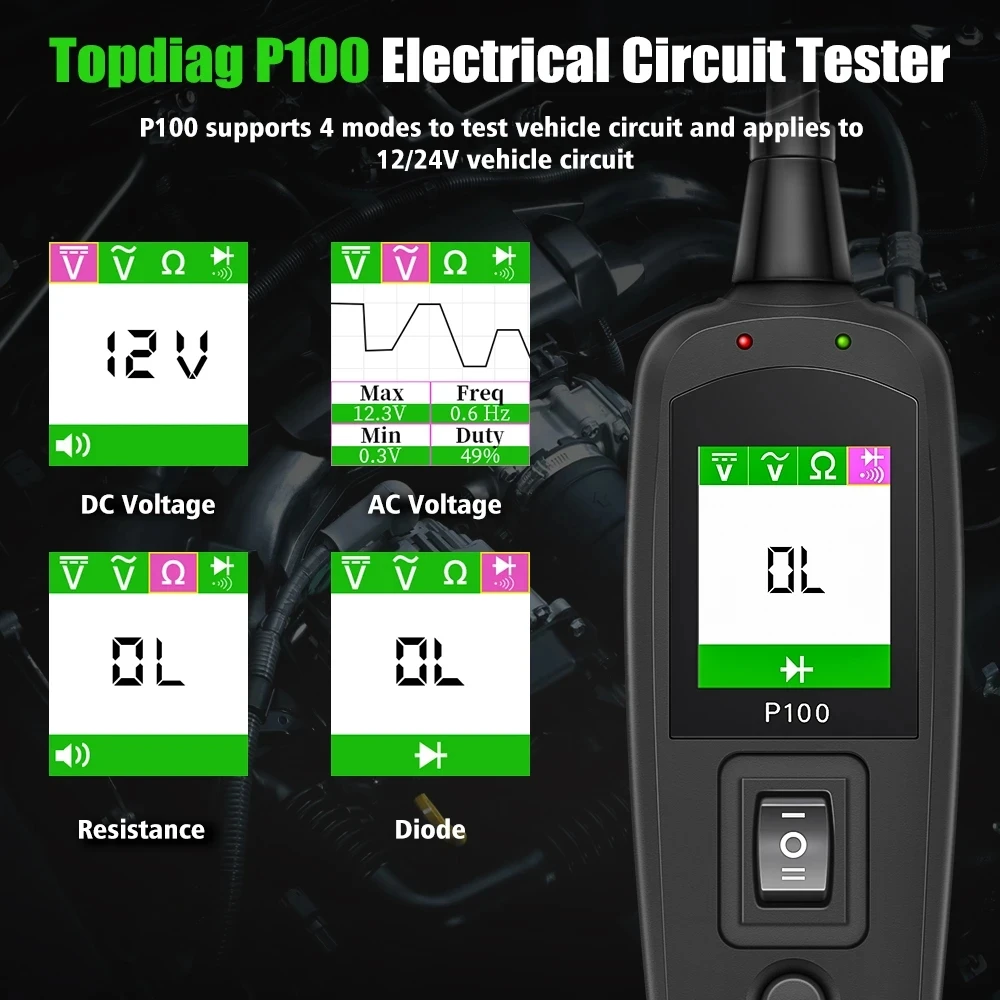

Multimeter mode (measure voltage, resistance, diode, continuity )

Oscilloscope function

Activation of vehicle components

0-5V adjustable power supply

Frequency

Network online free upgrade

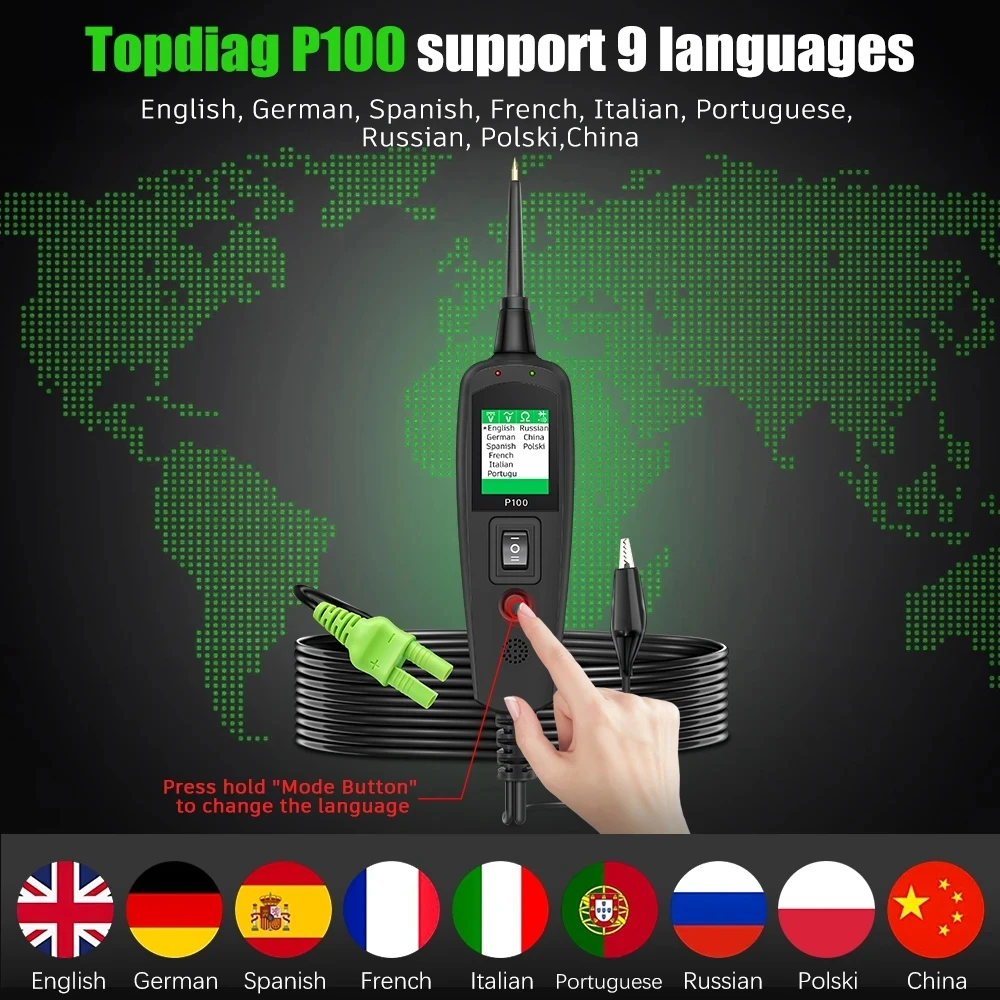

Built in multiple languages

Supported Languages：

English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thai, Indonesian, Filipino, Malay, Arabic, Korean, Japanese, Traditional Chinese, Simplified Chinese

Product Specifications：

Display: 2.4 inches (320*240 DPI) TFT true color display

Working temperature: 0-60°C (32-140 F°)

Storage temperature: 40-70°C (-40-185 F°)

External power supply: 12V or 24V powered by battery

Minimum working voltage: 9V

Maximum working voltage: 30V

Maximum measuring voltage: 100V

Minimum measuring voltage: 0.1V

Resistance measurement range:1 ohm~200K ohm

Active Current measuring range: 0~18A

Maximum continuous current: 18A

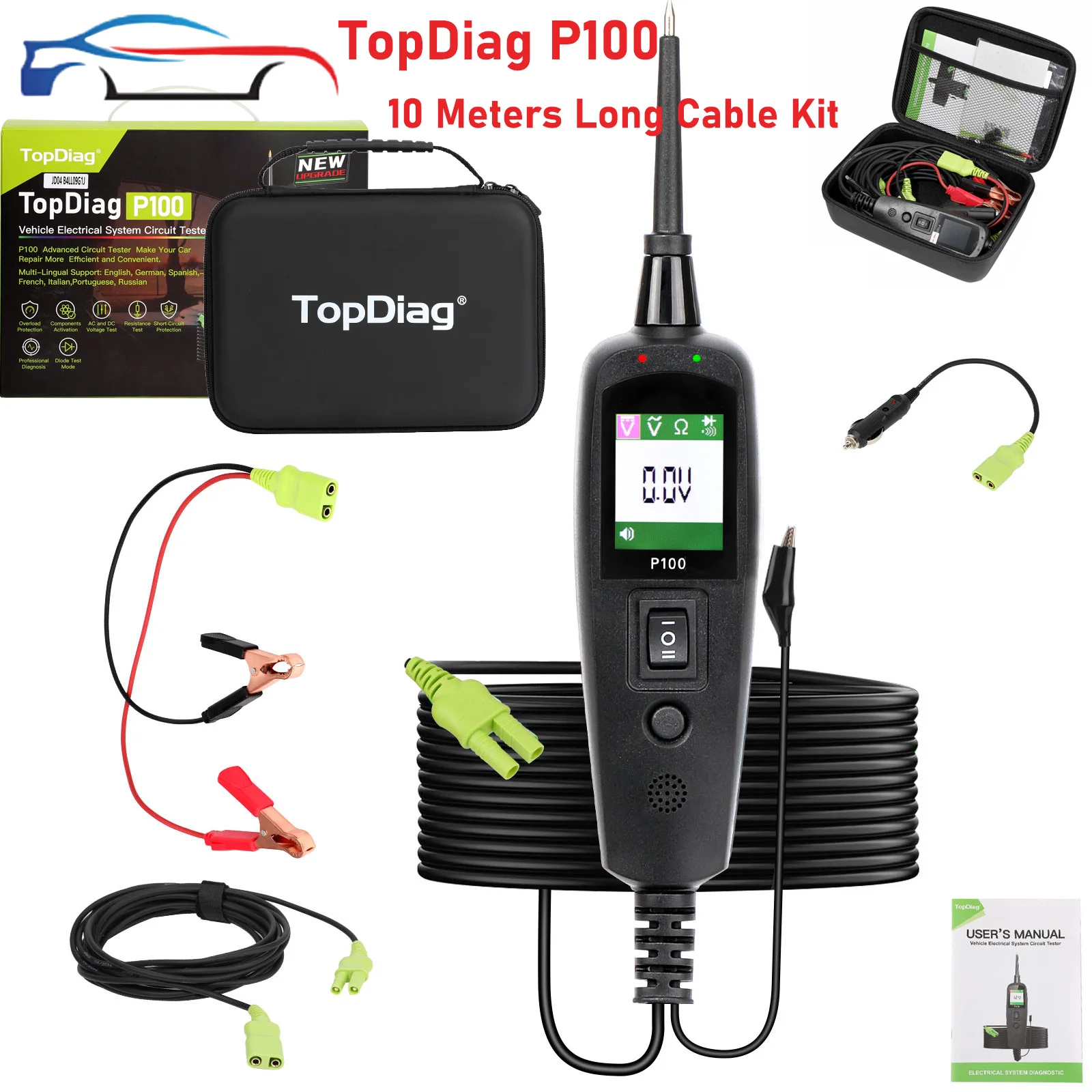

Package includes:

1pc x TOPDIAG P100 2 Meters Long

Package includes:

1pc x TOPDIAG P100 10 Meters Long
