Topdiag P200 12V 24V Automotive Electric Circuit Tester SMART HOOK Power Probe Car Electrical System Digital Analyzer Diagnostic Tool Vehicle Electrical System Circuit Problem Battery Testers Detector Multimeter Relay Injector Probe Pen
This is a powerful tool that can quickly improve your work efficiency, customer recognition and bring you great economic benefits, get one and bring home the luck!

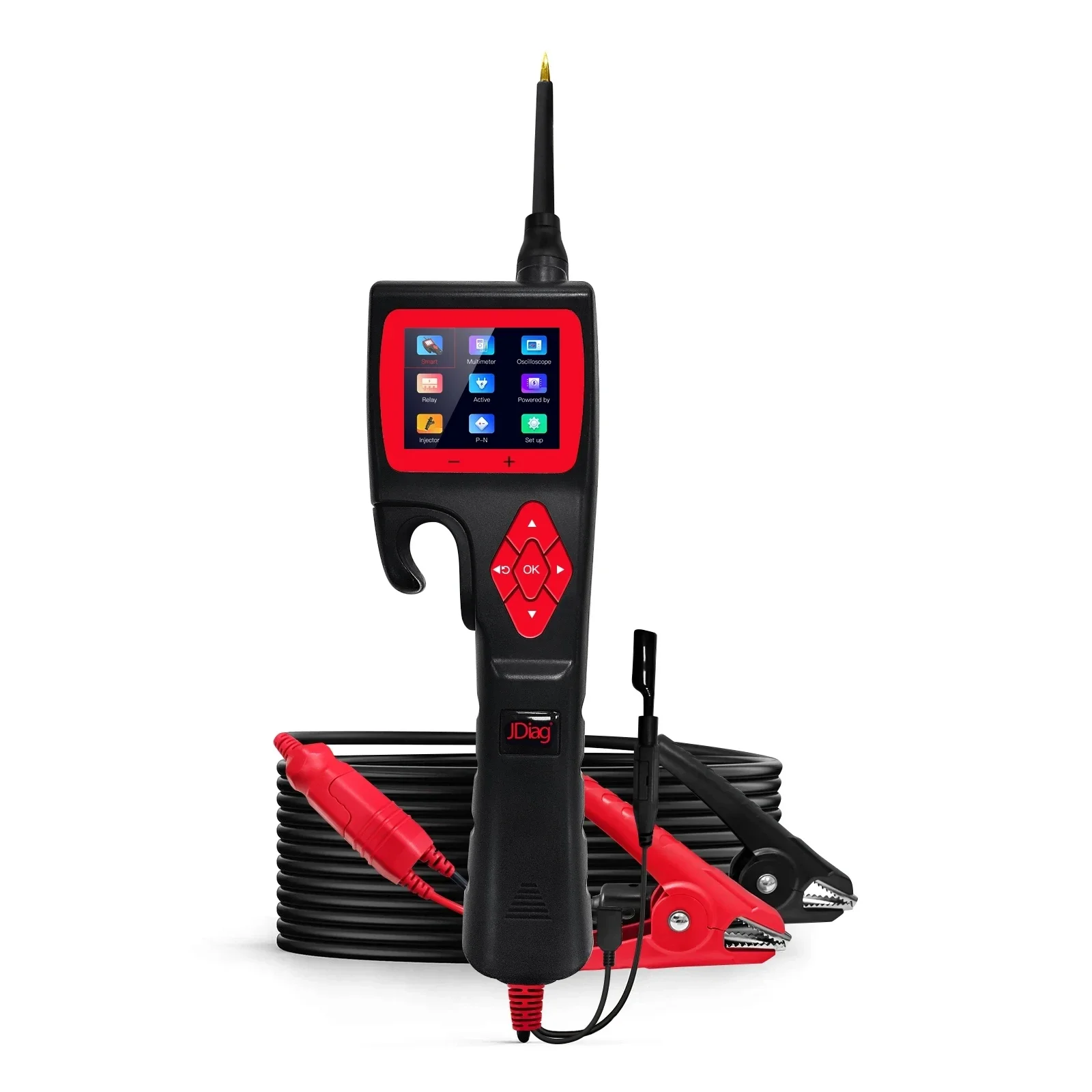

P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

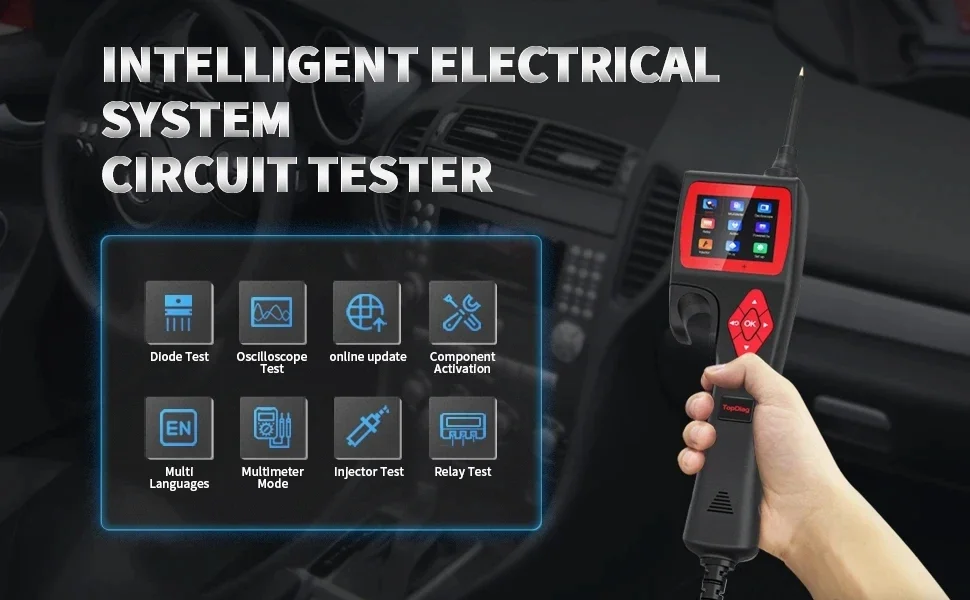

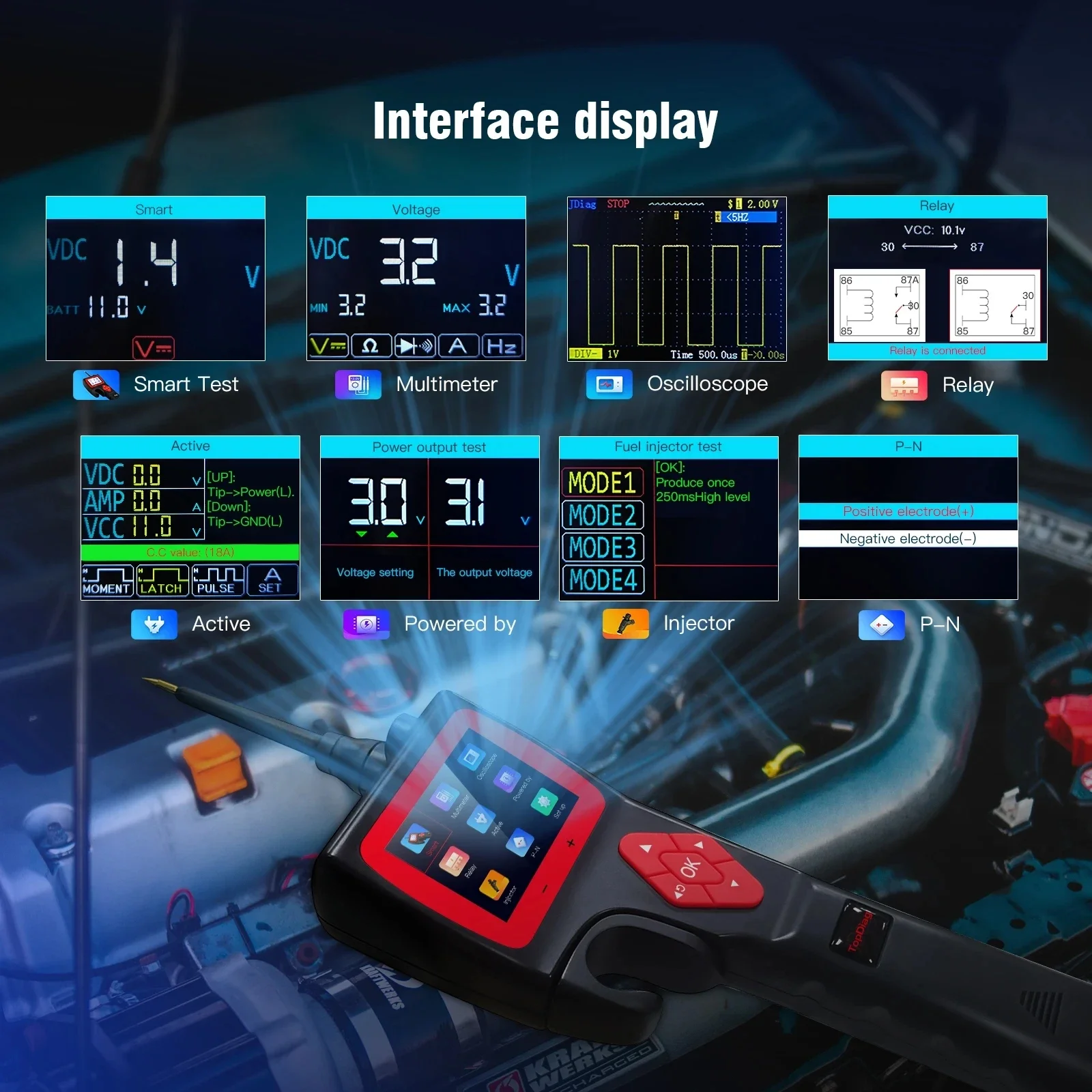

SMART HOOK Product Functions:
1. Intelligent identification of voltage/resistance
2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)

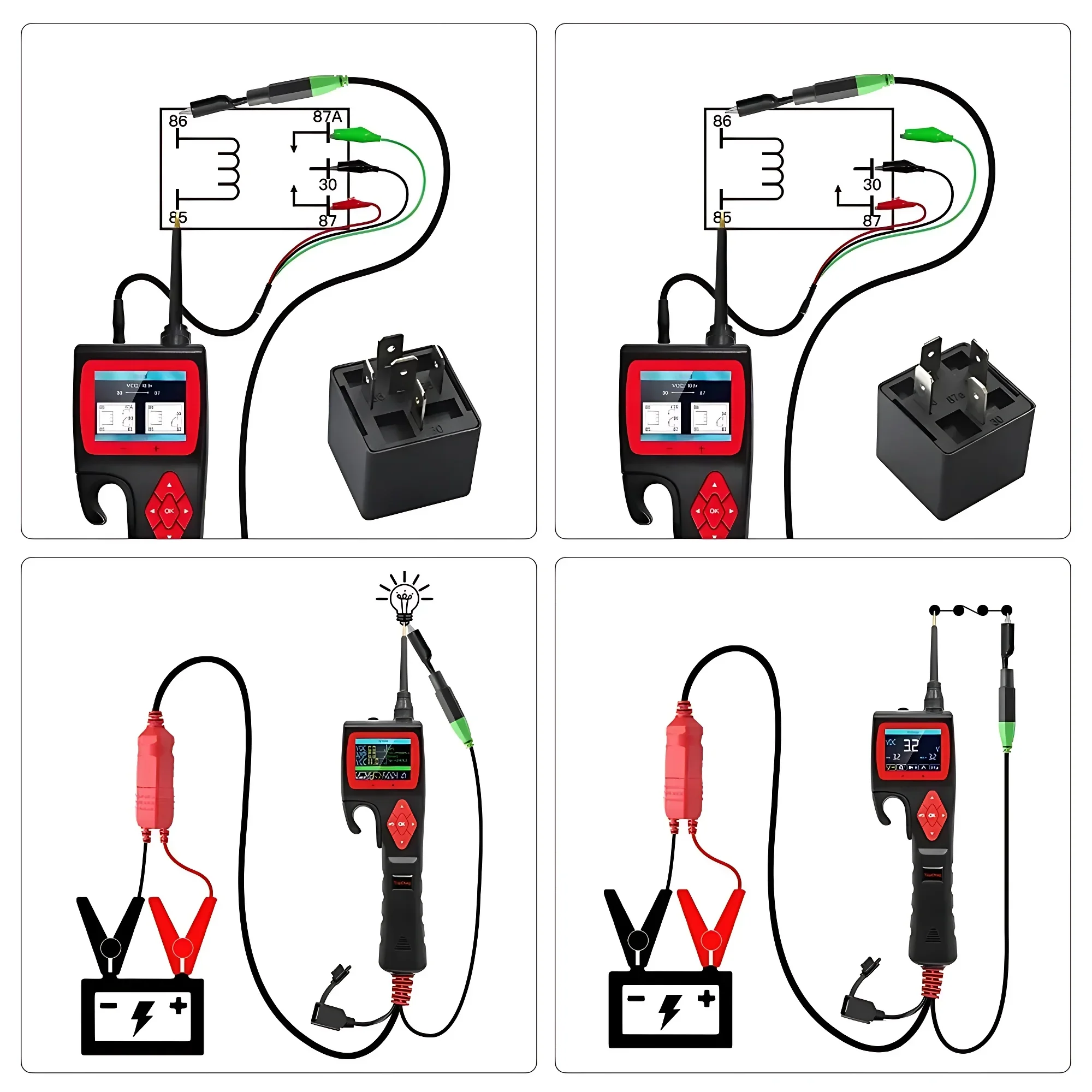

3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply
8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network online upgrade

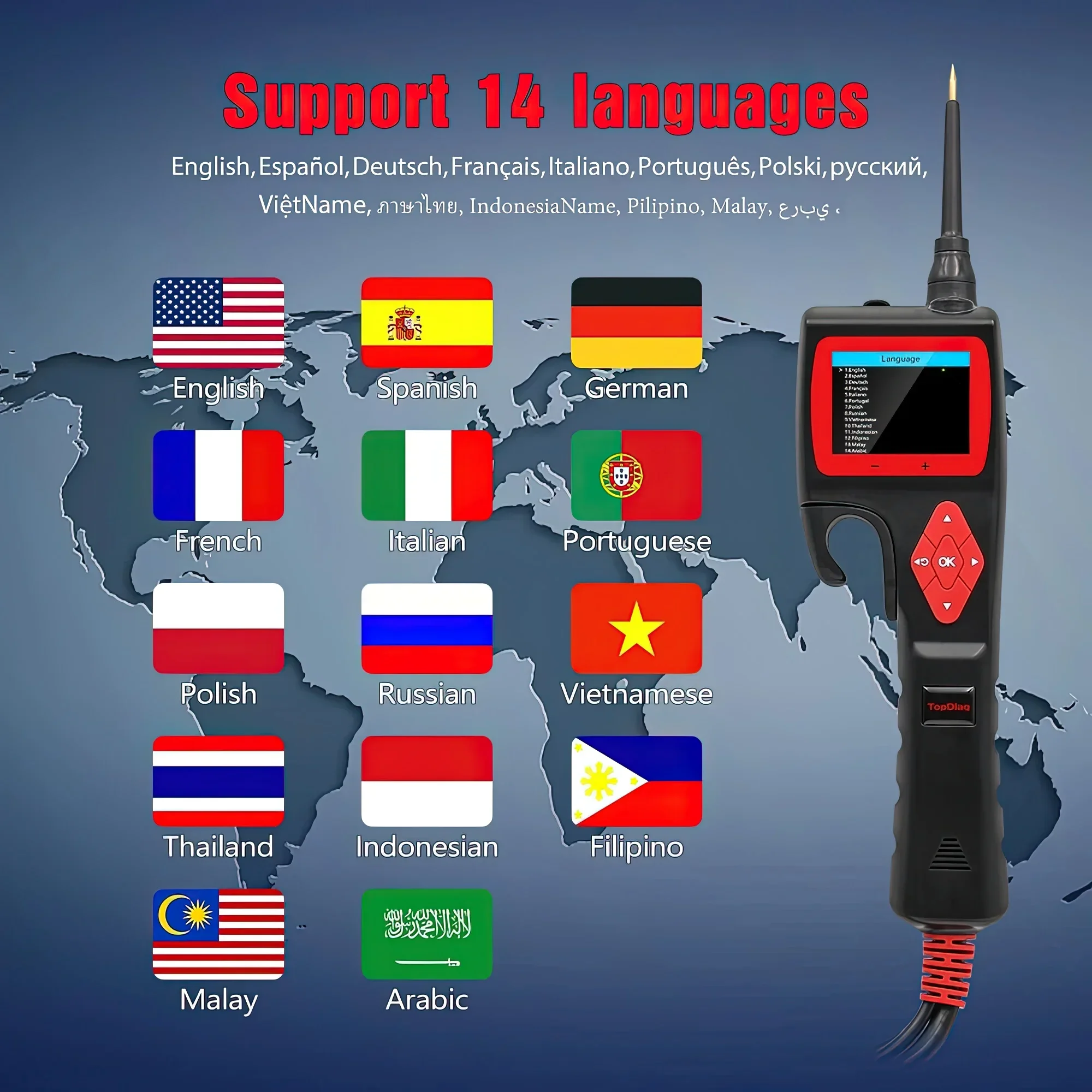

13. Built-in Multi Lingual.

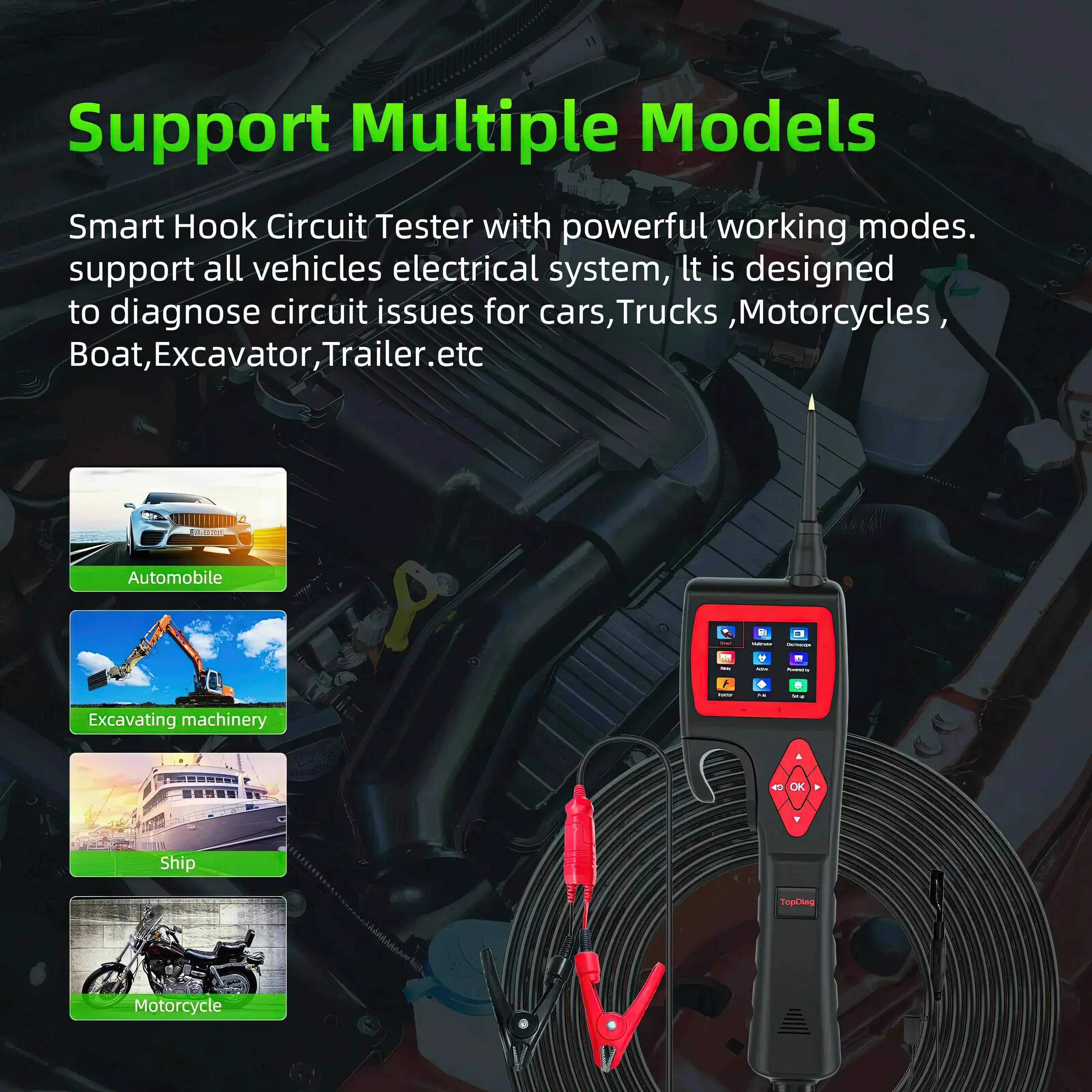

Support Multiple Models:Smart Hook Circuit Tester with powerful working modes.support all vehicles electrical system, It is designed to diagnose circuit issues for cars,Trucks ,Motorcycles ,Boat,Excavator,Trailer.etc
Multimeter Mode:Completely Full Mutimeter Parameters fast to test Voltage,Resistance,Diode,Open&Short,Current, Frequency)
Component Activation Mode:working condition, Better to improve your working efficiency.working condition, Better to improve your working efficiency.
Specifications:
1. Display:(320*240 DPI) TFT true color display
2. Working temperature:0-60°C (32-140 F°)
3. Storage temperature:40-70°C (-40-185 F°)
4. External power supply:12V or 24V powered by battery
5. Minimum working voltage:9V
6. Maximum working voltage:30V
7. Maximum measuring voltage:150V
8. Minimum measuring voltage:0.1V
9. Resistance measurement range:1 ohm~200K ohm
10. Current measuring range:0~18A
11. Maximum continuous current:18A
Professional Multimeter Function,Five Test Mode:
1. Voltage Test
2. Resistance Test
3. Diode/Continuity Test
4. Current Amps Test
5. Frequency/Duty Cycle Test

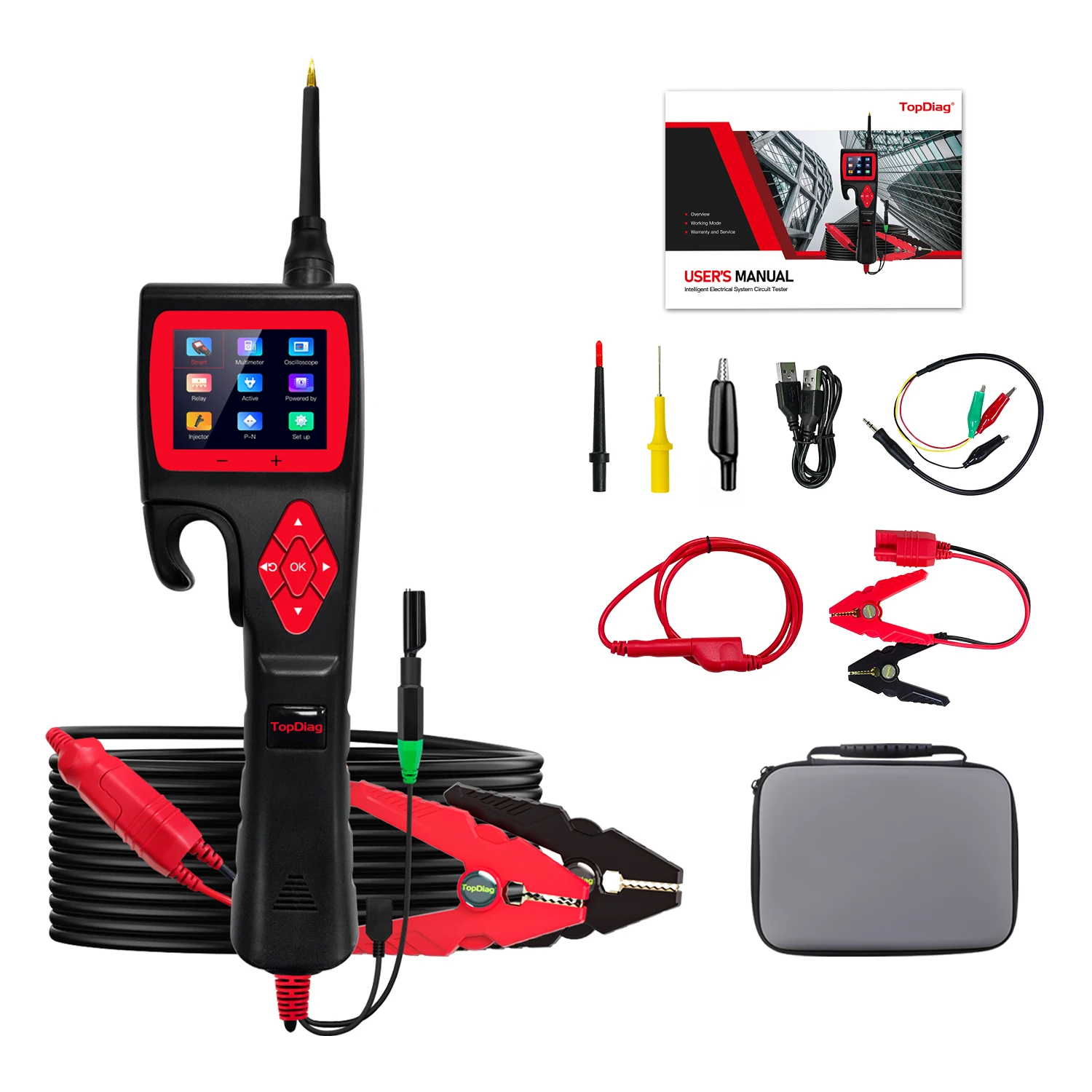

Product packing list:
1. Main unit
2. Solid copper test probe
3. Double pass test connection line
4. Alligator clip battery cable (Special Design)
5. Relay test line
6. Probe adapter
7. Operation manual
8. Packing Toolbox
