Waterproof Touch screen RFID Standalone Access Controller 125KHz 13.56MHZ Dual frequency Access Controller
This product is a non-contact proximity card and password access control all-in-one machine. It supports two proximity cards, EM and Mifare. It is one of the most advanced single door controllers at present. It can be widely used in high-end office buildings, residential quarters and other public places.
2. Features
(1) Power consumption: current is less than 100mA
(3) Search time: the time from swiping the card to opening the door is less than 0.1S
(4) Luminous keyboard: easy to operate at night
(5) Doorbell interface: external wired doorbell can be connected
(6) Door opening method: card, password, card plus password
(7) Independent password: use a password that has nothing to do with the card to open the door
(8) Modify password: the user can modify the password to open the door by himself
(9) Waterproof grade: epoxy resin potting package. Suitable for outdoor
(10) Operating temperature: normal card swiping at -40 degrees, applicable to a wide range of areas
(11) Unattended card addition: convenient for user management
(12) Mutual copy of machine data: register one machine, share data of multiple machines, reduce workload
12 core functions

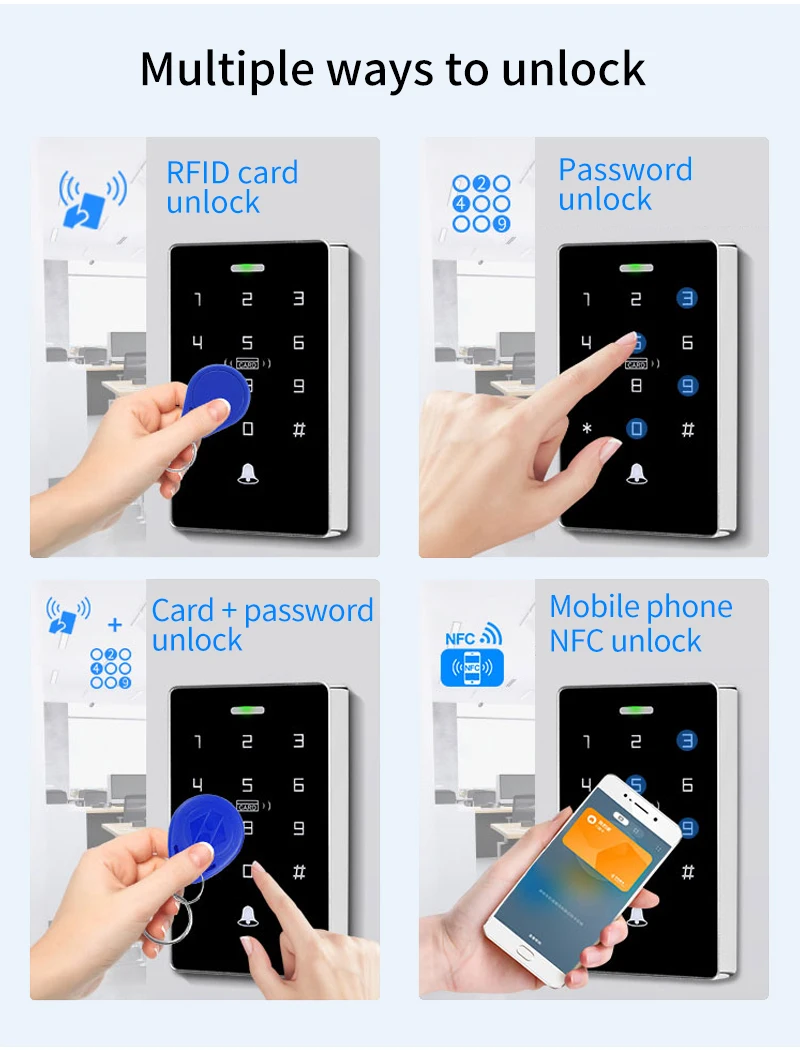

Three ways to open the door: Card, Password, Card + Password

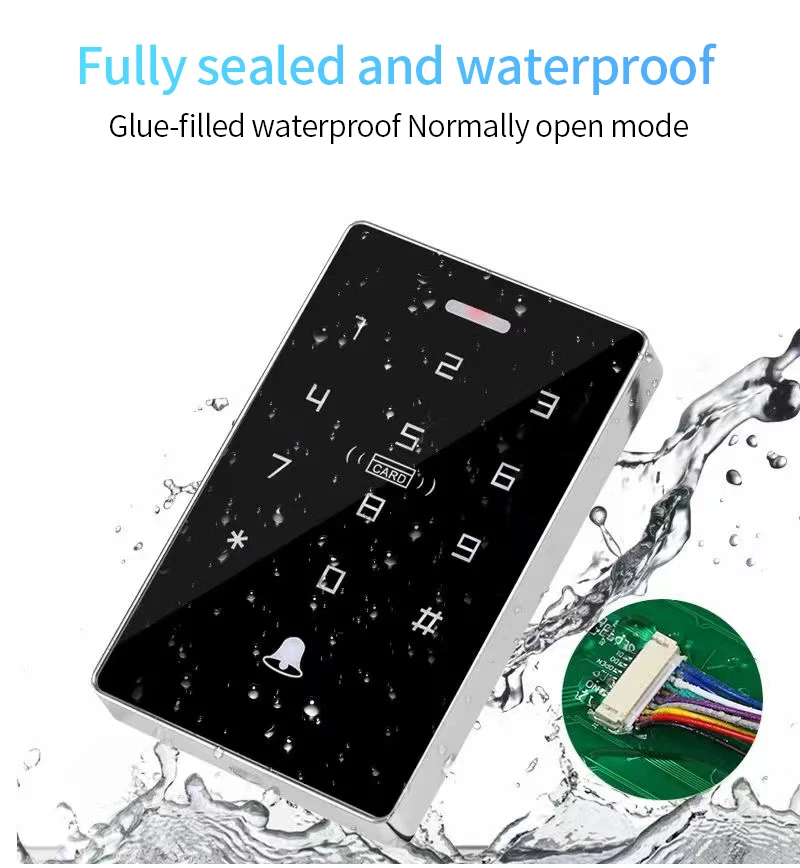

Waterproof grade: encapsulated with epoxy resin.Can be used outdoors
High quality material: fire retardant and durable
Support bank card unlock, wristband unlock
Luminous keyboard design
Dual frequency working
Product usage indication

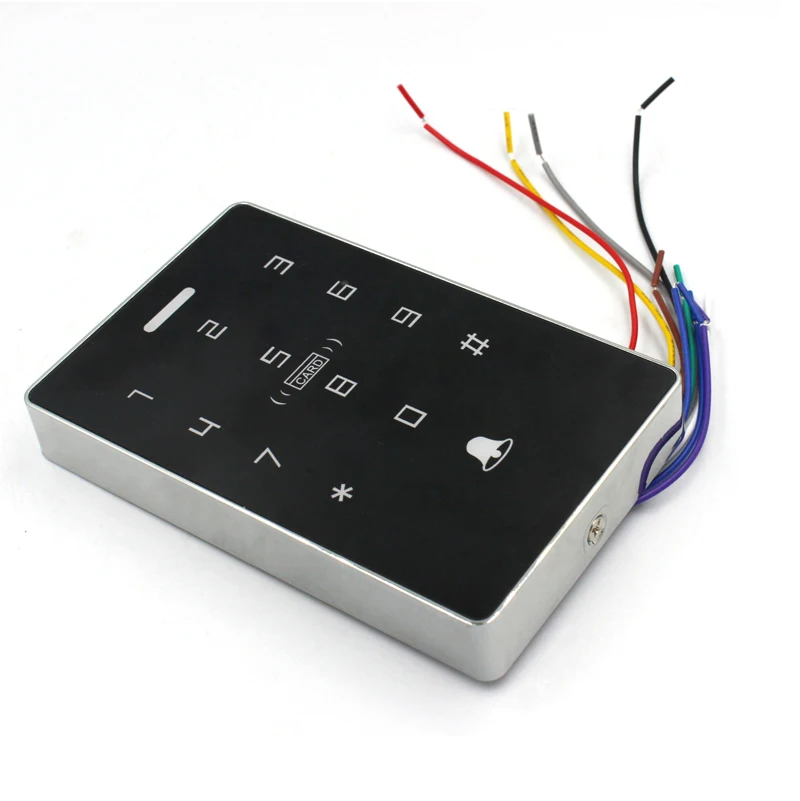

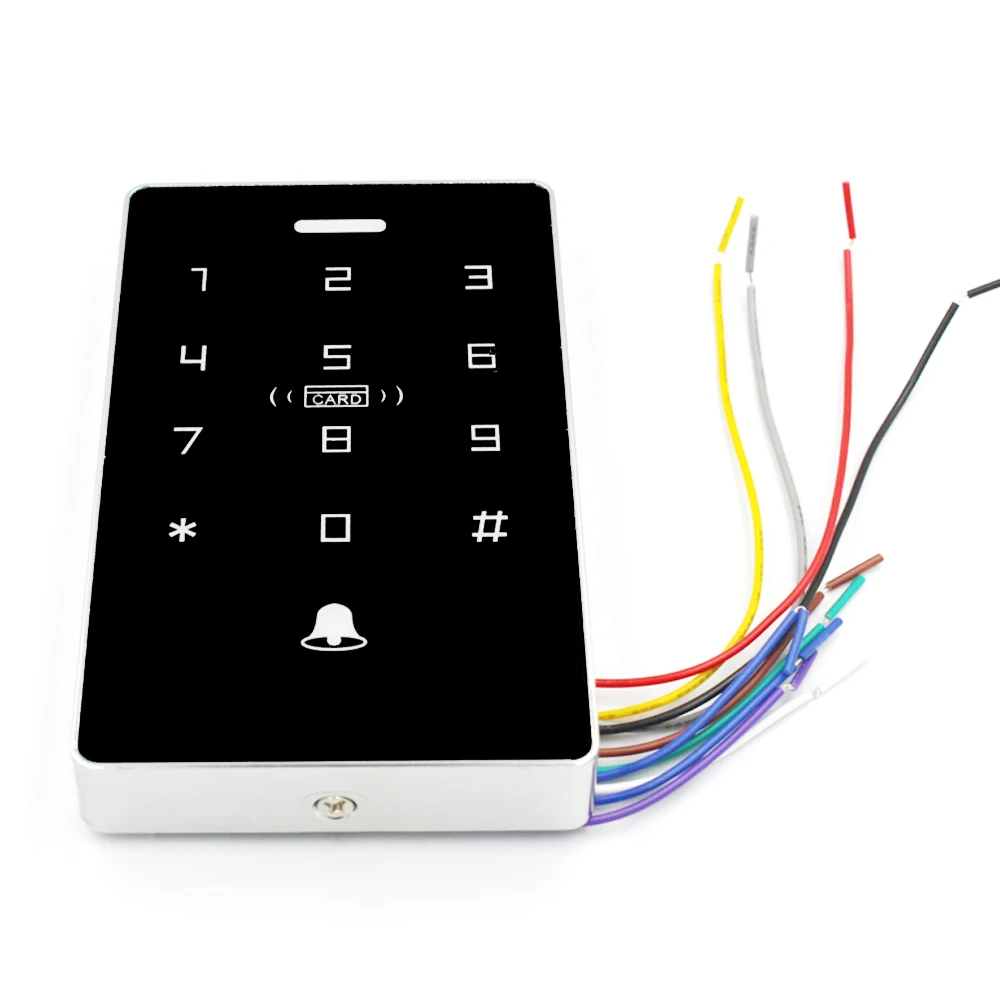

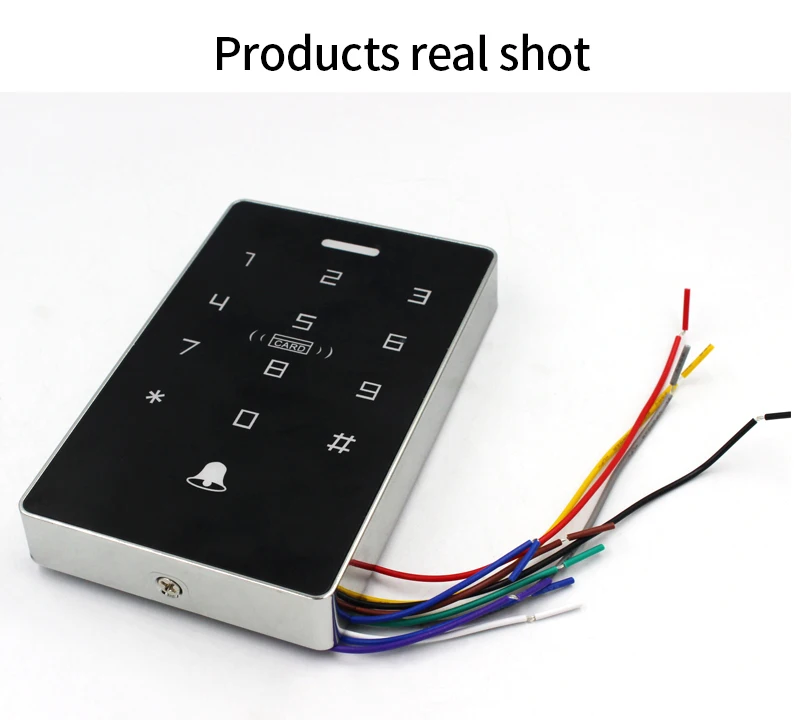

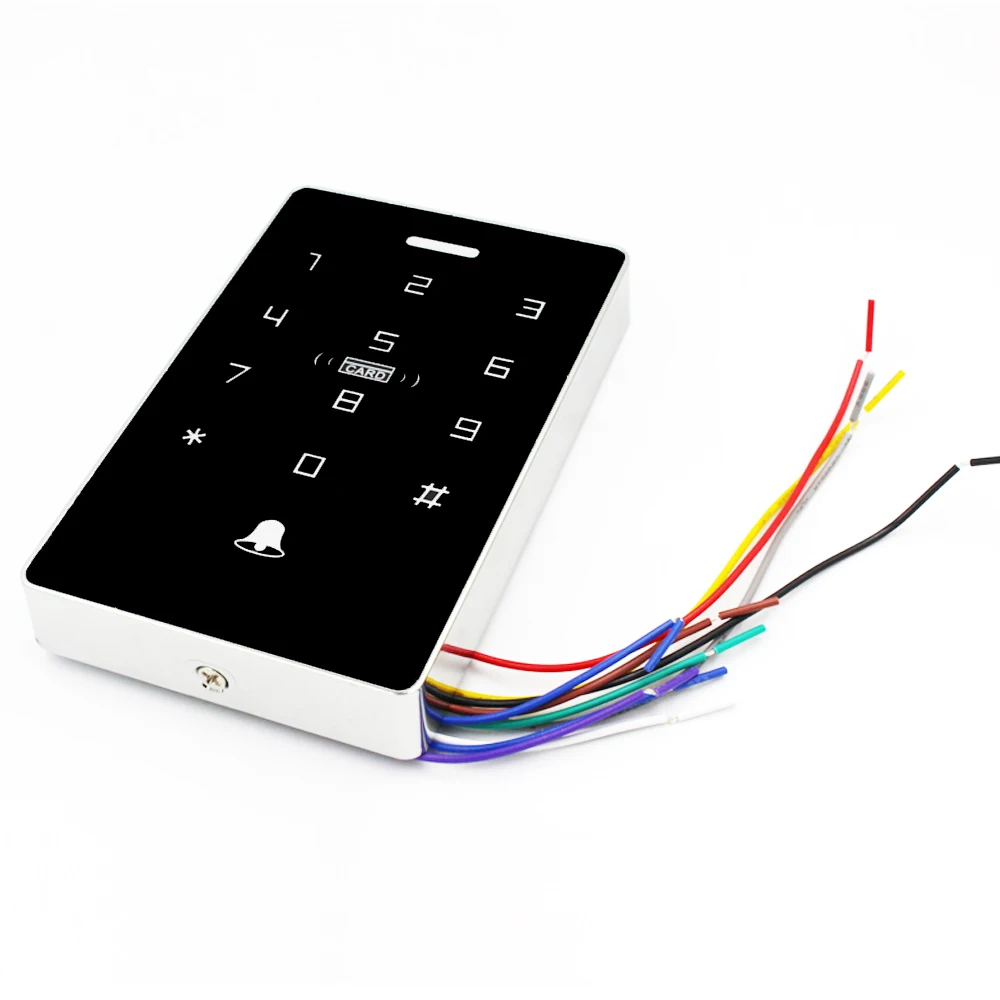

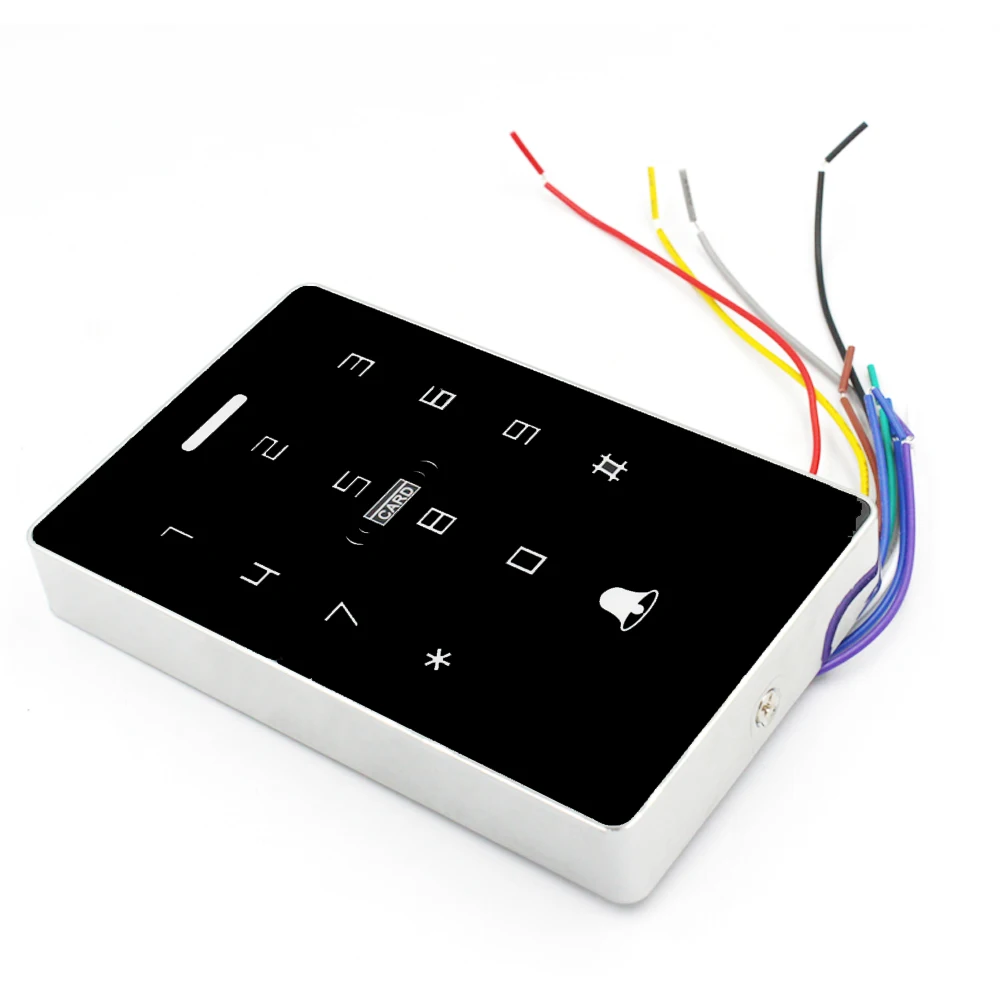

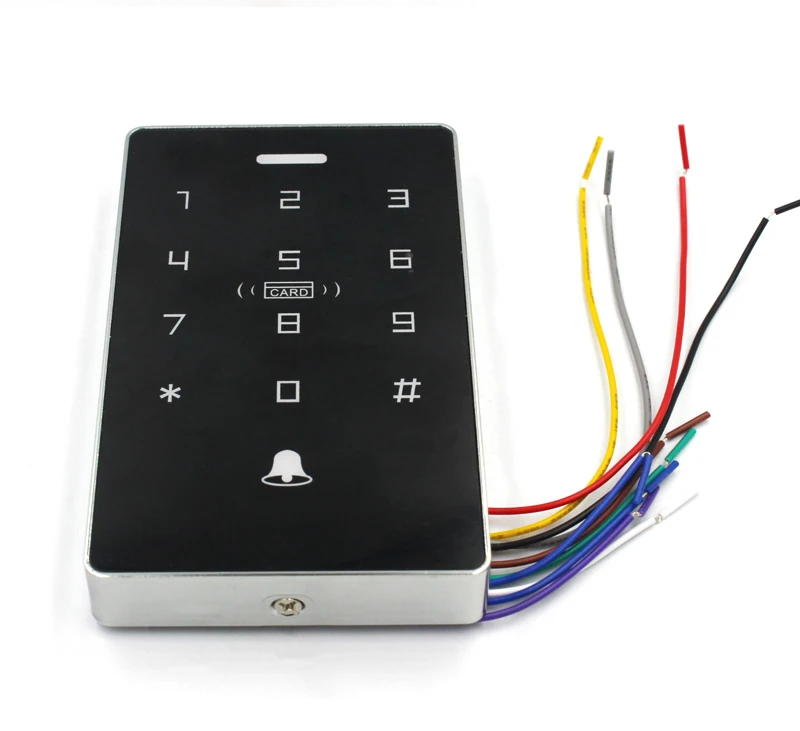

Product details

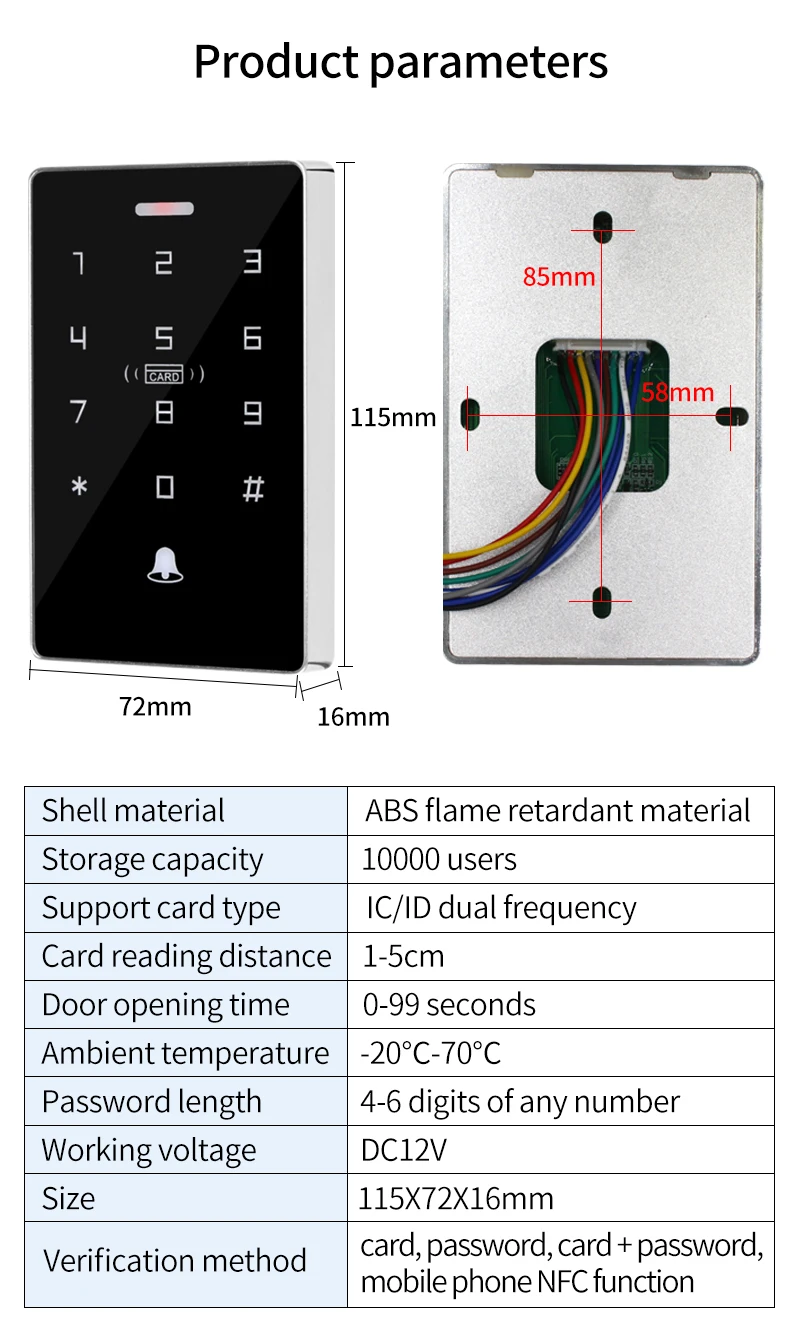

Specifications

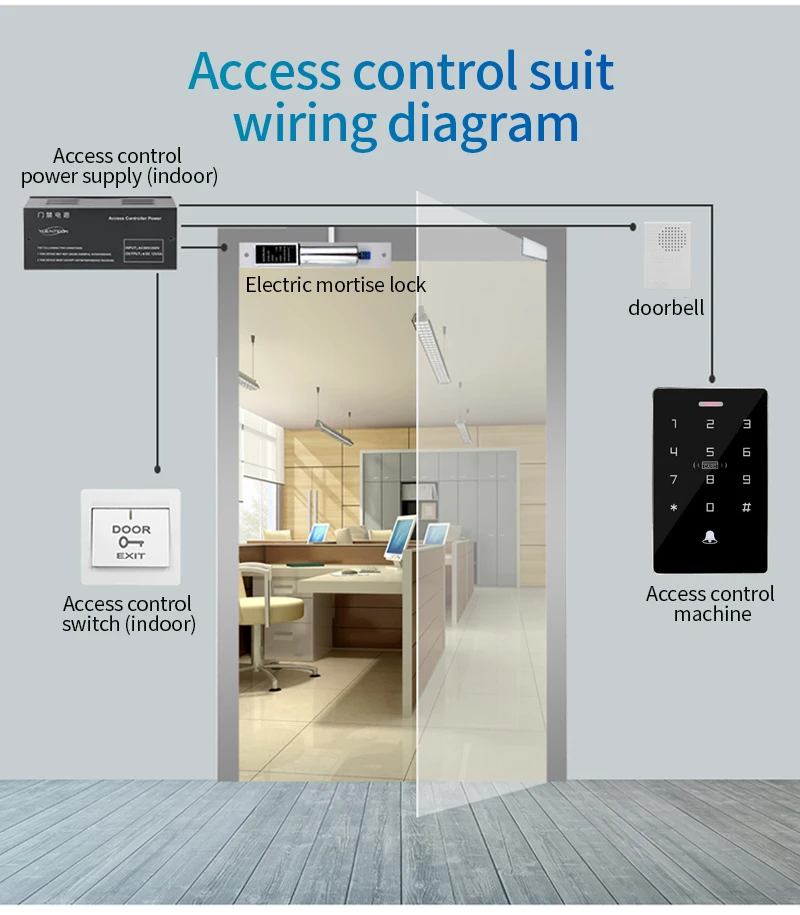

Wiring diagram

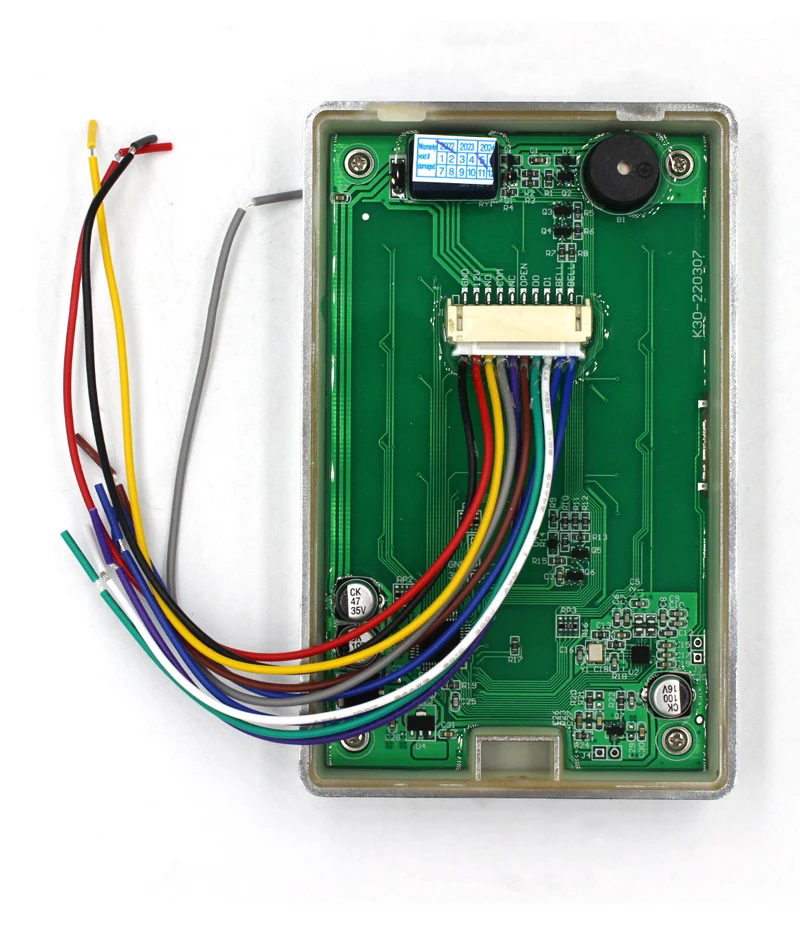

Port indication
3. Technical parameters
Working voltage: DC9-16V
Quiescent current: ≤100mA
Card reading distance: 2～6cm
Storage capacity: The sum of cards or passwords is 1000. The combination of card and password is verified as 1000 groups.
Ambient temperature: -40℃～70℃
Environmental humidity: waterproof
Product size: 115*75*18mm
Opening time: 0～999 seconds (adjustable), 5 seconds by default
Default programming password: 123456
