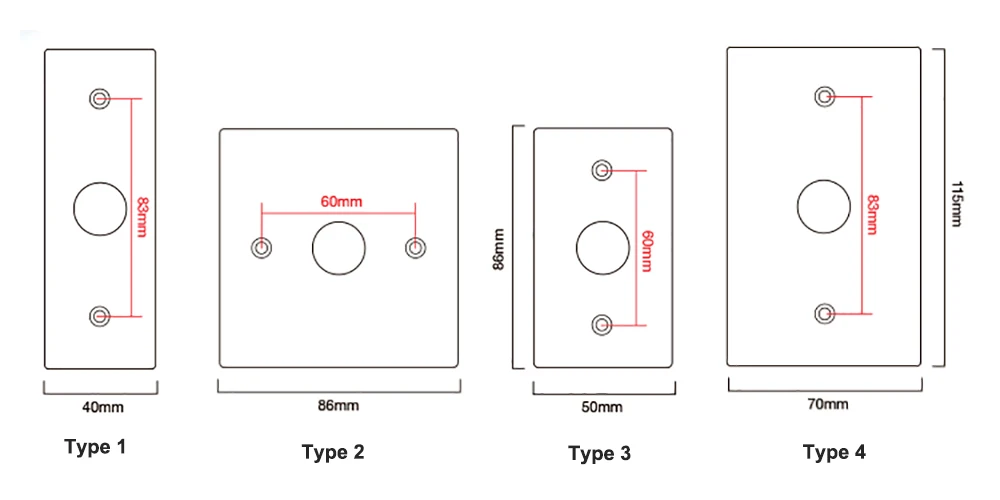

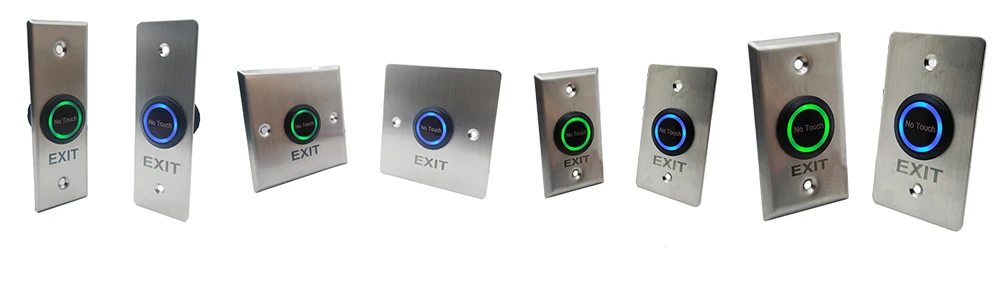

With Face Plate

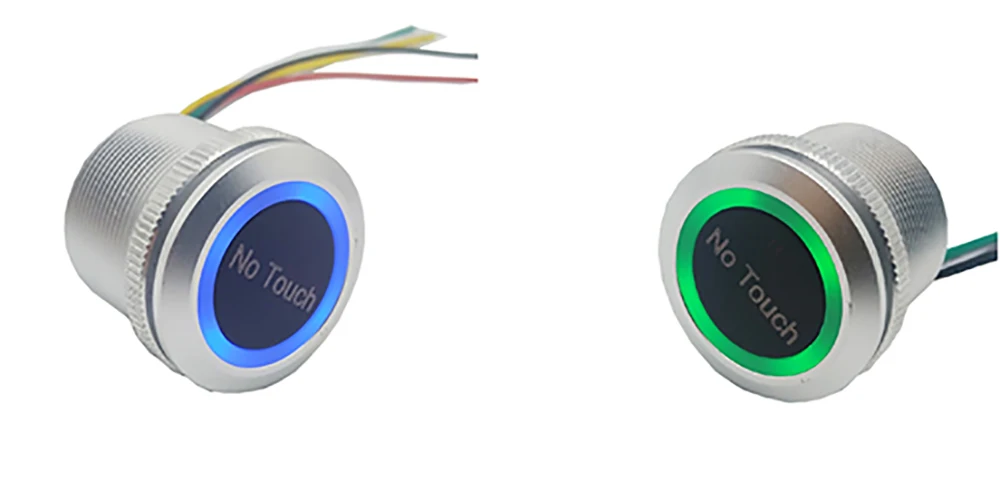

Led Indicator light
Steady State: Blue Led On;
Trigger State: Green Led On;
Size
31x27mm

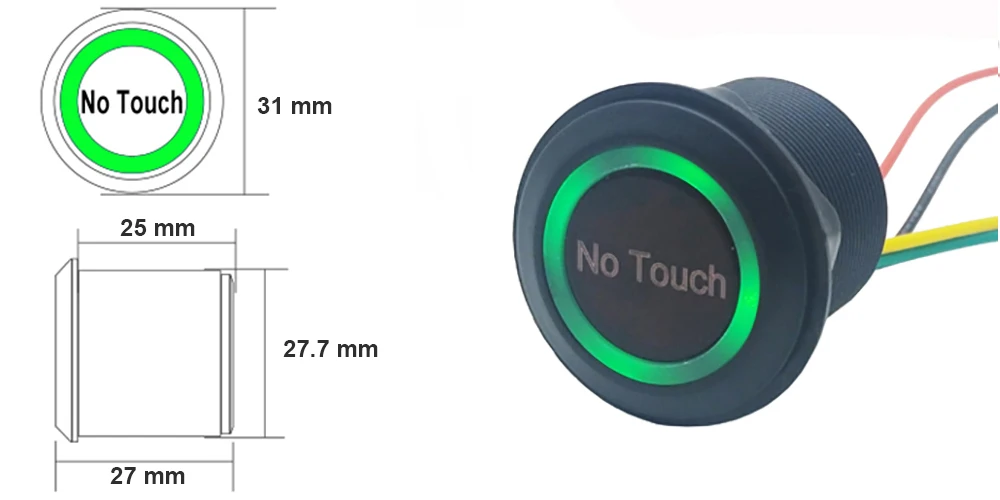

UD01 Specification
Sensor Head Material: ABS Plastic
Contact rating: 3A, AC 120V / DC 30V
Input voltage: DC 12V
Output Contact: NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
Size(approx.): 31 x 27 mm
100% brand new and high quality
Please kindly note:
In-kind shooting, due to light and shooting environment problems, color will inevitably have color difference, please understand.

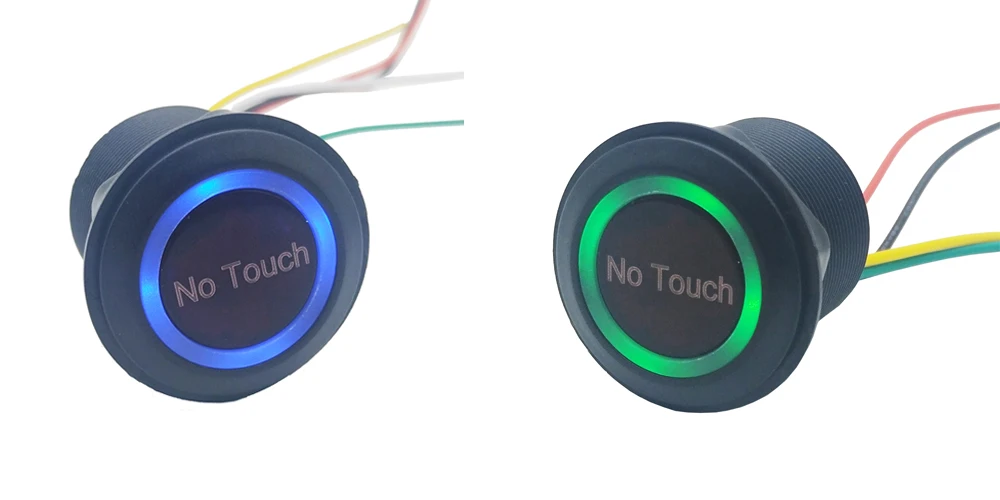

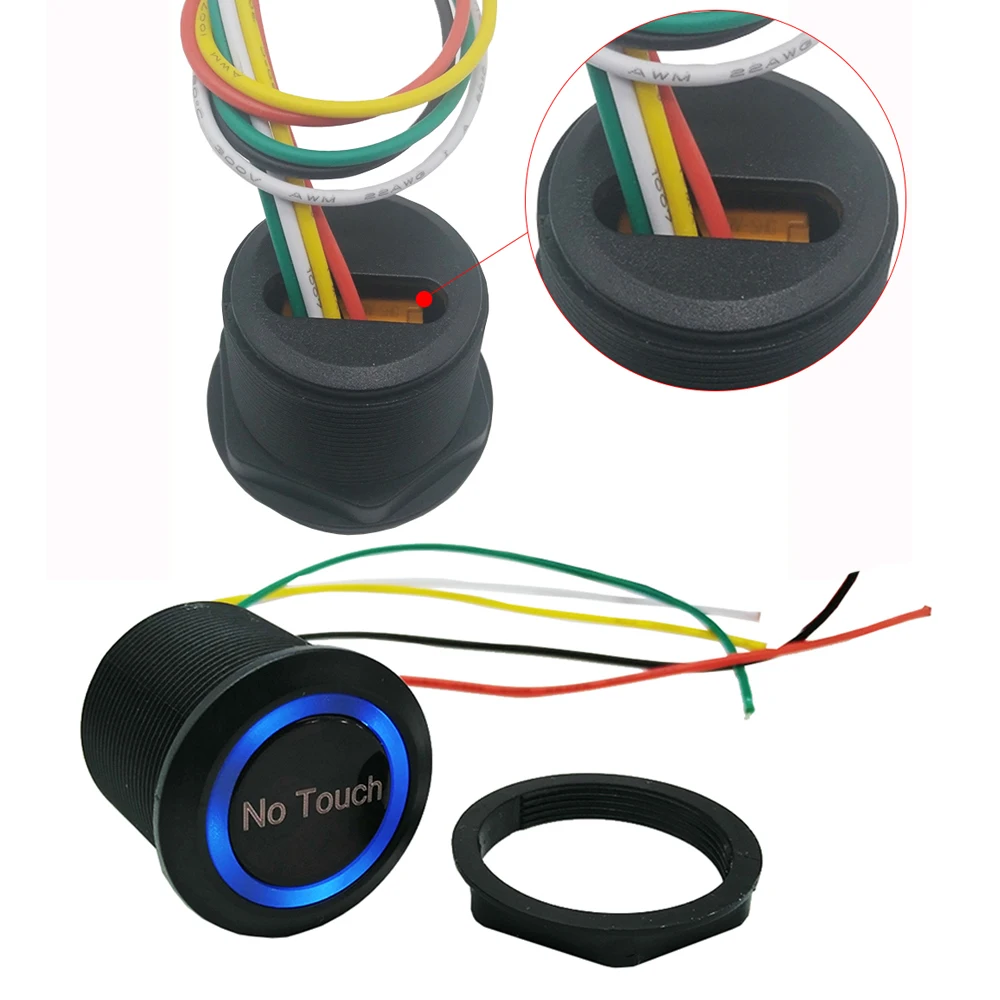

UD01N
Plastic Shell

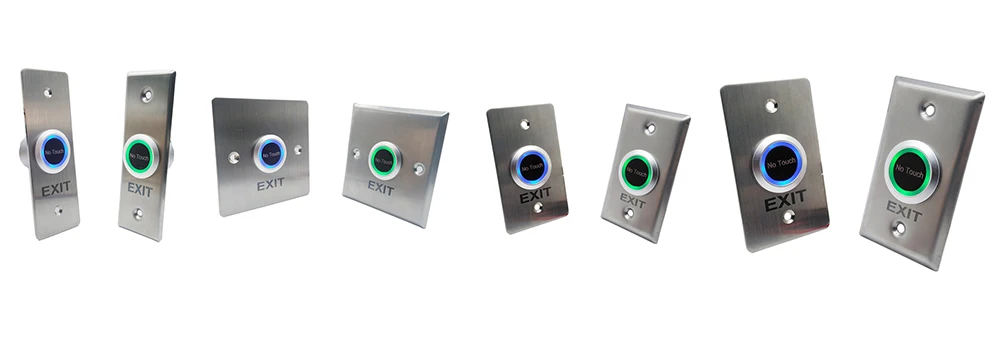

Normal No Touch Exit Button,
Not waterproof

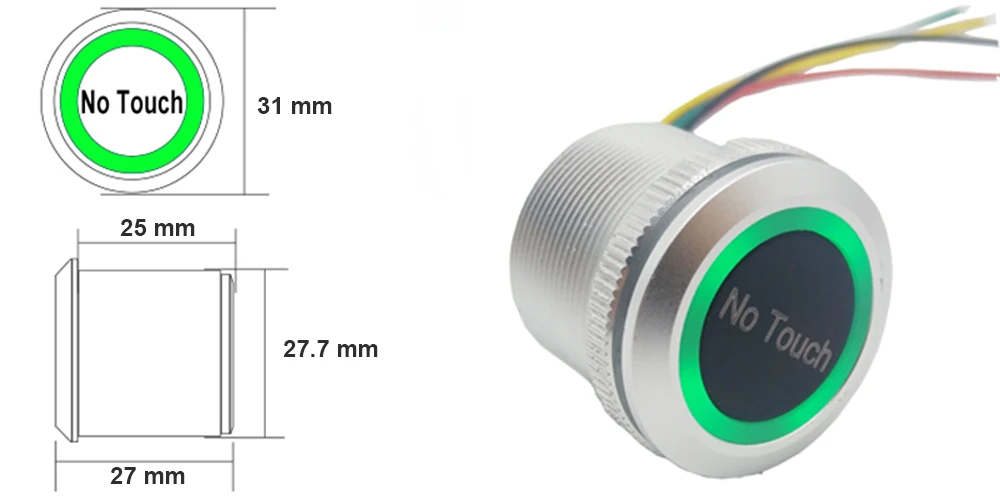

UD03 Specification
Sensor Head Material: Metal
Contact rating: 3A, AC 120V / DC 30V
Input voltage: DC 12V
Output Contact: NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
Size(approx.): 31 x 27 mm

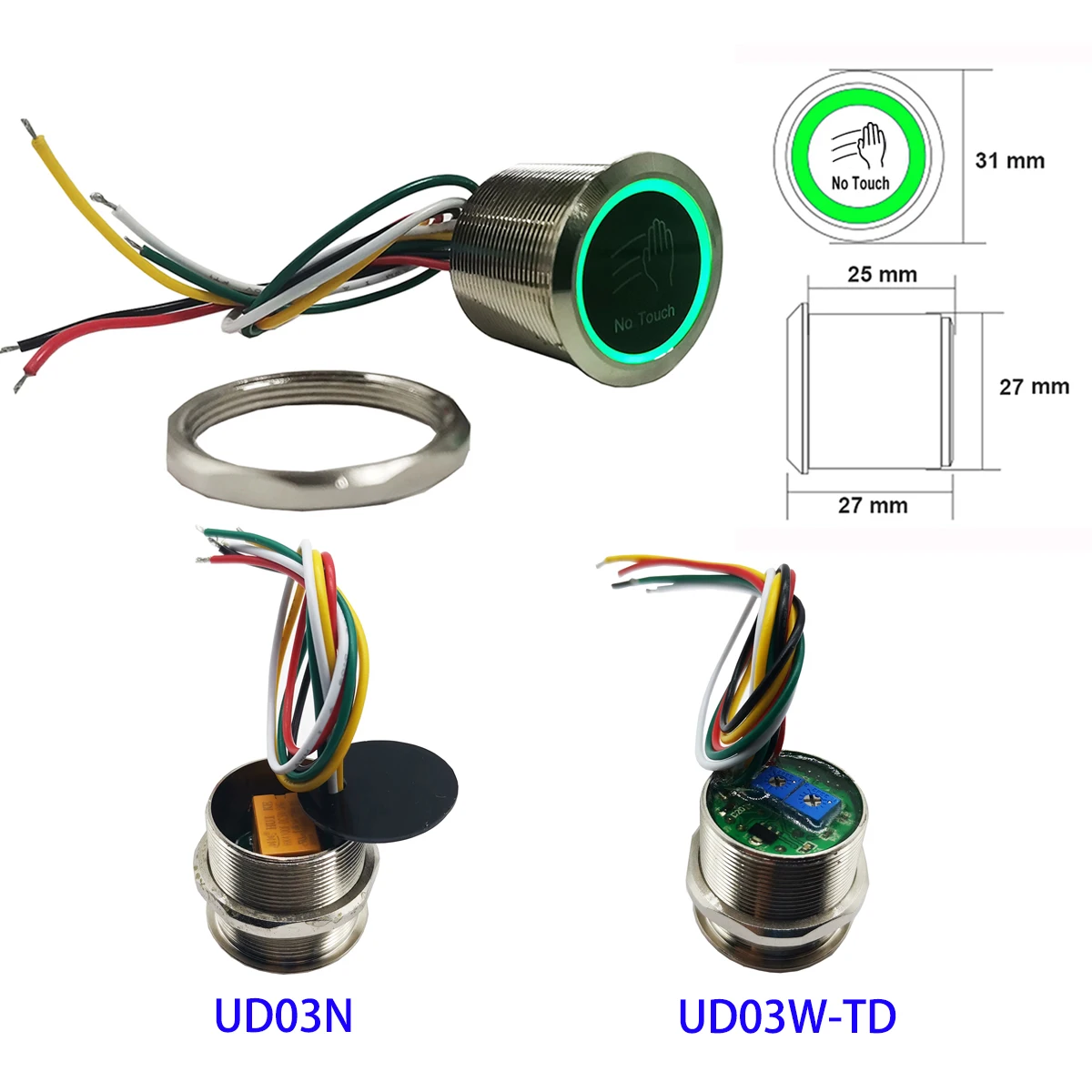

UD03N: normal one
UD03D: Waterproof, time delay and sensor distance adjustable Button.

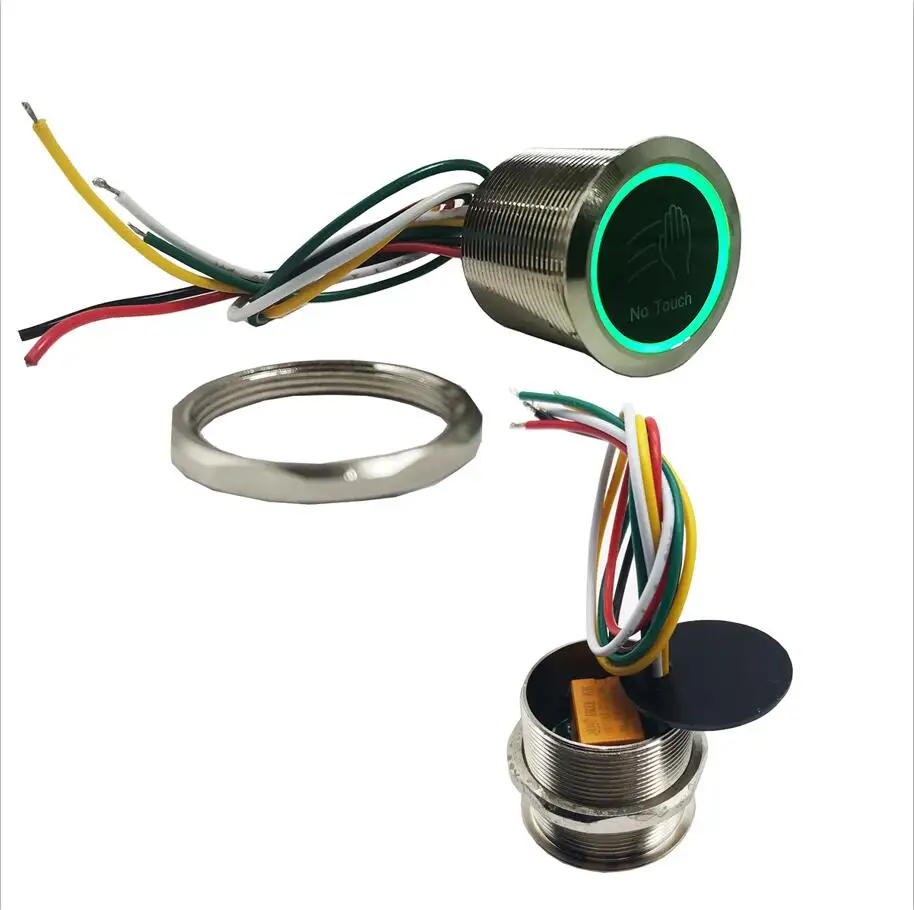

UD03N
Metal Shell
Normal No Touch Exit Button,
Not waterproof

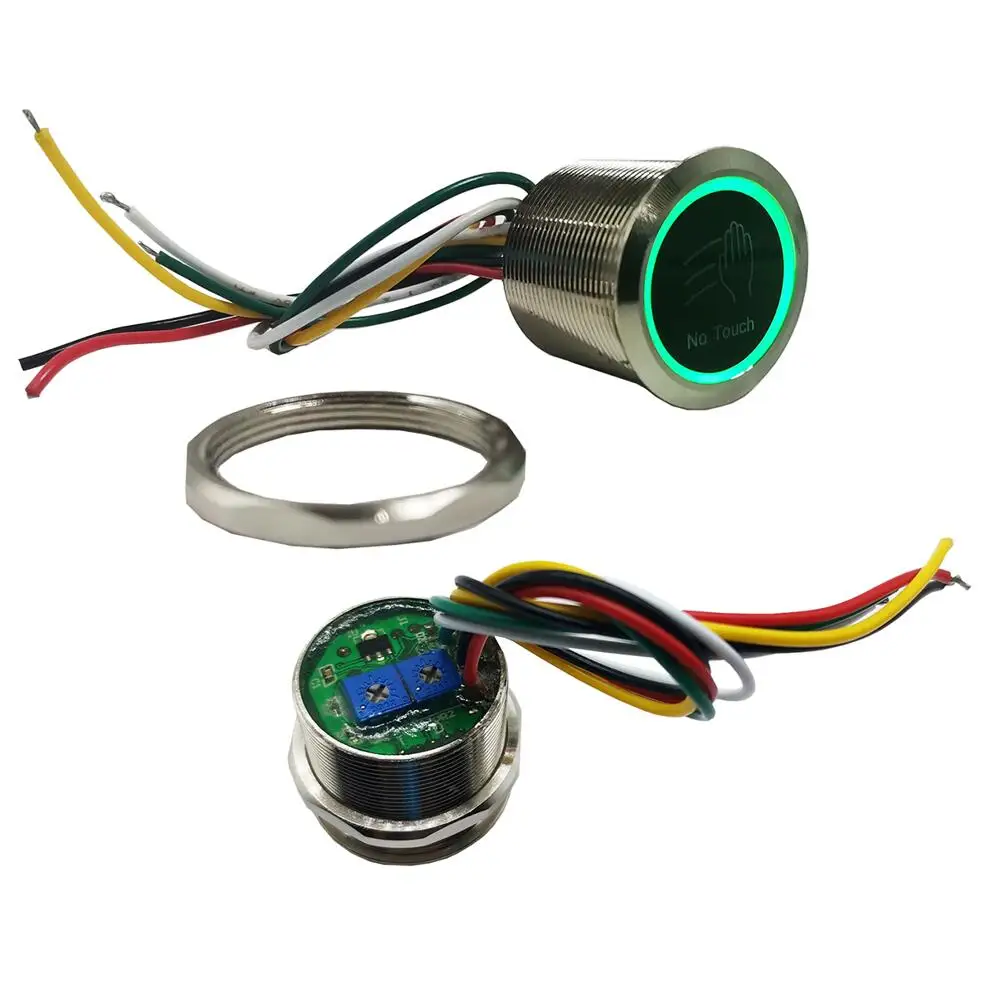

UD03W-TD
Metal Shell
IP68 Waterproof,
0.3-30 seconds time delay adjustable,
Sensitive Distance adjustable
UD02 Specification
Sensor Head Material: Metal
Contact rating: 3A, AC 120V / DC 30V
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
Size(approx.): 31 x 27 mm
UD02N: Not Waterproof
UD02W: Waterproof
UD02D: Time Delay and Waterproof
100% brand new and high quality
Please kindly note:
In-kind shooting, due to light and shooting environment problems, color will inevitably have color difference, please understand.

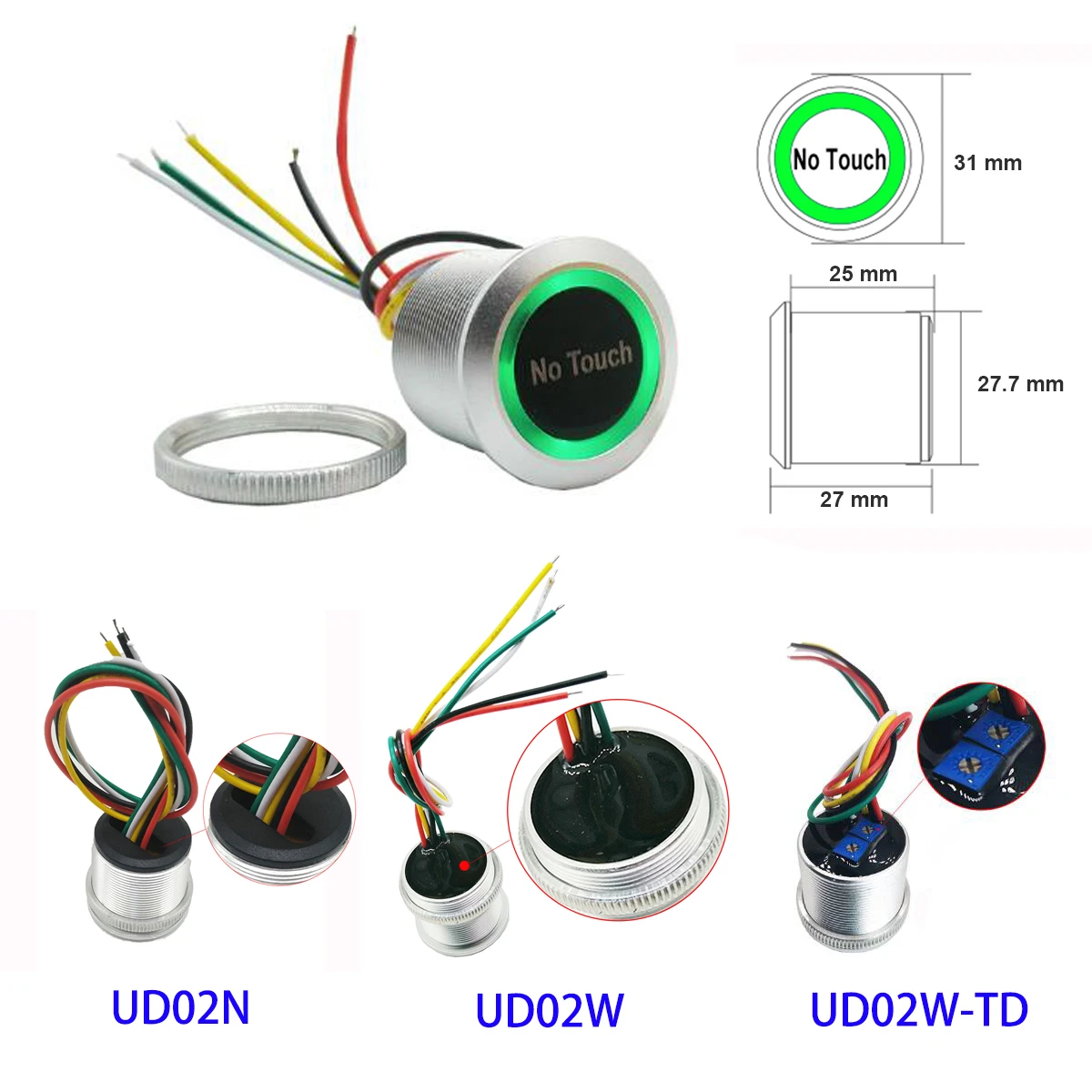

UD02N
Metal Shell
Normal No Touch Exit Button

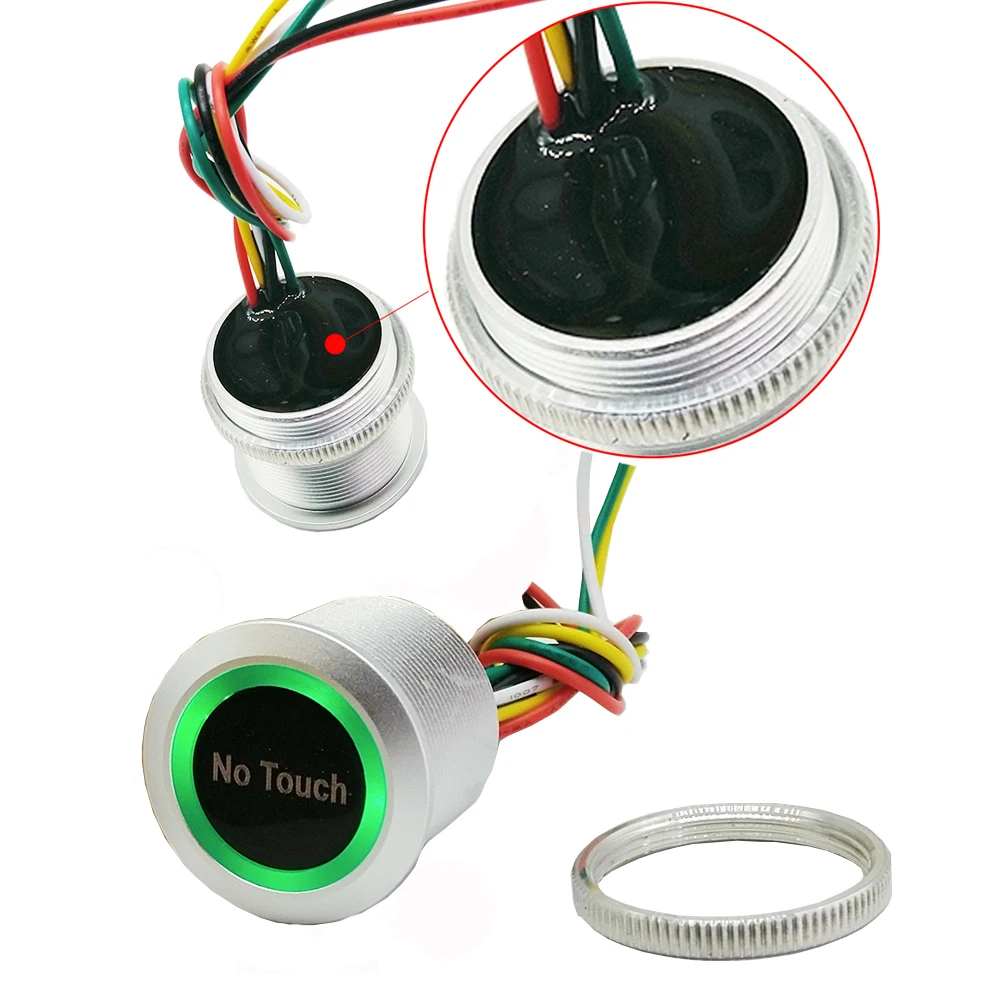

UD02W
Metal Shell
IP68 Waterproof,

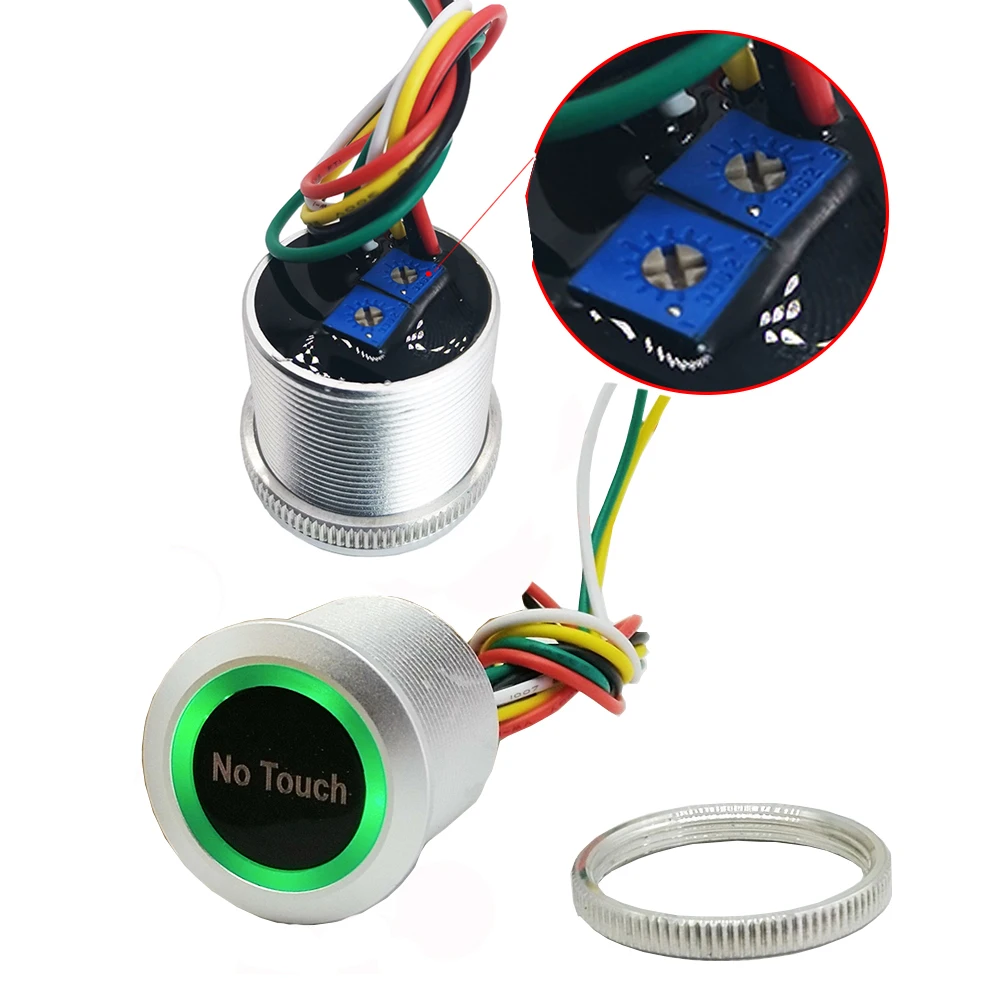

UD02W-TD
Metal Shell
IP68 Waterproof
0.3-30 seconds time delay adjustable,
Sensitive Distance adjustable

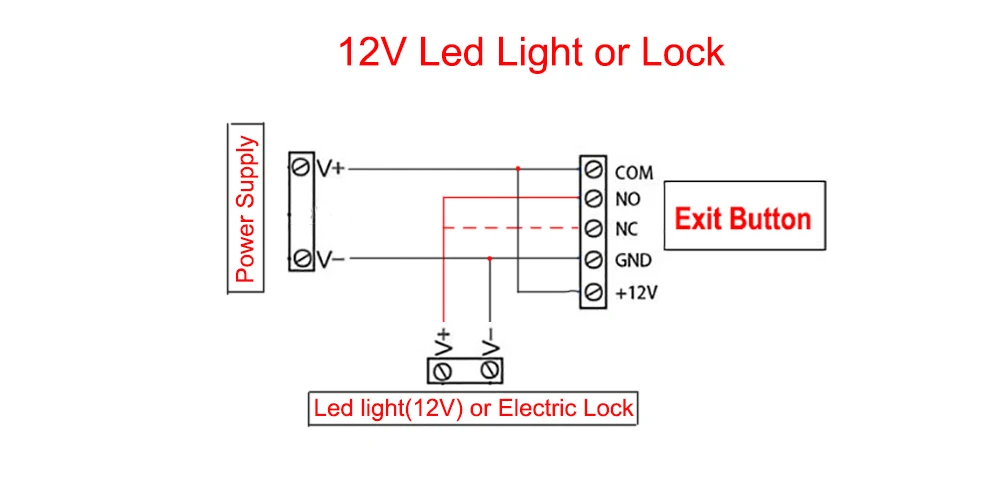

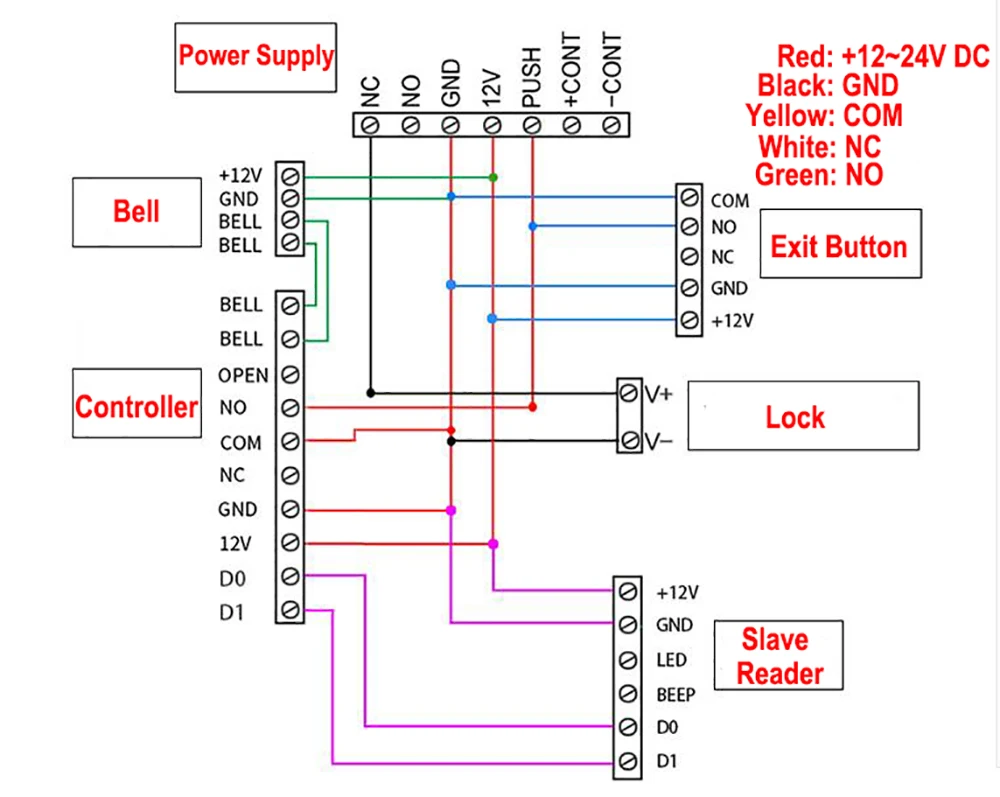

Diagrams
This is normal connection for access control system. More question, free to let us know.
