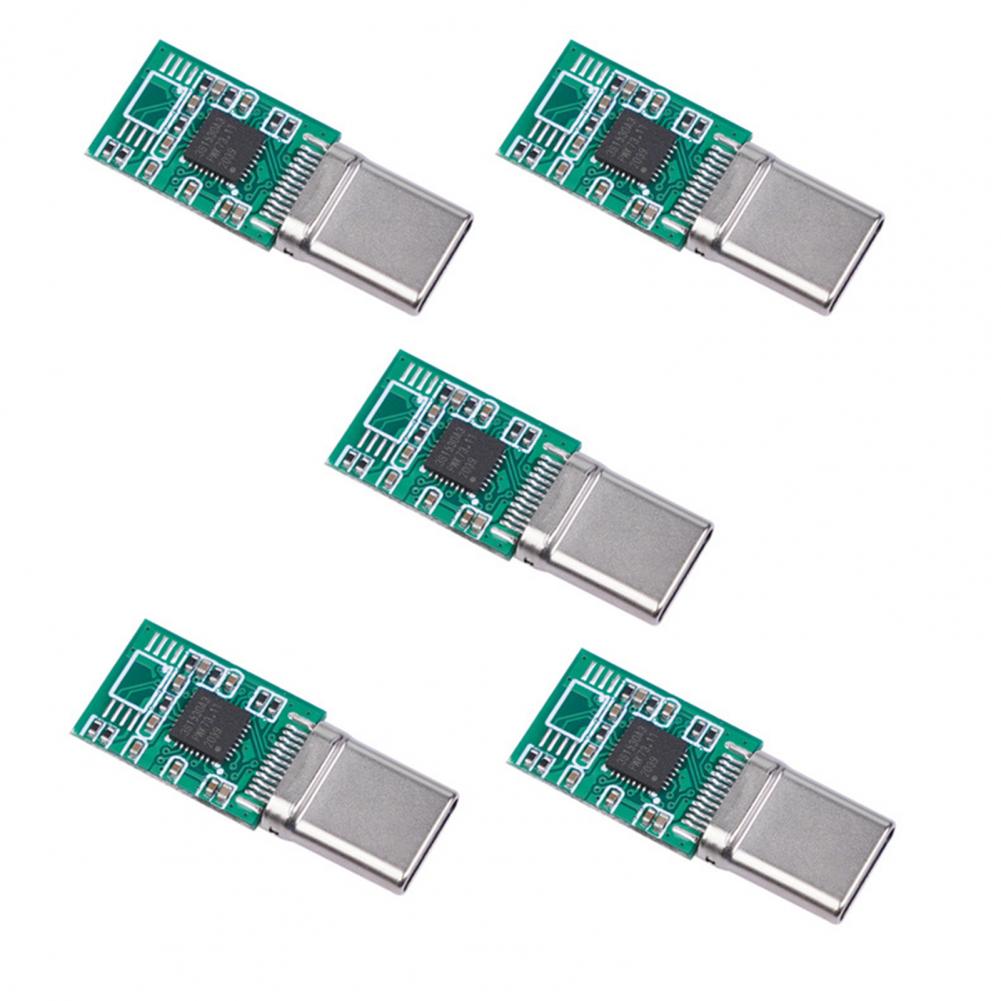

Decoder Board 3S1530A Decoding Chip Lossless Audio Sound 16Bit Type-C DAC Audio Decoder for Mobile Phones Computers Tablets Notebooks
Description:
Using Taiwan 3S1530A decoding chip and supporting 16Bit/48Khz sampling rate, the decoder board has a signal-to-noise ratio up to 94DB.
The decoder board is portable to carry as it is small in size and light in weight. It is used to convert the Type-C interface of a smart device into headset and microphone. And it has a built-in DAC decoding chip and can provide high-definition sound quality.
Made of high quality alloy material, the decoder board is durable and can be used for a long time.
The length of the decoder board is 2.5cm and the width is 1cm.
It is compatible for for mobile phones, computers, laptops, tablets, notebooks, etc.
Item Name: Type-C DAC Decoder Board
Material:Alloy
Interface Type: Support Headset and Microphone
Chip: 3S1530A
Signal to Noise Ratio: <94DB
Sampling Rate: 16Bit/48Khz
Compatible Product: for Mobile Phones, Computers, Tablets and Notebooks
Size:2.5cmx1cmx0.3cm/0.98inx0.39inx0.12in
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
It needs to be used by soldering the headset microphone interface with a soldering iron.
Package Includes:
1 X Type-C DAC Decoder Board
