TYT MD-UV390 Plus 10W GPS DMR Radio AES256 Encryption 2800mAh Type-C Charging IP67 Waterproof Dual Band Long Range Walkie Talkie

SKU: 1005008506070801

Original price was: $349.75.Current price is: $99.93.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

TYT MD-UV390 Plus GPS Walkie Talkie
AES256 Encryption
 IP67 Waterproof
2800mAh

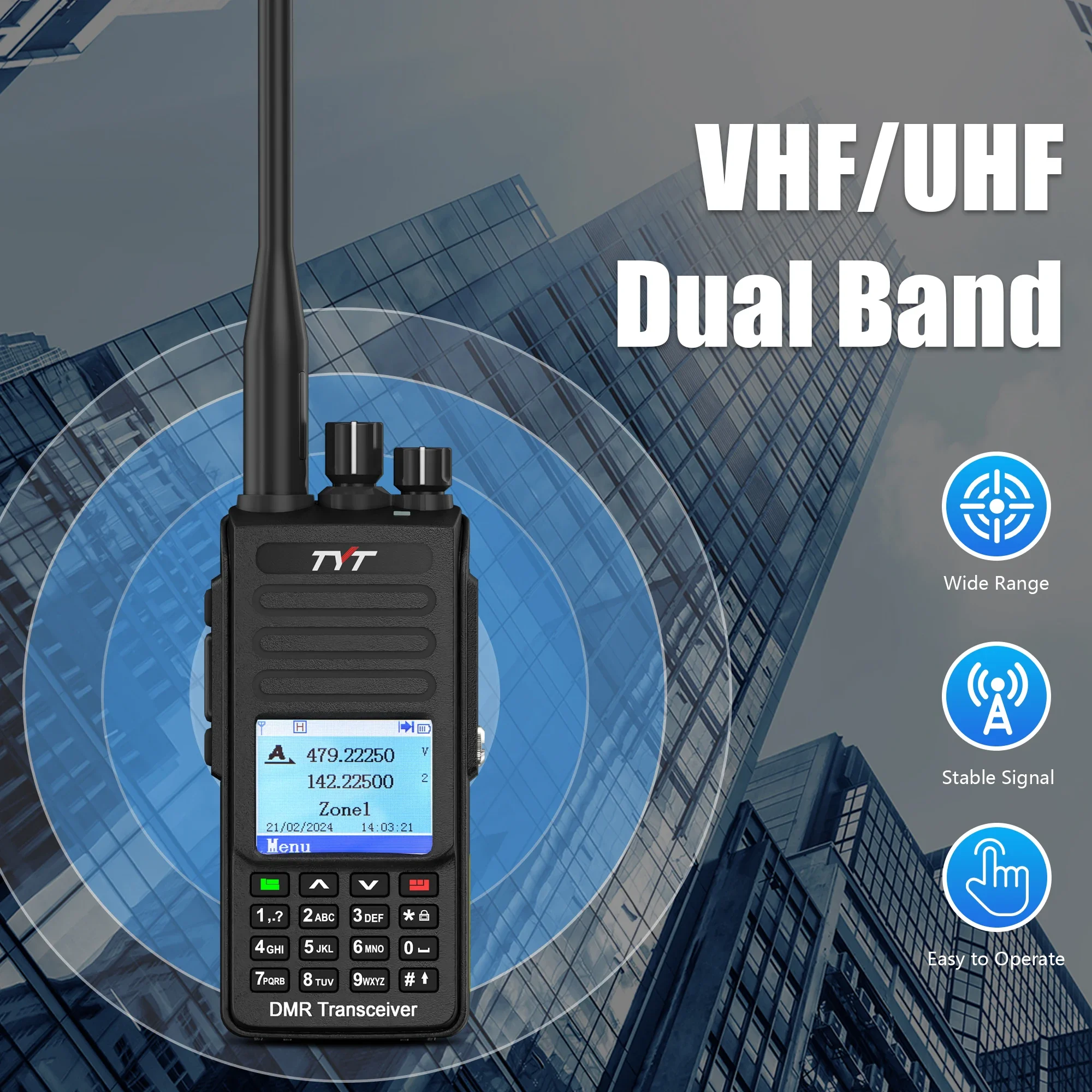

Digital Mobile Radio, 5W Or 10W Long Range,High Power,VHF/UHF Dual Band




!!!!!Factory 100% original product, please don’t to FLASH the machine privately, because the version of each machine is different.
Note: if you need software, please contact us.

TYT MD-UV390 Plus 10W GPS DMR Radio AES256 Encryption 2800mAh Type-C Charging IP67 Waterproof Dual Band Long Range Walkie Talkie


5W/10W Two Versions (You Can Choose)

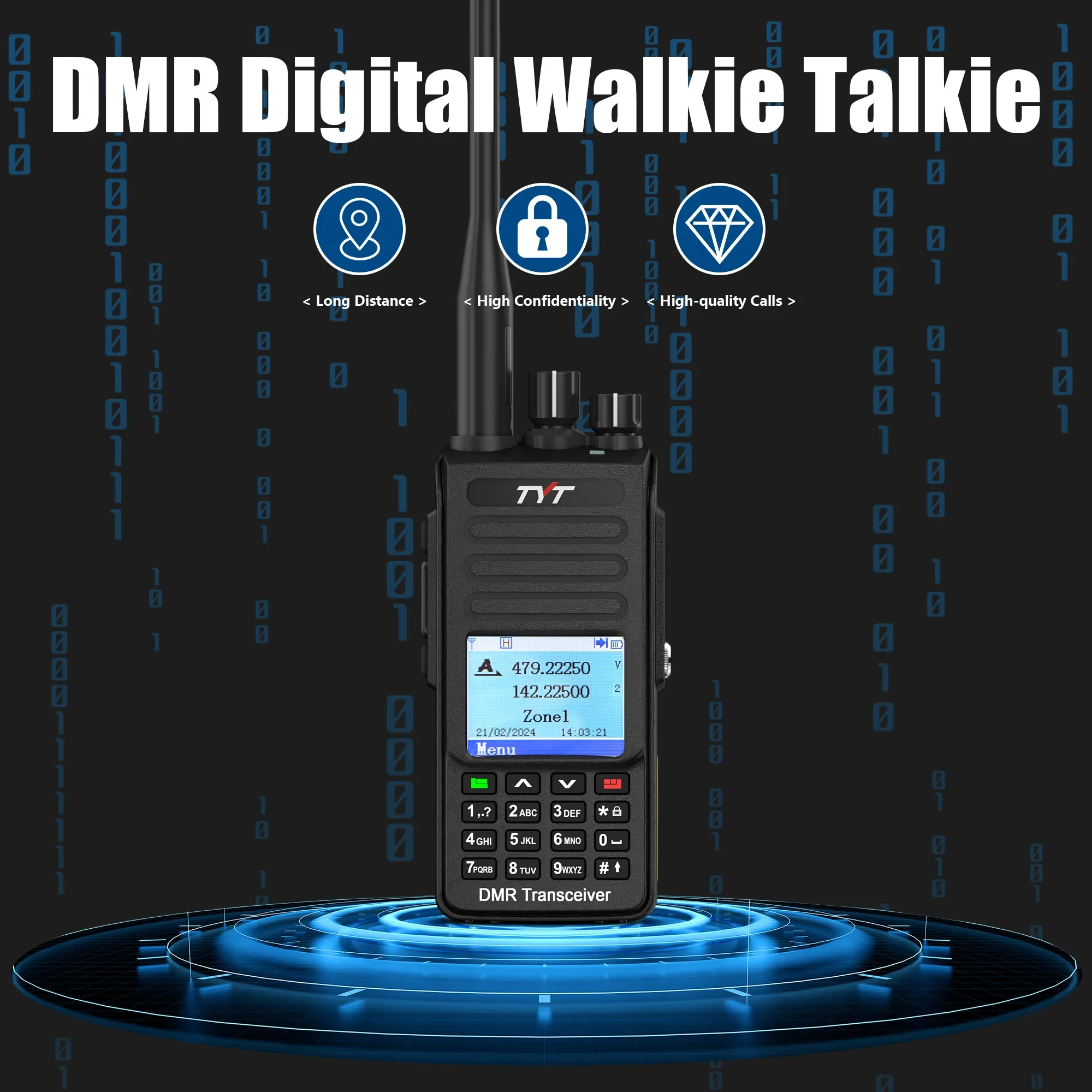

Uses DMR (Digital Mobile Radio) technology, which provides better voice quality
and higher spectral efficiency than traditional analog radios.

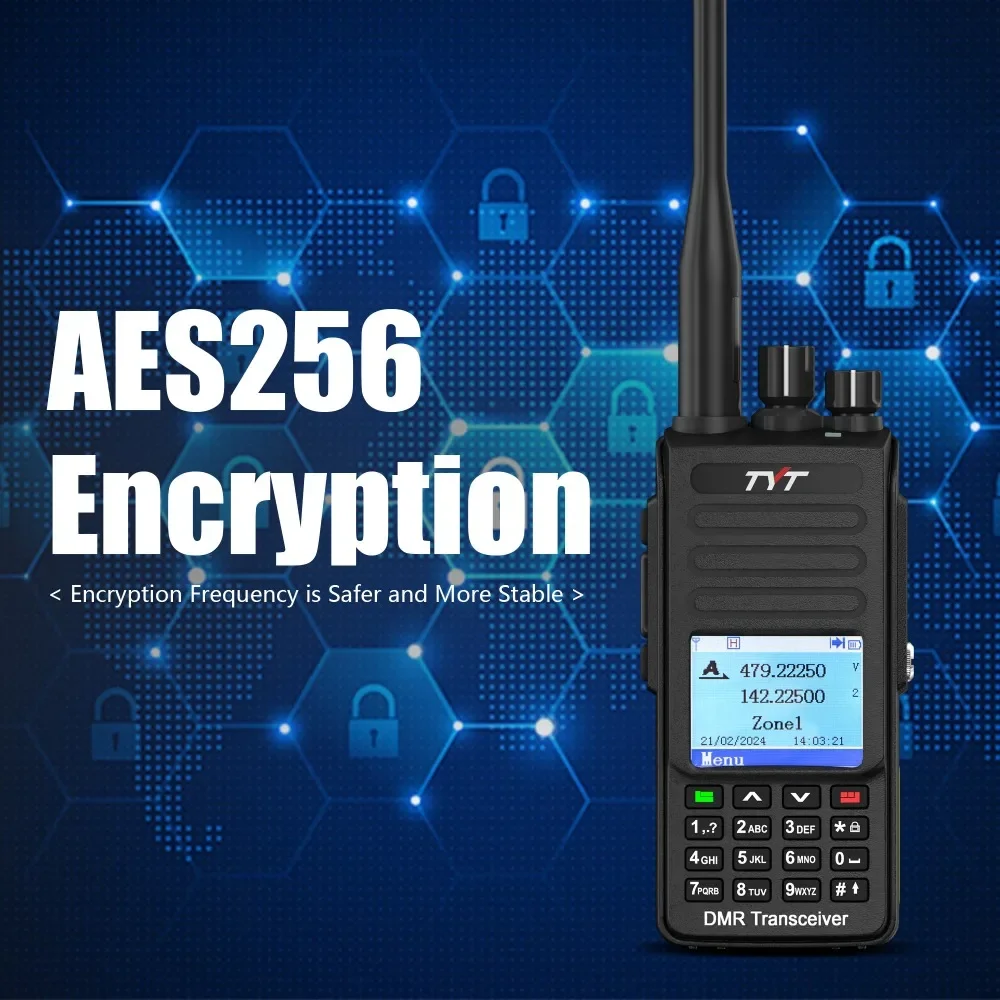

AES256 encryption:
The AES-256 encryption algorithm is an advanced encryption standard that uses a 256-bit key length.The TYT MD-UV390 Plus
features AES256 encryption, which provides a high level of security and ensures that communications can’t be eavesdropped on by unauthorized persons.

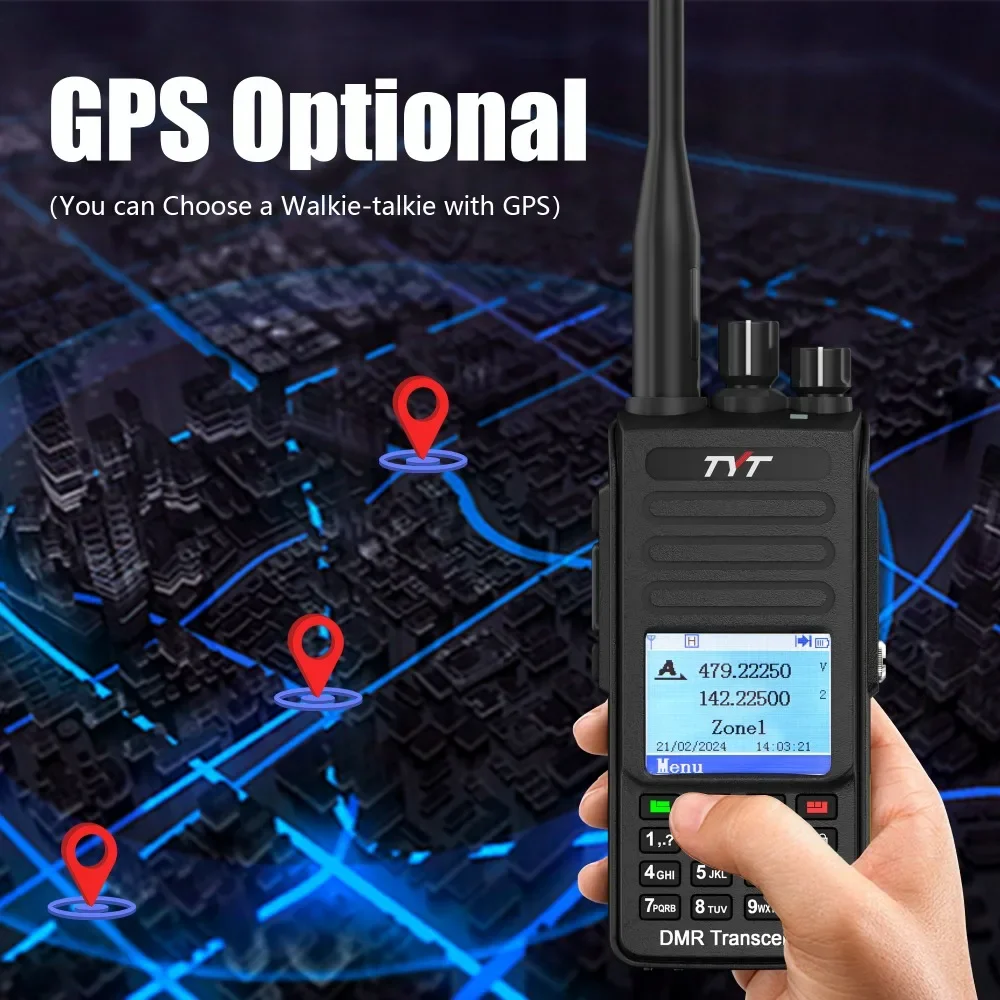

The benefits of GPS function mainly include:
1. Real-time location tracking: The GPS function of the walkie-talkie can track and record the location of the equipment in real time,
which becomes a necessary tool for enterprises to carry out personnel positioning management and item tracking.
2.Emergency Rescue: If you are in danger while exploring or traveling in the wild, the use of positioning walkie-talkies can inform the rescuers
of the GPS information, so as to quickly locate the location and win time for timely rescue.
3. Navigation assistance: The GPS function of the walkie-talkie can display the user’s position on the map and provide navigation instructions
to help users plan routes and navigate.
4. Improve work efficiency: In logistics and distribution and other occasions, through real-time understanding of the user’s location, it can improve work efficiency and accuracy.

5. Security: In some scenes with high security requirements, such as public security, transportation, construction sites and other industries, the GPS function of walkie-talkie can provide encryption and identity verification and other security mechanisms to ensure the confidentiality of communication content and data security.

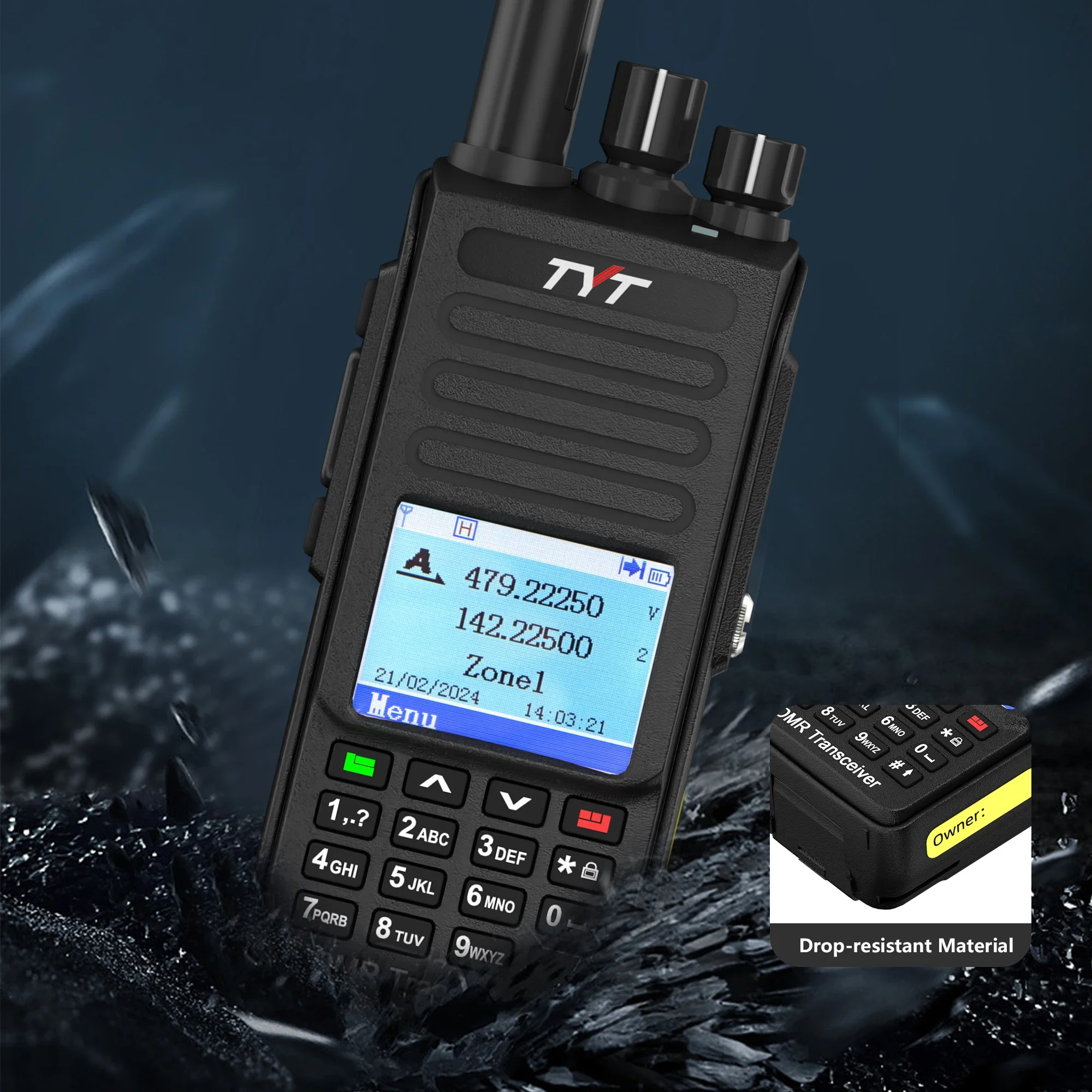

Benefits of IP67 waterproof function:

1. Extend the service life: the waterproof function can prevent moisture from intruding into the interior of the walkie-talkie and reduce the possibility of
circuit failure, thus extending the service life of the walkie-talkie.
2. Adapt to harsh environments: IP67 level walkie-talkies can ensure that the sound quality is not affected under the premise of no loss of bass, which makes
the walkie-talkies able to work normally in bad weather or complex environments.
3. Improve safety: In outdoor activities, such as rock climbing, cycling, adventure, etc., waterproof walkie-talkies can ensure timely and effective communication in unexpected situations.
4. Multi-functional application: with IP67 waterproof grade walkie-talkie is not only suitable for outdoor sports, but also suitable for industry, military and other fields,
to meet the needs of different scenarios.


Frequency Range
136-174Mhz &400-480MHz

Both analog (analog) and digital (digital) operating modes:

This type of walkie-talkie can be adapted to different communication environments and needs. Under the analog mode, it uses the traditional proposed signals for communication, which is simple and direct, with good compatibility, and suitable for basic communication over short distances. In digital mode, it utilizes digital signal processing technology to provide clearer voice quality, stronger anti-jamming ability and more features such as encrypted communication and call prioritization. The digital mode also supports larger communication distances and more user capacity especially suitable for large organizations or communication networks that need to cover a wide area.

Strong Flashlight

High Quality Speakers

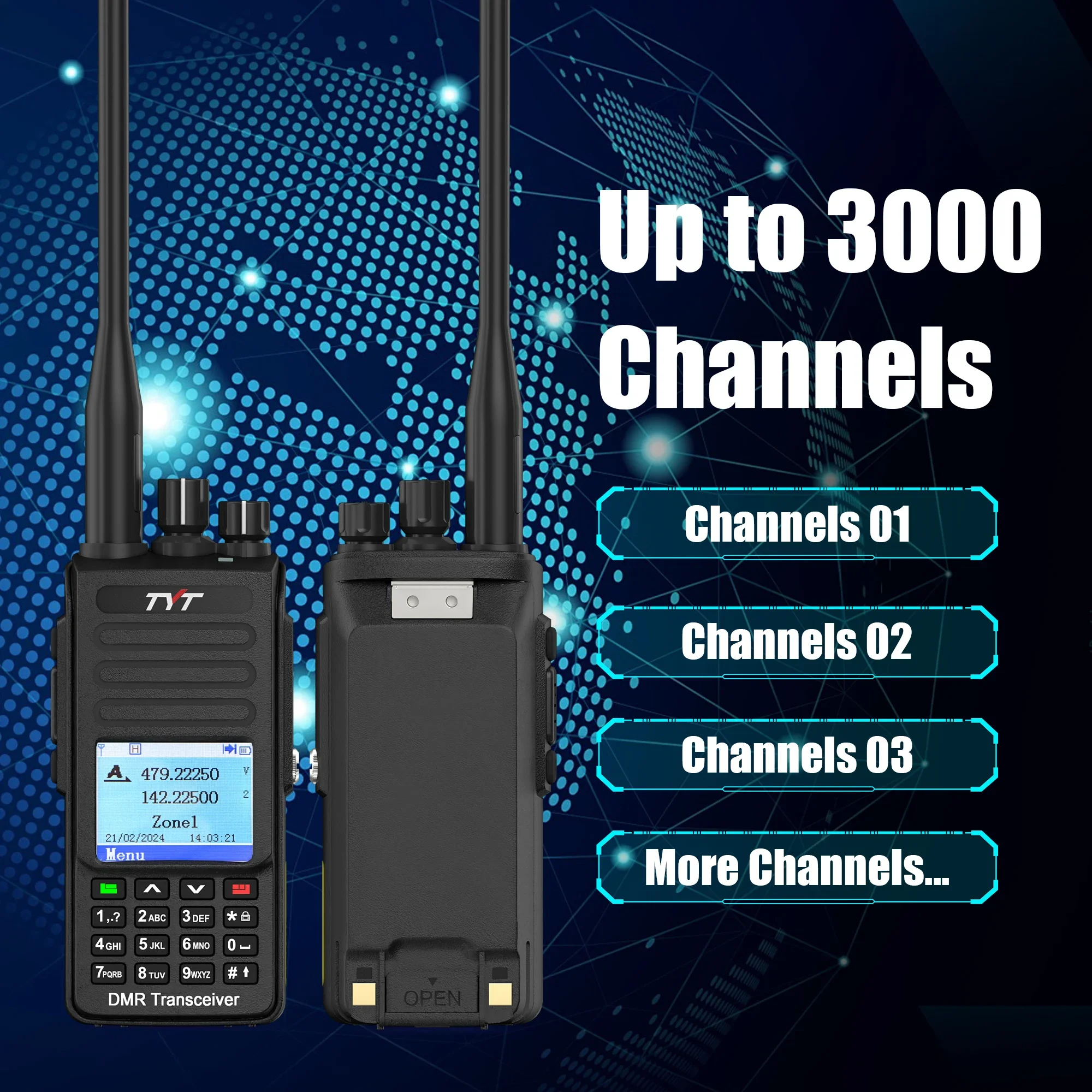

Up to 3000 Channels:
Enhanced communication flexibility.Supporting more channels means that users can choose the most suitable channel for communication in different occasions and environments.
For example, at large events, different workgroups can be assigned different channels to avoid mutual interference and improve communication efficiency.


>>1.
Time-Division Multiple-Access(TDMA) digital function;
>>2. Compatible with other brand Tier I and II;
>>3. Comply with digital protocol ETSI TS 102 361-1,-2,-3;
>>4. IP67 waterproof
>>5. Analog and digital combined;
>>6. Dual band,dual display,dual standby;
>>7. Up to 3000 channels;
>>8. 10000 contacts;
>>9. Color LCD display;
>>10. Transmit interruption
>>11. Group call match(Promiscuous);
>>12. Private call match(Promiscuous);
>>13. Dual time slot for repeater;
>>14. Dual time slot for point to point; Lone worker
>>15. Encryption function;
>>16. Single call,group call,all call;
>>17. Remote kill/stun and activate;
>>18. 8 hours of recording
>>19. Message function
>>20. CTCSS/DCS
>>21. Monotir

Note: if you need software, please contact us.
Factory 100% original product, please don’t to FLASH the machine privately, because the version of each machine is different.

General Specifications:
Frequency: 136-174/400-480MHz
Channel: 3000 Channels
Frequency Stability: ±1ppm
Operating Temperature: -30°C~+60°C
Operating Voltage: 7.4V DC
Dimension(Hxwxd: 131*61*36
Weight: 258g(with battery)
Battery Type: Li-ion
Battery Capacity: 2800mAh
Antenna lmpedence: 50oum
Audio Output Power: <1000mW @ 16Qoum
Channel Spacing: 12.5KHz

Transmitter:
0utput power: High:≤5W(HI)Low: ≤1W(Low)
Frequency Stability: +-1.0PPM
Adjacent Channel Power: ≤-60dB
Free Time Slot Power: TDMA:≤57dBm
Hum and Noise: [email protected]
Spurious Radiation:Antenna: 9KHz-1GHz≤-36dBm1GHz-12.75GHz≤-30dBm
FM Modulation Mode:12.5KHz: 11K0F3E
4FSK Digital Mode: 12.5KHz(data only): 7K60FXD12.5KHz(data +voice): 7K60FXE
[email protected]
Modulation Maximum Deviation: [email protected]
Nonactive Slot Power: -57dBm
Digital Protocol: ETSITS 102 361-1 -2-3
Vocoder Type: AMBE+2TM
Audio Response: +1dB~-3dB
Modulation BER(Bit Error Rate): ≤5%

Receiver:
Analog Sensibility: 0.2μV @ 12dB SINAD
Digital Sensibility: 0.25μV(BER:5%)
Adjacent Channel Selectivity: ≤-60dB @12.5KHz
Intermodulation: ≤60dB
Spurious response: ≥70dB
Audio response:+1~-3dB
Rated audio power:1W
Rated audio distortion:<5%
FM Noise:≥45dB @25KHz/
≥40dB@ 12.5KHz


Standard Packaging includes:
1x Radio
1x Battery

1x Manual
1x Belt Clip
1x Charger Dock
1x Adapter
1x Box

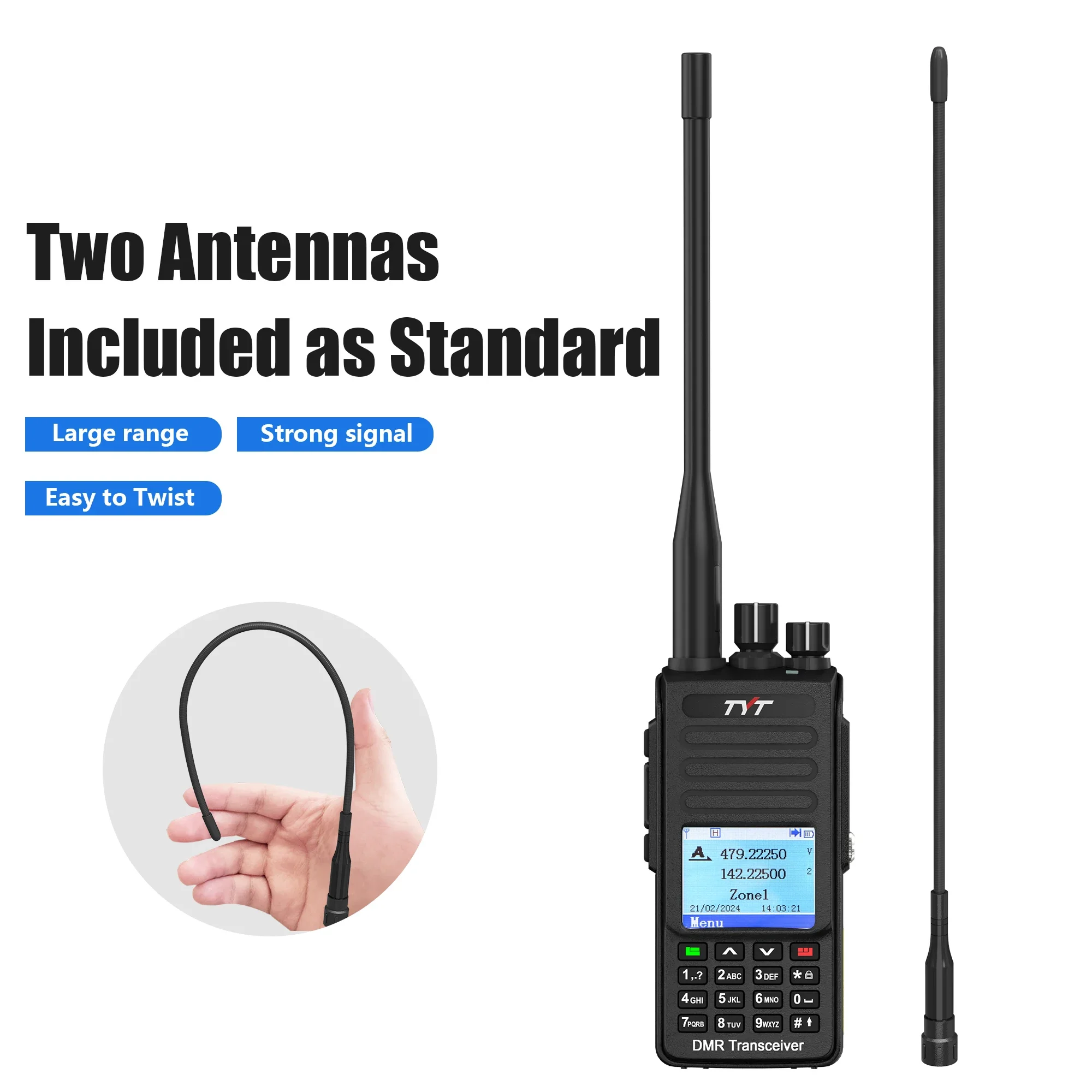

2x Antenna(Two antennas for one machine)

Note: We will ship your order according to your choice. Please double check your choice of 5W/10W when placing your order!
