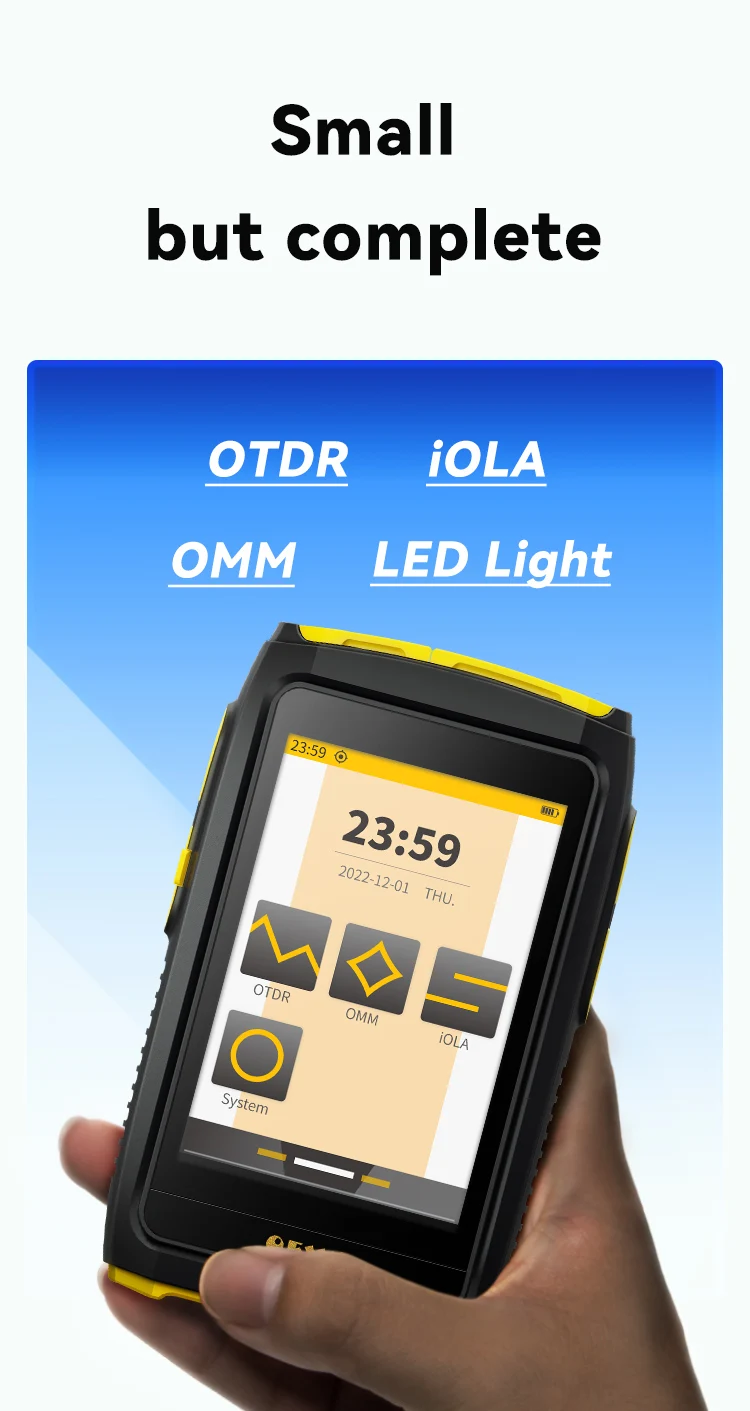

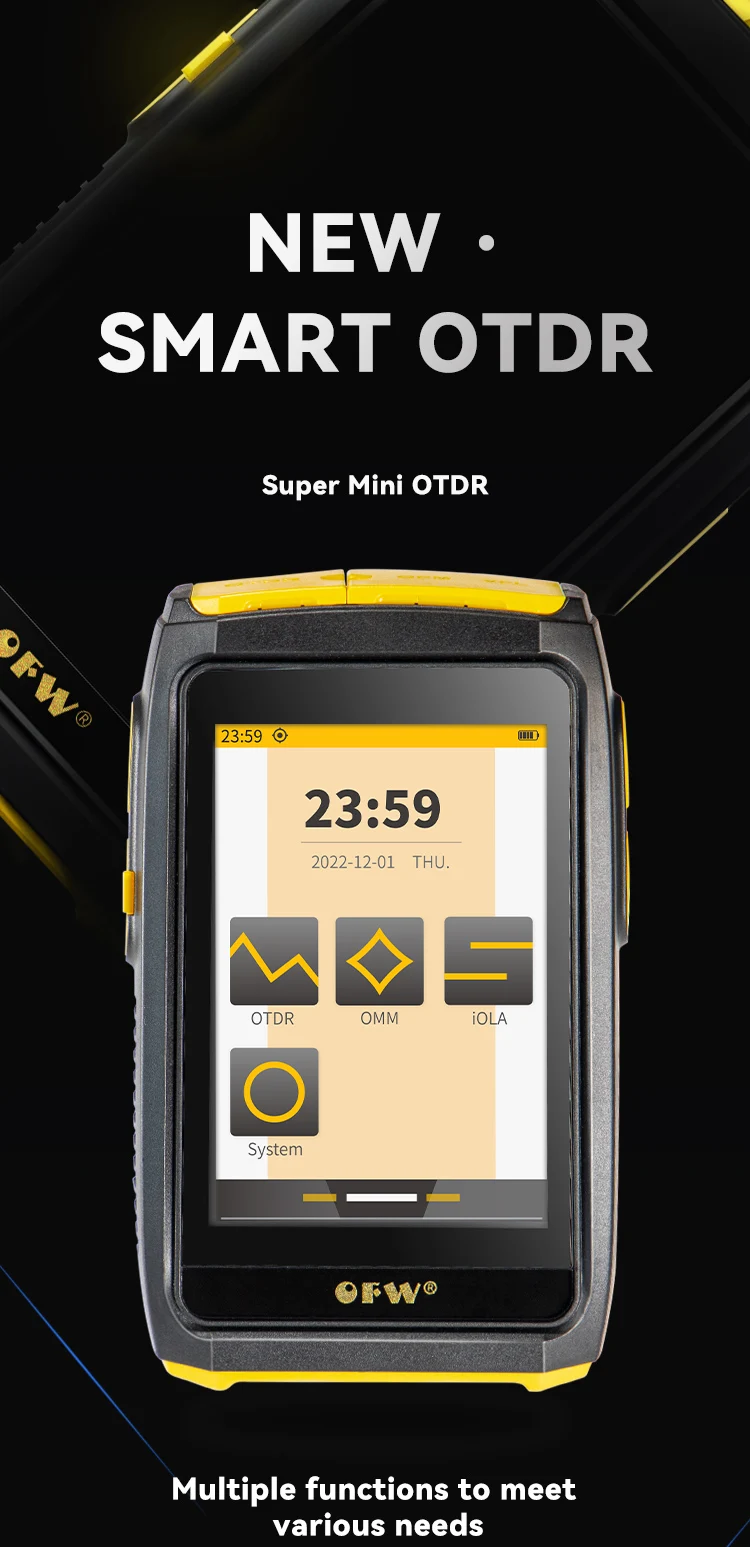

 Upgraded OFW Mini OTDR Active Live Fiber Tester 1610nm 20dB Optical Reflector Reflectometer Touch Screen OPM VFL Event Map

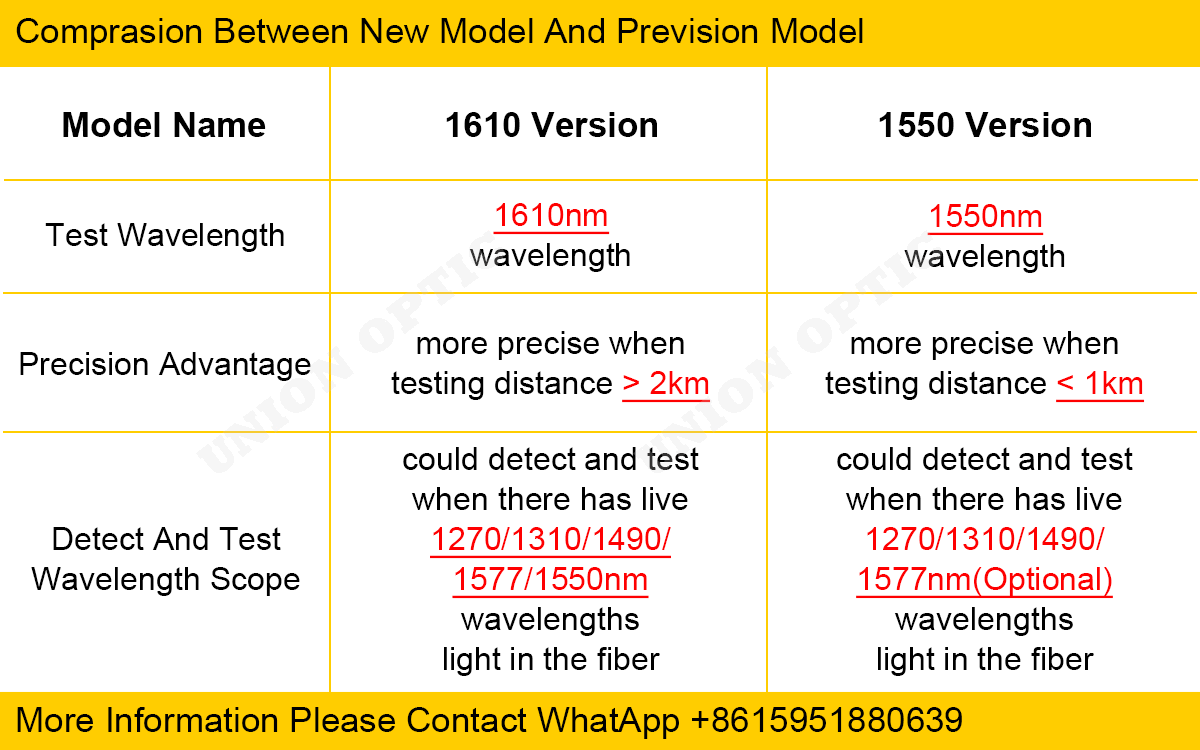

Pay Attention Please: This is The New Version Of 1610nm Test Wavelength Version, OTDR output test wavelength is 1610nm, NOT 1310nm or 1550nm!!!!

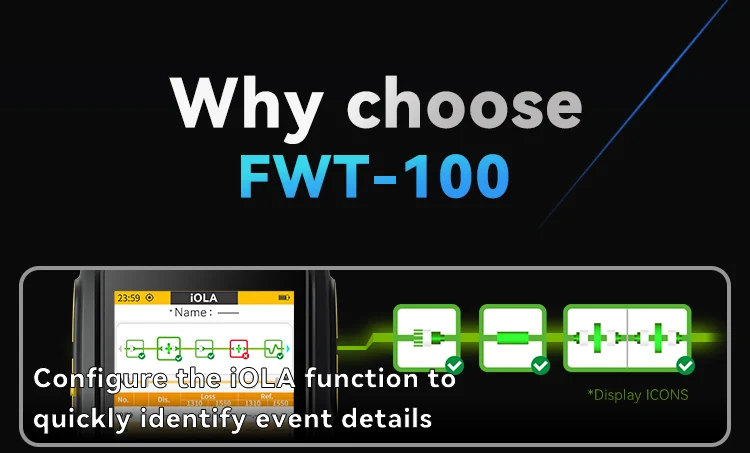

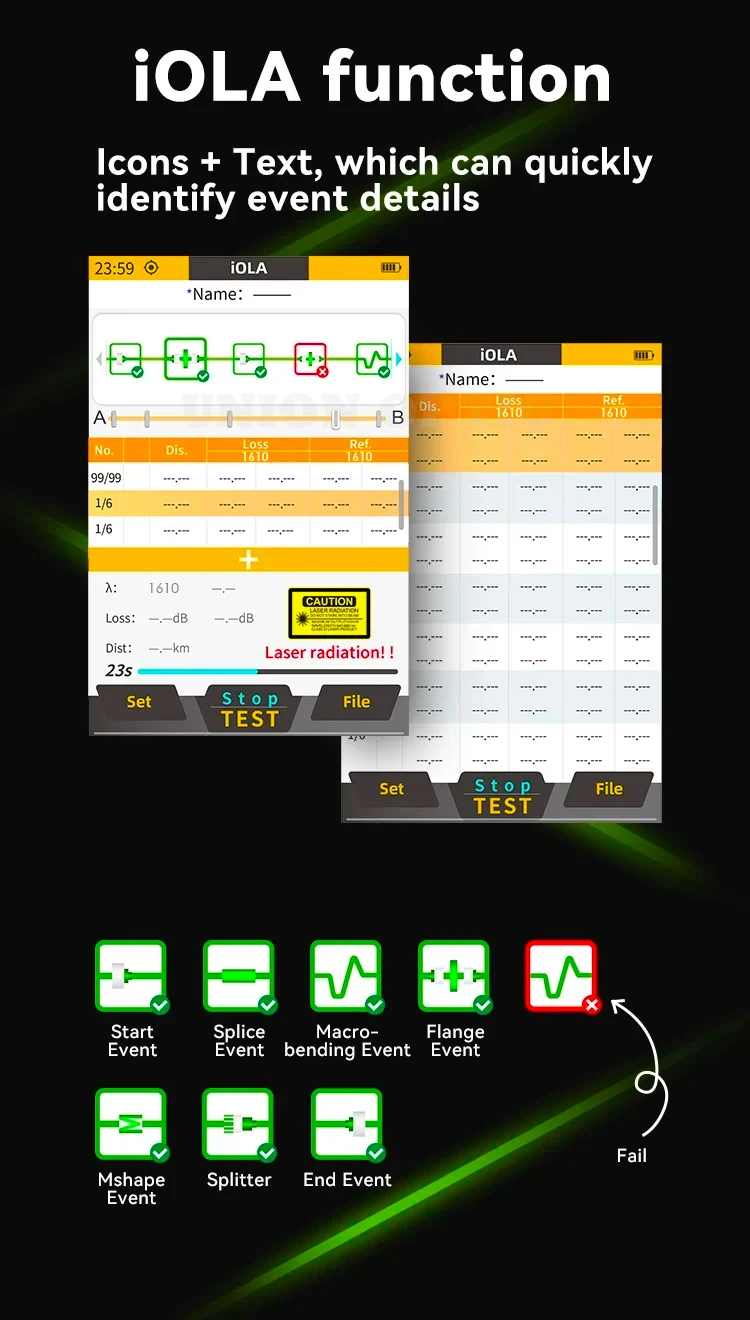

Model: FWT-100-D61AO/FWT-100-D61AO-iOLA

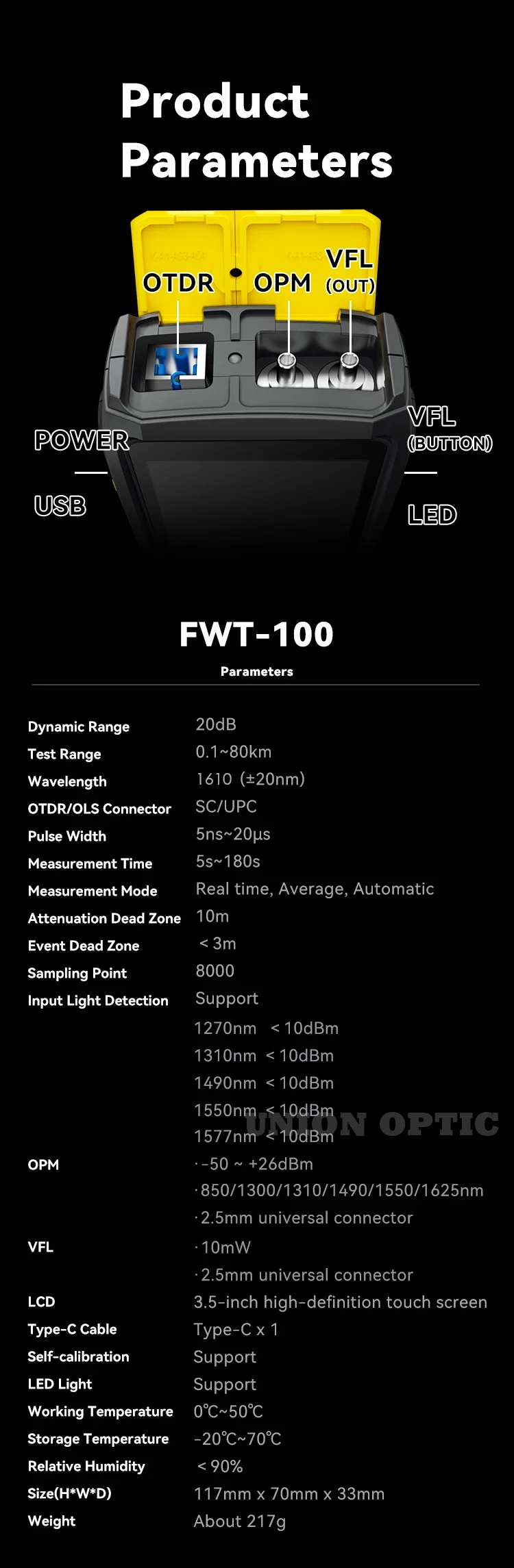

Dynamic Range: 20dB

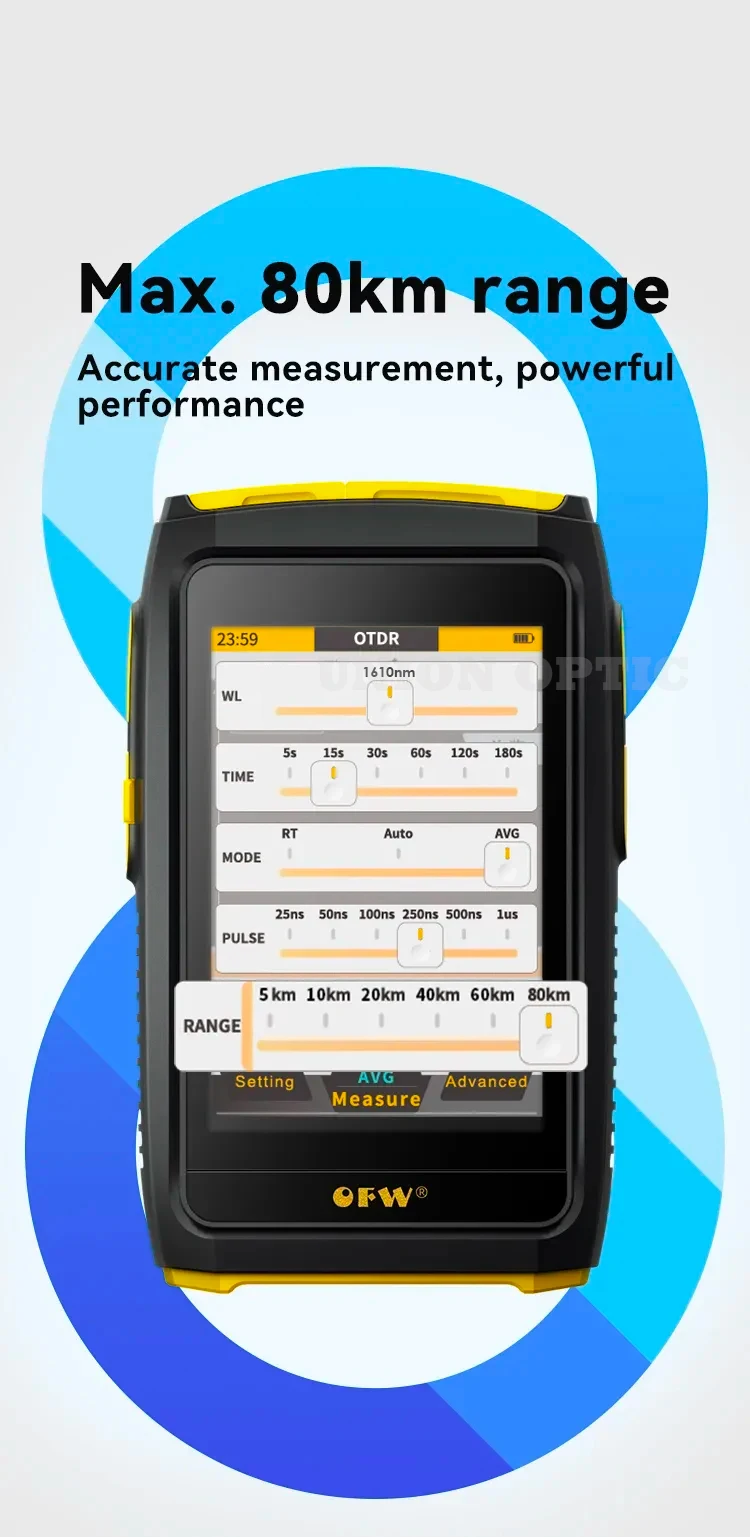

Test Range:100m~80km
Wavelength: 1610(±20nm)
OTDR/OLS Connector: SC UPC/APC
Pulse Width: 5ns~20μs
Measurement Time: 5s~180s
Measurement Mode: Real time, average, automatic
Attenuation Dead Zone: 12m
Event Dead Zone: ＜3m
Sampling Point: 8000

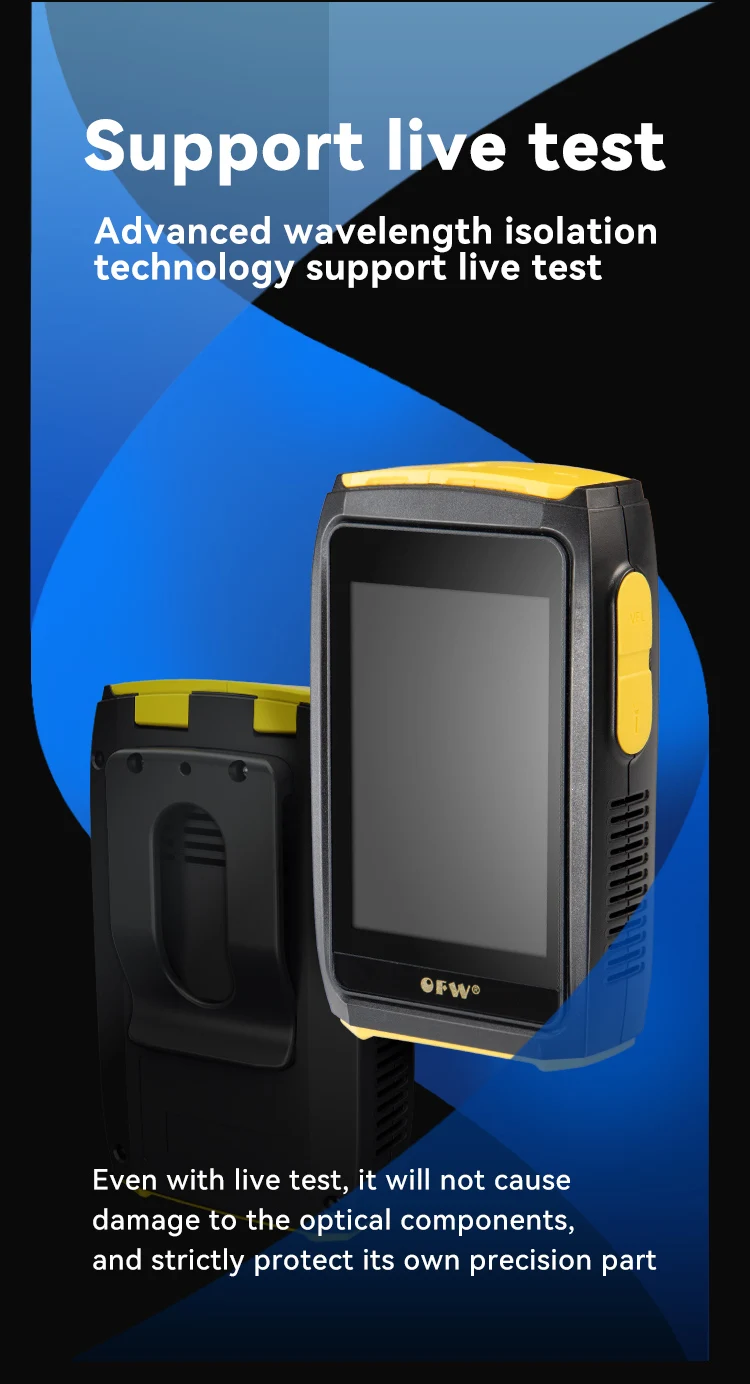

Input Light Detection: Support
Maximum allowable power for light test:
1270nm<10dBm
1310nm<10dBm
1490nm<10dBm

OPM: +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm universal connector

VFL: 10mW, 2.5mm universal connector

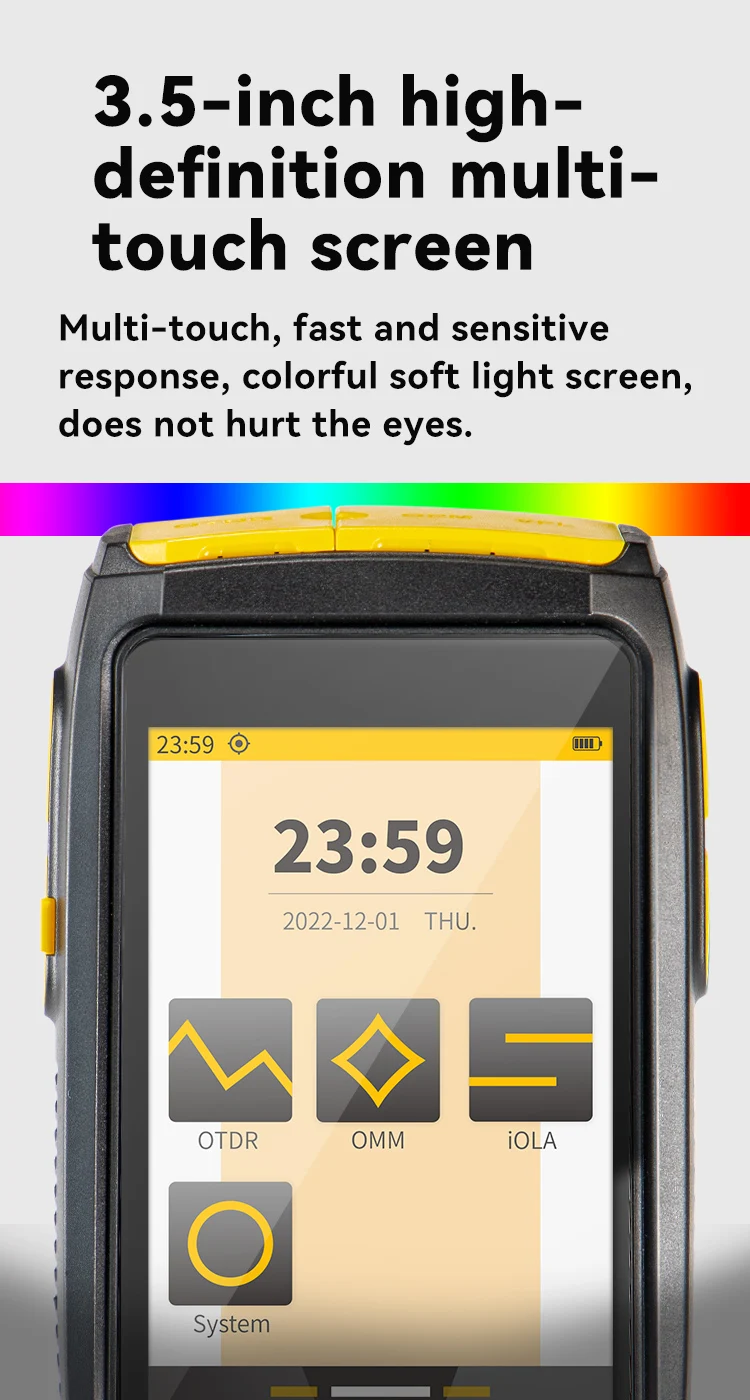

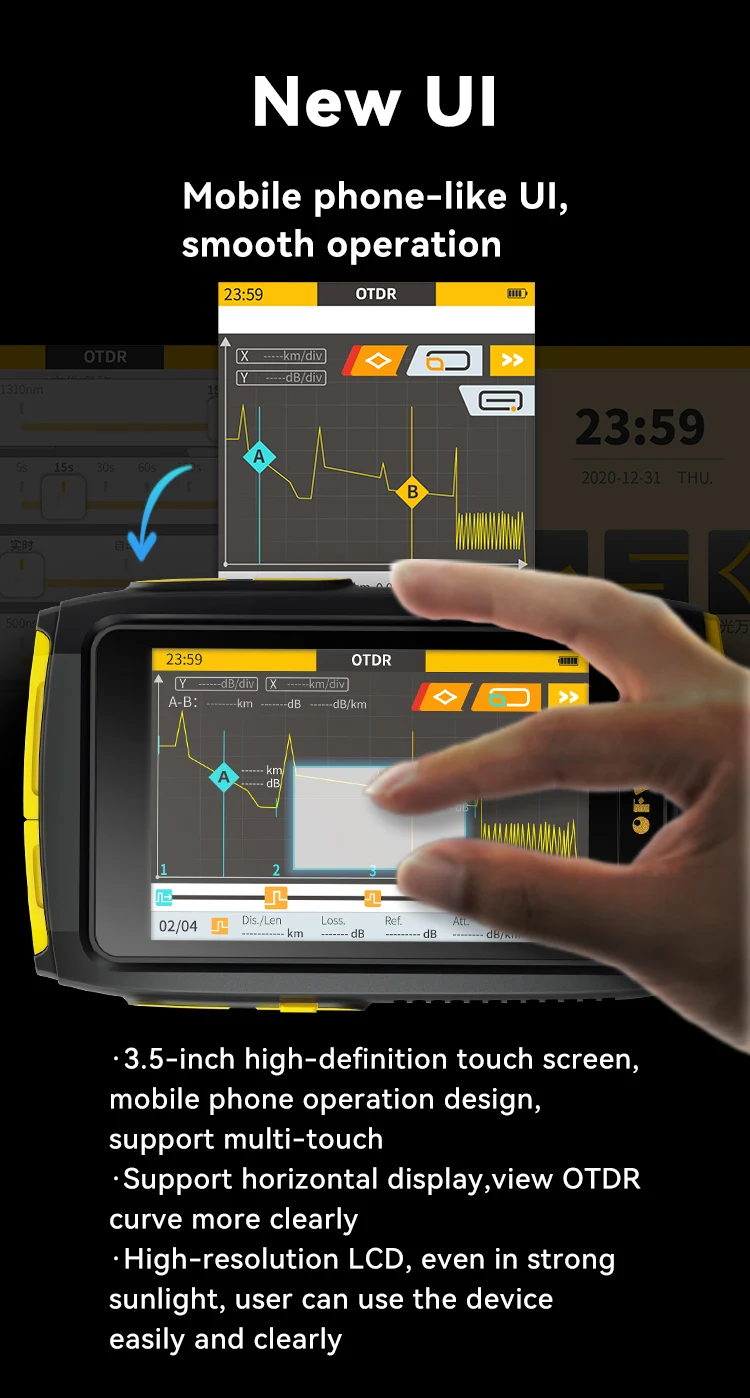

LCD: 3.5-inch high-definition touch screen

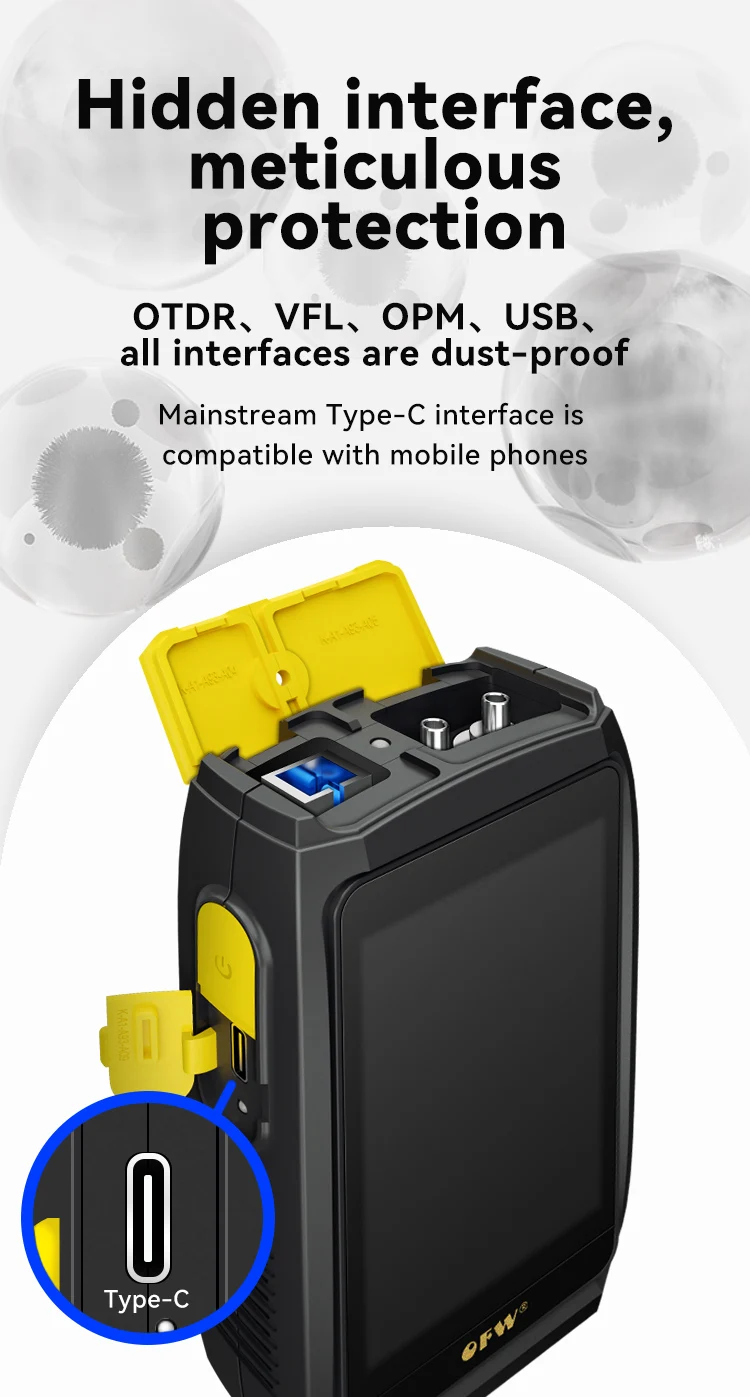

Type-C Cable: Type-C x1
Self-calibration Function: Support

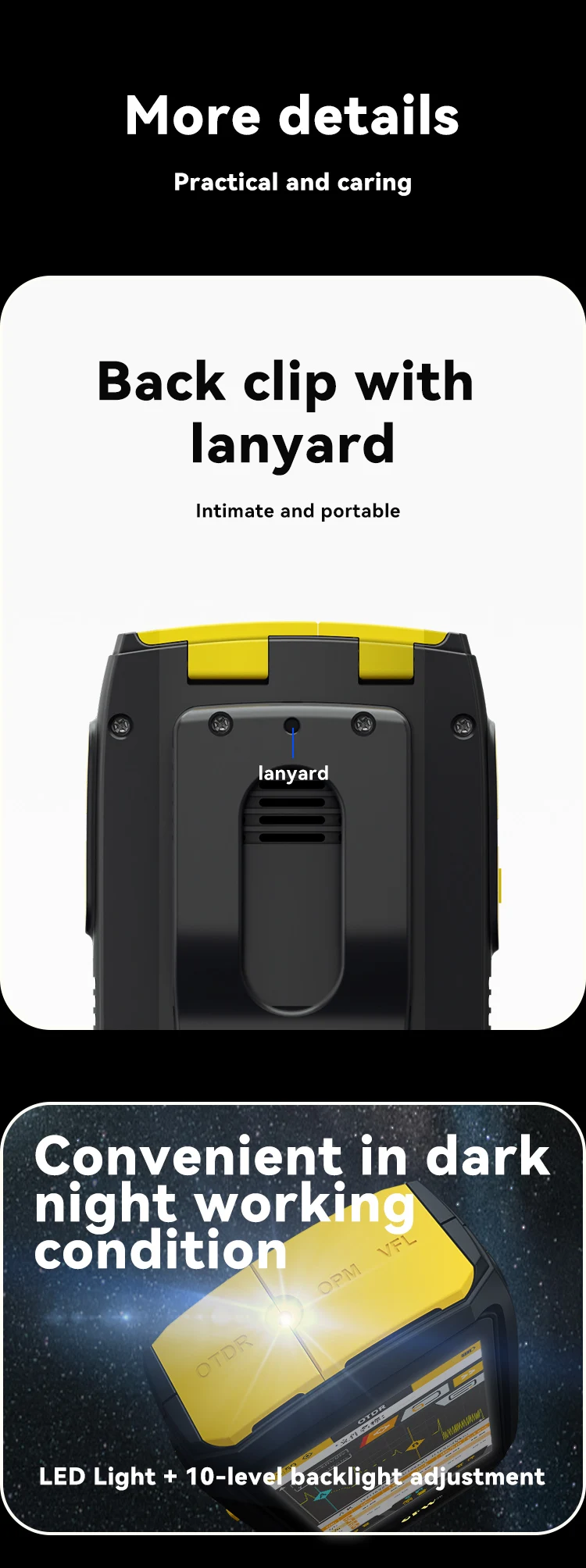

LED Light: Support
Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Relative Humidity: ＜90%
Size(H*W*D): 117mm*70mm*33mm
Weight: 217g
