Note: UV-5RM and UV-5RH Pro Max is the
same kind of machine, the appearance and
functional configuration of both are the
same, only the label 2 kinds of labels shipped
randomly!!!!
SUPER POWER 14.5 Watts Max

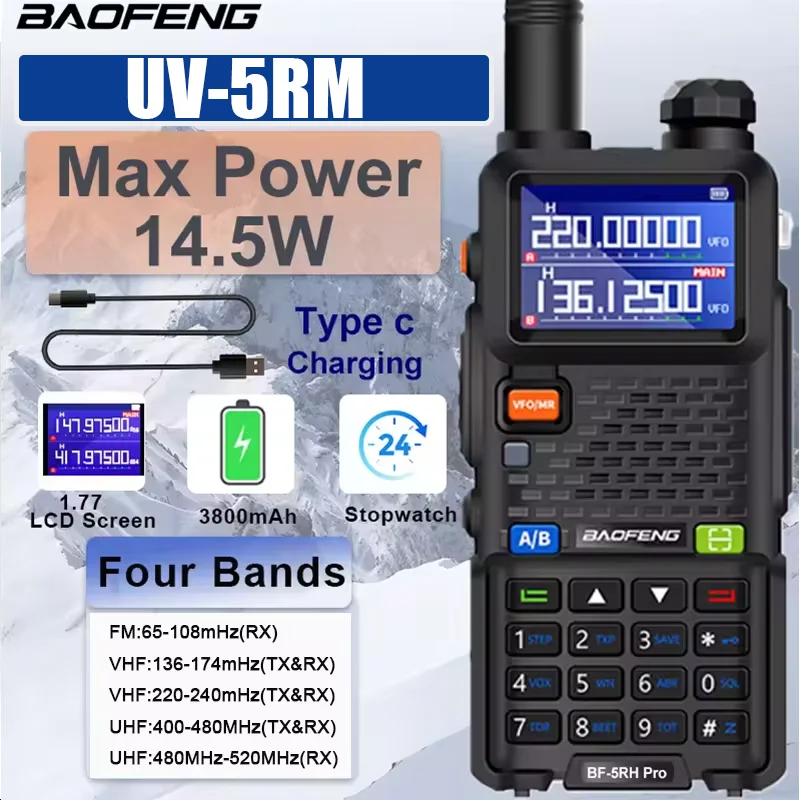

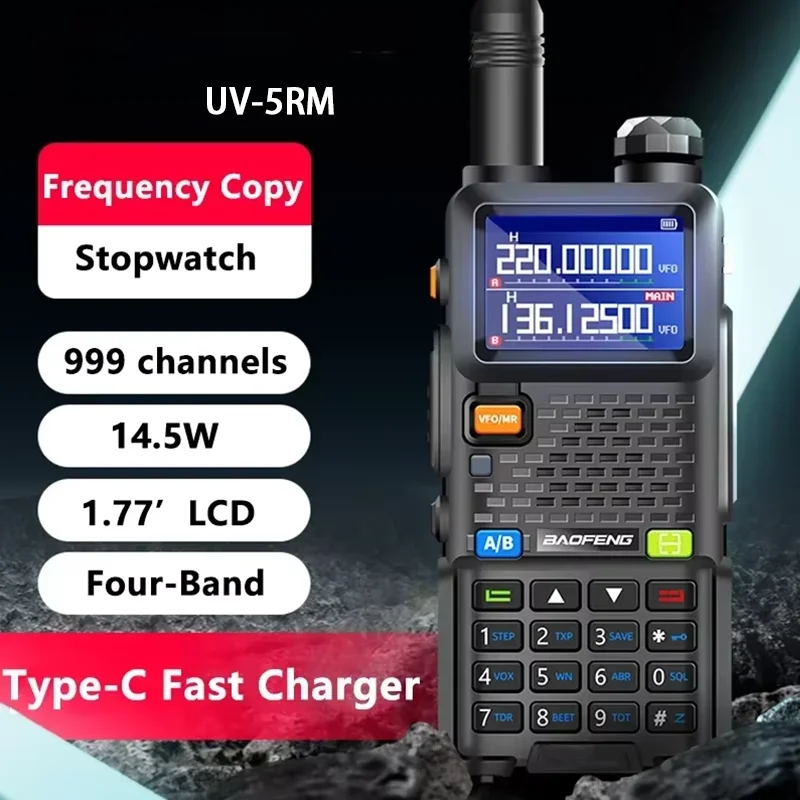

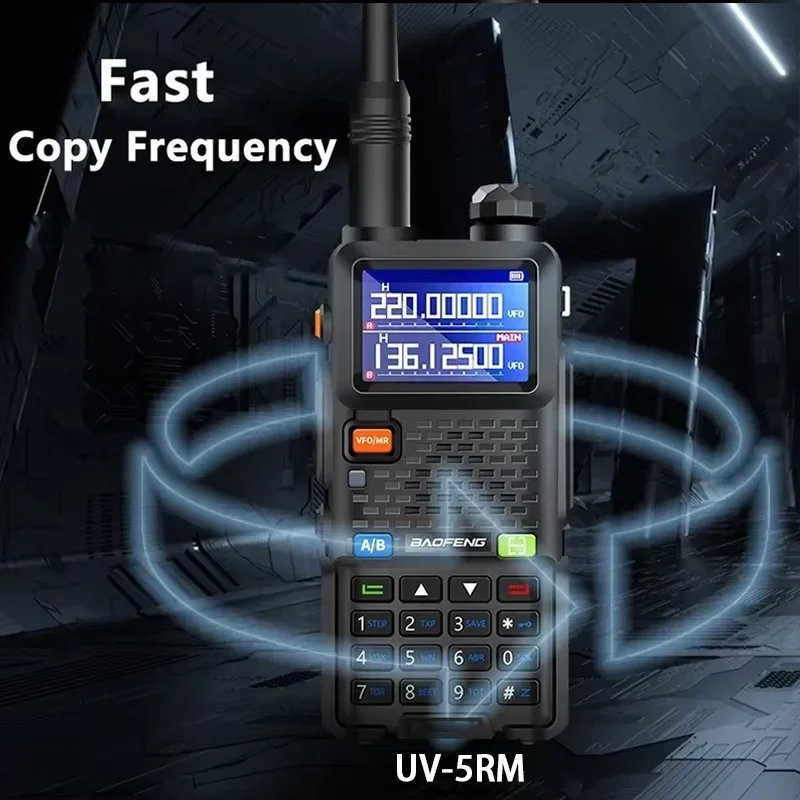

Baofeng UV-5RM
USB Type c Extended Battery 3800mAhÂ
DUAL BAND VHF UHF
FM:65-108mHz(RX)
VHF:136-174mHz(TX&RX)
VHF:220-240mHz(TX&RX)
UHF:400-480MHz(TX&RX)
UHF:480MHz-520MHz(RX)
1.77" Color Screen
999 Memory Channels
14.5W Power Max
Four-band:
FM:65-108mHz(RX)
VHF:136-174mHz(TX&RX)
VHF:220-240mHz(TX&RX)
UHF:400-480MHz(TX&RX)
UHF:480MHz-520MHz(RX)
10 Groups USA Weather Forecast Channels
One Touch Frequency Search
65-108MHz FM Radio Receiving
Flashlight
Stop-watch Timer
1750Hz Repeater Tone
Keypad Lock
Time,Carrier and Search Scan Modes
Frequency,Channel Scan
CTCSS,DCS Scan
VOX
Dual Watch
DTMF
Frequency (FREQ),Channel (CH) and Channel name(Name) working mode
Roger Beep (End Transmission Tone)
Power On password
Voice Encryption
3800Mah Rechargeable Li-ion Battery Pack
Battery Type-C Fast Charging Jack
|
Model |
Baofeng UV-5RM |
|
|
Dual Band/Dual Display/Dual Standby |
A/B band independent operation(UV UU VV) |
|
|
128 Groups Channels Storage |
Short Cut Menu Operation Mode |
|
|
Battery Capacity |
3800Mah |
|
|
VFO&Memory Channels Scan |
Emergency Alarm |
|
|
Time-out Timer(TOT) |
0~9 Grades VOX Selectable |
|
|
PTT&ANIID |
FM Radio and 25 Stations Storage |
|
|
Voice Companding |
50 CTCSS/104 DCS |
|
|
High/Low TX Power Selectable |
Busy Channel Lock-out(BCLO) |
|
|
DTMF Function |
OFFSET Function |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
|
|
Busy Lock out Function |
Yes |
|
|
Scanning Function |
Yes |
|
|
Monitor Function |
Yes |
|
|
Time-out Timer(TOT)Â Function |
Yes |
|
|
LCD Display |
Yes |
|
|
Dual Display |
Yes |
|
|
Battery Voltage Display Function |
Yes |
|
|
Channel Name Display and Editing Functions |
Yes |
|
|
Signal Strength Indicator |
Yes |
|
|
Keypad Lock Function |
Yes |
|
|
Built-in Ledtorch |
Yes |
|
|
FM Radio |
Yes |
|
|
Wirecless Function |
Yes |
|
|
Emergency Alarm Function |
Yes |
|
|
Low Battery Alarm |
Yes |
|
|
Power Saving Function |
Yes |
|
|
High/MID/LowTX Power Selectable |
Yes |
|
|
ROGERSET |
Yes |
|
|
Chinese and English Voice Prompt |
Yes |
|
|
PC Software Programmable |
Yes |
|
|
Rated Voltage |
7.4VDC±10% |
|
|
Battery Type |
Li-ion battery |
|
|
Working Temperature |
-20~+50°C |
|
|
Antenna Impedance |
50ohm |
|
|
Weight |
300g |
|
|
Dimension |
58X40X130mm(Not Included Antenna) |
|
|
Frequency Stability |
±2.5ppm |
|
|
Carier Wave to Lerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Max Frequency Deviation |
<5kHz(Wide) |
|
|
Modulation Character |
6dB per fold frequency patch |
|
|
Emission Current |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
<0.16µV(12dBSINAD) |
|
|
Silent Sensitivity |
<0.2µV |
|
|
Intermediation Distortion |
<10% |
|
|
Inter Modulation |
8-12mv |
|
|
Adjacent Channel Selectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|
Package Included:
1× UV-5RM
1× 7.4V 3800mah Li-ion Battery
1× SMA-Female Dual Band Antenna
1×Type-C Charger Cable
1× Belt Clip
1× Handstrap
1× ENG Manual
Note:We will send you the item of your choice. (Please check your selected sku carefully before placing your order)
