All CATAGORY
SMA-Female
Dual Band 144/430MHz
For Baofeng UV5R UV82 BF-888S
Dual Band:VHF/UHF
VHF:136-174MHz&UHF:400-470MHz
Center Frequency:144/430MHz
Enhanced Communication with PHD-701 Antenna
The PHD-701 VHF/UHF Dual Band Antenna is a must-have accessory for any handheld radio user looking to extend their communication range. Designed for versatility, this antenna is compatible with a wide range of devices, including the Kenwood TK-360, TK-370, and TK-372 series, as well as the Baofeng UV-5R, UV-5RA, and UV-5RB models. Its robust SMA-F (Female) connector ensures a secure fit, while the antenna's 2dBi gain and 20 Watts max power handling capability make it an ideal choice for both indoor and outdoor use.
Versatile and User-Friendly
The PHD-701 is not just a tool for professionals; it's also a valuable asset for hobbyists and enthusiasts. Its omni polarization and vertical radiation pattern ensure that signals are transmitted in all directions, making it an excellent choice for skipshooter CB antennas or homemade CB base antennas. The antenna's versatility extends to its use in various scenarios, from indoor scanner antennas to 10 meter ham radio antennas, making it a go-to accessory for a wide range of radio users. With multiple quantity options available, you can choose the package that best suits your needs, whether it's a single antenna for personal use or a bulk pack for a group or organization.

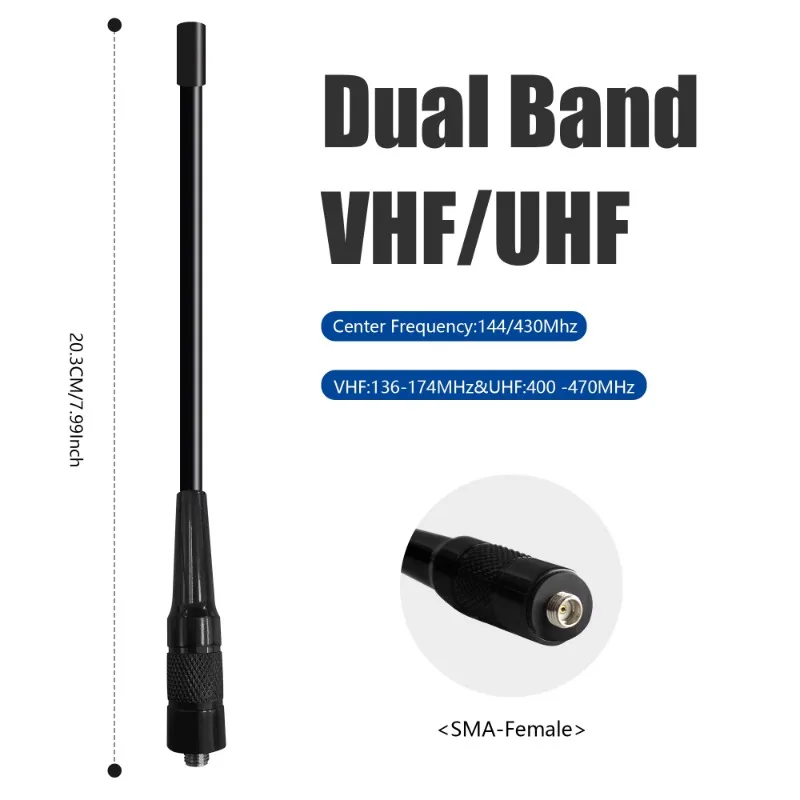

20.3CM/7.99Inch
Optimized for Performance and Durability
Crafted from durable ABS material and wrapped in a heat shrinkable sleeve, the Retevis PHD-701 is built to withstand the rigors of daily use. Its compact 20.3cm length and lightweight design at just 25.8g make it easy to carry and attach to your radio, ensuring that you can maintain clear communication without the added bulk. Whether you're navigating through urban environments or engaging in outdoor activities, this antenna's omni polarization and vertical radiation pattern provide reliable signal transmission in various conditions.

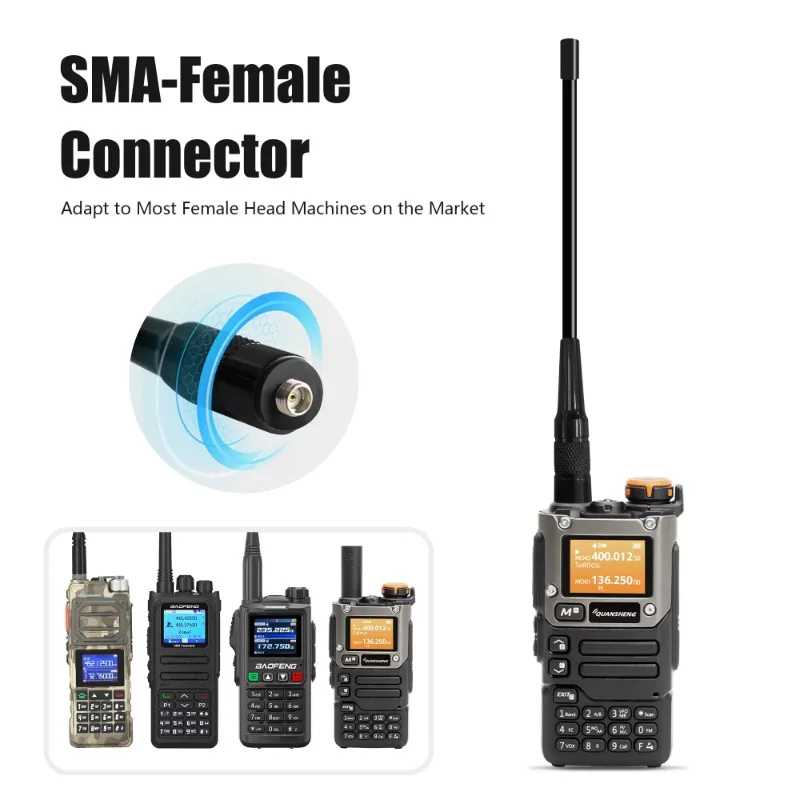

SMA-Female Connector
Adapt to Most Female Head Machines on the Market
*Female connector: suitable for most of the walkie-talkies on the marke
*It’s soft and flexible ; a perfect choice for maintain VHF and UHF tuning.
1️⃣ Strong flexibility: the soft antenna is made of conductive material, which is flexible, bendable and not easy to break, and can be adapted to a variety of different frequencies
and wavelengths, which improves the service life of the antenna and the signal reception ability.
2️⃣ Strong signal reception ability: the soft antenna is made of flexible material, and its softness and radius of curvature can be adjusted according to the actual demand,
so that it has high signal reception ability and stability. This design makes the soft antenna maintain good signal reception in various environments.
3️⃣Beautiful: compared with the hard antenna, the soft antenna is more beautiful, reduces the possibility of bumping and damage,
and is suitable for use in a variety of environments.
*Compatible With Radio Models:
-Baofeng DM-1701 / DM-1701A
-Baofeng DM-1702 / DM-1801/ DR-1801
-Baofeng UV5R / UV5RA / UV5RB / UV5RC / UV5RE / UV5RA+ / UV5R+ /BF-F8 / BF-F8HP / GT-5R / BF-F9 / V2N / UV-5X3 / UV3R+ / UV5 / UV6 / V85 / B5 / B6 / BF-K5 / BF-480 / BF-490 / BF-320 / BF-V6 / BF-V8
-Baofeng UV-5RM / UV-5RH / UV-5RH PRO / UV-5RH PRO MAX / UV-5RH PRO GPS
-Baofeng BF-K5 Plus / BF-K5 Pro Max / UV-K5M / UV-K5 Plus
-Baofeng BF-K6 / BF-K61 / BF UV-K6
-Baofeng UV-16 / UV-16 PRO / UV-16 Pro Max / UV-16 PLUS / UV-16M / UV-16M V2 / UV-16 PRO V2 / UV-16 Max / UV-16 Max V2
-Baofeng UV-17 / UV-17 Plus / UV-17 Pro / UV-17 Pro V1 / UV-17 Pro V2
-Baofeng UV-18 / UV-18i / UV-18H / UV-18 Pro / UV-18Pro Max
-Baofeng UV-21 / UV-21 Pro / UV-21 Pro V2 / UV-21 Pro V3
-Baofeng UV-22 / UV-22L / UV-22 Pro Max
-Baofeng UV-25 / UV-25M / UV-25L / UV-25 Pro / AR-152 / BF-X5 Pro
-Baofeng UV-27 / UV-27 Pro Max / UV-27L
-Baofeng UV-28 / UV-28 Pro Max G28
-Baofeng UV-29L / UV-29 Pro Max
-Baofeng UV-32 / DM-32
-Baofeng UV-82 / UV-82L / UV-82C / UV-89 / UV-8D / UV-82HP / UV-82HPL / UV-82HX / UV-82X / GMRS-V1 / GMRS-V2 / MURS-V1 / MURS-V2 / MK3/5 / UV-8R UV-98D / UV-Q5 / UV-82RT / UV8/UVB5/UVB6/A52 /F8/F8+
-Baofeng UV-98 / UV-98 Pro / UV-98 Pro V2
-Baofeng UV-9R / UV-9R Plus / UV-9R PRO / UV-9G / GMRS-9R / UV-9R Plus Pro / UV-9R Pro V2
-Baofeng UV-S22 / UV-S22 Pro / UV-S22 Pro V2
-Baofeng UV-68 / UV-68 Pro / UV-68 Pro V2 / UV-68 Pro Max / UV-68 Pro Max V2 Series
-Baofeng BF-888S/777/666s/777s/BF-88E/F8+/A5/388A/BF-480/490/320/V6/V7/V8/658/520/530/999/
-Baofeng WP31 / W31 / MP31 Pro / M-13 /
-Baofeng BF-V6 / BF-V8 / BF-H7 / BF-F8 / BF-F8+ / BF-F8HP / BF-F8Plus / BF-F9
-Baofeng UV-S9 / UV-S9Plus / BF-320 / BF-480 / BF-490
-BaofengUV-B2 / UV-B3 Plus / UV-B5 / UV-B6 / UV-G30 / UV-G28 / BF-388A
QUANSHENG:
– UV-K5 / UV-K5(8) / UV-K6 / UV-5RPLUS / TG-UV2 Plus
– TG-K4AT / TG-2AT / TG-45AT / TG-42AT / TG-22AT / TG-25AT / TG-UV2
Kenwood:
-TK260 / TK270 / TK272 / TK280 / TK290 / TK2100 / TK2102 / TK2103 / TK2106 TK2107 / TK2118 / TK2140 / TK2160 / TK2170 / TK2180 / TK2200 / TK2202 / TK2203 TK2206 / TK2207 / TK2212 / TK2260 / TK2280 / TK2300 / KT2302 / TK2306 / TK2307 TK2312 / TK2360 / TK5210 / TK5220
-TK-360 / TK-370 / TK-370G / TK-372 / TK-372G / TK-3100 / TK-3140 / TK-3160 / TK-3170 / TK-3180 / TK-3200 / TK-3202 / TK3207
RETEVIS:
Retevis H-777 / 888s Plus / RT-B6 / RT5 / RT5R / RT5RV / RT6 / RT7
Retevis RA685 / Retevis RT86 / Retevis RT22 /RT3S / RT85 / GM-15 Pro / TP-8Plus
Retevis RT21V / RT23 / RT2 / RT26 / RT29 / RT29D / RT43 / RT52 / RT53 / RT54 / RT56 / RT80 / RT84 / RT86 / RA79 / RB85 / RB27V / RB22 /
Retevis DMR RT35 / Retevis RA89 / RT86 /PMR 446 /RT622 / RT29 /RA79
RT40 / RT26 / RT81 / RM01 / RT668 / RT87
Radtel RT-890 / Radtel RT-470 / Radtel RT-490
Ailunce HD1
LINTON:
-LT-3288 / LT-6288 / LT-3188 / LT-2188 / LT-3260 / LT-3268 / LT-6188
PUXING:
-PX-777 / PX-777Plus / PX-666 / PX-888 / PX-888K
WEIERWEI:
-VEV-3288S / VEV-3288V / EV-6288
WOUXUN:
-KG-UVD1P / KG-UV6D / KG-689 / KG-689Plus / KG-669 / KG-669Plus / KG-659 / KG-699E / KG-859 / KG-879 / KG-929
ABBREE：
-AR-730 / AR-830 / AR-869 / AR–F8 / AR-518 / AR-F5
HYT:
-TC-268 / TC-268S / TC-368 / TC-368S / TC-370S / TC-500 / TC-500S / TC-510 / TC-585 / TC-600 / TC-610 / TC-610S / TC-620
-PD700 / PD700G / PD780 / PD780G / PD980
-TD500 / TD510 / TD560 / T585
TYT:
-TH-UVF1 / TH-F2 / TH-T2 / TH-T3 / TH-F6 / TYT-300 / TYT-500 / TYT-600 / TYT-800 / TYT-888 / TYT-900 / TYT-9900
1.Model: PHD-701 Antenna
2.Connector Type: SMA-Female
3.Band: VHF/UHF Dual Band
4.Frequency: 136-174/400-470MHz
5.Center Frequency: 144/430MHz
6.Gain: 2dBi
7.V.S.W.R: Less than 1.5
8.Impedance: 50ohm

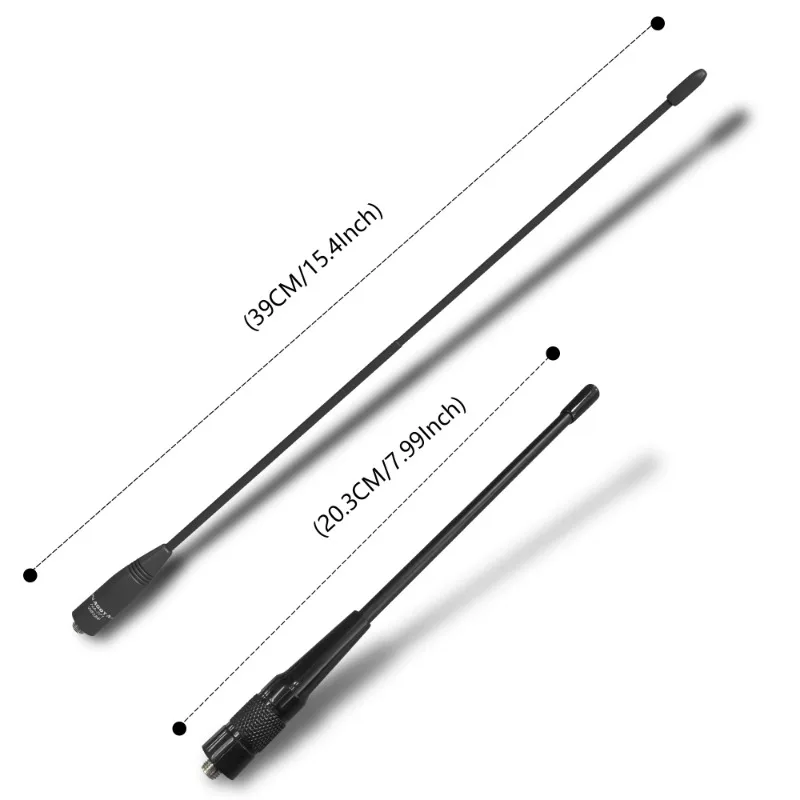

9.Antenna length: 20.3CM / 7.99Inch(approx)
10.Net Weight:25.8g(approx)
Package include：
1 X PHD-701 Antenna.
OR
2 X PHD-701 Antenna.
OR
3 X PHD-701 Antenna.
Note:We will send you the item of your choice. Please check your chosen set carefully before payment.
