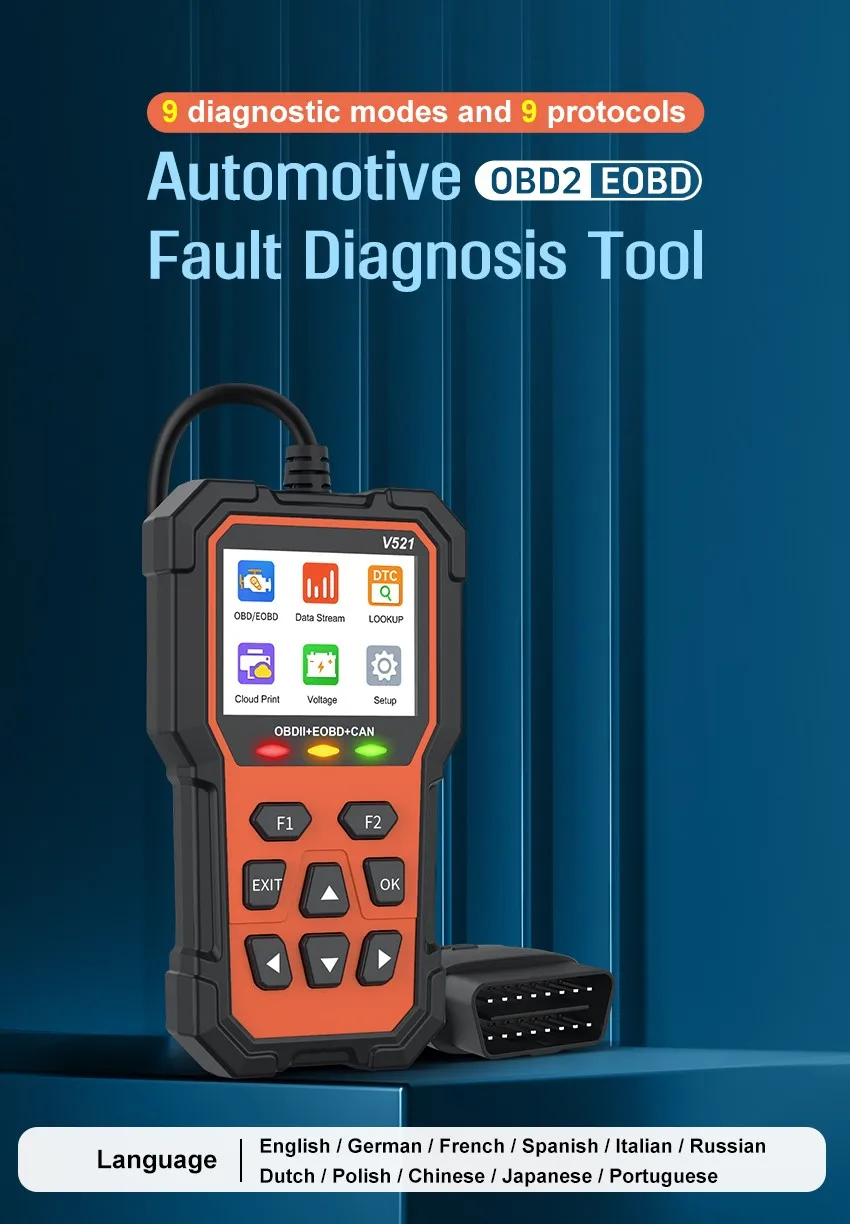

Technical Features:

1. Automobile engine fault diagnosis

2. Automobile engine fault clearing

3. Fault code inquiry

4.I car failure freeze frame

5. Vehicle information reading

6. Car I/M readiness

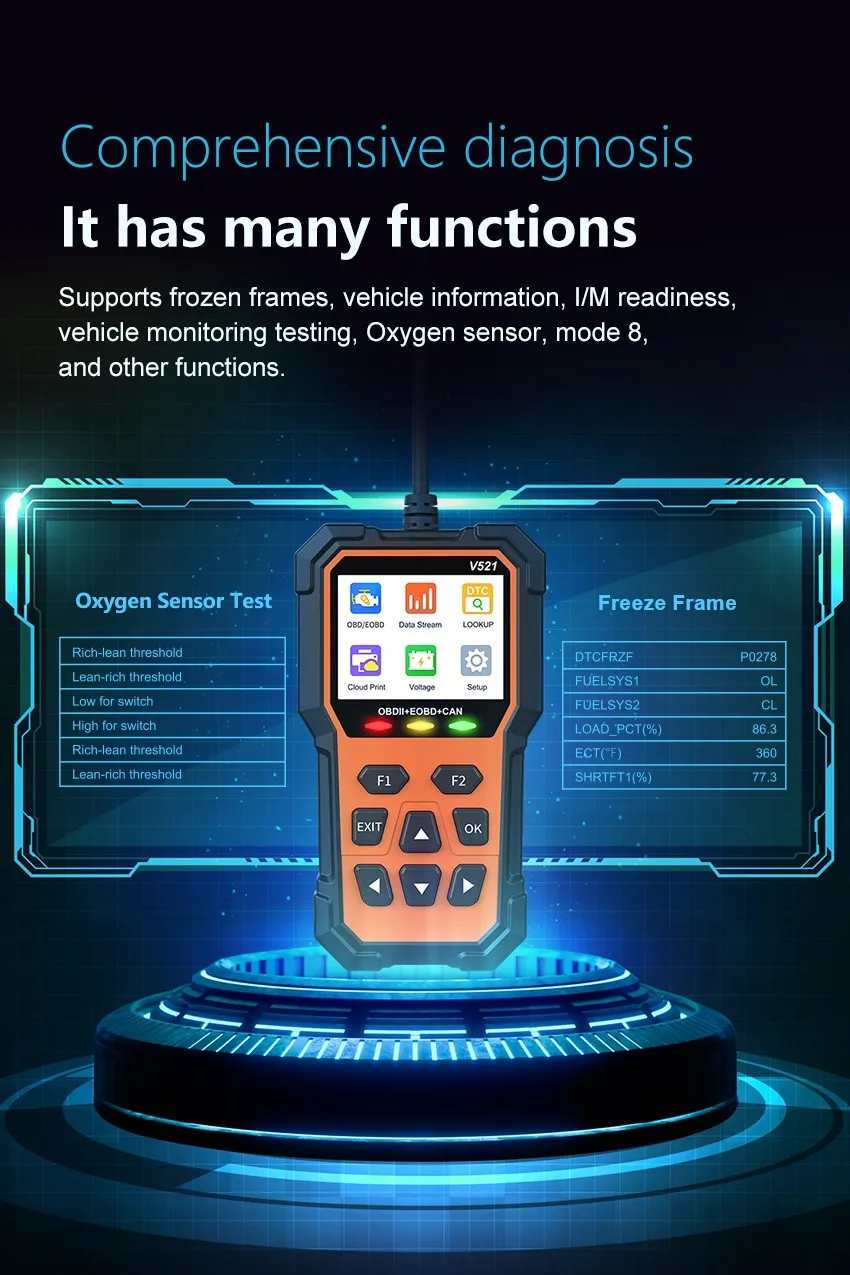

7. Car battery voltage reading

8. Oxygen sensor test

9. EVAP test

10. Real-time curves

11. Real-time data stream reading of the car

12. Automobile performance test

13. Color screen display 2.8 inches

14. Mode 6

15. Pattern 8

16. Fault code library 4w+

17. Vendor-specific codes for 55 brands are supported

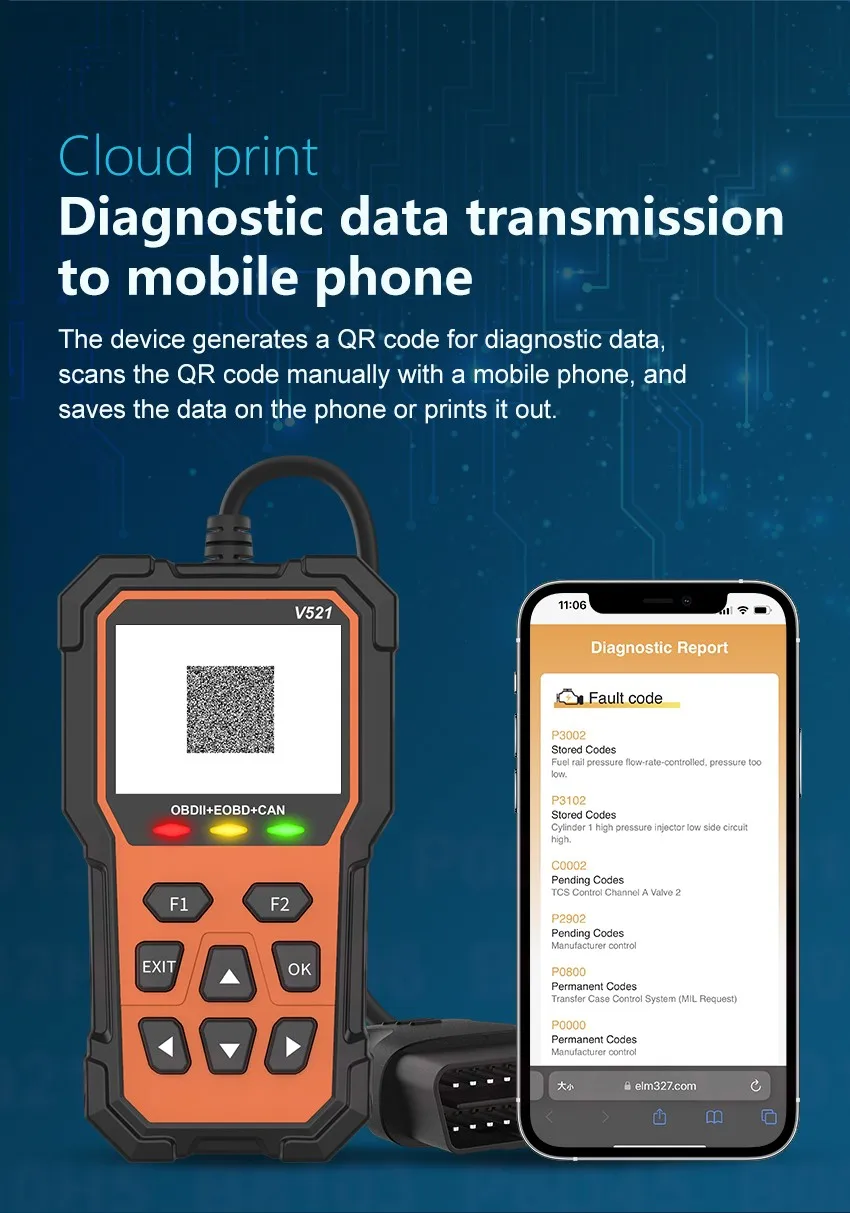

18. Cloud printing

19. Support 11 languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese, Polish

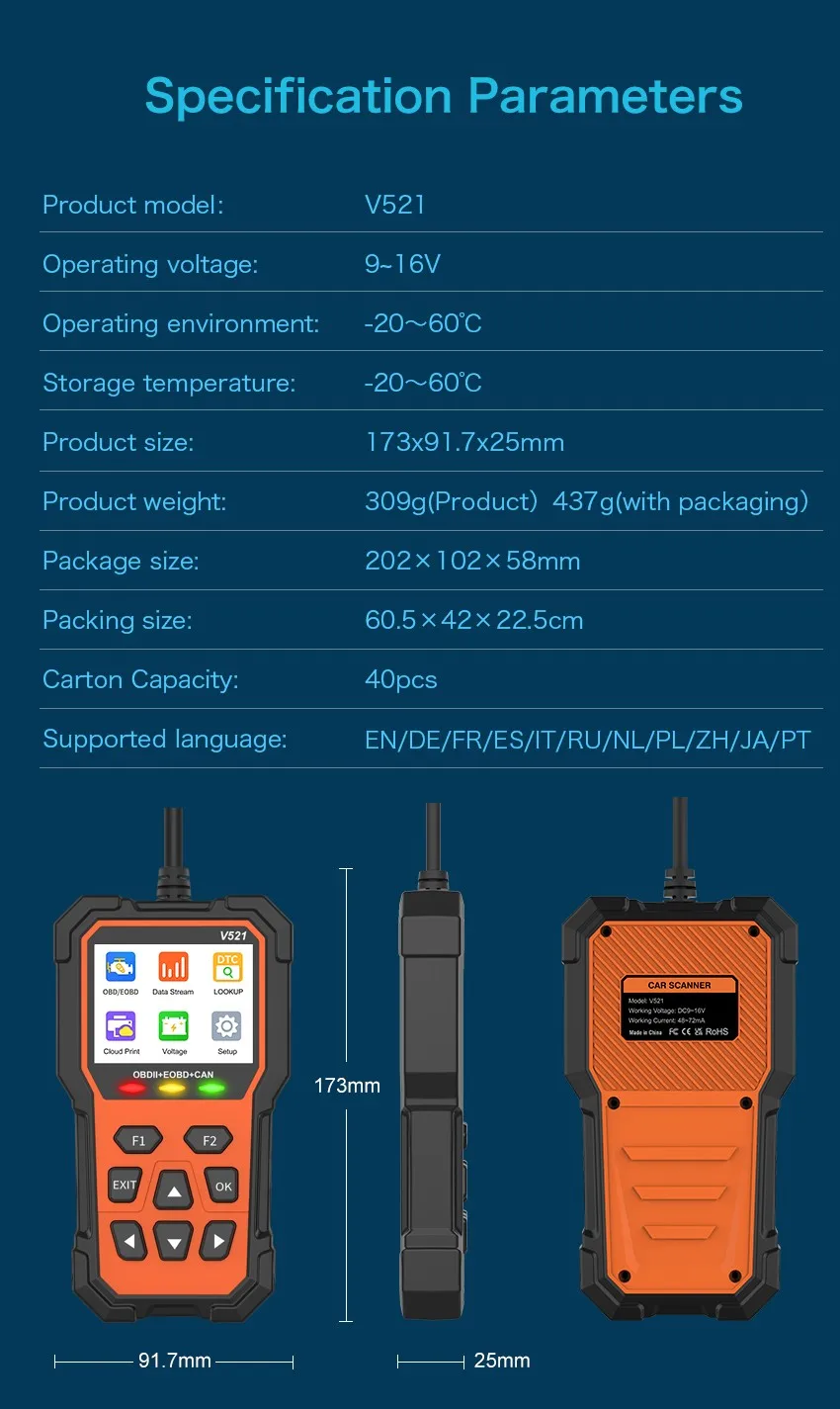

Basic Parameters

Working voltage: DC 9V~16V

Operating current: 48~72mA

Operating environment: -20~65°C

Storage temperature: -30~70°C

Product size: 173*91.7*25mm

Product weight: 309g (including color box 437g)

Packing size: 202*102*58mm

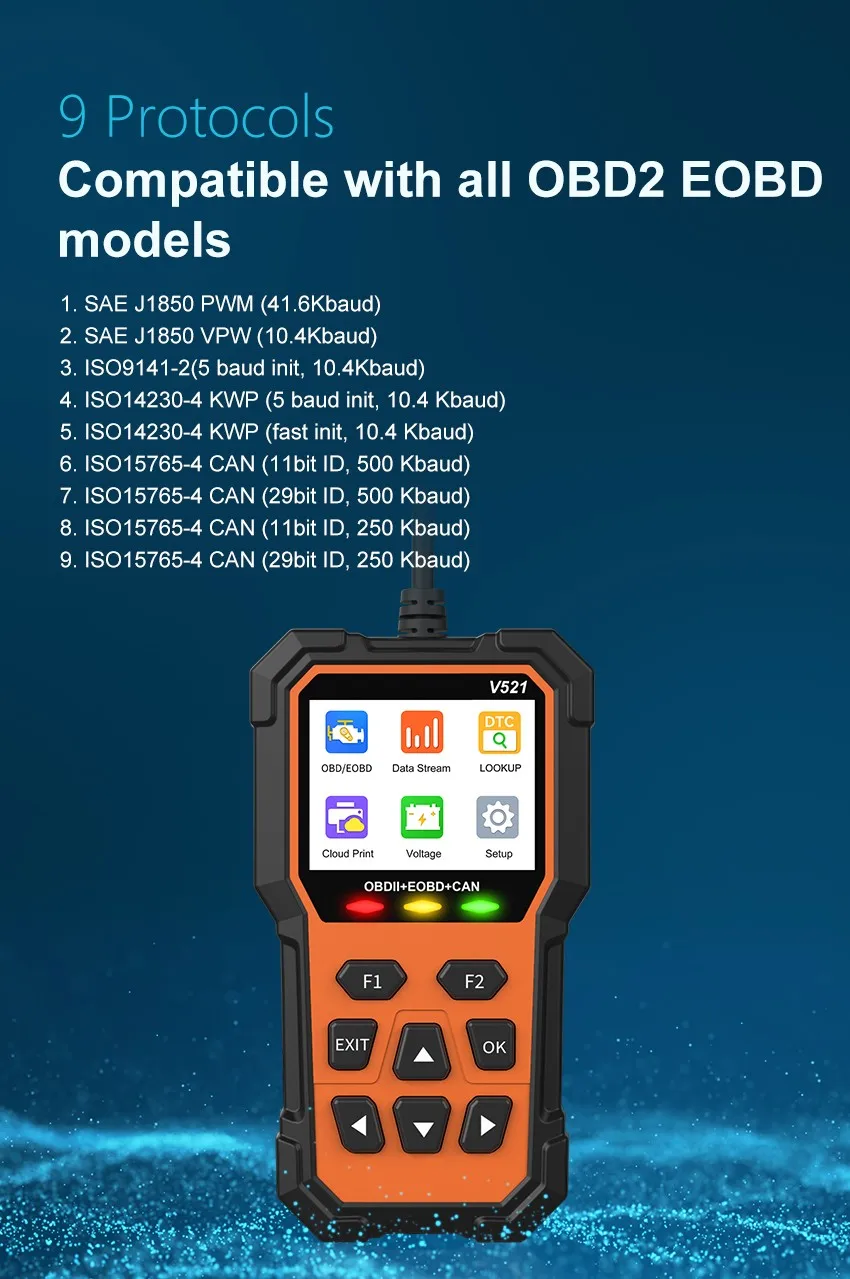

Support Protocols

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
