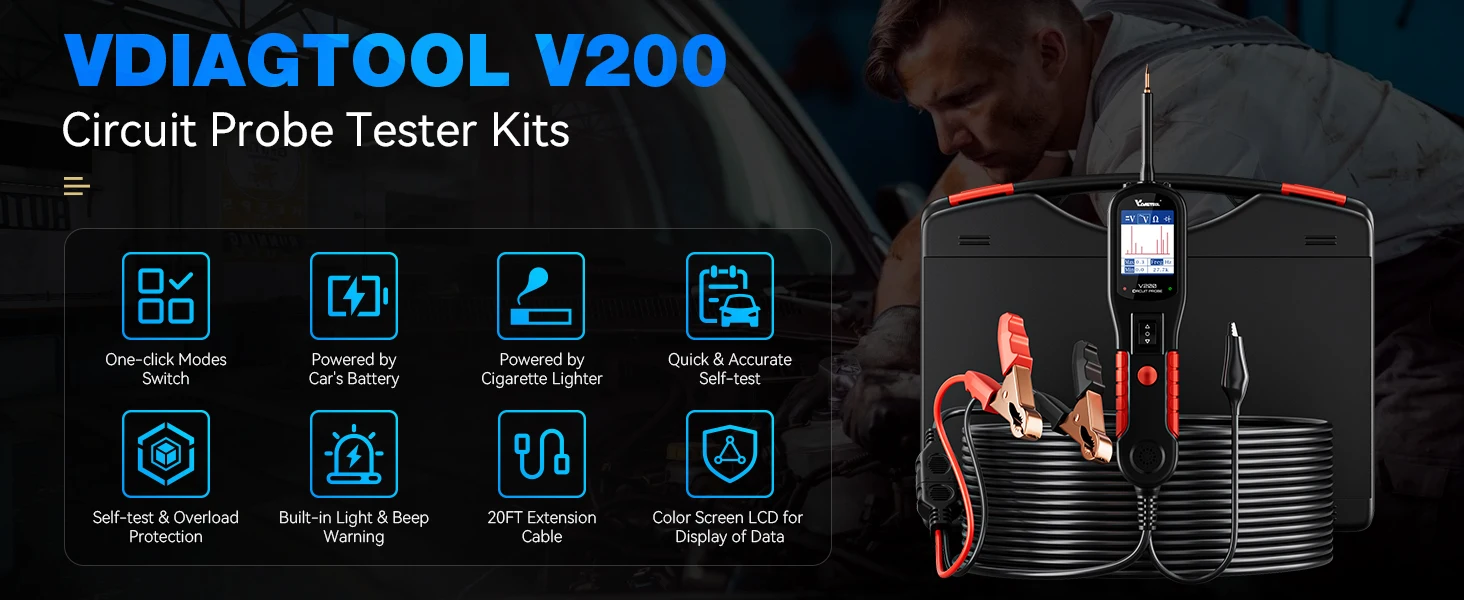

VDIAGTOOL V200：
VDIAGTOOL V200 power circuit probe tester is a simple but extremely useful circuit tester with 20ft+20ft extension cable to check whether car circuits or a certain component is energized or not. It supports ✔Tracing Wire ✔AC/DC Voltage Test ✔Diode, Resistance Test ✔Polarity Test ✔Continuity,Ground,Signal Circuit Test ✔Activate Components ✔Relay,Fuse,Trailer Light Test ✔Locate Short Circuits ✔Circuit Breaker Protection on all electrical systems of 12-24V vehicles.
Hightlight of Power Circuit Probe Tester VDIAGTOOL V200:
🚘Wide Compability: VDIAGTOOL V200 circuit probe tester can be compatible with：
✔️cars;
✔️trucks;
✔️motorcycle;
✔️steamship;
🚘Measurement range：
✔️Voltage range: 0.1-100V;
✔️Resistance range: 0-3MΩ;
✔️Current range: 2mA-25A;
✔️Frequency range: 10Hz-150Khz;
🚘 40FT Cable: Covering from the front to the rear of the vehicle, you can easily inspect the entire electrical circuit system;
🚘 4 Testing Mode: DC voltage, AC voltage, Resistance Test, Diode Test;
🚘 More Useful Electrical Diagnose Function: Voltage & Polarity Testing, Continuity Testing, Signal Circuit Testing, Activating Components in Your Hand, Activating Components in The Vehicle, Testing Trailer Lights and Connections, Activating Components W/Ground, Following & Locating Short Circuits, Checking for Bad Ground Contacts;
🚘 Quick Self-Test: Before you test a circuit or component, be sure your tool is in good order by doing a quick self-test;
🚘 Current Overload Protection: V200 circuit tester is short-circuit protected. The internal circuit breaker will trip if it becomes overload;
🚘 Build-in Light: Enable you work safer in the dark.

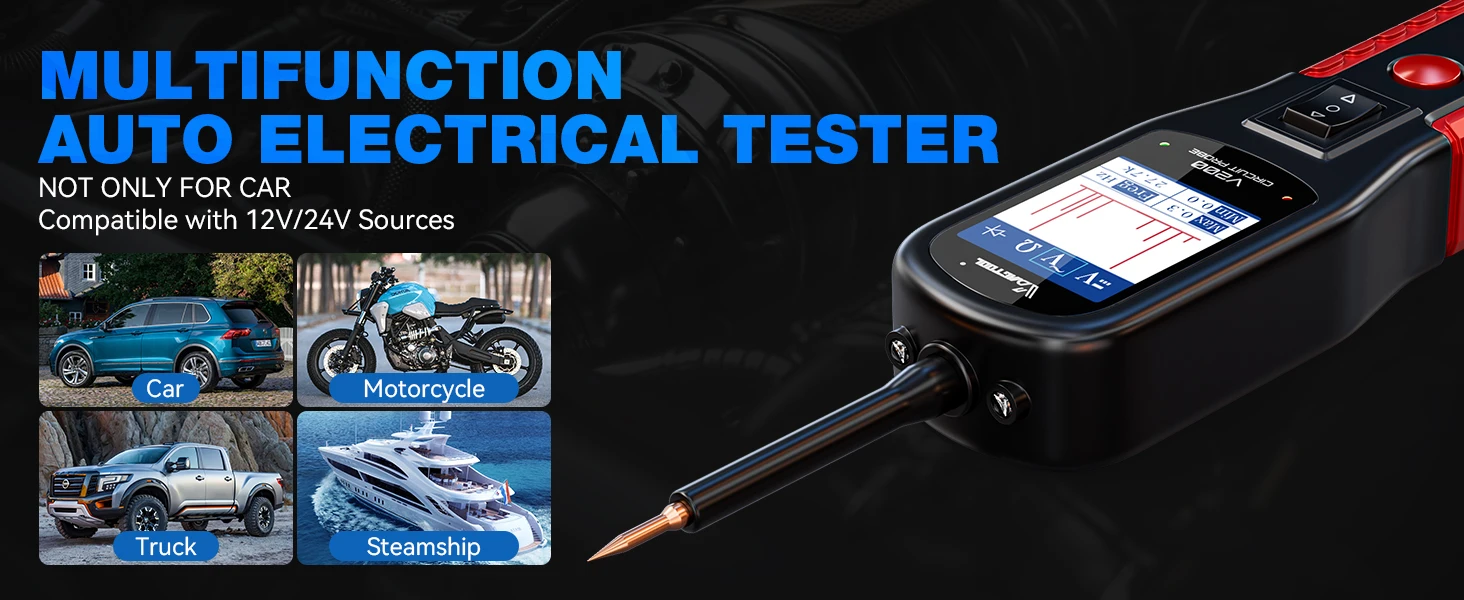

V200 Relay Tester Wide Compability :
No matter the car model, V200 is a universal circuit probe tester. It can effectively diagnose circuit problems in all 12V/24V cars, trucks, motorcycles and even ships, improving the diagnostic efficiency of mechanical circuit repairmen (there is no need to switch diagnostic tools back and forth):
➤American (USA) Cars: for Chrysler, for Ford, for GM, for Jeep, etc.
➤European Cars:for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Peugeot, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Citroen, for Volvo, for Fiat, for Volkswagen, for Ford, for Jaguar, etc.
➤Japanese Cars :for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota. etc.
➤Chinese Cars:for BYD, for Chery, for Geely, for Great Wall, for Karry etc.
🚩Regardless of model or year, the V200 circuit system diagnostic tool can diagnose all 12V/24V cars, trucks, motorcycles and even ships.
4 Working Modes For Daily Electric Maintenance:
🏆Parameter measurement range：
✔️Voltage range: 0.1-100V;
✔️Resistance range: 0-3MΩ;
✔️Current range: 2mA-25A;
✔️Frequency range: 10Hz-150Khz;

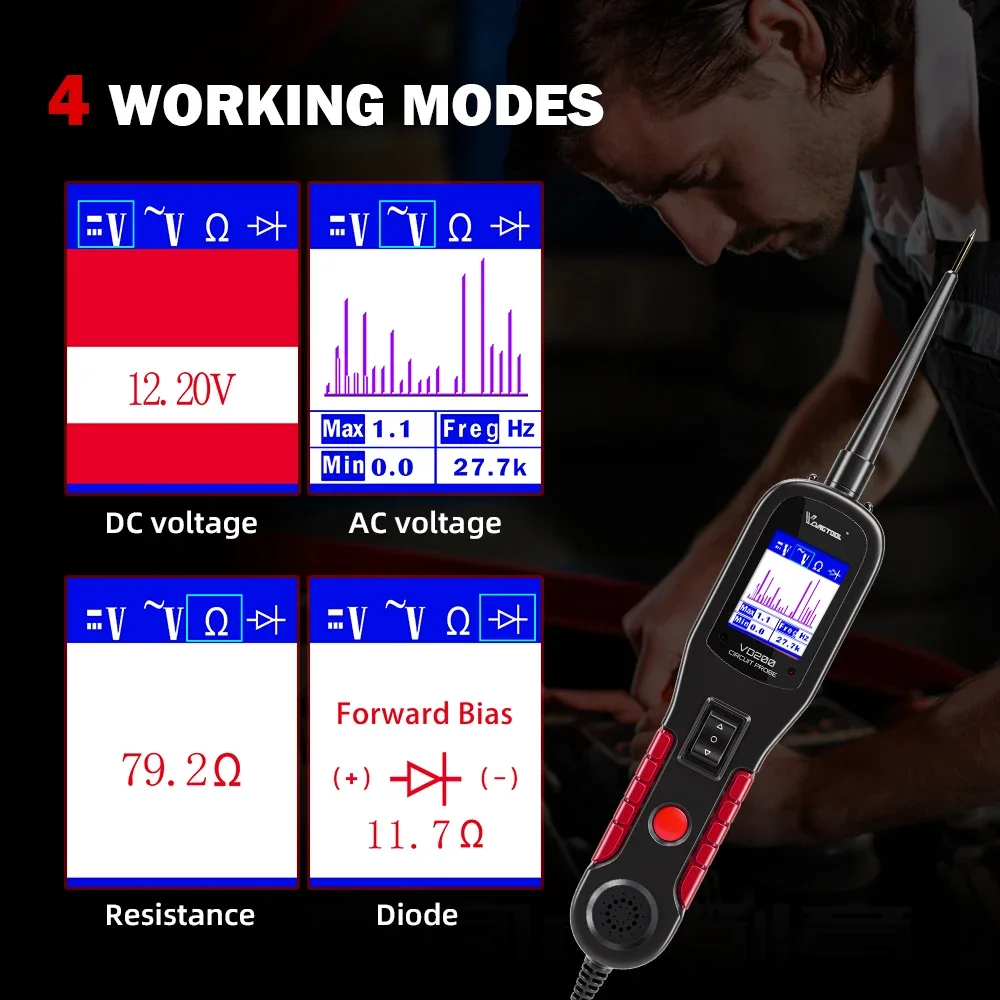

🏆4 Working Modes：
✔️DC Voltage: While 12V 24V V200 Power circuit probe tester in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.
✔️AC Voltage: While relay tester V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. Voltage, the Min. Voltage and frequency.
✔️Resistance Test: While automotive current tester V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
✔️Diode Test: In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If switch the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reverse bias.

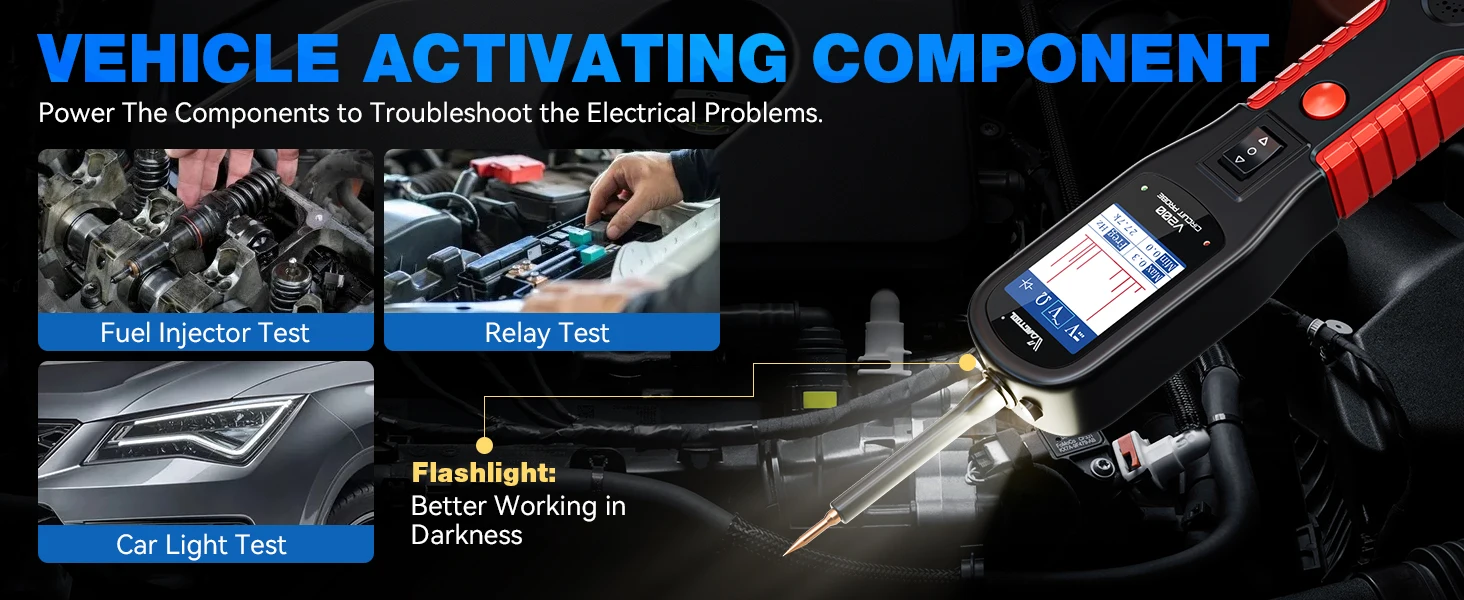

Vehicle Activating Component：
The activation test function is designed to generate activation signals to the tested components. Such as car lights, motors, windshield wipers, radiator fans, relay, fuel injector and other on-board electric equipments to troubleshoot the electrical problems. You can also use this automotive circuit tester to locate short circuits in your car if you keep getting blown fuses.

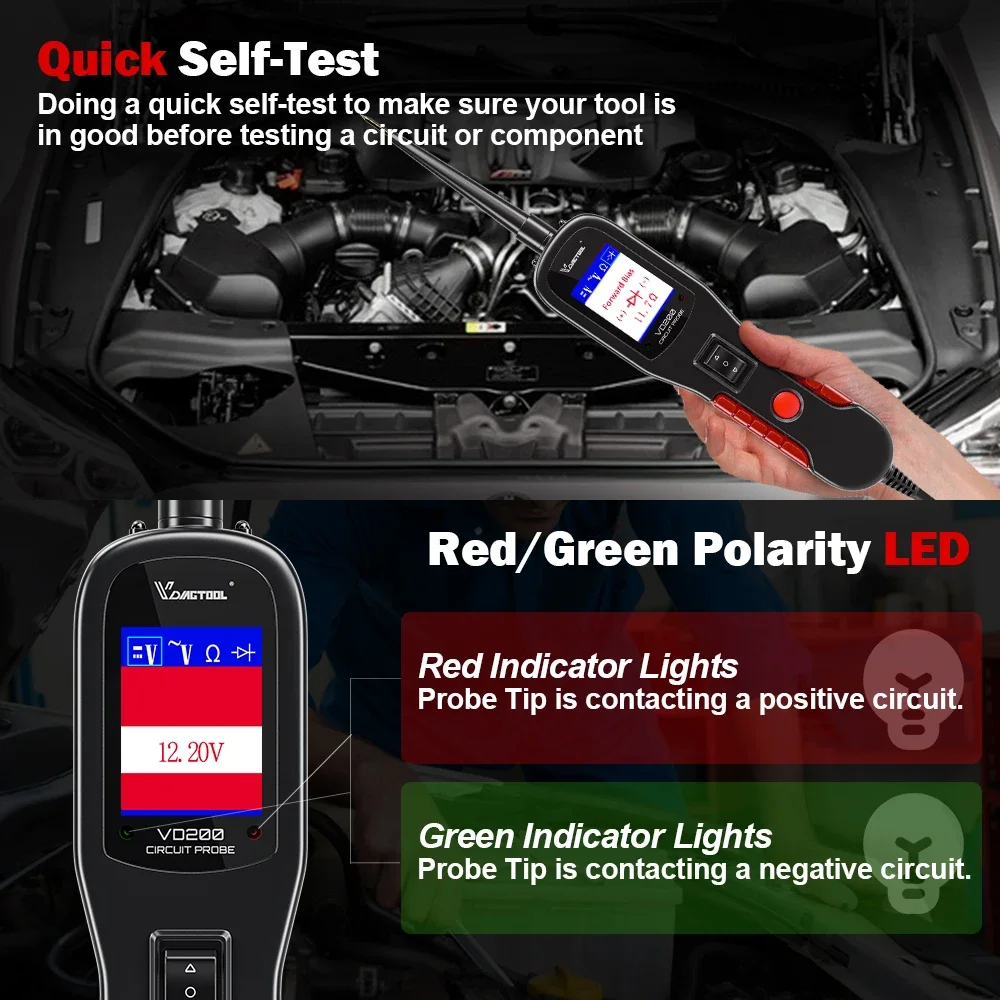

Quick Self-Test:
Before you test a circuit or component, be sure your tool is in good order by doing a quick self-test.
How to do Self-Test for V200 Electrical Tester?
🔥With the tool connected, perform a quick self-test. The power switch is a momentary rocker switch located on the tool’s body. Flanking the switch are positive and negative markings.
🔥Press the Power Switch forward to activate the tip with a positive voltage. The Red LED should light up and LCD display will read the battery voltage. A beep tone will sound. Let go of the power switch and the LED will turn off and the tone will cease.
🔥Press the Power Switch backward to activate the tip with a negative voltage. The green LED should light up and the LCD display will read 0.0V (ground). A beep tone will sound. Let go of the power switch and the LED will turn off and the tone will cease. Your tool is working correctly and is now ready for use.
Red/Green Polarity LED Light:
➤ Red Indicator Lights means probe tip is contacting a positive circuit.
➤ Green Indicator Lights means probe tip is contacting a negative circuit.

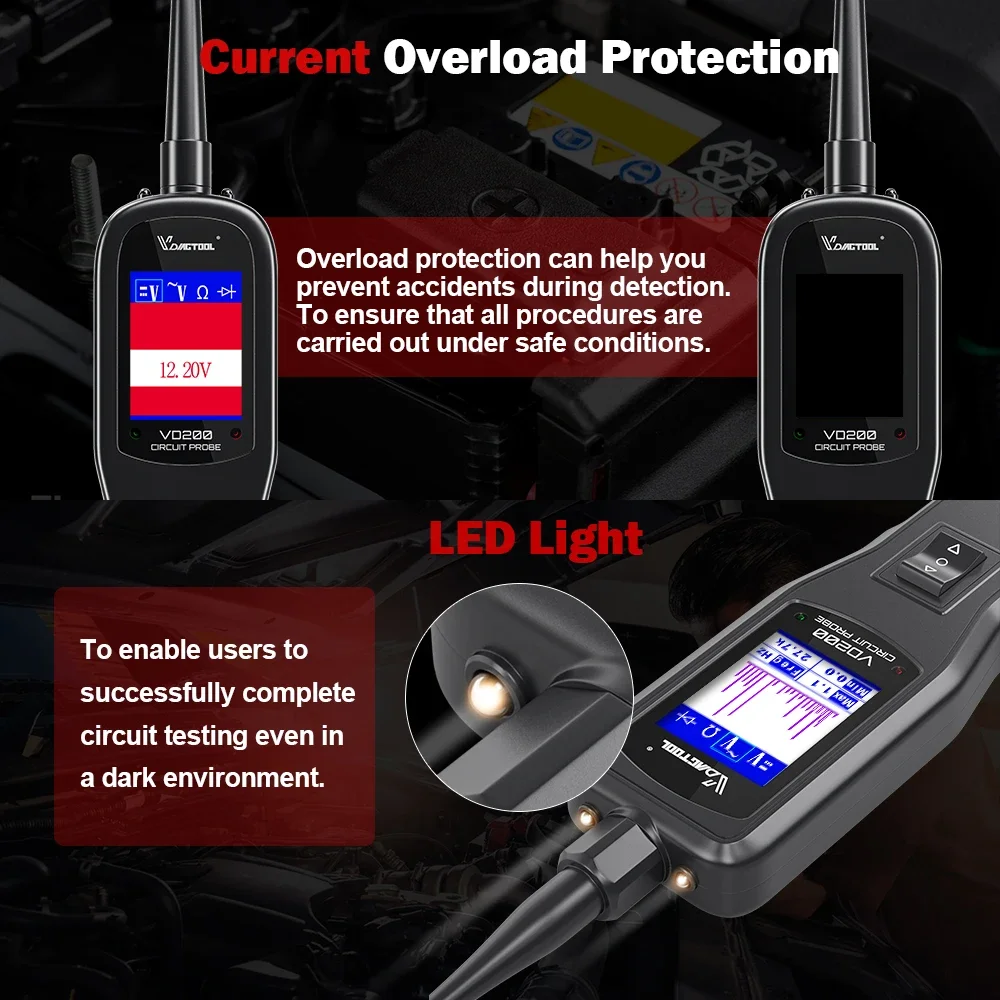

Current Overload Protection:
The VDIAGTOOL V200 automotive power circuit probe tester is short-circuit protected. Its internal circuit breaker will trip if it becomes overload. The circuit breaker is a valuable test tool as well as a safety measure to protect the tool from overload.
🚩Build-in LED Light:Enable users to successfully complete circuit testing even in a dark environment.

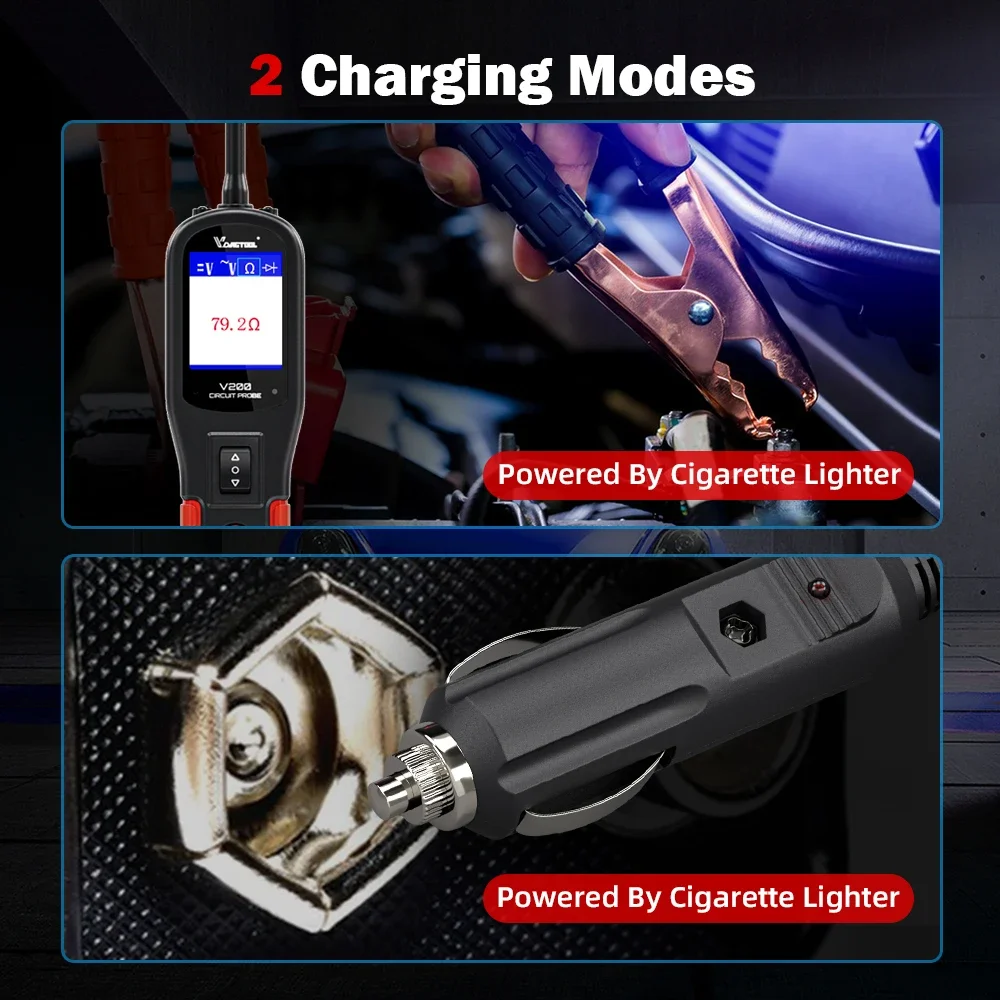

Two Charging Mode:
VDIAGTOOL V200 Circuit Tester Powered by vehicle’s battery and Cigarette Lighter.
Specifications:
Display: TFT color display (168x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 70°C (-40 to 185°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery
Dimensions: 178x 47 x 28mm (7 x 1.85 x0.09 in)
Weight: 1.2Kg (0.22LB)

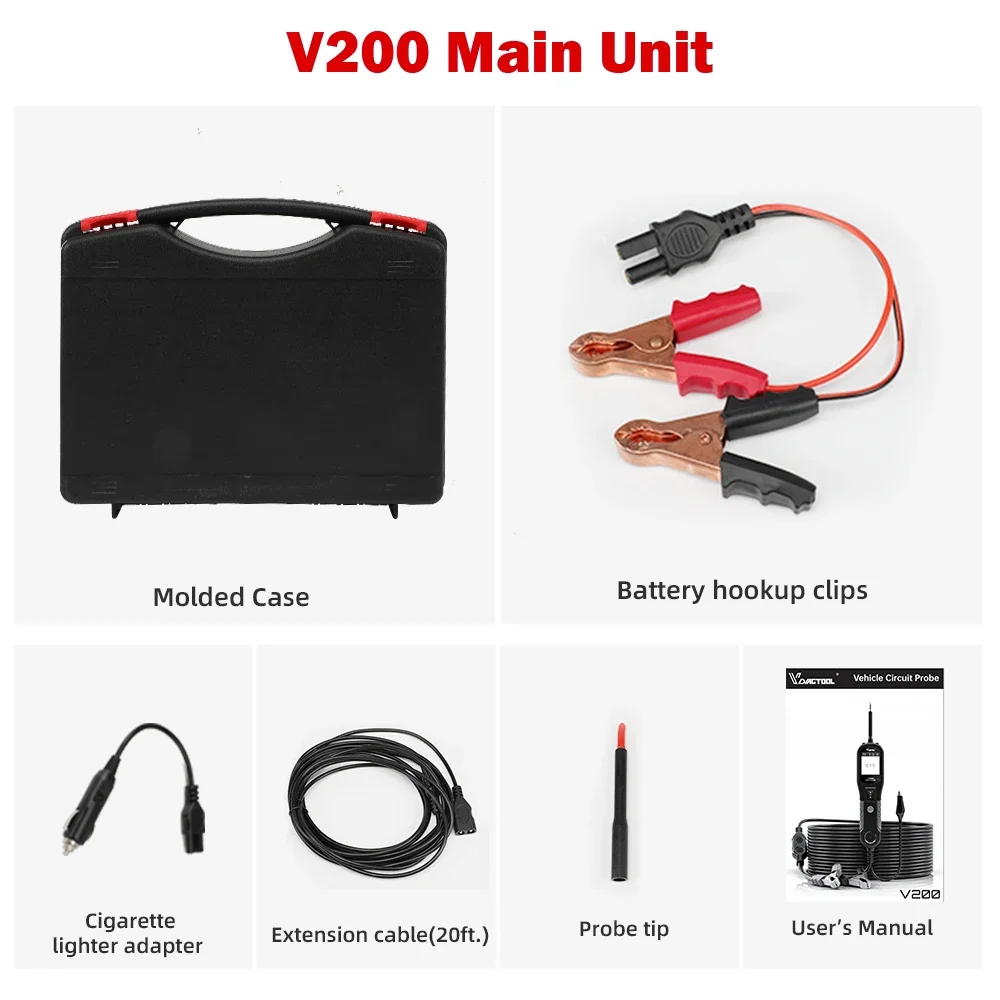

Packing:
1×VDIAGTOOL V200 Electric Circuit Tester
1×Probe Tip
1×20ft Extension Cable
1×Battery Hookup Clips
1×Cigarette Lighter Adapter
1×User’s Manual
1×Rugged Blow Molded Case
