Very important before buy:
there have three versions in this link:
Bluetooth 3.0:for Android only,The cheapest version;
Bluetooth 4.0/WIFI:For Android and IOS,The expension version;
No matter bluetooth 3.0 or 4.0 and wifi ,the function are same ,just support different system
Tips:
If you use the IOS phone to work with iCar pro Bluetooth 4.0，please just open the phone bluetooth，not make connect!!! Then Open the APP，find and connect the bluetooth in APP
1.BT3.0 for Android
2.BT4.0 for Android/IOS
3.WIFI for Android/IOS

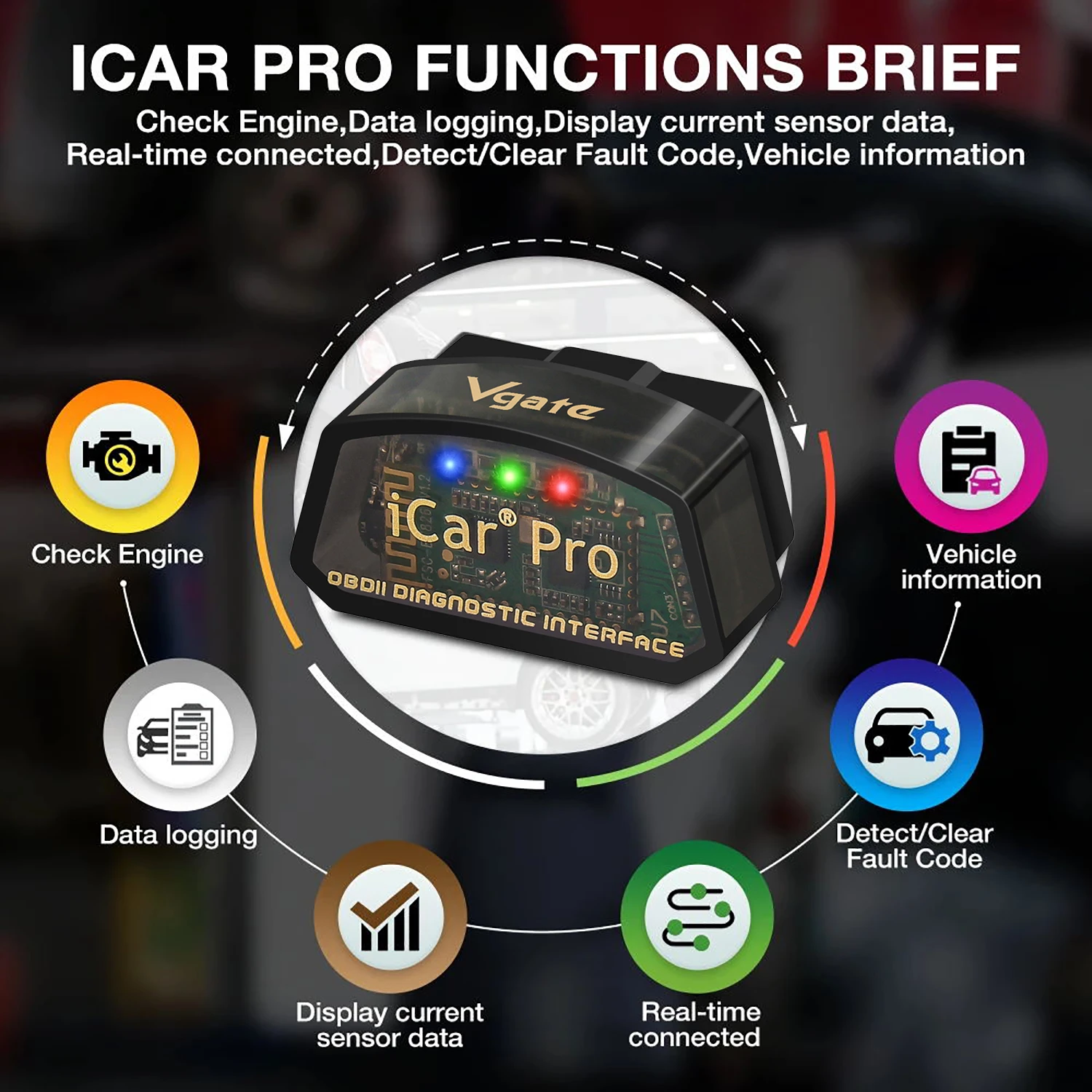

Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip
Vgate iCar Pro Support Automatic Start/Sleep（Electric vehicles are not supported this function）：
1.When the car is ignited, iCar Pro will automatically start
2.30 minutes after the car stalls, iCar Pro will automatically sleep
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ – 85 ℃
Operating Humidity: 5% – 95% RH Non-Dewfall
Hardware version：V2.3
Supported systems：Android/IOS
Connection method：BT3.0/4.0/WIFI
Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)
