WiFi Tuya APP Door Remote Access Control System Kit Keyless Entry 433M Remote Control with Power Adapter Exit Button Magnet Lock

WiFi Tuya APP Door Remote Access Control System Kit Keyless Entry 433M Remote Control with Power Adapter Exit Button Magnet Lock

MAIN FEATURES

1.lt is specially used in the access control field and cannot beused in other fields

2.The quantity of remote controls that can be connected to a re-ceiver can reach 40 pcs, and the acceptance range of the re-ceiver can reach 30 meters

3.0/5/10 seconds lock delay time adjustable, default 5 seconds

4.Changeable switch mode makes you more convenient(Momentary mode/latched mode/Toggle mode)

5.External access keyboard and 12V DC active buzzer are sup-ported (Note: access keyboard is not included, which needsto be purchased separately)

6.Built-in diode, real-time protection relay, door lock and buzzerto extend service life

7.Built-in DC power cable,easy to use

Main feature
1) You can open the door simply by the wireless remote transmitters, instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remote senders, and it has a range of 30 meter.
2) Don't need complicated wires connection. We will provide connecting wire, wiring diagram and English instruction, it's very easy to install. (for the longer cable, need to buy in your local store)

Product Description

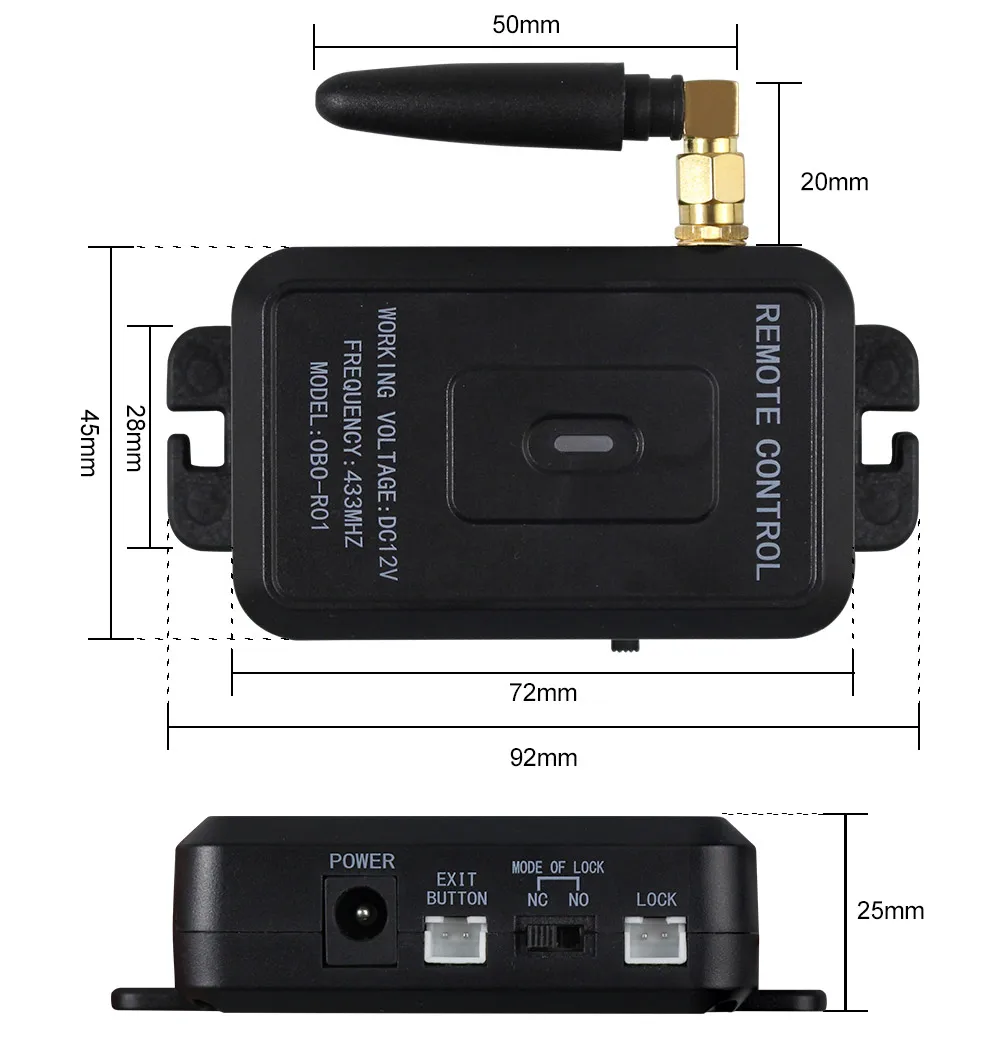

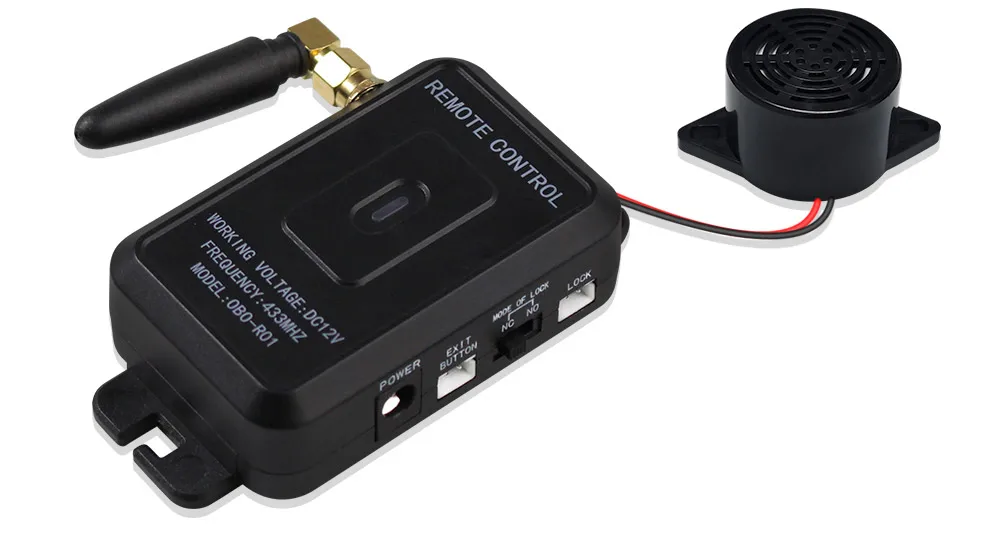

Multifunction Remote Access Controller

• Working Voltage: DC12V

• Working Frequency: 433MHz

• Material: ABS Plastic

• Locking Time Delay: 0/5/10 seconds adjustable

• Working Mode: Momentary/ Latched / Toggle

• Lock mode: NC / NO (Fail safe / fail secure)

• Can install access controller, electric lock, door exit button, buzzer.

Product Details:

The multifunctional remote access controller device comes with a buzzer
We can hear buzzer sounds when the door unlocked

Support 433mhz remote control transmitter to open the door
You can open the door with it remotely, the distance up to 30 meter. Can add max 40pcs remote transmitter.

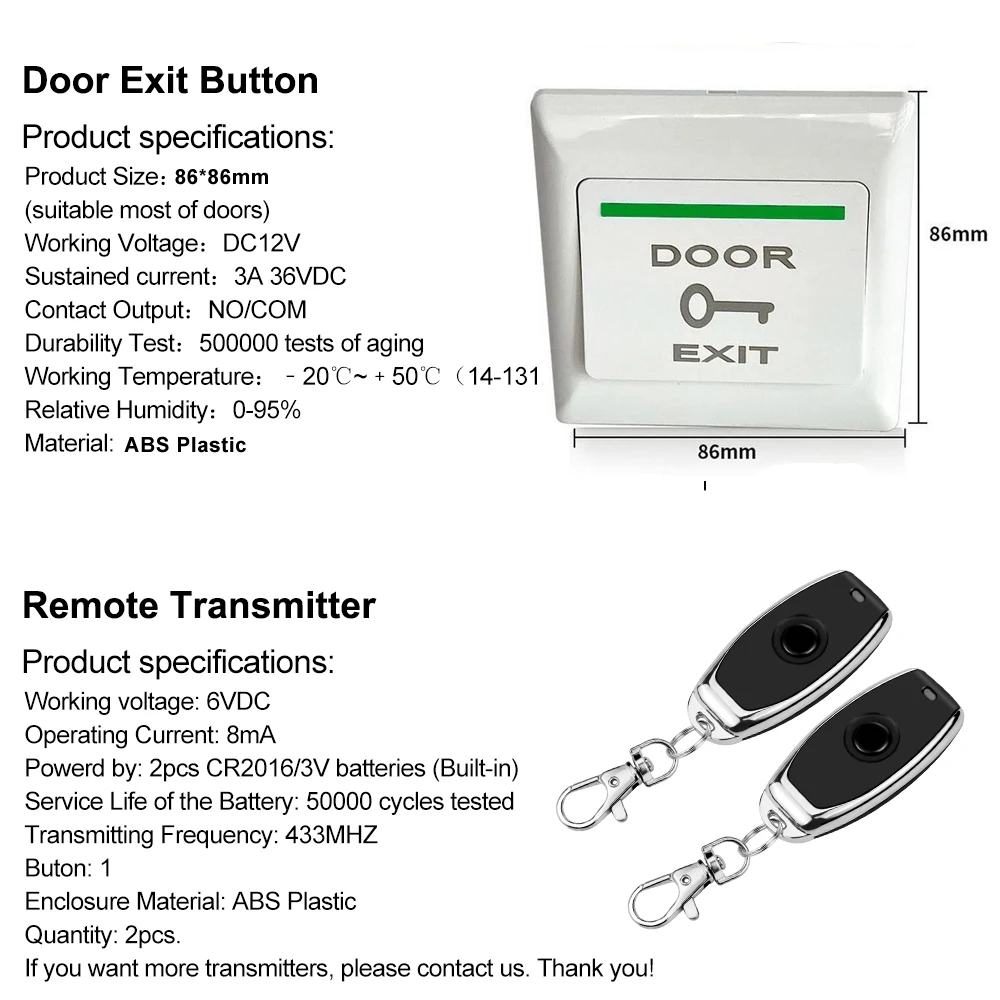

• Working voltage: 6VDC

• Operating Current: 8mA
• Enclosure Material: ABS / Metal

• Powered by: 2pcs CR2016/3V batteries (Built-in)

• Service Life of the Battery: 50000 cycles tested

• Transmitting Frequency: 433MHZ

• Button: 1
• Quantity: 2pcs. (if you want more remote transmitter, please contact us)

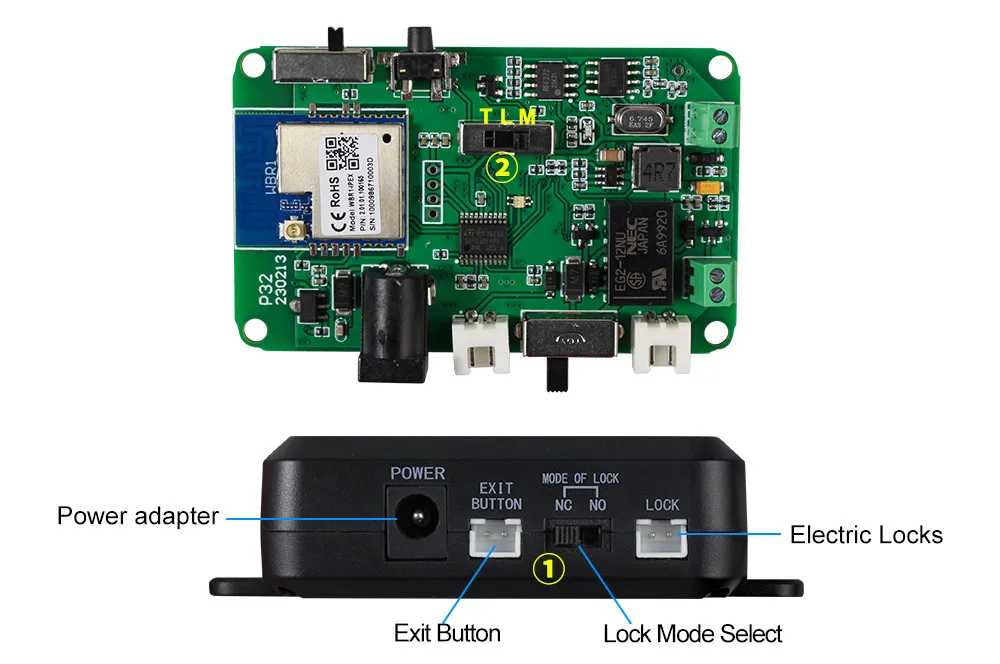

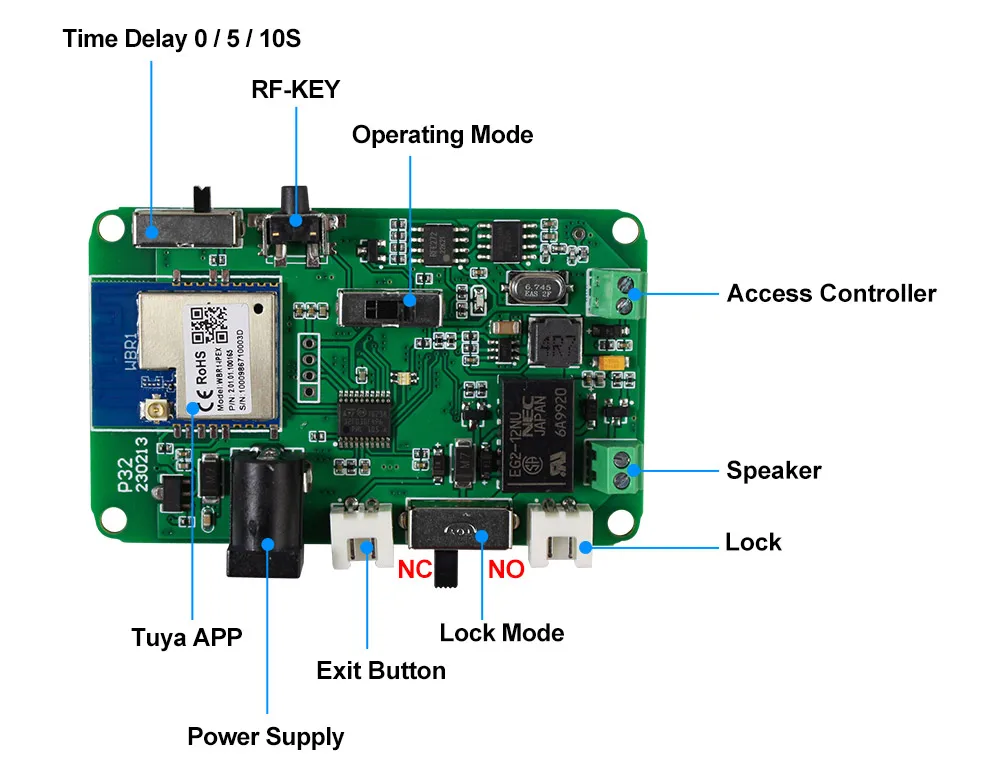

Operating Setting

① Lock Mode Select: if your lock is NC type, then switch it to NC, if your lock is NO type, then switch it to NO.
(NC: Fail-Safe Lock ; NO: Fail-Secure Lock )

② Operating Mode Select:
M: Momentary

L: Latched

T: Toggle

Momentary mode: The remote has ON feature. The door will unlocked temporarily when you press the button on remote transmitter. And the door will locked automatically after a few seconds.
Toggle mode: The remote has ON/OFF feature. When you press the transmitter once and the door will unlock. When you press the remote again, the door will then locked.

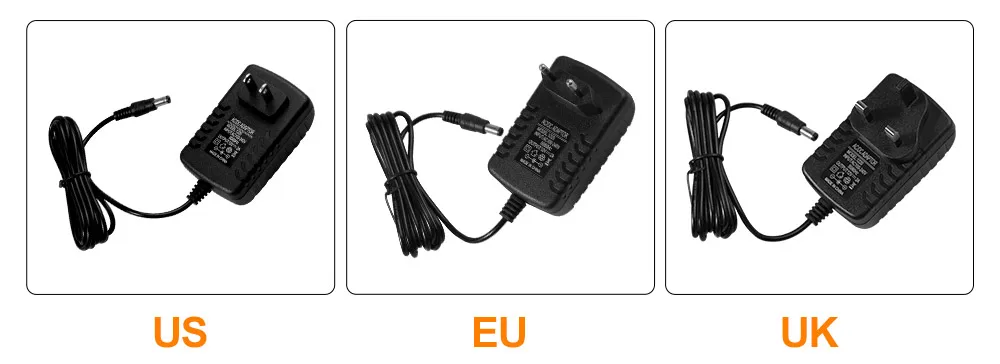

Power Adapter:
Input: AC100V-240V 50/60Hz
Output: DC12V / 2A (2000mA)
AC Cord length: 1.5meter

Power plug type: EU, US, UK optional. We will send EU type by default, if you want other type, please leave us a message.

Package List

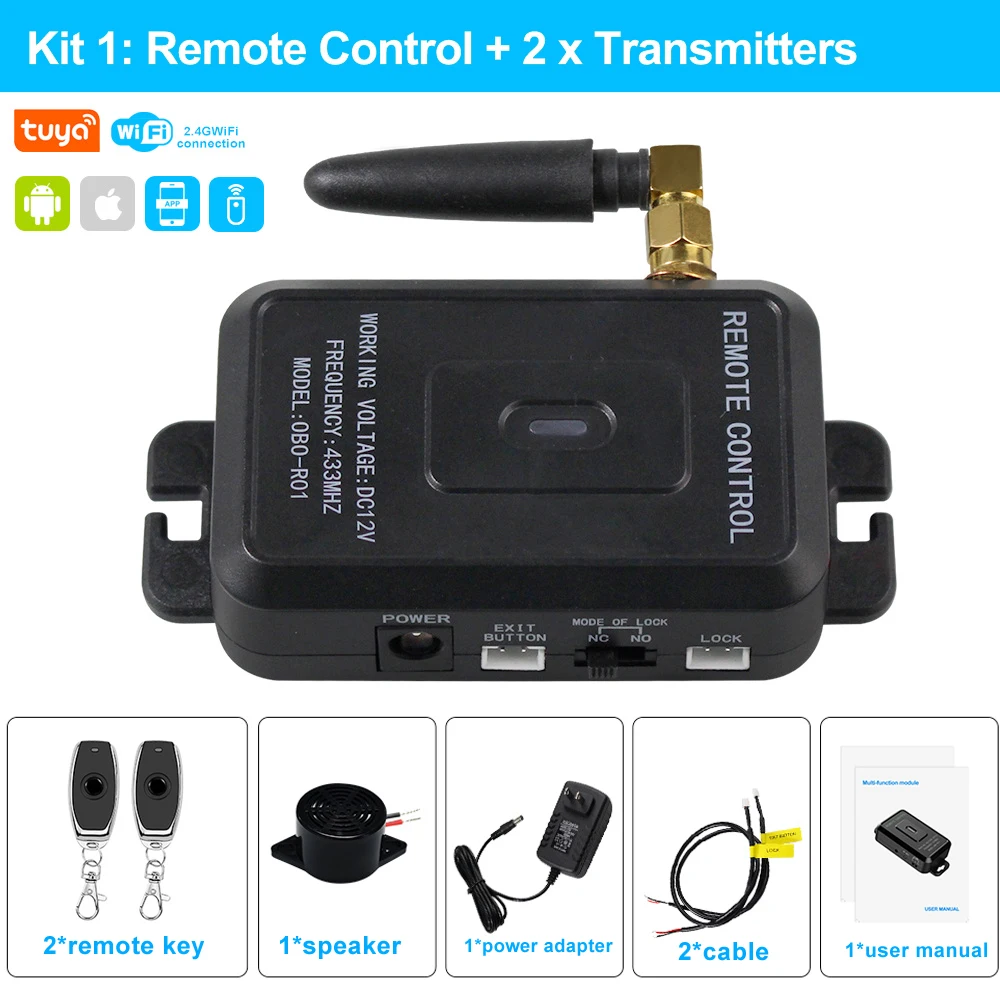

Kit1: Including Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter.

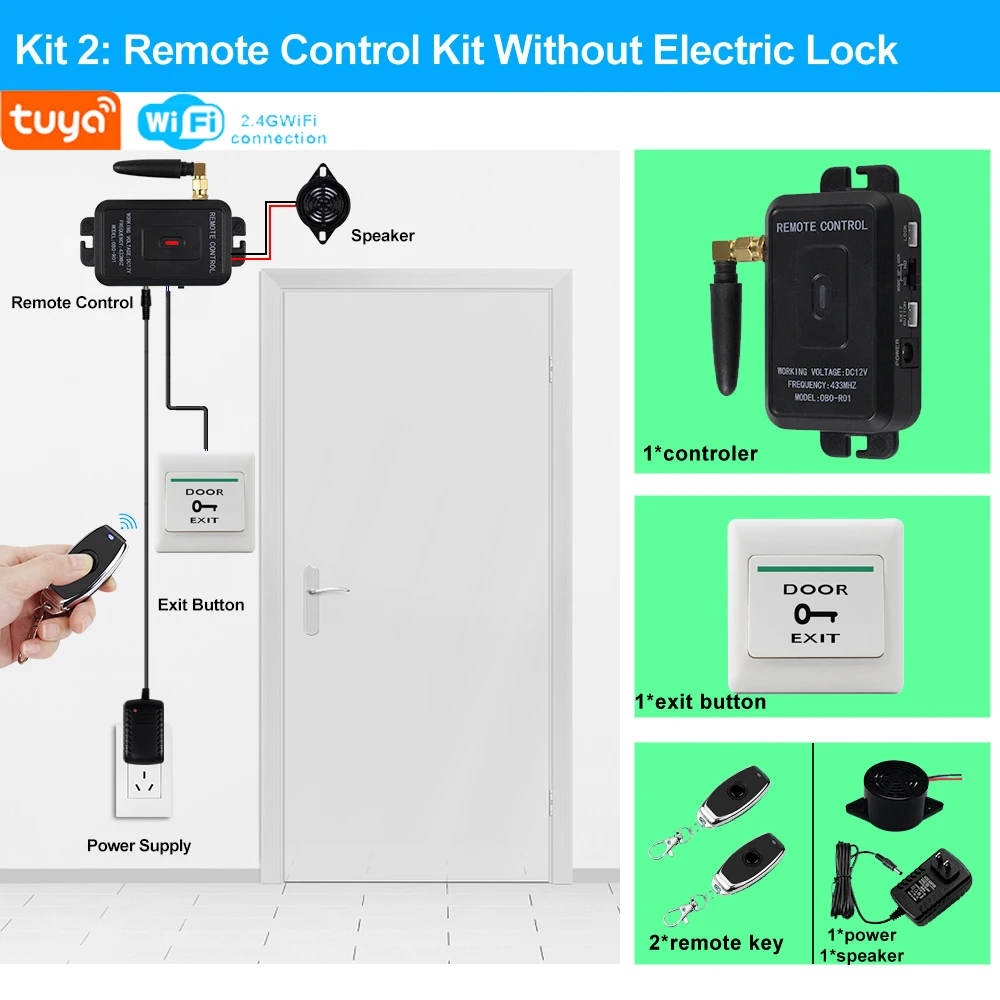

Kit2: Including Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button.

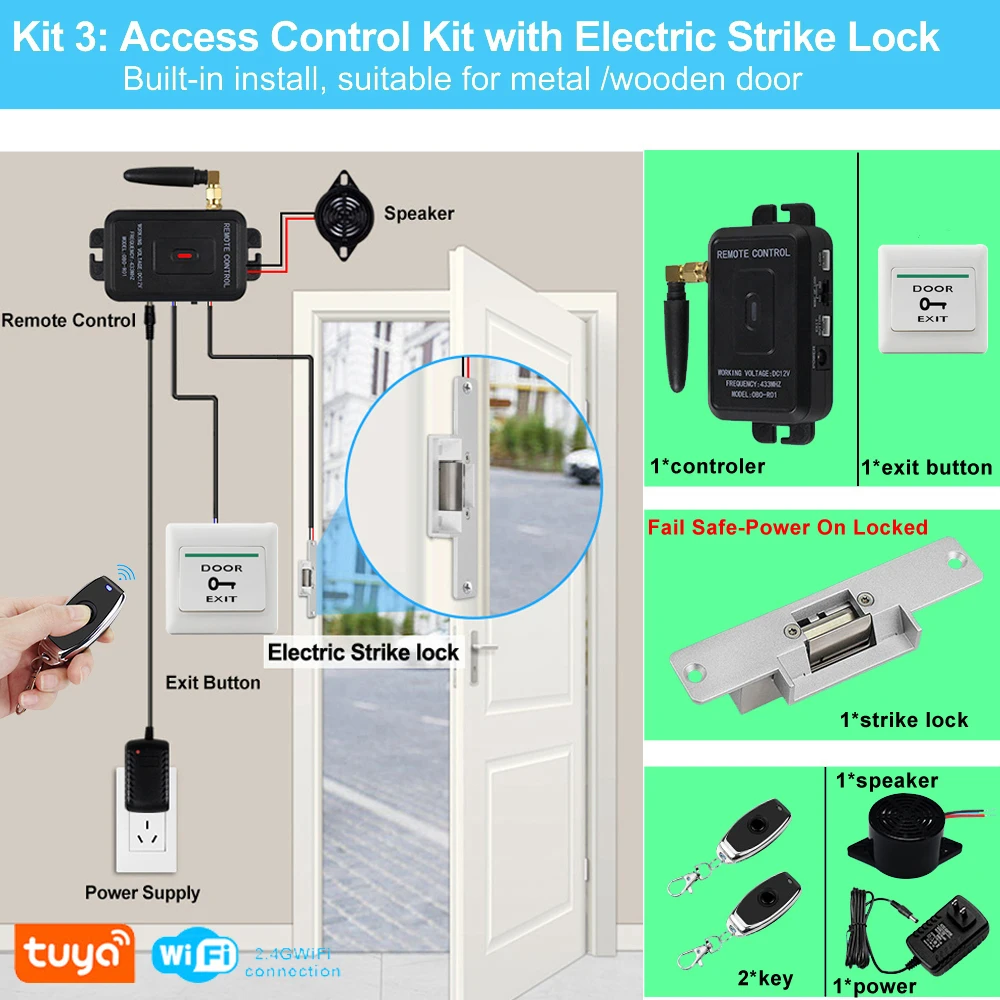

Kit3:  Suitable for wooden door, metal door. convenient and beautiful. No need bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + Electric strike lock.

(We will send the NC type by default, if you want NO type, please leave us a message.)

Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel

Size: 150 x 28 × 34mm (L / W / H)
NC type strike lock: Door locked when power on, unlocked when power off.
NO type strike lock: Door locked when power off, unlocked when power on.

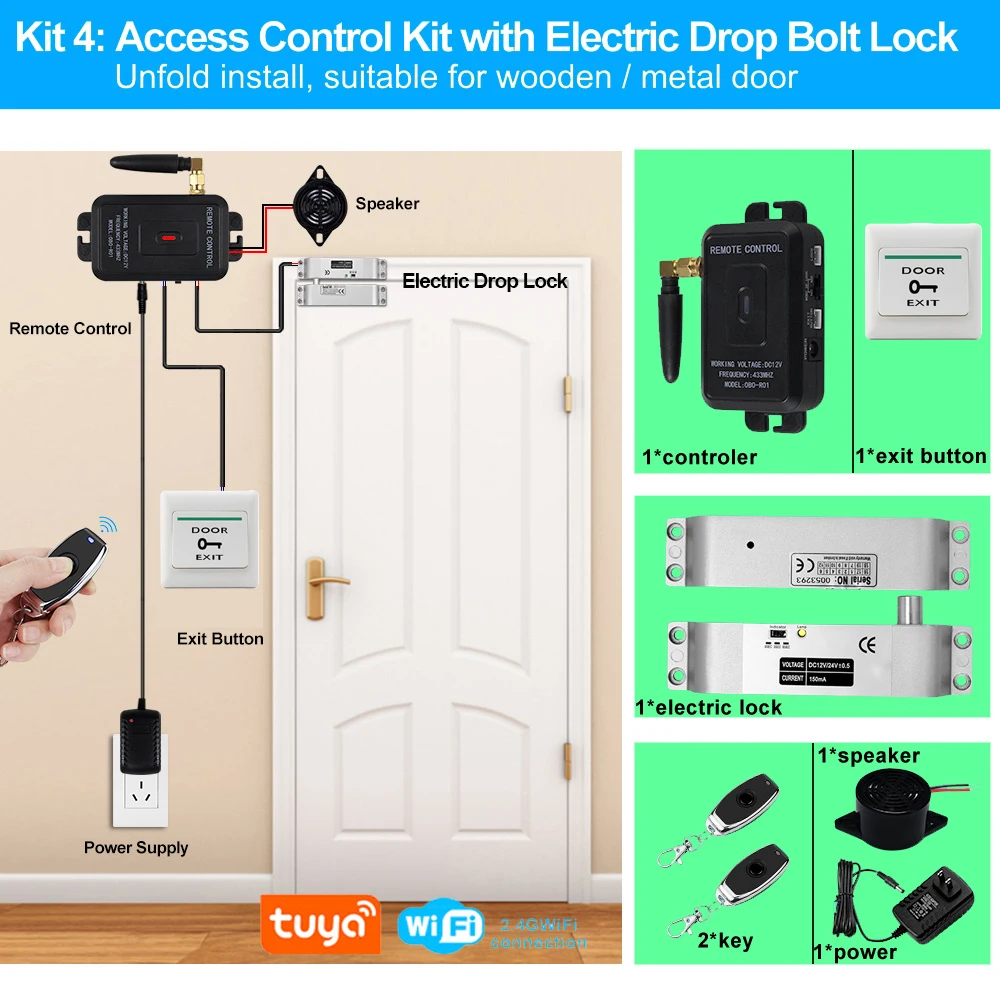

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button +

Electric Drop bolt lock.

Working voltage: 12V

Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe / NC type. The door will locked when power on, open when power off.
Dimension: 150X34X28( L / W / H )

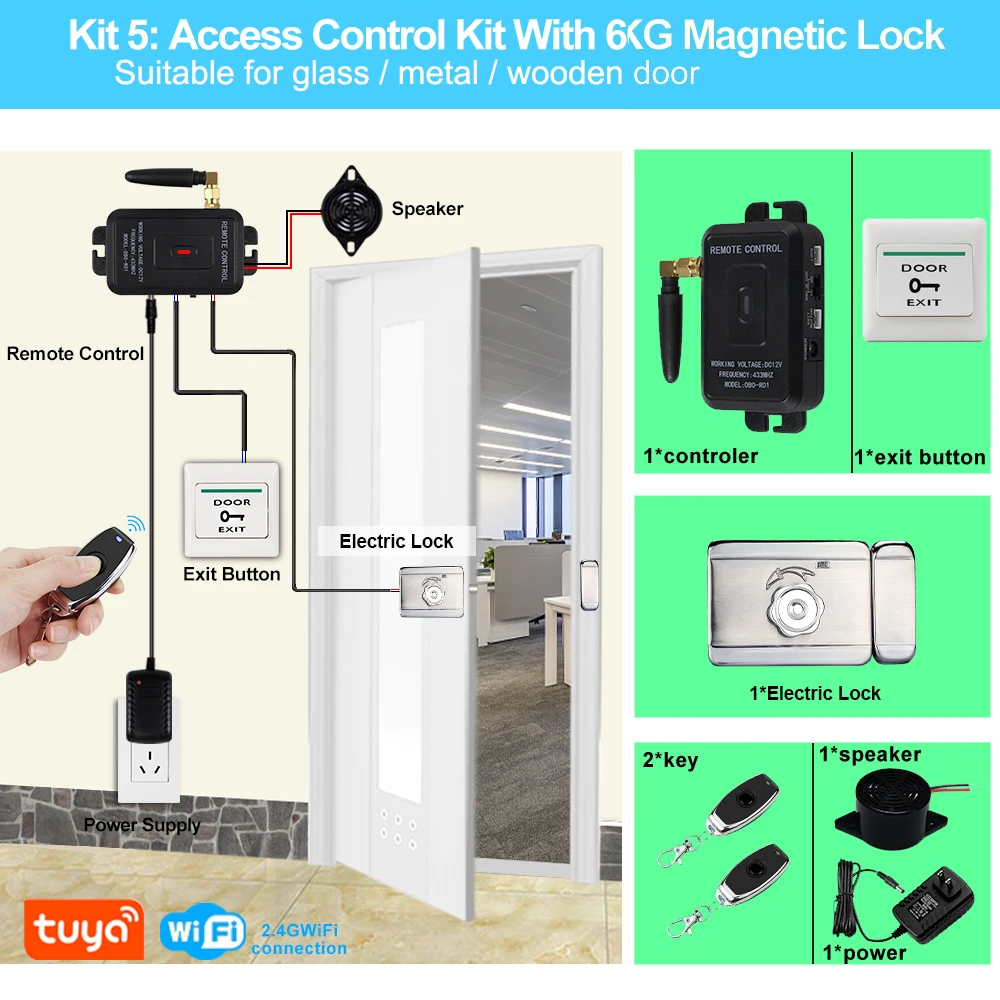

Kit5: Suitable for wooden, metal door. No need bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + Motor Rim lock

Material: Aluminum alloy shell + iron plate
Holding force: 60KG/132lbs
Working Voltage: DC12V
Working Current: 110mA
Humidity: 0 to 95%

Size: 80*36*23mm / 74*35*10mm (L/W/H)
Working Temperature: -10 to 55 Celsius degree
Working mode: fail safe / NC type. The door will locked when power on, open when power off.

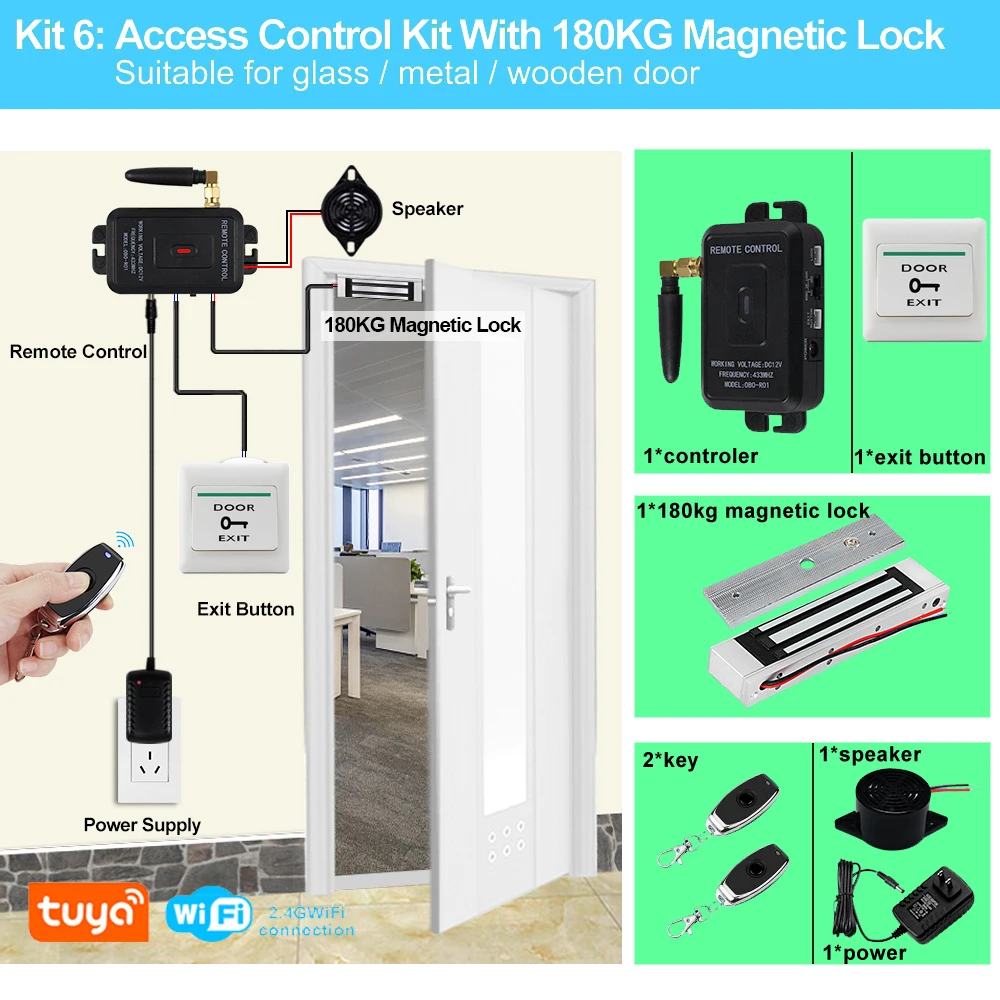

Kit6: Suitable for wooden, metal and glass frame door. No need bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + 180KG Electric Magnetic lock.

Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: fail safe / NC type. The door will locked when power on, open when power off.
Waterproof: Yes. Can be install outside

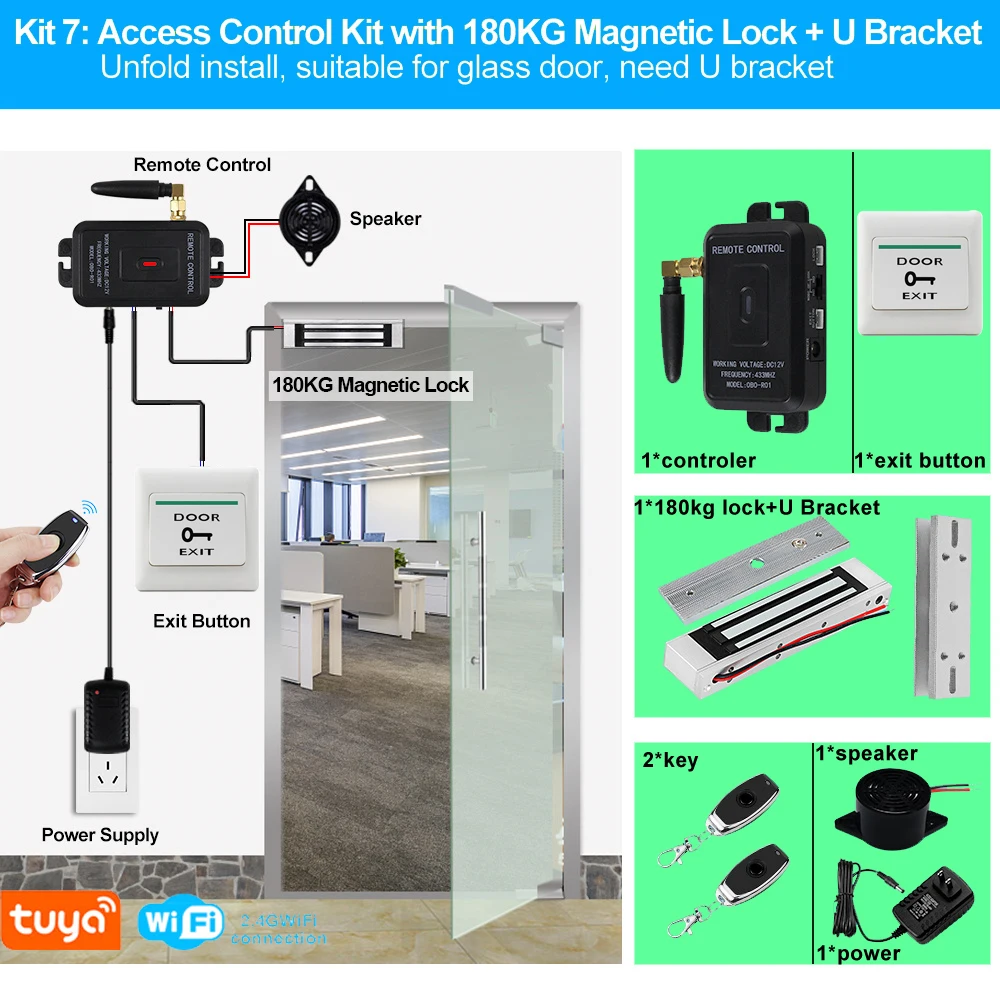

Kit7: Suitable for frameless glass door. Need U bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + 180KG Electric Magnetic lock + U bracket.

If your door is frameless glass door, then will need a U bracket

Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

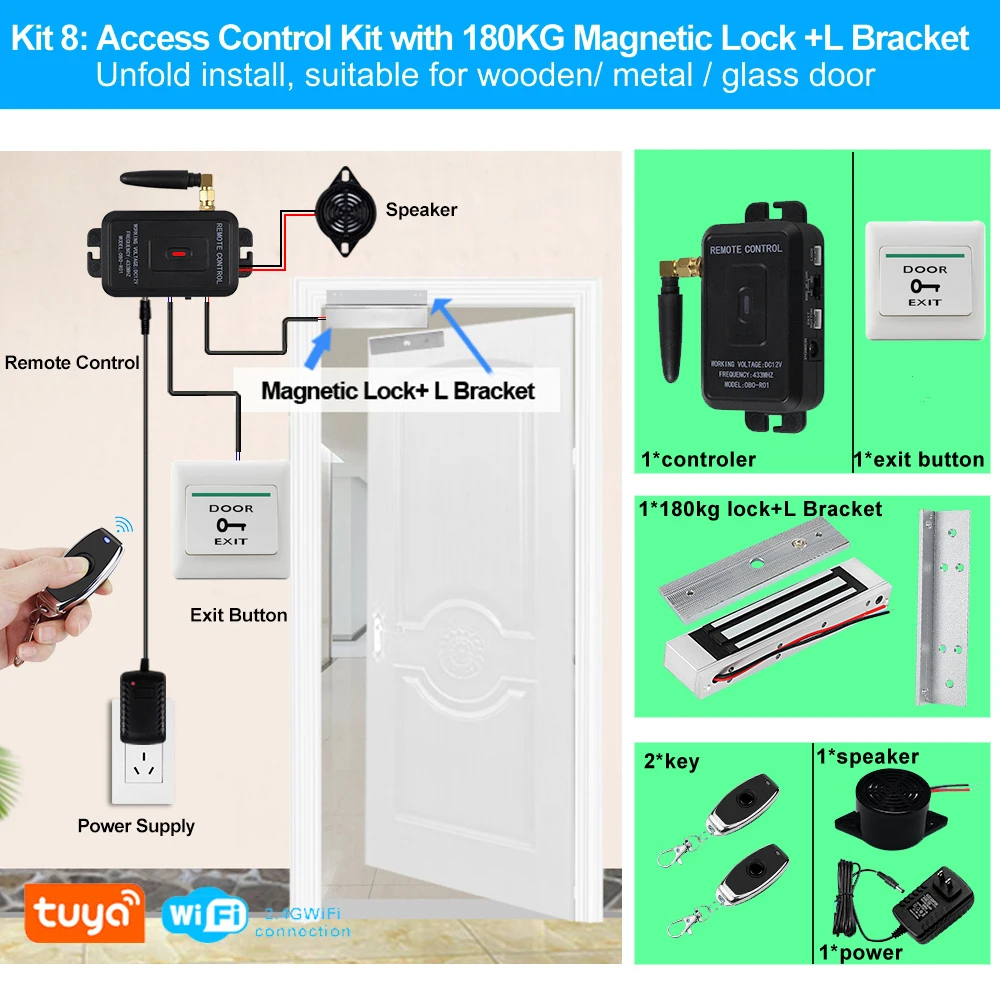

Kit8:Suitable for wooden, metal door. Need L bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + 180KG Electric Magnetic lock + L bracket.

Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.

Size of L Bracket:  170* 34 * 25mm (L/W/H)

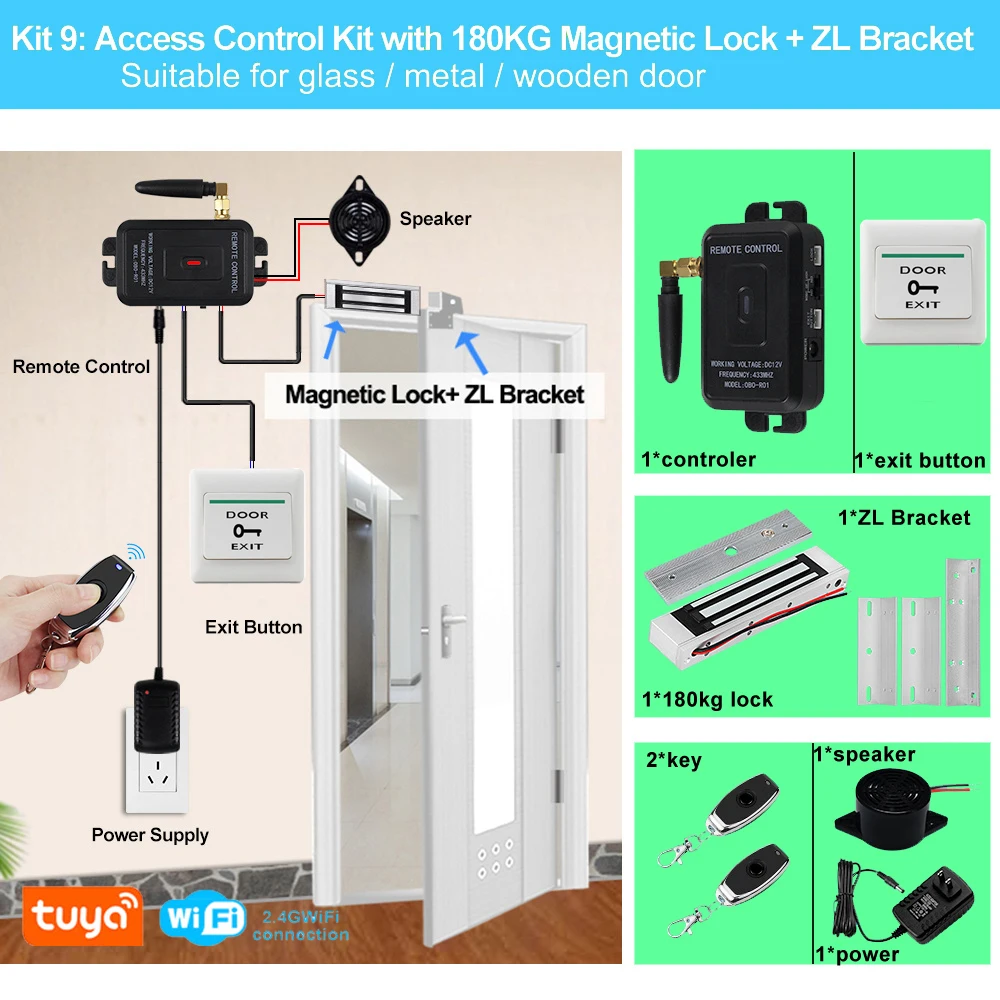

Kit9: Suitable for wooden, metal, glass door. Need ZL bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + 180KG Electric Magnetic lock + ZL bracket.

If your door is open from indoor, then need to add the ZL bracket.

Size of L Bracket: 170*34*25mm (L/W/H) ,

Size of Z Bracket: 138*45*45mm (L/W/H)

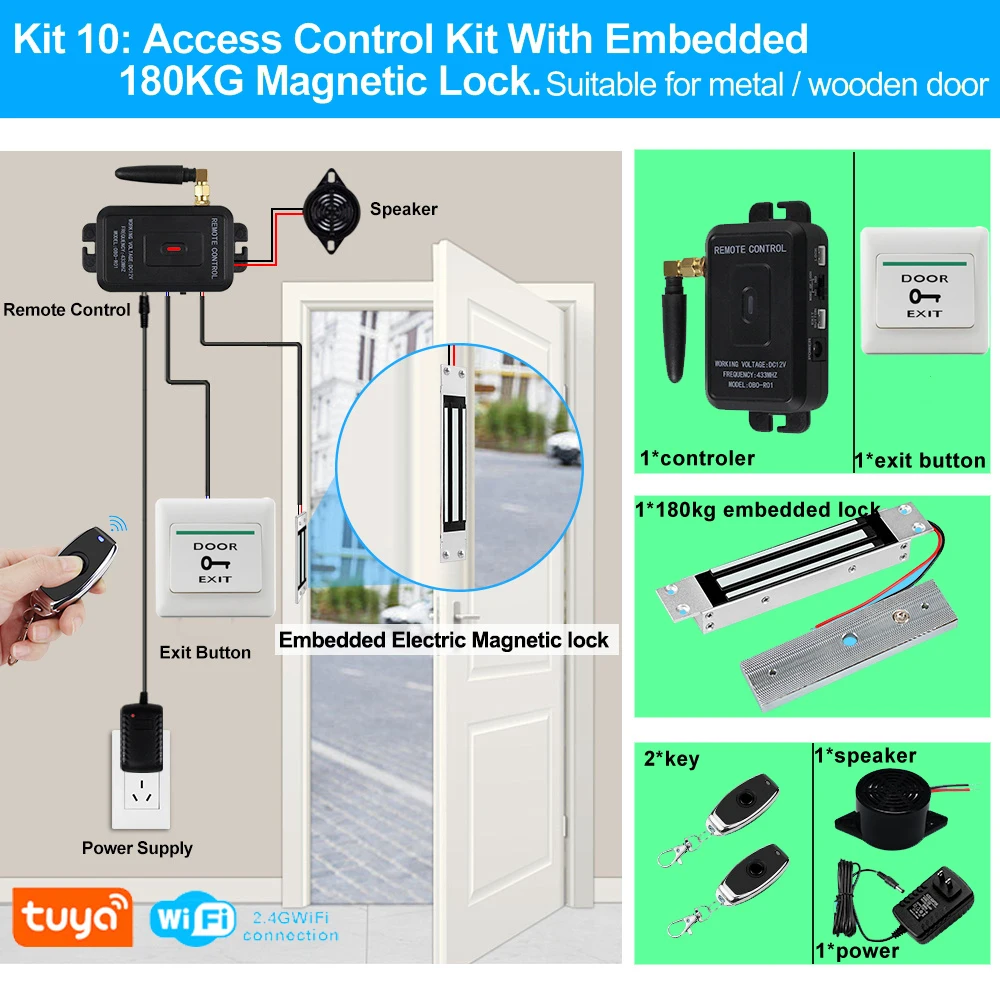

Kit10: Suitable for wooden, metal and glass frame door. No need bracket.

Package including: Multifunction remote access controller + Buzzer + Power adapter + 2pcs Remote transmitter + Door exit button + Embedded 180KG Electric Magnetic lock.

Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA

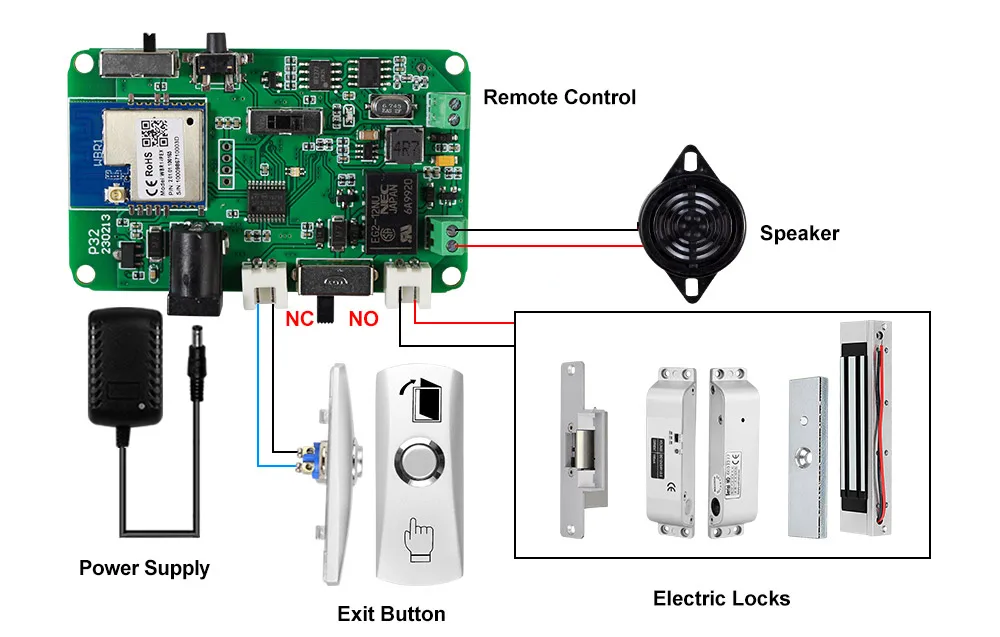

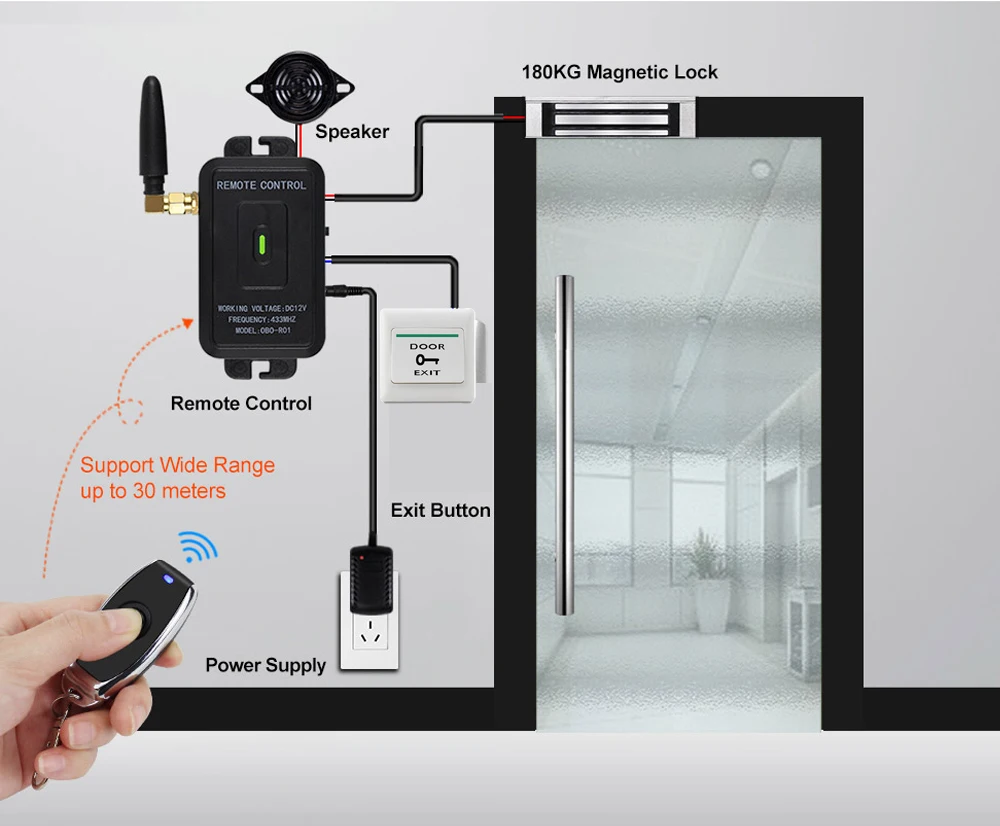

Wiring Diagram

The wire connection is very simply. Only need to connect the cables of door exit button, electric lock to the remote controller, and then connect power adapter.

(We provide the cables of door exit button, electric lock, power adapter)
