💥About Language Changes
The scanner defaults to English, If you receive the product, you can immediately contact customer service to change to the language you need ! ! !
Please confirm whether the VCI Bluetooth module is normal
Normal phenomenon:
①When inserting VCI into the OBD port of the vehicle, the blue light of VCI will light up briefly
②After connecting Bluetooth, the Bluetooth light is always on
1. The blue light is on, but the device VCI connection fails and the software package cannot be opened: VCI has been connected to Bluetooth,
①Please check whether it is connected to the previously matched mobile phone or tablet (not the current mobile phone or tablet)
②You can see whether the Bluetooth connection in the upper right corner of the APP is green
③Enter the Bluetooth settings of the APP to check whether the Bluetooth with the same serial number is checked
2. The Bluetooth light is not on:
①The mobile phone or tablet setting is not connected to Bluetooth. Prioritize the Bluetooth name in the mobile phone system (same as the device serial number) to confirm that the Bluetooth in the mobile phone settings is connected, and then go to the Bluetooth in the APP settings to select the corresponding device serial number. Under normal circumstances, the Bluetooth in the upper right corner will show green connected
②Multiple mobile phones cannot search for the device serial number Bluetooth: VCI's Bluetooth module has a hardware problem
The software prompts that the license has expired:
1. A single model cannot be entered: During the download of the software package, the mobile phone or tablet network is affected, resulting in the loss of some files.
Method: Long press to delete > Re-download on the update page after connecting to the network
If you cannot long press to delete, it is recommended that customers uninstall the APP and reactivate
2. Multiple models cannot be entered: There is an error in the activation information. Please delete the activation information and reactivate. After activation, connect to VCI and enter the software package to see if there is a solution.
Nothing is impossible. Own it, own the world
If you are an experienced DIYer who is good at fixing cars, or a professional mechanic in the area of automotive repairs, you should come across one of the best pro-level diagnostic scanners, A The obd2 scan tool is affordable and within reach for you to get basic and advanced repairs done on modern cars effectively, to deal with pretty much every auto repair scenario you can think of.,XTOOL A30D is better than THINKCAR Thinkdiag New Version which is only Service 1 Year Free
What Can You Do With The XTOOL A30D Version:
First intelligent OBDII Scanner with full OE Level Diagnostic functions!
1.Read fault Codes For All System ,such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc
2. Bi-Directional Control/Active Test + Auto VIN Scan Tool
3. Full OBD II and EOBD functions for full system scans
4. 16 Maintenance Functions All Car Free Use and Update Software Lifetime Save More than $100
5. Support 130 vehicle brands, support Throttle Relearn now
6. Live Data 8 In 1 Stream Graphing + Data Record + Print Vehicle Health Report Print + Remote Diagnostic Car Scanner
7. Wireless BT Connection
8. Compatible with both Android / iOS handsets and tablets
9. Palm-sized, portable, and powerful
Multiple language options: You can switch languages at will
English, Spanish, German, French, Finnish, Arabic, Turkish, Korean, Italian, Polish, Japanese, Vietnamese, Russian, Portuguese,
Languages are being added, stay tuned…
Lifetime Free Update Software For A30D:
We supply lifetime free update for all software and all vehicles. Without subscription fee and no limited. Which is better than other
Brand Scanner will Charge Subscription Fee
Car Voltage Display + Flashlight Function:
A30D can Clearly Read the Voltage of the Car, One click access to information about your car.
It also Has a Flashlight Function to Make it Easier to Find the Car's OBD2 Interface in Dark Places.
Lifetime free All 10 Mode OBDII/EOBD Functions
Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear DTCs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.
No one will miss this Bluetooth diagnostic tool with powerful advanced diagnostic functions.
All Cars Lifetime Free Full System Diagnosis
😊XTOOL A30D diagnostic tool can access all available system modules and read ECU information to facilitate the vehicle diagnosis such as Engine, ABS, SRS, Transmission, TPMS, SAS, BMS, Steering, EPB, Chassis, Air Conditioning, etc. Some commonly used systems as follows:
😊Check Engine System: A30D Bluetooth diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.
😊Diagnose ABS System: A30D diagnostic scanner checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes.
😊Read SRS System: The A30D code scanner reads the SRS information, detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.
😊Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.
Hassle-Free: Active Test (Bi-directional control)
XTOOL A30D Car Code Reader Actuates Solenoids and actuators for active testing, Send commands to systems/components to test their working status, without using the vehicle controls which saves much time to identify malfunction causes.
Uses the Free XTOOL Anyscan App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness
Like [ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]
XTOOL A30D All Cars Lifetime Free 16 Resets Service, Lifelong Update Software Free
A30D Now support Throttle Relearn, Control Unit Reset,
Windows Initialization
16+ special functions including: Control Unit Reset, Windows Initialization, Throttle Relearn, Seat Calibration, Tire Upgrade, ABS Bleeding, Oil Reset, Injector Coding, Air Suspension, TPMS Reset, BMS Reset, EPB Rest, DPF Reset, SAS Reset, Tooth Learning, Transmission /Gearbox Matching etc.
Latest free addition 5 Reset Service: ECU Control Unit Reset, Windows Initialization, Seat Calibration, Tire Upgrade , Throttle Relearn…
🚦Window Initialization: This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window
🚦Seat Calibration: This function is applied to match the seats with memory function that are replaced and repaired.
🚦Tire Upgrade : When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed, tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
🚦Throttle Relearn: Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
ABS Bleeding: Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS module to get firm brake pedals.
Oil Reset: Reset service intervals after oil change and turn off the oil light.
Injector Coding: Coding injectors after replacement.
Airbag Repair: After replacing the Airbag, reset the Airbag data and clear the collision data.
Tire Pressure Monitor System Reset: Relearn TPMS sensors that new sensors can be recognized by ECU
BMS Reset: Register the new battery to the ECU after replacement.
EPB Reset: Reset brake pads after replacement of brake system.
DPF Reset: Perform DPF regeneration
SAS Reset: Perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM.
Tooth Learning: Crankshaft position sensor learns crankshaft tooth machining to lerance and saves to the tablet to more accurately diagnose engine misfires.
Transmission/Gearbox Matching: Reset the adaptive shifting points in your automatic Transmission Control Unit.
Note: Different models will be supported due to different functions. Please send the model, production year, VIN and function to check compatibility before purchasing.
CAN-FD Protocols
With the development of vehicle technology on the market, CANFD has efficient and fast information transmission.
XTOOL A30D it is the only product in this price range that is compatible with CAN-FD, Supports the latest For GM vehicles manufactured after 2020.
Making the software simpler and more efficient. Not only does it provide shorter CAN frames while increasing the bit rate, but this also has the advantage of shorter latency, more accuracy, better real-time performance, and higher bandwidth.
Additional Services Save Your Time：
Flashlight Mode: Helps you easily and accurately insert your A30D into the OBDII port at night or in low light/dark environments.
Car Voltage Display: Displays the vehicle voltage in real time to ensure safety.

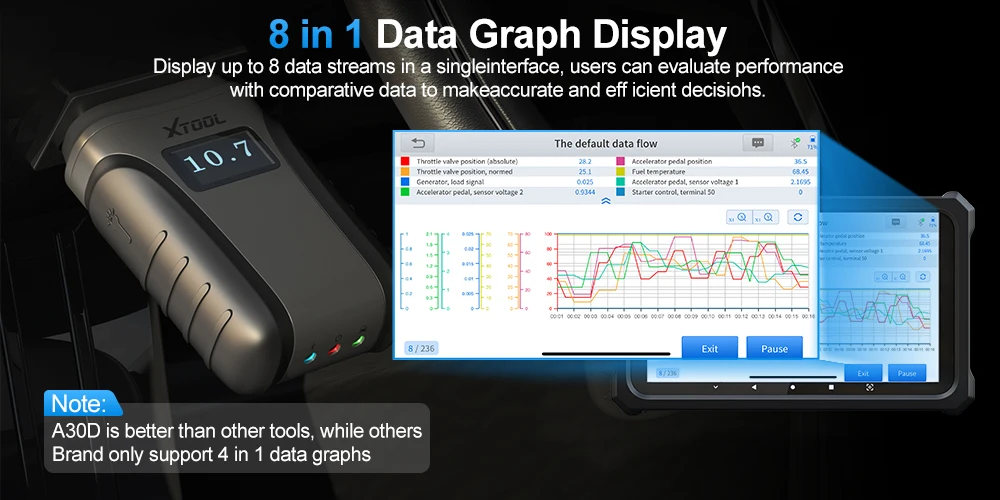

8 Data Display in 1 Graph
Coverage Over 110 Cars Maker From 1996 to 2024 (Some Makes to 2025)
This XTOOL all-in-one scanner is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic. Work for 12V Petrol Sedans, SUVs, Minivans and Light-Duty Trucks across the globe, including:
Europe Car List:
For Audi, For Skoda, For EurFORD, For Opel, For Bugatti BenzTRANSP, For Lamborghini, For Bentley, For SEAT, For MINI, For ROLLS, For BMW, For SMART, For VAUXHALL, For PORSCHE For JAGUAR, For Volkswagen Nutzfahrzeuge, For MAYBACH, For LANDROVER, For BENZ, For DACIA, For CITROEN, For RENAULT, For VOLVO, For PEUGEOT, For VW…
America Car List:
For GMC, For CADILLAC, For CHEVROLET, For BUICK, For PONTIAC, For SATURN, For HUMMER, For DODGE, For USAFORD, For CHRYSLER, For GM…
China Car List:
For SAIC-MG, For GREAT WALL, For BYD…
Asia Car List:
For KIA, For INFINTI, For DAIHATSU, For ISUZU, For SSANGYOUNG, For SUZUKI, For HYUNDAI, For MAZDA, For ACURA, For HONDA, For SUBARU, For LEXUS, For NISSAN, For SCION, For TOYOTA, For MITSUBISHI…
Australia Car List:
For AUFORD, For HOLDEN…
Russian Car List:
For ZAZ, For IZH, For PAZ, For UAZ, For VAZ, For GAZ, For Lada….
1. Bluetooth-Compatible Easy Connection :
With BT wireless connection, Your IOS/Android device can communicate with your vehicle via the XTOOL Anyscan A30D diagnostic scanner at a distance of up to 33 feet (10 meters). Vehicle Diagnosis is no longer confined to the inside of your car, you can easily work in the shade or outside the car.
1) Plug the A30 into the OBD2 port directly.
2) Connect the A30 to the OBD2 extension cable, and then insert them into the OBDII interface. (NEED BUY)
2. Print the Vehicles report Function:
3. Quick VIN Identification
AUTO VIN technology can identify vehicle make, model, and year information to shorten the vehicle navigation process
Once the system successfully obtains the VIN ( Vehicle Identification Number ) information of the currently identified vehicle, it will continue scanning the vehicle systems. After the scanning is complete, a diagnostic report will be
Note: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
Support 10 Full OBD2 Functions:
This diagnostic software can test vehicle Engine systems.All models with engine meeting SAE J1850,ISO9241-2,ISO14230-4,ISO15765 Standard in OBD2&EOBD.
* Data Stream: This option retrieves and displays live data and parameters from the vehicle's ECU.
* I/M Readiness: An important part of a vehicle’s OBD II system is the Readiness Monitors, which are indicators used to find out if all of the emissions components have been evaluated by the OBD II system.
* Display Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer.
* Read Codes: This option is used to identify which part of the Engine emission control system has malfunctioned.
* Clear Codes: After reading the retrieved codes from the vehicle and certain repairing, you can use this function to erase the codes from the vehicle. Before performing this function, please make sure the vehicle’s ignition key is in the ON position with the engine off.
* O2 Sensor Test: The results of O2 sensor test are not live values but instead the results of the ECU’s last O2 sensor test. Not all test values are applicable to all vehicles, not all vehicles support the Oxygen Sensors screen.
* On-board monitor Test: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
* EVAP System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. The tool does not perform the leak test, but signals to vehicle's on-board computer to initiate the test. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
* Vehicle Information: This option displays the vehicle information, such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration Verification Number).
How to Use:
👉1. App Download and Install
For iOS – Download the "Anyscan" App from App Store
For Android – Download the '' Anyscan" APP from Google Play or the Official Website(Support- Download APP- Anyscan)
Please be reminded that the main interface of iOS/Android Smart devices is different.
👉2. Bind and activate the dongle in the APP
Find S/N and activation code on the quality certificate
👉3. Plug the A30D interface adapter into OBD2 Port.
👉4. BT Pairing and connecting
iOS: Click for BT setting on both Anyscan APP or device settings and pairing with A30D
Android: Click for BT setting on Anyscan APP only and pair with A30D
👉5. Turn on the ignition and start the diagnosis.
If you have any issues, please come to us with S/N and the OS of your smart device for support. We will always do whatever it takes to solve any issues.
Support Mobile Phone & Tablet Computer:
Android: 7.0 above & IOS: 10.0 above
XTOOL Use in XTOOL+ APP. XTOOL OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 5.0 and APP.
