Features:
1. Made of high-quality aluminum alloy material, sturdy and durable;
2. The shell is paired with a fast charging board and comes with a full protocol mobile phone for fast charging, making it convenient for various DIY modifications;

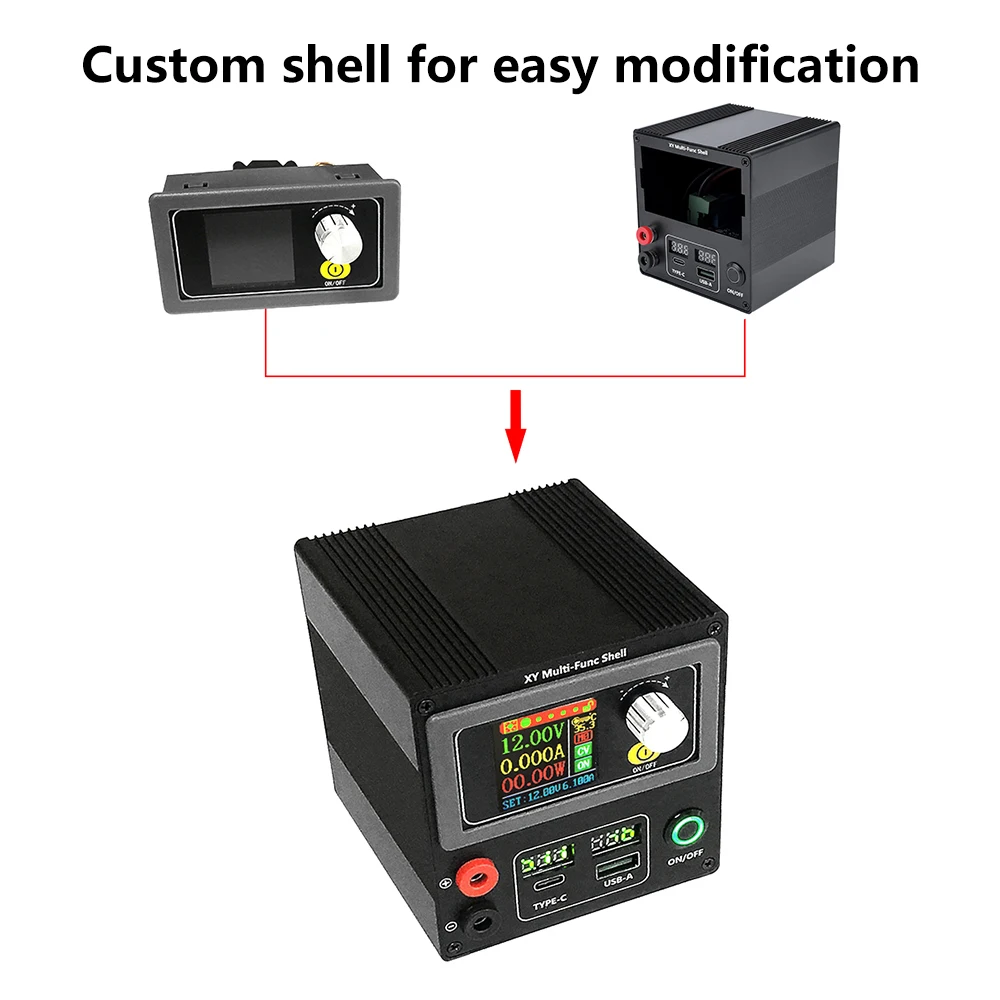

3. The shell kit needs to be used in conjunction with the product module, and can be used in conjunction with models such as H3606, S3580, and S3606 power supplies;

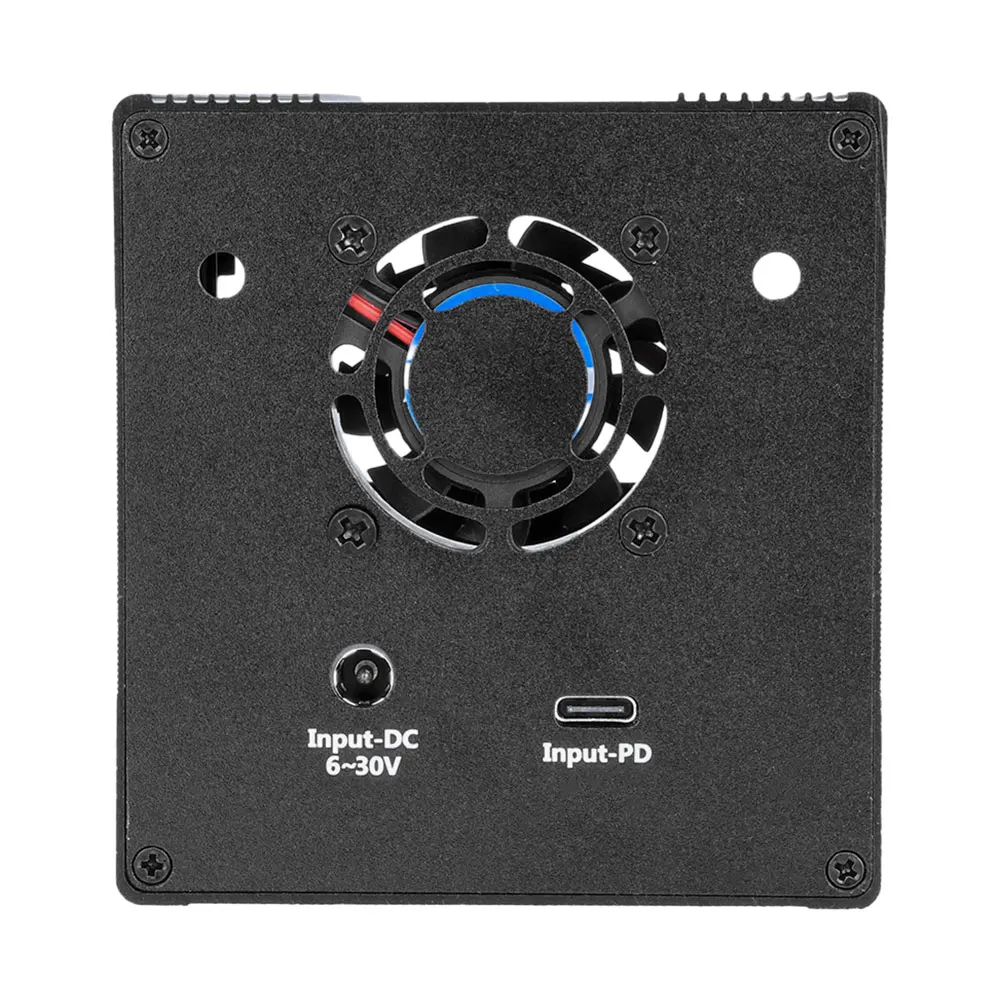

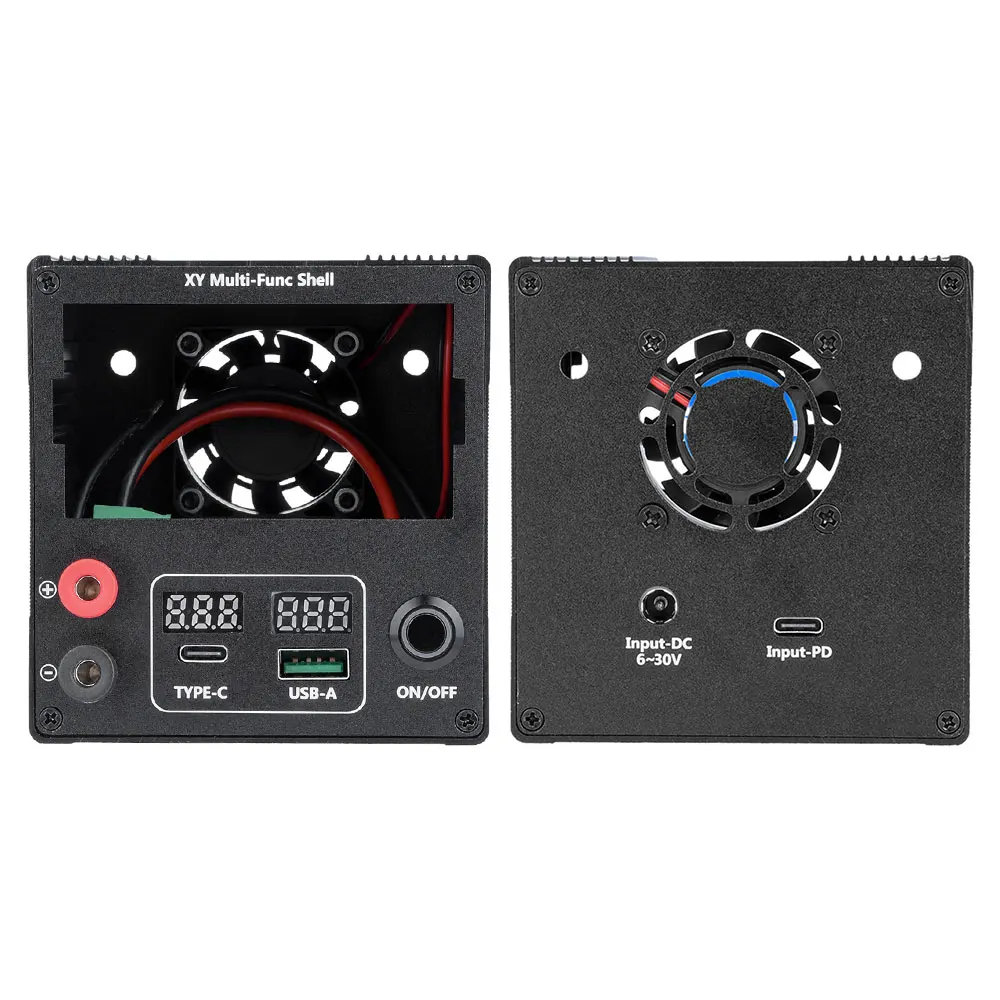

4. Adopting multiple input methods, supporting Type-C port with PD protocol fast charging head input, pure copper DC plug DC5.5 * 2.1 input DC6.0~30V input method;
5. It is compact and can be widely used in various occasions, such as diagnosis and treatment electronic instruments, communication and broadcasting equipment, industrial electronic equipment, DC motors, charging equipment, etc.
Parameter:

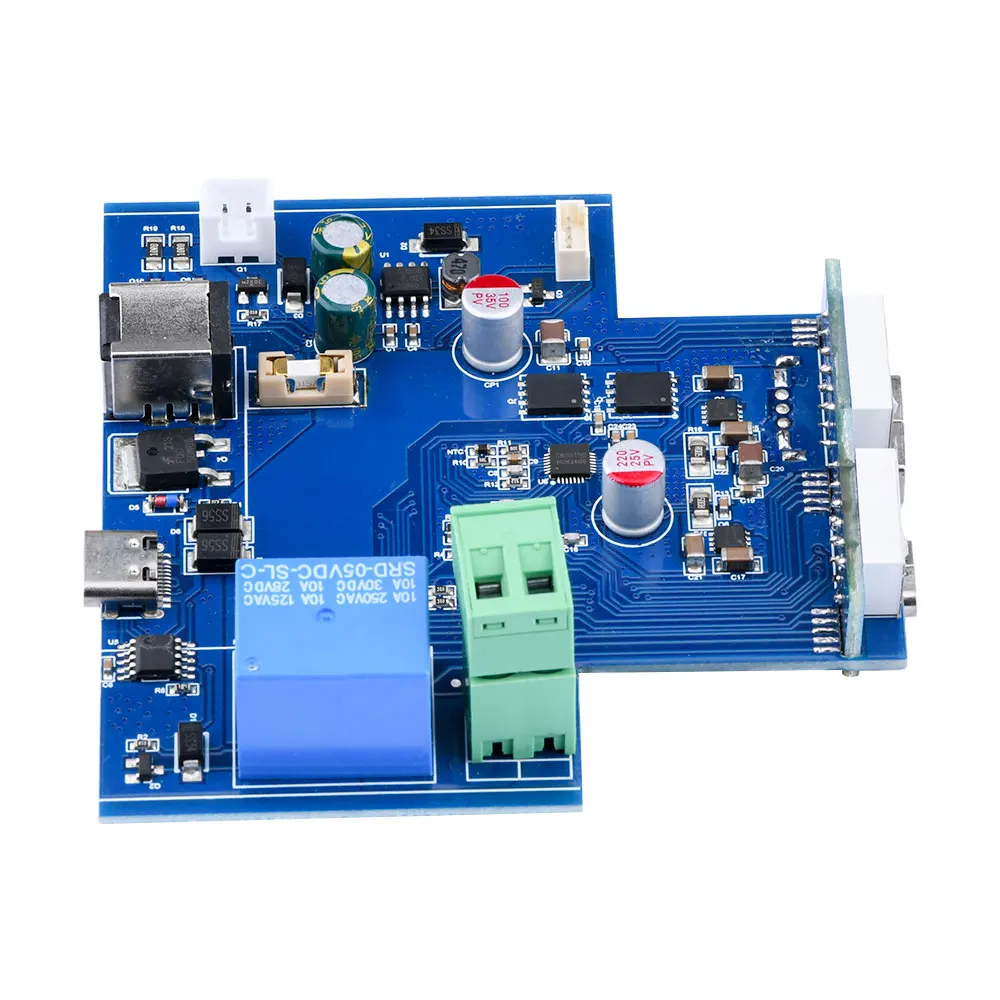

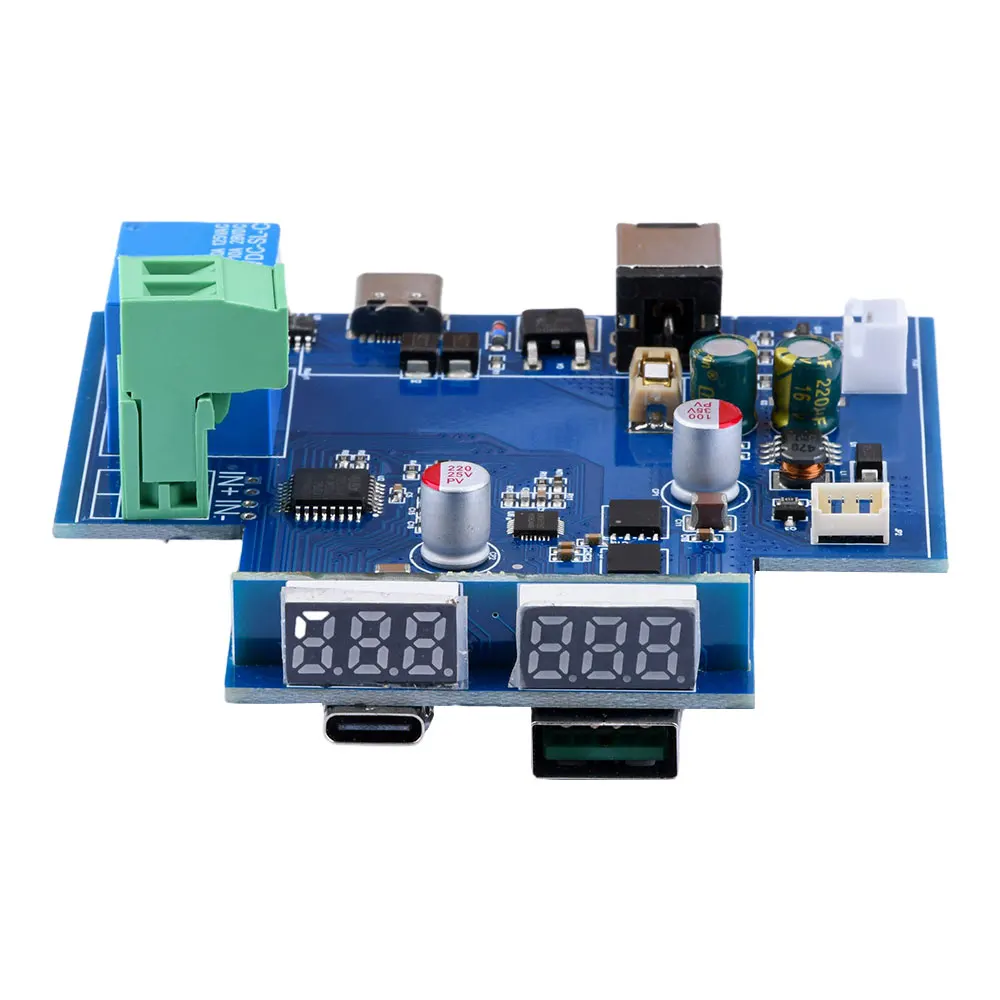

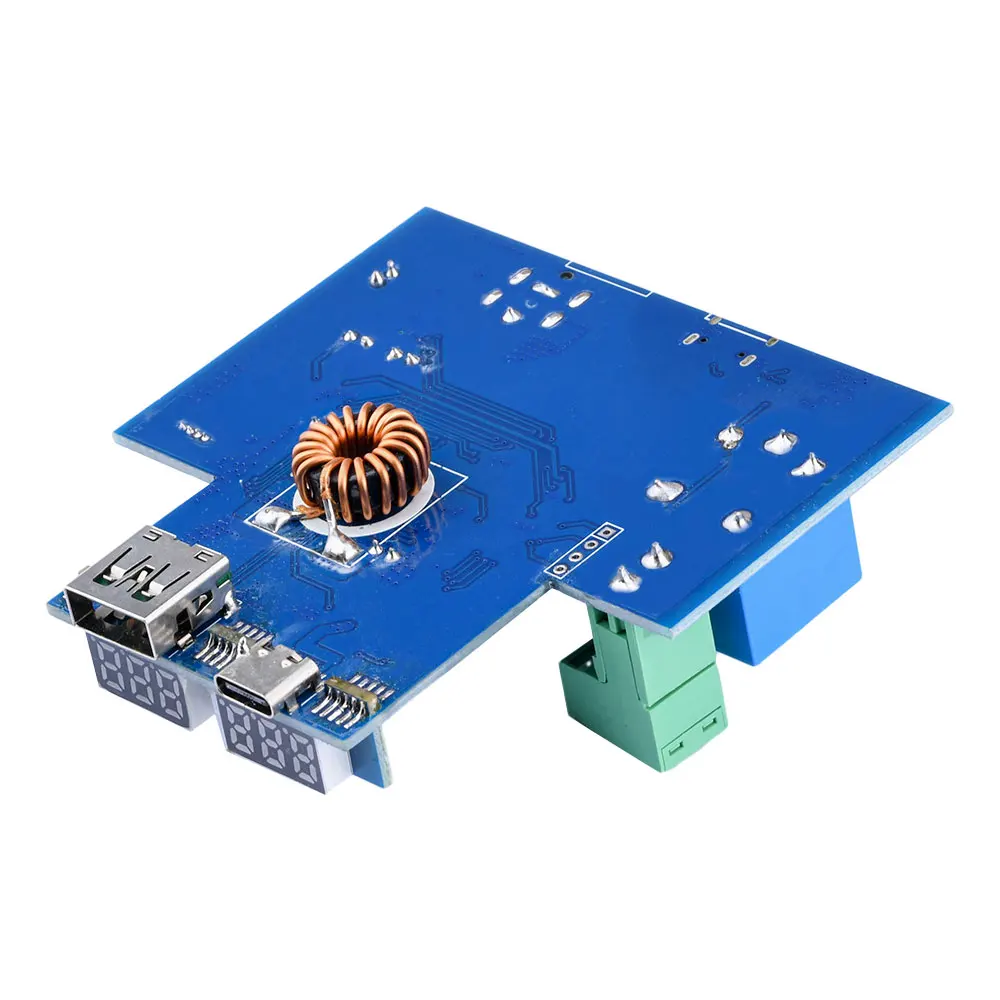

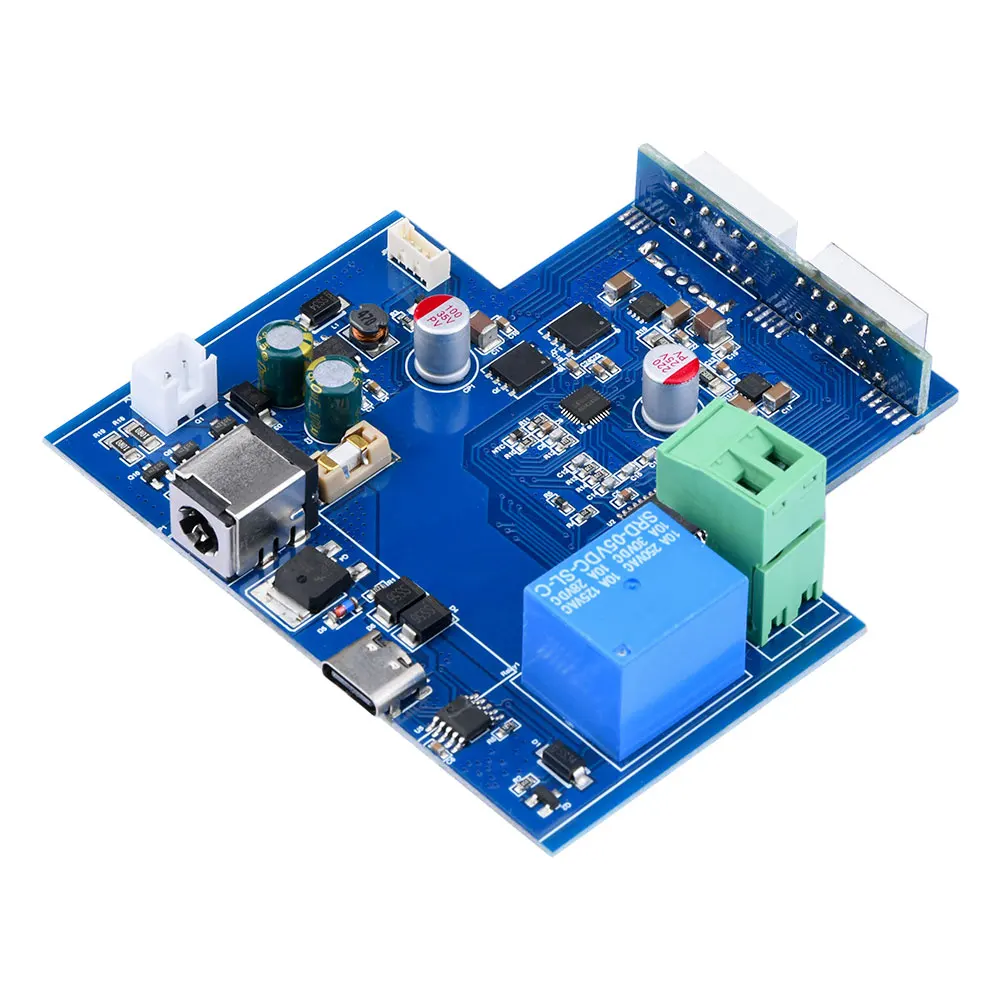

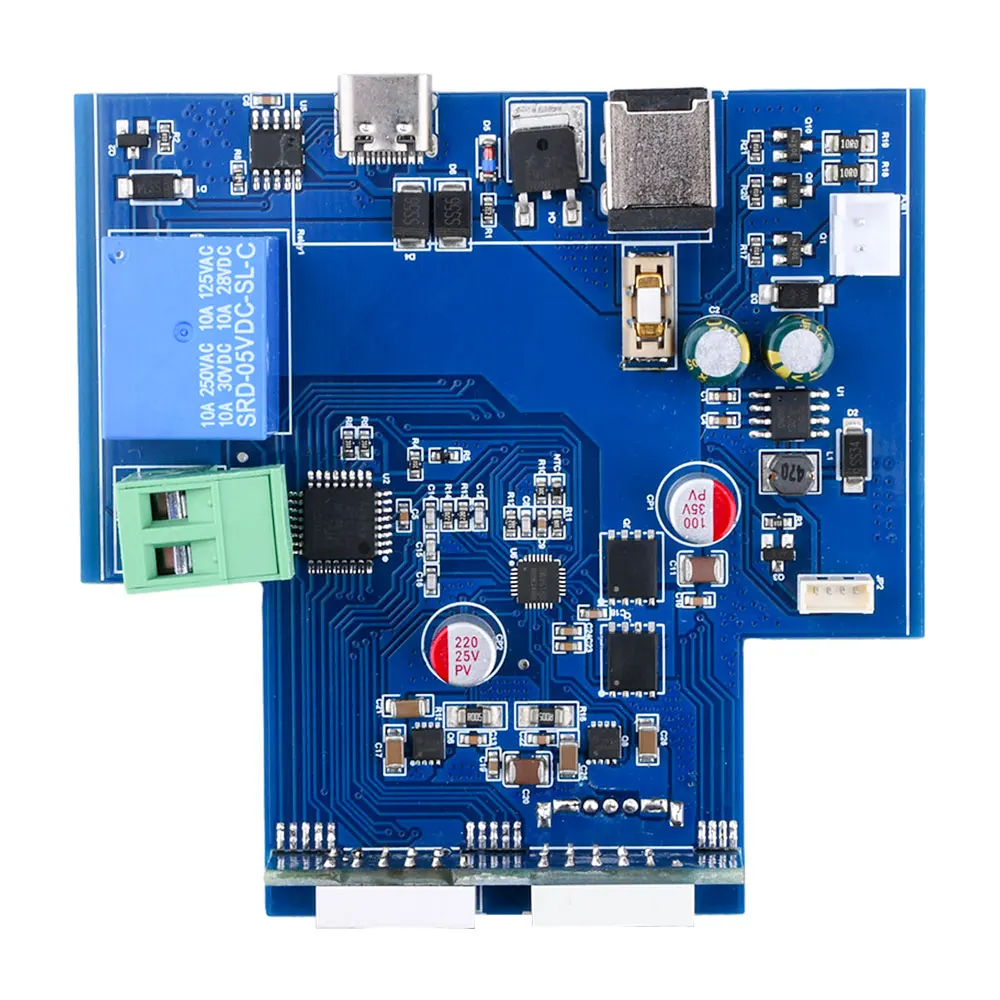

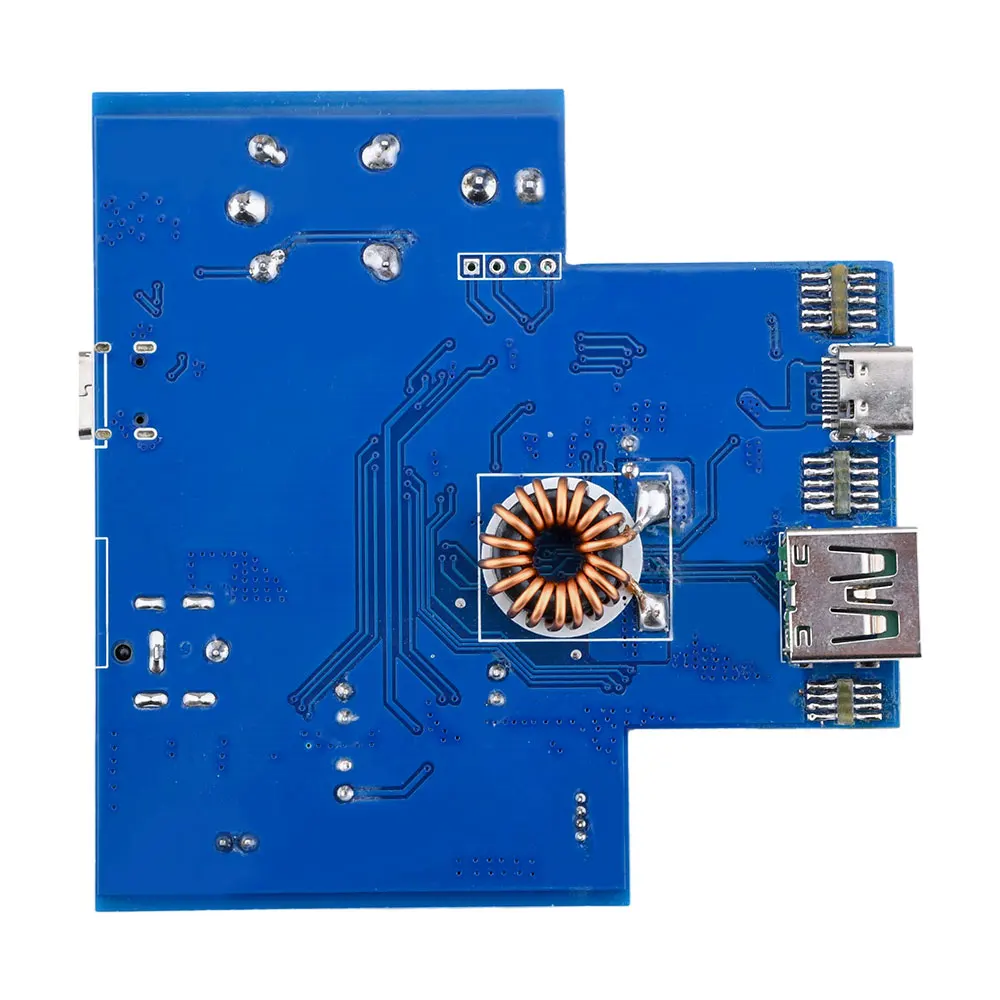

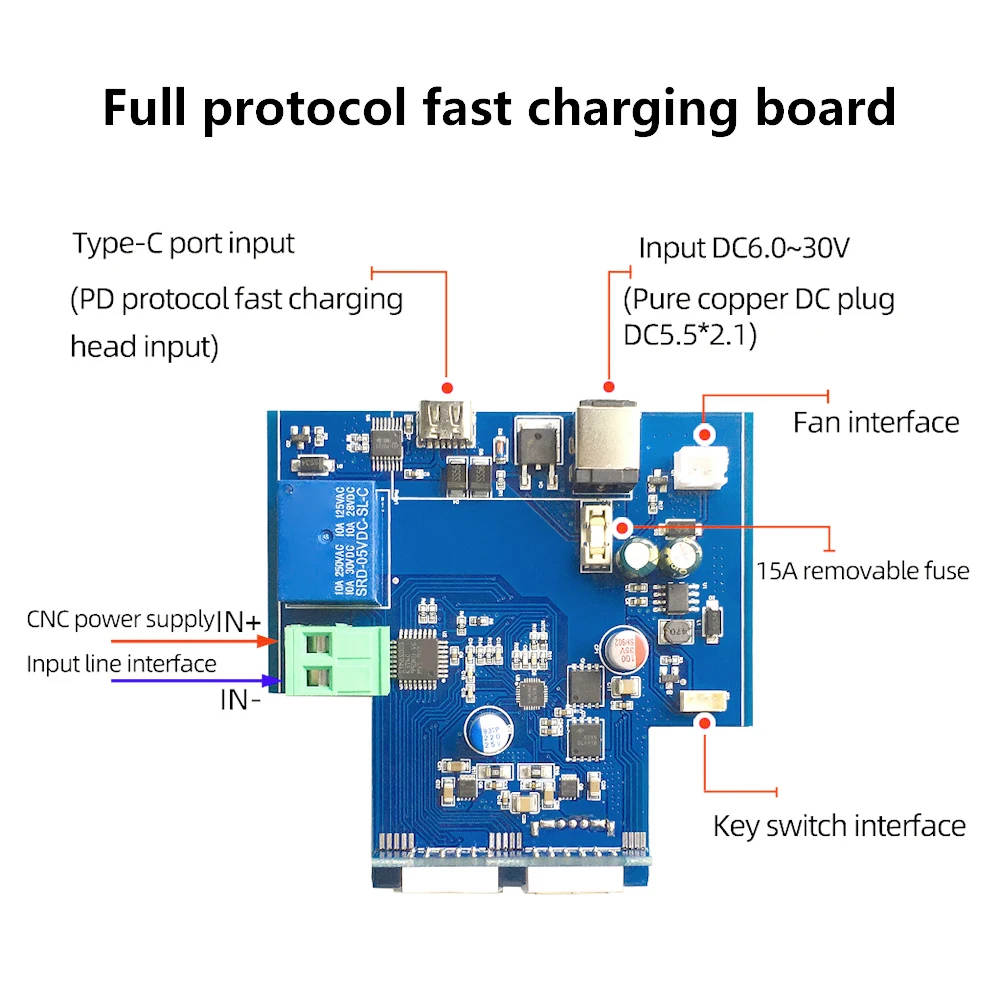

Full protocol fast charging board:
Interface: Type-C
DC plug: DC5.5 * 2.1
DC input voltage: DC6.0-30V
Current: 15A (maximum)
High compatibility: Supports the following fast charging protocols:
PD2.0 PD3.0 PPS
Qualcomm QC4+/QC3.0
Huawei SCP/FCP
OPPO VOoC
DASH
Apple 2.4A
Samsung AFC
VIVO 9V2A dual engine
MediaTek PE2.0
Attention: The maximum input voltage of the fast charging board is DC30V, so it is recommended to purchase a matching power supply with the highest input 30V. It is recommended to use it with our H3606, S3580, S3606 and other power supply models. If you choose a voltage reducing power supply with a comparable voltage, you can only ensure that the input voltage is within 30V, otherwise it may cause overvoltage damage to the fast charging board. Please bear your own responsibility.

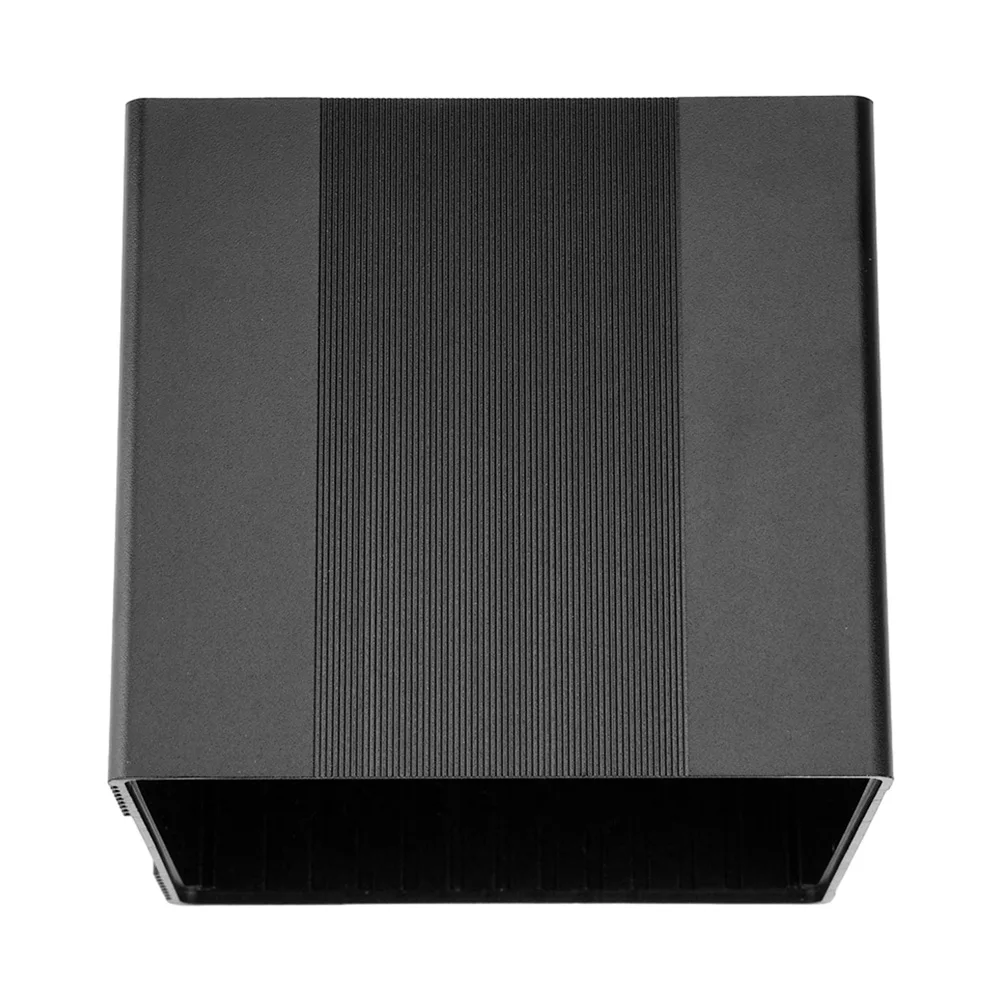

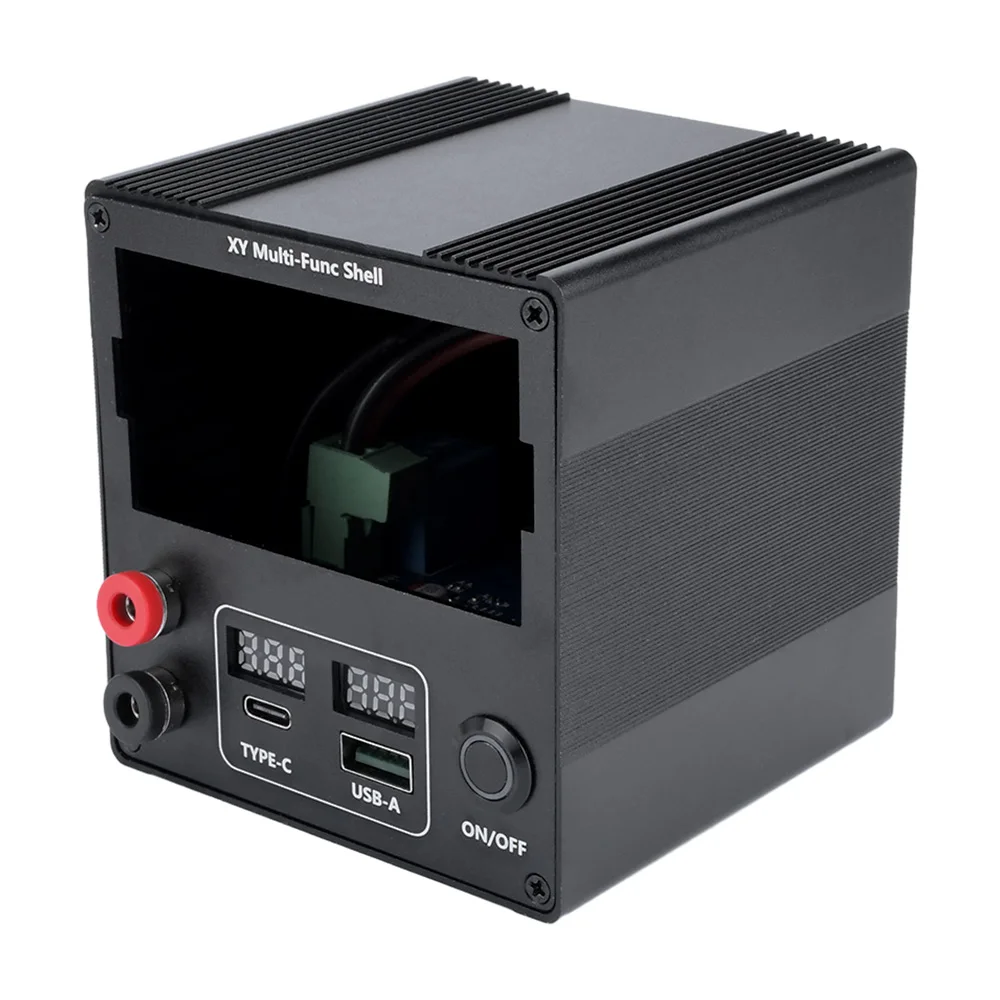

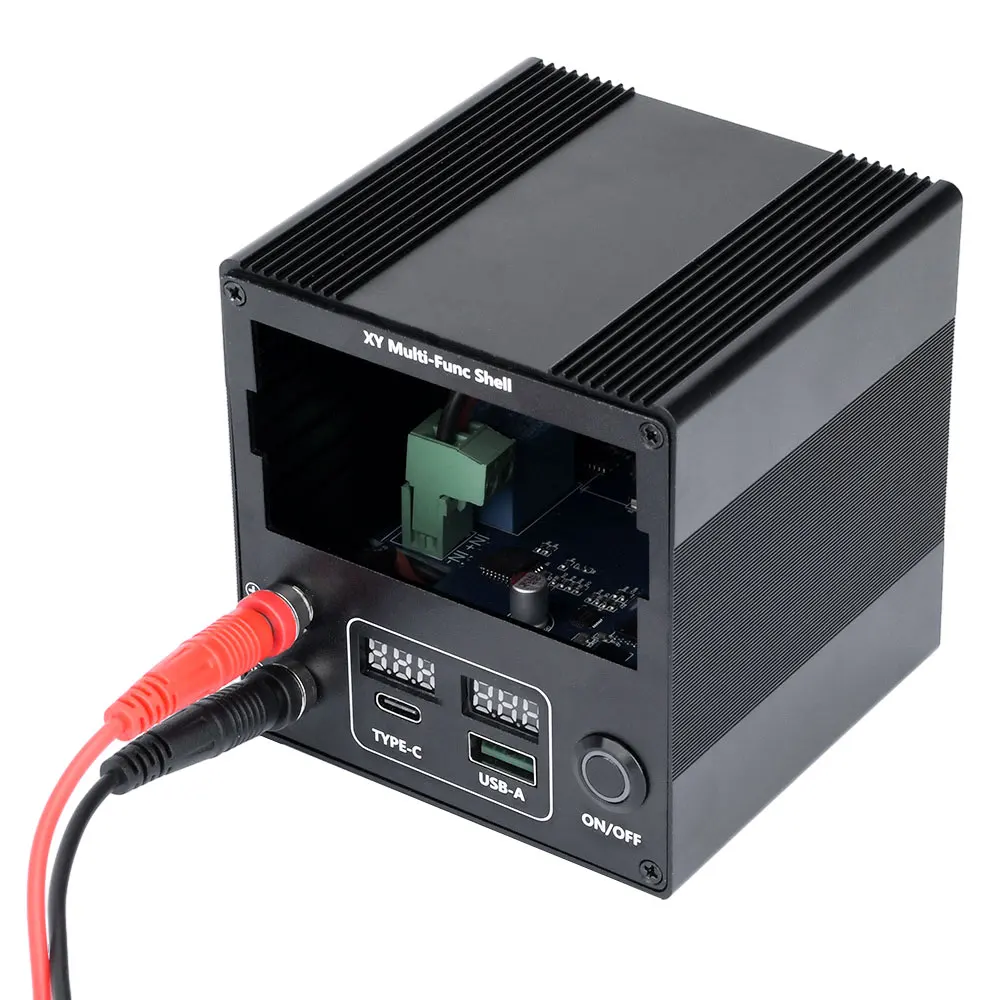

Shell:
Material: Aluminum alloy
Color: Black

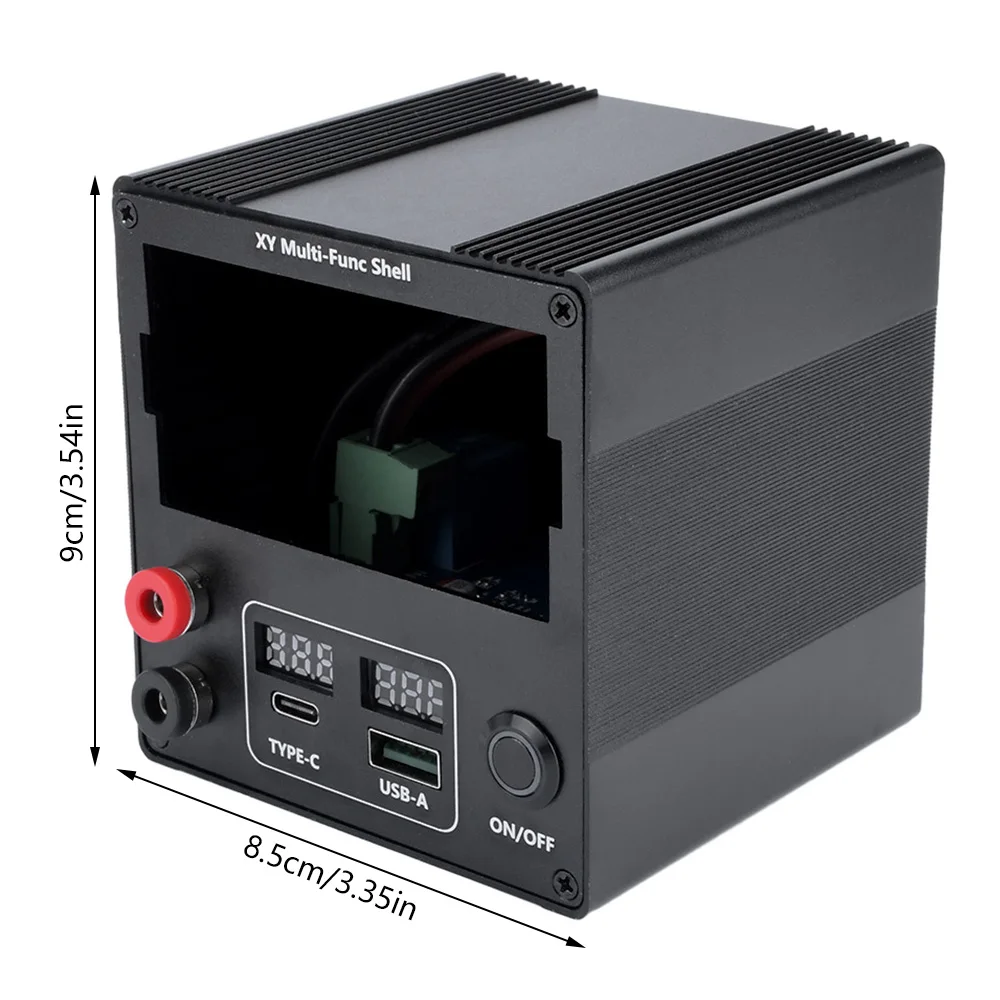

Finished product size: 83mm * 84mm * 90mm

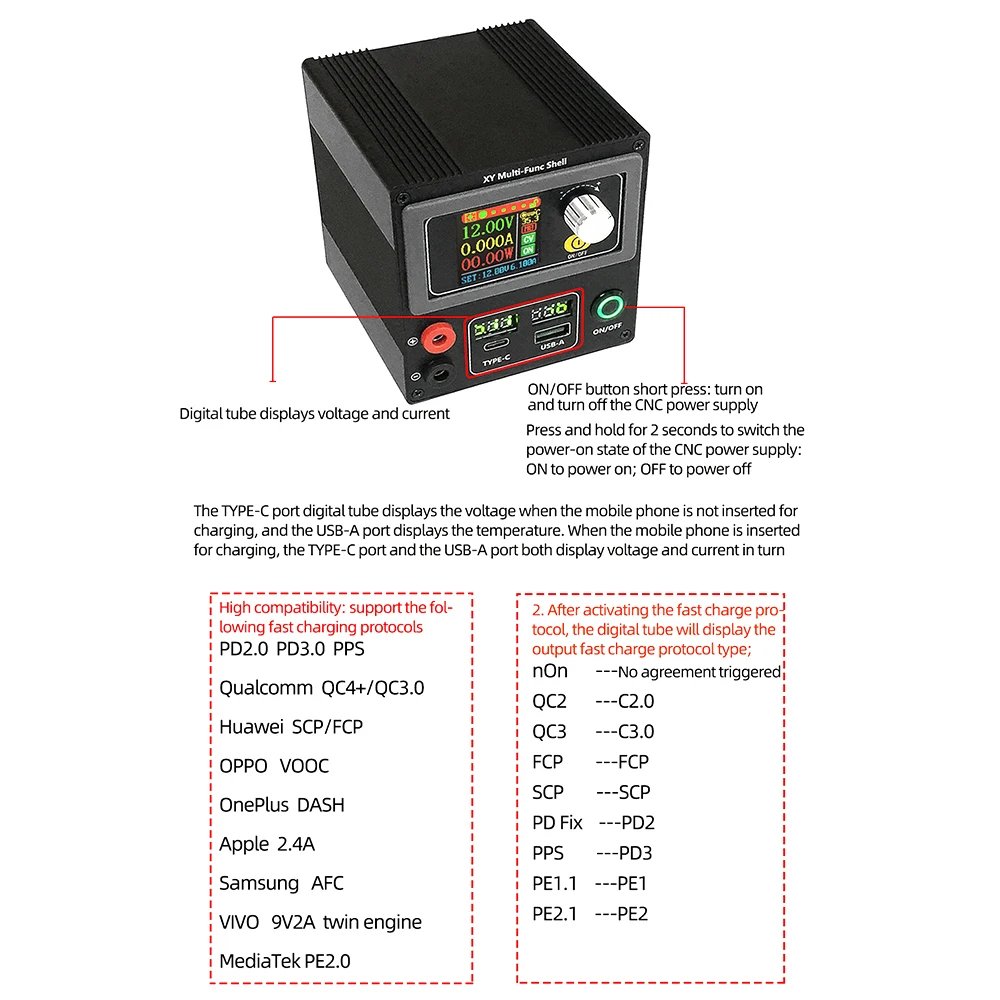

Instructions for use:

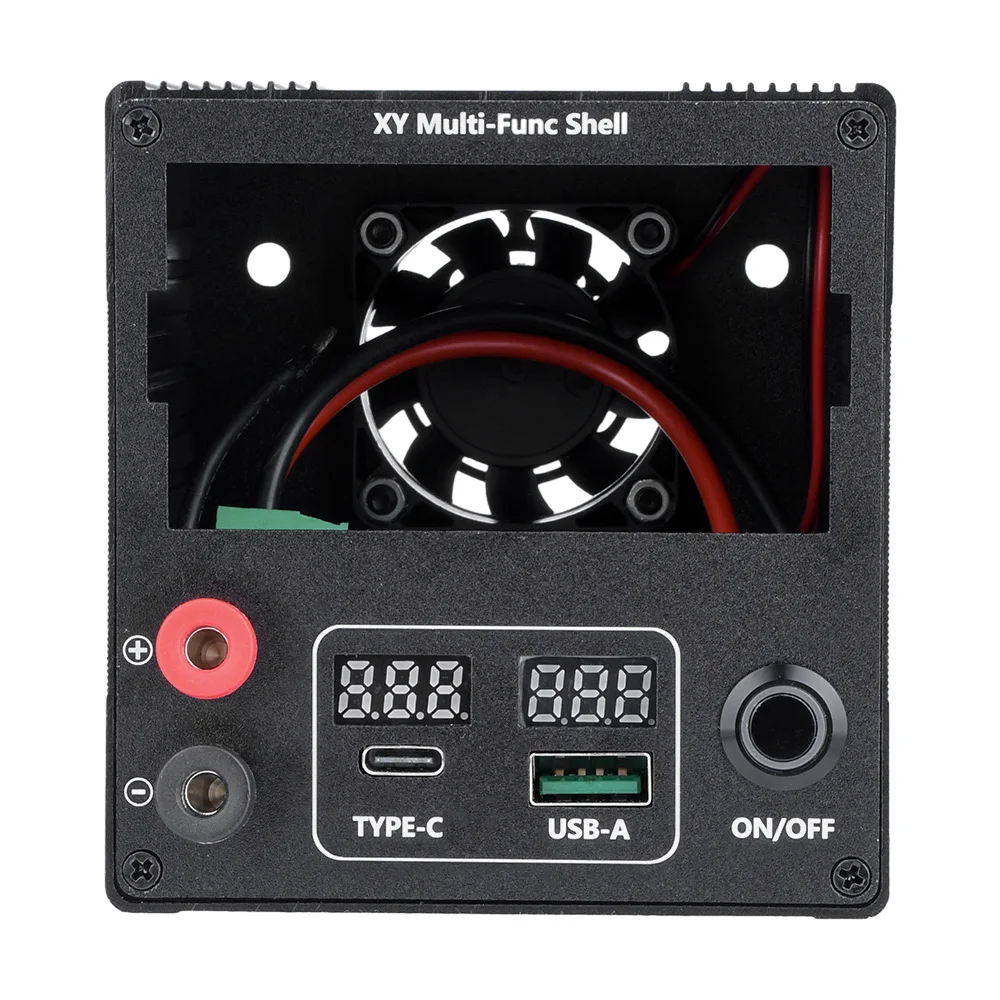

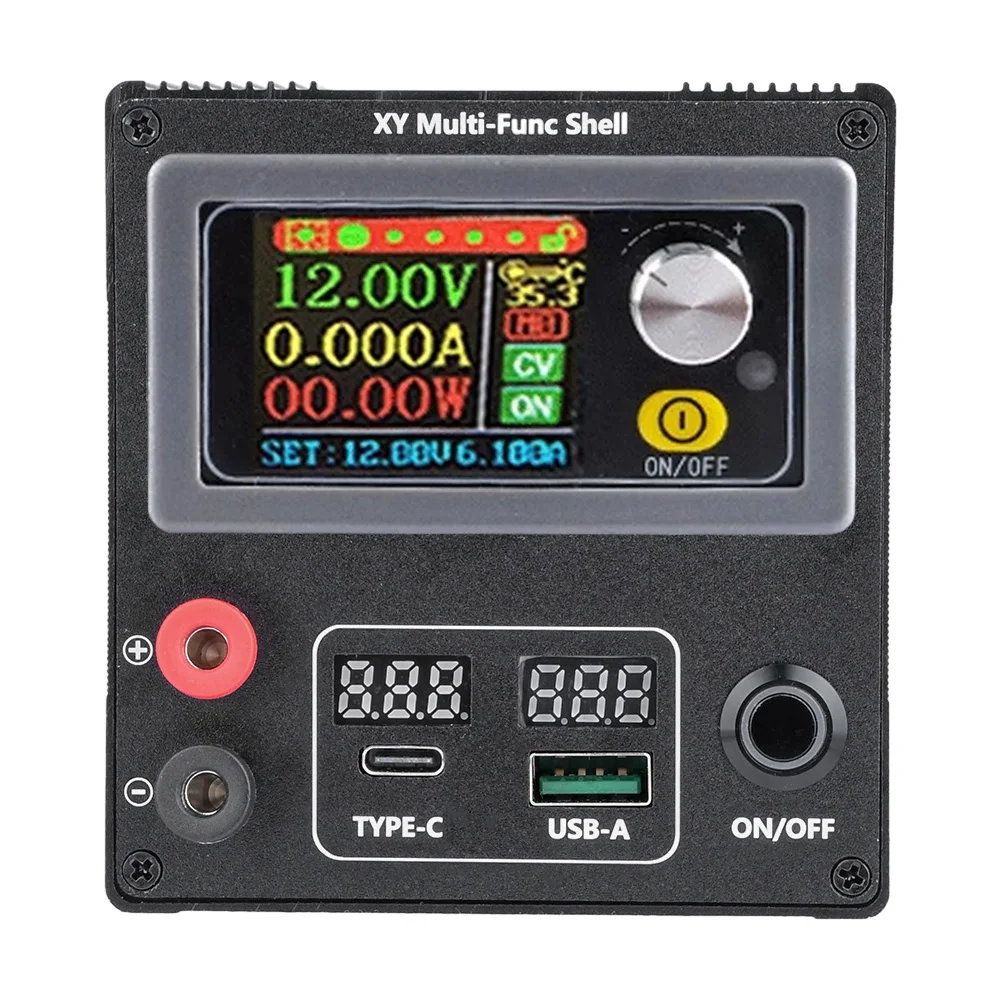

When the phone is not plugged in for charging, the TYPE-C port nixie tube displays voltage, and the USB-A port displays temperature. When the phone is plugged in for charging, both TYPE-C port and USB-A port take turns displaying voltage and current.
2. On/Off button short press: CNC power on and off, long press for 2 seconds to switch CNC power on status: ON power on and on; OFF Power on and off.

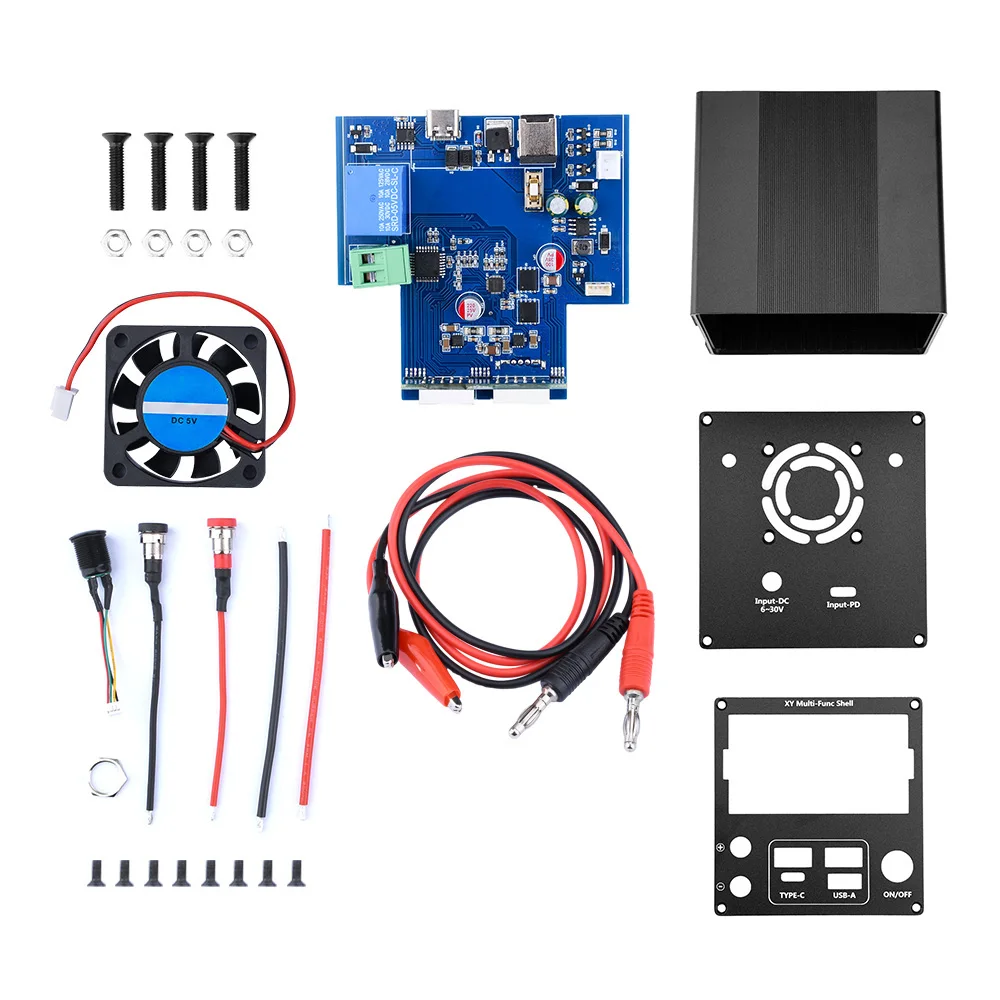

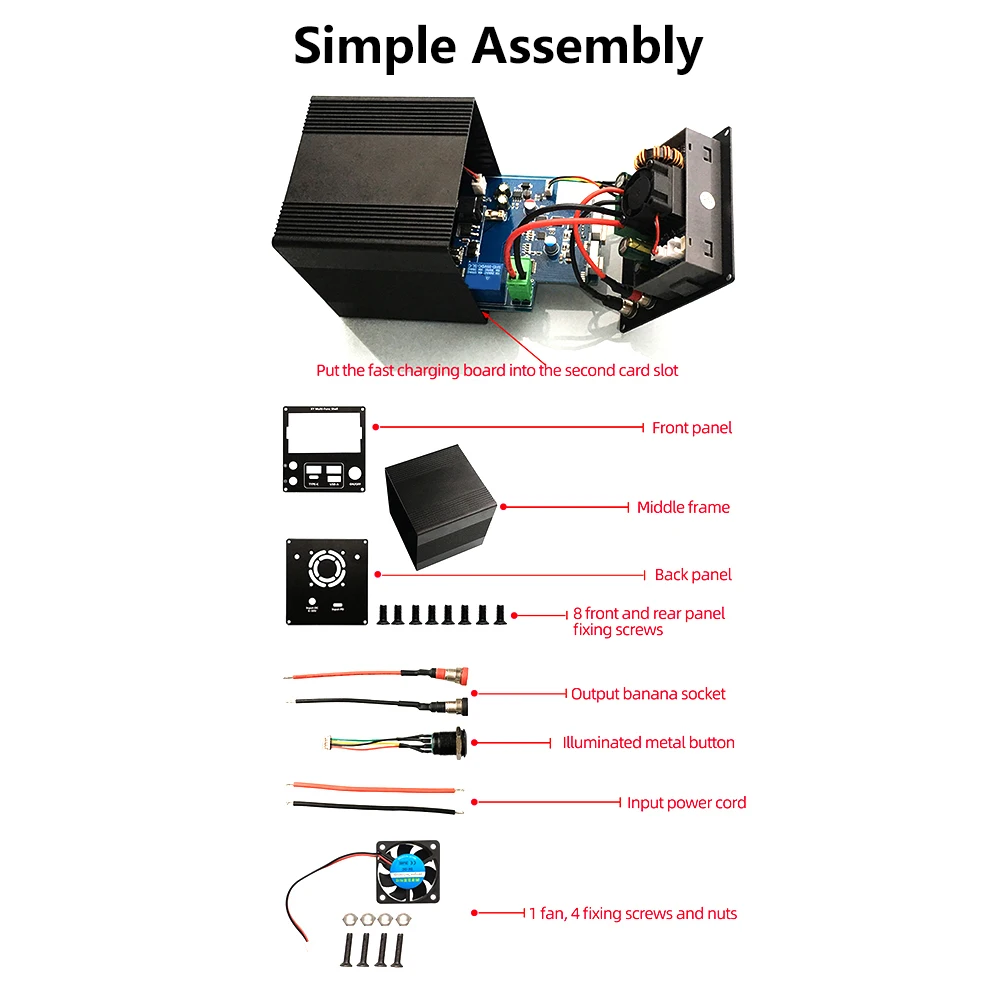

Package include:
Package 1: Bulk shipment
1 * Quick charging board
1 * Front panel
1 * Middle box
1 * Rear panel
8 * Front and rear panel fixing screws

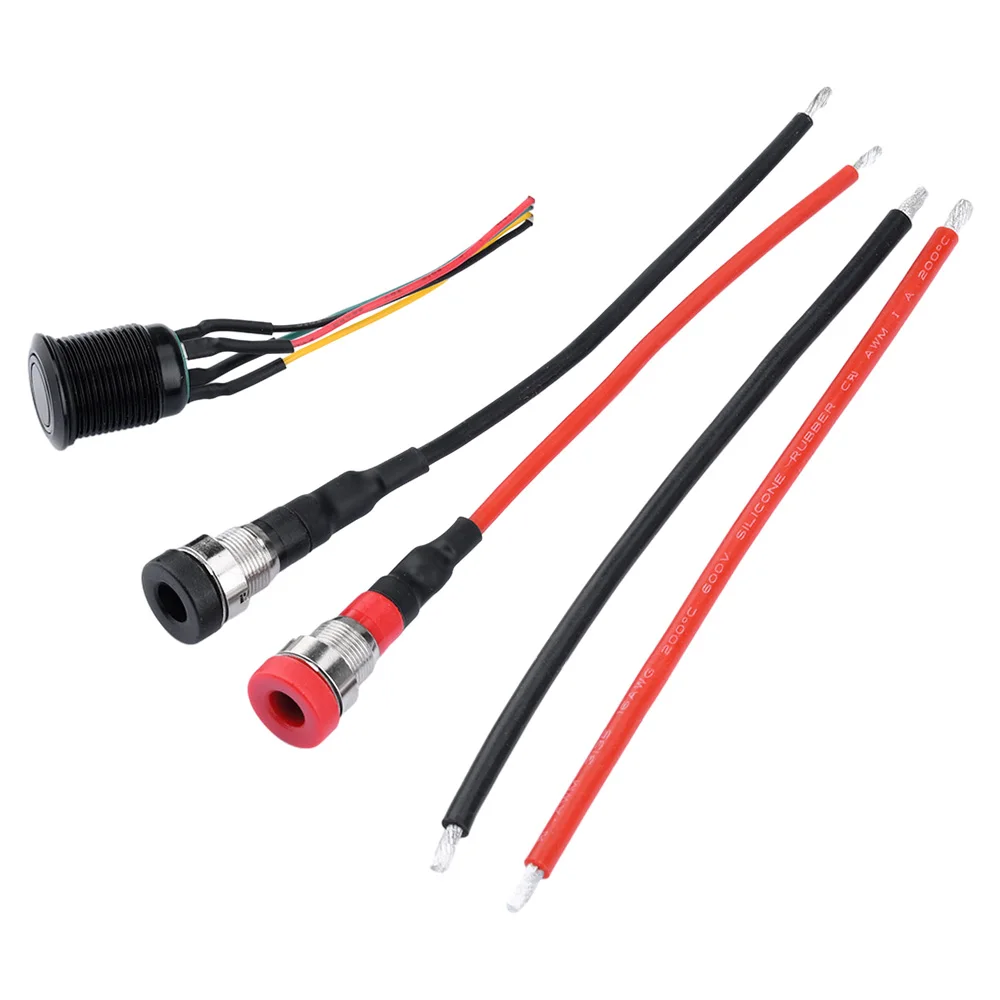

2 * Output banana socket
1 * Metal button with light

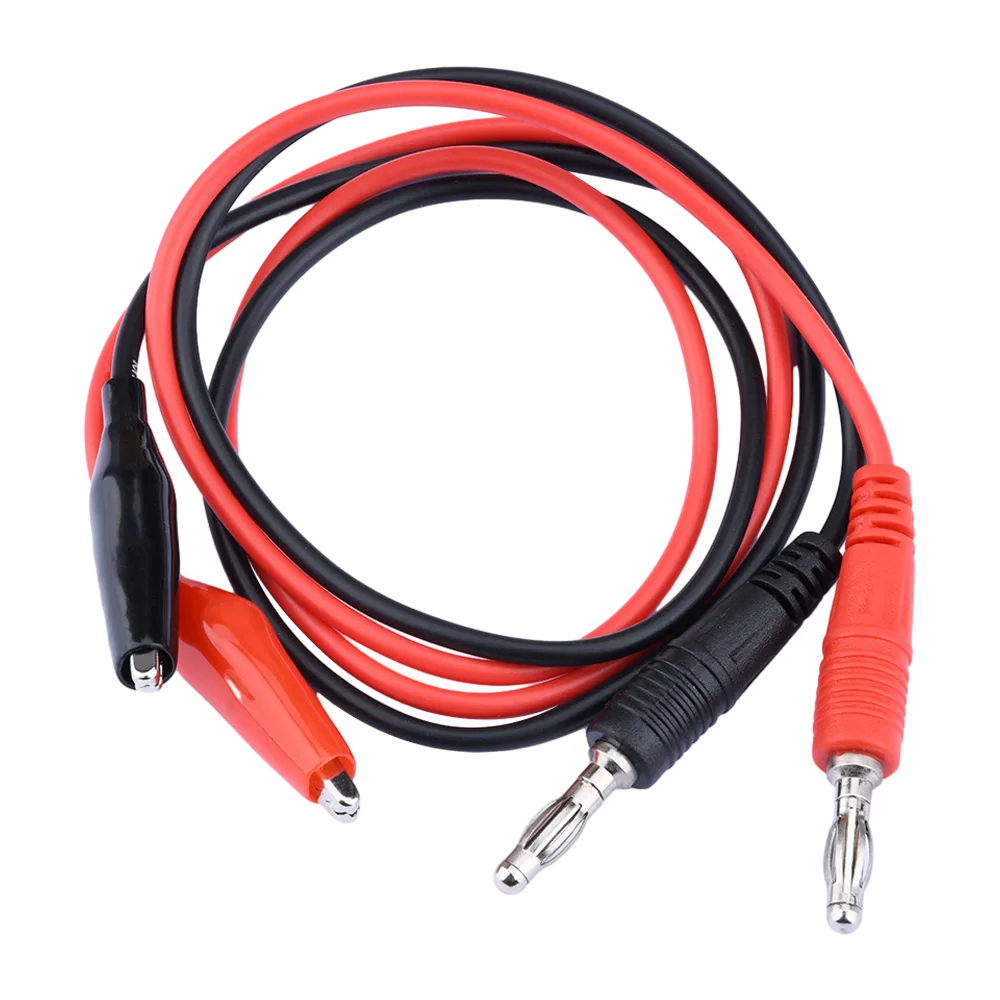

2 * Input power cord
1 * Fan
4 pairs of * fixing screws and nuts
Package 2：
1X shell (assembled shipped)
