YJ-320A -70~+6dBm YJ-320C -50~+26dBm Handheld Mini Optical Power Meter
Optical Power Meter Specification
Description:
YJ-320 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy .

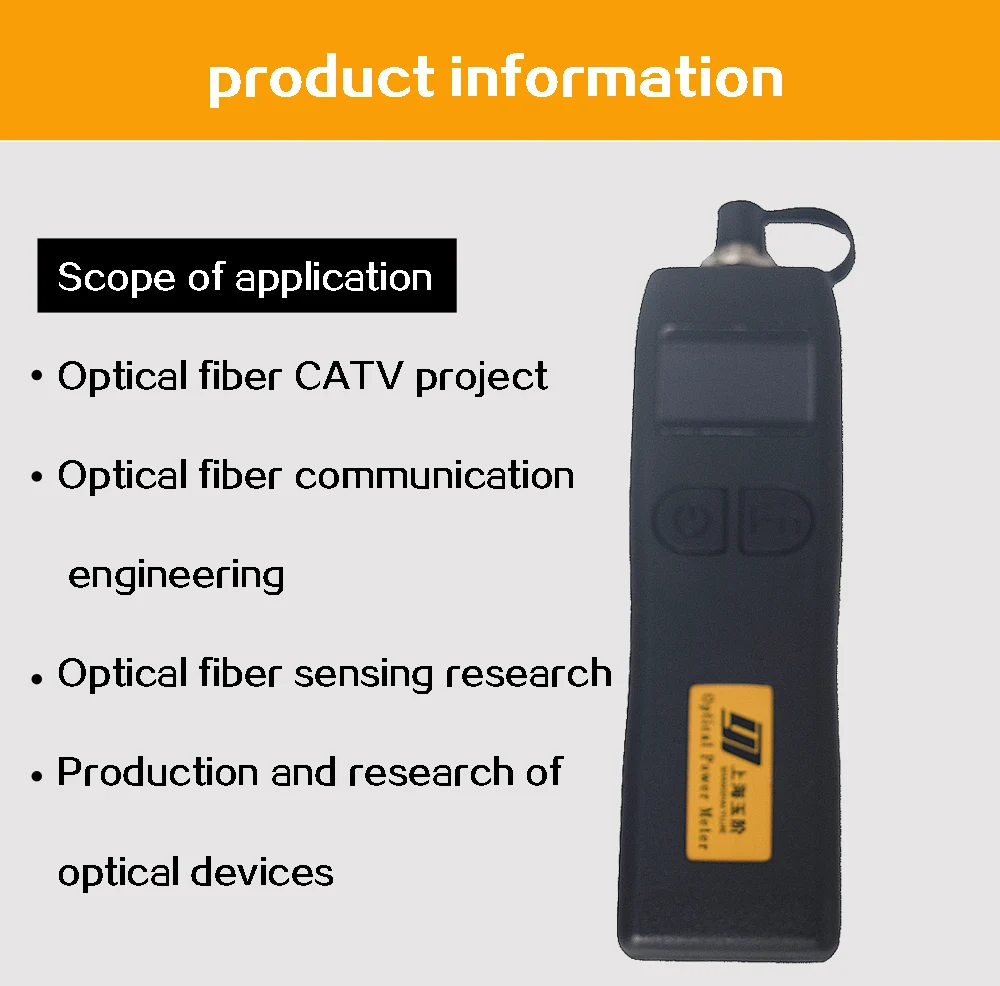

Applicapions:
-
Maintenance in Telecom
-
Maintenance CATV
-
Test Lab of optical fibers
-
Other Fiber Optic Measurements

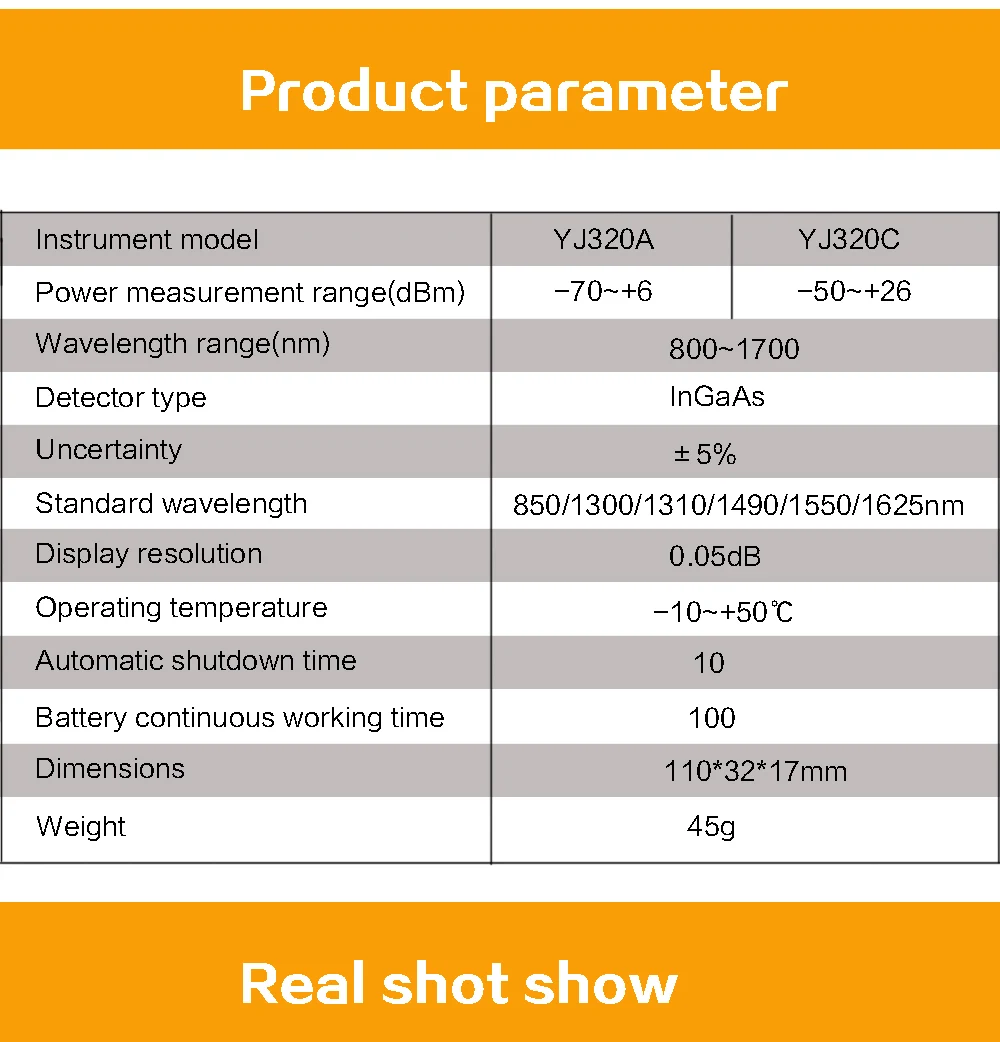

Specifications:
|
Model |
YJ-320A |
YJ-320C |
|
Measurement Range(dBm) |
-70 to +6 |
-50 to +26 |
|
Wavelength Rangenm |
800 to 1700 |
|
|
Detector Type |
InGaAs |
|
|
Uncertainty |
±5% |
|
|

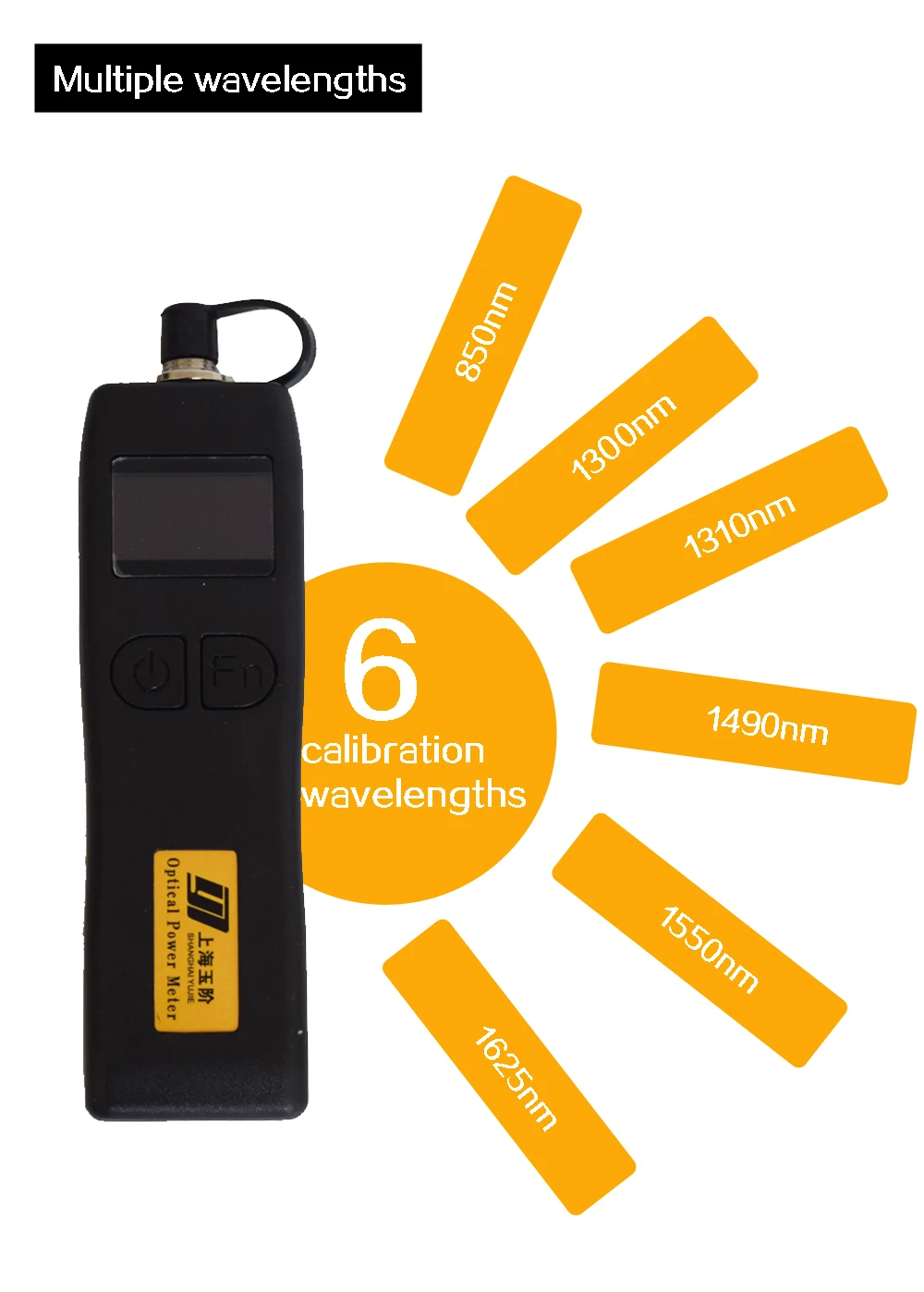

Calibrated Wavelength |
850 1300 1310 1490 1550 1625 nm |
|
|
Accuracy |
0.05dB |
|
|
Operating Temperature |
-10 to +50 |
|
|

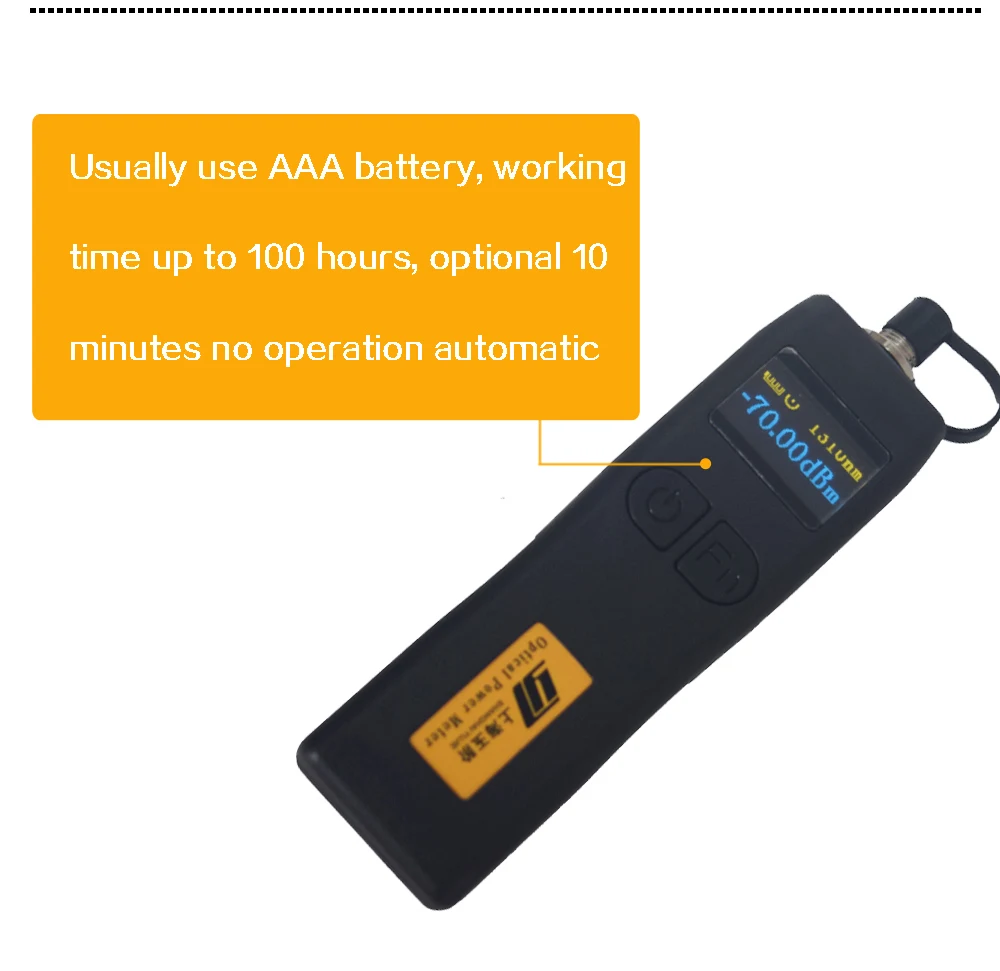

Auto-off Time |
10 min |
|
|
Operating Time |
100 h |
|

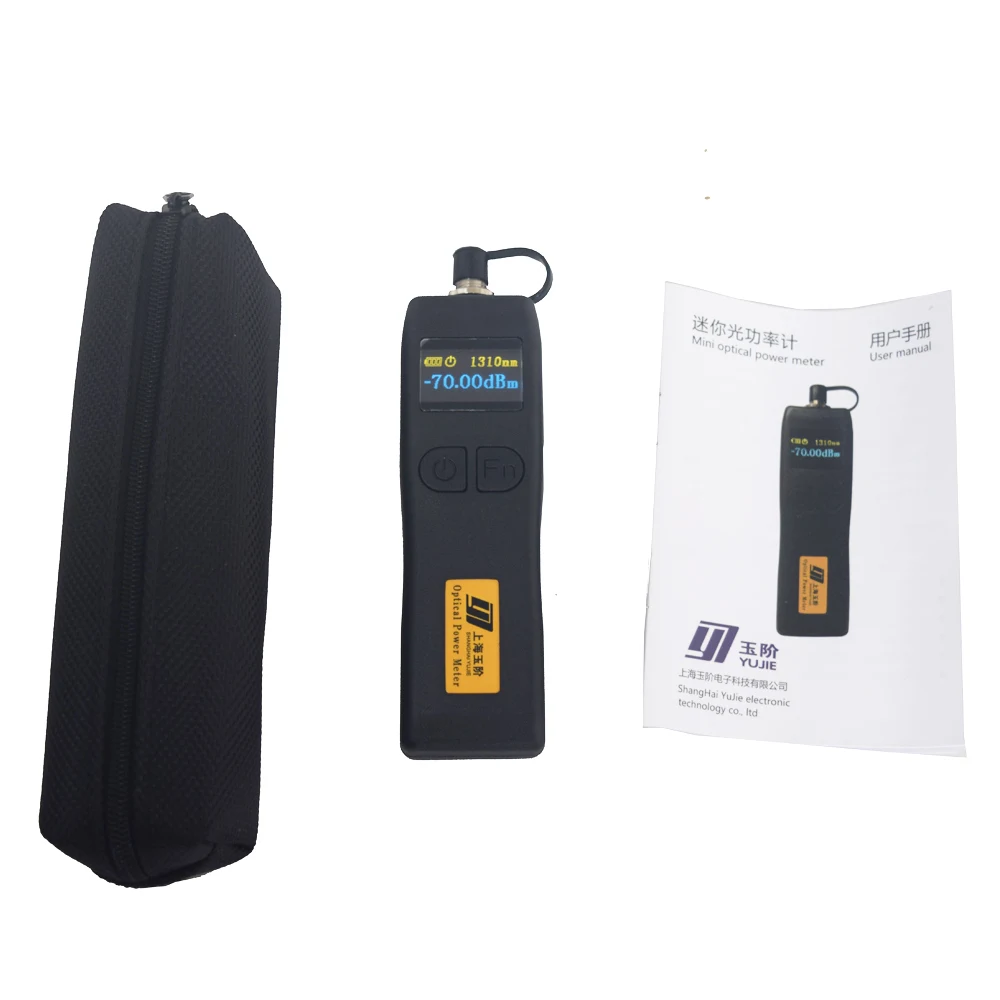

Package Includes
1 x Optical Power Meter
1 x Carrying Bag
1 x User Manual (English Lanuage included)
