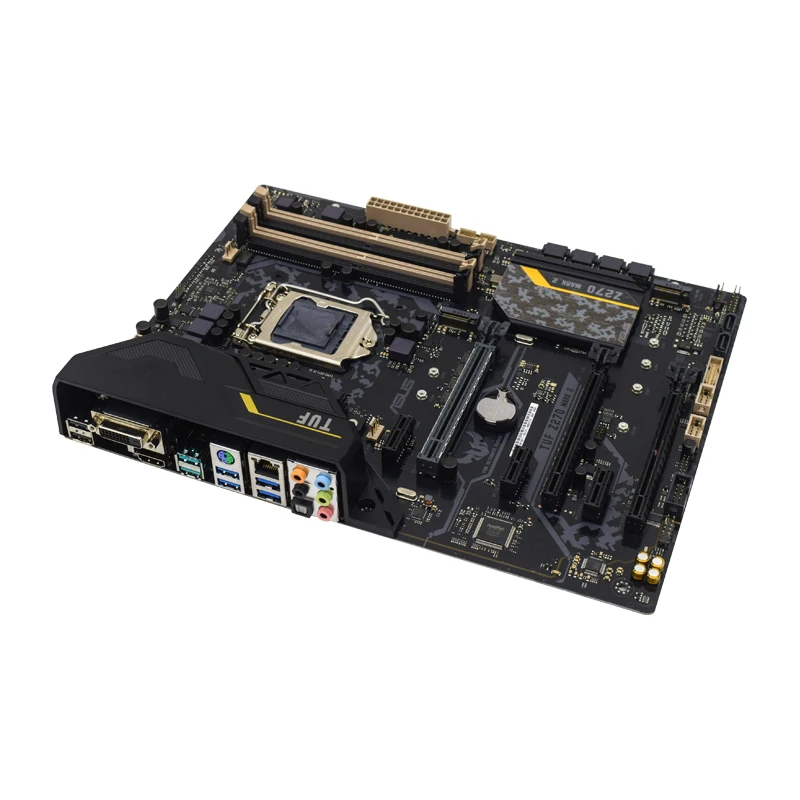

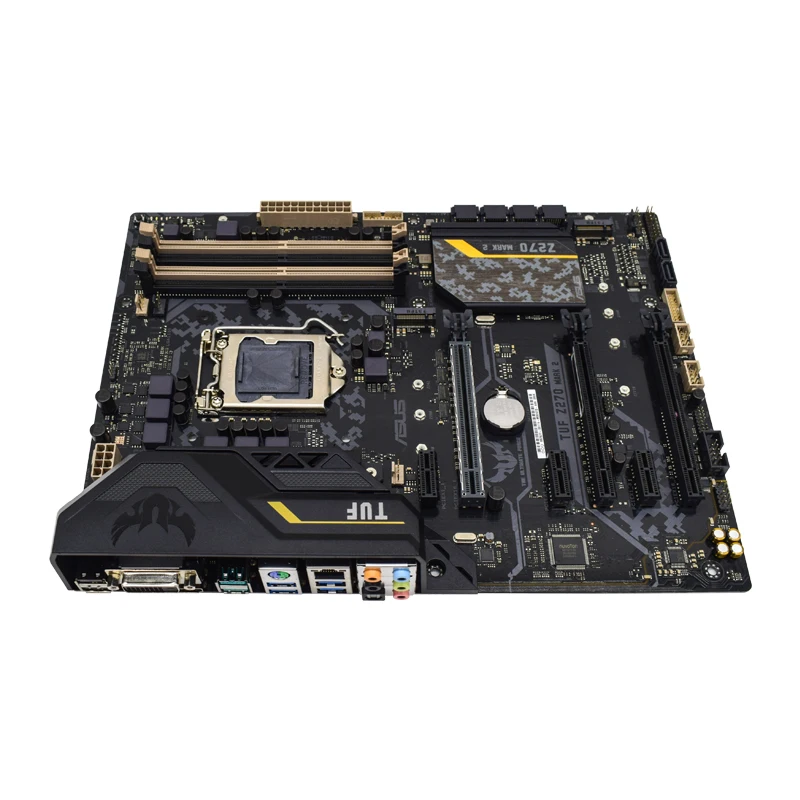

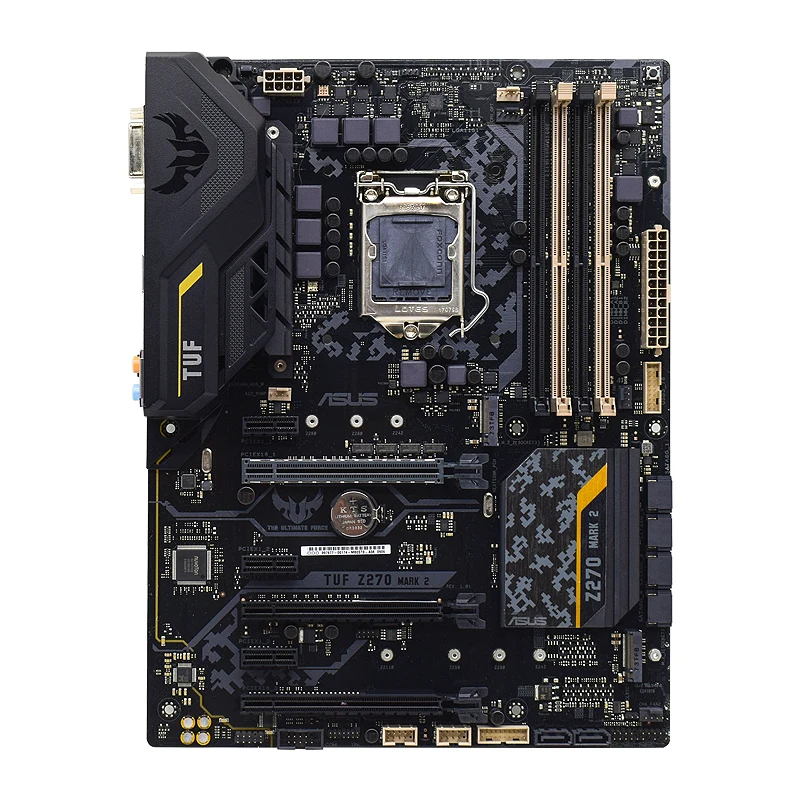

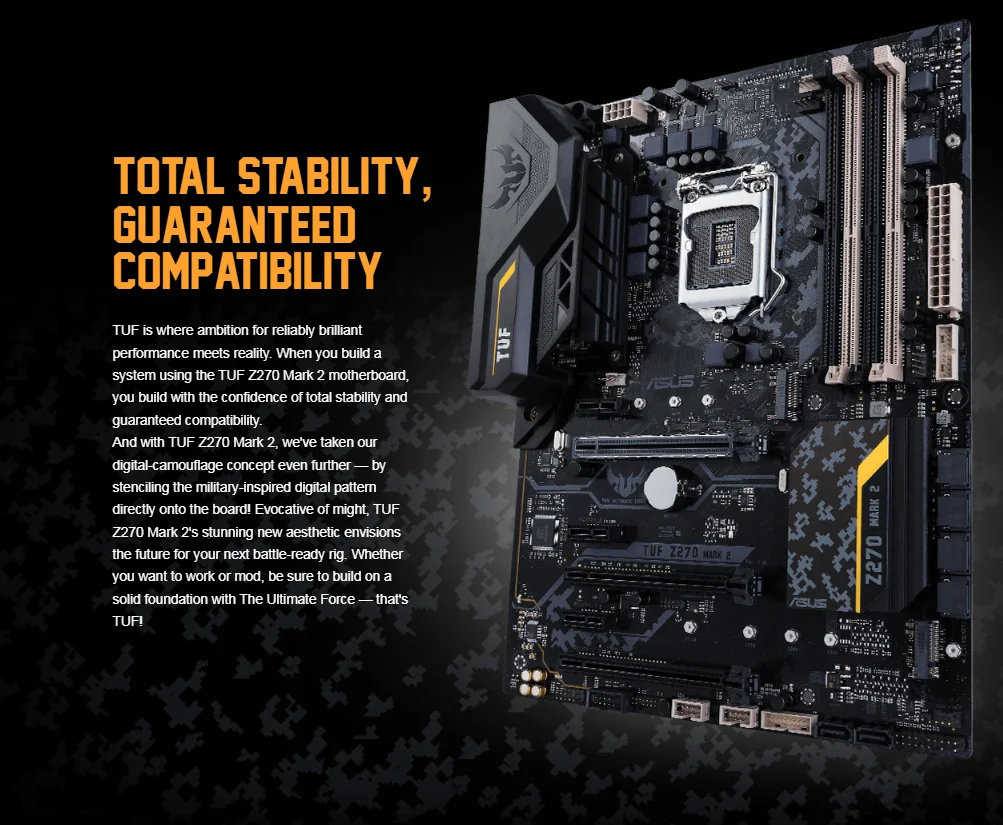

Z270 Motherboard ASUS TUF Z270 Mark 2 for Core i7 7700 7700K 6700 6700K LGA 1151 Motherboard for i5 6600 6600K 6500 7500 i3 7100Motherboard Chip
Integrated chip sound card/NIC
Main chipset Intel Z270
Chipset Description Intel Z270 chipset is used
Display chip Built-in CPU display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound chip
Nic chip Onboard Intel I219V Gigabit NIC
Processor Specification
CPU type Seventh/sixth generation Core i7/i5/i3/Pentium/Celeron

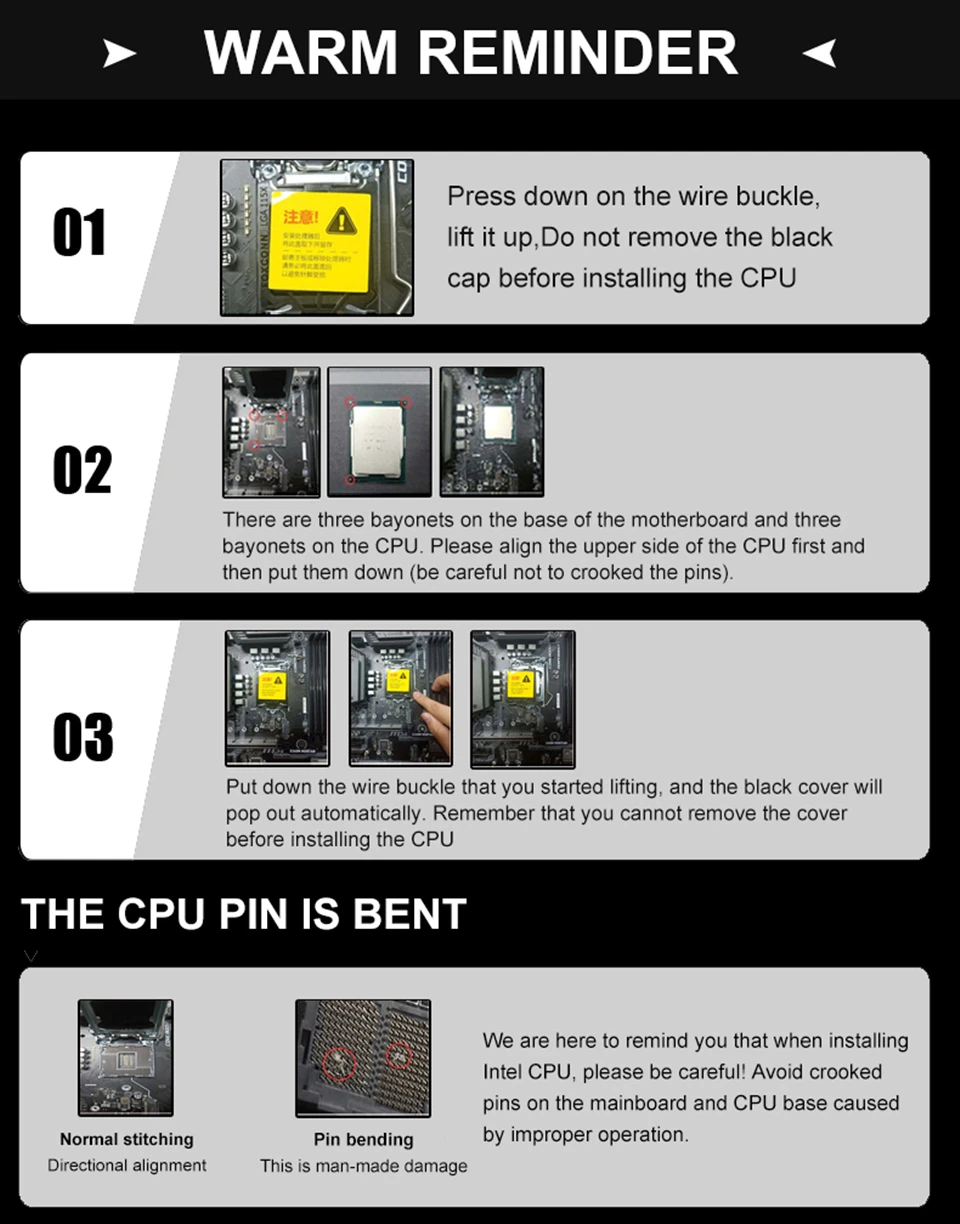

CPU slot LGA 1151
CPU Description Intel 14nm processors are supported
Memory Specification
DIMM Type 4 x DDR4 DIMMs
Maximum memory capacity 64GB

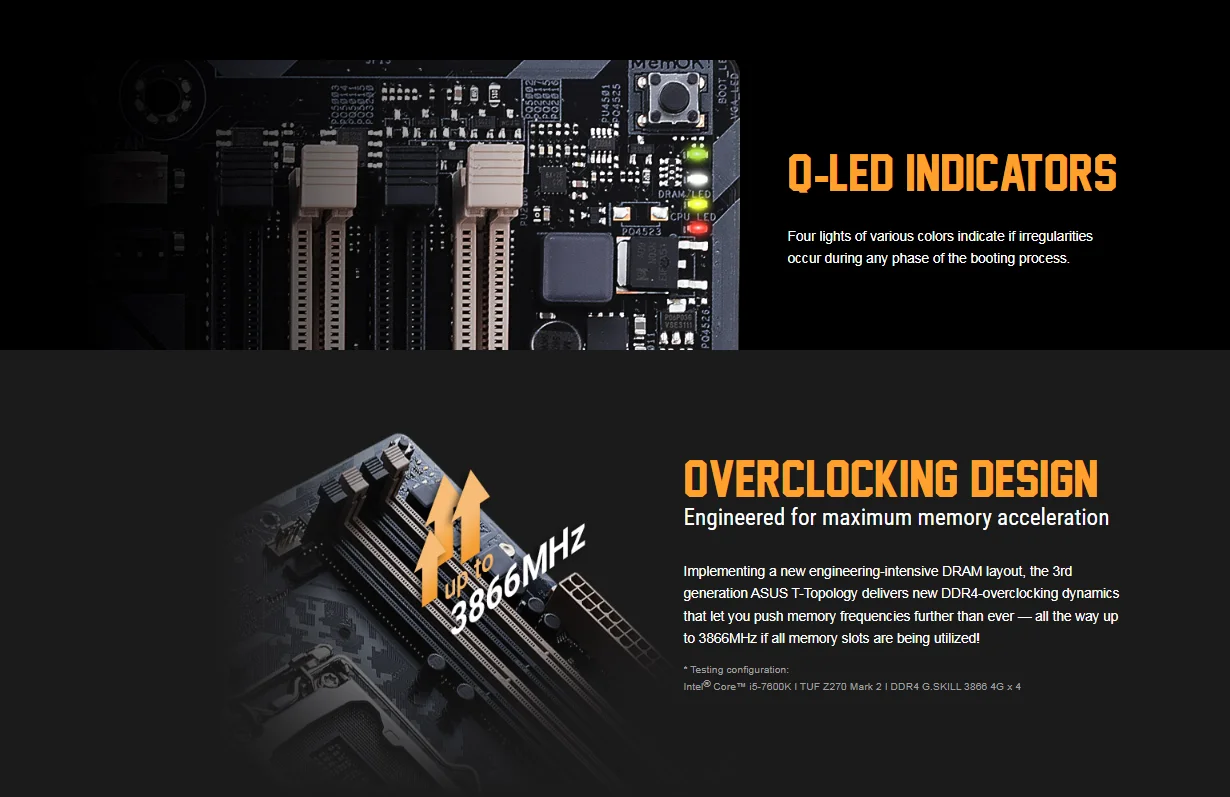

Memory description Supports dual-channel DDR4 3733 (overclocking) / 3600 (overclocking) / 4133 (O.C.) / 3466 (overclocking) / 4000 (O.C.) / 3400 (overclocking) / 3866 (O.C.) / 3333 (overclocking) / 3300 (overclocking) / 3200 (overclocking) / 3000 (overclocking) / 2800 (overclocking) / 2666 (super Frequency)/2400(overclocked)/2133 MHz memory
Storage Extension
PCI-E Standard PCI-E 3.0

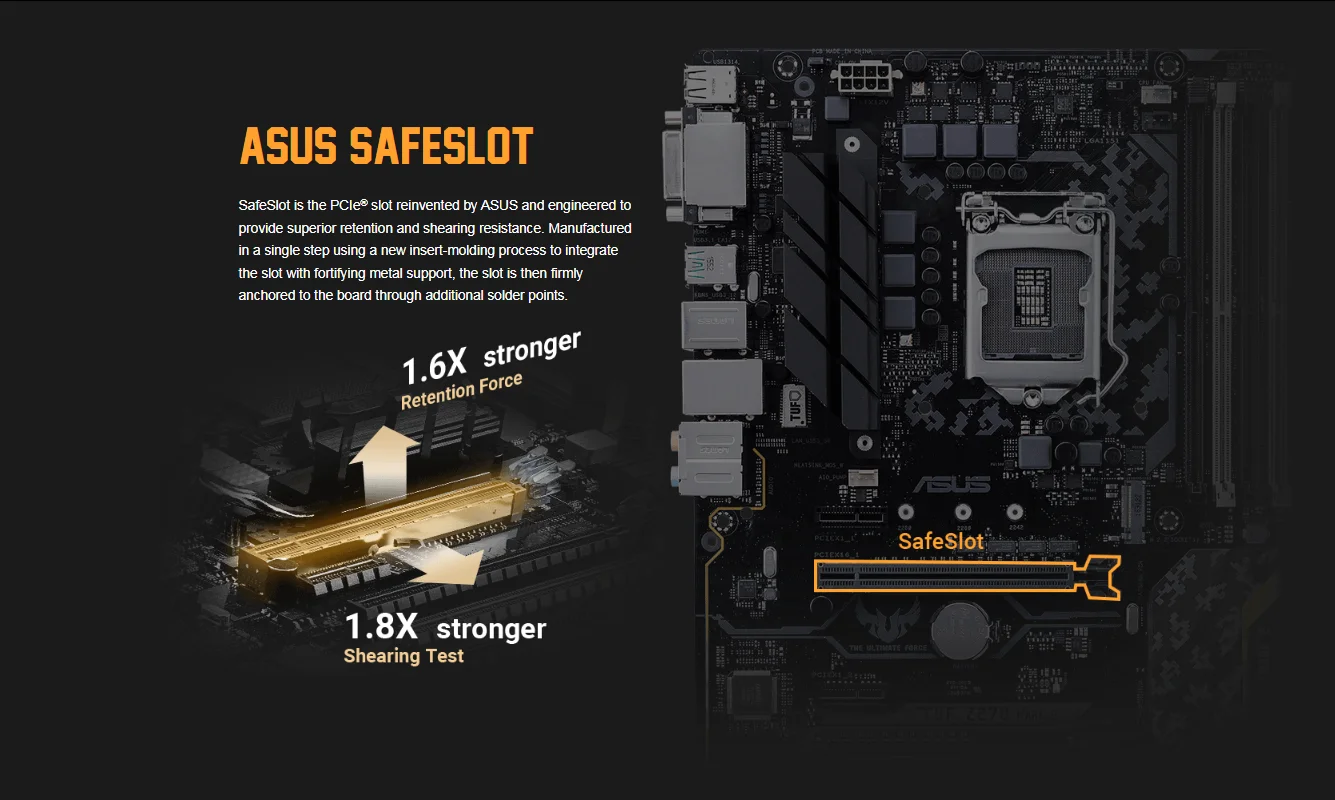

PCI-E slot 3 x PCI-E X16 video card slot, 3 x PCI-E X1 slot

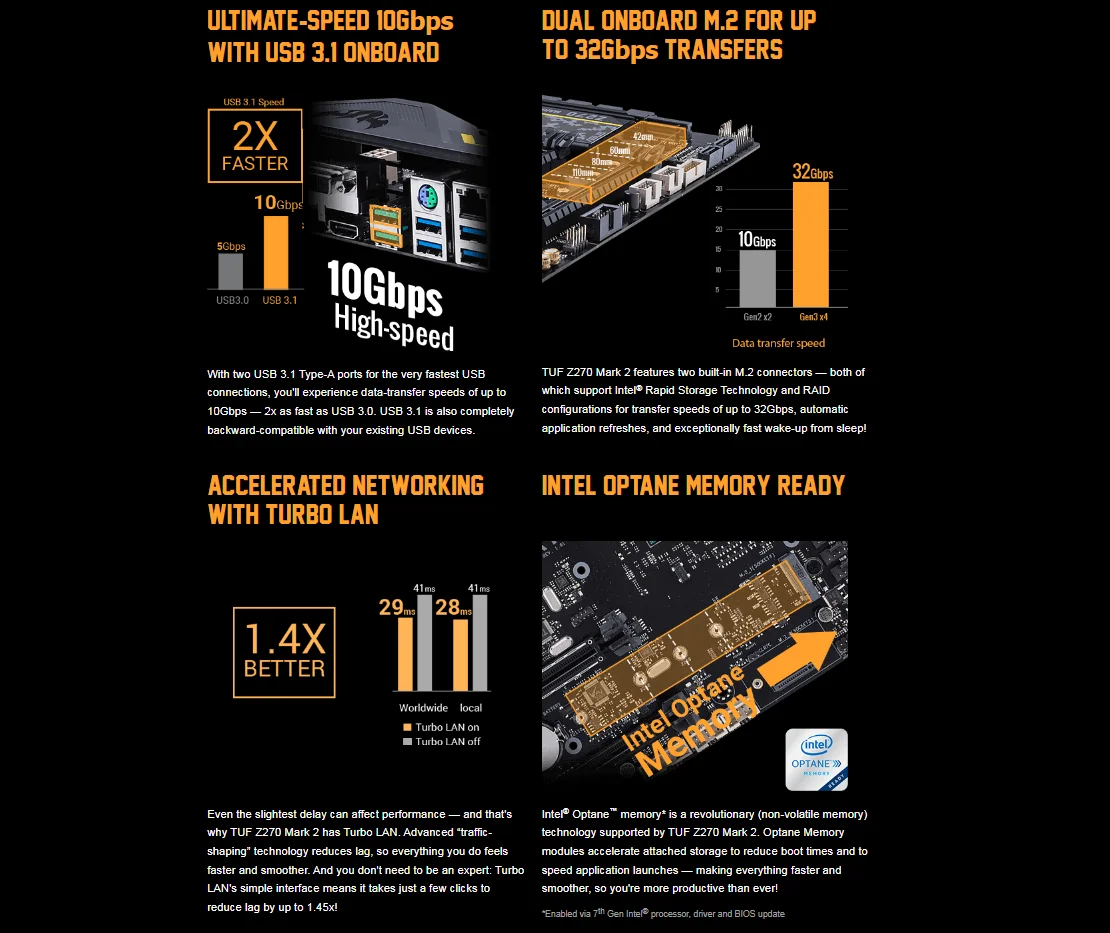

Storage ports 2 x M.2 ports, 6 x SATA III ports
I/O Interface
USB ports 1 x USB3.1Type-A port, 1 x USB3.1Type-C port, 8 x USB3.0 port, 6 x USB2.0 port
Video port 1 x DVI port, 1 x HDMI port
One 8-pin power port and one 24-pin power port

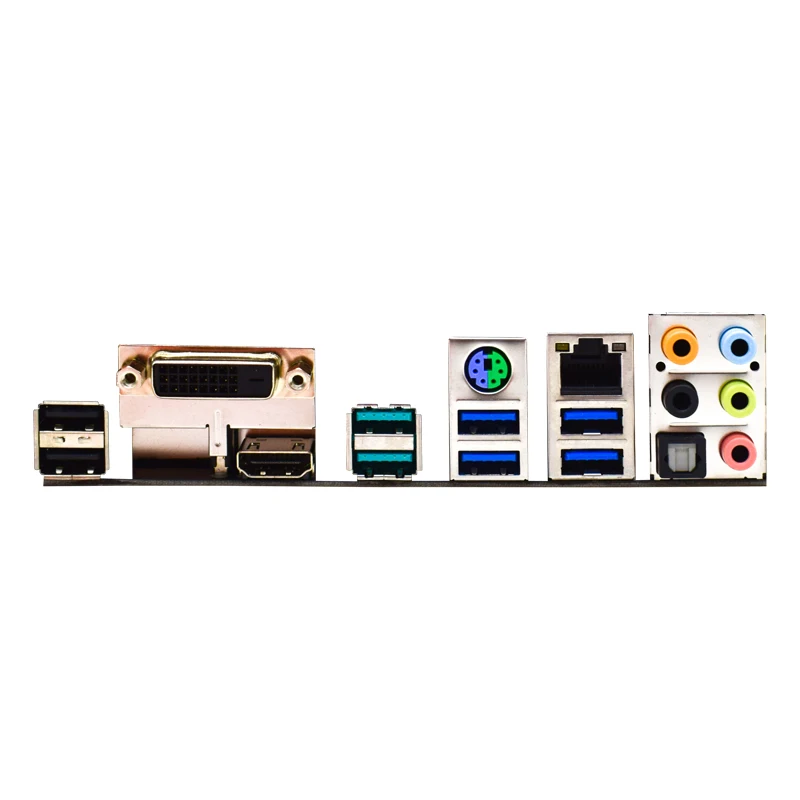

Other ports 1 x RJ45 network port, 1 x optical fiber port, audio port, 1 x PS/2 key and mouse port
Plate type
Main board type ATX board type
The overall dimension is 30.5×23.4cm
