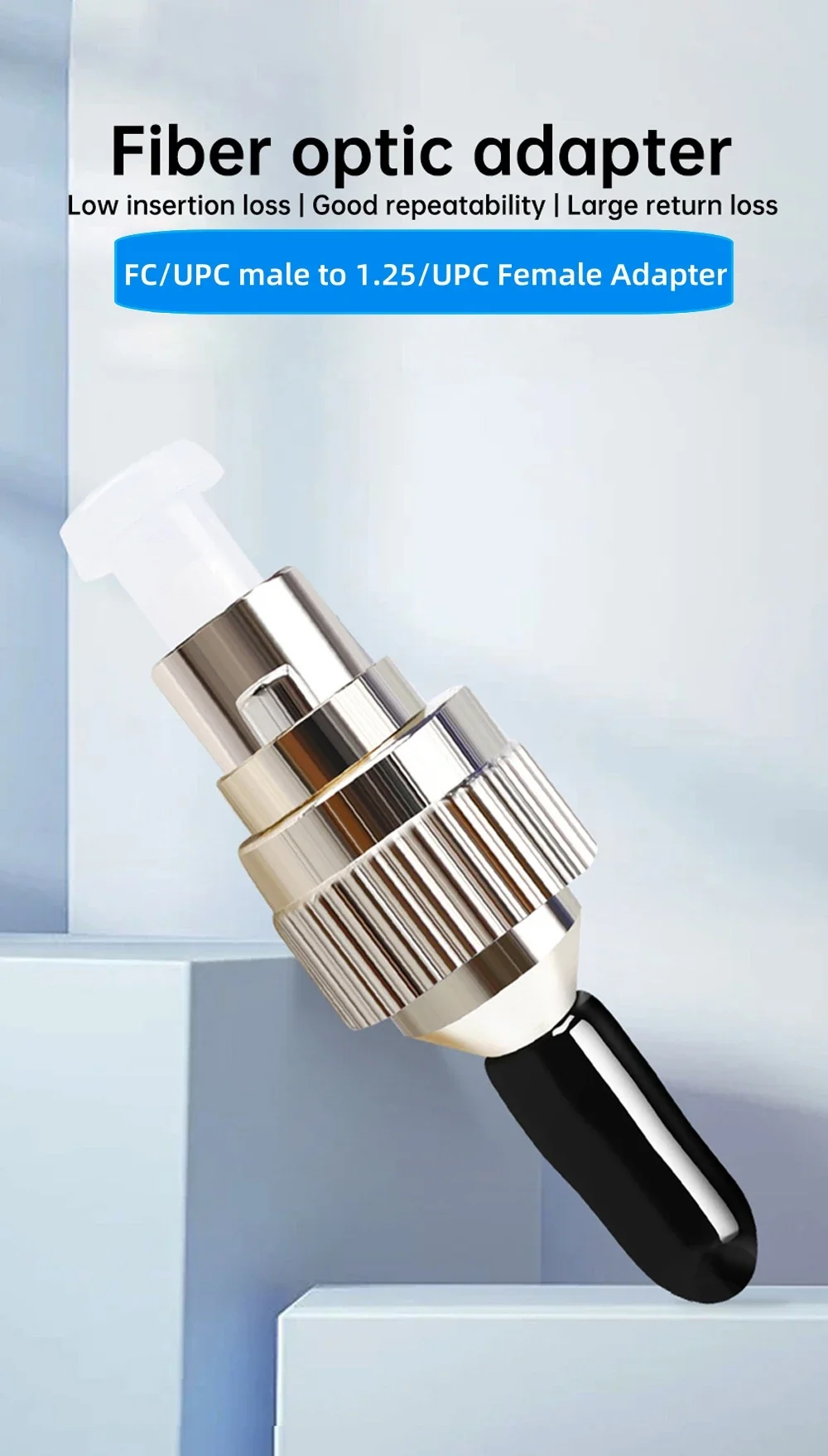

FC/UPC male to 1.25/UPC Female Adapter

Low insertion loss | Good repeatability | Large return loss

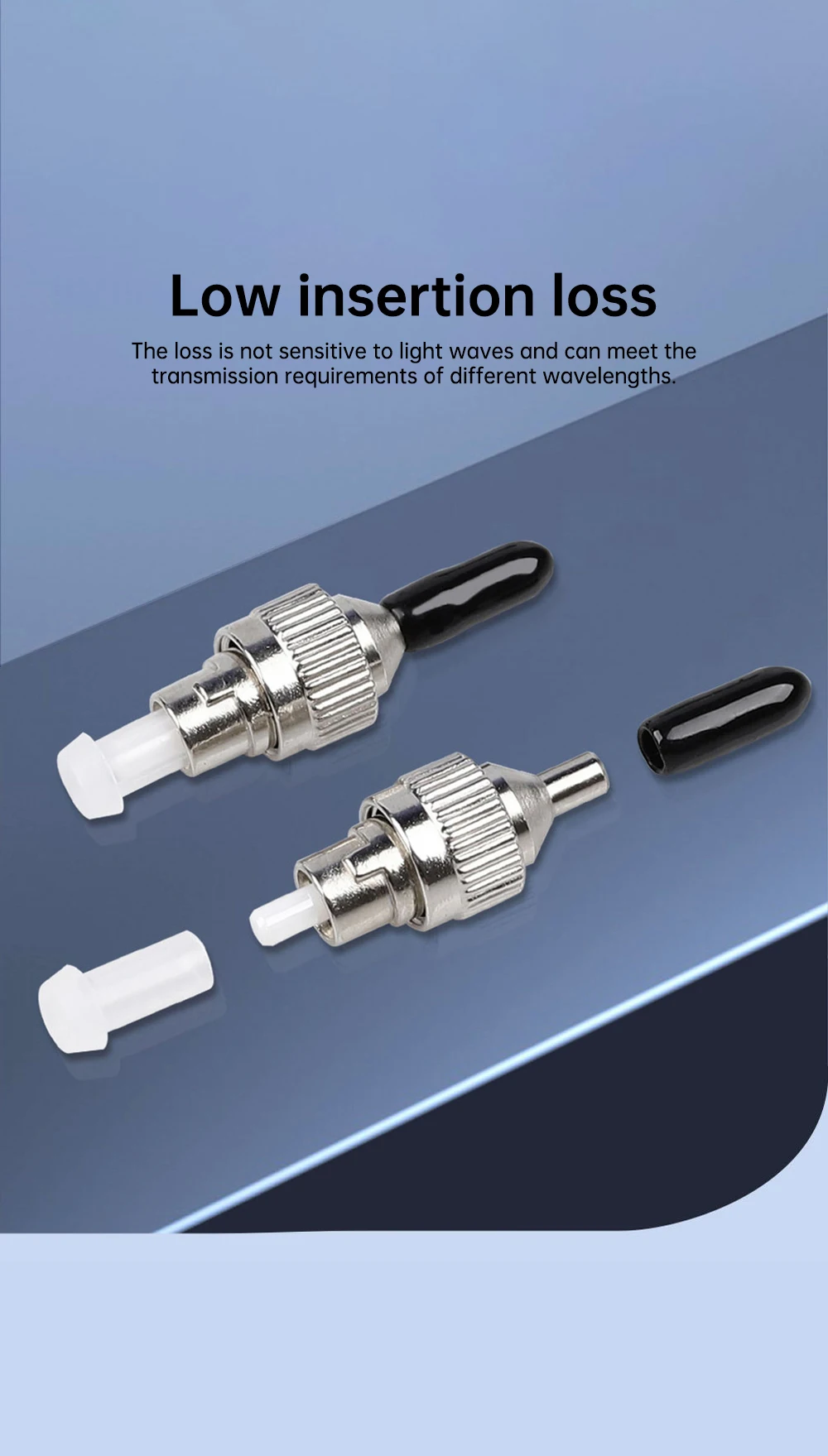

Low insertion loss

The loss is not sensitive to light waves and can meet the transmission requirements of different wavelengths.

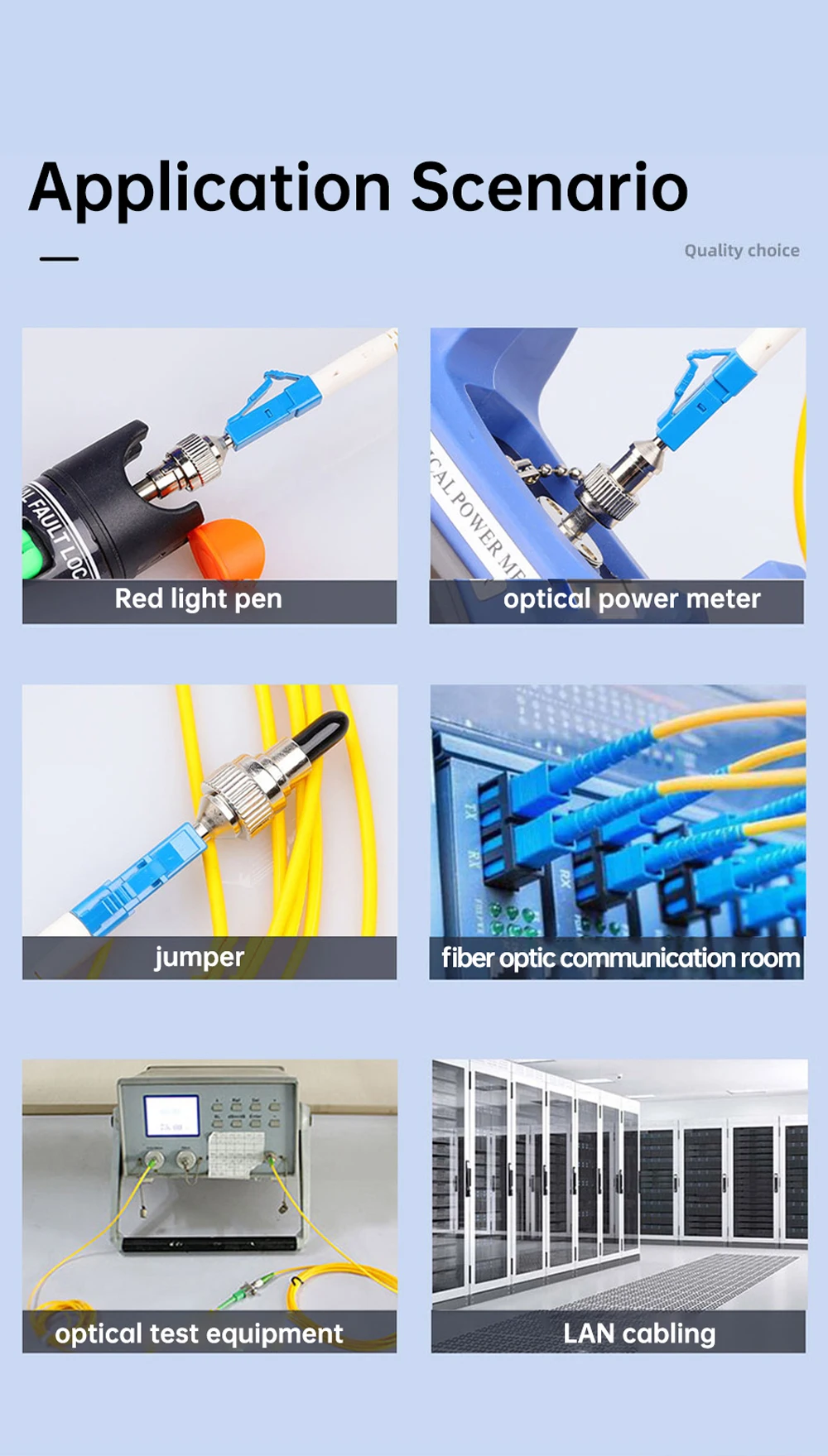

Application Scenario

Red light pen
Jumper
Optical test equipment
Optical power meter
Fiber optic communication room
LAN cabling

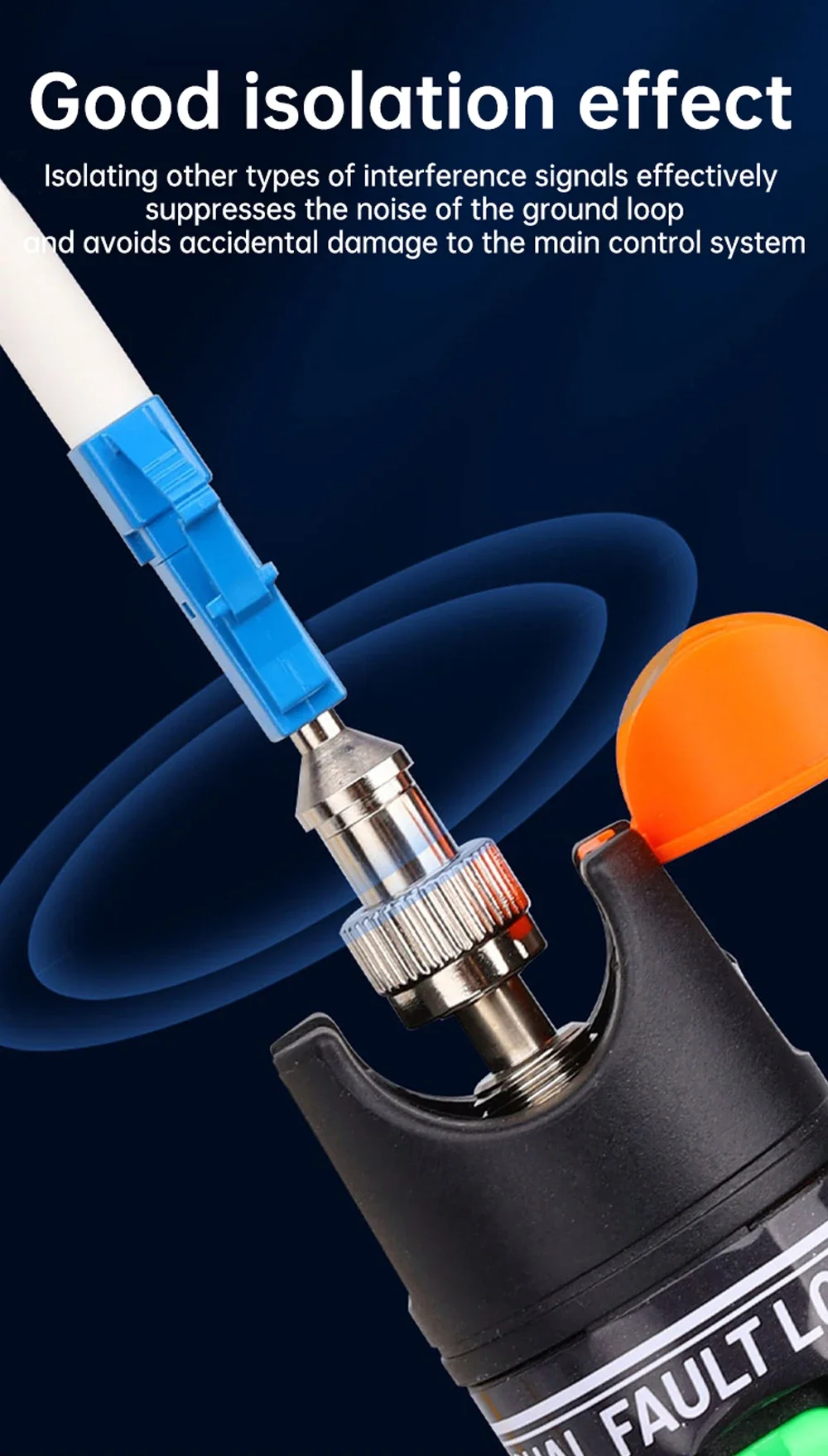

Good isolation effect

Isolating other types of interference signals effectively suppresses the noise of the ground loops avoid accidental damage to the main control system

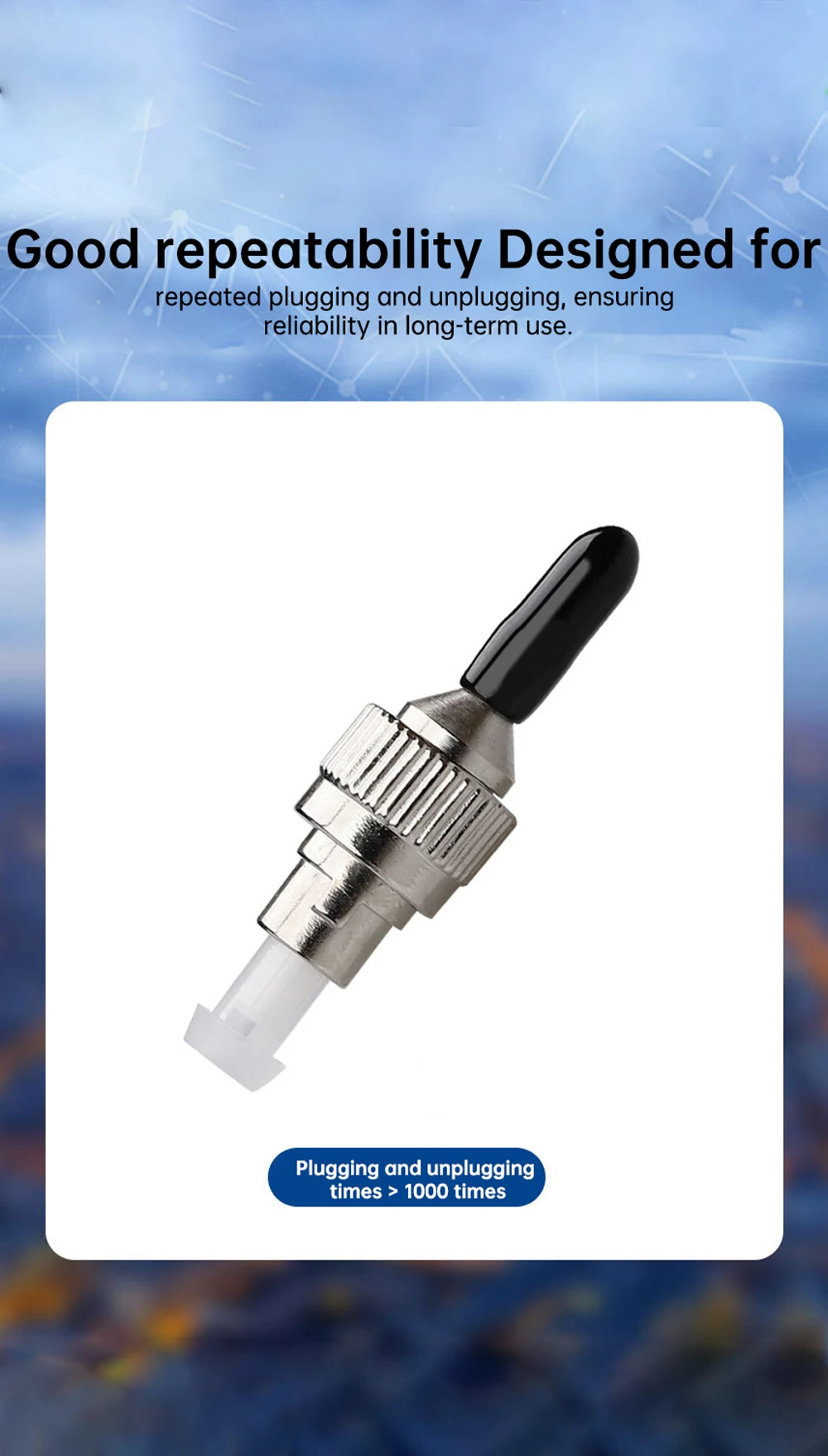

Good repeatability

Designed for repeated plugging and unplugging, ensuring reliability in long-term use.

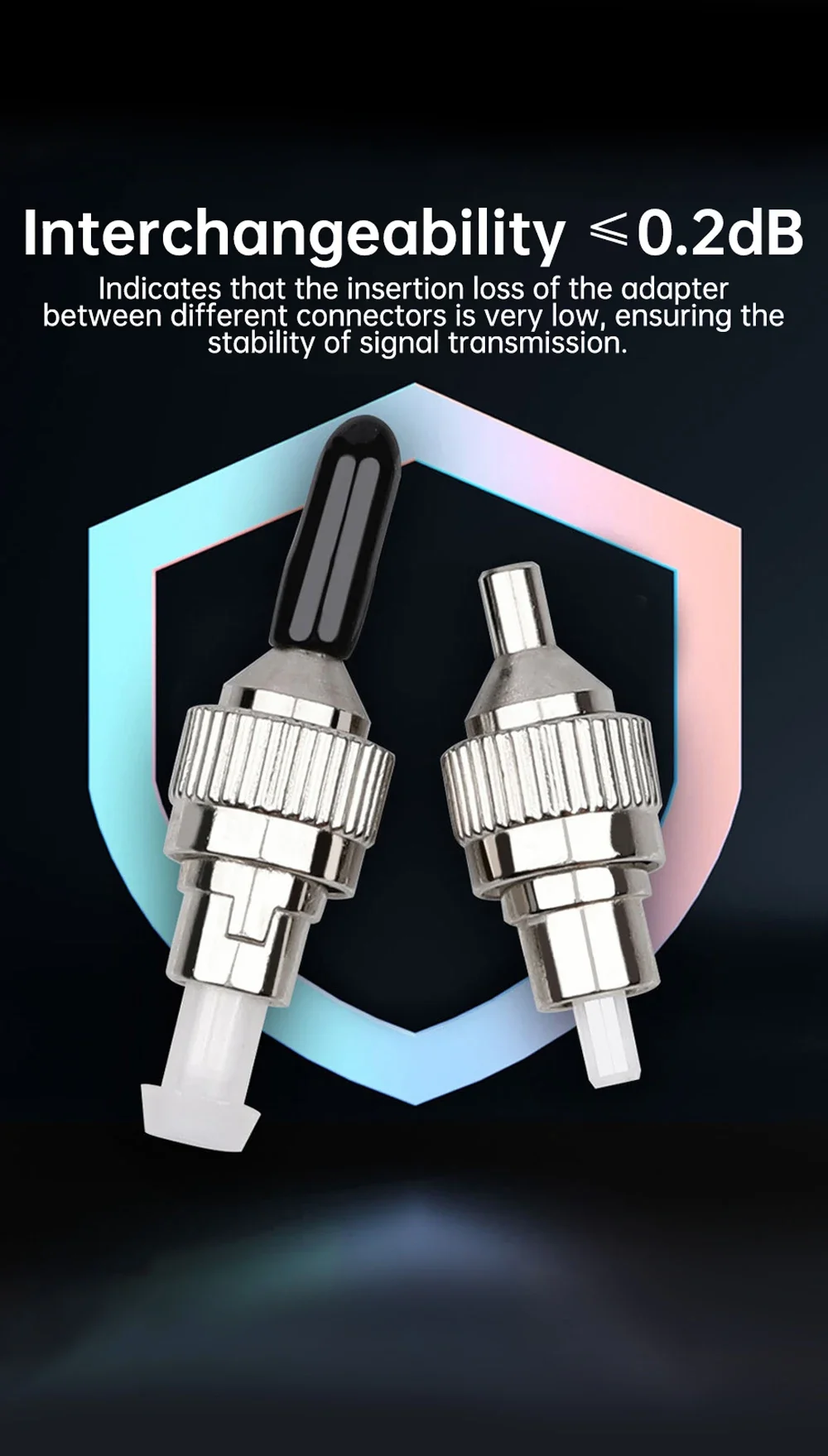

Interchangeability <0.2 dB

Indicates that the insertion loss of the adapter between different connectors is very low, ensuring the stability of signal transmission.

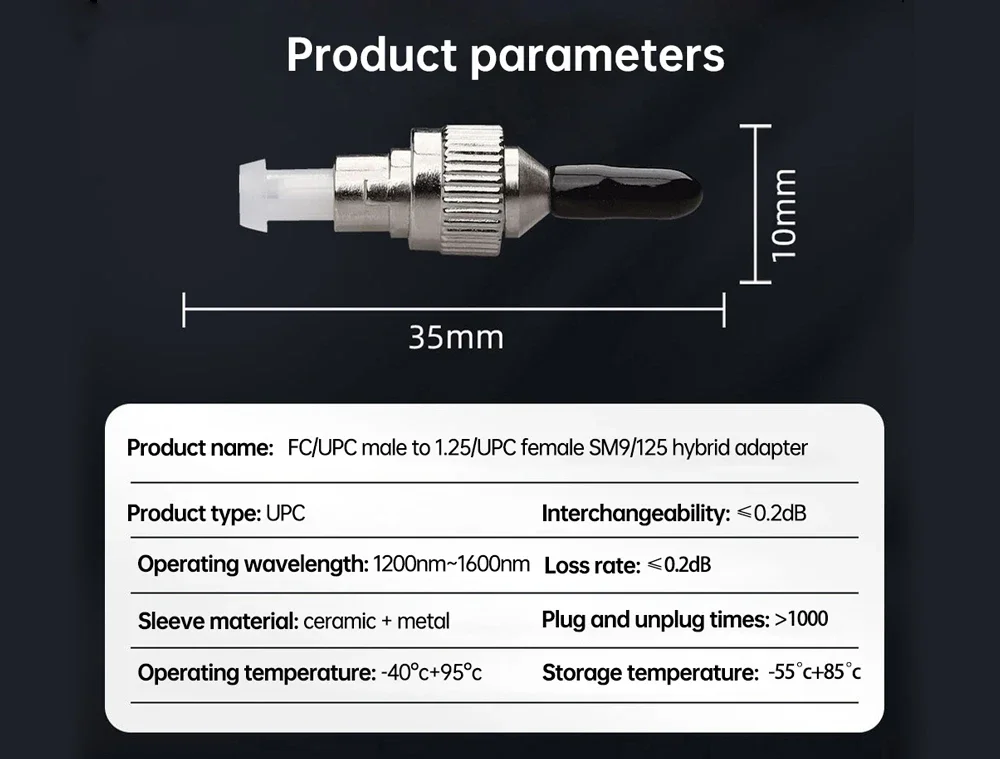

Product parameters

Product name: FC/UPC male to 1.25/UPC female SM9/125 hybrid adapter
Product type: UPC
Interchangeability: ≤0.2dB
Working wavelength: 1200nm~1600nm
Loss rate: ≤0.2dB
Sleeve material: ceramic + metal
Working temperature: -40°c+95°c
Plug and unplug times: >1000
Storage temperature: -55°c+85°c
