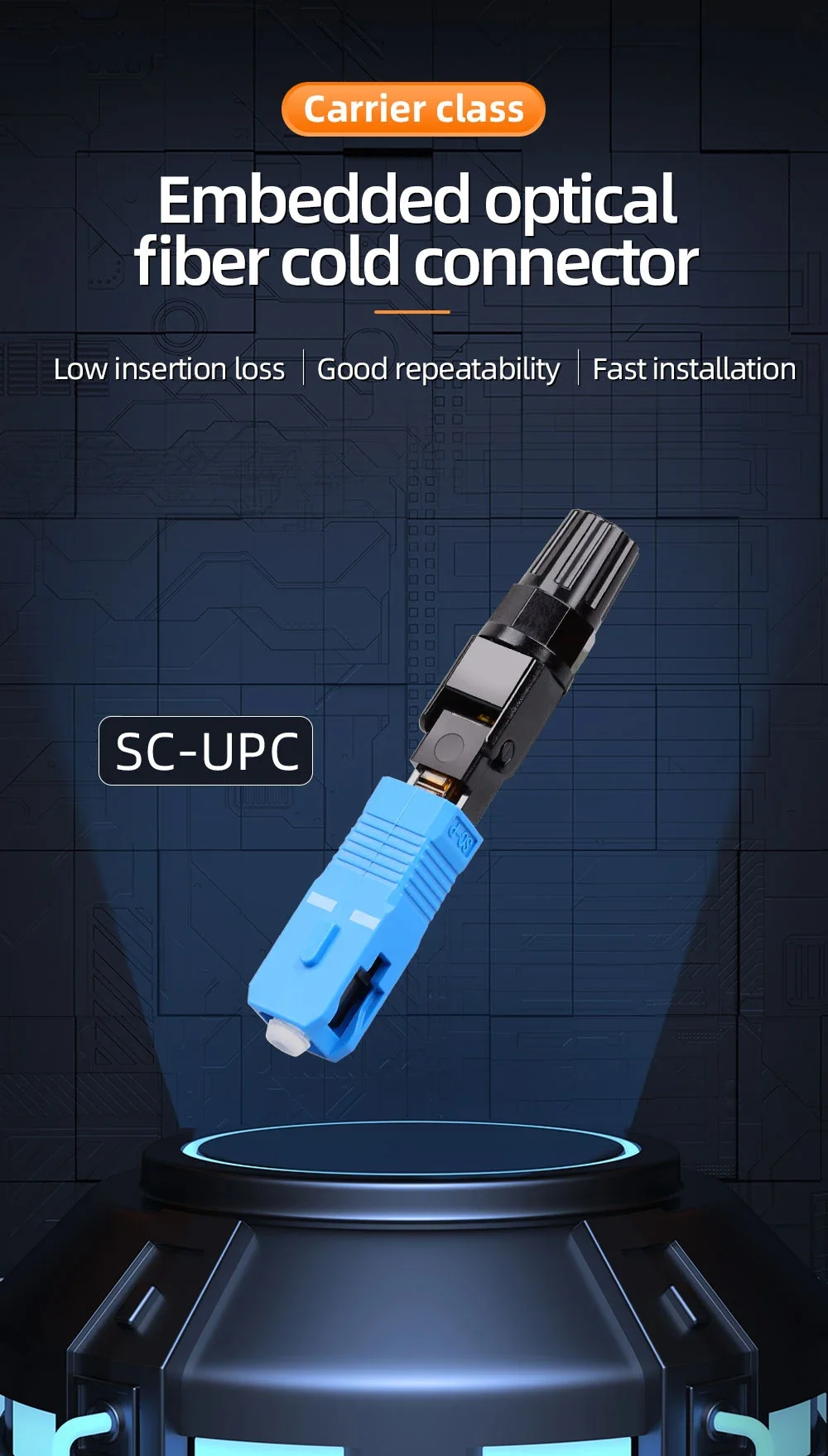

Embedded Fiber Cold Connector
Low insertion loss and good repeatability, quick and easy installation process.

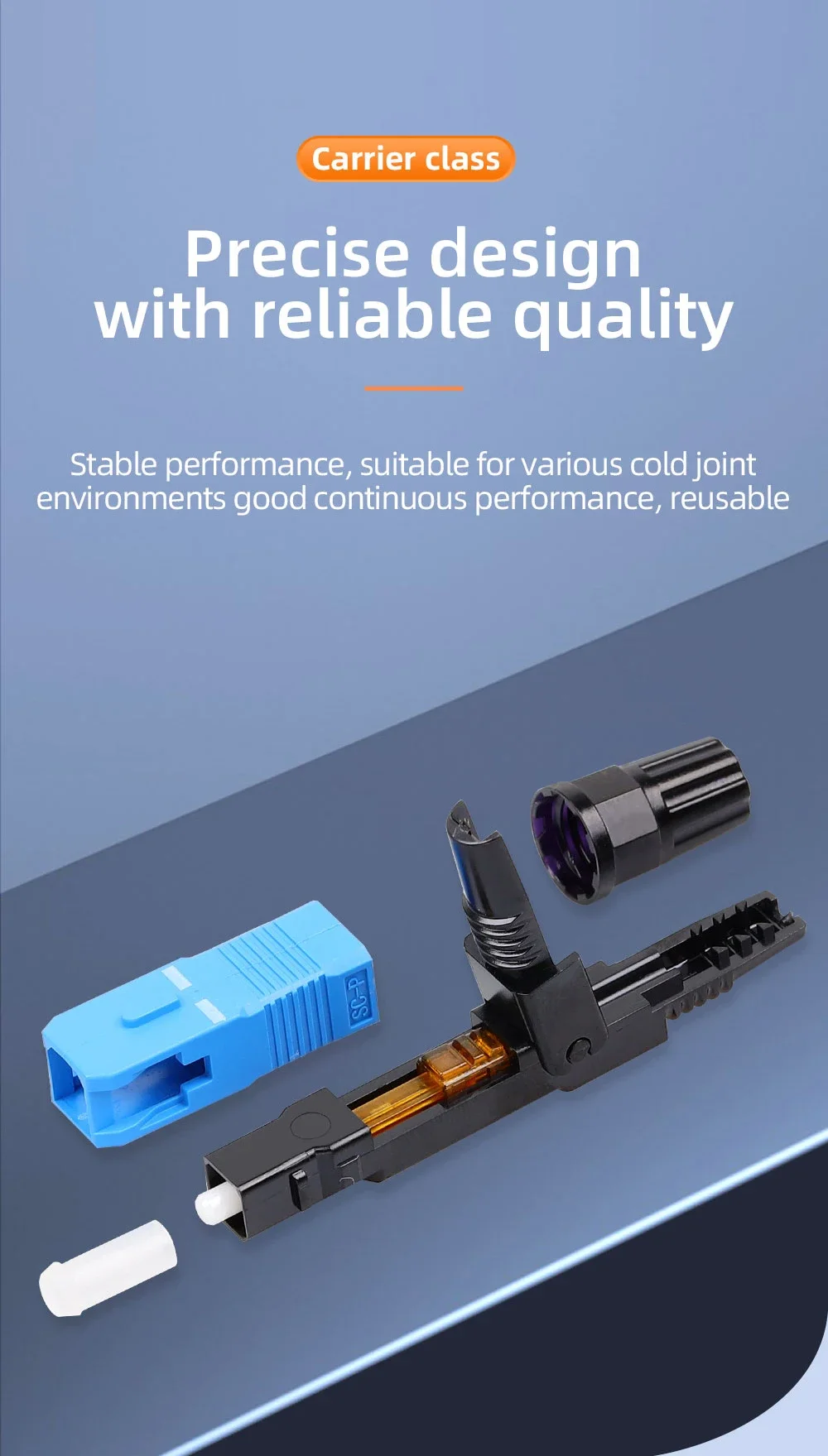

Precise Design with Reliable Quality
Stable performance, suitable for various cold joint environments good continuous performance, reusable
Scope of use
Safety monitoring / Fiber to the home / Campus network / Broadband cable / Fiber to the building
/ Smart TV

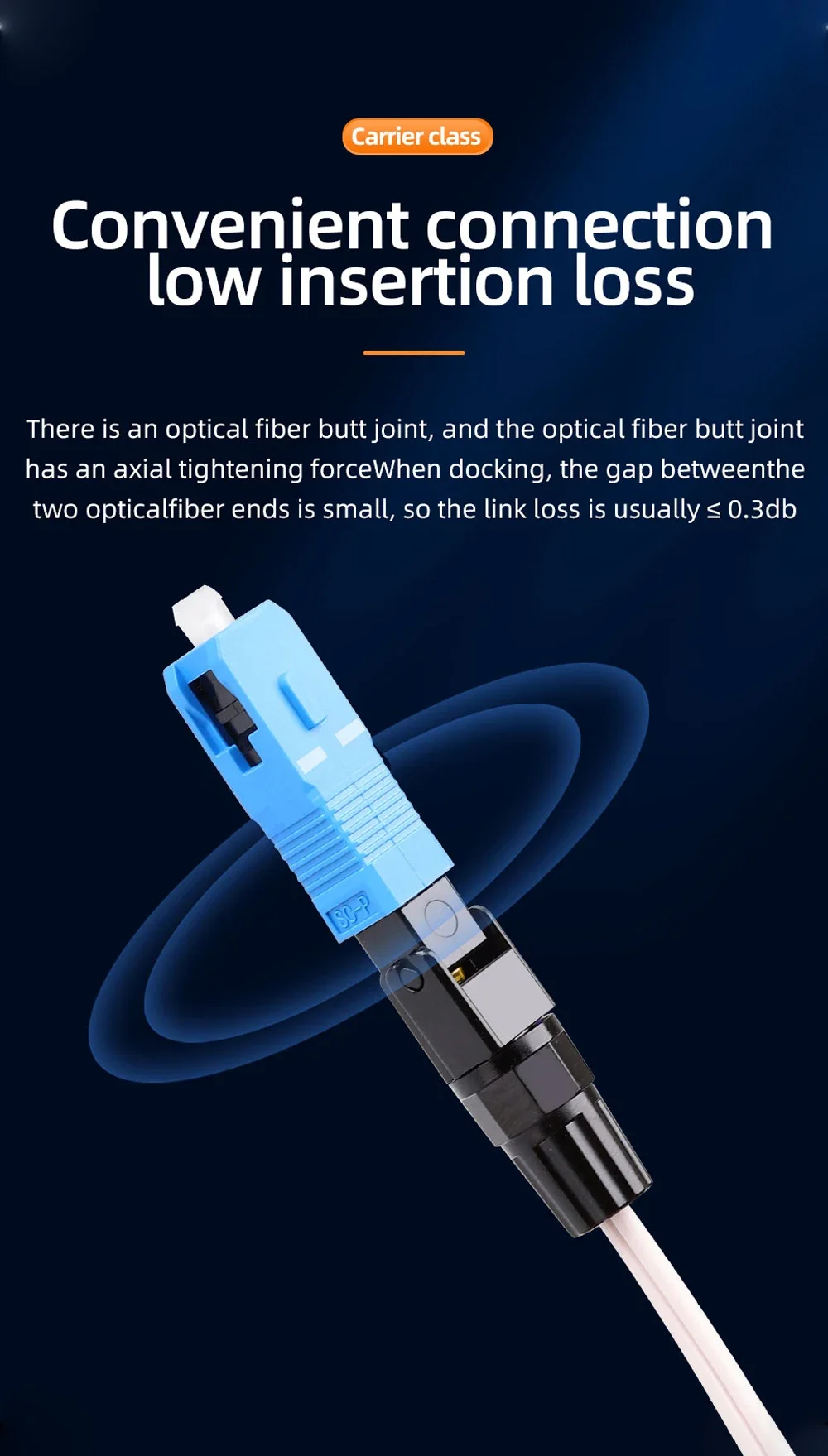

Easy connection, low insertion loss
Equipped with optical fiber joint, optical fiber joint has axial tightening force, the gap between the two optical fiber end faces is small when connected, and the link loss is generally 0.3db

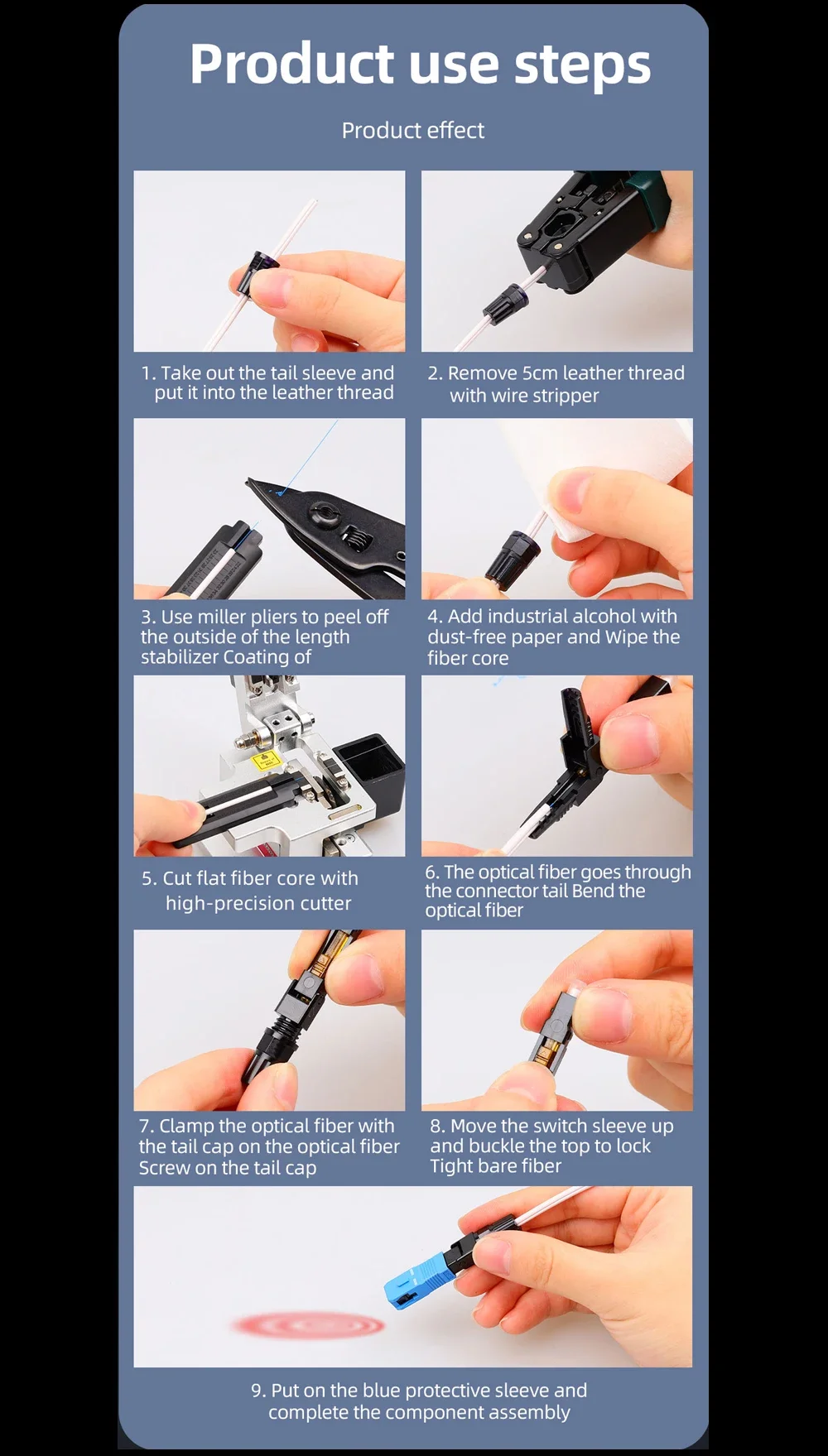

Steps to use the product Product effect
1.Remove the tailgate intothe leather cord
2. Use wire strippers to remove 5cm of skinned wire
3. Use Miller pliers to peel off thecoating outside the sizer
4.Add industrial alcohol to dust-free paper and wipe the fiber core
5. Cutting the fiber core flat withhigh-precision cutting knives
6. The fiber is threaded throughthe end of the connector causingthe fiber to bend
7.Clamp the fiber with the tail capon the fiber Tighten the tail cap
8. Move up the switch sleeve to setthe top latch to tighten the bare
fiber
9.The assembly of the device is completedby putting on the blue protective sleeve

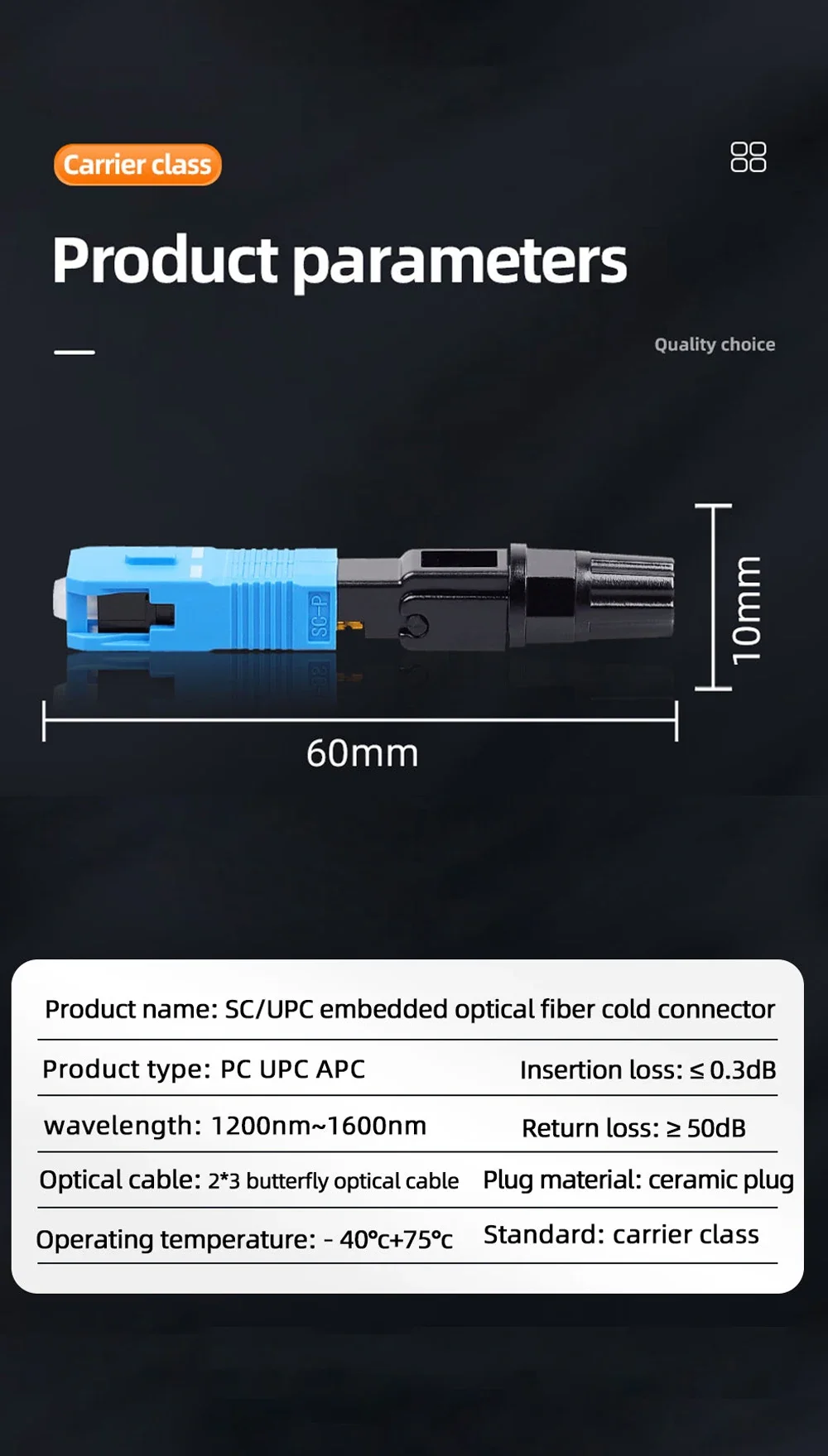

Product Parameters
Product name: SC/UPC embedded fiber cold connector
Product type: UPC
Insertion loss: ≤0.3dB
Wavelength: 1200nm~1600nm
Optical cable: 2*3 butterfly optical cable
Plug material: ceramic plug
Operating temperature: -40°c+75°c
Standard: telecommunication grade
Return loss: >50dB
