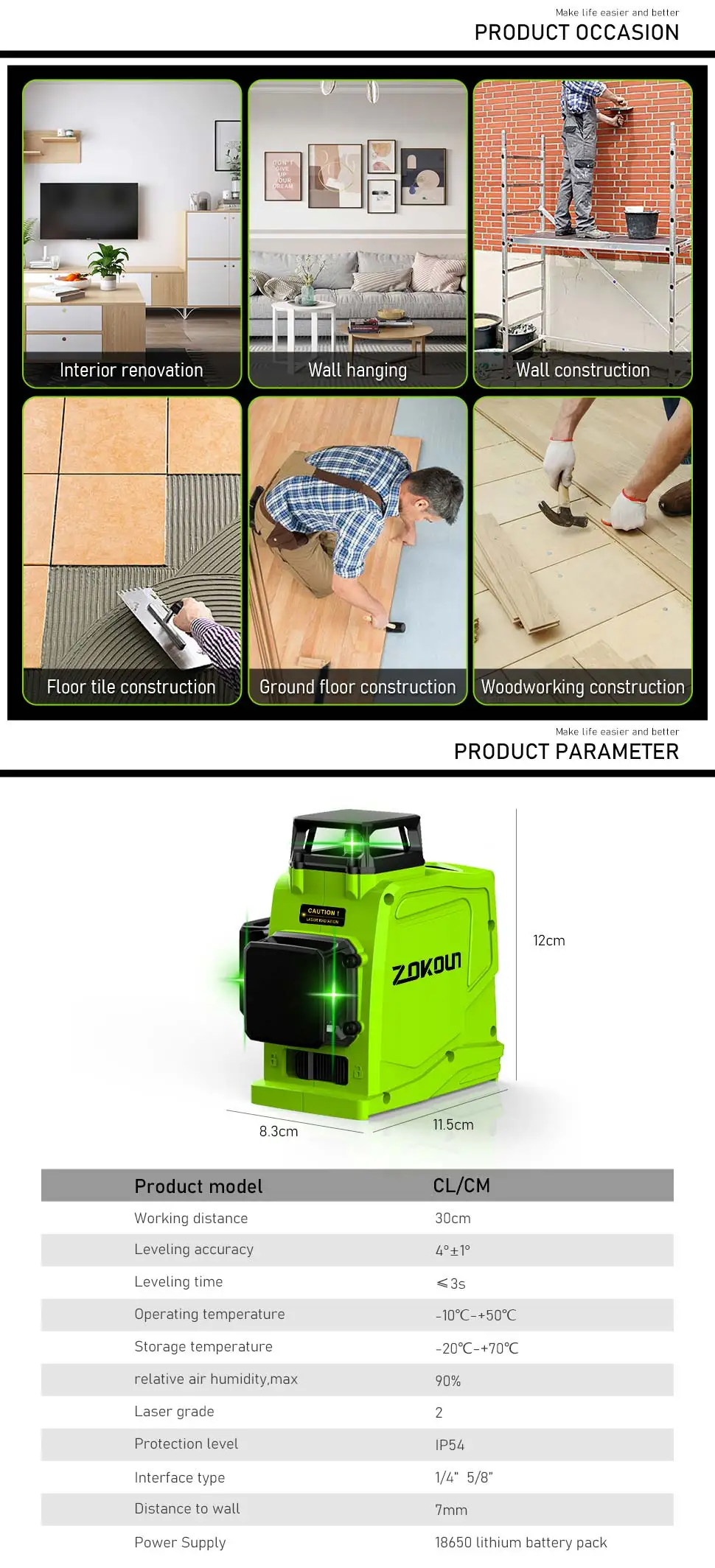

Specification
Wavelength: 630-660 nm OR 500-530 nm
Level class: class 2
Leveling range: +- 4 degrees
Leveling: pendulum
Waterproof / dustproof: IP54
Working tempature: -10 degrees celsius to 50 degrees celsius
Working range: 20m (diameter) indoor without receiver.
Working distance diameter: 50m (with receiver / detector);
Outdoor working: If the laser level is needed to be worked outdoor frequently, it is better to buy a green beam laser.
Tile Slash function: Yes
Self-leveling: Yes

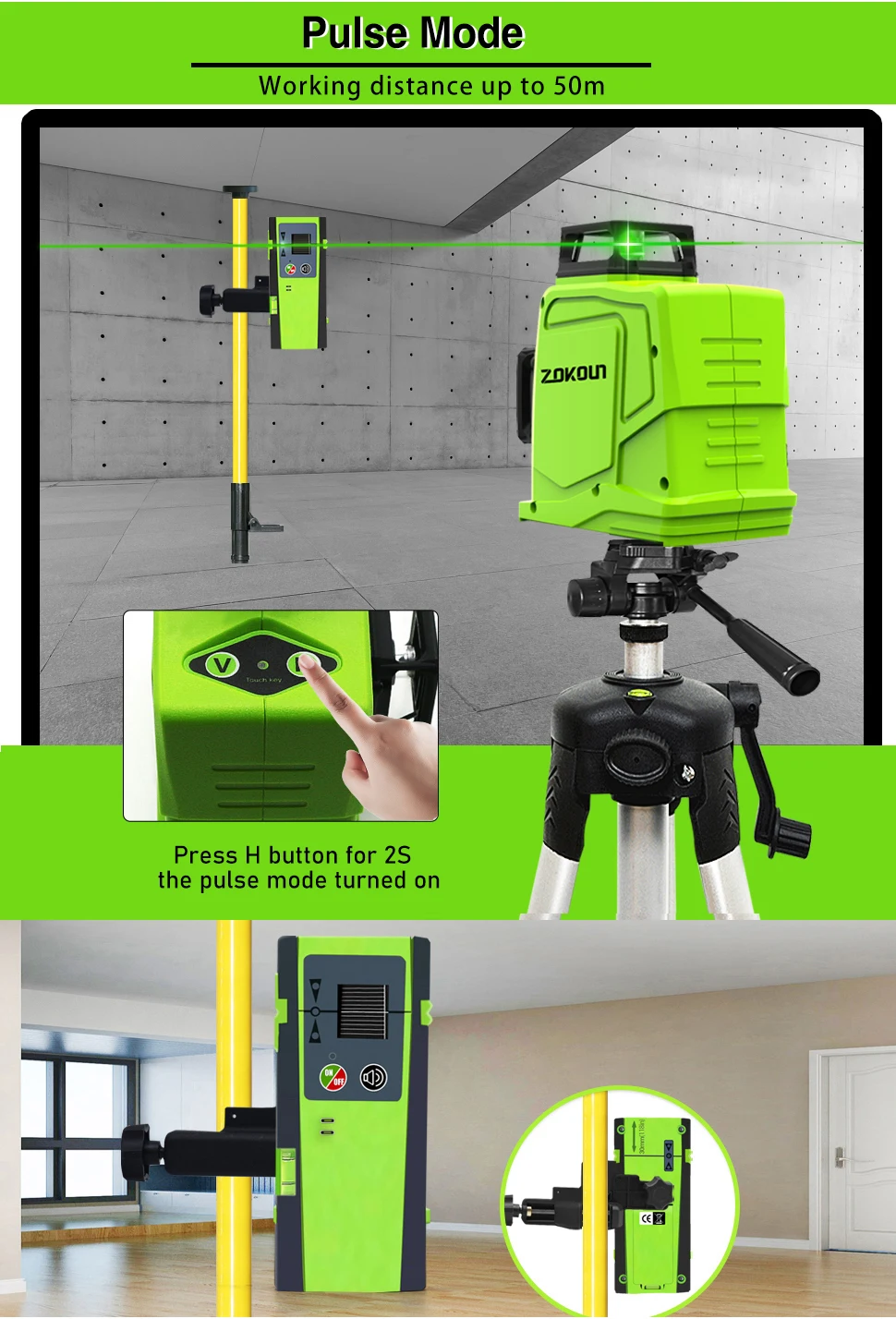

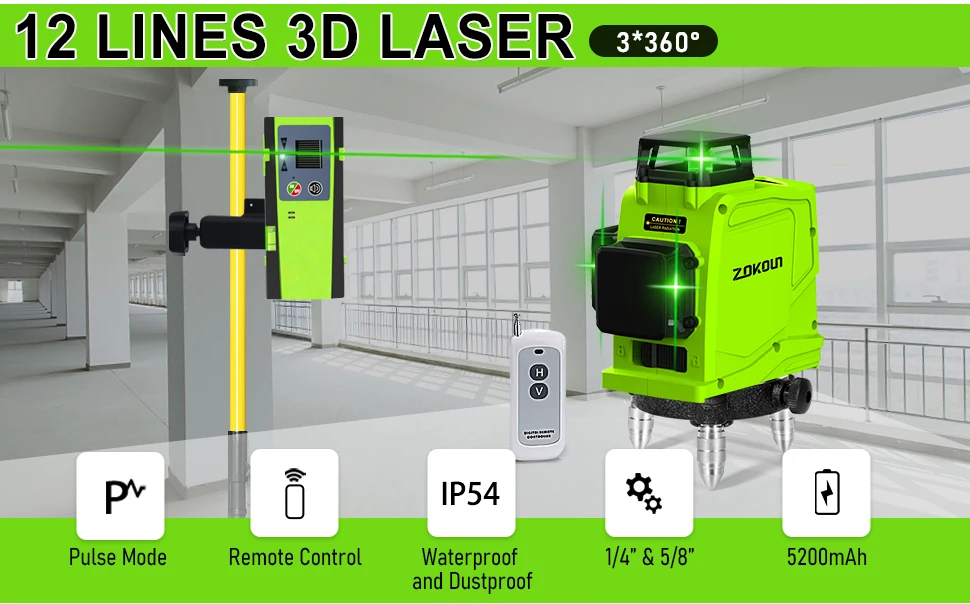

Outdoor mode (receiver mode):
How to turn on pulse mode：
please press “H” button for 2 seconds，
The light of the level meter will become weaker, and then the level meter can be compatible with the receiver
Note：It is only compatible with Zokoun DC12G Laser Receiver.

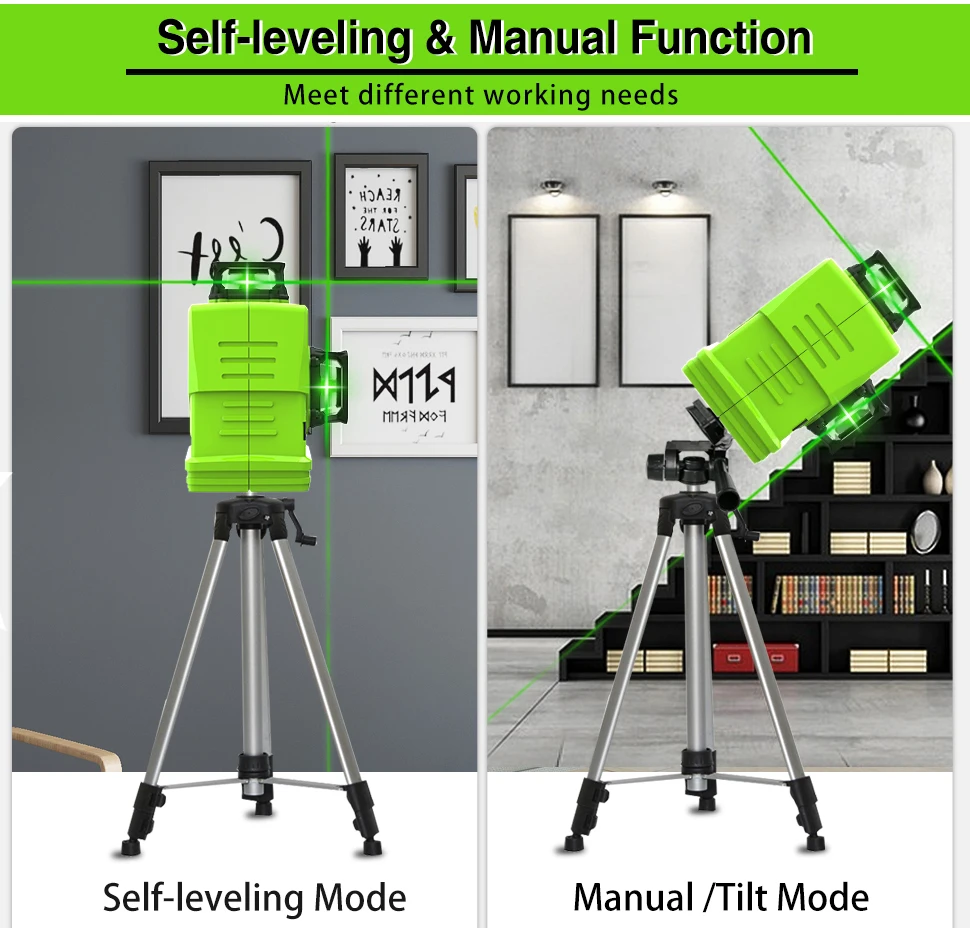

Different Functional Modes

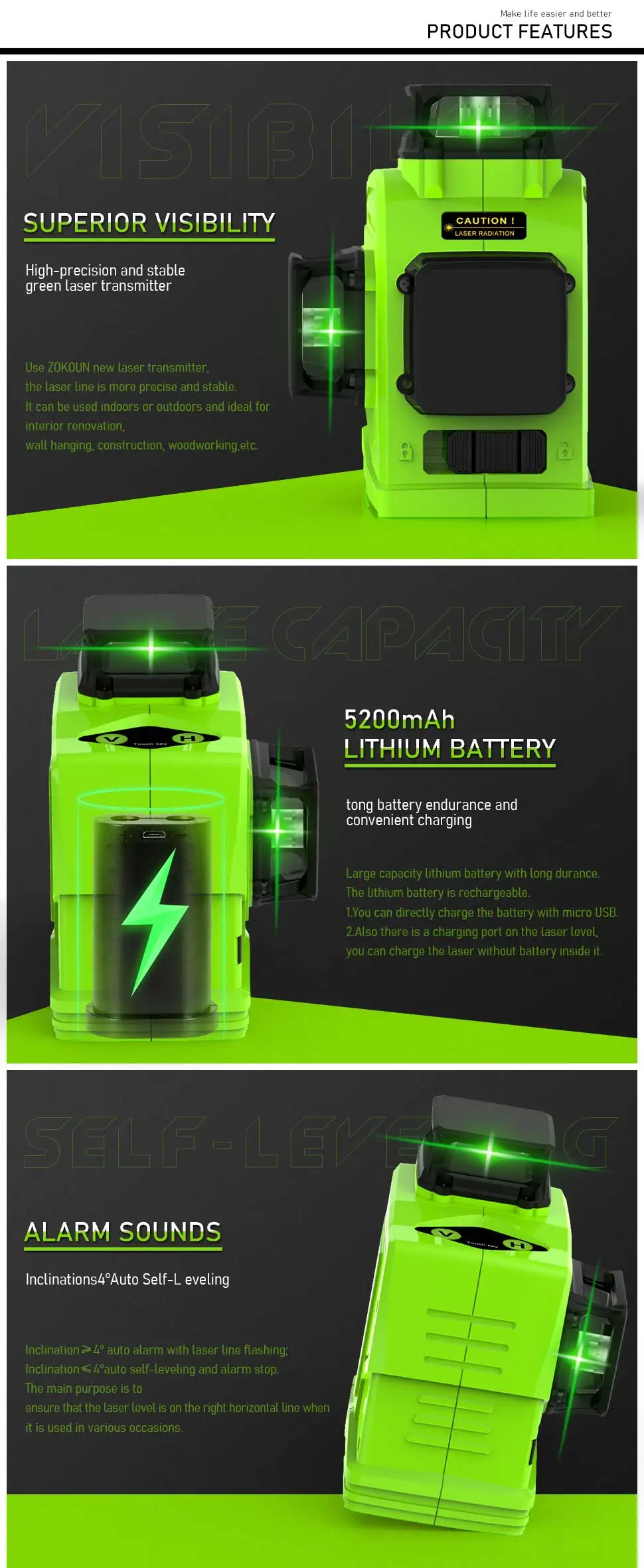

Self-leveling mode:
When the pendulum is unlocked, self-leveling mode is on.
The laser beam will beep and the laser beam will blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum is locked, the laser level can be placed at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

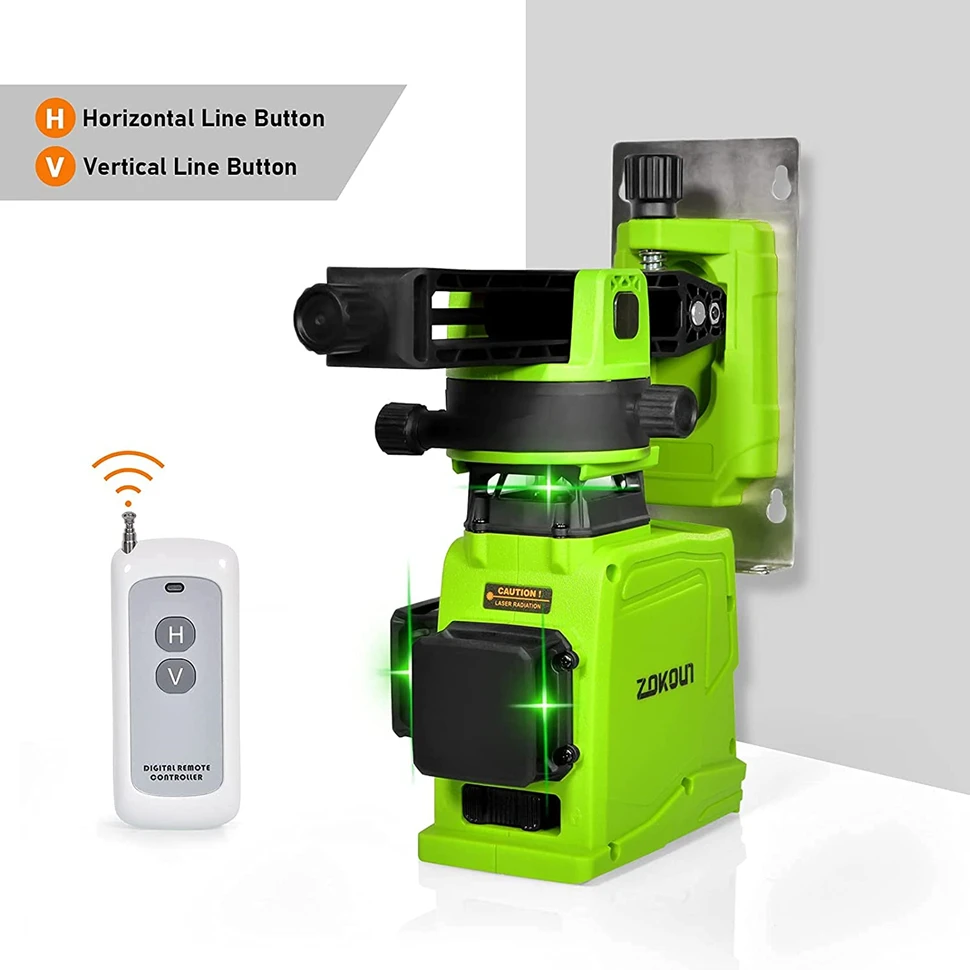

Remote Control

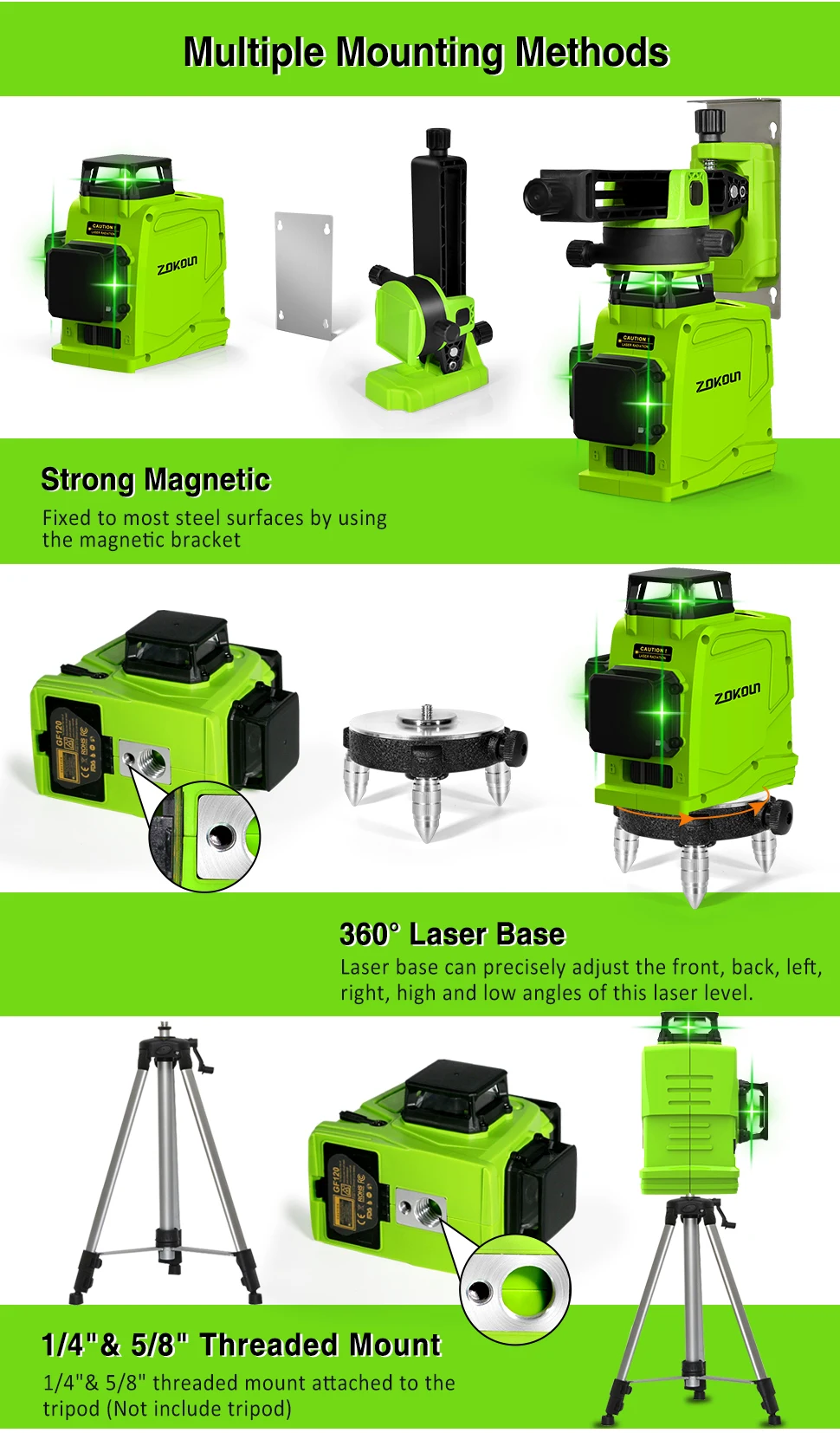

Multiple Placement Methods
GF120 works with base, bracket and tripod.
1.Use the magnetic bracket to fix the level where you need it.
2.Using a tripod allows you to work easily within a height range of 1.5m.
3.The use of fine-tuning lifting platform is more suitable for indoor installation of floor tiles and skirting lines.

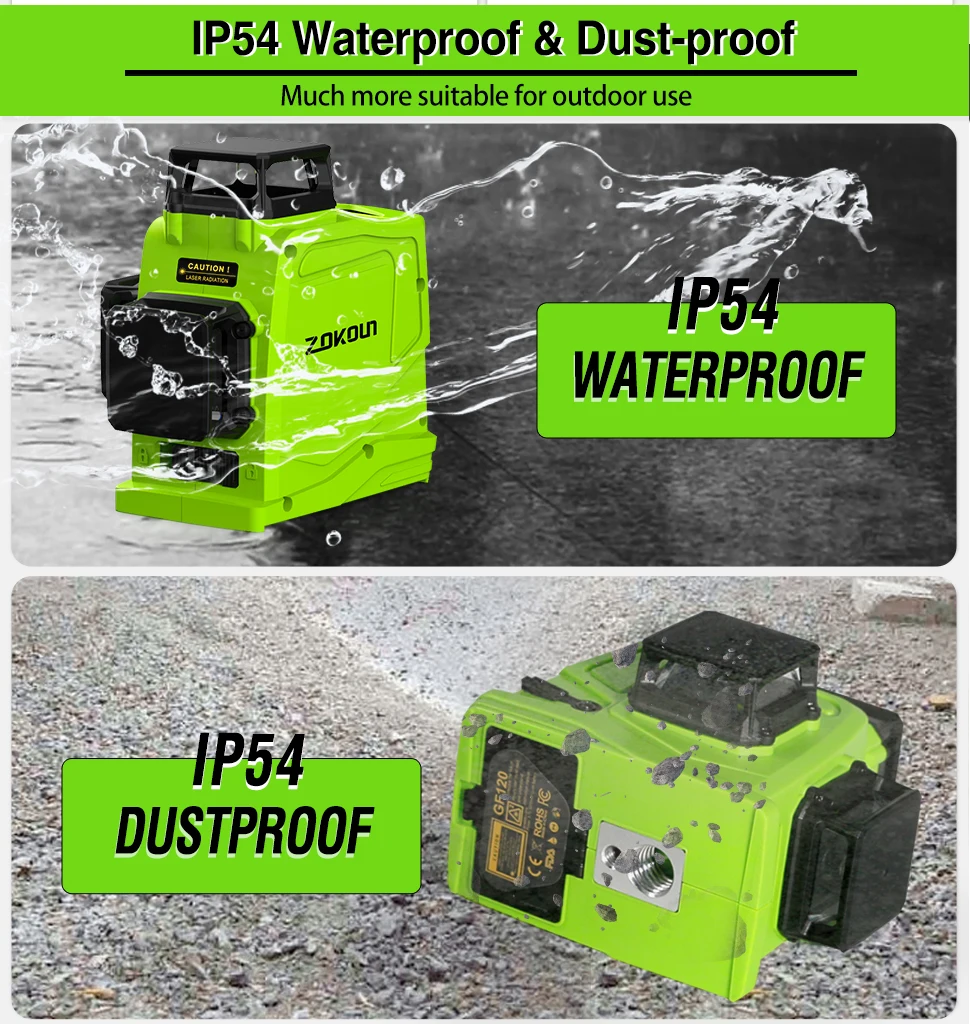

IP54 waterproof and dustproof
