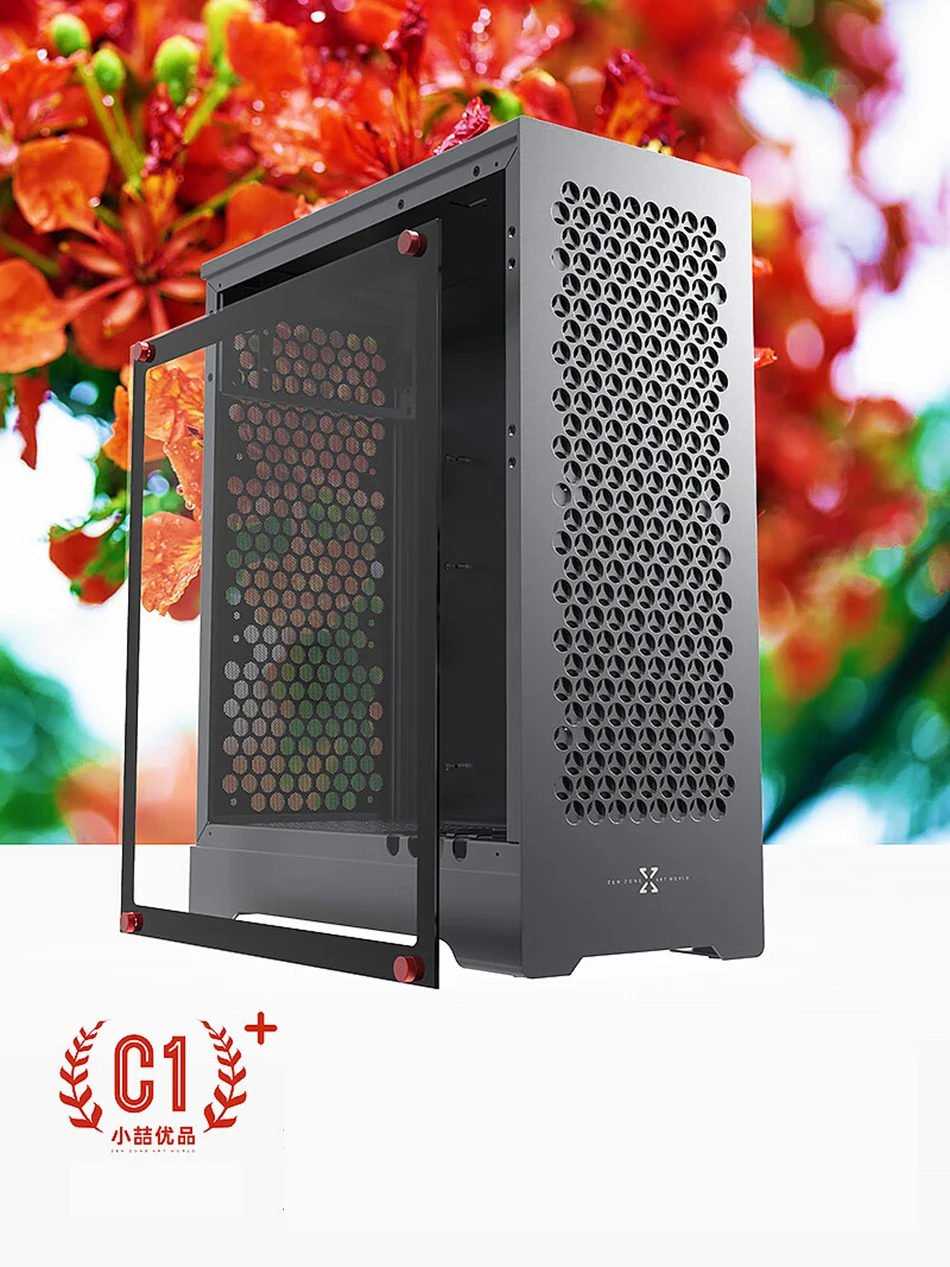

Product specification parameters
Brand: ZZAW
Model: C1 upgraded version

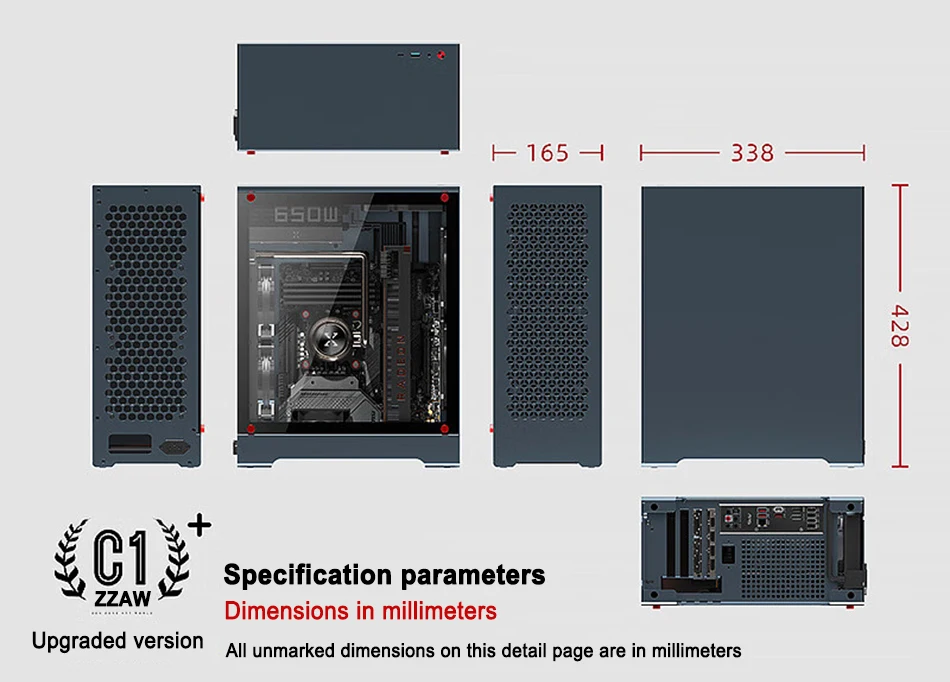

Dimensions: length (depth) 338 * width 165 * height 428mm
Volume: 23.8 liters
Net weight: 2.7KG, logistics weight: 3.7KG
Packaging: 410 * 240 * 510mm (logistics size)

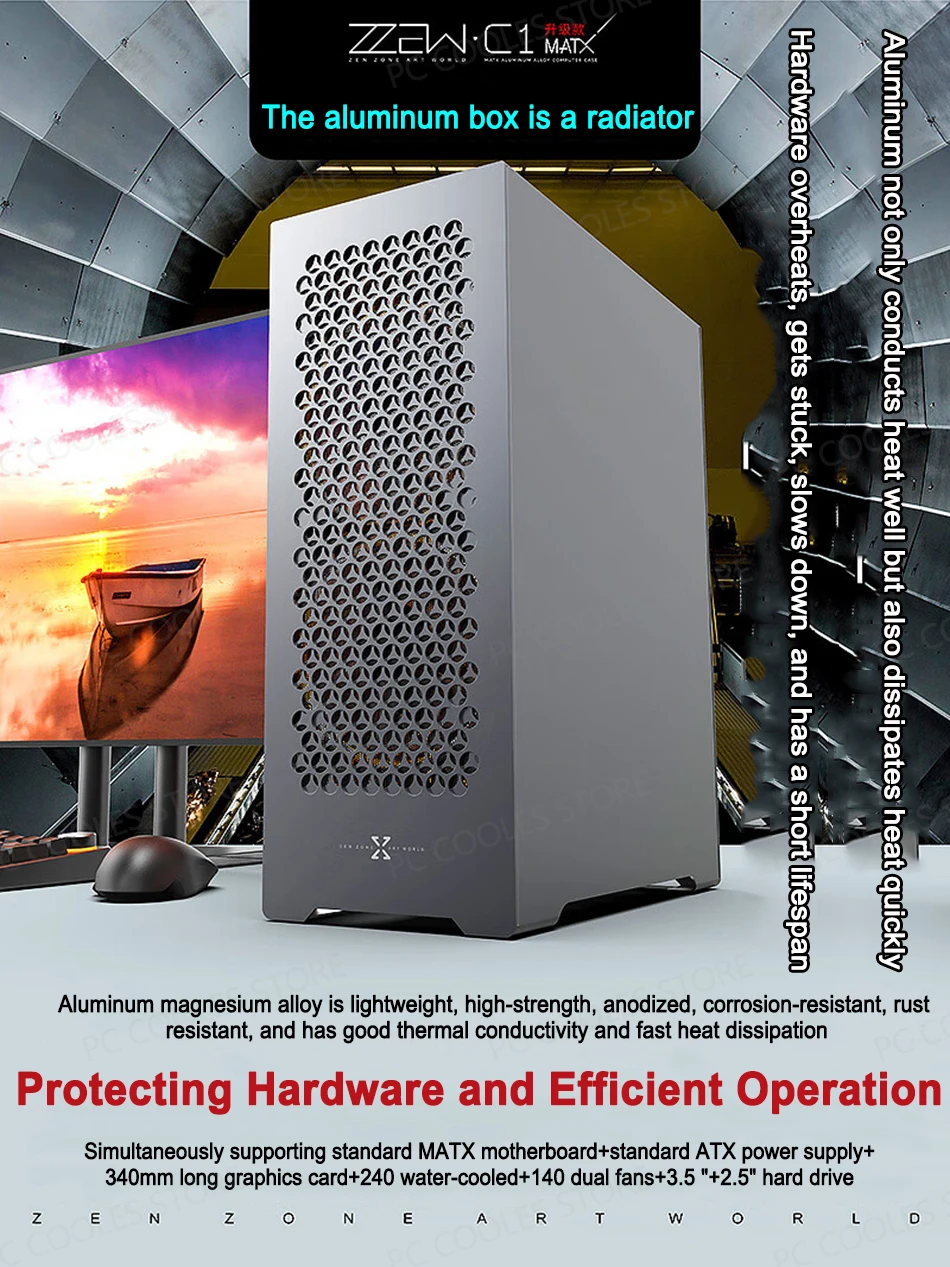

Material: Aluminum magnesium alloy, sheet thickness 2.0+1.5mm

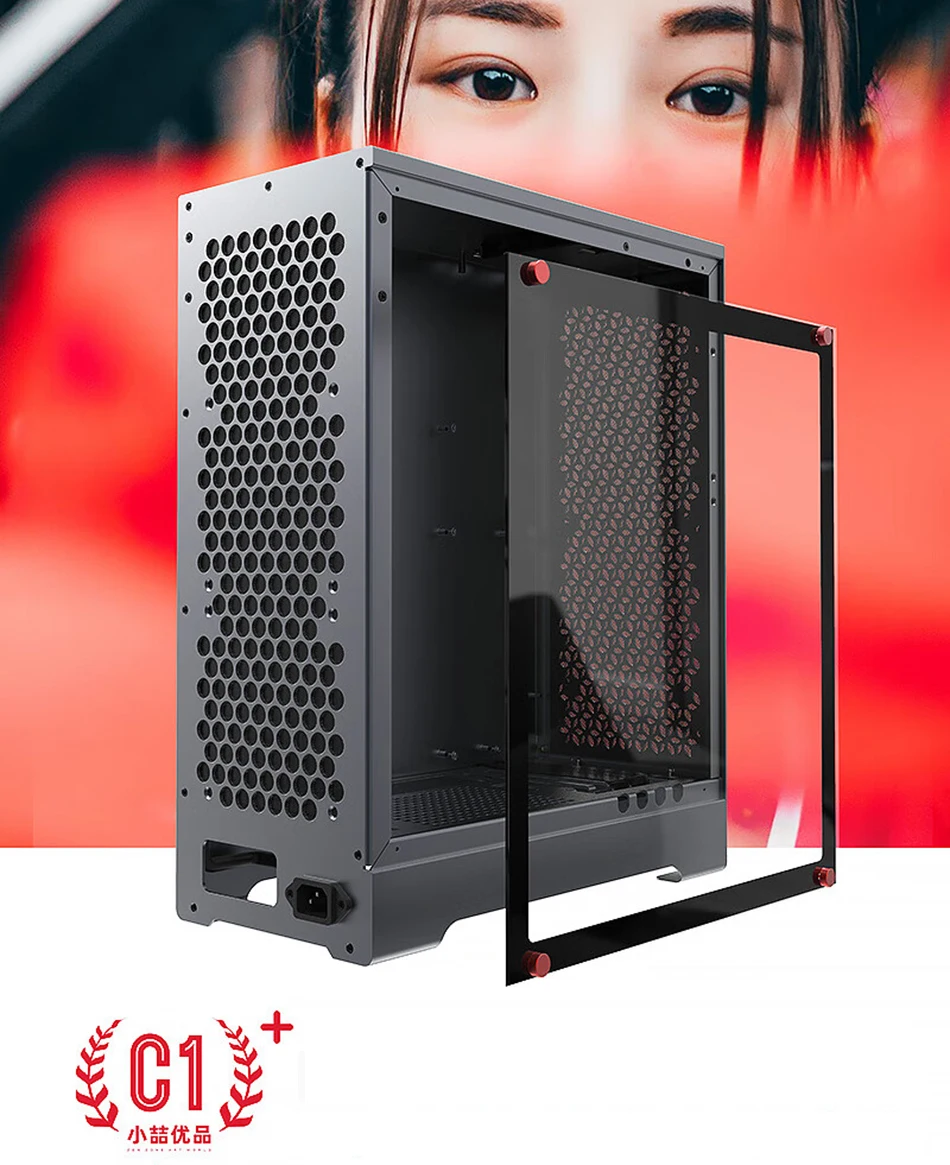

Side panel: Light black transparent tempered glass, 3.0mm thick
Color: Dark gray (anodized)
Surface: Fine sandblasted matte surface
PCIE: 4PCS expansion slot

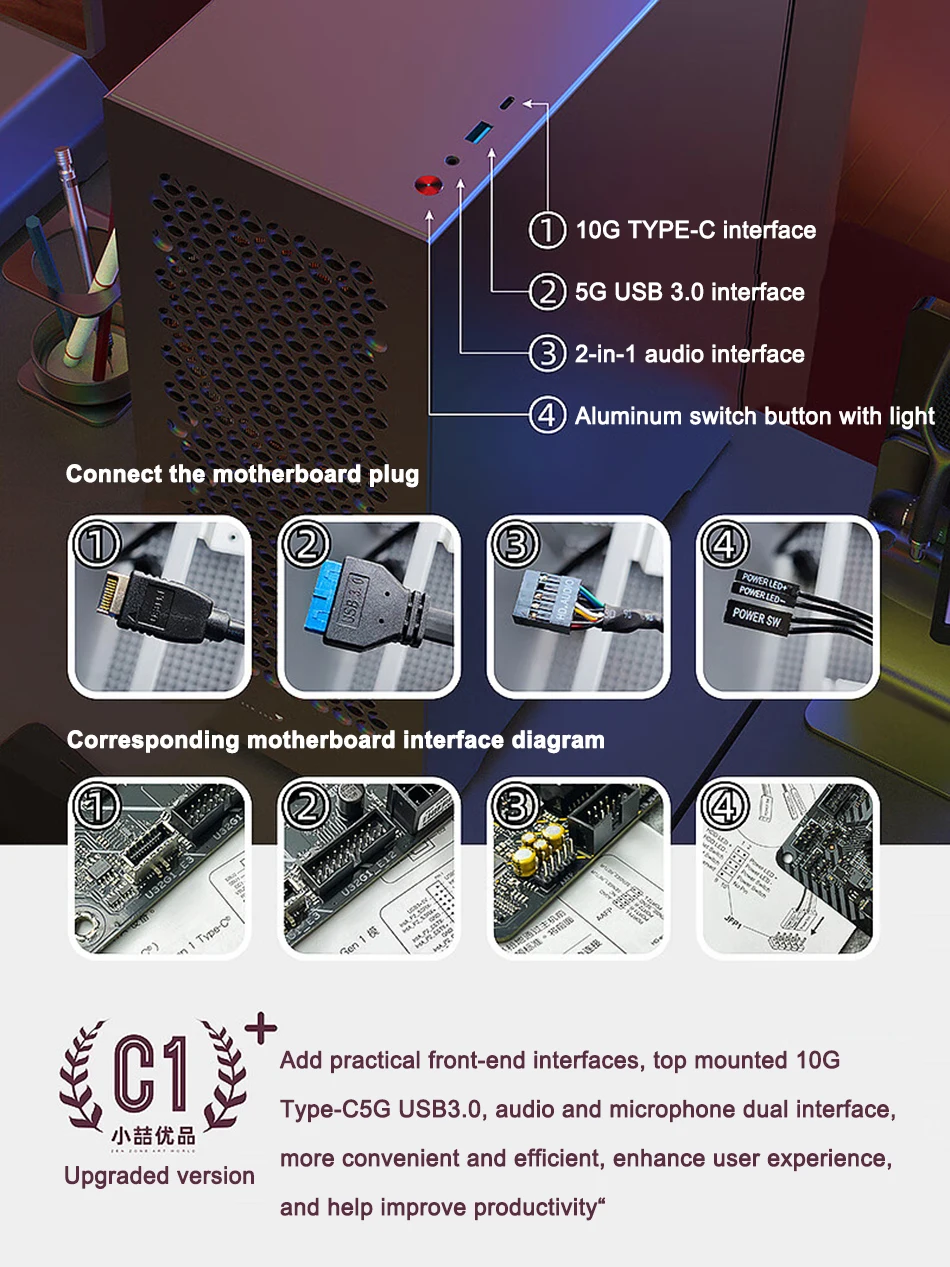

Front end: Type-C * 1, USB3.0 * 1, 3.5 2-in-1 audio * 1, power button with indicator light * 1
Accessories: Dust proof net * 3+accessory box (including screw pack, etc.)

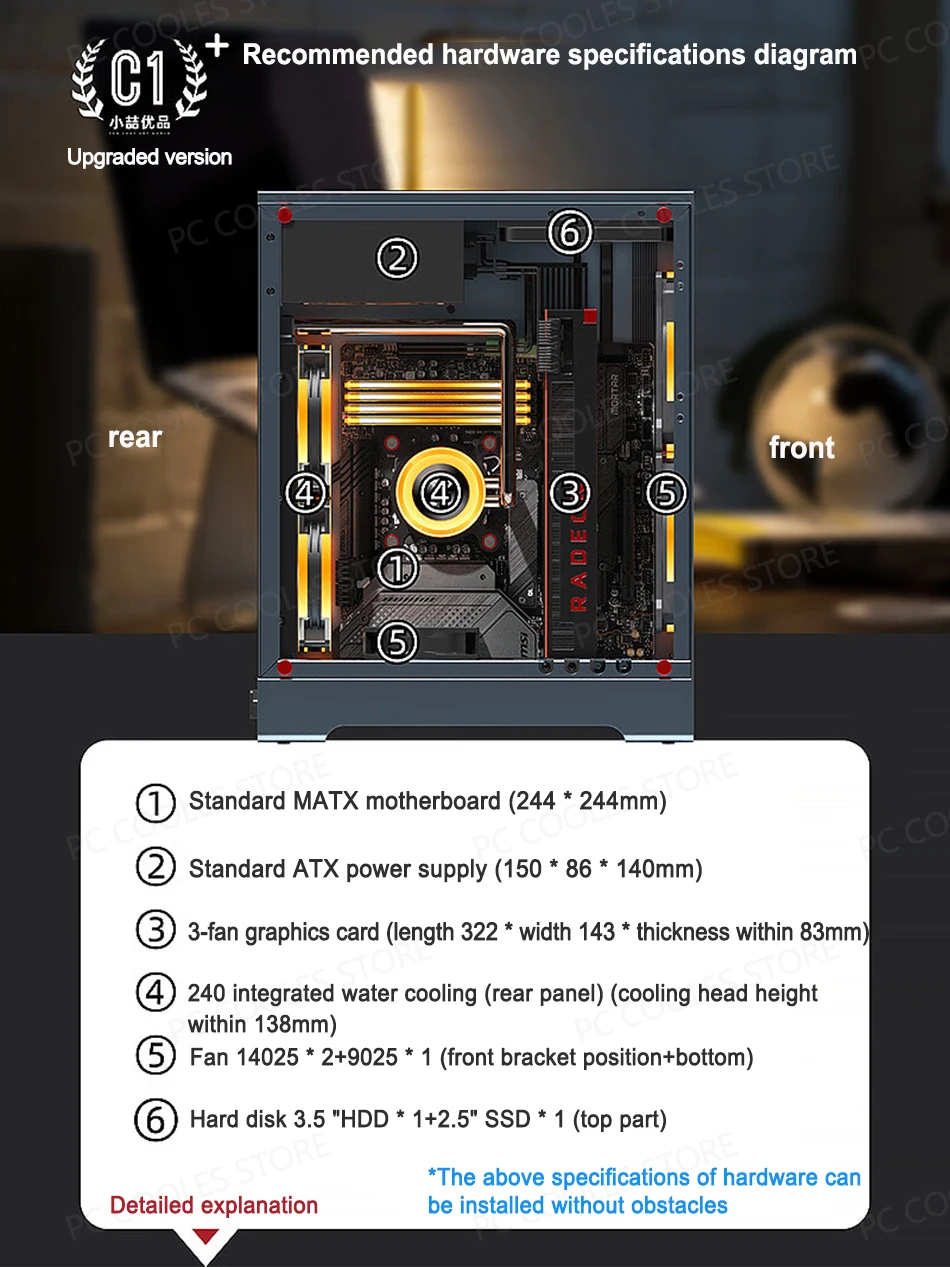

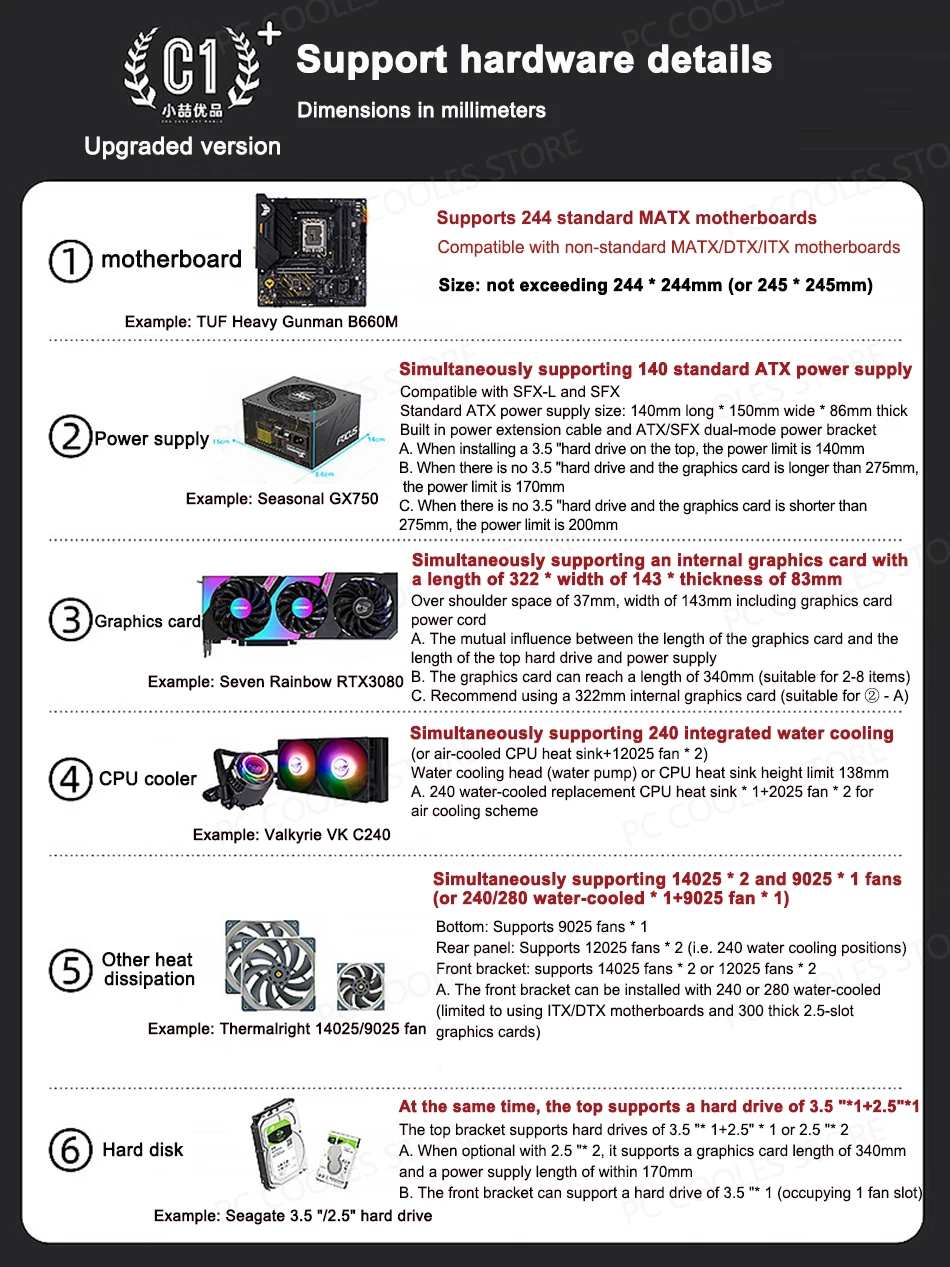

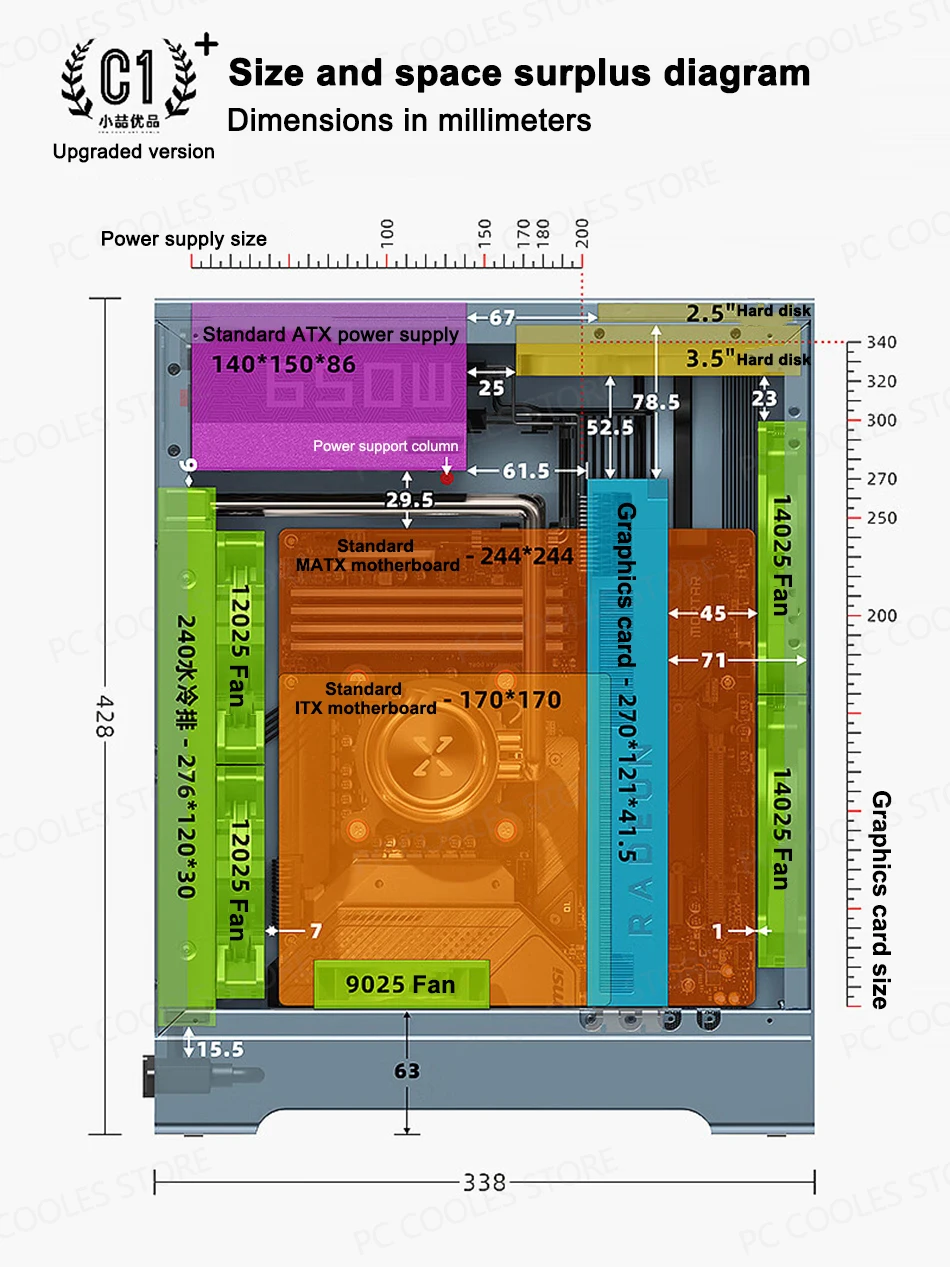

Introduction to hardware support specifications:
Motherboard: MATX/DTX/ITX (length and width within 244)
Power supply: ATX/SFX-L/SFX (within 200 in length)
Hard disk drive: 3.5 "HDD * 2, 2.5" SSD * 2
Graphics card: limited to length * width * thickness of 340 * 143 * 80mm or less

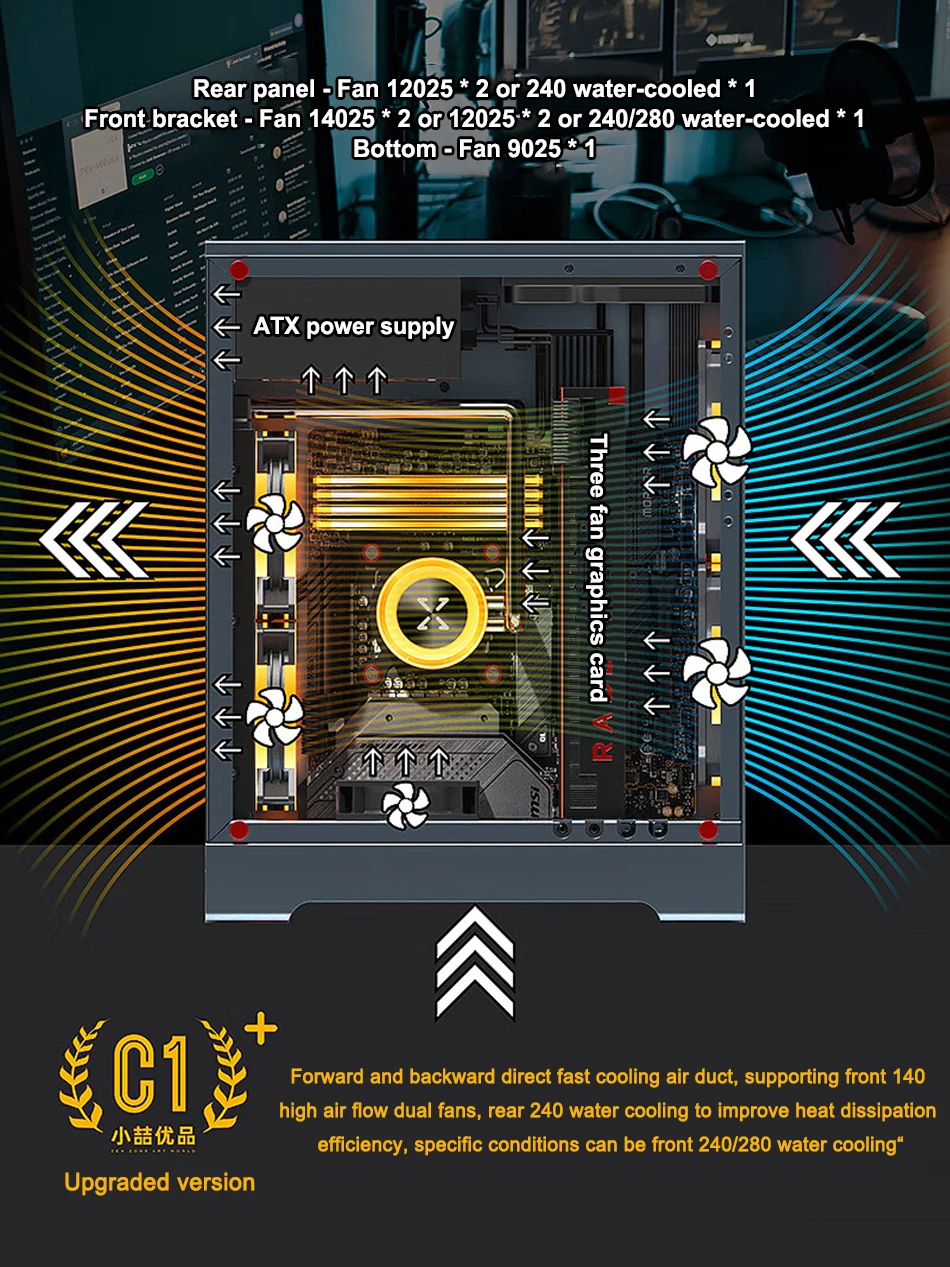

Fan and water cooling position: Bottom 9025 fan * 1
Backboard-12025 fan * 2 or 240 water-cooled * 1

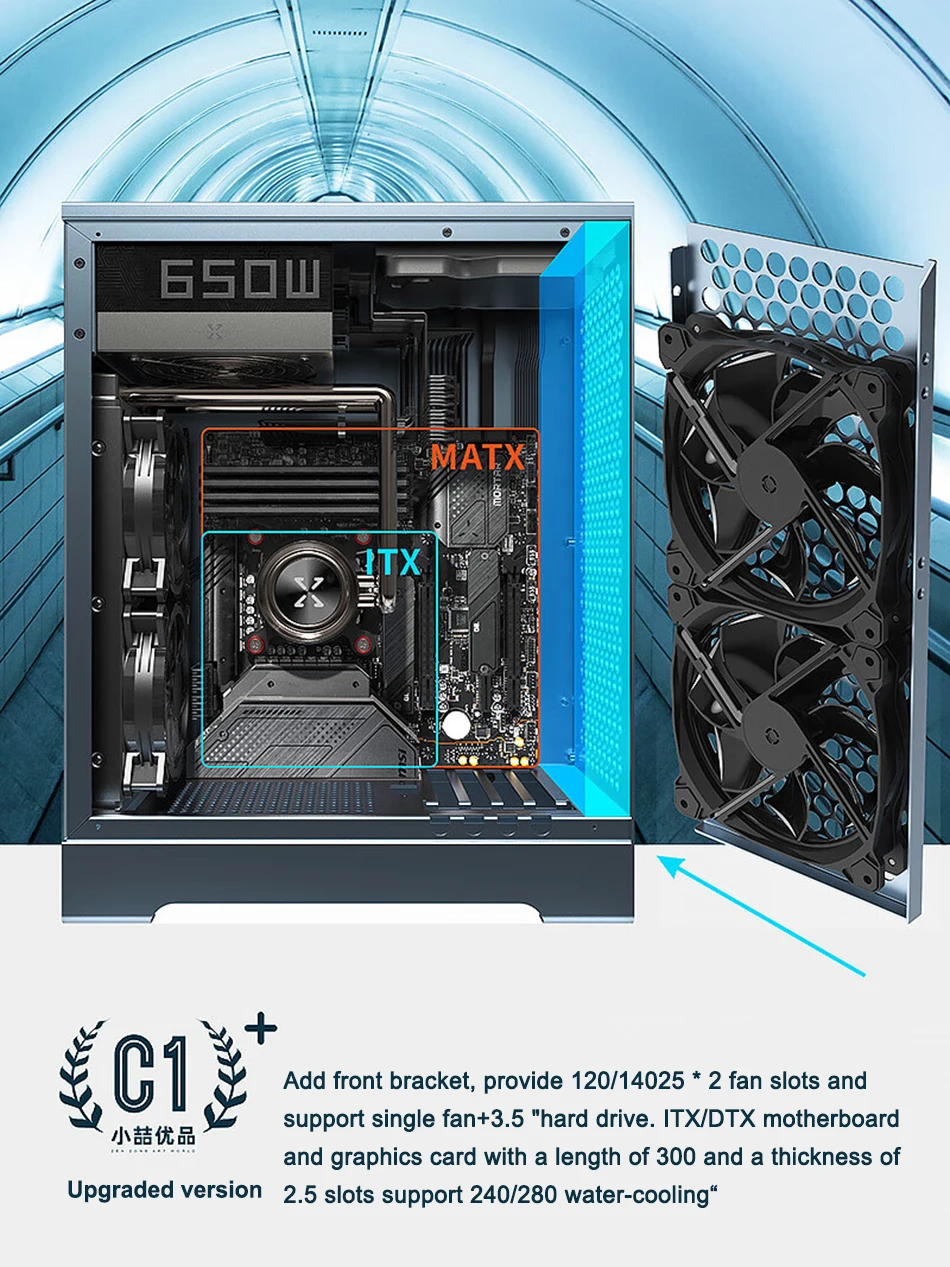

Front bracket -14025 fan * 2 or 12025 fan * 2
The front bracket can support 240 or 280 water cooling * 1
*The front water-cooled motherboard is limited to ITX/DTX, and it is recommended to limit the length of the graphics card to 300mm and the thickness to 2.5 slots
CPU heat sink and water cooling head: height limit within 138mm
