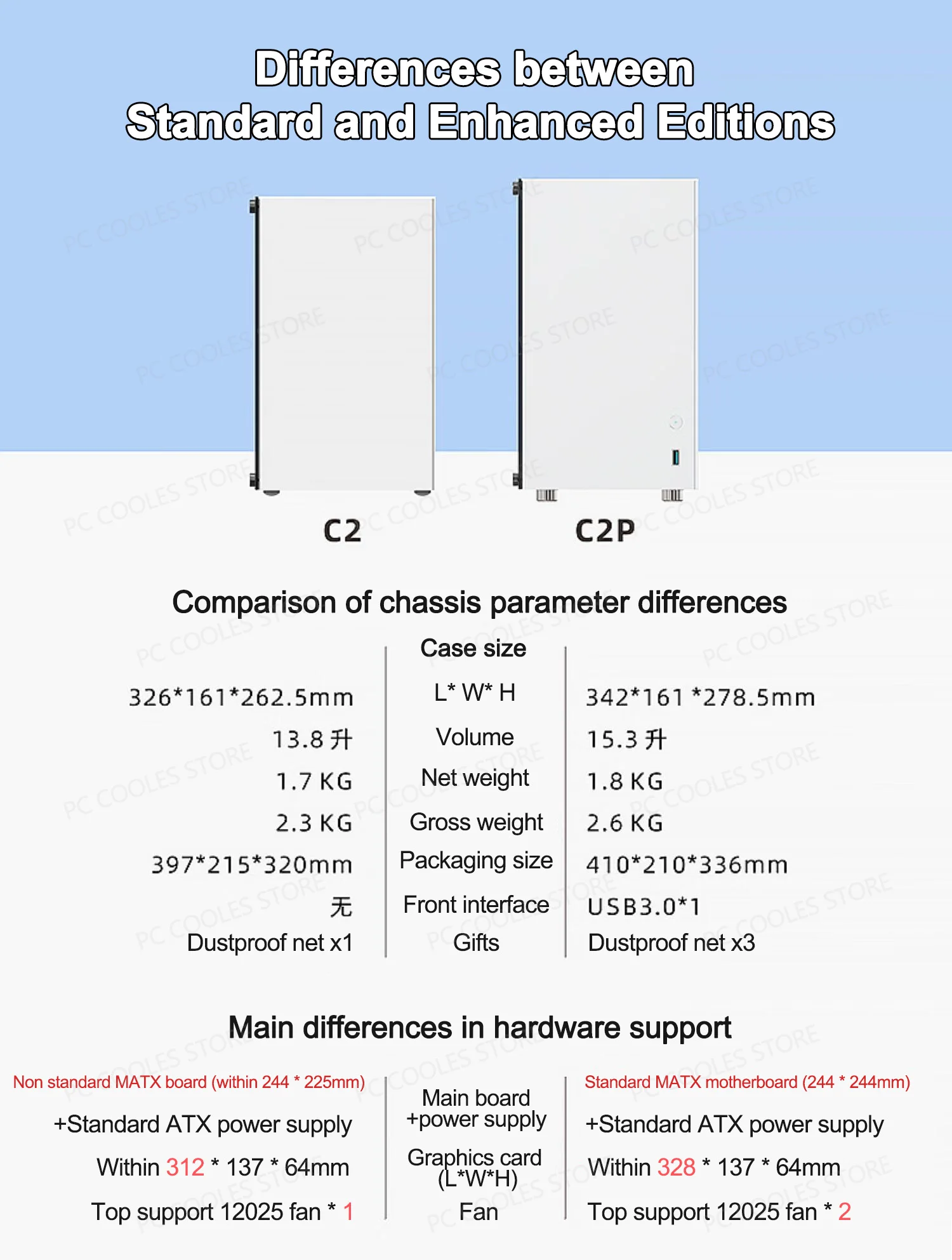

Product parameters
C2P
Product model: C2P (silver/white)
Product size: 342 * 161 * 278.5mm (length * width * height)
Volume: 15.3L
Net weight: 1.8KG
Product material: 1.5MM thick aluminum magnesium alloy, 3MM thick transparent tempered glass (light black)
Front panel: USB3.0 * 1, indicator light power button * 1

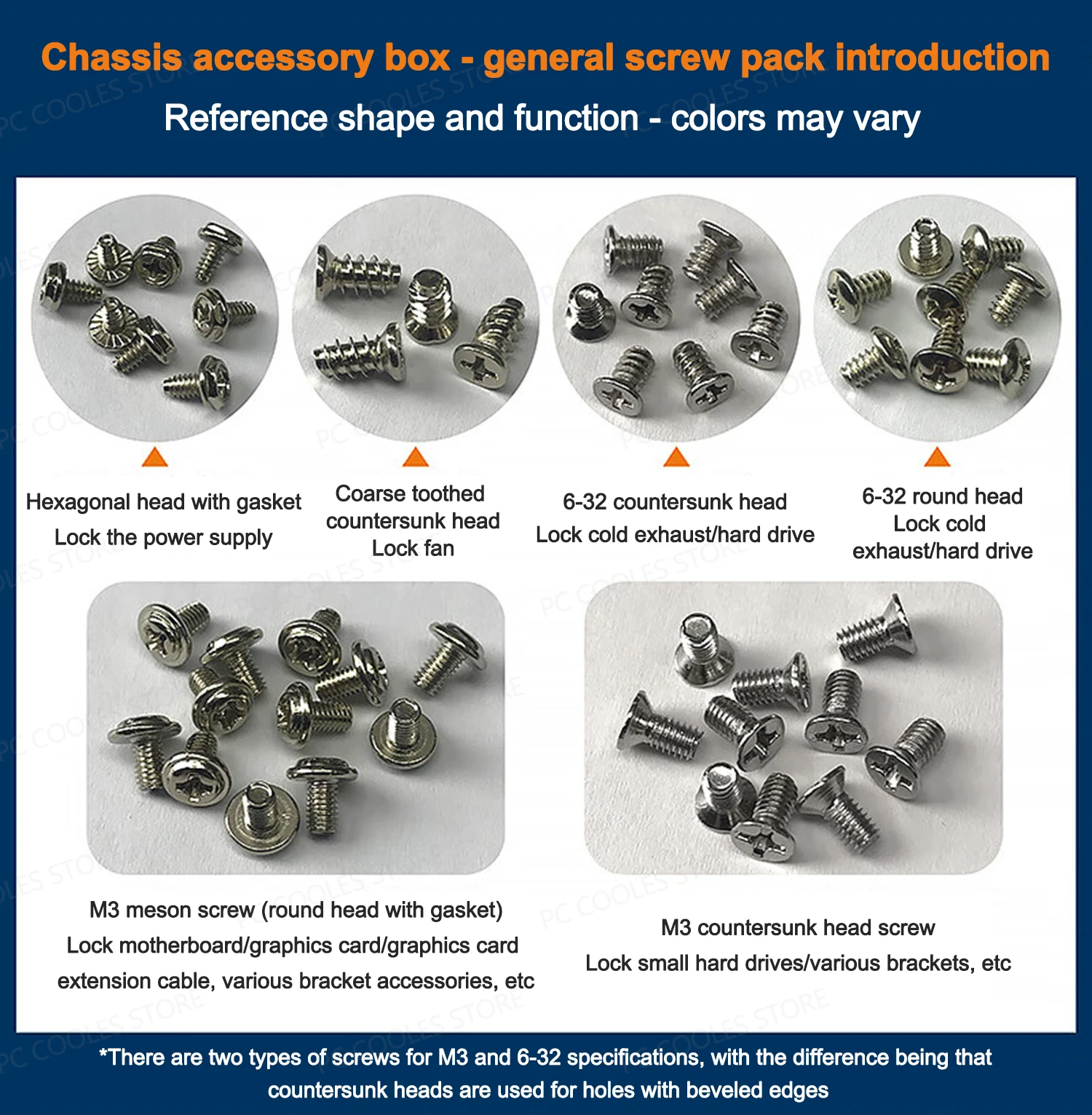

Accessories and gifts: accessory box (including screw ties) * 1, dustproof net * 3, power rack * 1
Chassis support specifications

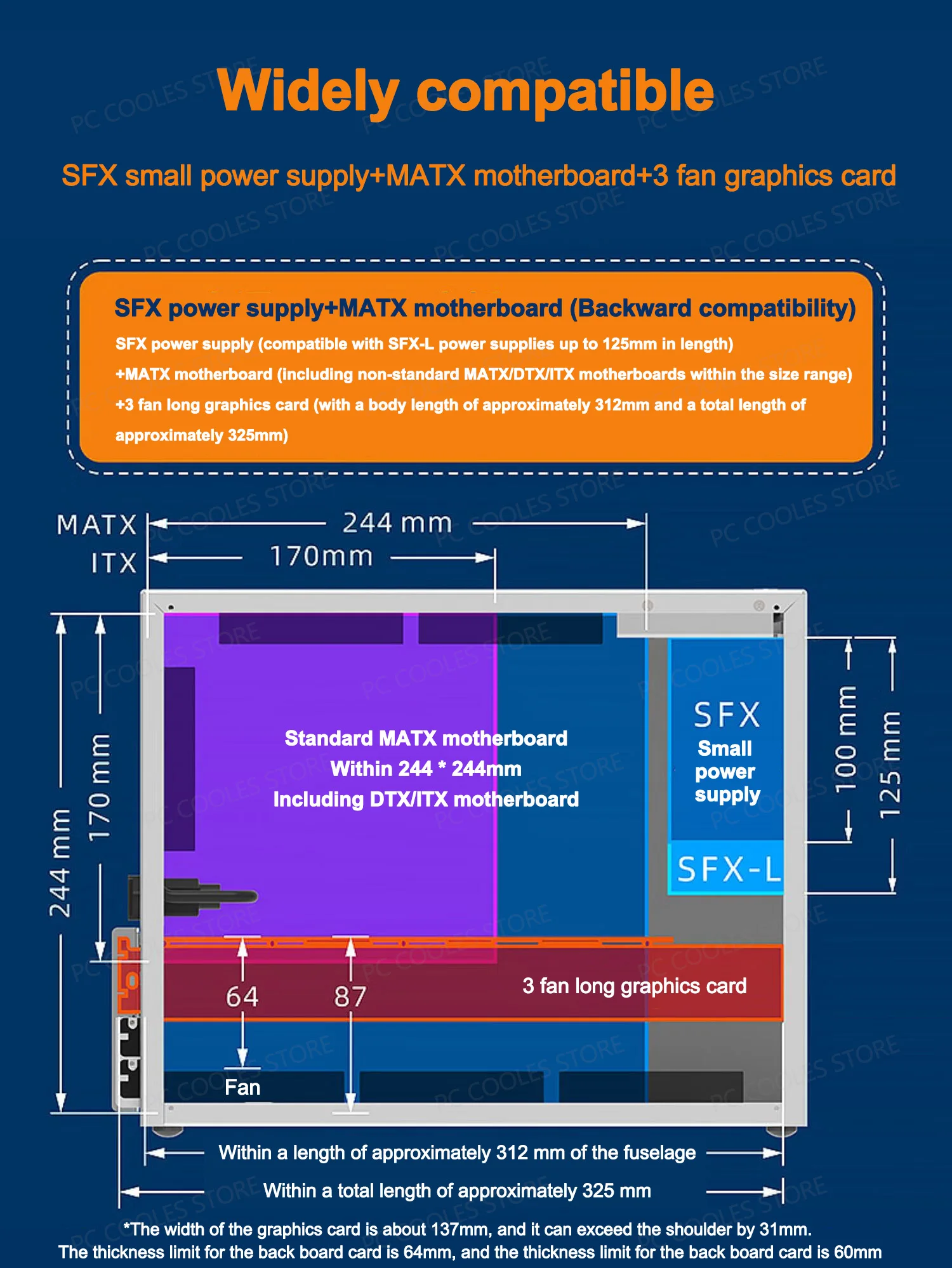

Motherboard: MATX, ITX, DTX
Power supply: ATX, SFX-L, SFX
Graphics card: within 328 * 137 * 64mm (length * width * height)
Hard disk drive: 3.5 "HDD * 1+2.5" SSD * 1 or 3 2.5 "SSDs
Fan
Top: Supports 12025 * 2 or 9025 * 2
Rear window: 9025 * 1
Bottom: 12025 * 2 or 9025 * 3 (without hard drive)
CPU heat sink: within 136mm

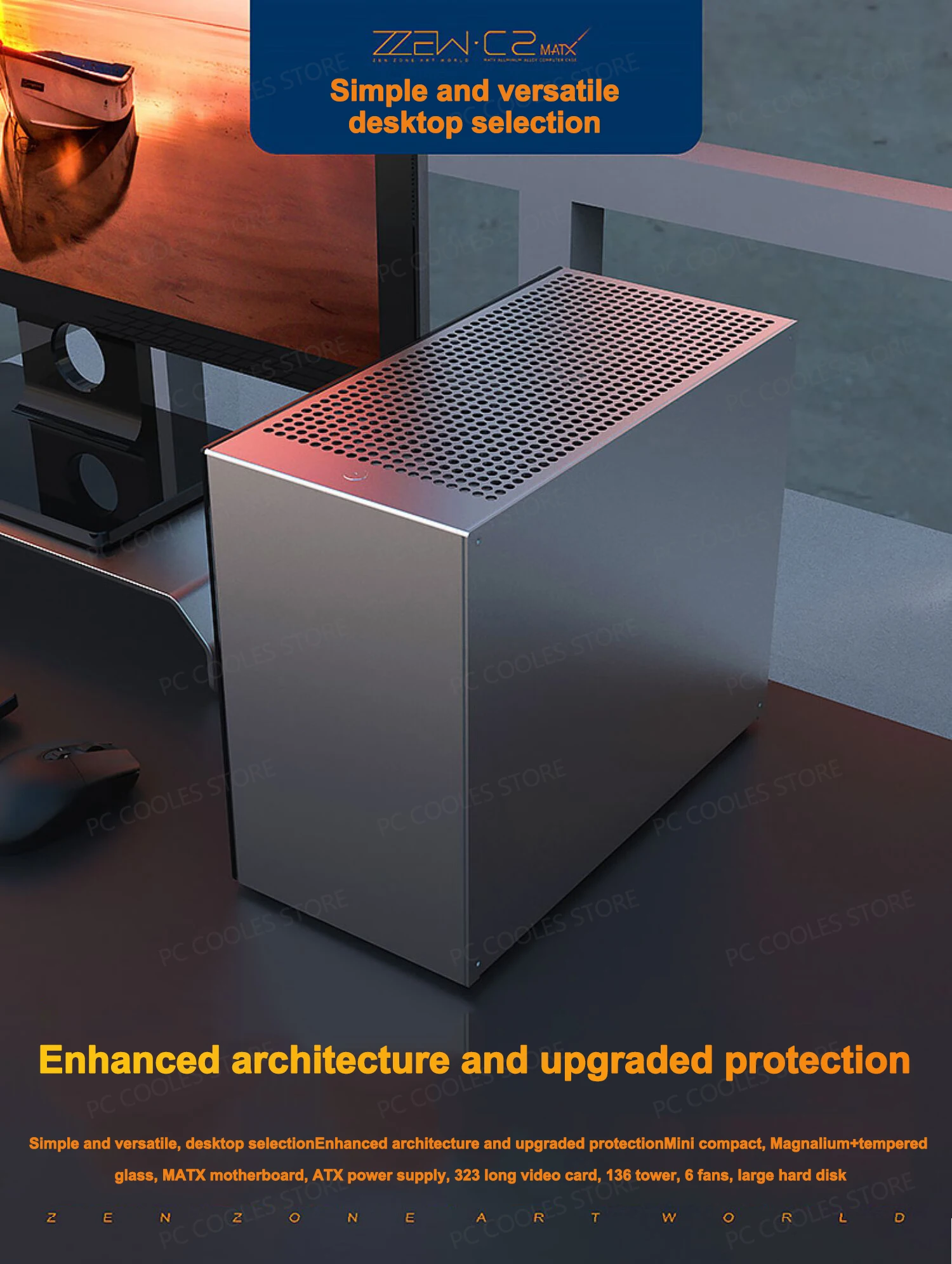

C2
Model: C2

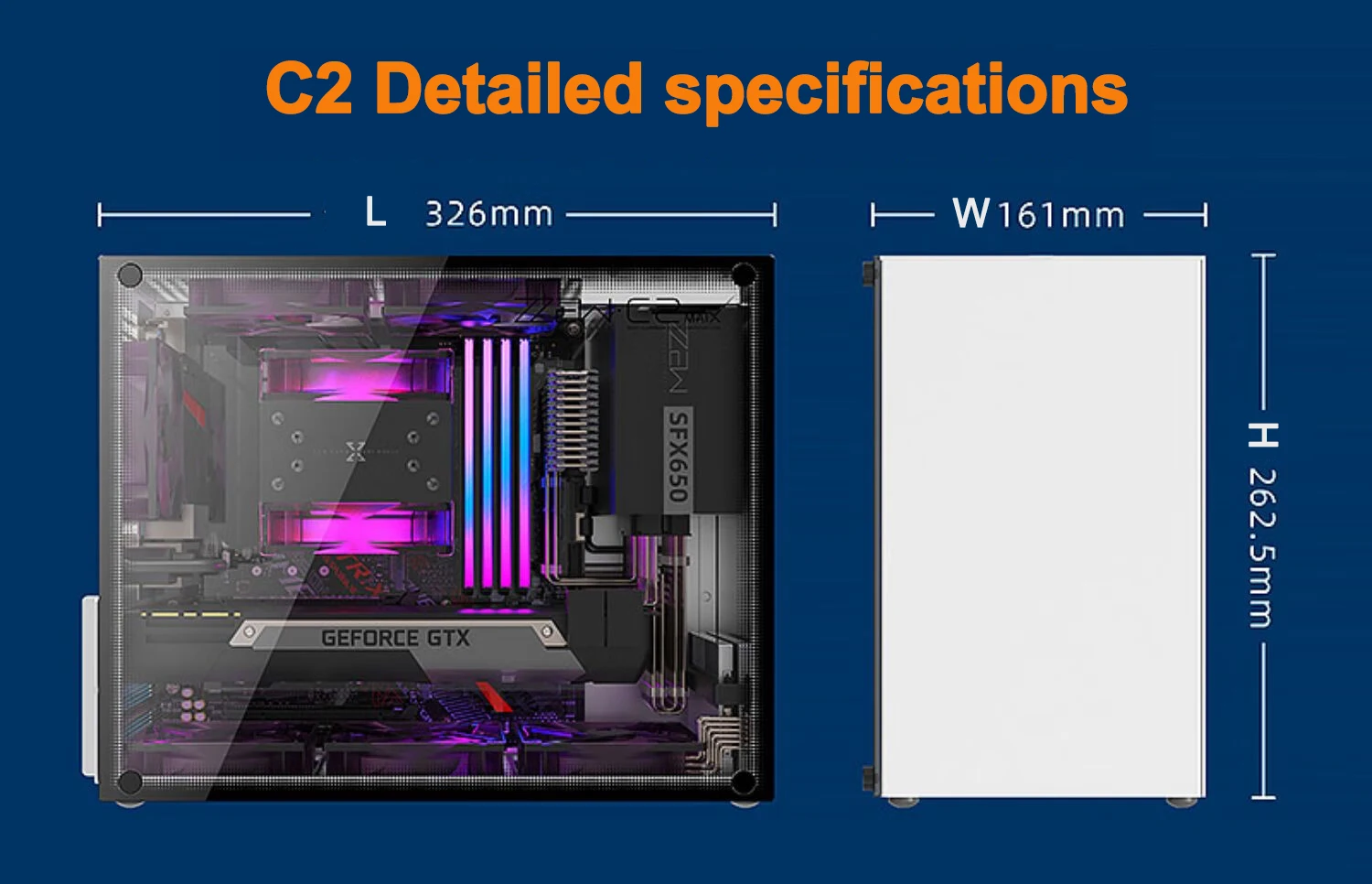

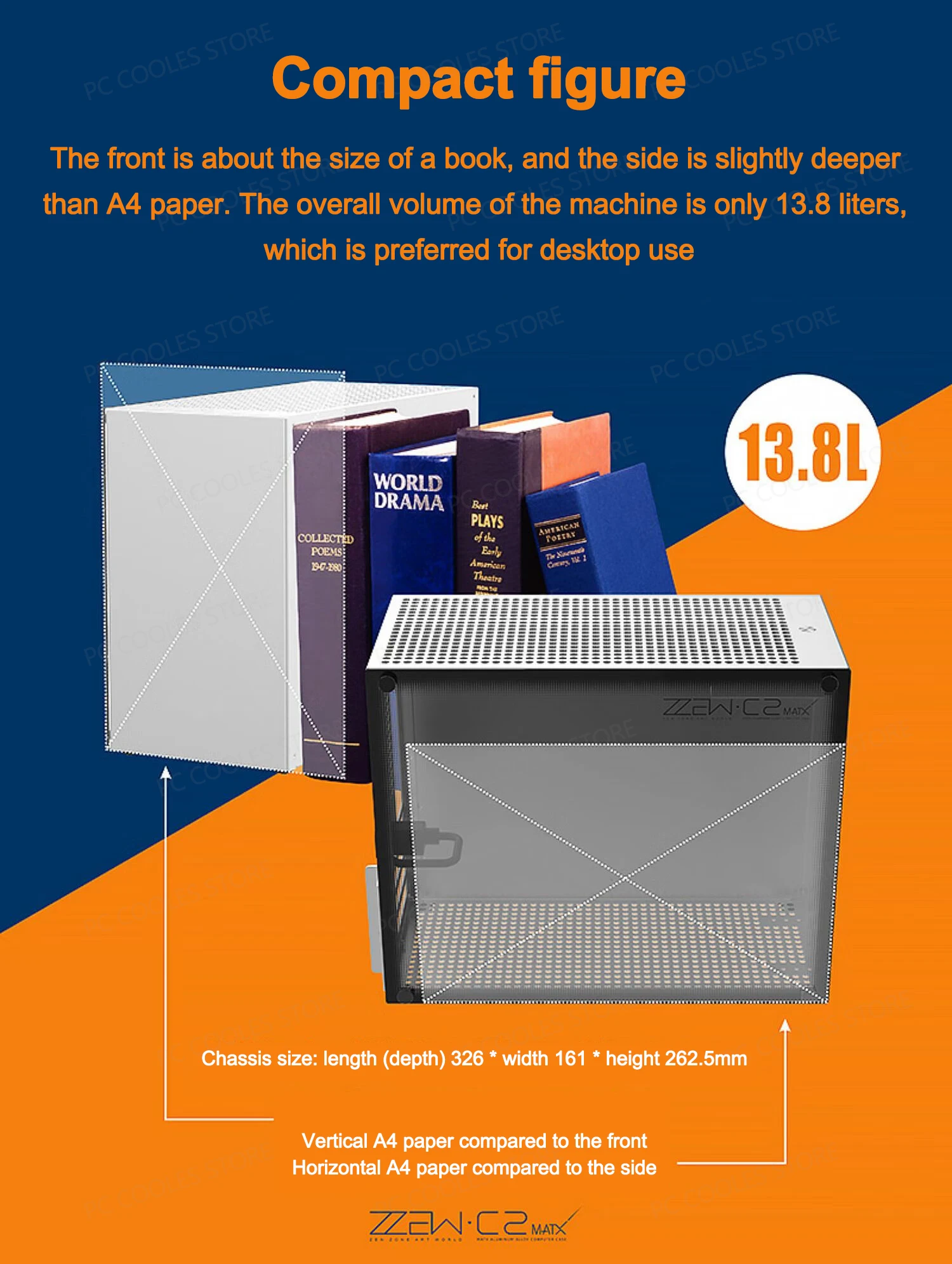

Chassis size: length (depth) 326 * width 161 * height 262.5mm
Chassis volume: 13.8 liters
Net weight: 1.7KG
Packaging size (logistics size): 397 * 215 * 320mm
Gross weight (logistics weight): 2.3KG

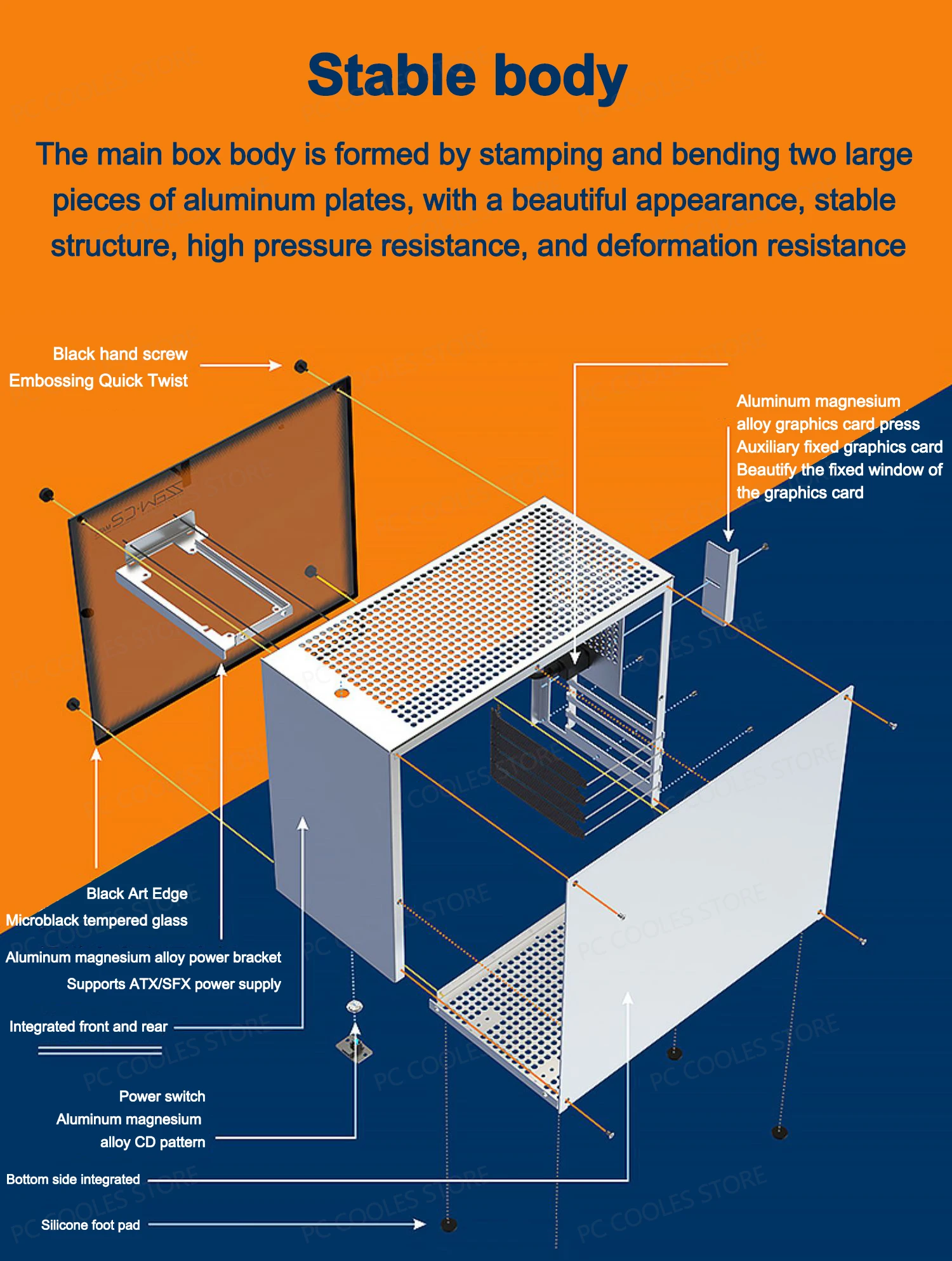

Body material: 1.5mm thick aluminum magnesium alloy plate

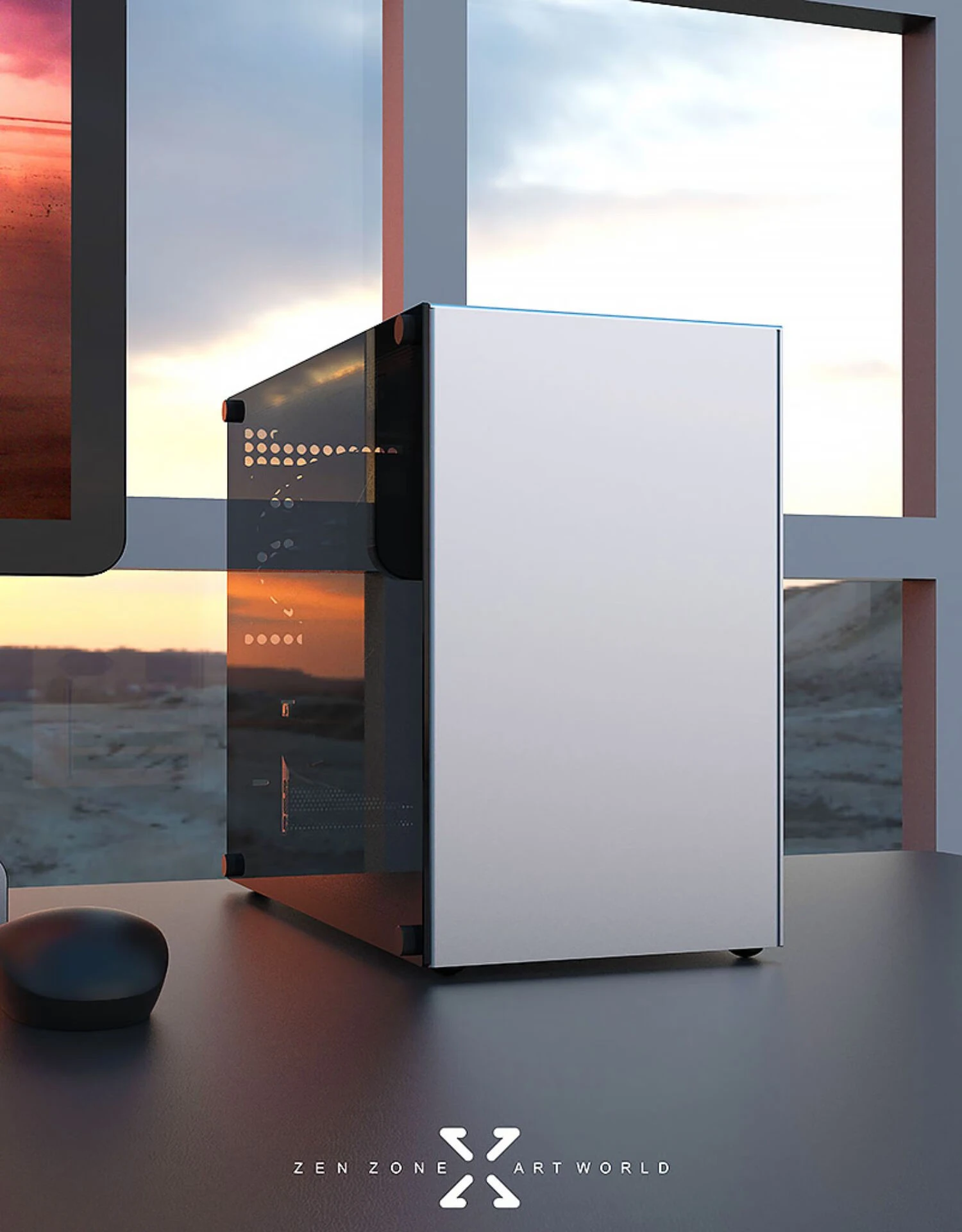

Side panel material: 3.0mm thick tempered glass (light black transparent)
Color: Silver white (natural color of aluminum magnesium alloy)
Surface treatment: sandblasting+anodizing
Front: 1 key with indicator light on/off
Attachment: accessory box (including screws, etc.)+dual mode power rack * 1
Gift: Dust net * 1

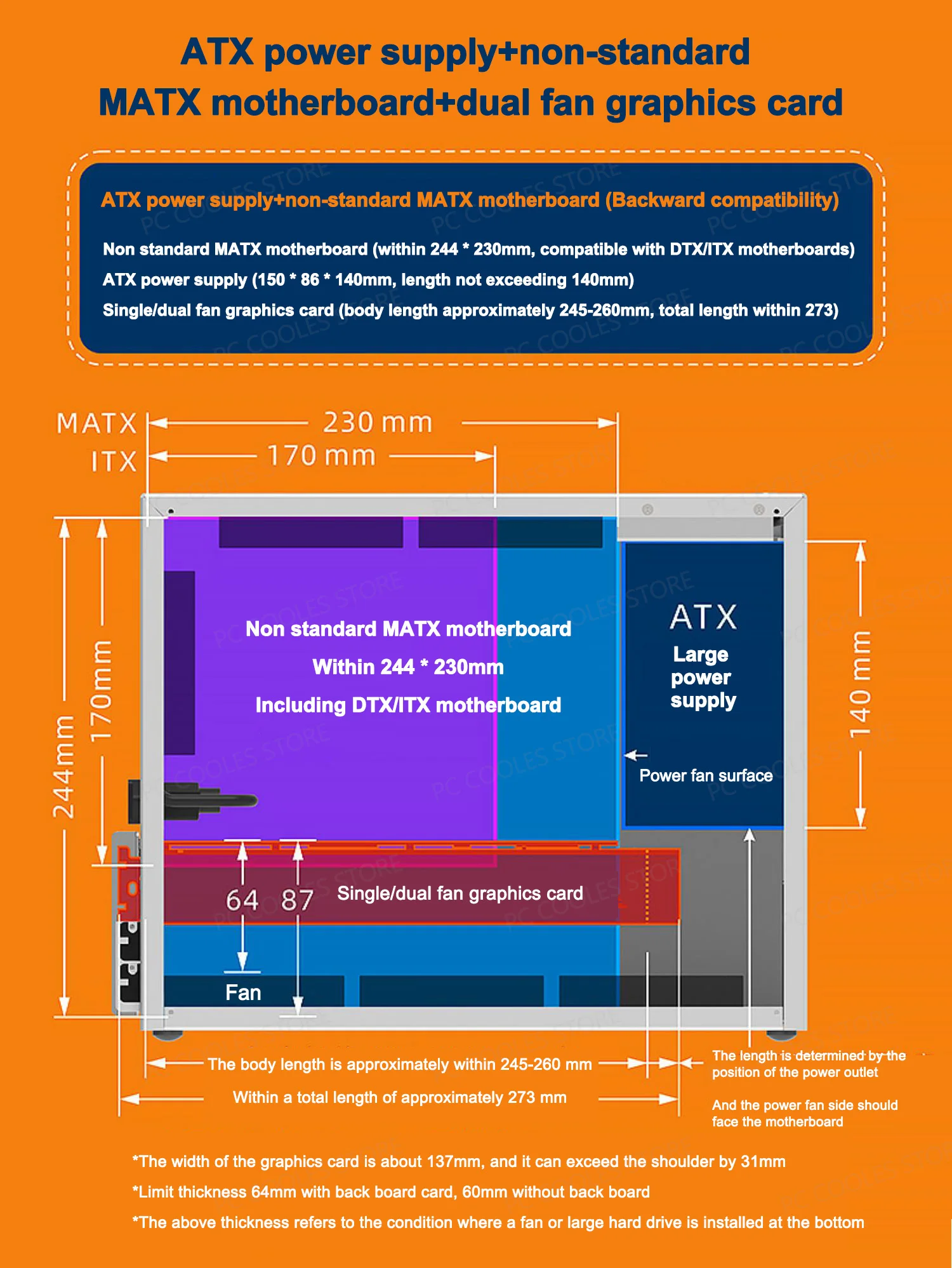

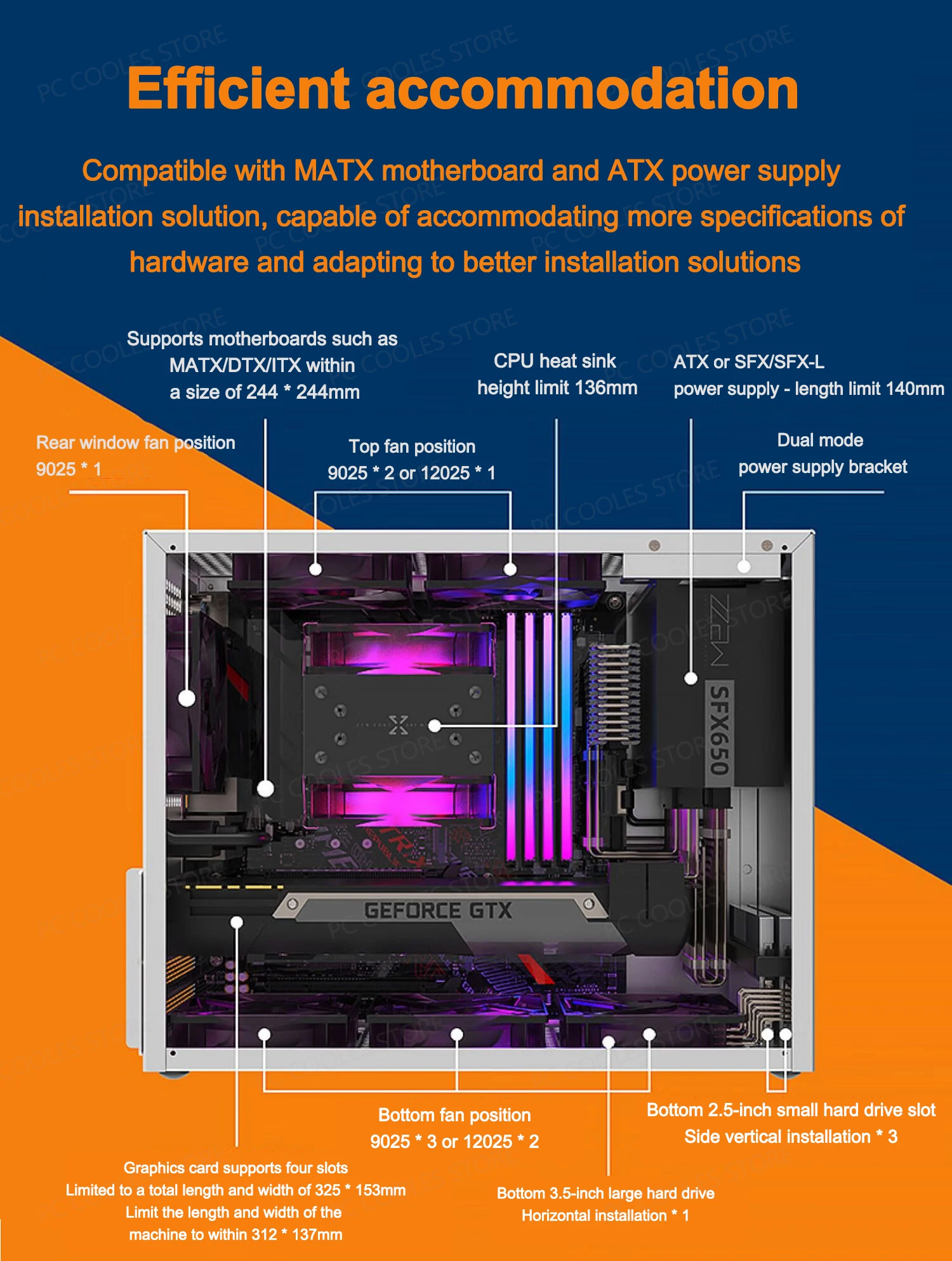

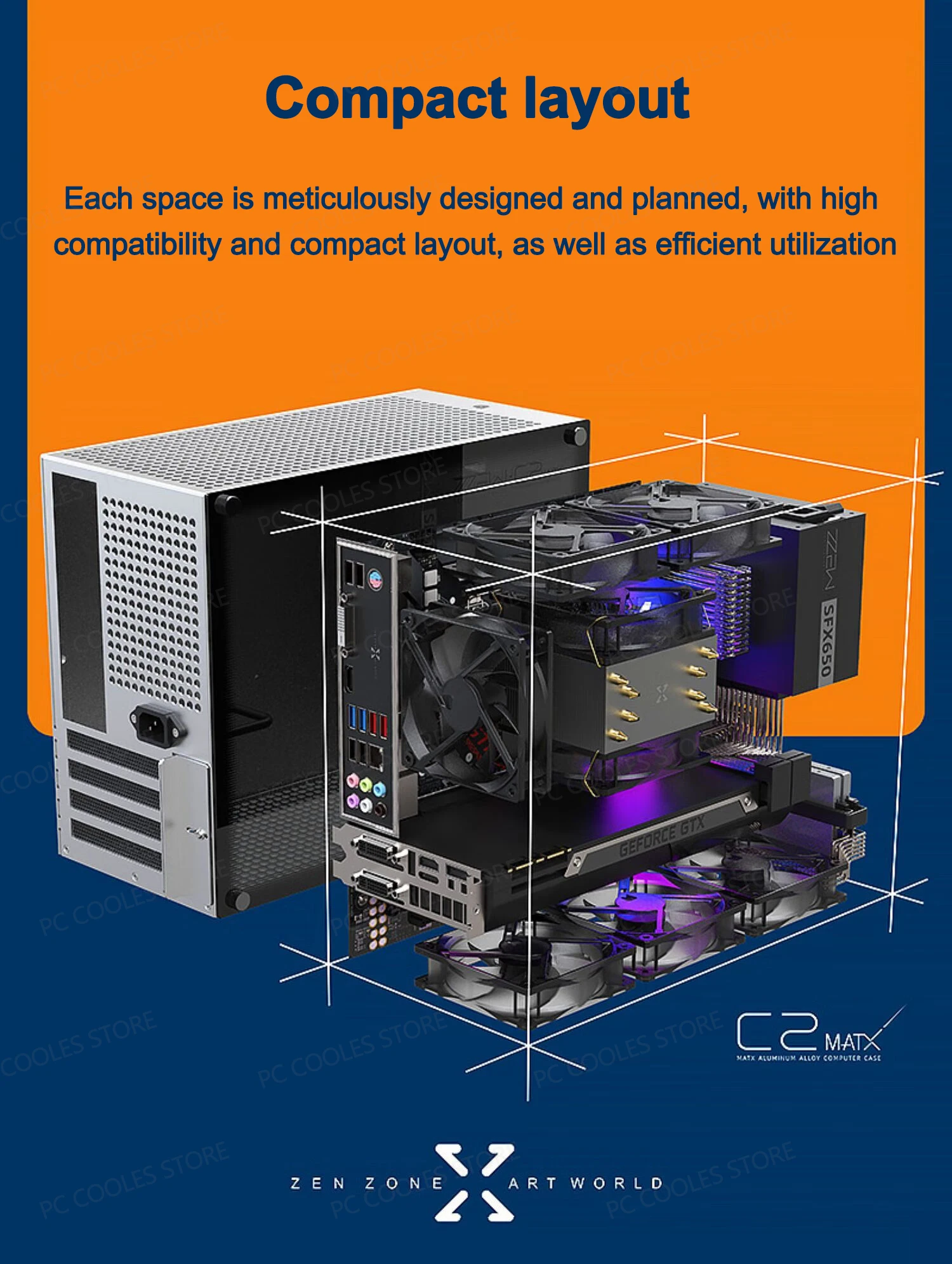

Motherboard support: MATX, DTX, ITX
Power support: ATX, SFX-L, SFX
Hard drive support: 3.5 * 1 and 2.5 * 3 slots
Graphics card support: total length 325 * total width 153mm * thickness 4 slots

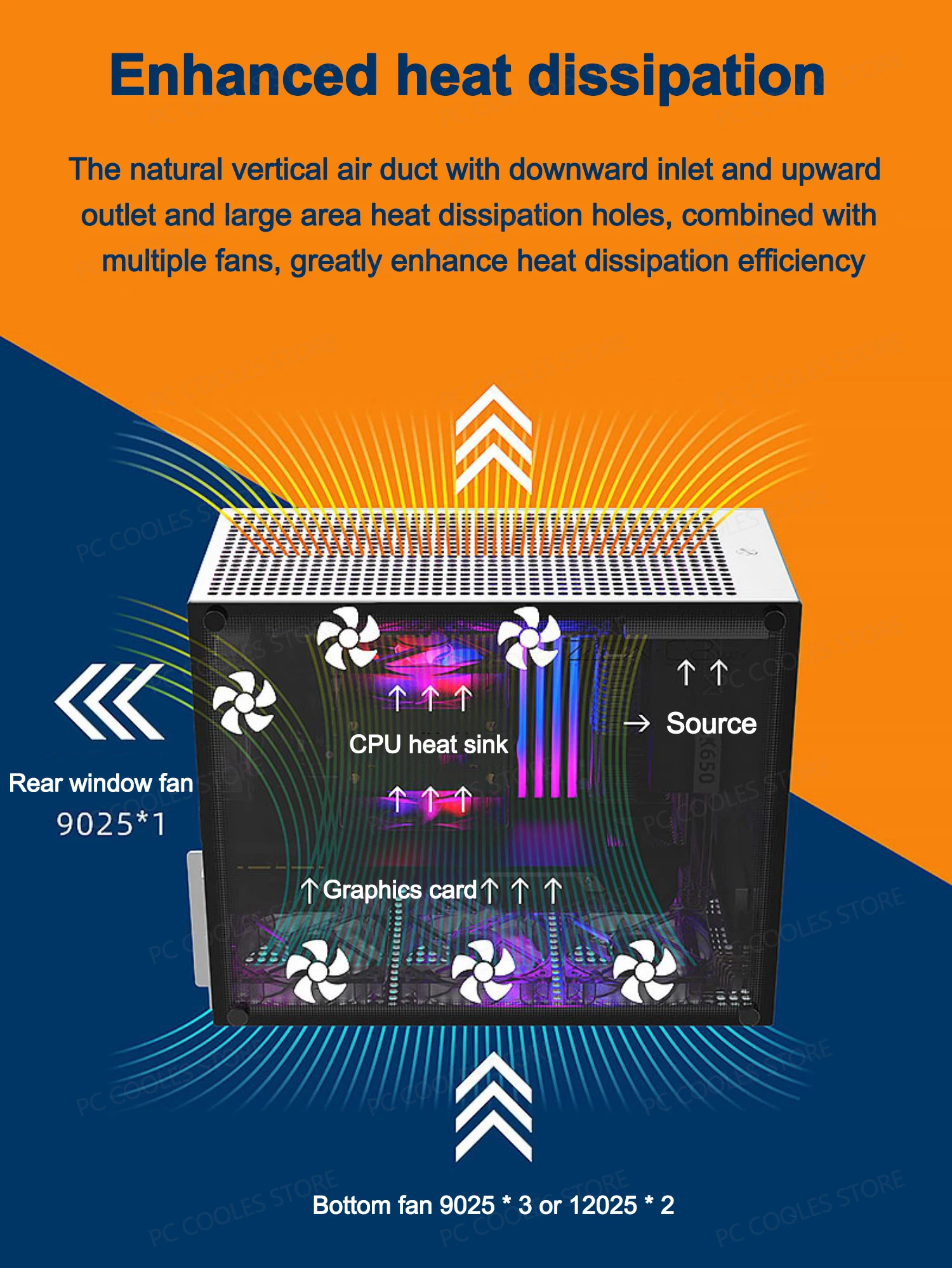

Fan support: 9025 * 6 or 12025 * 3+9025 * 1
CPU heat sink support: height within 136mm
