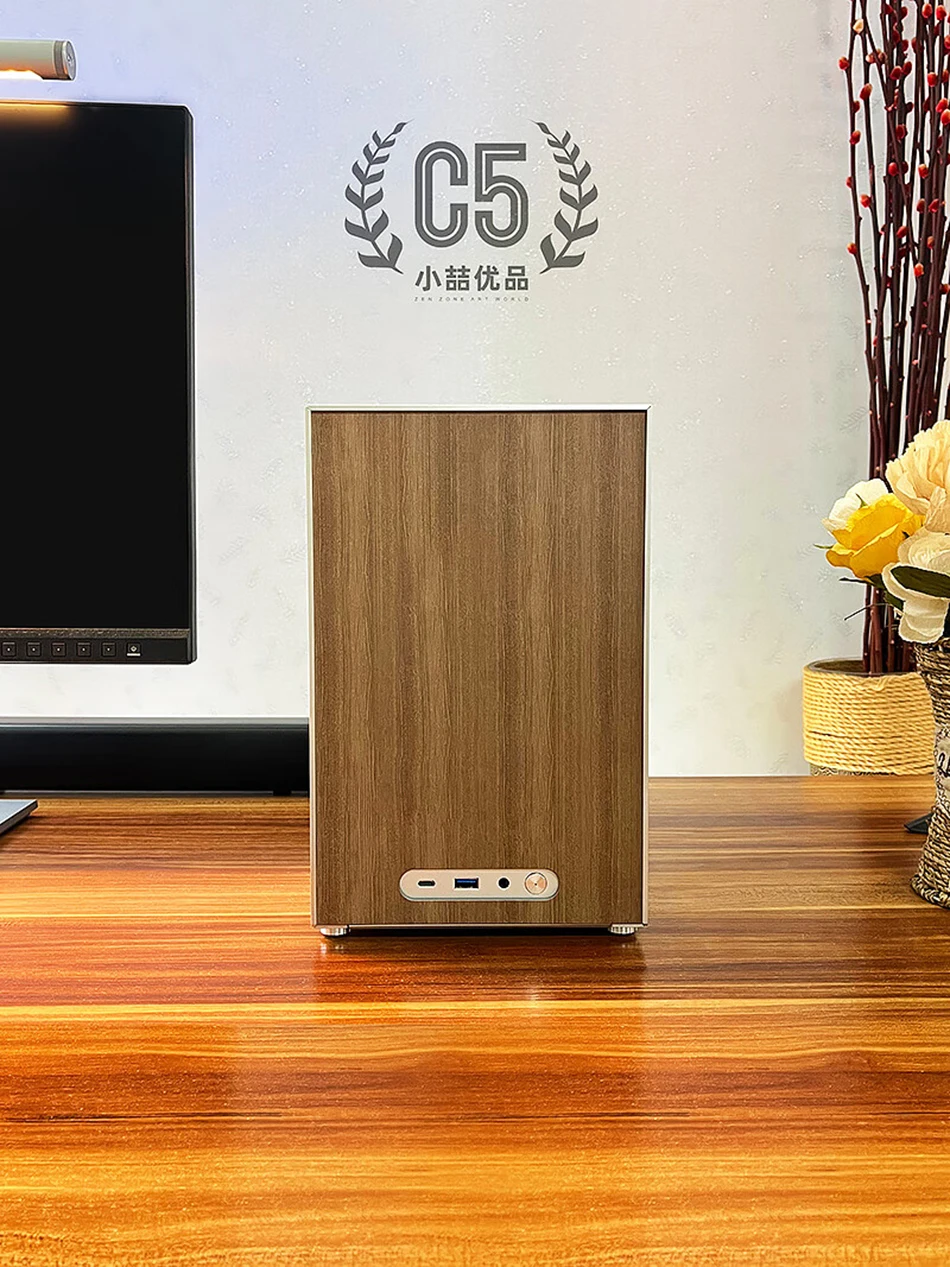

Note: The standard configuration is a black glass mirror and UV wood grain. Other versions require purchasing accessories yourself

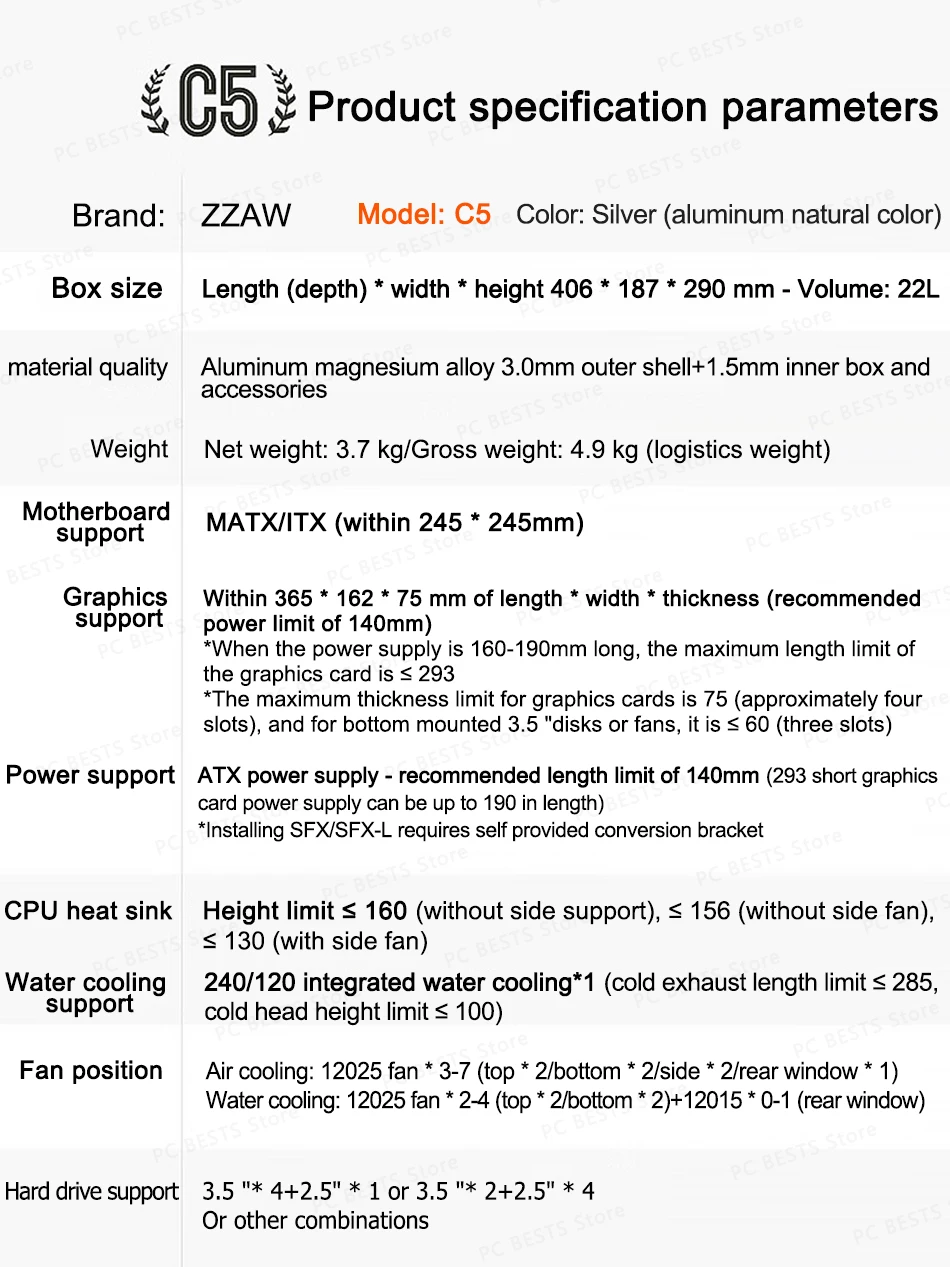

Case parameters
Brand: ZZAW
Model: C5

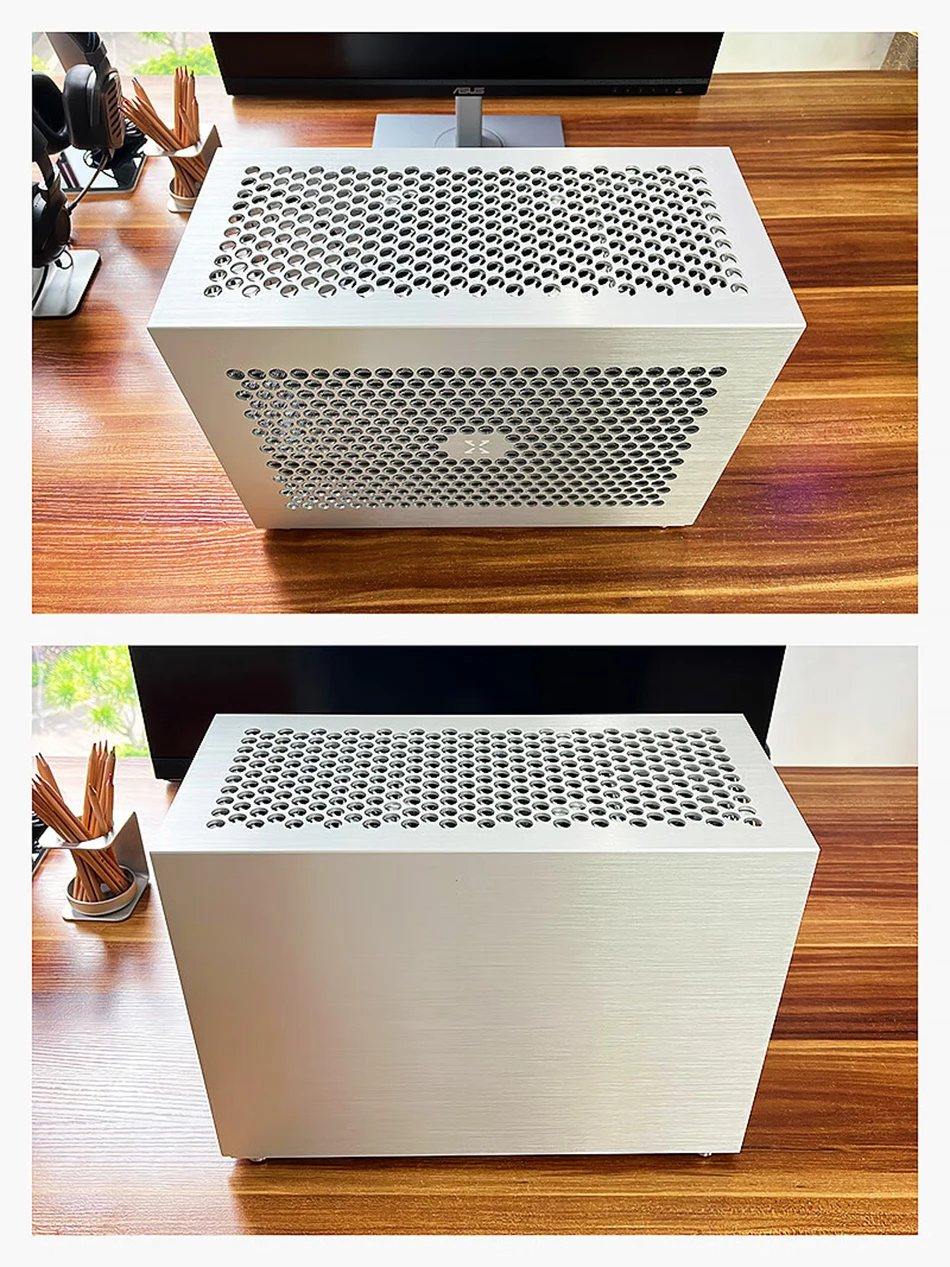

Color: Silver

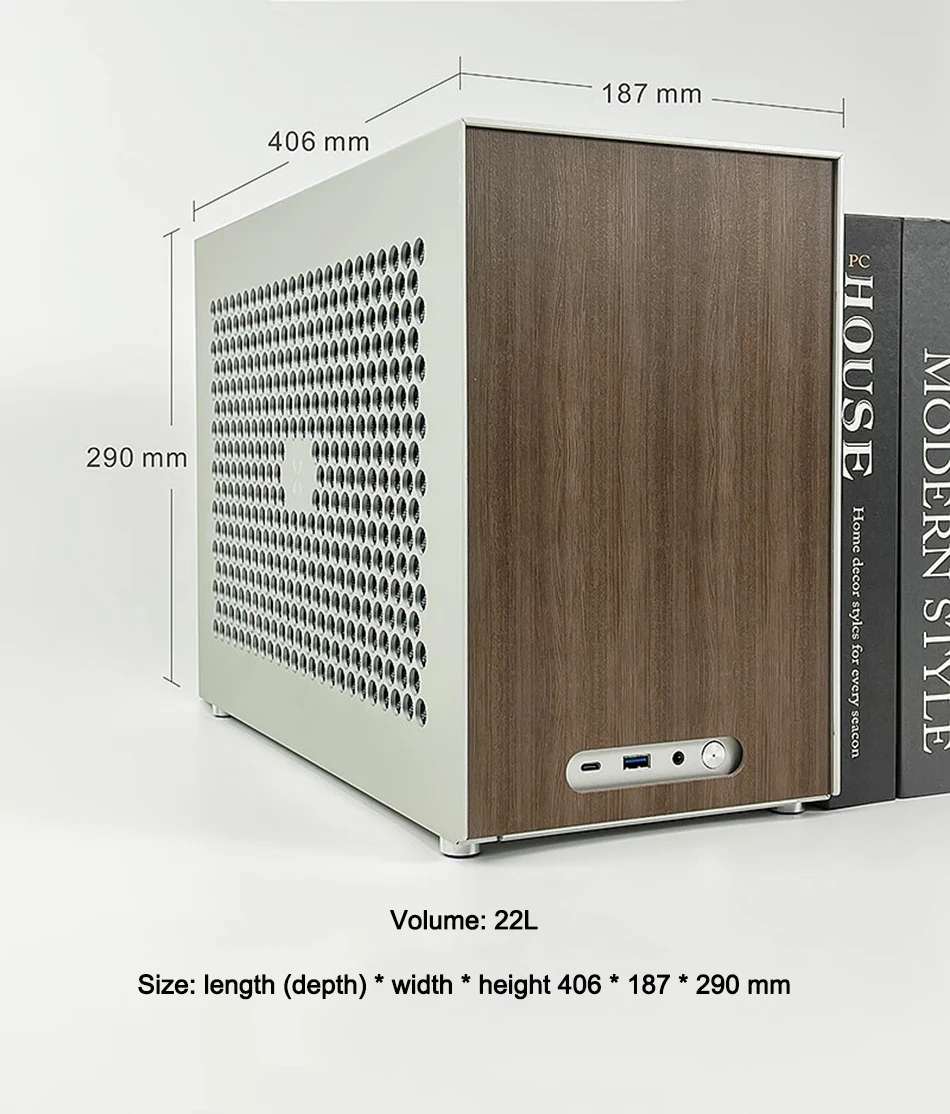

Size: 406*187*290mm (L*W*H)
Volume: 22L

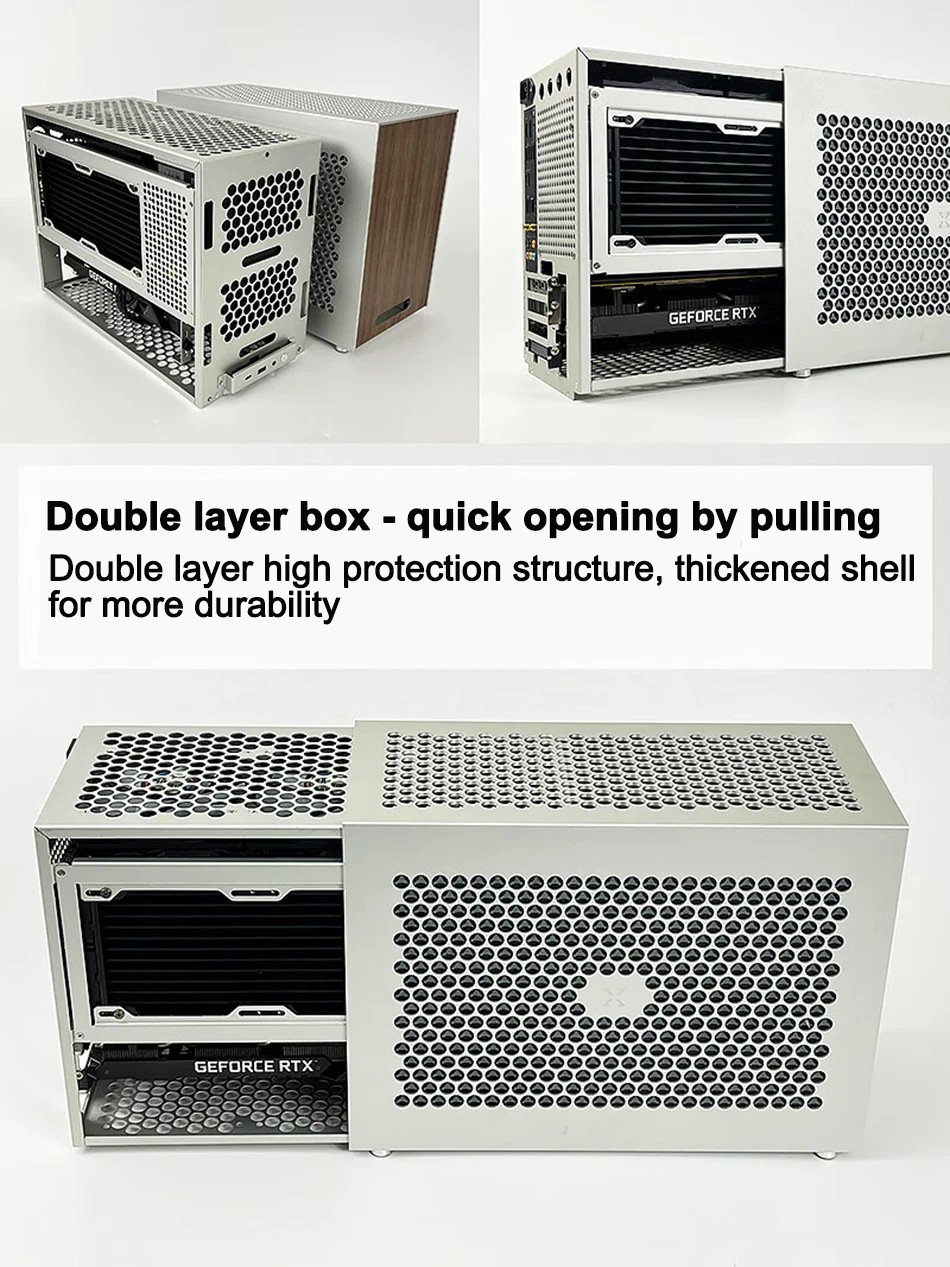

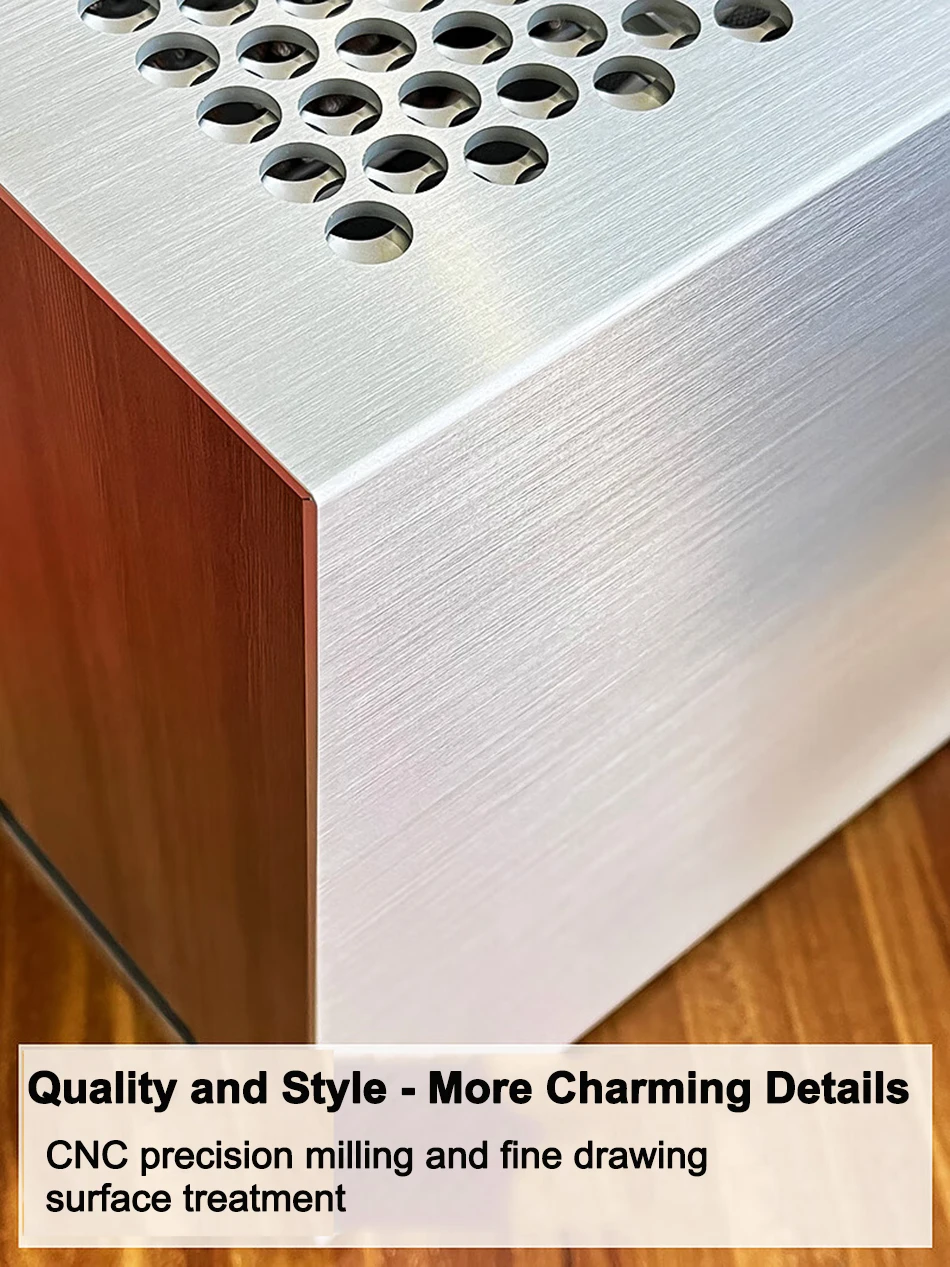

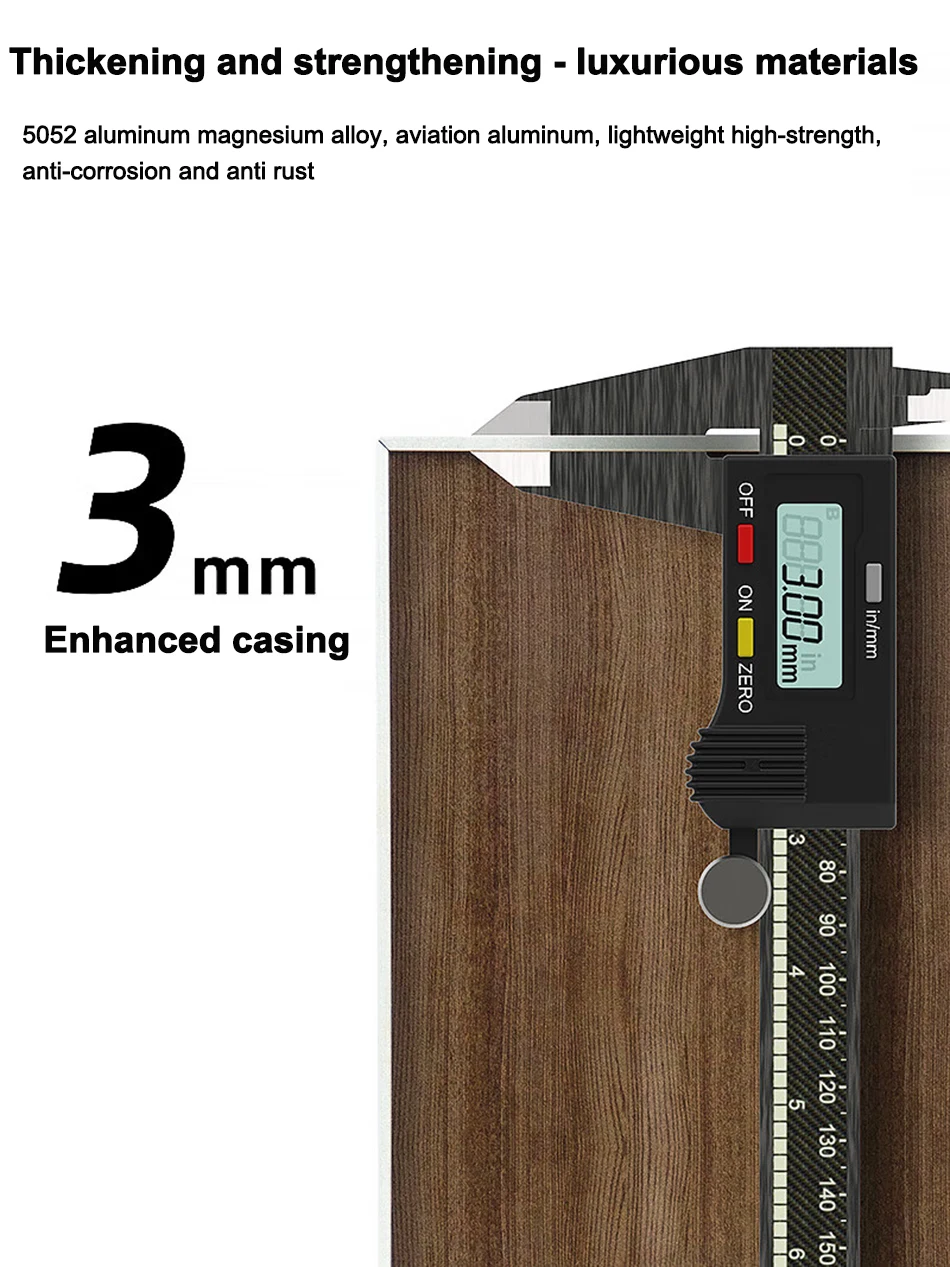

Material: aluminum-magnesium alloy 3mm shell + 1.5mm inner case and accessories

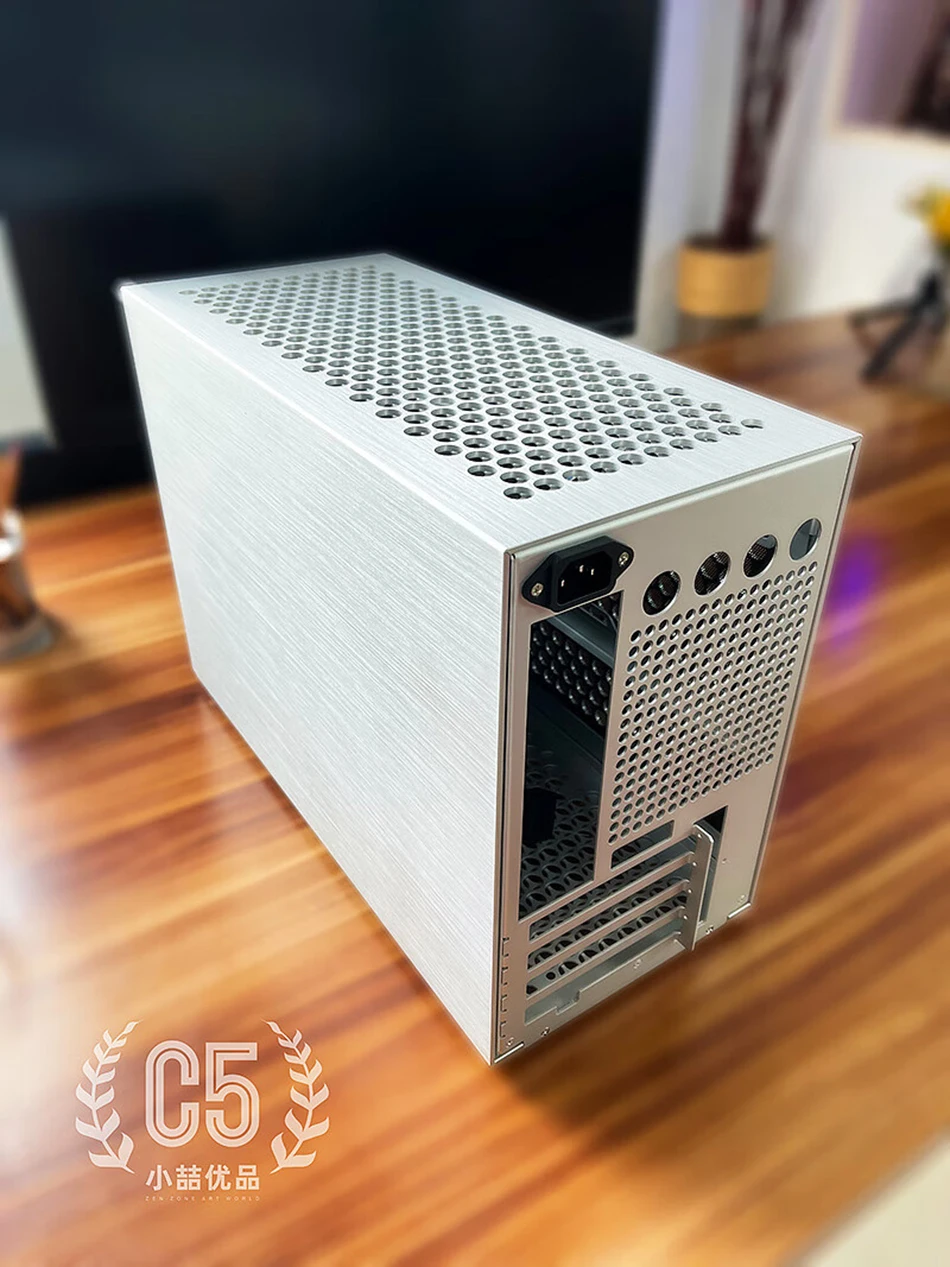

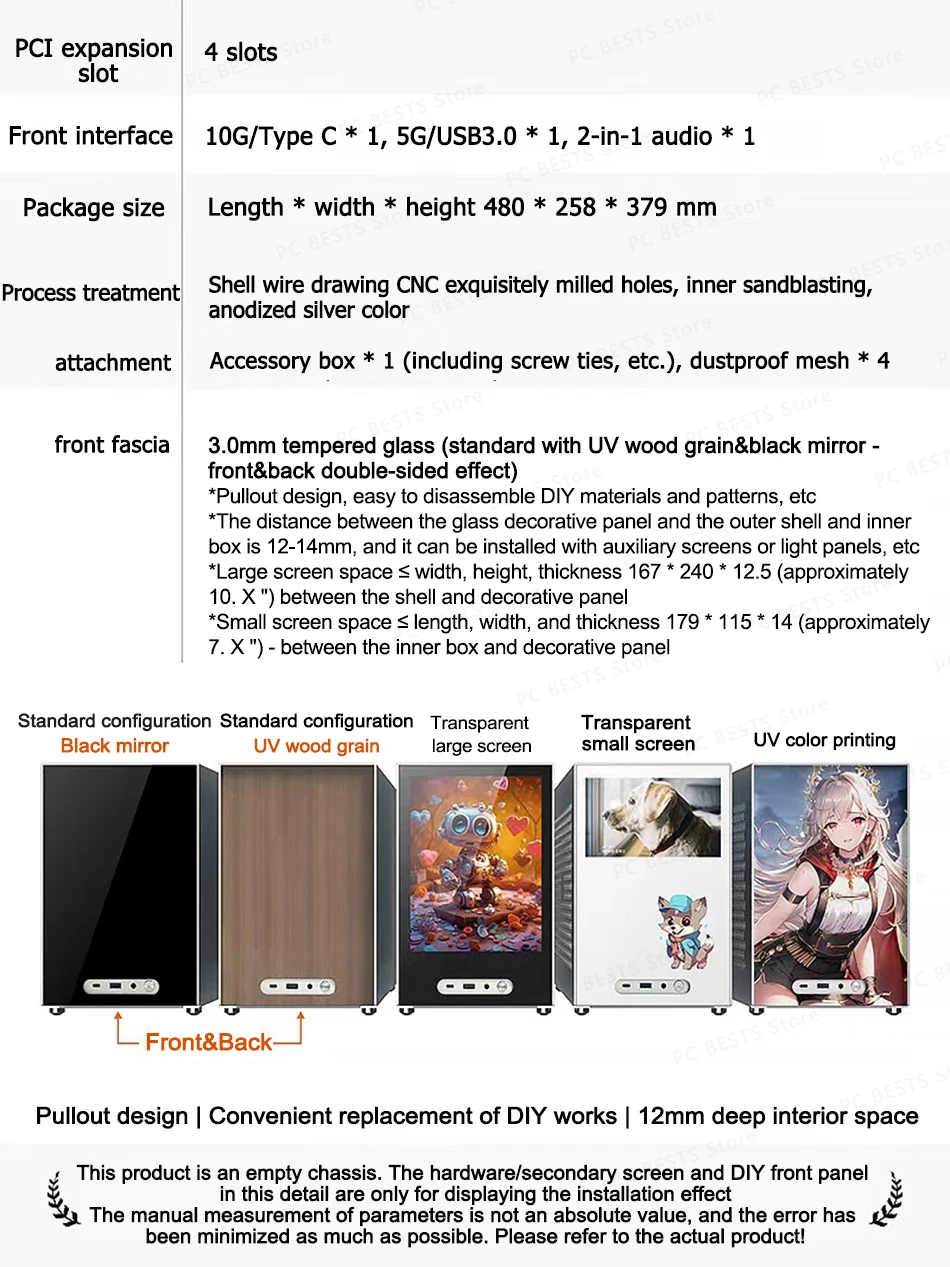

PCI expansion slot: 4 slots

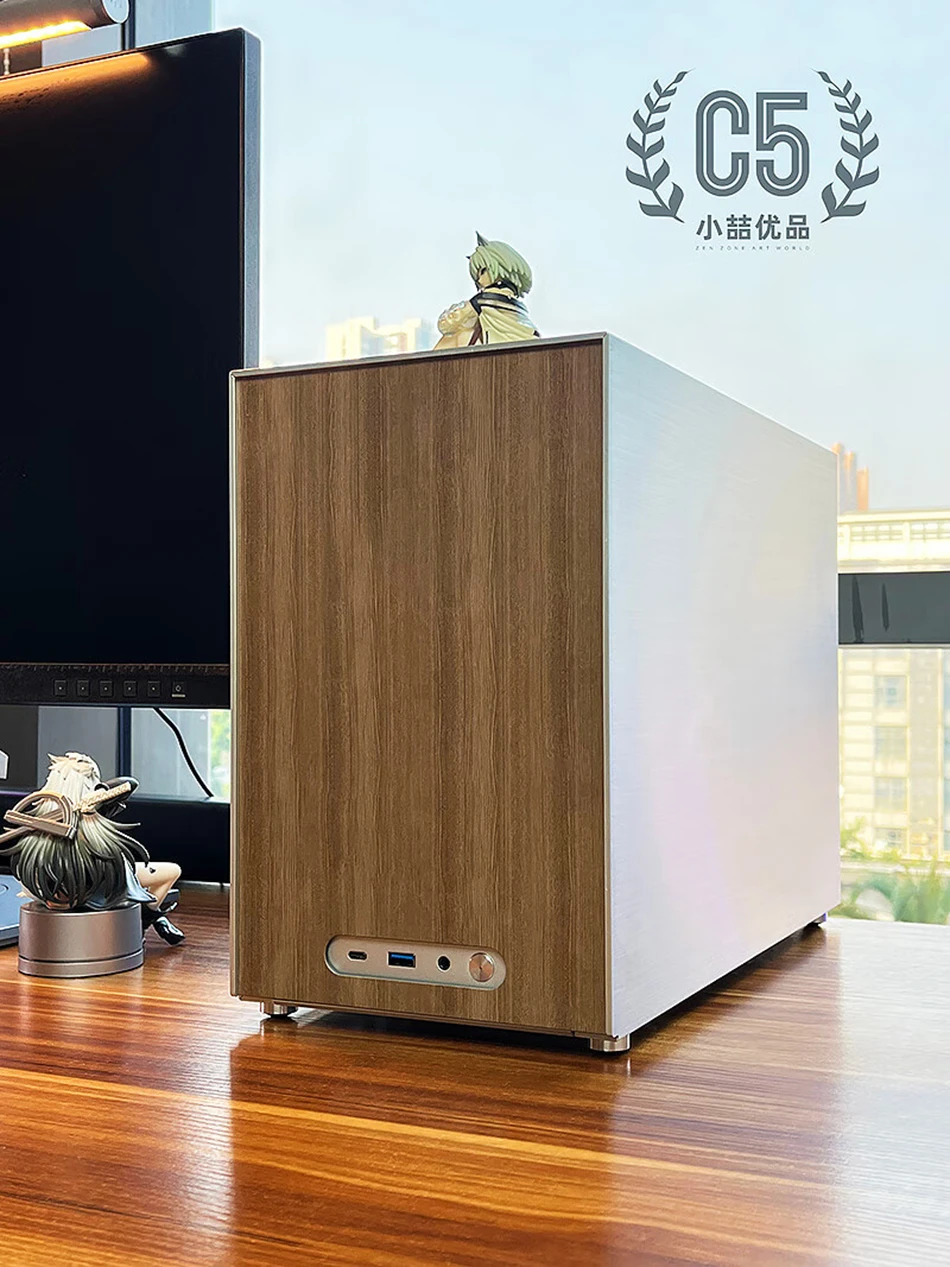

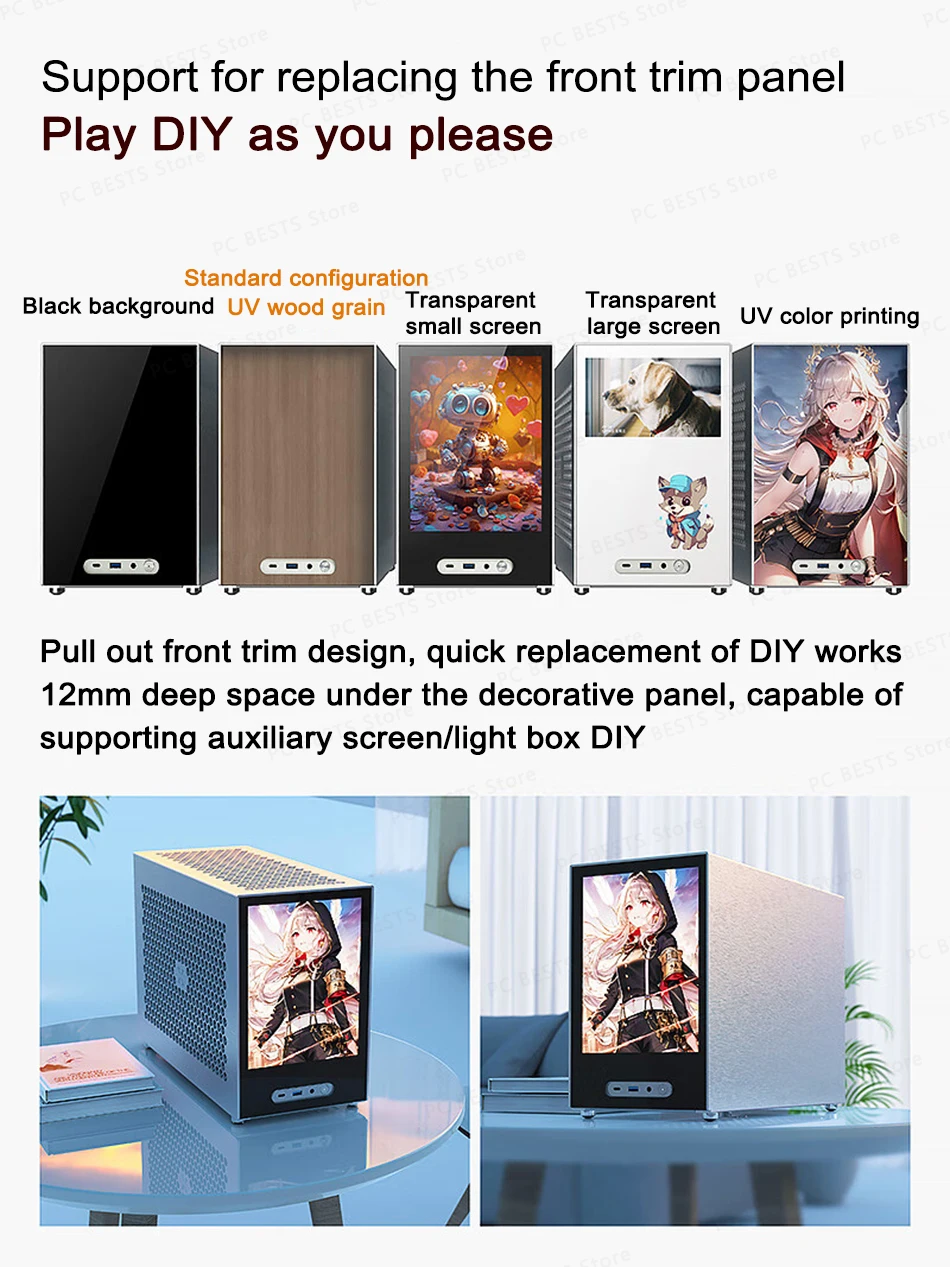

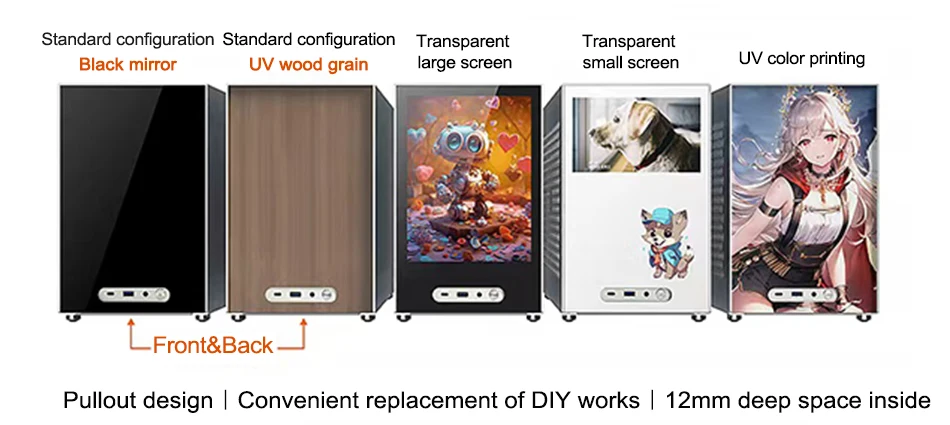

Front panel: 3mm tempered glass (UV wood grain & black mirror as standard – front & back double-sided effect)

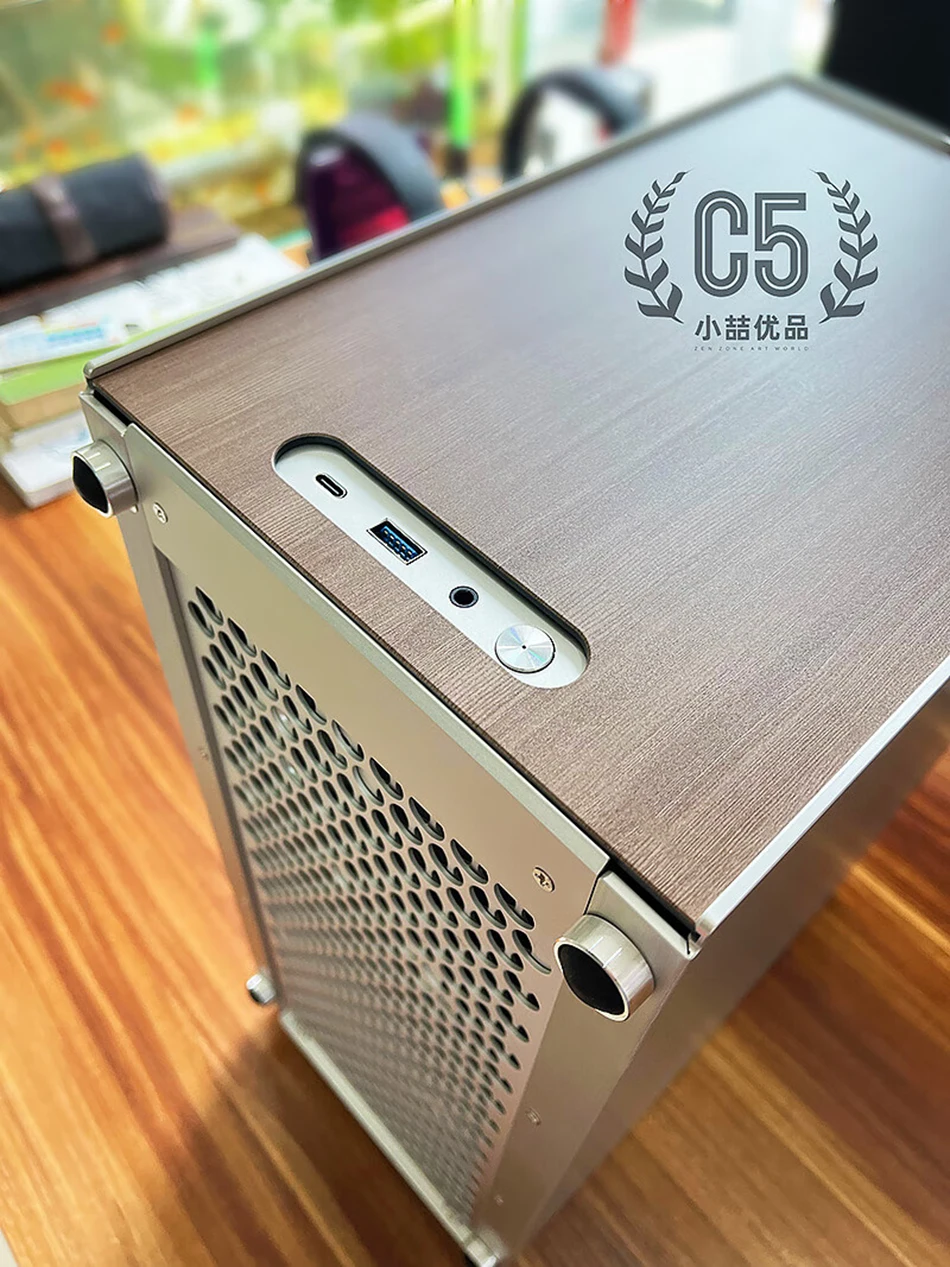

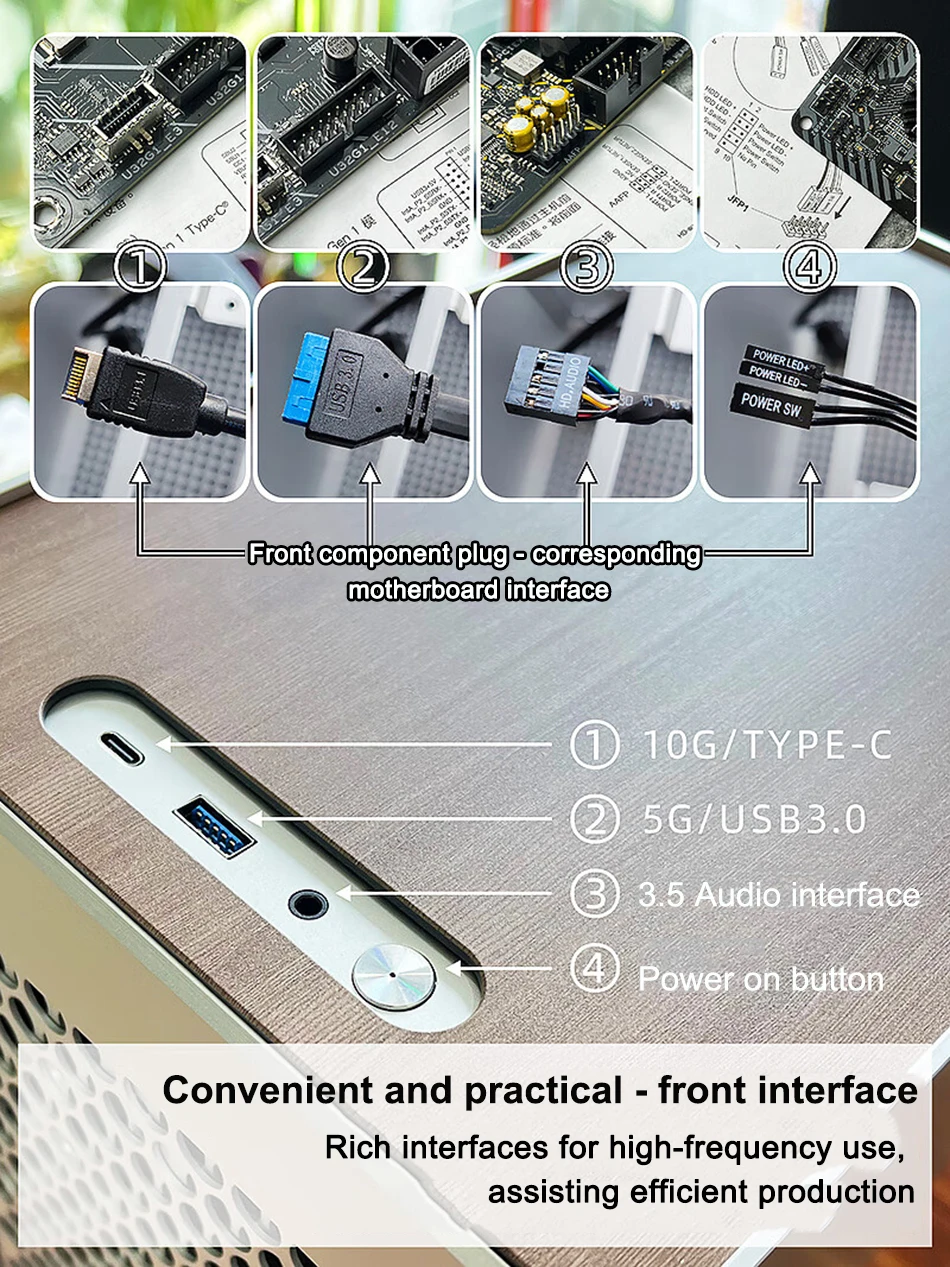

Front Interface: 10G/Type-C*1+5G/USB3.0*1+2-in-1 Audio*1
Net weight: 3.7KG

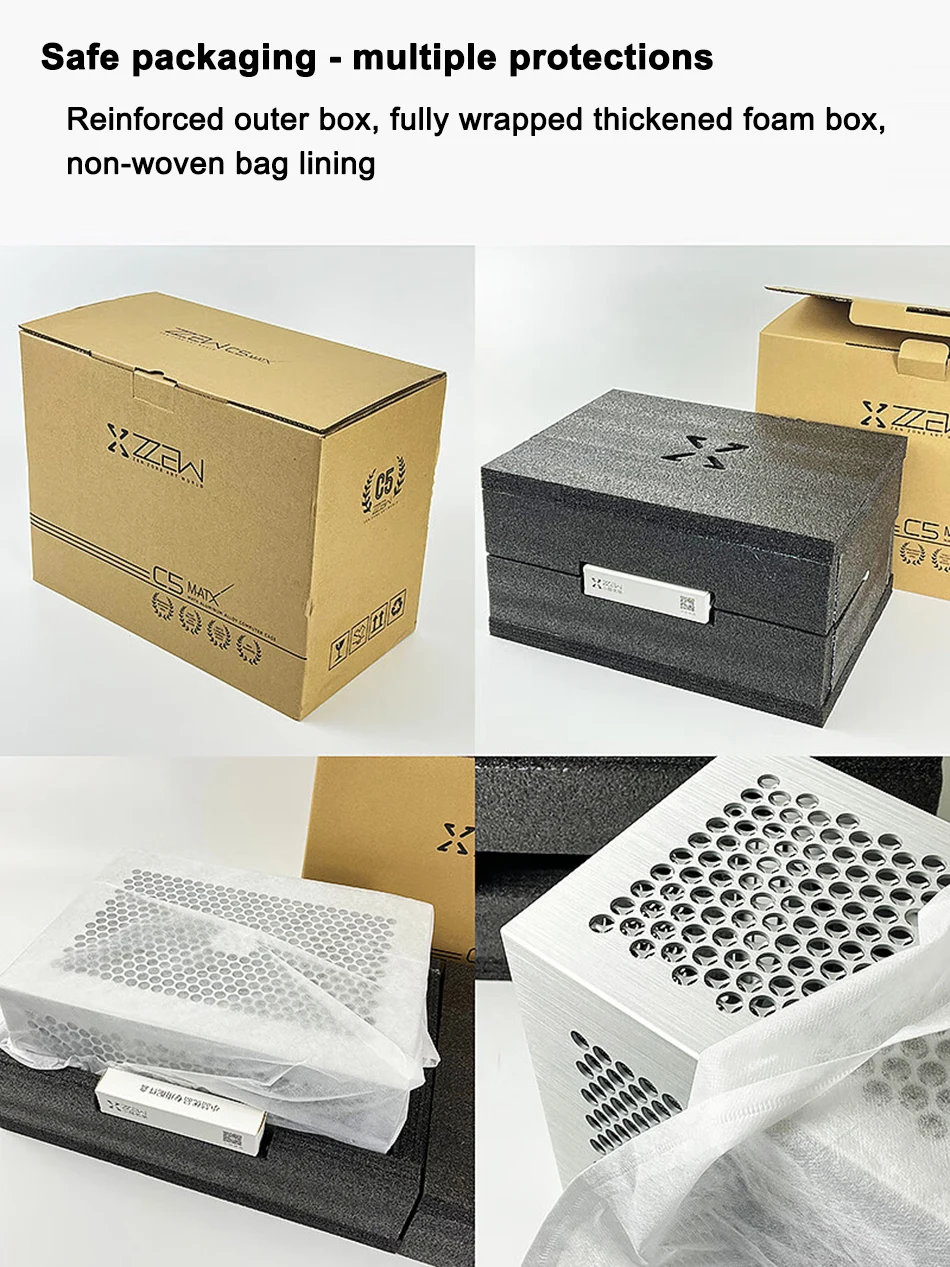

Gross weight: 5KG (logistics weight)
Package Size: 480*258*379mm
Hardware Support:
Motherboard: Support MTX/ITX (within 245*245mmn)
Power supply: support ATX power supply – recommended length limit 140mm (293mm short Graphics card power supply up to 190mm)
When installing SFX power supply, you need to provide your own conversion bracket
Graphics card: support 365 * 162 * 80mm (power supply needs to limit the length of 140mm)
*Graphics card length ≤ 293mm, power supply length can be 150-190mm
*Graphics card length of 365-373mm, graphics card limit thickness of 64mm, this time the bottom of the installed 3.5 ‘hard disk or fan thickness ≤ 60mm
CPU cooler: height limit ≤ 160mm (no side bracket), ≤ 156mm (side without fan), ≤ 130mm (side with fan)
Water cooling: Support 240/120 integrated water cooling*1 (length limit of cold plate ≤285mm, height limit of cold head 100mm)

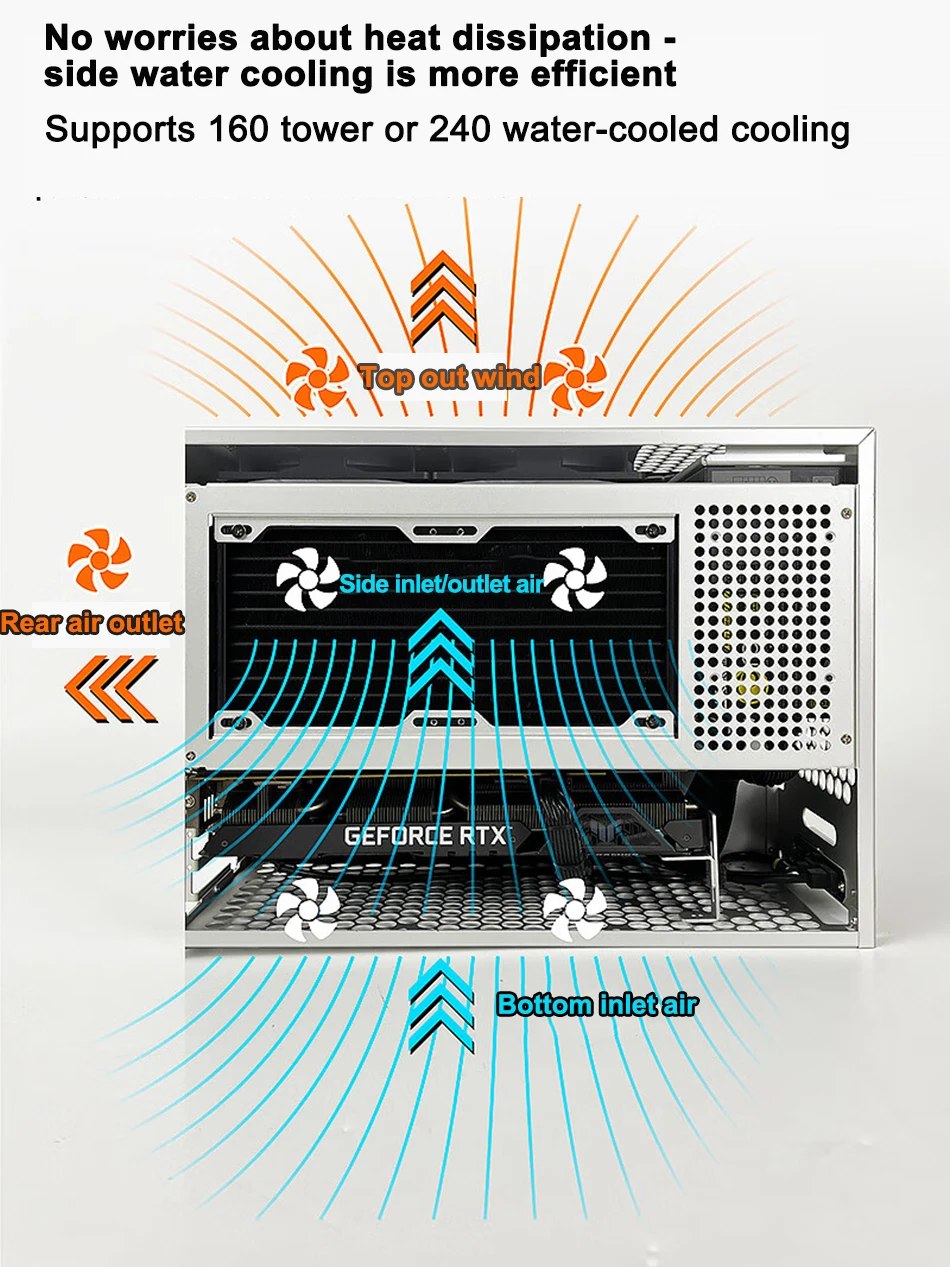

Fan position:
Air-cooled state: 12025mm fan * 3-7 (top * 2 + bottom * 2 + side * 2 + rear window * 1)
Water-cooled state: 12025mm fan * 2-4 (top * 2 + bottom * 2) + 12015 * 0-1 (rear window)
(Note that the rear window fan must be a thin 15mm fan)
Hard disk position: support rear side 3.5"*1+left side bracket 2.5’*1+bottom multi-disk (occupy the bottom fan position and limited to small graphics cards)
Graphics card thickness ≤ 60mm, bottom 3.5”+1 or graphics card length 277mm within the bottom side stand 3.5”+3)
